PY76220512Mobile Base Unit

Sony Corporation
Mobile Base Unit - FCC ID PY76220512 - Sony Corporation
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Oct 30, 2003
Application Purpose
Original Equipment
Date of Application
Oct 30, 2003
Equipment Note
Mobile Base Unit
Frequency Range
1850.20000000 - 1909.80000000
Company
Sony Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗
↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗
↗

ID Label/Location Info

↗
↗

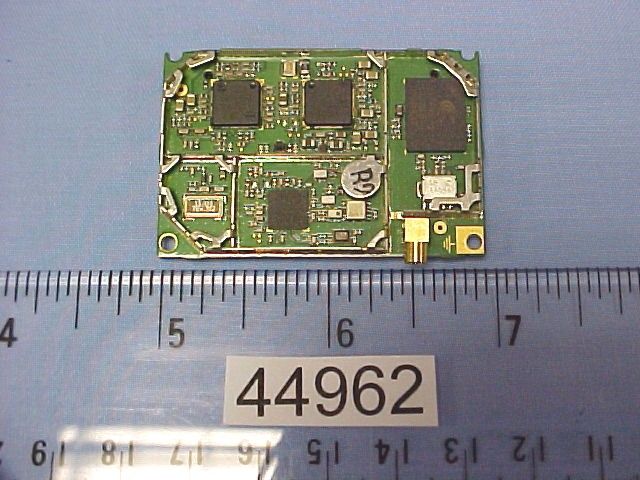

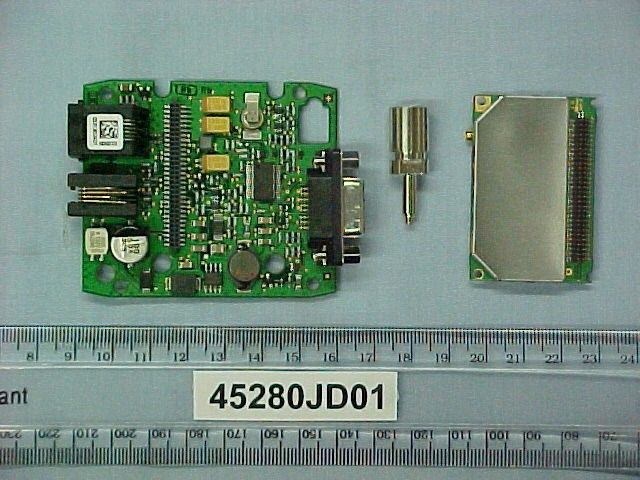

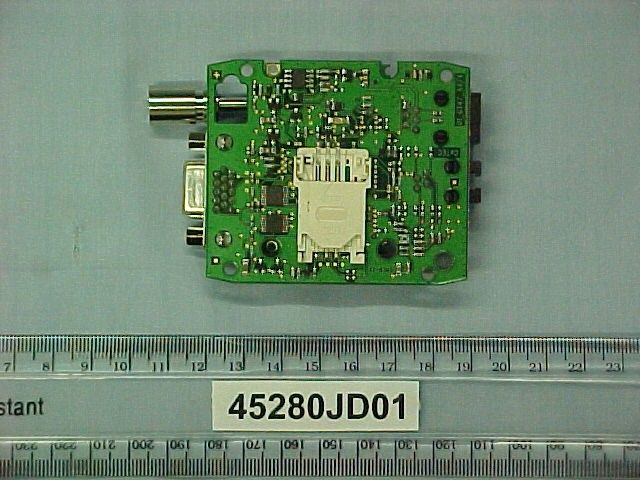

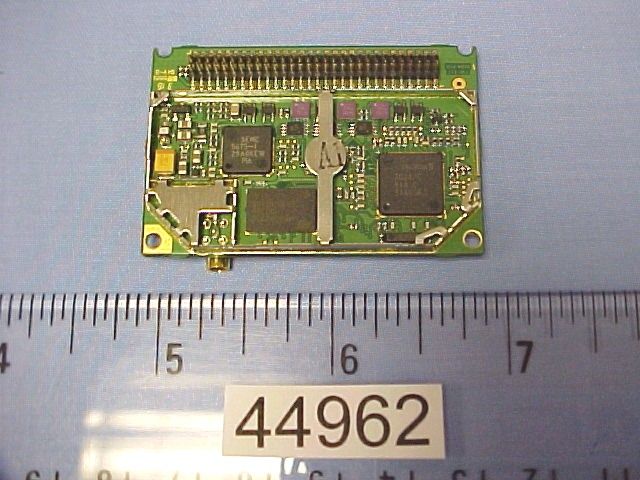

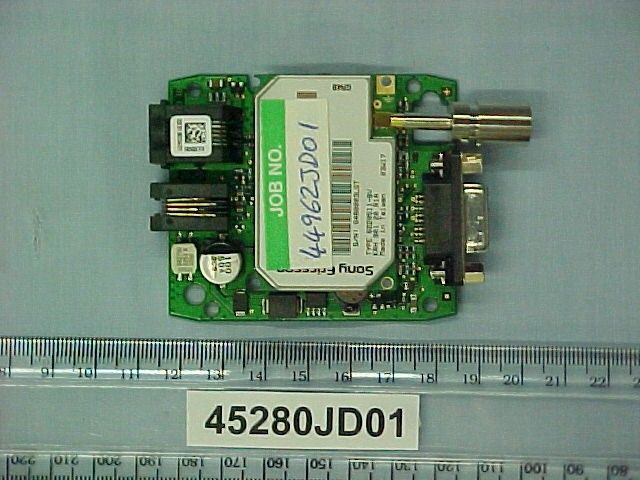

Internal Photos

↗
↗
↗
↗
↗

RF Exposure Info

↗

Test Report

↗

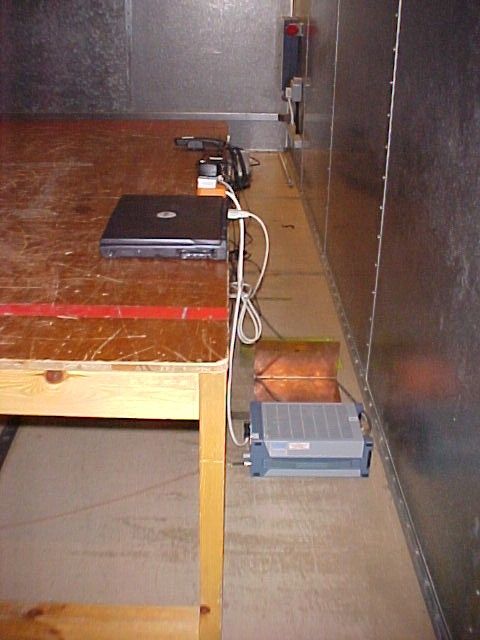

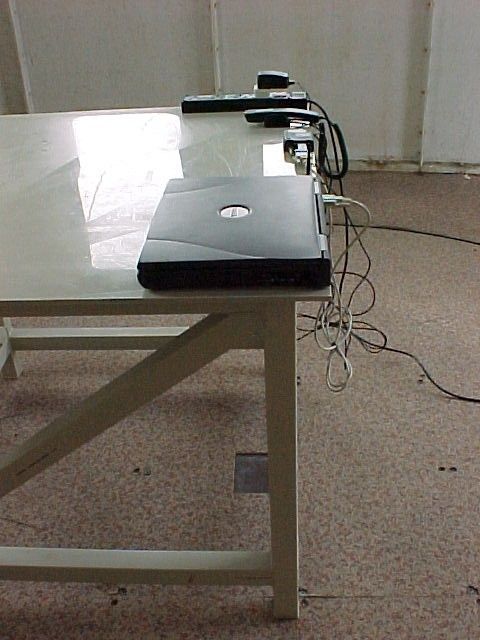

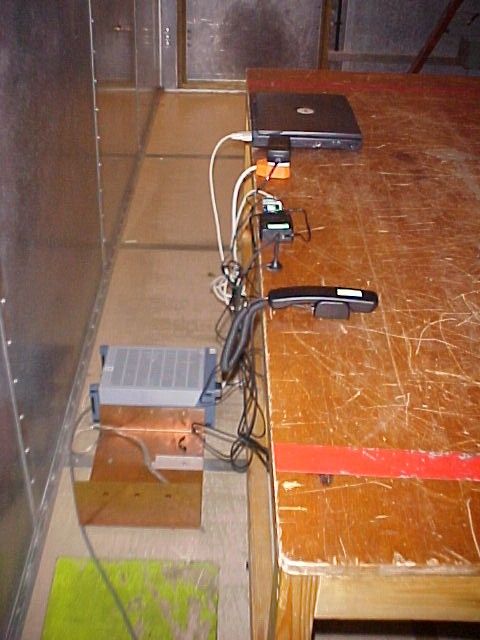

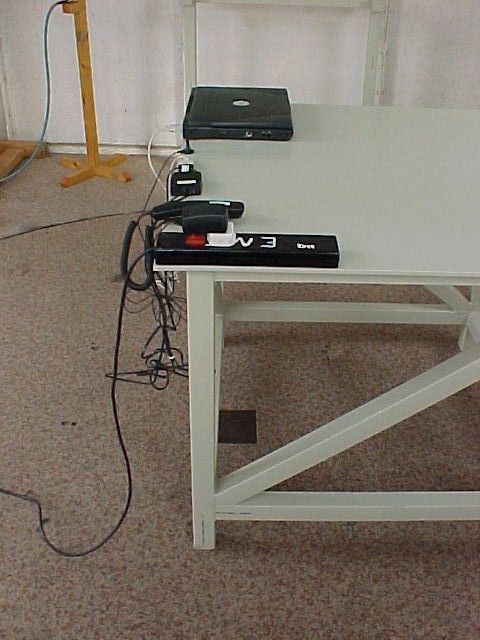

Test Setup Photos

↗
↗
↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Product Photo/Illustration GT47/GT48 Technical Description The information contained in this document is the proprietary information of Sony Ericsson Mobile Communications International.The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of SonyEricsson Mobile Communications International, is strictly prohibited. Further, no portion of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, without the prior written consent of Sony Ericsson Mobile Communications International, the copyright holder. First edition (June 2003) Sony Ericsson Mobile Communications International publishes this manual without making any warranty as to the content contained herein. Further Sony Ericsson Mobile Communications International reserves the right to make modifications, additions and deletions to this manual due to typographical errors, inaccurate information, or improvements to programs and/or equipment at any time and without notice. Such changes will, nevertheless be incorporated into new editions of this manual. All rights reserved. ©Sony Ericsson Mobile Communications International, 2003 Publication number: LZT 123 7607 R1B Printed in UK " LZT 123 7607 R1B Contents 1.Introduction .............................................................................................................. 4 1.1Description........................................................................................... 4 1.2Highlights........................................................................................... 4 1.3Main Features and Services............................................................................... 5 1.4Service and Support ......................................................................................... 9 1.5Precautions........................................................................................... 9 2.Mechanical Description .......................................................................................... 10 2.1Overview......................................................................................... 10 2.2Physical Dimensions ...................................................................................... 11 3.Electrical Description ............................................................................................. 12 3.1Power Supply and Extended I/O Connector ................................................... 12 3.2RS232 Serial and Extended I/O Interface ....................................................... 16 3.3Audio Connector ......................................................................................... 22 3.4Antenna Connector ........................................................................................ 24 3.5SIM Card Reader ......................................................................................... 25 3.6Real Time Clock ......................................................................................... 25 3.7Software Updates ......................................................................................... 26 4.Embedded Applications ......................................................................................... 27 4.1Features......................................................................................... 27 4.2Implementation......................................................................................... 27 5.TCP/IP Stack ........................................................................................................... 29 5.1Implementation......................................................................................... 29 6.Operation................................................................................................................. 30 6.1Switching the GT47 On ................................................................................ 30 6.2Switching the GT47 Off ................................................................................ 30 6.3Operating States/LED .................................................................................... 30 6.4Power Save......................................................................................... 31 6.5Controller Mode ......................................................................................... 31 7.Technical Data ........................................................................................................ 32 8.AT Command Summary......................................................................................... 36 9.Abbreviations and Definitions...............................................................................42 1. INTRODUCTION 4 LZT 123 7607 R1B 1. Introduction 1.1 Description The GT47/GT48 is an intelligent GSM/GPRS control terminal that encapsulates everything you need for wireless M2M capability in one compact unit. In conjunction with Sony Ericsson’s M2mpower package the GT47/48 can host and control your wireless application, minimising the need for extra components. Alternatively, it can be used as a powerful standalone GPRS modem with its intrinsic TCP/IP stack. The GT47/48 is a self contained terminal with its own SIM card reader and standard connector interface, minimising the need for further hardware development.Its wide and useful range of IOs can be reconfigured to add functions and features that make your M2M solution both innovative and cost effective. The GT47/GT48 can be used to provide a communications link for a variety of wireless applications including fleet and asset management, vending, security and alarm monitoring, e-maintenance and other telemetry applications. The ease of application development and hosting on the GT47/48 means M2M s…

Text truncated - open the document above for the full version.

Users Manual

Product Photo/Illustration GT47/GT48 Integrators Manual The product described in this manual conforms to the Radio and Telecommunication Terminal Equipment (R&TTE) directive 99/5/EC with requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC. The product fulfils the requirements according to 3GPP TS 51.010-1, EN 301 489-7 and EN60950. SAR statement: This product is intended to be used with the antenna or other radiating element at least 20 cm away from any part of the human body. The information contained in this document is the proprietary information of Sony Ericsson Mobile Communications International. The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Sony Ericsson Mobile Communications International, is strictly prohibited. Further, no portion of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, without the prior written consent of Sony Ericsson Mobile Communications International, the copyright holder. First edition (August 2003) Sony Ericsson Mobile Communications International publishes this manual without making any warranty as to the content contained herein. Further Sony Ericsson Mobile Communications International reserves the right to make modifications, additions and deletions to this manual due to typographical errors, inaccurate information, or improvements to programs and/or equipment at any time and without notice. Such changes will, nevertheless be incorporated into new editions of this manual. All rights reserved. ©Sony Ericsson Mobile Communications International, 2003 Publication number: LZT 123 7605 P1C Printed in UK 3 LZ T 123 7605 P1C Contents Overview ................................................................................................................... 5 1.Introduction .............................................................................................................. 6 Target Users ................................................................................................................ 6 Prerequisites ................................................................................................................ 6 Manual Structure ......................................................................................................... 6 2.GT47/GT48 Control Terminals................................................................................ 7 Description.................................................................................................................. 7 Highlights .................................................................................................................. 7 Control Terminals in a Communication System ........................................................... 8 Main Features and Services ....................................................................................... 10 Service and Support ................................................................................................... 15 Precautions ................................................................................................................ 15 3.Abbreviations and Definitions............................................................................... 16 Integrating the Control Terminal ........................................................................... 18 4.Mechanical Description .......................................................................................... 19 Overview ................................................................................................................... 19 Physical Dimensions.................................................................................................. 21 5.Electrical Description ............................................................................................. 22 Power Supply and Extended I/O Connector ............................................................... 22 RS232 Serial and Extended I/O Interface ................................................................... 25 Audio Connector ....................................................................................................... 31 Antenna Connector.................................................................................................... 33 SIM Card Reader ....................................................................................................... 34 Real Time Clock........................................................................................................ 35 Software Updates ....................................................................................................... 35 6.Embedded Applications ......................................................................................... 36 Features ..................................................................................................................... 36 Implementation......................................................................................................... 36 7.TCP/IP Stack ........................................................................................................... 38 Implementation......................................................................................................... 38 8.Operation................................................................................................................. 39 Switching On the Control Terminal .......................................................................... 39 Switching Off the Control Terminal .......................................................................... 39 4 LZ T 123 7605 P1C Resetting the Control Terminal ....................................................…

Text truncated - open the document above for the full version.

Attestation Statements

Date 03/09/03 Dear Sirs, The applications intended to use GT48 are those designed to provide communication between machines. The groups of applications are the following: • Applications for provide data to a cellular network. The module is included in radio base stations to provide positioning information to users of the network. The module is integrated in the instruments of the station and the antenna is external (outside of the station enclosure).The application in this case is fixed. • Applications for remote sensing of events. The application automatically collects information from a process or the status of a machine. There are several subgroups: vending and dispensing machines, meters (for gas, electricity, water, etc.), alarms (fire, anti-theft, etc.). In all these cases there is no human intervention. The module is integrated in the machine and the antenna is external. The application in this case is fixed. • Applications for fleet control management. In this case, the module is on board of vehicles providing to the control station of the fleet information related to the vehicle: position, speed, etc. These applications might provide voice capabilities. In this case, the module is integrated in the instrument panel of the vehicle and the antenna is external (outside of the vehicle). The application in this case is fixed inside the vehicle taking into account the mobility of such vehicle. The module will be offered to integration companies and service providers different to Sony Ericsson. But there are some possible applications that could be integrated by Sony Ericsson. Jose A. Rodrigo Verification & QA Manager M2M Com Sony Ericsson Mobile Communications

Cover Letter(s)

Date 29/10/2003 29 October, 2003 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: PY76220512 It is requested that the following information is to be held confidential on behalf of Sony Ericsson Mobile Communication. FCC Rules Part 0.459 refers. • Electrical diagrams. • Component listing. • Technical description. • Operational description. • Block diagrams. This material contains information relating to circuit function and complexity that could be of benefit to competitors. The material contains secrets and confidential information that Sony Ericsson does not customarily release to the public and which is otherwise not generally available to the public. Please, contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Jose A. Rodrigo M2M Com Sony Ericsson Mobile Communications 1 Lakeside Road, Aerospace Centre Farnborough, Hampshire, GU14 6XP, UK Phone: +441252551694 E-mail: [email protected]

ID Label/Location Info

Limited Internal MARKING DRAWINGMARKING DRAWING 1 (4) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 324 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P Richard Barker 2003-09-01 PA1 Marking Drawing Type 6220512-BV Label The label used for marking is defined in the Manufacturing Specification on the SVF 930 2218. Placing The label shall be placed on the back of the module according to the Assembly Drawing (151 88) for the KRD. Print layout Sony Ericsson trademark Model Name Additional Field Approval marks (1, 2, 3) Local Approval marks Approval marks (5) Approval marks (4) Approval marks (6) IMEI-numbers as barcode IMEI-numbers as characters Serial number as barcode Serial number as characters Type number G – H – Y 1 – Y 2 – Y 3 – field KRD number R-state Repair week Manufacturing country Production week Label sample Limited Internal MARKING DRAWING 2 (4) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 324 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P Richard Barker 2003-09-01 PA1 Definitions Sony Ericsson trademark Sony Ericsson and the Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Model Name Text “GT48”. Type size 1.5 mm (min). Additional Field This field shall be blank. Approval marks 1. FCC approval marking: consists of the text: FCC ID: PY76220512 Within a frame with height > 1.5 mm. 2. This field shall be blank. 3. This field shall be blank. 4. Canada approval marking: consists of text: IC: 4170B-6220512 5. This field shall be blank. 6. This field shall be blank. Local approval marks This field shall be used for local approval marks in countries where special marking is required. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). IMEI number as characters The IMEI number has format: TAC1-TAC2-SNR-CD TAC1 = First six digits of the Type Approval code after assignment from the PTCRB. TAC2 = Last two digits of the Type Approval code after assignment Limited Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 324 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P Richard Barker 2003-09-01 PA1 from the PTCRB. SNR = A serial number from 000 000 to 999 999. CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Serial number as characters According to Ericsson group standard 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Tecom (Taiwan) S48 Type number The type number is 6220512-BV and shall be printed “Type 6220512-BV”. G-field R-state identification of the CXC-module loaded in KRH 901 20 according to the Marking data 1/151 86 for the KRD. H-field R-state identification of the hardware version used during the current Type Approval according to the Marking data 1/151 86 for the KRD. Y 1 -field R-state identification of the current KRD according to the Marking data 1/151 86 for the KRD. Y 2 -field ROA structure identification of the KRH 901 20 according to the Marking data 1/151 86 for the KRD. Y 3 -field R-state identification of the ROA of the KRH 901 20 according to the Marking data 1/151 86 for the KRD. Production week The production week shall be given as yyWww (yy = year, ww = week) KRD number The KRD number for the product. R-state The R-state for the KRD according to the Limited Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 324 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P Richard Barker 2003-09-01 PA1 1095 for the KRD. Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as RyyWww (yy = year, ww = week) Manufacturing country The text “Made in Germany” printed horizontally for modules produced in CeTec (Germany). For modules produced in Tecom (Taiwan) the horizontal text shall be “Made in Taiwan”. Print regulations The printing shall be legible and permanent. Other texts, which are not defined above, have the following characteristics: Typeface: ZPL II standard font D Type size: min 1.1 mm Line spacing: min 1.5 mm Trademark: min 1.5 mm Approval marks: min 5.0 mm

RF Exposure Info

Date 31/10/2003 Application PY76220512 Prediction of MPE limit at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Prediction for GSM 1900 (1850-1910 MHz) Band Maximum peak output power at antenna input terminal: 29,60 dBm Maximum peak output power at antenna input terminal: 912,011 mW Antenna gain (typical): 3,4 dBi Maximum antenna gain: 2.188 numeric Prediction distance: 20 cm Prediction frequency: 1880 MHz MPE limit for uncontrolled exposure at prediction frequency: 1 mW cm 2 Power density at prediction frequency: 0,395536635 mW cm 2 Prediction for GSM 850 (824-849 MHz) Band Maximum peak output power at antenna input terminal: 32,60 dBm Maximum peak output power at antenna input terminal: 1819,701 mW Antenna gain (typical): 3.4 dBi Maximum antenna gain: 2.188 numeric Prediction distance: 20 cm Prediction frequency: 839 MHz MPE limit for uncontrolled exposure at prediction frequency: 1 mW cm 2 Power density at prediction frequency: 0,792095409 mW cm 2 The power density levels at a distance of 20 cm. are well below the maximum levels allowed by the FCC regulations. Jose A. Rodrigo M2M Com Sony Ericsson Mobile Communications PG 4pR 2

Test Report

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Sony Ericsson Mobile Communications AB. GT48 Mobile Base Unit To: FCC Part 22 and 24 Test Report Serial No: RFI/MPTB1/RP45280JD01A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: Release Version No: PDF01 Issue Date: 28 October 2003 Test Dates: 29 September 2003 to 15 October 2003 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45280JD01A Operations Department Page 2 of 102 Issue Date: 28 October 2003 Test Of: Sony Ericsson Mobile Communications AB. GT48 Mobile Base Unit To: FCC Part 22 & 24 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45280JD01A Operations Department Page 3 of 102 Issue Date: 28 October 2003 Test Of: Sony Ericsson Mobile Communications AB. GT48 Mobile Base Unit To: FCC Part 22 & 24 Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Test Specification, Methods And Procedures ..........................................................10 4. Deviations From The Test Specification ...................................................................12 5. Operation Of The EUT During Testing ......................................................................13 6. Summary Of Test Results...........................................................................................15 7. Measurements, Examinations And Derived Results................................................17 8. Test Results FCC Part 22............................................................................................18 9. Measurement Methods – Part 22 ...............................................................................44 10. Test Results FCC Part 24..........................................................................................54 11. Measurement Methods – Part 24 .............................................................................86 Appendix 1. Test Equipment Used ................................................................................97 Appendix 2. Test Configuration Drawings....................................................................99 RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45280JD01A Operations Department Page 4 of 102 Issue Date: 28 October 2003 Test Of: Sony Ericsson Mobile Communications AB. GT48 Mobile Base Unit To: FCC Part 22 & 24 1. Client Information Company Name: Sony Ericsson Mobile Communications Address: 1 Lakeside Road Aerospace Centre Farnborough Hampshire GU14 6XP United Kingdom Contact Name: Mr J Rodrigo RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45280JD01A Operations Department Page 5 of 102 Issue Date: 28 October 2003 Test Of: Sony Ericsson Mobile Communications AB. GT48 Mobile Base Unit To: FCC Part 22 & 24 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Sony Ericsson Model Name or Number: GT48 Unique Type Identification: 6220512-BV IMEI Number: *001003830338334 FCC ID Number: PY76220512 Country of Manufacture: Germany Date of Receipt: 29 September 2003 * This sample was used for all radiated tests Brand Name: Sony Ericsson Model Name or Number: GT48 Unique Type Identification: 6220512-BV IMEI Number: **001003830337872 FCC ID Number: PY76220512 Country of Manufacture: Germany Date of Receipt: 29 September 2003 ** This sample was used for all conducted tests. Brand Name: SMARTEQ (Antenna) Model Name or Number: MiniMag Unique Type Identification: A-1140.26 Serial Number: 7393939012545 Country of Manufacture: Sweden Date of Receipt: 29 September 2003 2.2. Description Of EUT The equipment under test is a dual band (850 MHz/1900 MHz) GSM transceiver unit intended for use in a wide variety of applications including remote event sensing, fleet control management and data provision for cellular networks. 2.3. Modifications Incorporated In EUT None. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45280JD01A Operations Department Page 6 of 102 Issue Date: 28 October 2003 Test Of: Sony Ericsson Mobile Communications AB. GT48 Mobile Base Unit To: FCC Part 22 & 24 2.4. Additional Information Related To Testing Power Supply Requirement: Nominal 115 V, 60 Hz AC Mains Supply Intended Operating Environment: Within GSM Network Coverage Equipment Category: Mobile Type of Unit: Transceiver Weight: 110 g Dimensions: 77.4 x 66.4 x 26.2 mm Interface Ports: FME Male (Antenna) RJ12 (Power Supply) RJ9 (Handset) High Density 15 Pin (RS232) Highest Fundamental Frequency GSM 850 band = 848.8 MHz GSM 1900 band = 1909.8 MHz Highest Unintentionally Generated Frequency 1989.8 MHz RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45280JD01A Operations Department Page 7 of 102 Issue Date: 28 October 2003 Test Of: Sony Ericsson Mobile Communications AB. GT48 Mobile Base Unit To: FCC Part 22 & 24 Part 22 Transmit Frequency…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Mika Kaneko(Chief Regulatory Compliance Manager)
[email protected]+81367103225Fax: +815038096297

Technical Contact

Sony Ericsson Mobile CommunicationsJose-Aurelio Rodrigo
[email protected]+44 1252 551694

1 Lakeside Road · Farnborough, Hants · United Kingdom

Test Firm

RFI Global Services Ltd.Allan Hume
[email protected]44-1256-855439Fax: 44-1256-851195

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz912.00 mW260KGXW1 ppm
Confidentiality
Long Term
Grant Notes
Power is conducted. This device is to be used only for mobile and fixed applications. Antenna gain must not exceed 3.4 dBi. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all other persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
