PY77130501

1 P800 User’s manual P800_UM.book Page 1 Wednesday, August 28, 2002 4:19 PM 2 Preliminary Sony Ericsson P800User’s ManualFirst edition (September 2002)This manual is published by Sony Ericsson MobileCommunications AB, without any warranty. Improvements andchanges to this manual necessitated by typographical errors,inaccuracies of current information, or improvements toprograms and/or equipment, may be made by Sony EricssonMobile Communications AB at any time and without notice.Such changes will, however, be incorporated into new editionsof this manual. Sony Ericsson Mobile Communications AB, 2002. All rights reserved.Publication number:User’s ManualEN/LZT1086039P1AThe Bluetooth trademarks are owned by Bluetooth SIG, Inc. Symbian and all Symbian-based marks and logos are trademarks of Symbian Limited.“Memory Stick” is a trademark of Sony Corporation.Beatnik is a trademark of Beatnik, Inc. Java and all Java based trademarks and logos are trademarks orregistered trademarks of Sun Microsystems, Inc. in the U.S. andother countries.Other product and company names mentioned herein may be thetrademarks of their respective owners.Copyright  SyncML initiative Ltd. (1999-2002). All rights reserved.MenInBlack2  (2002) Columbia Pictures Industries, Inc. All rights reserved.This product contains software copyright  Beatnik, Inc. 1996- 2002. The user is granted non-exclusive, non-sublicensablerights to use a single copy of the Licensed Software solely inconjunction with the Licensee Product [i.e. the P800]. The usermay not alter, transfer, modify, incorporate into or with othersoftware or create a derivative work of any part of the LicensedSoftware. No ownership rights to the Licensed Software andDocumentation are transferred to the user. The user may not usethe Licensed Software otherwise than as a part of the equipmentor software in which the Licensed Software has beenincorporated or for which they have been delivered. The usermay not remove any proprietary, copyrights, trade secret orwarning legend from the Licensed Software or Documentationor copies thereof. The user may not copy any LicensedSoftware, except for archival purposes. The user may notdecompile or reverse engineer Licensed Software except to theextent permitted by compulsory law. The user may not furnish P800_UM.book Page 2 Wednesday, August 28, 2002 4:19 PM 3 Preliminary any Licensed Programs or Documentation into any country invioEnd-user license agreement for Sun  Java  J2ME  : 1. Restrictions: Software is confidential copyrightedinformation of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile,disassemble, decrypt, extract, or otherwise reverse engineerSoftware. Software may not be leased, assigned, or sublicensed,in whole or in part.2. Export Regulations: Software, including technical data, issubject to U.S. export control laws, including the U.S. ExportAdministration Act and its associated regulations, and may besubject to export or import regulations in other countries.Customer agrees to comply strictly with all such regulations andacknowledges that it has the responsibility to obtain licenses toexport, re-export, or import Software. Software may not bedownloaded, or otherwise exported or re-exported (i) into, or toa national or resident of, Cuba, Irak, Iran, North Korea, Libya,Sudan, Syria (as such listing may be revised from time to time)or any country to which the U.S. has embargoed goods; or (ii) toanyone on the U.S. Treasury Department's list of SpeciallyDesignated Nations or the U.S. Commerce Department's Tableof Denial Orders.3. Restricted Rights: Use, duplication or disclosure by theUnited States government is subject to the restrictions as setforth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable.Any rights not expressly granted herein are reserved.Note Some of the services in this manual are not supported by all networks. This also applies to the GSM InternationalEmergency Number 112. Please contact your network operatoror service provider if you are in doubt whether you can use aparticular service or not.ImportantYour mobile phone has the capability to load, store and forwardadditional content, e.g. ring tone melodies. The use of suchcontent may be restricted or prohibited by rights of third parties,including but not limited to restriction under applicablecopyright laws. You, and not Sony Ericsson, are entirelyresponsible for additional content that you download to orforward from your mobile phone. Prior to your use of anyadditional content, please verify that your intended use isproperly licensed or is otherwise authorised. Sony Ericssondoes not guarantee the accuracy, integrity or quality of anyadditional content or any other third party content. Under nocircumstances will Sony Ericsson be liable in any way for yourimproper use of additional content or other third party content. P800_UM.book Page 3 Wednesday, August 28, 2002 4:19 PM 4 Preliminary ContentsOverview ....................................................................... 6Getting started ............................................................... 7General functions ........................................................ 18Phone ........................................................................... 36Contacts ....................................................................... 50Messages ..................................................................... 59Internet ........................................................................ 70Calendar ...................................................................... 79Tasks............................................................................ 83Jotter ............................................................................ 86Games.......................................................................... 89Voice memo .................…

Text truncated - open the document above for the full version.

Audio player 101 Preliminary In the detail view, you can move tracks between your differentfolders using the folder function, send tracks to other phones orto a PC, using e-mail, multimedia messaging, Bluetoothwireless technology, infrared communication or cable. Here it isalso possible to rename and delete tracks saved in your P800.The detail view displaysthe name of the track, theartist name, the album title,the track number, thecopyright year, the soundfile type and the durationof the track.Note The amount of information displayeddepends on how muchinformation is available onthe sound file.Move between the tracksin the current folder usingthe and buttons. To rename a track1. Select Audio > Rename track . 2. Enter a track name > Done . Two or more tracks cannot have the same name. To delete a track from the P8001. Select Audio > Delete track . 2. Select Yes . To send a track• Select Audio > Send as . See Messaging for further details. Note You cannot send MP3 or AU sound files in a multimedia message. WAV and AMR sound files can be sent usingmultimedia messaging. Audio Edit Unfiled Sony Ericsson theme MP3 1:34/1:40 Artist: VariousAlbum: Autumn 2002Track: 01Copyright: Sony EricssonFilename: SEM.MP3 P800_UM.book Page 101 Wednesday, August 28, 2002 4:19 PM 102 Audio player Preliminary Downloading tracksWhen you receive soundfiles in other applications,such as e-mail andmultimedia messages, youactivate the viewer in yourP800. From the viewer youcan then save the soundfile to your P800.To save a track fromanother application1. Tap Save or select Audio >Save . 2. Select what folder you want to save the track in >Save . Note To create your own melodies, see the information on the CD for your P800. Audio Edit all Mah Na Mah Na WAV 1:34/1:40 P800_UM.book Page 102 Wednesday, August 28, 2002 4:19 PM Audio player 103 Preliminary P800_UM.book Page 103 Wednesday, August 28, 2002 4:19 PM 104 Video player Preliminary Video playerYou can view video clips that you have saved in your P800. Thevideo clips can be downloaded in the P800 from an Internet siteor transferred from a PC via cable or from Memory Stick. It isalso possible to send these video clips to other phones or PCs,via infrared communication, Bluetooth wireless technology andmultimedia messaging.It is not necessary to download the video clips to be able to viewthem. You can use the streaming function and view the videoclip from the website where it is located. The video clip isplayed with only a short time delay.The video player supports files in the MPEG-4 file format, forexample name.mp4 . To adjust the volume• Move the Jog Dial up to increase the volume, and down to decrease the volume. Warning! The volume may be uncomfortably loud at the higher volume levels if the phone is close to your ear. Exposureto excessive volume levels may damage hearing. List viewIn the list view, you get anoverview of all the MPEG-4 video clips in your P800.You can search for specificvideo clips, zoom the videoclip names and sort them byname, date, size or type. Atthe bottom of the screenyou can see how manyvideo clips you have savedin your P800.To view a video clip1. Select > . 2. Select a video clip in the list. Tip Use the Find function to locate a certain video clip, and the Zoom function to change the size of the screen fonts.To sort the video clips• Select Edit and choose how you want to sort the video clips in the current folder. Video Edit Trailers5 clips A Beautiful MindPanic RoomSpider ManDiving in the Ocean...The Time Machine P800_UM.book Page 104 Wednesday, August 28, 2002 4:19 PM Video player 105 Preliminary PreferencesWhen you download a video clip to your P800, it is saved in thedownload cache memory. When this memory is full, you have toempty it to be able to download new video clips to your P800.To clear the download cache1. Select Edit > Preferences . 2. Select Clear cache > Done . Whenyouviewavideoclipfromawebsite,usingthestreamingfunction, a media buffer is used to provide a steady flow of data.Increasing the size of the media buffer may improve the play-back of the video clip.To change the media buffer size1. Select Edit > Preferences . 2. Select Custom setting and move the slider left or right. Detail viewThis view is intended for managing one clip at a time. You canplayandpausetheclipbytapping and . In the detail view you can send, rename, delete or categorizeyour video clips. Only the video clips saved in you P800 can behandled in the detail view. To handle a video clip saved on aSony Memory Stick, you first have to save it to your P800. . Icon Function Stop the track that is playing.Play/Pause the highlighted track.Rewind the current track.Forward the current track.Takes you back to the previous view. Video Edit Trailers Diving in the Ocean... Playing 1:49/2:24 P800_UM.book Page 105 Wednesday, August 28, 2002 4:19 PM 106 Video player Preliminary To rename a video clip1. Select Video > Rename clip . 2. Enter a video clip name > Done . Two or more video clips cannot have the same name. To send a video clip1. Select the video clip you want to send.2. Select Video > Send as and choose how you want to send it. Tip Use the Folder function to organize all your video clips. To copy the current video clip to another folder, select Video > Copy to , then select a folder from the list. To view the video clip information• Select Video > Clip info . To delete a video clip1. Select the video clip you want to delete.2. Select Video > Delete clip . Saving video clipsWhen you play video clips that you have received via e-mail ormultimedia messaging, or that you have downloaded to yourP800 from the web, the viewer detail view is automaticallylaunched. From the viewer detail view you can then save thevideocliptoyourP800. To save a video clip from another application1. Select the video clip you want to save.2. Select Video > Save clip . 3. Select what folder you want to save the video clip in >Save . P800_UM.book Page 106 Wednesday, August 28, 2002 4:19 PM …

Text truncated - open the document above for the full version.

Application PY7 7130501 13 th July, 2002 Federal Communications Commission Equipment Authorization Division, Application Processing Branch, 7435 Oakland Mills Road, Columbia, MD 21048 Subject: Request for Deferring the Grant to October 14 th 2002 To whom it may concern: On behalf of our customer Sony Ericsson Mobile Communications AB we kindly ask you to change the date of deferral of the grant to the date October 14 th 2002. Thank you for your understanding and anticipated cooperation. We are very much looking forward to working with you on this project. Yours sincerely, Karin Silberhorn Project Engineer CETECOM GmbH Im Teelbruch 122 45219 Essen, Germany

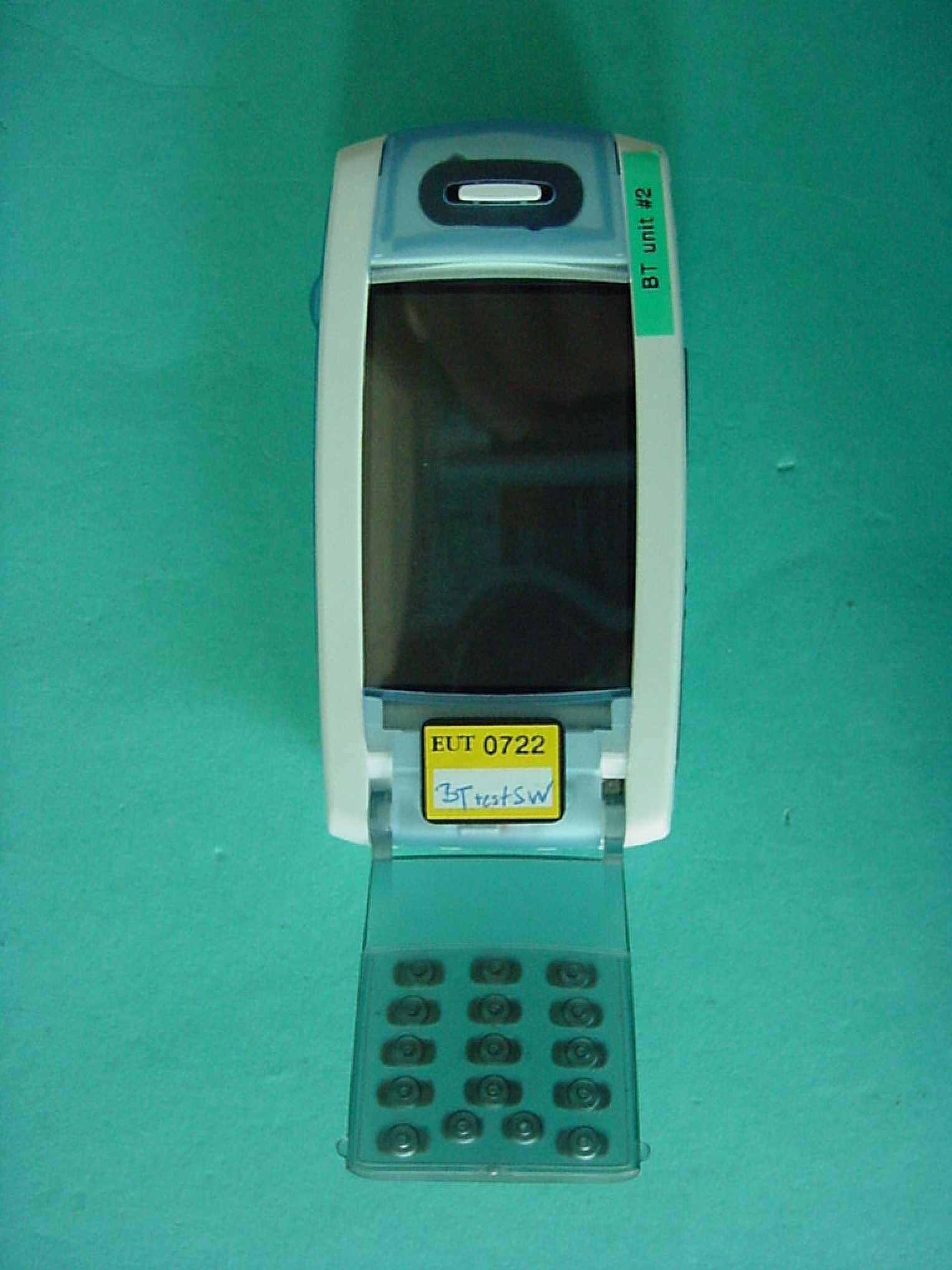

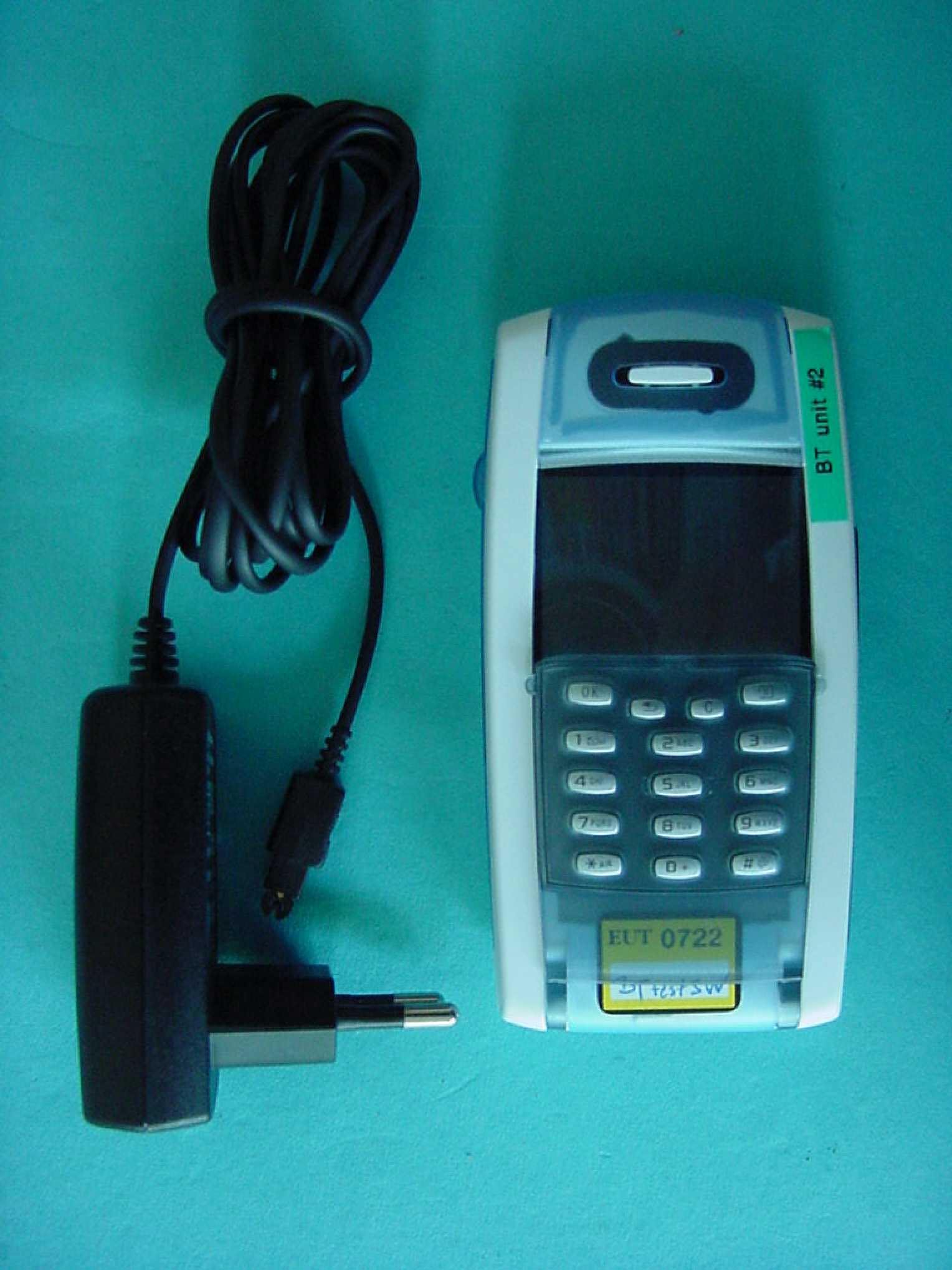

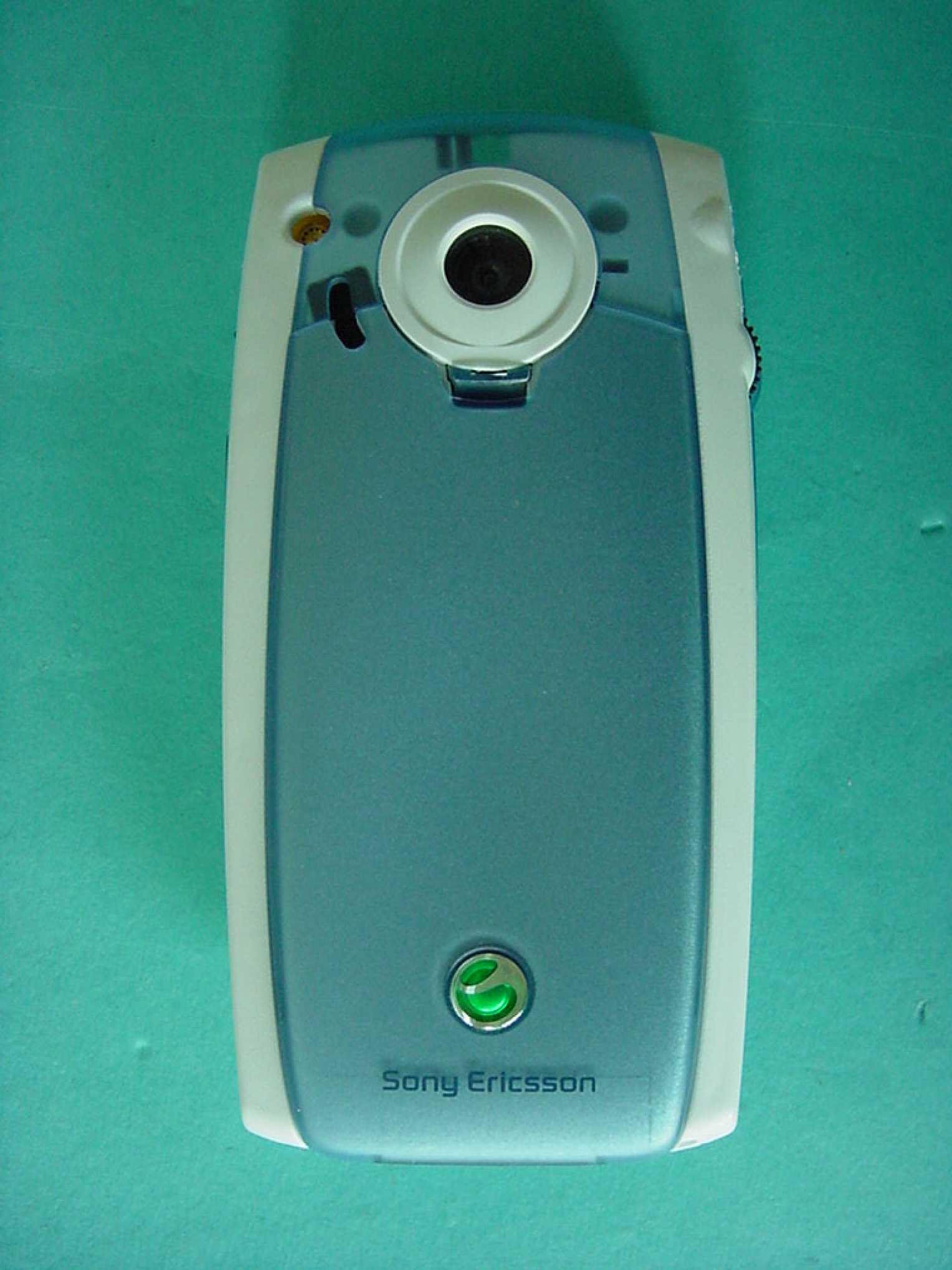

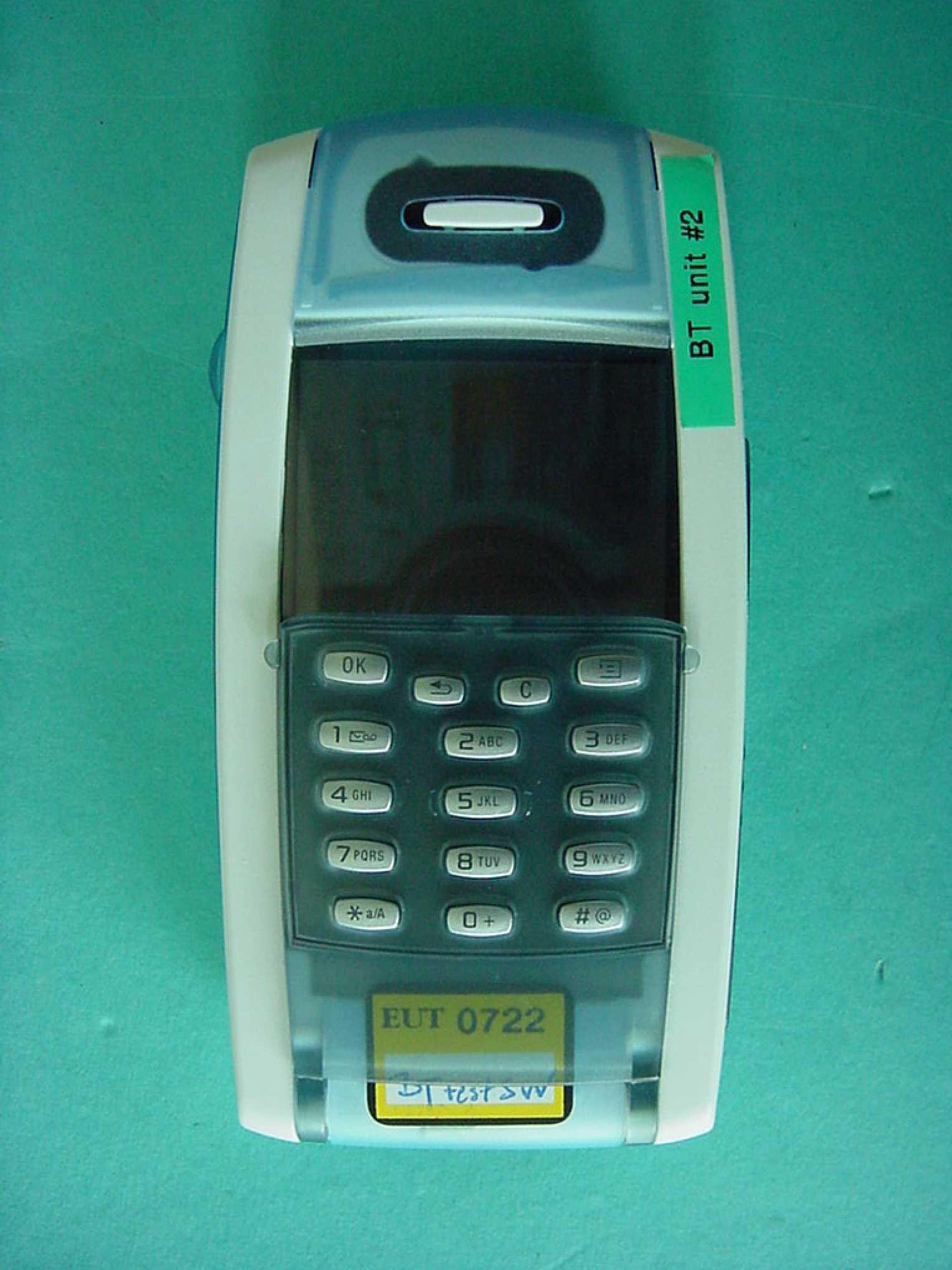

CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 50 (65) Photographs of the equipment Photograph no.: 1 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 51 (65) Photographs of the equipment Photograph no.: 2 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 52 (65) Photographs of the equipment Photograph no.: 3 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 53 (65) Photographs of the equipment Photograph no.: 4 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 54 (65) Photographs of the equipment Photograph no.: 5

Limited Internal MARKING DRAWING 1 (4) Prepared (also subject responsible if other) No. SEM/GKT/LDC Arne Rahm 151 86-SVV 104 57/1 Uen Approved Checked Date Rev Reference KI/SEM/GKT/LZC (Sven Pettersson) 2002-05-23 A Type 713 05 01-BV. Smartphone P800 1. Label The label used for marking is defined in the Manufacturing Specification on the SVF 930 361/1. 2. Placing The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 3. Print layout Printing area 31.6 x 18.5 mm. Line nbr 1. 2541/1 RXX Rywwxx P800 x 2. Type 713 05 01-BV G1G2G3HY1Y2Y3 x 3. x x 4. XXXXXX-XX-XXXXXX-X 5. 6. XXXXXXXXXX yyWww CDAxxxxxxx Rxx 7. CAN: xxxxxxxxx-xxxxxxxxxxxx 8. FCC ID: PY7XXXXXXXXXX 9. 10. 11 Line Text Text height 1. Reduced DPY-number, R-state, Repair week, Model name min 1.2 mm 2. Type number, G1,G2, G3, H, Y1, Y2, Y3 field min 1.2 mm 3. IMEI number as bar code min 3.5 mm 4. IMEI number as characters min 1.2 mm 5. Serial number as bar code min 3.5 mm 6. Serial number as characters, production week, CDA number , R-state. TBD min 1.2 mm 7. Country approval mark 1. TBD min 1.2 mm 8. Country approval mark 2. TBD min 1.5 mm 9. Approval marks (1, 2), angled 90∞ cclw, Additional field, angled 90∞ cclw Min 5.0 mm min 2.5 mm min 1.2 mm 10. Sony Ericsson trademark, angled 90∞ cclw min 2.0 mm 11. Marking of origin, angled 90∞ cclw min 1.2 mm Limited Internal MARKING DRAWING 2 (4) Prepared (also subject responsible if other) No. SEM/GKT/LDC Arne Rahm 151 86-SVV 104 57/1 Uen Approved Checked Date Rev Reference KI/SEM/GKT/LZC Sven Pettersson 2002-05-23 A 4. Print layout Prototype label Printing area 31.6 x 18.5 mm. Line nbr 1. 147/x RXX Rywwxx P800 2. NOT TYPE APPROVED 3. 4. 004601-01-XXXXXX-X 5. 6. XXXXXXXXXX yyWww CDAxxxxxxx Rxx 7. 8. PROTOTYPE XXX 9. 10. 11 Line Text Text height 1. Prototype DPY-number, R-state, Repair week, Model name min 1.2 mm 2. ìNOT TYPE APPROVEDî min 1.2 mm 3. IMEI number as bar code. See line 4. min 3.5 mm 4. IMEI number as characters. Must consist of 004601-01-SNR-CD. Were SNR = serial number 270000-274999. CD = check digit 0-9. min 1.2 mm 5. Serial number as bar code min 3.5 mm 6. Serial number as characters, production week, CDA number , R-state. TBD min 1.2 mm 7. 8 ìPROTOTYPE XXXî (EPx, FPx, etc) min 3.5 mm 9. Blank min 1.2 mm 10. Sony Ericsson trademark, angled 90∞ cclw min 2.0 mm 11. Marking of origin, angled 90∞ cclw min 1.2 mm 5. Definitions: 1. Reduced DPY- number The DPY number for the product without DPY 101 e.g. if you are producing DPY 101 2541/1 the printing should be 2541/1. (7 pos) R-state The R-state for the DPY according to the 1095- for the DPY. (3 pos) Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as Rywwxx. (R = repair, y = year, ww = week, xx = R-state e.g. 1A). (6 pos) Limited Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. SEM/GKT/LDC Arne Rahm 151 86-SVV 104 57/1 Uen Approved Checked Date Rev Reference KI/SEM/GKT/LZC Sven Pettersson 2002-05-23 A Model name The model name P800 Approval mark 1. According to 1424 - SVF 930 196 2. Ericsson Type number The type number 7130501-BV and shall be printed ìType 7130501-BVî. (15 pos) G1-field R-state identification of the CXC-phone sw according to the Type approval report 17452- for the SVV. G2-field R-state identification of the CXC-organizer sw according to the Type approval report 17452- for the SVV. G3-field R-state identification of the CXC-BT sw according to the Type approval report 17452- for the SVV. H-field R-state identification of the hardware according to the Type approval report 17452- for the SVV. Y1-field R-state identification of the KRH according to the Marking drawing 1/151 86- for the SVV. Y2-field ROA structure identification according to the Marking drawing 1/151 86- for the SVV. Y3-field R-state identification of the ROA according to the Marking drawing 1/151 86- for the SVV. 3. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no dash). 4. IMEI number as characters The IMEI number has format: TAC-FAC-SNR-CD (18 pos) TAC = TBD (Type approval code, V25) (6 pos) FAC = 45 for the Hungary factory (2 pos) = 61 for the Linkˆping factory = 62 for the Beijing factory = 63 for the Nanjing factory = 71 for the Shah Alam factory SNR = Serial number from 000 000 to 999 999 (6 pos) CD = A check digit, from 0-9, calculated (1 pos) according to the Luhn formula (ISO/IEC 7812), GSM 02.16. 5. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. 6. Serial number as characters According to Ericsson group standard (10 pos) 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Linkˆping A61 Beijing CB5 Nanjing CB9 Shah Alam BD3 Hungary TZ4 Production week The production week shall be given as yyWww (yy = year, ww = week) according to the ISO 8601 standard. (5 pos) Limited Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. SEM/GKT/LDC Arne Rahm 151 86-SVV 104 57/1 Uen Approved Checked Date Rev Reference KI/SEM/GKT/LZC Sven Pettersson 2002-05-23 A CDA number, R-state The number on the CDA file including the R-state of the file. (16 pos) 7. Country approval mark 1 Consist of text: IC xxxxxx-xxxxxxxx TBD 8. Country approval mark 2 Consist of text: FCC ID: PY7xxxxxxTBD wthin a frame with height > 1,5 mm. 9. Approval marks 1. According to 1424 - SVF 930 52 2. The notified body number according to the TTE Annex III certificate for the production plant. If this is not available, use the notified body number from the type approval certificate (normally 0682). The print size (height) for the notified body number (e.g. 0682) and the corresponding approval marks shall be minimum 5 mm. This is a regulatory requirement. Additional field The field shall be left blank unless otherwise stated in a separa…

Text truncated - open the document above for the full version.

Limited Internal MARKING DRAWING 1 (4) Prepared (also subject responsible if other) No. SEM/GKT/LDC Arne Rahm 151 86-SVV 104 57/1 Uen Approved Checked Date Rev Reference KI/SEM/GKT/LZC (Sven Pettersson) 2002-05-23 A Type 713 05 01-BV. Smartphone P800 1. Label The label used for marking is defined in the Manufacturing Specification on the SVF 930 361/1. 2. Placing The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 3. Print layout Printing area 31.6 x 18.5 mm. Line nbr 1. 2541/1 RXX Rywwxx P800 x 2. Type 713 05 01-BV G1G2G3HY1Y2Y3 x 3. x x 4. XXXXXX-XX-XXXXXX-X 5. 6. XXXXXXXXXX yyWww CDAxxxxxxx Rxx 7. CAN: 4170B-7130501 8. FCC ID: PY77130501 9. 10. 11 Line Text Text height 1. Reduced DPY-number, R-state, Repair week, Model name min 1.2 mm 2. Type number, G1,G2, G3, H, Y1, Y2, Y3 field min 1.2 mm 3. IMEI number as bar code min 3.5 mm 4. IMEI number as characters min 1.2 mm 5. Serial number as bar code min 3.5 mm 6. Serial number as characters, production week, CDA number , R-state. TBD min 1.2 mm 7. Country approval mark 1. TBD min 1.2 mm 8. Country approval mark 2. TBD min 1.5 mm 9. Approval marks (1, 2), angled 90∞ cclw, Additional field, angled 90∞ cclw Min 5.0 mm min 2.5 mm min 1.2 mm 10. Sony Ericsson trademark, angled 90∞ cclw min 2.0 mm 11. Marking of origin, angled 90∞ cclw min 1.2 mm Limited Internal MARKING DRAWING 2 (4) Prepared (also subject responsible if other) No. SEM/GKT/LDC Arne Rahm 151 86-SVV 104 57/1 Uen Approved Checked Date Rev Reference KI/SEM/GKT/LZC Sven Pettersson 2002-05-23 A 4. Print layout Prototype label Printing area 31.6 x 18.5 mm. Line nbr 1. 147/x RXX Rywwxx P800 2. NOT TYPE APPROVED 3. 4. 004601-01-XXXXXX-X 5. 6. XXXXXXXXXX yyWww CDAxxxxxxx Rxx 7. 8. PROTOTYPE XXX 9. 10. 11 Line Text Text height 1. Prototype DPY-number, R-state, Repair week, Model name min 1.2 mm 2. ìNOT TYPE APPROVEDî min 1.2 mm 3. IMEI number as bar code. See line 4. min 3.5 mm 4. IMEI number as characters. Must consist of 004601-01-SNR-CD. Were SNR = serial number 270000-274999. CD = check digit 0-9. min 1.2 mm 5. Serial number as bar code min 3.5 mm 6. Serial number as characters, production week, CDA number , R-state. TBD min 1.2 mm 7. 8 ìPROTOTYPE XXXî (EPx, FPx, etc) min 3.5 mm 9. Blank min 1.2 mm 10. Sony Ericsson trademark, angled 90∞ cclw min 2.0 mm 11. Marking of origin, angled 90∞ cclw min 1.2 mm 5. Definitions: 1. Reduced DPY- number The DPY number for the product without DPY 101 e.g. if you are producing DPY 101 2541/1 the printing should be 2541/1. (7 pos) R-state The R-state for the DPY according to the 1095- for the DPY. (3 pos) Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as Rywwxx. (R = repair, y = year, ww = week, xx = R-state e.g. 1A). (6 pos) Limited Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. SEM/GKT/LDC Arne Rahm 151 86-SVV 104 57/1 Uen Approved Checked Date Rev Reference KI/SEM/GKT/LZC Sven Pettersson 2002-05-23 A Model name The model name P800 Approval mark 1. According to 1424 - SVF 930 196 2. Ericsson Type number The type number 7130501-BV and shall be printed ìType 7130501-BVî. (15 pos) G1-field R-state identification of the CXC-phone sw according to the Type approval report 17452- for the SVV. G2-field R-state identification of the CXC-organizer sw according to the Type approval report 17452- for the SVV. G3-field R-state identification of the CXC-BT sw according to the Type approval report 17452- for the SVV. H-field R-state identification of the hardware according to the Type approval report 17452- for the SVV. Y1-field R-state identification of the KRH according to the Marking drawing 1/151 86- for the SVV. Y2-field ROA structure identification according to the Marking drawing 1/151 86- for the SVV. Y3-field R-state identification of the ROA according to the Marking drawing 1/151 86- for the SVV. 3. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no dash). 4. IMEI number as characters The IMEI number has format: TAC-FAC-SNR-CD (18 pos) TAC = TBD (Type approval code, V25) (6 pos) FAC = 45 for the Hungary factory (2 pos) = 61 for the Linkˆping factory = 62 for the Beijing factory = 63 for the Nanjing factory = 71 for the Shah Alam factory SNR = Serial number from 000 000 to 999 999 (6 pos) CD = A check digit, from 0-9, calculated (1 pos) according to the Luhn formula (ISO/IEC 7812), GSM 02.16. 5. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. 6. Serial number as characters According to Ericsson group standard (10 pos) 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Linkˆping A61 Beijing CB5 Nanjing CB9 Shah Alam BD3 Hungary TZ4 Production week The production week shall be given as yyWww (yy = year, ww = week) according to the ISO 8601 standard. (5 pos) Limited Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. SEM/GKT/LDC Arne Rahm 151 86-SVV 104 57/1 Uen Approved Checked Date Rev Reference KI/SEM/GKT/LZC Sven Pettersson 2002-05-23 A CDA number, R-state The number on the CDA file including the R-state of the file. (16 pos) 7. Country approval mark 1 Consist of text: IC xxxxxx-xxxxxxxx TBD 8. Country approval mark 2 Consist of text: FCC ID: PY7xxxxxxTBD wthin a frame with height > 1,5 mm. 9. Approval marks 1. According to 1424 - SVF 930 52 2. The notified body number according to the TTE Annex III certificate for the production plant. If this is not available, use the notified body number from the type approval certificate (normally 0682). The print size (height) for the notified body number (e.g. 0682) and the corresponding approval marks shall be minimum 5 mm. This is a regulatory requirement. Additional field The field shall be left blank unless otherwise stated in a separate 2/151 86-…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 55 (65) Photographs of the equipment Photograph no.: 6 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 56 (65) Photographs of the equipment Photograph no.: 7 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 57 (65) Photographs of the equipment Photograph no.: 8 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 58 (65) Photographs of the equipment Photograph no.: 9 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 59 (65) Photographs of the equipment Photograph no.: 10 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 60 (65) Photographs of the equipment Photograph no.: 11 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 61 (65) Photographs of the equipment Photograph no.: 12 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 62 (65) Photographs of the equipment Photograph no.: 13 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 63 (65) Photographs of the equipment Photograph no.: 14 CETECOM ICT Services GmbH Test report nr.:2_2885-01-03/02Issue date: 2002-06-13Page 64 (65) Photographs of the equipment Photograph no.: 15

GSM antenna GSM antenna connector Bluetooth antenna

OPEN INFORMATION Dokument -Document REPORT Blad -Sheet 2(24) Datum –DateRevDokumentnr –Document no 2002-06-13ATF-02:061 Table of Contents Test report summary............................................................................................................ 3 1General information ...................................................................................................... 3 2Device Under Test......................................................................................................... 3 3Test equipment .............................................................................................................. 4 4Electrical parameters of the tissue simulating liquid ..................................................... 5 5System performance check ............................................................................................ 5 6Test Results ...................................................................................................................6 7Conclusion.....................................................................................................................8 8References .....................................................................................................................9 APPENDIX 1: Photographs of the DUT ........................................................................... 10 APPENDIX 2: SAR distribution comparisons for system performance check ................. 12 APPENDIX 3: Photographs of the DUT when positioned for SAR measurements .......... 18 APPENDIX 4: SAR distribution plots............................................................................... 20 APPENDIX 5: Probe calibration parameters for ET3DV6 SN:1572 ................................ 23 APPENDIX 6. Accreditation information ......................................................................... 24 OPEN INFORMATION Dokument -Document REPORT Blad -Sheet 3(24) Datum –DateRevDokumentnr –Document no 2002-06-13ATF-02:061 Test report summary The table below summarises the SAR measurement results obtained for the Sony Ericsson P800 mobile phone mode. The results show that the maximum SAR values are below the 2 W/kg (10g) and 1.6 W/kg (1g) limits and thus the P800 model is in compliance with the appropriate RF exposure standards and recommendations. Mode Maximum SAR 1g (W/kg) Maximum SAR 10g (W/kg) GSM900 0.890.64 GSM18000.760.43 GSM19000.800.46 1General information The tests reported in this document have been performed in accordance with the SAR measurement standards CENELEC EN 50361 [1] and IEEE P1528 (draft) [2]. The purpose of the tests was to verify that the Sony Ericsson P800 mobile phone model is in compliance with the appropriate RF exposure standards, recommendations and limits [3-8]. 2DeviceUnderTest The table below summarizes the technical data for the tested device. Photographs of the device are presented in Appendix 1. Device model Sony Ericsson P800 Serial number of tested unit A6101TR9HJ Hardware revision R2A Mode GSM900, GSM1800, GSM1900 Antenna Internal Maximum output power level 1 (dBm) GSM900: 32.5 GSM1800: 29.5 GSM1900: 29.5 Duty cycle 1/8 Transmitter frequency rang…

Text truncated - open the document above for the full version.
