PY78408001Bluetooth Music Handsfree

Bluetooth TM Music Handsfree HBM-30 Enrico UG.book Page 1 Wednesday, January 22, 2003 1:51 PM Contents 2 Draft for Sony Ericsso n Internal Use Only Contents English............................................................. 6 FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Enrico UG.book Page 2 Wednesday, January 22, 2003 1:51 PM 3 HBM-30 Overview Draft for Sony Ericsson Internal Use Only HBM-30 Overview 1 2 M E M ORY S TICK D UO Enrico UG.book Page 3 Wednesday, January 22, 2003 1:51 PM HBM-30 Overview 4 Draft for Sony Ericsson Internal Use Only 3 4 Insert battery and Memory Stick DuoShow MS lock function Optimal performanceFrenchFrenchGermanGermanSpanishSpanishItalianItalian ChineseChinese 5 m (15 ft) Enrico UG.book Page 4 Wednesday, January 22, 2003 1:51 PM 5 HBM-30 Overview Draft for Sony Ericsson Internal Use Only 5 a. show how to wear? Nob. show kit content? Yes 6 New picture based on drawingText font to be changed 003 Groove Armada Enrico UG.book Page 5 Wednesday, January 22, 2003 1:51 PM 6 Draft for Sony Ericsson Internal Use Only English HBM-30 Overview...................................... 3Introduction............................................... 7Getting started .......................................... 8Play music ................................................11Record music .......................................... 13Store music ............................................. 15Pairing........................................................ 9Handle phone calls ................................. 16Troubleshooting...................................... 18Additional information............................ 21 Sony Ericsson HBM-30 First edition (January 2003)This manual is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this manual.All rights reserved.©Sony Ericsson Mobile Communications AB, 2002Publication number: EN/LZT 108 6150 PA8Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency Number 112 . Contact your network operator or service provider if you are in doubt whether you can use a particular service or not.BLUETOOTH is a trademark of the Bluetooth SIG, Inc. (Special Interest Group). The Bluetooth trademarks are owned by Bluetooth SIG, Inc. USA.Memory Stick Duo and MagicGate are trademarks of Sony Corporation.MagicGate is a copyright protection technology developed by Sony Group. MagicGate does not guarantee compatibility with other products bearing the “MagicGate” trademark.ATRAC3 is a copyright protection technology developed by Sony Group. Enrico UG.book Page 6 Wednesday, January 22, 2003 1:51 PM 7 Introduction Draft for Sony Ericsson Internal Use Only IntroductionHBM-30 Bluetooth ™ Music Handsfree is a music player based on Memory Stick technology with a portable headset solution based on Bluetooth wireless technology. See “Guidelines for safe and efficient use” and “Limited Warranty” before using your HBM-30.Types of Memory Stick Duo There are two types of Memory Stick Duo : - MagicGate Memory Stick Duo is white and is equipped with MagicGate copyright protection technology. This is used for multimedia storage and the HBM-30 fully supports the white MagicGateMemory Stick Duo . - Memory Stick Duo is blue and is not equipped with MagicGate . This is used for data storage and HBM-30 can use it only for playback MP3 files.Note: When you purchase a spare memory stick for your HBM-30, make sure to ask for a MagicGate Memory Stick Duo, which is distinguished by the logo. Enrico UG.book Page 7 Wednesday, January 22, 2003 1:51 PM Getting started 8 Draft for Sony Ericsson Internal Use Only Getting started Before you can use your HBM-30 Bluetooth Music Handsfree, you must first: • Rotate the battery door to open, see picture “3” on page 4. • Insert an AAA battery with the positive (+) end of the battery first. • Close the battery door by rotating it.• Insert the Memory Stick Duo into the slot until it clicks into place. • Turn on the HBM-30. Press and hold for 3 seconds. • Connect the headphones, see picture “5” on page 5• Pair the HBM-30 with a mobile phone. See “Pairing” on page 9. • Turn off. Press and hold . Note: The first time the HBM-30 Bluetooth Music Handsfree is turned on, it will automatically be ready for pairing.Adjusting the volumeYou can adjust the HBM-30 speaker volume both during a call or when playing music. To adjust the volume • To increase the volume, press .• To decrease the volume, press . Locking buttonsThis function locks the buttons to prevent accidental operation when you carry the HBM-30.To lock the buttons • Press and hold for 3 seconds to lock the HBM-30 buttons, except and . The display shows Hold On for 3 seconds . To unlock the buttonsPress . The display shows Hold Off for 3 seconds.Battery statusWith the HBM-30 on, the battery status is indicated by on the display as long as the battery is sufficiently charged. When battery is nearly empty the BATTERY LOW ICON is flashing. Stop playing or recording, power off the HBM-30, and Enrico UG.book Page 8 Wednesday, January 22, 2003 1:51 PM 9 Pairing Draft for Sony Ericsson Internal Use Only change battery to prevent corruption of your Memory Stick Duo . Note: Removal of the battery during operation will delete all unsaved user settings and may corrupt the content of your memory stick. PairingYou can connect your HBM-30 to your mobile phone or any device with Bl…

Text truncated - open the document above for the full version.

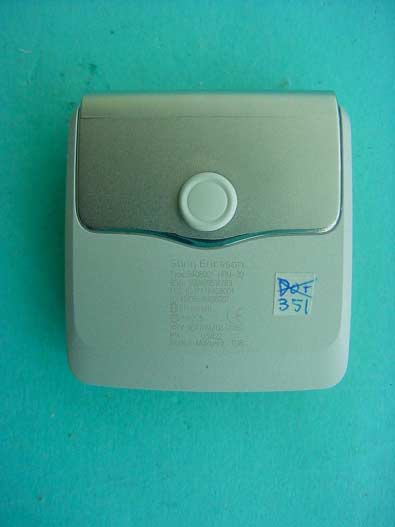

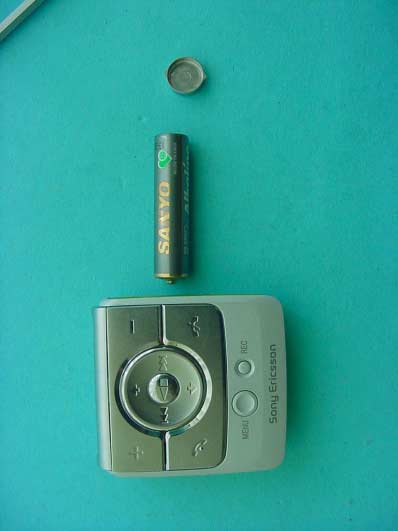

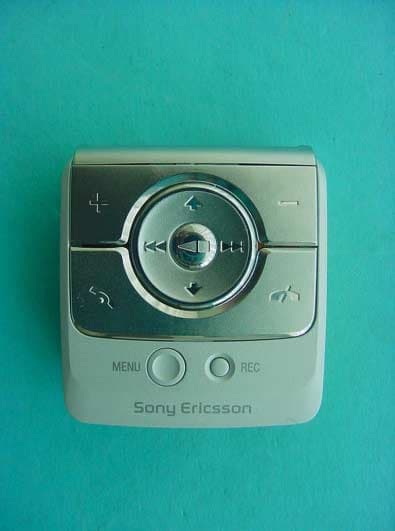

CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05Page 60 (66) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05Page 61 (66) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05Page 62 (66) PHOTOGRAPH OF THE EQUIPMENT

Limited Internal MARKING DRAWING 1 (2) Prepared (also subject responsible if other) No. SEM/BND/EP Bennie Rolink 151 86 - KRY 901 019 Uen Approved Checked Date Rev Reference SEM/BND/EP (Wim Domburg) 2003-03-05 D MARKING ENRICO - BLUETOOTH HEADSET HBM-30 The marking is by means of laser writing. Conceptual picture of the marking. Scale 2:1. Information shown might be incorrect. Content: Line A1: Styled name manufacturer, SonyEricsson Line B1: a; Type number 8408001 b; Commercial product ID; HBM-30 Line B2: a: Bluetooth Device Address; BDA: nnnnnnnnnnn Line B3: FCC approval number; PY7 8408001 Line B4: Canada approval number; IC: 4170B-8408001 Line C1: Bluetooth logo Line D1 C-tic logo with number N173 Line E1: a; CE-logo b; 0682-logo Line F1: Actual product number KRY 901 019/01 Line F2 a; Actual R-state ìrrrî b; Production date; yyWww Line F3: a: Made in <country of production> Malaysia b; Factory code TD8 Type: 8408001 HBM-30 BDA: 012345678902 FCC ID: PY78408001 IC: 4170B-8408001 KRY 901 019/01 rrr yyWww Made in Malaysia TD8 N173 0682 Limited Internal MARKING DRAWING 2 (2) Prepared (also subject responsible if other) No. SEM/BND/EP Bennie Rolink 151 86 - KRY 901 019 Uen Approved Checked Date Rev Reference SEM/BND/EP (Wim Domburg) 2003-03-05 D Format Coˆrdination (0, 0) is the left lower corner of capital letter S of the styled name Line A1: (0, 0) Graphic, size 1.5 mm height Line B1: a;(0, 1.5) Text, Arial font size 1.5 mm height B;(9.8, 1.5) Text, Arial font size 1.5 mm height Line B2: (0, 3.1) Text, Arial font size 1.5 mm height Line B3: (0, 4.6) Text, Arial font size 1.5 mm height Line B4: (0, 6.2) Text, Arial font size 1.5 mm height Line C1 (0, 8.5) Graphics; height 1.5 mm; according to SVF 930 168 Ux Line D1 (0, 10.7) Graphics; height 1.5 mm; according to SVF 930 110 Ux Line E1: a:(10.8, 10.7) Graphics; height 3.5 mm; acc. to SVF 930 182 Ux b:(10.8, 12.2) Text, Arial font size 3.5 mm height Line F1: a:(0, 12.5) Text, Arial font size 1.5 mm height Line F2: a:(0, 14.0) Text, Arial font size 1.5 mm height b:(4.5, 14.0) Text, Arial font size 1.5 mm height Line F3: a:(0, 15.5) Text, Arial font size 1.5 mm height b:(12.3, 15.5) Text, Arial font size 1.5 mm height

CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05Page 63 (66) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05Page 64 (66) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05Page 65 (66) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05Page 66 (66) PHOTOGRAPH OF THE EQUIPMENT

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephon: +49 (0)681 598-0Telefax: -9075 RSC14issue test report consist of 66 PagesPage 1 (66) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 2_3357-01-02/03 FCC Part 15.247 / CANADA RSS-210 8408001 FCC ID: PY78408001 IC: 4170B-8408001 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 589-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05 Page 2 (66) Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05 Page 3 (66) 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2003-08-06RSC8411Berg M. DateSectionNameSignature Technical Responsibility for Area of Testing: 2003-08-06RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05 Page 4 (66) 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of Applicant Name : Sony Ericsson Mobile Communications AB Street : Nya Vattentornet City : 22188 Lund Country : Sweden Telephone : +46-46-193-559 Telefax : +46-46-193-295 Contact : Mr. Håkan Sjöberg Telephone : +46-46-193-559 1.4 Application Details Date of receipt of application : 2003-08-04 Date of receipt of test item : 2003-08-04 Date of test : 2003-08-04/05 CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05 Page 5 (66) 1.5 Test Item Type of equipment : Bluetooth ™ Music Player HBM-30 Type designation: 8408001 Manufacturer: Applicant Street: City: Country: Serial number: -.- FCC – ID : PY78408001 IC : 4170B-8408001 Hardware: P1A Software : Bluetooth SW : P1AC Music Player SW : P2F Additional information : Frequency: 2402 – 2480 MHz Type of modulation: 1M00FXD / 79M8FXD (FHSS) Number of channels : 79 Antenna: Print antenna Power supply : 1.5V Battery (Alcaline) Output power: EIRP: 2.40 mW (worst case); conducted : 2.49 mW Field strength: max. 101.3 dBμV/m Occupied bandwidth: 873.547 kHz Transmitter spurious : 88.1 μV/m in 3m Receiver spurious. 126.6 μV/m in 3m Temperature range: -30°C - +60°C DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2003-05-09 Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test Specifications: FCC Part 15 §15.247 CANADA RSS-210 CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05 Page 6 (66) 2 Technical Test 2.1Summary of Test Results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4-1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn All measurements are done in accordance with the Filing and Measurement Guidelimes for Frequency Hopping Spread Spectrum Systems DA 00-705 and Appendix A “BLUETOOTH APPROVALS” The product fullfills also the requirements for CANADA RSS-210 No deviati…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05Page 58 (66) Test setup Radiated Emissions CETECOM ICT Services GmbH Test Report No.: 2_3357-01-02/03Issue Date: 2003-08-05Page 59 (66) Test site
