PY7A1021021Licensed Transmitter

Sony Corporation

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Nov 05, 2003
Application Purpose: Original Equipment
Date of Application: Nov 05, 2003
Equipment Note: Licensed Transmitter
Frequency Range: 1850.20000000 - 1909.80000000
Company: Sony Corporation
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Z200UG_R2A_EN.book Page 1 Wednesday, September 24, 2003 3:07 PM Z200UG_R2A_EN.book Page 2 Wednesday, September 24, 2003 3:07 PM 3 `çåíÉåíëGetting started .............................................. 5SIM card, battery, make a callGetting to know your phone........................ 8Key functions, quick keys, entering l etters Personalizing your phone.......................... 17Choose ring signal, theme and other settingsCalling.......................................................... 24Use the phonebook, call optionsSetting up WAP........................................... 39WAP browserMessaging ................................................... 44Text messaging Using WAP................................................... 50WAP browser, bookmarksMore features .............................................. 53Alarm clock, stopwatch, calculator, calendar, gamesSecurity........................................................ 56SIM card lock, phone lockTroubleshooting.......................................... 58Why doesn’t the phone work the way I want?Additional information................................ 60Safe and efficient use, warranty, declaration of conformityIcons............................................................. 68What do the icons mean?Index............................................................. 72 Z200UG_R2A_EN.book Page 3 Wednesday, September 24, 2003 3:07 PM 4 Sony EricssonGSM 900/1800/1900Second edition (July 2003)This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide.All rights reserved.© Sony Ericsson Mobile Communications AB, 2003 Publication number: EN/LZT 108 6475 R2A.Please note:Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112 . Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone.T9™ Text Input is a trademark or a registered trademark of Tegic Communications.T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.Other product and company names may be the trademarks of their respective owners.Any rights not expressly granted herein are reserved. Z200UG_R2A_EN.book Page 4 Wednesday, September 24, 2003 3:07 PM Getting started 5 Getting startedSIM card, battery, make a callAbout this user’s guideFor ease of reference, the “Getting to know your phone” chapter gives a quick overview of the main functions of the phone, shortcuts and general information.More information and downloads are available at www.SonyEricsson.com or wap.SonyEricsson.com . Available servicesSome services and functions described in this user’s guide are network- or subscription-dependent. Because of this, all menus may not be available in your phone. This symbol indicates that a service or function is network or subscription dependent. Please consult your network operator for more information about your subscription. The SIM cardWhen you register as a subscriber with a network operator, you get a SIM (Subscriber Identity Module) card. The SIM card contains a computer chip that keeps track of your phone number, the services included in your subscription, and your phonebook information, among other things.Tip: Check if your information is saved to the SIM card before you remove it from another phone. For example, phonebook entries may be saved in the phone memory.AssemblyBefore you can use your phone you need to:• Insert the SIM card.• Attach and charge the battery. Z200UG_R2A_EN.book Page 5 Wednesday, September 24, 2003 3:07 PM 6 Getting started SIM card and battery informationAlways turn off the phone and detach the charger before you insert or remove a SIM card. To insert the SIM card and charge the battery 1. Insert the SIM card. Make sure the SIM card is placed under the silvery holders. 2. Place the battery on the back of the phone with the connectors facing each other, and push until you hear a click. 3. Place the back cover into the slots on the phone and push until you hear a click. 4. Connect the charger to the phone at the flash symbol with the symbol on the charger plug facing upwards. 5. It may take up to 30 minutes before the battery charging icon appears in the display. 6. Wait approximately 4 hours or until the icon indicates that the battery is fully charged. If you do not see the battery icon after this time, press any key to activate the display. 7. Remove the charger by tilting the plug upwards.Turning on the phone and making callsYour PIN (Personal Identity Number) is provided by your network operator but not all operators require a PIN to activate services. If your PIN starts with the same digits as an emergency number, for example 112, the digits are not hidden with an * when you enter them. Z200UG_R2A_EN.book Page 6 Wednesday, September 24, 2003 3:07 PM Getting started 7 This is so that you can see and call an emergency number without entering a PIN. See “Emergency calls” on page 25 for more information. If you make a mistake while entering your PIN, delete the number by pressing . Note: If you enter the wrong PIN three times in a row, the SIM card is blocked and the message PIN blocke…

Text truncated - open the document above for the full version.

Cover Letter(s)

Confidentiality Request Datum. Date Vår handläggare, namn, tfn .Attending to this mattet; name, te/ephone LD/SEM/GUG/NB Håkan Sjöberg +46 46 193559 2003-10-15 Ert datum' Your date Beteckning. Reference GUG/NO3:329 Er beteckning. Your reference Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A1021021 To Wham It May Cancern: In accordance with §O.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below Iisted items for our mobile phone type AAB- 1021021-BV, FCC ID: PY7A1021021: 1.2. 3.4. Block Diagram Schematic Diagram Part List Operational Description These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give Dur competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Type Approval Manager Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AB Styrelsens säte: Lund Registered office: Lund Telefon. Te/ephone Nat 046-19 40 00 Int +4646194000 Momsnr. l.:A. 7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Int +46461941 00 Postadress. Mail SE-221 88 Lund Sweden Besöksadress' Office address Nya Vattentornet Lund

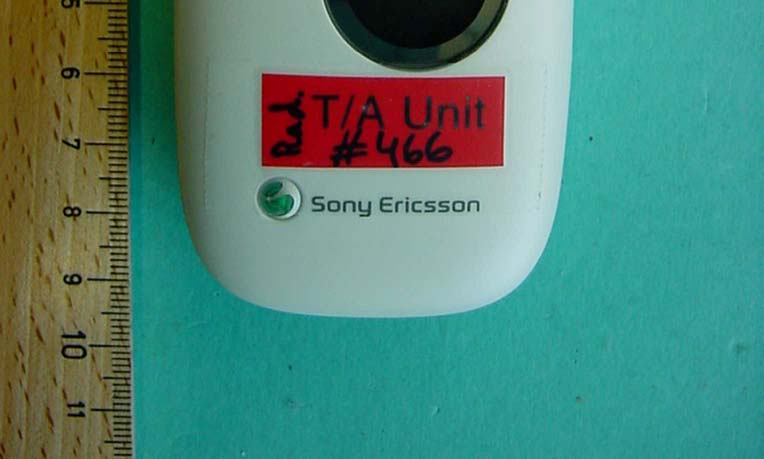

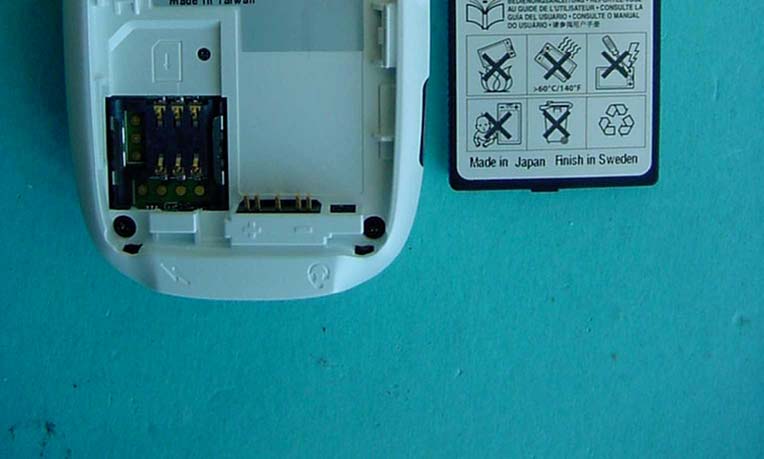

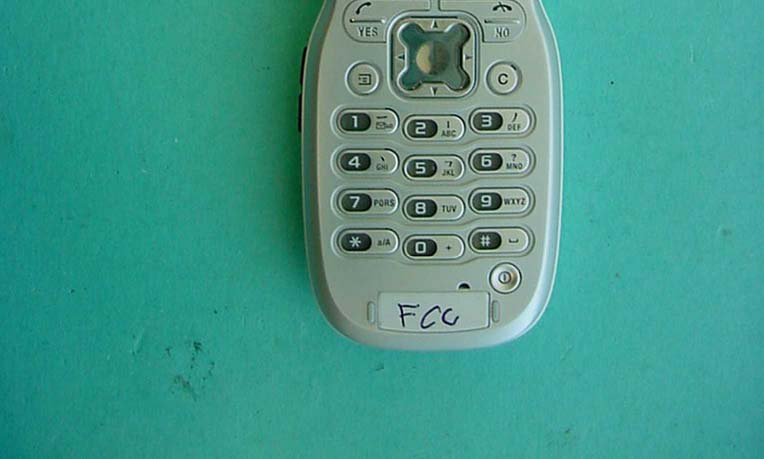

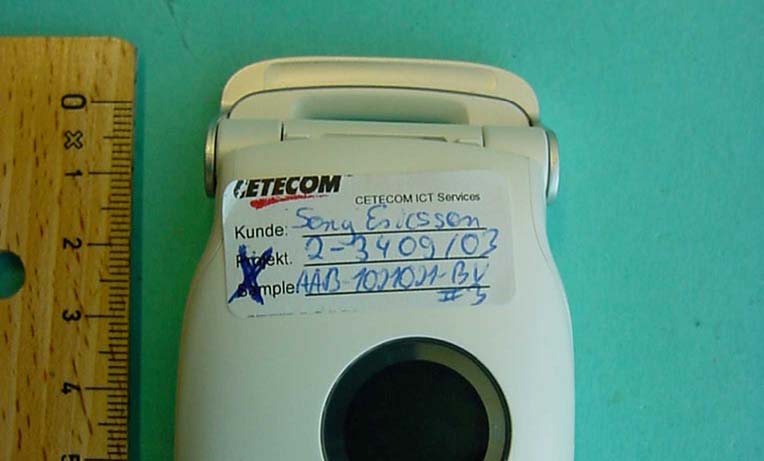

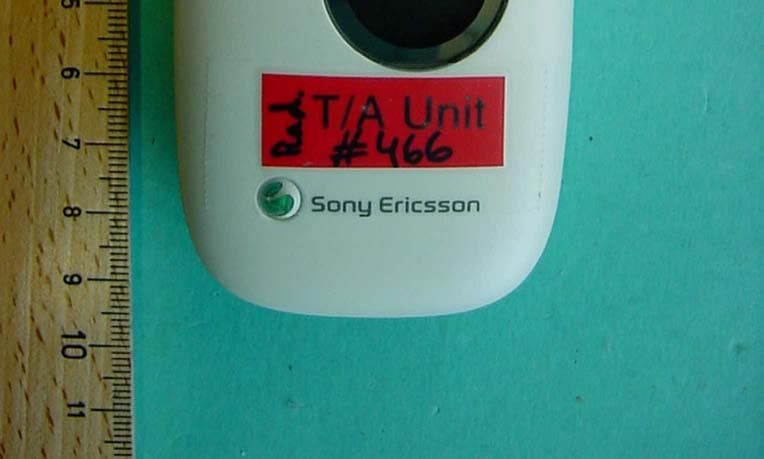

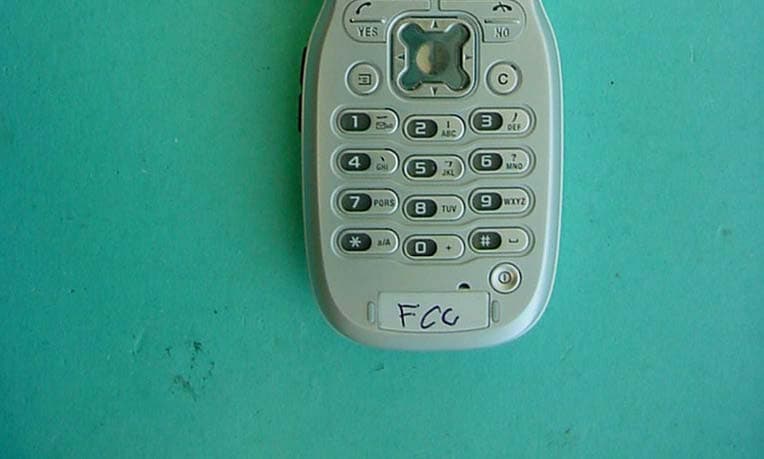

External Photos

CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 55 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 56 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 57 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 58 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 59 (67) PHOTOGRAPH OF THE EQUIPMENT

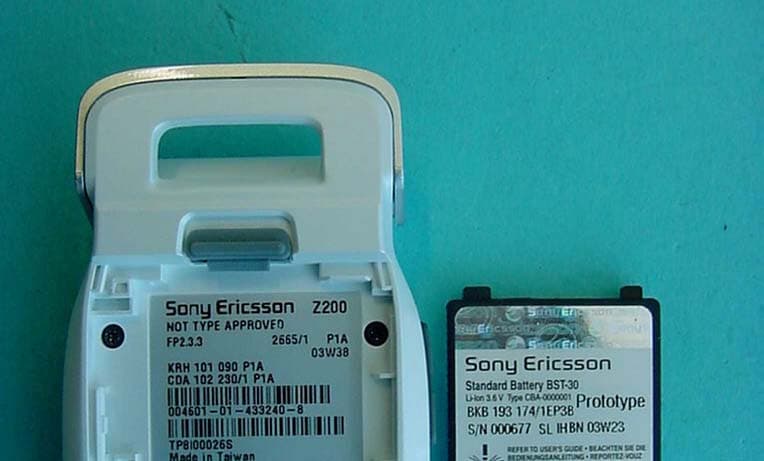

ID Label/Location Info

1 ( 3 ) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 075/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2003-07-23 A Approved according to 000 21–LXE 107 42/1 Z200, KRH-label, Type: AAB-1021021-BV 1 General information The format of the label is based on label SVF 930 829. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (portrait format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (3,1/1,0) Sony Ericsson stylized name. Graphics, height 2,0 mm. According to 190 89–EN/LZT 108 5347. Line 1b (2,7/20,0) Actual model name, “Z200” Text, height 1,5 mm. Line 2a (4,9/1,0) Type number of the phone (KRH), “Type: AAB-1021021-BV”. Text, height 1,2 mm. Line 2b (4,9/20,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 3a (7,2/1,0) “FCC ID: PY7A1021021” Text, height 1,2 mm. Line 3b (7,2/15,0) “IC: 4170B-A1021021” Text, height 1,2 mm. 2 ( 3 ) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 075/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2003-07-23 A Content Format Line 4 (10,2/1,0) Line 5a in bar code (only actual number, without data identifier). Bar code, height 2,5 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 5a (11,9/1,0) Actual electronic serial number (IMEI) of the phone (KRH), “nnnnnnnn-nnnnnn-n” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 5b (11,9/15,5) Actual location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. According to the 1050-LZT 108 6537 Uen. Line 5c (11,9/20,0) Production week. “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 6 (14,8/1,0) Line 7a in bar code. As desired by supplier (e.g. only actual number, with data identifier). Bar code, height 2,5 mm. As desired by supplier (e.g. Code 128 symbology). Line 7a (16,5/1,0) Supplier’s identification for trace-ability of the included telephone, as desired by supplier, (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 7b (16,5/12,5) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Line 7c (16,5/20,0) Actual product number and R- state of the DPY kit in which the phone is packed, if applicable. Printed without “DPY 101”, “nnnn/nnn RRR” Text, height 1,2 mm. Line 8 (18,6/1,0) Actual product number and R- state of the phone (KRH), “KRH 000 000 RRR” Text, height 1,2 mm. Line 9 (20,8/1,0) Actual product number and R- state of the phone’s Configuration Data (CDA), “CDA 000 0000/00 RRR” Text, height 1,2 mm. Line 10a (22,5/1,0) Marking of origin. Text, height 1,2 mm. The line shall be printed as stated in the 1/151 86- document in the 1095- for the SVV, if any. 3 ( 3 ) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 075/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2003-07-23 A Content Format Line 10b (22,5/*) Additional field/lines. The field shall be left blank unless otherwise stated in a separate 2/151 86– document in the 1095- of the actual SVV. Line 11 (28,9/13,5) “CE0682” approval symbol. Graphics, height 5 mm. According to SVF 930 182/2. 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = changed since last revision.

Internal Photos

CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 61 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 62 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 63 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 64 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 65 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 66 (67) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 67 (67) PHOTOGRAPH OF THE EQUIPMENT

RF Exposure Info

SecurityClass REPORT 1 (27) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 03:314 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 031003 031001 A File SAR Test Report: PY7A1021021 Date of test: Sep. 22 and 29, 2003 Laboratory: Electromagnetic Near Field and Radio Frequency Dosimetry Lab Sonyericsson Mobile Communications AB Nya Vatentornet SE-221 82 LUND, Sweden Test Responsible: Hamid Kami Shirazi Test Engineer, EMF & Safety [email protected] + 46 46 23 26 44 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAB-1021021-BV ; FCC ID: PY7A1021021 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) © Sony Ericsson Mobile Communications AB, 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. SecurityClass REPORT 2 (27) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 03:314 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 031003 031001 A File 1 Table of contents 2 INTRODUCTION.............................................................................................................................................................3 3 DEVICE UNDER TEST...................................................................................................................................................3 3.1 A NTENNA DESCRIPTION...................................................................................................................................................3 3.2 D EVICE DESCRIPTION.......................................................................................................................................................3 4 TEST EQUIPMENT..........................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM.......................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ............................................................4 6 SYSTEM ACCURACY VERIFICATION ......................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY ......................................................................................................................6 8 TEST RESULTS................................................................................................................................................................7 9 REFERENCES..................................................................................................................................................................8 10 APPENDIX.........................................................................................................................................................................9 10.1 SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION..................................................................9 10.2 SAR DISTRIBUTION PLOT...........................................................................................................................................12 10.3 P HOTOGRAPHS OF THE DEVICE UNDER TEST...............................................................................................................18 10.4 D EVICE POSITION ON SAM TWINS PHANTOM............................................................................................................22 10.5 P ROBE CALIBRATION PARAMETERS............................................................................................................................26 SecurityClass REPORT 3 (27) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 03:314 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 031003 031001 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7A1021021 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR- measurement specifications used for the test are described in the SAR Measurement of Wireless Specifications Handsets [1]. 3 Device Under Test 3.1 Antenna Description Type Internal antenna Location Inside back, at the middle Max length 38mm Dimensions Max width 14mm Configuration PIFA 3.2 Device description Device model Z200 Serial number TP8100026P Mode GSM 1900 Multiple Access Scheme TDMA Maximum Output Power Setting 29.7dBm Factory Tolerance in Power Setting ± 0.3dB Maximum Peak Output Power 30dBm Crest Factor 8 Transmitting Frequency Range 1850.2 – 1909.8 MHz Prototype or Production Unit Preproduction Device Category Portable RF exposure environment General population / uncontrolled SecurityClass REPORT 4 (27) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 03:314 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 031003 031001 A File 4 Test equipment 4…

Text truncated - open the document above for the full version.

Test Report

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of 67 PagesPage 1 (67) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2-3409-01-01/03 FCC Part 24/15 AAB-1021021-BV FCC ID: PY7A1021021 Canada IC: 4170B-A1021021 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 2 (67) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test specifications 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 3 (67) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of applicant Name : Sony Ericsson Mobile Communication AB Street : Nya Vattentornet City : 22188 Lund Country : Sweden Telephone : +46 46 193559 Telefax : +46 46 193295 Contact : Håkan Sjöberg e-mail: [email protected] CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 4 (67) 1.3 Application details Date of receipt of application : 2003-10-06 Date of receipt of test item : 2003-10-06 Date of test : 2003-10-13 to 2003-10-15 1.4 Test item Type of equipment : Triple Band GSM/PCS Mobile Phone (GSM900/1800/PCS 1900) Type designation:AAB-1021021-BV Manufacturer:- applicant - Street: City: Country: Serial numbers:IMEI : 0004601014333020 Additional information: : Frequency:1850.2 – 1909.8 MHz Type of modulation:300KGXW Number of channels :300 (PCS1900) Antenna:Integral antenna Power supply:3,8V DC Li-ion Battery Output power PCS 1900:cond : 30.2 dBm Peak , ERP: 28.6 dBm (Burst); EIRP: 30.7 dBm (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID:PY7A1021021 IC :4170B-A1021021 Hardware:FP2.3.3 Software:P2G 1.6Test specifications: FCC Part 24 FCC Part 15 CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 5 (67) 2 Technical test For Part 24 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in GSM mode. Device is able to transmit data in GPRS mode also. But because the current measurements are performed in PEAK mode no other results from GPRS mode are possible. The only different is the modulation average power, which is 3 dB higher (by using 2 timeslots in the Up-link ). Remarks: For AC-conducted measurements we used an standard charger from Sony-Ericsson. Test setup: Radiated measurements: Mobile with charger Conducted measurements: Mobile with charger Part15: Mobile with charger No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2003-10-23RSC 8414 Ames H. DateSectionNameSignature Technical responsibility for area of testing : 2003-10-23RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 6 (67) 2.2Test report TEST REPORT Test report no. : 2-3409-01-01/03 CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 7 (67) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE Part PCS 1900 POWER OUTPUT SUBCLAUSE § 24.2328 FREQUENCY STABILITY SUBCLAUSE § 24.23510 AFC FREQ ERROR vs. VOLTAGE11 AFC FREQ ERROR vs. TEMPERATURE11 EMISSIONS LIMITS §24.23813 CONDUCTED SPURIOUS EMISSIONS27 BLOCK EDGE COMPLIANCE FOR BLOCK A, B, C, D, E AND F36 OCCUPIED BANDWIDTH §2.98940 CONDUCTED EMISSIONS § 15.107/20747 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS50 PICTURES52 CETECOM ICT Services GmbH Test report no..: 2-3409-01-01/03Issue Date: 2003-10-16Page 8 (67) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summary: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Signal Analyzer FSIQ 26 ( peak and average) This measurements were done at …

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Mika Kaneko(Chief Regulatory Compliance Manager)

[email protected]+81367103225Fax: +815038096297

Technical Contact

Sony Ericsson Mobile Communications ABH�kan Sj�berg

[email protected]

Nya Vattentornet · Lund · Sweden

Test Firm

Cetecom ICT Services GmbHRalf Hoehn

[email protected]49-681-598-8455Fax: 49-681-598-8475

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	1.175 W	300KGXW	0.0300000000 ppm

Confidentiality

Long Term

Grant Notes

Output power is EIRP. This device contains 900 MHz and 1800 MHz GSM functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations. SAR compliance for body-worn operating configurations is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm separation between the device, including its antenna whether extended or retracted, and the users body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values are: Head: 1.34W/kg Body-worn: 0.35 W/kg
