PY7A1021031Licensed Transmitter

Confidentiality Request Datum. Date Beteckning' Reference GUG/NO3:267 Er beteckning' Your reference 2003-08-15 Ert datum. Your date Vår handlåggare, namn, tfn .Attending to this mattet; name, te/ephone LD/SEM/GUG/NB Håkan Sjöberg +46 46193559 Receiver Federal Communications Commision Confidentiality Request Sony Ericsson Mobile Communications AB hereby requests that the FCC application materials Iisted below for Sony Ericsson mobile phone type AAB.1021031.BV (FCC ID: PY7A1021031) shall be treated as confidential and withheld from public inspection. Electrical diagrams Component listings Technical descriptions Block diagrams ...This material contains information relating to circuit function and complexity that could be of benefit to competitors. The material contains secrets and confidential information that Sony Ericsson does not customarily release to the public and which is otherwise not generally available to the public. Please contact the undersigned if there are any further questions or additional information needed in this matter. Bo Johansson Type Approval Manager Sony Ericsson Mobile Communications AB Nya Vattentornet 221 88 Lund Sweden Telephone: +4646 193242 E-mail: [email protected] Sony Ericsson Mobile Communications AB Momsnr. \lA.7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Ini +46461941 00 Styrelsens säte: Lund Registered office: Lund Telefon. Te/ephone Nat 046-194000 Int +4646194000 Besöksadress' Office address Nya Vattentornet Lund Postadress. Mail SE-221 88 Lund Sweden

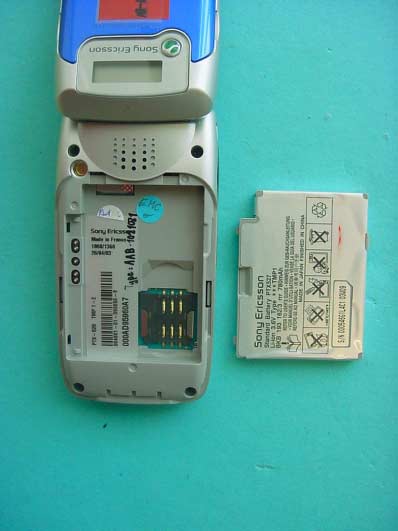

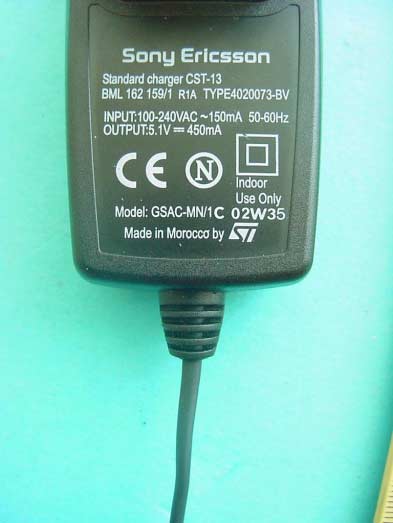

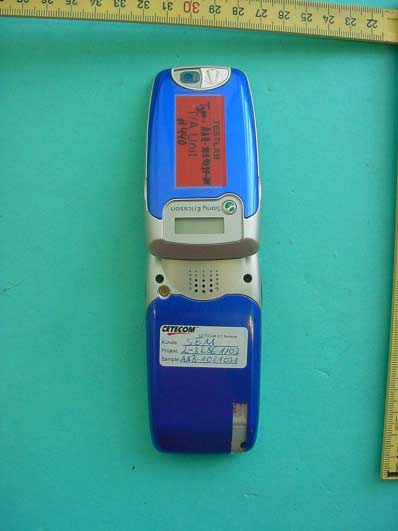

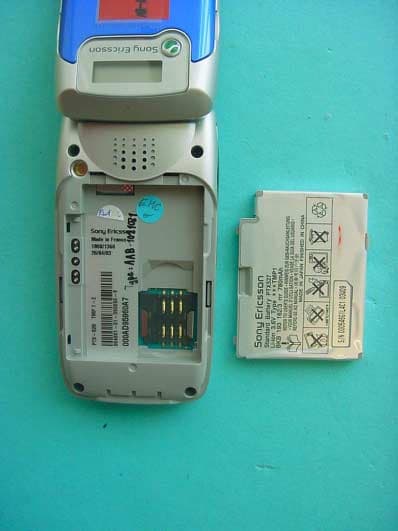

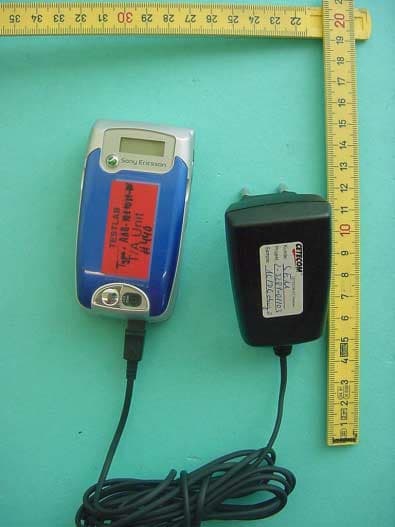

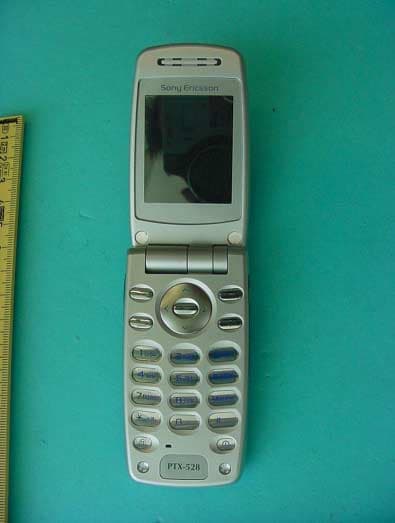

CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 61 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 62 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 63 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 64 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 65 (75) PHOTOGRAPH OF THE EQUIPMENT

1 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. Nick Cooke Approved Checked Date Rev Reference 24 Jul 03 Type: Z600 1 Label The label used for marking is defined in the prod. Specification. 2 Placing The label shall be placed on the back of the telephone according to the Assembly Drawing, A-3627-821-A 3 Print layout Printing area 34.5 x 21.1 mm. Conceptual picture below. 5. 9. 10. 11. Line Text Text height 1. Model name, Reduced DPY-number incl. R- state and CDA number incl. R-state. Min 1,2 mm 2. Type number, Factory code of actual flash-DC. Min 1,2 mm 3. IMEI number as bar code Min 1,2 mm 4. Serial number as characters, production year + week. Min 1,2 mm 5. Serial number as bar code Min 2,5 mm 6. IMEI number as characters, Repair week. Min 1,2 mm 7. Country approval mark 2 (IC). Min 1,2 mm Line No. 1. 2. 3. 4. 5. 6. 7. 8. 2 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. Nick Cooke Approved Checked Date Rev Reference 24 Jul 03 8. Country approval mark 1 (FCC ID), G-, H-, Y 1 -, Y 2 -, Y 3 -field. Min 1,2 mm 9. Approval mark. Min 5,0 mm 10. Sony Ericsson Stylized name. Min 1,5 mm 11. Marking of origin. Min 1,2 mm 4 Definitions 1. Model name Actual model name of the included phone e.g. Z600 Reduced DPY- number incl. R-state The product number including the R-state, according to the 1095- for the DPY, without “DPY 101” e.g. if DPY 101 2541/1 R3A is produced the printing should be: “2541/1 R3A”. CDA number incl. R-state The product number of the CDA file loaded including R-state. 2. Sony Ericsson Type number “Type: AAB-1021031-BV”. Flash DC Unit code according to Ericsson group Standard 0012-101 and SEMC document 1050–LZT 108 6537 Uen. 3. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no dash). According to Ericsson corporate standard 102 01-109. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. 4. Serial number as characters “S/N:XXXXXXXXXX” According to Ericsson group standard 0012–101 and SEMC document 1050–LZT 108 6537 Uen. Production week The production week shall be given as yyWww (yy = year, ww = week) according to the ISO 8601 standard. 5. Serial number as bar code According to Ericsson corporate standard 102 01 – 109. Code 128 symbology. 6. IMEI number as characters “XXXXXXXX-XXXXXX-X” The IMEI number has format: TAC-SNR-CD TAC = XXXXXXXX (Type approval code) according to the Marking drawing 3/151 86– for the SVV. SNR = Serial number from 000000 to 999999 CD = A check digit, from 0-9, calculated according to the Luhn formula 3 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. Nick Cooke Approved Checked Date Rev Reference 24 Jul 03 (ISO/IEC 7812), GSM 02.16. Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as Rywwxx. (R = repair, y = year, ww = week, xx = R-state e.g. 1A). 7. Country approval mark 2 “IC: 4170B-A1021031” 8. Country approval mark 1 “FCC ID: PY7A1021031” G-field R-state identification of the type approved CXC- module according to the marking drawing 3/151 86– for the SVV. H-field R-state identification of the type approved HW according to the Marking drawing 3/151 86– for the SVV. Y 1 -field R-state identification of the actual KRH according to the Marking drawing 3/151 86– for the SVV. Y 2 -field ROA structure identification according to the Marking drawing 3/151 86– for the SVV. Y 3 -field R-state identification of the actual ROA according to the Marking drawing 3/151 86– for the SVV. 9. Approval mark + the text “0682” According to 1424 - SVF 930 52 Ux followed by the text “0682”. The Notified body number 0682 according to the RTTE directive. The print height for Notified body number and approval mark CE is a regulatory requirement. 10. Sony Ericsson Stylized name According to corporate standard 190 89 - EN/LZT 108 5347 Ux. 11. Marking of origin The field shall be left blank unless otherwise stated in a separate 1/151 86- according to 1095- of the actual SVV. 5 Print regulations The printing shall be well readable and permanent. Typeface OCR-B Type size min 1.2 mm Trademark min 2.25 mm Approval marks min 5.0 mm

CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 66 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 67 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 68 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 69 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 70 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 71 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 72 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 73 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 74 (75) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 75 (75) PHOTOGRAPH OF THE EQUIPMENT

SecurityClass REPORT 1 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 03:174 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 030617 030617 A File SAR Test Report: PY7A1021031 Date of test: June 5 and 10, 2003 Laboratory: Electromagnetic Near Field and Radio Frequency Dosimetry Lab Sonyericsson Mobile Communications AB Nya Vatentornet SE-221 82 LUND, Sweden Test Responsible: Ramadan Plicanic Senior Staff Engineer, EMF & Safety [email protected] + 46 46 19 38 62 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAB-1021031-BV ; FCC ID: PY7A1021031 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) © Sony Ericsson Mobile Communications AB, 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. SecurityClass REPORT 2 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 03:174 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 030617 030617 A File 1 Table of contents 2 INTRODUCTION.............................................................................................................................................................3 3 DEVICE UNDER TEST...................................................................................................................................................3 3.1 A NTENNA DESCRIPTION...................................................................................................................................................3 3.2 D EVICE DESCRIPTION.......................................................................................................................................................3 4 TEST EQUIPMENT..........................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM.......................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ............................................................4 6 SYSTEM ACCURACY VERIFICATION ......................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY ......................................................................................................................6 8 TEST RESULTS................................................................................................................................................................7 9 REFERENCES..................................................................................................................................................................8 10 APPENDIX.........................................................................................................................................................................9 10.1 SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION..................................................................9 10.2 SAR DISTRIBUTION PLOT...........................................................................................................................................12 10.3 P HOTOGRAPHS OF THE DEVICE UNDER TEST...............................................................................................................15 10.4 D EVICE POSITION ON SAM TWINS PHANTOM............................................................................................................17 10.5 P ROBE CALIBRATION PARAMETERS............................................................................................................................21 SecurityClass REPORT 3 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 03:174 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 030617 030617 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7A1021031 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device Under Test 3.1 Antenna Description Type Internal antenna Location Inside the over flip, near the top Max length 38mm Dimensions Max width 14mm Configuration PIFA 3.2 Device description Device model Z600 Serial number 182 Mode GSM 1900 Multiple Access Scheme TDMA Maximum Output Power Setting 29.7dBm Factory Tolerance in Power Setting ± 0.3dB Maximum Peak Output Power 30.0dBm Crest Factor 8 Transmitting Frequency Range 1850.2 – 1909.8 MHz Prototype or Production Unit Preproduction Device Category Portable RF exposure environment General population / uncontrolled SecurityClass REPORT 4 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 03:174 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 030617 030617 A File 4 Test equipmen…

Text truncated - open the document above for the full version.

SecurityClass 1 (18) Prepared (also subject responsible if other) No. LD/SEMC/GUG/NM Ramadan Plicanic GUG/N 03:141 Approved Checked Date Rev Reference LD/SEMC/GUG/NMC Mats Hansson 030515 PA1 File Sony Ericsson SAR Measurement Specification of Wireless Terminals Contents 1 Introduction and scope ........................................................................................................2 2 References ........................................................................................................................... 3 3 Physical quantities, units and constants............................................................................... 4 4 Definitions ........................................................................................................................... 4 5 Measurement system specifications .................................................................................... 4 5.1 General ................................................................................................................................ 4 5.2 Phantom............................................................................................................................... 5 5.3 SAR measurement equipment ............................................................................................. 5 5.4 Scanning system .................................................................................................................. 6 5.5 Wireless device holder ........................................................................................................ 6 5.6 Other equipment .................................................................................................................. 6 6 Protocol for SAR assessment .............................................................................................. 7 6.1 Measurement preparation ....................................................................................................7 6.2 Tests to be performed .......................................................................................................... 7 6.3 Measurement procedure ......................................................................................................7 6.4 Post processing .................................................................................................................... 0 7 Measurement uncertainty .................................................................................................... 0 Annex A Tissue simulating material preparation .............................................................................. 9 Annex B Dielectric property measurements .................................................................................... 12 Annex C SAR measurement procedure ........................................................................................... 13 Annex D Measurement system performance check and validation ................................................. 15 Annex E Uncertainty budgets for 1g and 10g SAR assessments with DASY3............................... 17 SecurityClass DOCNAME 2 (18) Prepared (also subject responsible if other) No. LD/SEMC/GUG/NM Ramadan Plicanic GUG/N 03:141 Approved Checked Date Rev Reference LD/SEMC/GUG/NMC Mats Hansson 030515 PA1 File 1. Introduction and scope It is an Sony Ericsson policy that all RF transmitting product models shall comply with relevant recommendations, standards and regulations on human exposure to electromagnetic fields. In the reference section below, the most important RF safety guidelines are listed [7-13]. If no national standard or regulation is available in a country, the international recommendation from ICNIRP [7] shall be applied. The RF safety guidelines specify basic restrictions and reference levels. In the frequency range of interest for mobile communications, the basic restrictions are expressed as Specific Absorption Rate (SAR) limits and the reference levels as field strength or power density limits. The reference levels are provided for the purpose of simple measurements of compliance with the basic restrictions, and they are primarily applicable in the far-field region of a RF source. Measured values greater than the reference levels do not necessarily mean that the basic restrictions are exceeded. In the near-field region of mobile communication devices (handsets), field strength values exceeding the reference levels may be observed. Compliance with the basic SAR restrictions has therefore to be verified. SAR (W/kg) is a measure of the rate of RF energy absorption in tissue. The localized SAR limits depend on whether the device is classified for use by the general public (uncontrolled environment) or workers (controlled environment). Mobile communication equipment are usually used by the general public and should consequently be in compliance with the general public limits, which are 2.0 W/kg averaged in 10 gram of tissue in the ICNIRP guidelines [7] and 1.6 W/kg averaged in 1 gram in the ANSI/IEEE standard [8]. Because of the lower limit and the smaller averaging mass, the ANSI/IEEE limit is slightly more conservative than the ICNIRP limit. The averaging times are also different, 6 minutes in the ICNIRP recommendations and 30 minutes in the IEEE guidelines. This document describes the SAR measurement procedures used by the SAR testing laboratories of Sony Ericsson. SAR measurement standardization is currently evolving. Many standards and guidelines have recently been released [1, 2] or are in progress (e.g. [3, 4]). Sony Ericsson is firmly committed to using the latest technology and the latest standards to ensure that the SAR measurements are of the highest quality. 2. References SAR measurement standards and guidelines The following standards and guidelines are used as a basis for the SAR measurement specification described herein. Although these documents are well harmonized, some differences exis…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 75 PagesPage 1 (75) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2_3286-01-01/03 FCC Part 24/22/15 AAB-1021031-BV FCC ID: PY7A1021031 IC: 4170B-A1021031 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 2 (75) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 3 (75) 1.3Details of applicant Name : Sony Ericsson Mobile Communication AB Street : Nya Vattentornet City : 22188 Lund Country : Sweden Telephone : +46-46-193-242 Telefax : +46-46-193-295 Contact : Mr. Bo Johansson Telephone : +46-46-193-242 e-mail: 1.4Application details Date of receipt of application : 2003-05-14 Date of receipt of test item : 2003-05-16 Date of test : 2003-05-16/19/20 1.5Test item Type of equipment : Triple Band GSM Mobile Phone (PCS 900/1800/1900 MHz) with Bluetooth ® transmitter Type designation:AAB-1021031-BV Manufacturer:Applicant Street: City: Country: Serial number:IMEI : 004601.01.390650.9 Additional informations: : Frequency:1850.2 – 1909.8 MHz Type of modulation:300KGXW Number of channels :300 (PCS1900) Antenna:Integral antenna Power supply:3,6V DC Li-ion Output power GSM 1900 :cond : 29.68 dBm Peak , ERP: 25.66 dBm (Burst); EIRP: 27.76 dBm (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID: PY7A1021031 IC : 4170B-A1021031 Hardware:TMP1 Software:R2B004 1.6Test standards: FCC Part 24 FCC Part 15 CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 4 (75) 2 Technical test For Part 24/22 we use the substitution method ( TIA/EIA 603). 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2003-06-06RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 2003-06-06RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 5 (75) 2.2Test report TEST REPORT Test report no. : 2_3286-01-01/03 CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 6 (75) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE Part PCS 1900 POWER OUTPUT SUBCLAUSE § 24.2327 FREQUENCY STABILITY SUBCLAUSE § 24.2359 AFC FREQ ERROR vs. VOLTAGE10 AFC FREQ ERROR vs. TEMPERATURE10 EMISSIONS LIMITS §24.23812 CONDUCTED SPURIOUS EMISSIONS29 BLOCK EDGE COMPLIAMNCE FOR BLOCK A, B, C, D, E AND F38 OCCUPIED BANDWIDTH §2.98950 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS57 TEST SETUP59 PHOTOGRAPH OF THE EQUIPMENT61 CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 7 (75) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summery: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Signal Analyzer FSIQ 26 ( peak and average) This measurements were done at 3 frequencies, 1850,2 MHz, 1880,0 MHz and 1909,8 MHz (bottom, middle and top of operational frequency range) Limits: Power StepNominal Peak Output Power (dBm) Tolerance (dB) 0+30 ± ±± ± 2 Power Measurements: Conducted: Frequency (MHz) Power Step Peak Output Power (dBm) Average Output Power (dBm) 1850.2029.6829.54 1880.0029.6529.53 1909.8029.2329.13 Measurement uncertainty ± ±± ±0.5 dB CETECOM ICT Services GmbH Test report no..: 2_3286-01-01/03Issue Date: 2003-06-06Page 8 (75) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 EIRP Measurements Description: This is the test for the maximum radiated power fro…
