PY7A1021043Licensed Transmitter

1 Contents R1A Draft for US FCC approval only ContentsGetting started . . . . . . . . . . . . . . . . . . 4Assemble the phone, SIM card, battery, make a call.Getting to know your phone . . . . . . . . 8Phone overview, use the menus, enter letters, file manager.Calling . . . . . . . . . . . . . . . . . . . . . . . . 17Calls, phonebook, voice control, call options.Messaging . . . . . . . . . . . . . . . . . . . . . 36Text messaging, picture messaging, email, My friends, messaging glossary.Imaging . . . . . . . . . . . . . . . . . . . . . . . 52Camera, video recorder, pictures, screen saver.Entertainment . . . . . . . . . . . . . . . . . . 58Media player, sounds, themes, games.Connectivity . . . . . . . . . . . . . . . . . . . 64Internet and email settings, synchronizing, infrared. More features . . . . . . . . . . . . . . . . . . . 70Time and date, alarm clock, calendar, tasks, SIM card lock, etc.Troubleshooting . . . . . . . . . . . . . . . . . 80Why doesn’t the phone work the way I want?Additional information . . . . . . . . . . . . 82Sony Ericsson Consumer Web site, safe and efficient use, warranty, declaration of conformity.Icons . . . . . . . . . . . . . . . . . . . . . . . . . . 90Icon descriptionsIndex . . . . . . . . . . . . . . . . . . . . . . . . . 92 Alice_UG_R1A.book Page 1 Tuesday, May 18, 2004 11:55 AM 2 R1A Draft for US FCC approval only Sony EricssonGSM 900/1800/1900First edition (May 2004)This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide.All rights reserved.©Sony Ericsson Mobile Communications AB, 2004Publication number: LZT 108 XXXX R1APlease note:Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112 . Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not.Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content.PlayNow™ is a trademark or a registered trademark of Sony Ericsson Mobile Communications AB.MusicDJ™ is a trademark or a registered trademark of Sony Ericsson Mobile Communications AB.T9™ Text Input is a trademark or a registered trademark of Tegic Communications.T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. Alice_UG_R1A.book Page 2 Tuesday, May 18, 2004 11:55 AM 3 R1A Draft for US FCC approval only No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.End-user license agreement for Sun™ Java™ J2ME™.1 Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2 Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3 Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved.Other product and company names mentioned herein may be the trademarks of their respective owners.Any rights not expressly granted herein are reserved. Alice_UG_R1A.book Page 3 Tuesday, May 18, 2004 11:55 AM 4Getting started R1A Draft for US FCC approval only Getting startedAssemble the phone, SIM card, battery, make a call.More information and downloads are available at www.SonyEricss…

Text truncated - open the document above for the full version.

Vår handläggare, namn, tfn .Attending to this mattet; name, te/ephone SEM/BGGINB Håkan Sjöberg +4646193559 Confidentiality Request Datum' Date 2004-06-09 Ert datum' Your date Beteckning' Reference GUG/NO4:104 Er beteckning' Your reference Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A1021043 To Wham It May Cancern: In accordance with §O.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below Iisted items for our mobile phone type AAB- 1021043-BV, FCC ID: PY7A1021043: 1.2. 3. 4. Block Diagram Schematic Diagram Part List Operational Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to ils competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Type Approval Manager Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AB Styrelsens säte: Lund Registered office: Lund Telefon' Te/ephone Nat 046-194000 Ini +4646194000 Momsnr .~A. 7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Ini +46461941 00 Postadress. Mail SE-221 88 Lund Sweden Besöksadress. Office address Nya Vattentornet Lund

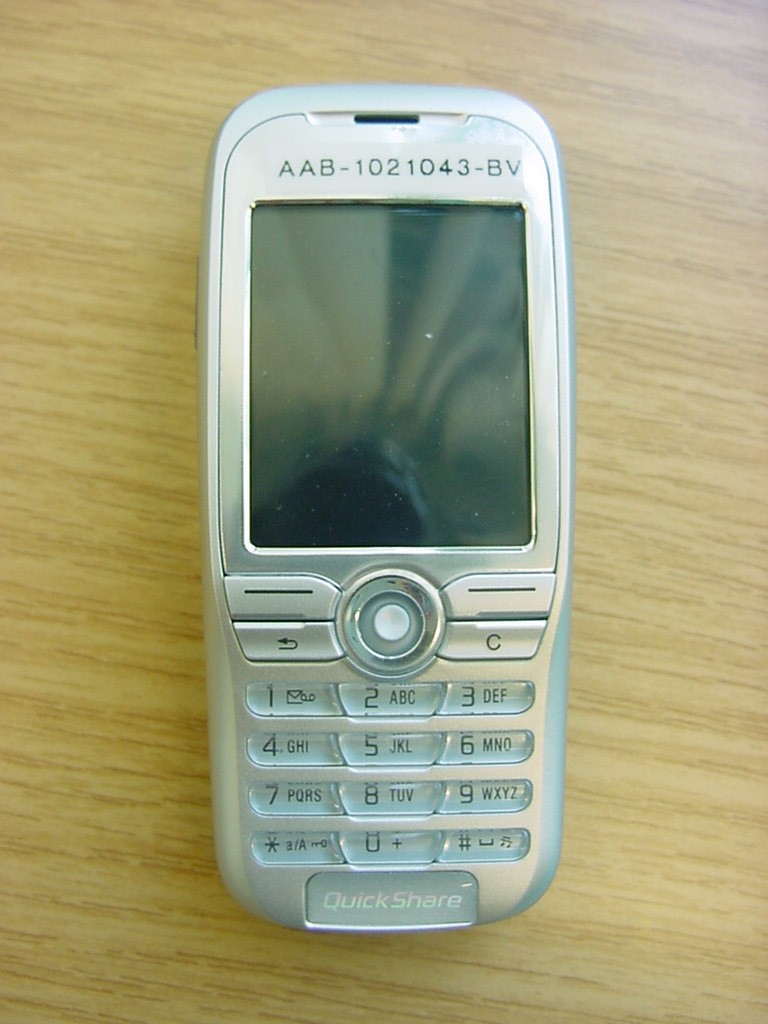

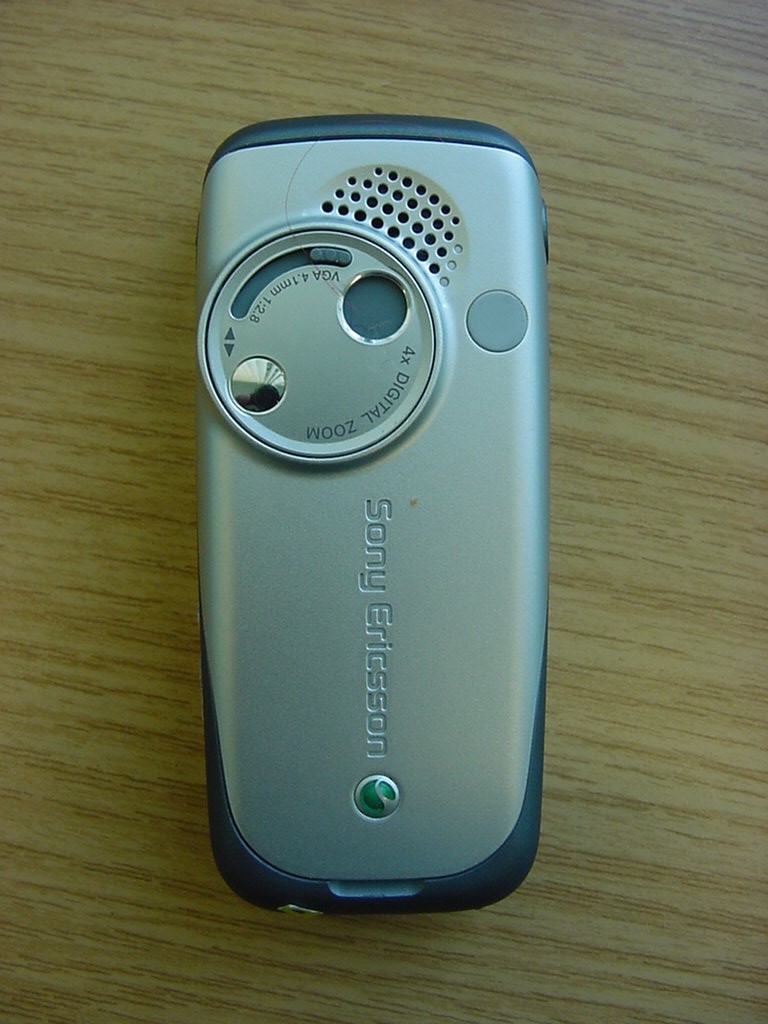

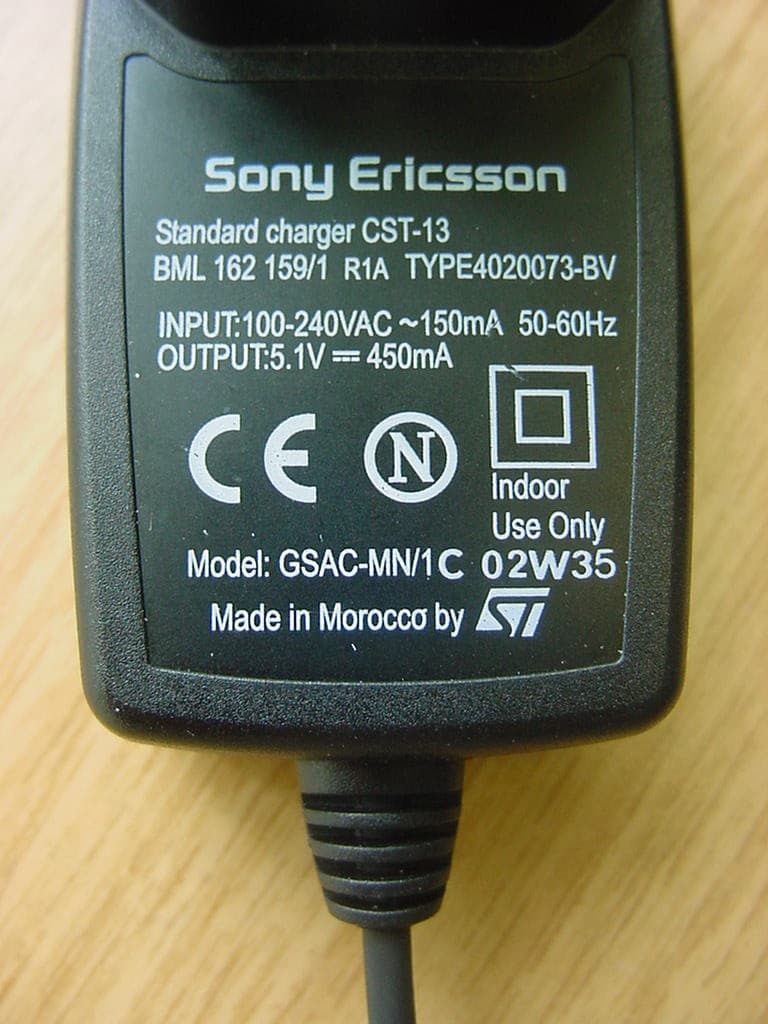

CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 14 (23) ANNEX C: EXTERNAL PHOTOS PHOTOGRAPHS OF THE EQUIPMENT Photograph no.: 1 CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 15 (23) PHOTOGRAPHS OF THE EQUIPMENT Photograph no.: 2 CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 16 (23) PHOTOGRAPHS OF THE EQUIPMENT Charger Photograph no.: 3

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/BGURDBB, Johan Sv‰rd 151 86ñSVV 107 150/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Johan Sv‰rd) 2004-06-07 A 3 Approved according to 000 21ñLXE 107 42/1 K500, KRH-label, SEM, Type: AAB-1021043-BV 1 General information The format of the label is based on a label SVF 930 1364. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01ñ109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01ñ1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). ì(x/y)î under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (16,0/1,0) Sony Ericsson stylized name. Graphics, height 1,4 mm. According to 190 89ñEN/LZT 108 5347 Line 1b (16,0/14,2) Model name, ìK500î Text, height 1,2 mm. Line 1c (16,0/18,3) Location code of where the phone is flashed, if applicable, ìFFFî Text, height 1,2 mm. Line 1d (16,0/21,5) Marking of origin. The line shall be printed as stated in a separate 1/151 86- document in the 1095- for the SVV, if any. Text, height 1,2 mm. Line 2a (18,4/1,0) Type number of the phone (KRH), ìType: AAB-1021043-BVî. Text, height 1,2 mm. Line 2b (18,4/18,2) Production week, ìyyíWíwwî (yy = year, ww = week) Text, height 1,2 mm. Line 2c (18,4/23,8) Repair week, if applicable. ìRyíWíwwî (y = year, ww = week) Text, height 1,2 mm. Company Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/BGURDBB, Johan Sv‰rd 151 86ñSVV 107 150/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Johan Sv‰rd) 2004-06-07 A 3 Content Format Line 3a (20,0/1,0) Country approval mark 2 ì IC: 4170B-A1021043î Text, height 1,2 mm. Line 3b (20,0/18,3) ROA and R-state identification field, ìGHY 1 Y 2 Y 3 î Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Line 4 (22,8/1,0) Line 6a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,5 mm. As desired by supplier (e.g. Code 128 symbology). Line 5a (24,4/1,0) Supplierís identification for trace- ability of the telephone, as desired by supplier (e.g. ìS/N: nnnÖ.î for serial number). Text, height 1,2 mm. Defined by supplier. Line 5b (24,4/13,4) Country approval mark 1 ì FCC ID: PY7A1021043î Text, height 1,2 mm. Line 6 (27,2/1,0) Line 8a in bar code (only actual number, without data identifier). Bar code, height 2,5 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 7a (28,7/1,0) Actual electronic serial number (IMEI) of the phone (KRH), ì00000000-000000-0î Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 7b (28,7/18,2) Product number of the DPY kit in which the phone is packed, if applicable. Printed without ìDPY 101î, ì0000/000î Text, height 1,2 mm. Line 8a (28,7/31,8) CE approval symbol. Graphics, height 5 mm. According to SVF 930 52. Rotated 90∞ counter clockwise. Line 8b (21,7/31,8) The Notified body number. ì0682î Text, height 3,0 mm. Rotated 90∞ counter clockwise. Line 9 (14,1/16,6) Additional field. The field shall be left blank unless otherwise stated in a separate 2/151 86-document in the 1095- of the actual SVV. Rotated 90∞ counter clockwise. Company Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/BGURDBB, Johan Sv‰rd 151 86ñSVV 107 150/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Johan Sv‰rd) 2004-06-07 A 3 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 17 (23) ANNEX D: INTERNAL PHOTOS PHOTOGRAPHS OF THE EQUIPMENT Photograph no.:4 CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 18 (23) PHOTOGRAPHS OF THE EQUIPMENT Photograph no.: 5 CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 19 (23) PHOTOGRAPHS OF THE EQUIPMENT Photograph no.:6 CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 20 (23) PHOTOGRAPHS OF THE EQUIPMENT Photograph no.: 7 CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 21 (23) PHOTOGRAPHS OF THE EQUIPMENT Photograph no.: 8 CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 22 (23) PHOTOGRAPHS OF THE EQUIPMENT Photograph no.: 9 CETECOM ICT Services GmbH Annex to test report No.: 2_3634-01-02/04 Page 23 (23) PHOTOGRAPHS OF THE EQUIPMENT Photograph no.: 10

Company Internal REPORT 1 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 04:135 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 040630 040630 File SAR Test Report: Sony Ericsson PY7A1021043 Date of test: 14 and 16 June, 2004 Laboratory: Electromagnetic Near Field , SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vatentornet SE-221 82 LUND, Sweden Testing Engineer: Ramadan Plicanic Sign [email protected] +46 46 19 38 62 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAB-1021043-BV; FCC ID: PY7A1021043 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) © Sony Ericsson Mobile Communications AB, 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. Company Internal REPORT 2 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 04:135 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 040630 040630 File 1 Table of contents 2 INTRODUCTION.............................................................................................................................................................3 3 DEVICE UNDER TEST...................................................................................................................................................3 3.1 A NTENNA DESCRIPTION...................................................................................................................................................3 3.2 D EVICE DESCRIPTION.......................................................................................................................................................3 4 TEST EQUIPMENT..........................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM.......................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ............................................................5 6 SYSTEM ACCURACY VERIFICATION ......................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY ......................................................................................................................6 8 TEST RESULTS................................................................................................................................................................7 9 REFERENCES..................................................................................................................................................................8 10 APPENDIX.........................................................................................................................................................................9 10.1 SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION..................................................................9 10.2 SAR DISTRIBUTION PLOT...........................................................................................................................................13 10.3 P HOTOGRAPHS OF THE DEVICE UNDER TEST...............................................................................................................17 10.4 D EVICE POSITION ON SAM TWINS PHANTOM............................................................................................................19 10.5 P ROBE CALIBRATION PARAMETERS............................................................................................................................21 Company Internal REPORT 3 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 04:135 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 040630 040630 File 2 Introduction In this test report, compliance of the Sony Ericsson PY7A1021043 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device Under Test 3.1 Antenna Description Type Built In Location Up on the Back Max length 35mm Dimensions Max width 20mm Configuration PIFA 3.2 Device description Device model PY7A1021043 Serial number CB500TH8GJ Mode GSM 1900 GSM1900-GPRS Multiple Access Scheme TDMA TDMA Maximum Output Power Setting 30,0 dBm 28,0 dBm Factory Tolerance in Power Setting 0,5 dB 0,5 dB Maximum Peak Output Power 30,5 dBm 28,5 dBm Crest Factor 8 4 Transmitting Frequency Range(MHz) 1850.2 – 1909.8 1850.2 – 1909.8 Prototype or Production Unit Prototype Device Category Portable RF exposure environment General population / uncontrolled Company Internal REPORT 4 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 04:135 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 040630 040630 F…

Text truncated - open the document above for the full version.

PY7A1021043SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 8.0; Muscle 1900: σ = 1.52 mho/m ε r = 50.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.858 mW/g, SAR (10g): 0.453 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.02 dB SAR Tot [mW/g] 6.95E-21.39E-12.08E-12.78E-13.48E-14.17E-14.87E-15.56E-16.26E-16.95E-1 06/16/04 Ramadan PlicanicSony Ericsson Mobile Communications AB PY7A1021043SAM 1 Phantom; Righ Hand Section; Position: (90°,301°); Frequency: 1910 MHzProbe: ET3DV6 - SN1569; ConvF(5.28,5.28,5.28); Crest factor: 8.0; Head 1900MHz: σ = 1.43 mho/m ε r = 38.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.558 mW/g, SAR (10g): 0.302 mW/g, (Worst-case extrapolation)Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.006/14/04 Ramadan PlicanicSony Ericsson Mobile Communications AB 0.00.10.20.30.4 0 10203040 SAR tot [mW/g] [mm] PY7A1021043SAM 1 Phantom; Righ Hand Section; Position: (90°,301°); Frequency: 1910 MHzProbe: ET3DV6 - SN1569; ConvF(5.28,5.28,5.28); Crest factor: 8.0; Head 1900MHz: σ = 1.43 mho/m ε r = 38.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.558 mW/g, SAR (10g): 0.302 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0Powerdrift: -0.07 dB SAR Tot [mW/g] 6.08E-21.22E-11.82E-12.43E-13.04E-13.65E-14.26E-14.86E-15.47E-16.08E-1 06/14/04 Ramadan PlicanicSony Ericsson Mobile Communications AB PY7A1021043SAM 1 Phantom; Left Hand Section; Po sition: (105°,59°); Frequency: 1910 MHz Probe: ET3DV6 - SN1569; ConvF(5.28,5.28,5.28); Crest factor: 8.0; Head 1900MHz: σ = 1.43 mho/m ε r = 38.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.536 mW/g, SAR (10g): 0.304 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Powerdrift: -0.08 dB SAR Tot [mW/g] 5.16E-21.03E-11.55E-12.06E-12.58E-13.10E-13.61E-14.13E-14.64E-15.16E-1 06/14/04 Ramadan PlicanicSony Ericsson Mobile Communications AB PY7A1021043SAM 1 Phantom; Left Hand Section; Po sition: (90°,59°); Frequency: 1910 MHz Probe: ET3DV6 - SN1569; ConvF(5.28,5.28,5.28); Crest factor: 8.0; Head 1900MHz: σ = 1.43 mho/m ε r = 38.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.402 mW/g, SAR (10g): 0.242 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Powerdrift: -0.05 dB SAR Tot [mW/g] 4.03E-28.06E-21.21E-11.61E-12.02E-12.42E-12.82E-13.22E-13.63E-14.03E-1 06/14/04 Ramadan PlicanicSony Ericsson Mobile Communications AB PY7A1021043SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 8.0; Muscle 1900: σ = 1.52 mho/m ε r = 50.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.112 mW/g, SAR (10g): 0.0695 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.10 dB SAR Tot [mW/g] 1.26E-22.52E-23.78E-25.04E-26.30E-27.56E-28.82E-21.01E-11.13E-11.26E-1 06/16/04 Ramadan PlicanicSony Ericsson Mobile Communications AB PY7A1021043SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 8.0; Muscle 1900: σ = 1.52 mho/m ε r = 50.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.33 mW/g, SAR (10g): 0.695 mW/g, (Worst-case extrapolation)Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.006/16/04 Ramadan PlicanicSony Ericsson Mobile Communications AB 0.020.040.060.080.100.120.140.160.180.200.220.240.260.280.30 0 10203040 SAR tot [mW/g] [mm] PY7A1021043SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1880 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 4.0; Muscle 1900: σ = 1.52 mho/m ε r = 50.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.49 mW/g, SAR (10g): 0.800 mW/g, (Worst-case extrapolation)Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.006/16/04 Ramadan PlicanicSony Ericsson Mobile Communications AB 0.00.10.20.30.4 0 10203040 SAR tot [mW/g] [mm] PY7A1021043SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1880 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 4.0; Muscle 1900: σ = 1.52 mho/m ε r = 50.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.49 mW/g, SAR (10g): 0.800 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.06 dB SAR Tot [mW/g] 1.36E-12.71E-14.06E-15.42E-16.77E-18.13E-19.48E-11.08E+01.22E+01.36E+0 06/16/04 Ramadan PlicanicSony Ericsson Mobile Communications AB PY7A1021043SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 8.0; Muscle 1900: σ = 1.52 mho/m ε r = 50.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.33 mW/g, SAR (10g): 0.695 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.13 dB SAR Tot [mW/g] 1.11E-12.22E-13.33E-14.44E-15.55E-16.66E-17.77E-18.88E-19.99E-11.11E+0 06/16/04 Ramadan PlicanicSony Ericsson Mobile Communications AB PY7A1021043SAM 1 Phantom; Righ Hand Section; Position: (105°,301°); Frequency: 1880 MHzProbe: ET3DV6 - SN1569; ConvF(5.28,5.28,5.28); Crest factor: 8.0; Head 1900MHz: σ = 1.43 mho/m ε r = 38.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.515 mW/g, SAR (10g): 0.273 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0Powerdrift: -0.02 dB SAR Tot [mW/g] 4.84E-29.68E-21.45E-11.94E-12.42E-12.90E-13.39E-13.87E-14.36E-14.84E-1 06/14/04 Ramadan PlicanicSony Ericsson Mobile Communications AB PY7A1021043SAM 1 Phantom; Righ Hand Section; Position: (90°,301°); Frequency: 1880 MHzProbe: ET3DV6 - SN1569; ConvF(5.28,5.28,5.28); Crest factor: 8.0; Head 1900MHz: σ = 1.43 mho/m ε r = 38.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.520 mW/g, SAR (10g): 0.271 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0Powerdrift: -0.08 dB SAR Tot [mW/g] 5.85E-21.17E-11.75E-12.34E-12.92E-13.51E-14.09E-14.68E-15.26E-15.85E-1 06/14/04 Ramadan PlicanicSony Ericsson Mobile Communications AB PY7A1021043SAM 1 Phantom; Left Hand Section; Po sition: (105°,59°); Frequency: 1880 MHz Probe: ET3DV6 - SN1569; ConvF(5.28,5.28,5.28); Crest factor: 8.0; H…

Text truncated - open the document above for the full version.

Company Internal INSTRUCTION 1 (19) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 03:141 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson Checked 040309 C File Sony Ericsson SAR Measurement Specification of Wireless Terminals Contents 1 Introduction and scope........................................................................................................2 2 References...........................................................................................................................2 3 Physical quantities, units and constants...............................................................................4 4 Definitions...........................................................................................................................4 5 Measurement system specifications....................................................................................4 5.1 General................................................................................................................................4 5.2 Phantom...............................................................................................................................5 5.3 SAR measurement equipment.............................................................................................5 5.4 Scanning system..................................................................................................................6 5.5 Wireless device holder........................................................................................................ 6 5.6 Other equipment..................................................................................................................6 6 Protocol for SAR assessment..............................................................................................7 6.1 Measurement preparation....................................................................................................7 6.2 Tests to be performed..........................................................................................................7 6.3 Measurement procedure......................................................................................................7 6.4 Post processing....................................................................................................................8 7 Measurement uncertainty....................................................................................................8 Annex A Tissue simulating material preparation..............................................................................9 Annex B Dielectric property measurements....................................................................................12 Annex C SAR measurement procedure...........................................................................................13 Annex D Measurement system performance check and validation.................................................15 Annex E Uncertainty budgets for 1g and 10g SAR assessments with DASY3...............................17 Note: Any hard copy of this document is for reference only. Due to template and application dependecies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a corect and valid version. Any outdated hard copy is invalid and must be removed from possible use. Company Internal INSTRUCTION 2 (19) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 03:141 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 040309 C File 1. Introduction and scope It is a Sony Ericsson policy that all RF transmitting product models shall comply with relevant recommendations, standards and regulations on human exposure to electromagnetic fields. In the reference section below, the most important RF safety guidelines are listed [9-13]. If no national standard or regulation is available in a country, the international recommendation from ICNIRP [9] shall be applied. The RF safety guidelines specify basic restrictions and reference levels. In the frequency range of interest for mobile communications, the basic restrictions are expressed as Specific Absorption Rate (SAR) limits and the reference levels as field strength or power density limits. The reference levels are provided for the purpose of simple measurements of com…

Text truncated - open the document above for the full version.
