PY7A1021044Licensed Transmitter

Sony Corporation

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Sep 20, 2004
Application Purpose: Original Equipment
Date of Application: Sep 20, 2004
Equipment Note: Licensed Transmitter
Frequency Range: 1850.20000000 - 1909.80000000
Company: Sony Corporation
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 Contents R1A Draft for US FCC approval only ContentsGetting started . . . . . . . . . . . . . . . . . . 4Assemble the phone, SIM card, battery, make a call.Getting to know your phone . . . . . . . . 8Phone overview, use the menus, enter letters, file manager.Calling . . . . . . . . . . . . . . . . . . . . . . . . 18Calls, phonebook, voice control, call options.Messaging . . . . . . . . . . . . . . . . . . . . . 37Text messaging, picture messa ging, email, My friends, messaging glossary.Imaging . . . . . . . . . . . . . . . . . . . . . . . 52Camera, video recorder, pictures, screen saver.Entertainment . . . . . . . . . . . . . . . . . . 58Media player, sounds, themes, games. Connectivity . . . . . . . . . . . . . . . . . . . . 64Internet and email settings, synchronizing, infrared.More features . . . . . . . . . . . . . . . . . . . 70Time and date, alarm clock, calendar, tasks, SIM card lock, etc.Troubleshooting . . . . . . . . . . . . . . . . . 80Why doesn’t the phone work the way I want?Additional information . . . . . . . . . . . . 82Sony Ericsson Consumer Web site, safe and efficient use, warranty, declaration of conformity.Icons . . . . . . . . . . . . . . . . . . . . . . . . . . 90Icon descriptionsIndex . . . . . . . . . . . . . . . . . . . . . . . . . 92 2 R1A Draft for US FCC approval only Sony EricssonGSM 900/1800/1900First edition (July 2004) This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide.All rights reserved.©Sony Ericsson Mobile Communications AB, 2004Publication number: EN/LZT 108 7239 R1A Please note:Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112 . Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not.Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content.PlayNow™ is a trademark or a registered trademark of Sony Ericsson Mobile Communications AB.MusicDJ™ is a trademark or a registered trademark of Sony Ericsson Mobile Communications AB.T9™ Text Input is a trademark or a registered trademark of Tegic Communications.T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. 3 R1A Draft for US FCC approval only No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.End-user license agreement for Sun™ Java™ J2ME™.1 Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2 Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3 Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved.Other product and company names mentioned herein may be the trademarks of their respective owners.Any rights not expressly granted herein are reserved. 4Getting started R1A Draft for US FCC approval only Getting startedAssemble the phone, SI M card, battery, make a call.More information and down loads are available at www.SonyEricsson.com.Instruction iconsThe following instruction ic ons appear in this user guide: AssemblyBefore you can use your phone you need to:• Insert the SIM card. …

Text truncated - open the document above for the full version.

Cover Letter(s)

Beteckning' Reference GUG/NO4:105 Vår handläggare, namn, tfn .Attending to this matter; name, telephone SEM/BGGINB Håkan Sjöberg +4646193559 Confidentiality Request Datum. Date 2004-06-09 Ert datum. Your date Er beteckning' Your reference Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A1021044 Ta Wham It May Cancern: In accordance with §O.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below Iisted items for our mobile phone type MB- 1021044-BV, FCC ID: PY7A1021 044: 1. 2. 3.4. Block Diagram Schematic Diagram Part List Operational Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give Dur competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Type Approval Manager Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AB Styrelsens säte: Lund Registered office: Lund Telefon. Te/ephone Nat 046-194000 Int +4646194000 Momsnr. l.:A. 7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Int +46461941 00 Postadress. Mail SE-221 88 Lund Sweden Besöksadress. Office address Nya Vattentornet Lund

External Photos

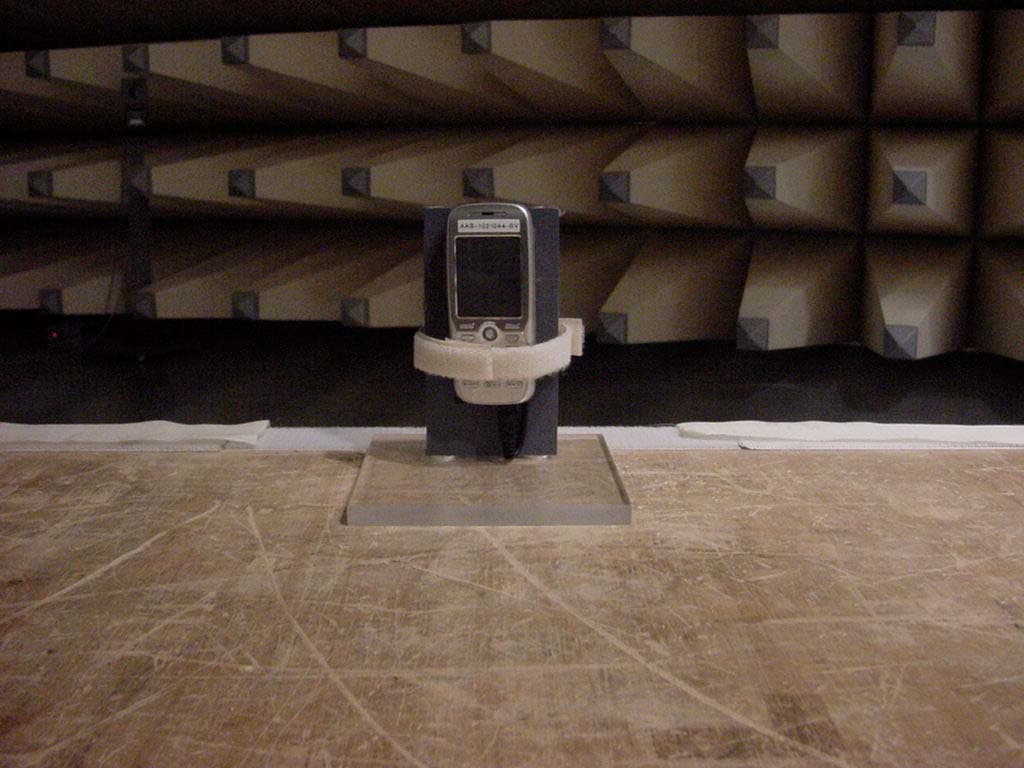

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-0 Telefax: - 9075 Annex A to test report No.: 2_3635-01-01/04 This test report consists of 18 pagesPage 1 (18) Recognized by the Federal Communications Commission Anechoic Chamber Registration No.: 90462 (FCC) Anechoic Chamber Registration No.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Annex to Test Report No.: 2_3635-01-01/04 Applicant:Sony Ericsson Mobile Communications AB Type:AAB-1021044-BV Test Standards: FCC Part 22, 24 RSS132, 133 FCC ID:PY7A1021044 IC:4170B-A1021044 CETECOM ICT Services GmbH Annex to test report No.: 2_3635-01-01/04 Page 2 (18) FCC Part 15 Subpart B The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 20 GHz in semi-anechoic chambers. The EUT is positioned on a non-conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1996 clause 15 and ANSI C63.4-2001 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test set-ups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63.4-2001 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 10 Hz, wave guide horn All measurement settings are according to FCC 15.109 and 15.107 The product fulfils also the requirements for CANADA RSS-210 No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT : PASS CETECOM ICT Services GmbH Annex to test report No.: 2_3635-01-01/04 Page 3 (18) ANNEX A:PART 15 B TESTS ANNEX B:TEST SETUP PHOTOS ANNEX C:EXTERNAL PHOTOS ANNEX D:INTERNAL PHOTOS CETECOM ICT Services GmbH Annex to test report No.: 2_3635-01-01/04 Page 4 (18) ANNEX A: PART 15 B TESTS Conducted Limits Reference FCC:CFR Part 15.207, 15.107 IC:RSS 210, Issue 4, Section 6.6 , 7.4 Limits: § 15.107 / 15.207 Frequency of Emission (MHz)Conducted Limit (dBμV) Quasi-peakAverage 0.15 – 0.566 to 56 *56 to 46 * 0.5 – 55646 5 - 306050 * Decreases with the logarithm of the frequency EUT: AAB-1021044-BV Manufacturer: Sony Ericsson Mobile Communications AB Operating Condition: Traffic and Idle mode, max hold Test Site: Room 006 (Shielded chamber) Operator: Ames H. Test Specification: CISPR 22 (EN 55022) Comment: 115V / 60 Hz Start of Test: 02.06.04 / 07:14:39 PEAK QUASI-PEAK FREQUENCY [MHz] EMISSION LEVEL[dBuV] .1511030 30 50 70 90 110 CISPR PUB. 22 CLASS B CONDUCTED Sony-Ericsson Mobile phone AAB-1021044-BV, here PCS1900 Ch. 661, L1 and N-system Traffic and idle mode, max hold 24 Jun 2004 07:53:08EMI-TEST QP LIMIT AVERAGE LIMIT hp hp CETECOM ICT Services GmbH Annex to test report No.: 2_3635-01-01/04 Page 5 (18) TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS NoInstrument/AncillaryTypeManufacturerSerial No. 01Spectrum Analyzer8566 AHewlett-Packard1925A00257 02Analyzer Display8566 AHewlett-Packard1925A00860 03Oscilloscope7633Tektronix230054 04Radio Communication Analyzer CMTA 54Rohde & Schwarz894 043/010 05System Power Supply6038 AHewlett-Packard2848A07027 06Signal Generator8111 AHewlett-Packard2215G00867 07Signal Generator8662 AHewlett-Packard2224A01012 08Function GeneratorAFGURohde & Schwarz862 480/032 09Regulating TransformerMPLErfi91350 10LISNNNLA 8120Schwarzbeck8120331 11Relay-MatrixPSURohde & Schwarz893 285/020 12Power-Meter436 AHewlett-Packard2101A12378 13Power-Sensor8484 AHewlett-Packard2237A10156 14Power-Sensor8482 AHewlett-Packard2237A00616 15Modulation Meter9008Racal-Dana2647 16Frequency Counter5340 AHewlett-Packard1532A03899 17Anechoic Chamber---MWB87400/002 18Spectrum Analyzer85660 BHewlett-Packard2747A05306 19Analyzer Display85662 AHewlett-Packard2816A16541 20Quasi Peak Adapter85650 AHewlett-Packard2811A01131 21RF-Preselector85685 AHewlett-Packard2833A00768 22Biconical Antenna3104Emco3758 23Log. Per. Antenna3146Emco2130 24Double Ridged Horn3115Emco3088 25EMI-TestreceiverESAIRohde & Schwarz863 180/013 26EMI-Analyzer-DisplayESAI-DRohde & Schwarz862 771/008 27Biconical AntennaHK 116Rohde & Schwarz888 945/013 28Log. Per. AntennaHL 223Rohde & Schwarz825 584/002 29Relay-Switch-UnitRSURohde & Schwarz375 339/002 30HighpassHM985955FSY Microwave001 31AmplifierP42-GA29Tron-TechB 23602 32Anechoic ChamberFrankonia 33Control ComputerPSM 7Rohde & Schwarz834 621/004 34EMI Test ReceiverESMIRohde & Schwarz827 063/010 35EMI Test ReceiverDisplayRohde & Schwarz829 808/010 CETECOM ICT Services GmbH Annex to test report No.: 2_3635-01-01/04 Page 6 (18) NoInstrument/AncillaryTypeManufacturerSerial No. 36Control ComputerHD 100Deisel100/322/93 37Relay MatrixPSNRohde & Schwarz829 065/003 38Control UnitGB 016 A2Rohde & Schwarz344 122/008 39Relay Switch UnitRSURohde & Schwarz316 790/001 40Power Supply6032AHewlett Packard2846A04063 41Spectrum MonitorEZMRohde & Schwarz883 720/006 42Measuring ReceiverESH 3Rohde & Schwarz890 174/002 43Measuring ReceiverESVPRohde & Schwarz891 752/005 44Bicon Ant. 20-300MHzHK 116Rohde & Schwarz833 162/011 45Logper Ant. 0.3-1 GHzHL 223Rohde & Schwarz832 914/010 46Amplifier 0.1-4 GHzAFS4Miteq Inc.206461 47Logper Ant. 1-18 GHzHL 024 A2Rohde & Schw…

Text truncated - open the document above for the full version.

ID Label/Location Info

1 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Claes Wallin 151 86–SVV 107 214/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Claes Wallin) 2004-08-24 A 2 Approved according to 000 21–LXE 107 42/1 K508i, KRH-label, SEM, Type: AAB-1021044-BV 1 General information The format of the label is based on a label SVF 930 1364. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (16,0/1,0) Sony Ericsson stylized name. Graphics, height 1,4 mm. According to 190 89–EN/LZT 108 5347 Line 1b (16,0/14,2) Model name, “K508i” Text, height 1,2 mm. Line 1c (16,0/18,2) Marking of origin. The line shall be printed as stated in a separate 1/151 86- document in the 1095- for the SVV, if any. Text, height 1,2 mm. Line 2a (18,4/1,0) Type number of the phone (KRH), “Type: AAB-1021044-BV”. Text, height 1,2 mm. Line 2b (18,4/18,2) Production week, “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 2c (18,4/23,8) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. 2 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Claes Wallin 151 86–SVV 107 214/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Claes Wallin) 2004-08-24 A 2 Content Format Line 3a (20,0/1,0) Country approval mark 1 “IC: 4170B-A1021044” Text, height 1,2 mm. Line 3b (20,0/14,5) Country approval mark 2 “FCC ID: PY7A1021044” Text, height 1,2 mm. Line 4 (22,8/1,0) Line 6a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,5 mm. As desired by supplier (e.g. Code 128 symbology). Line 5a (24,4/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 5b (24,4/14,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. Line 5c (24,4/18,2) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Line 6 (27,2/1,0) Line 8a in bar code (only actual number, without data identifier). Bar code, height 2,5 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 7a (28,7/1,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 7b (28,7/18,2) Product number of the DPY kit in which the phone is packed, if applicable. Printed without “DPY 101”, “0000/000” Text, height 1,2 mm. Line 8a (28,7/31,8) CE approval symbol. Graphics, height 5 mm. According to SVF 930 52. Rotated 90° counter clockwise. Line 8b (21,7/31,8) The Notified body number. “0682” Text, height 3,0 mm. Rotated 90° counter clockwise. Line 9 (14,1/16,6) Additional field. The field shall be left blank unless otherwise stated in a separate 2/151 86-document in the 1095- of the actual SVV. Rotated 90° counter clockwise. 3 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Claes Wallin 151 86–SVV 107 214/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Claes Wallin) 2004-08-24 A 2 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision.

Internal Photos

Text truncated - open the document above for the full version.

RF Exposure Info

SecurityClass REPORT 1 (24) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 04:134 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 040625 040624 A File SAR Test Report: PY7A1021044 Date of test: April. 03 to 15, 2004 Laboratory: Electromagnetic Near Field and Radio Frequency Dosimetry Lab Sonyericsson Mobile Communications AB Nya Vatentornet SE-221 82 LUND, Sweden Test Responsible: Hamid kami Shirazi B.SC.E.E Quality & Type approval Engineer [email protected] Phone no: +46 46 232644 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAB-1021044BV ; FCC ID: PY7A1021044 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) © Sony Ericsson Mobile Communications AB, 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. SecurityClass REPORT 2 (24) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 04:134 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 040625 040624 A File 1 Table of contents 2 INTRODUCTION.............................................................................................................................................................3 3 DEVICE UNDER TEST...................................................................................................................................................3 3.1 A NTENNA DESCRIPTION...................................................................................................................................................3 3.2 D EVICE DESCRIPTION.......................................................................................................................................................3 4 TEST EQUIPMENT..........................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM.......................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ............................................................4 6 SYSTEM ACCURACY VERIFICATION ......................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY ......................................................................................................................5 8 TEST RESULTS................................................................................................................................................................7 9 REFERENCES..................................................................................................................................................................7 10 APPENDIX.........................................................................................................................................................................8 10.1 SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION..................................................................8 10.2 SAR DISTRIBUTION PLOT...........................................................................................................................................16 10.3 P HOTOGRAPHS OF THE DEVICE UNDER TEST...............................................................................................................17 10.4 D EVICE POSITION ON SAM TWINS PHANTOM............................................................................................................21 10.5 P ROBE CALIBRATION PARAMETERS............................................................................................................................24 SecurityClass REPORT 3 (24) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 04:134 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 040625 040624 A File 2 Introduction In this report, compliance of the Sony Ericsson PY7A1021044portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device Under Test 3.1 Antenna Description Type Internal antenna Location Inside back, near the top Max length 38mm Dimensions Max width 14mm Configuration PIFA 3.2 Device description Device model PY7A1021044 Serial number CB500TH82L Mode GSM 1900 Multiple Access Scheme TDMA Maximum Output Power Setting 30 Factory Tolerance in Power Setting ± 0.5dB Maximum Peak Output Power 30.5dBm Crest Factor 8 Transmitting Frequency Range 1850.2 – 1909.8 MHz Prototype or Production Unit Preproduction Device Category Portable RF exposure environment General population / uncon…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Mika Kaneko(Chief Regulatory Compliance Manager)

[email protected]+81367103225Fax: +815038096297

Technical Contact

Sony Ericsson Mobile Communications ABH�kan Sj�berg

[email protected]46 46 193 000

Nya Vattentornet · Lund · Sweden

Test Firm

Cetecom ICT Services GmbHRalf Hoehn

[email protected]49-681-598-8455Fax: 49-681-598-8475

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	707.00 mW	300KGXW	0.0300000000 ppm

Confidentiality

Long Term

Grant Notes

Power Output is EIRP. This device contains GSM 900 and 1800 MHz functions that are not operational in U.S. Territories. SAR compliance for body-worn operating configurations is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm separation between the device and the users body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values are: Head: 0.49W/kg Body: 1.53W/kg (GPRS active)
