PY7A1021061Licensed Transmitter

A7_.book Page 1 Wednesday, November 10, 2004 2:33 PM 1 Helpful hints To find information easily, go directly to one of the following: ï Phone overview on page 5 ï User guide symbols on page 6 ï Desktop icons on page 10 ï Navigating the menus on page 11 ï Menu overview on page 12 ï Quick guide to key functions on page 16 ï Troubleshooting on page 63 ï Index on page 77 You can find support, information, content downloads and an icon glossary at www.SonyEricsson.com/support A7_.book Page 1 Wednesday, November 10, 2004 2:33 PM 2 Contents Getting to know your phone . . . . . . . . . . . . . . . . . . . 5 Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Menu overview . . . . . . . . . . . . . . . . . . . . . . . . 12 Quick keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Personalizing your phone . . . . . . . . . . . . . . . . . . . 39 Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 More features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Additional information . . . . . . . . . . . . . . . . . . . . . . 66 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 A7_.book Page 2 Wednesday, November 10, 2004 2:33 PM 3 Sony Ericsson GSM 900/1800/1900 First edition (September 2004) This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. © Sony Ericsson Mobile Communications AB, 2004 Publication number: EN/LZT 108 7301 R1A. Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. T9ô Text Input is a trademark or a registered trademark of Tegic Communications. T9ô Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard A7_.book Page 3 Wednesday, November 10, 2004 2:33 PM 4 Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. Other product and company names may be the trademarks of their respective owners. Any rights not expressly granted herein are reserved. A7_.book Page 4 Wednesday, November 10, 2004 2:33 PM 5 Getting to know your phone Navigation key YES and NO keys Option key A7_.book Page 5 Wednesday, November 10, 2004 2:33 PM 6 Assembling your phone Before you can use your phone you need to: ï Insert the SIM card. ï Attach and charge the battery. User guide symbols The following symbols appear in this user guide: SIM card and battery information The SIM (Subscriber Identity Module) card, which you get from your network operator, contains information about your subscription and phonebook. Always turn off the phone and detach the charger before you insert or remove a SIM card. }Use the navigation key to scroll and select. %See also page.xx Important Note This symbol indicates that a service or function is network - or subscription-dependent. Because of this, all menus may not be available in your phone. Please consult your network operator for more information. If you have been using a SIM card in another phone, make sure that your information is saved to the SIM card before you remove it from the other phone. % 20 Phonebook. A7_.book Page 6 Wednesday, November 10, 2004 2:33 PM 7 To insert the SIM card and charge the battery A7_.book Page 7 Wednesday, November 10, 2004 2:33 PM 8 1Remove the battery cover as shown in the picture. 2Insert the SIM card. Make sure the SIM card is placed under the silvery holders. 3Place the battery on the back of the phone with the label side up and the connectors facing each other. 4Place the battery cover as shown in the picture and slide it into place. 5Connect the charger to the phone at the flash symbol. The flash symbol on the charger plug must face upwards. 6It may take up to 30 minutes before the battery icon appears on the screen. 7Wait approximately 4 hours or until the battery icon indicates that the battery is fully charged. If you do not see the battery icon after this time, press any key to activate the screen. 8Remove the charger by tilting the plug upwards. PIN (Perso…

Text truncated - open the document above for the full version.

1 (1) Prepared (also subject responsible if other) SEM/BGGINB Håkan Sjöberg +46 46 193559 Approved Checked SEM/BGGINM Mats Hansson Company Internai STATEMENT No. GUG/N04:256 Uen Date Rev Reference 2004-11-11 A Receiver Federal Communication Commission Application PY7A1021061 Statement on output power For the FCC SAR and EMC (Part 24) measurements of Sony Ericsson phoneJ200, FCC ID PY? A 1021061, we have used different units since the testing tack place at two different test houses. The conducted output power was measured on all units at Sony Ericsson's SAR laboratory before the EMC units was sent to Cetecom Saarbrucken for the EMC measurements. This was made in order to ensure that the output power was the same on all units. Below follows the results from the different measurements: Measurement results; SAR laboratory, Sony Ericsson Unit I Channel512 I 30,6 dBm Channel 661 30,3 dBm Channel810 29,7 dBm 00460101-564688-01(EMC) Measurement results; Cetecom, Saarbrucken Unit 00460101-564688-01 i SM9- Channel 512 30,9 dem IChannei 661 I 30,5 dam Channel810 29,9 dem Based on results presented above, the reason for the difference of approximately 0,3 dBm between the SAR and EMC report is due to measurement uncertainties between different test houses I test equipments. '?- ,/ --Mats Hansson Technical Manager EMF & Safety Type Approval Department

Confidentiality Request Datum' Date 2004-11-09 Vår handläggare, namn, tfn .Attending to this mattet; name, te/ephone SEM/BGGINB Håkan Sjöberg +4646 193559 Ert datum' Your date Beteckning' Reference GUG/NO4:252 Er beteckning' Your reference Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A1021061 To Wham It May Cancern: In accordance with §O.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below Iisted items for our mobile phone type AAB- 1021061-BV, FCC ID: PY7A1021061: 1.2. 3. 4. 5. Block Diagram Schematic Diagram Part List Operational Descriptions Mounting Drawing These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give Dur competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. .JBo Johansson Type Approval Manager Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AB Styrelsens säte: Lund Registered office: Lund Telefon. Te/ephone Nat 046-19 40 00 Int +4646194000 Momsnr. \'(A. 7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Ini +46461941 00 Postadress. Mail SE-221 88 Lund Sweden Besöksadress. Office address Nya Vattentornet Lund

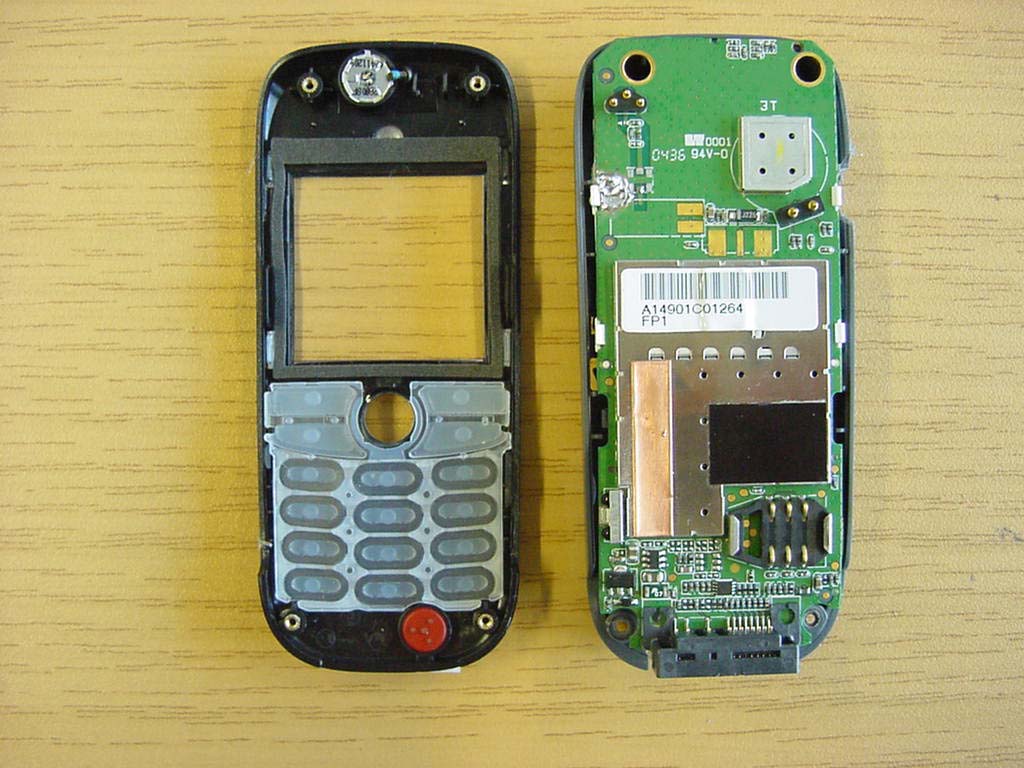

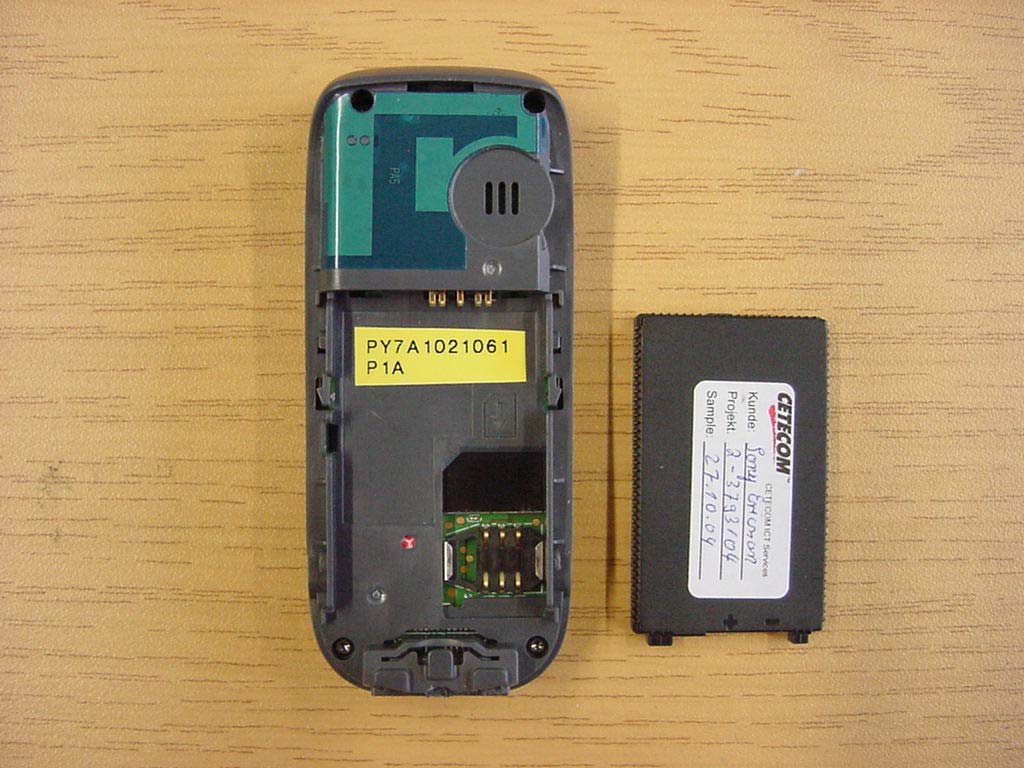

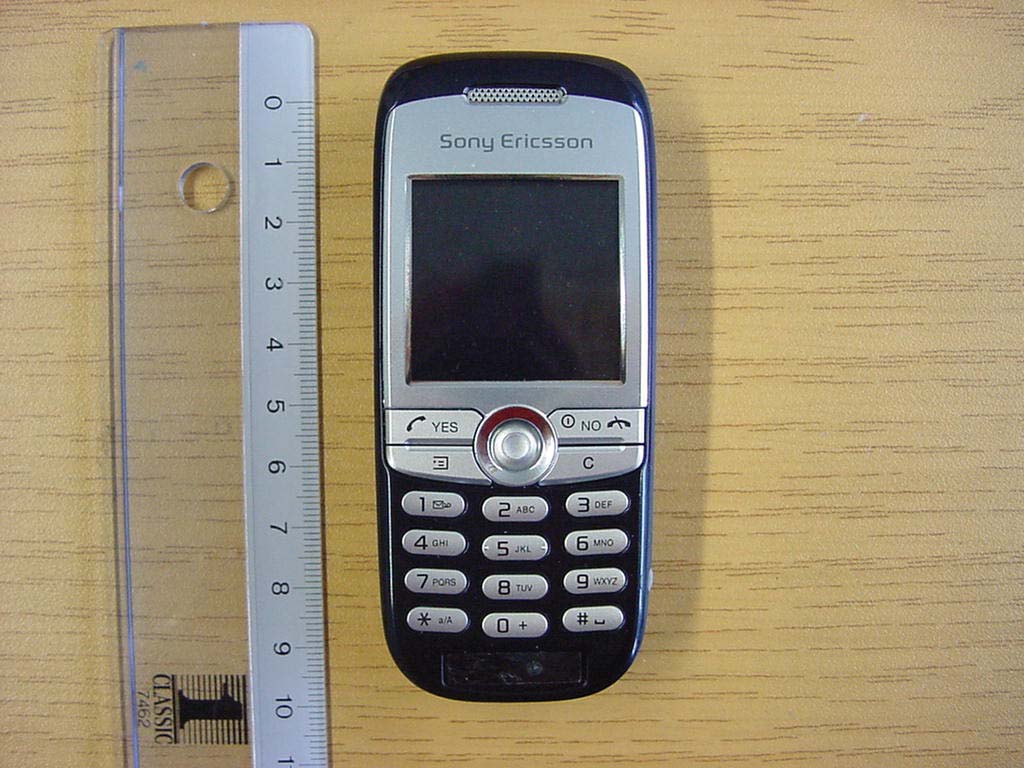

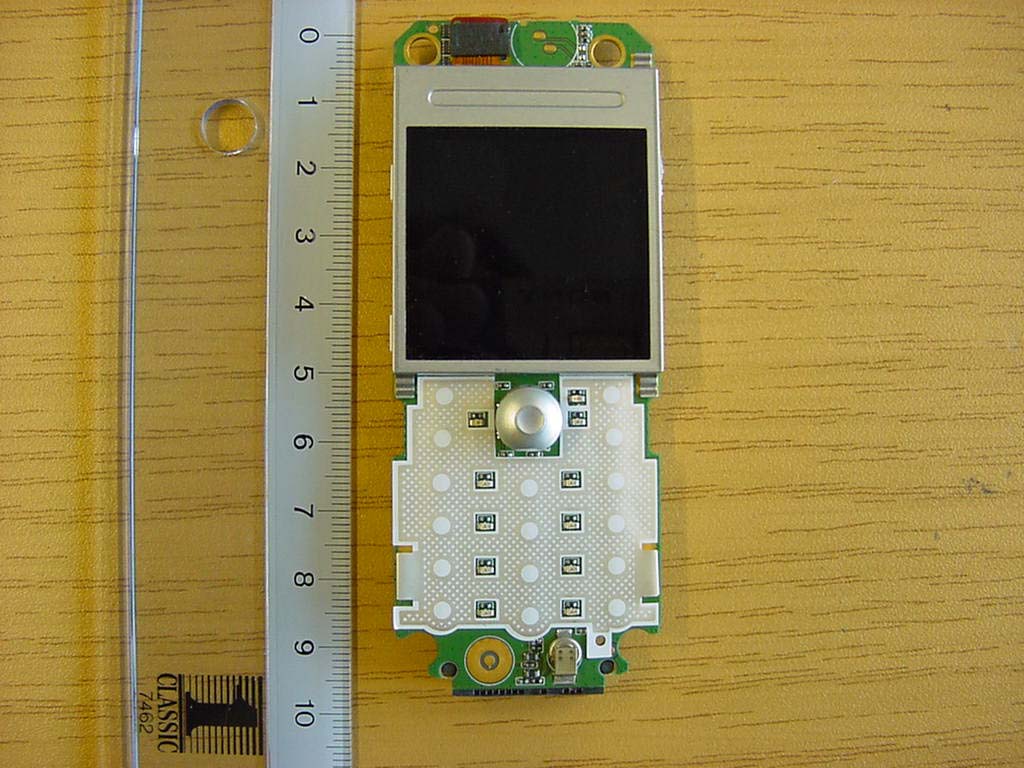

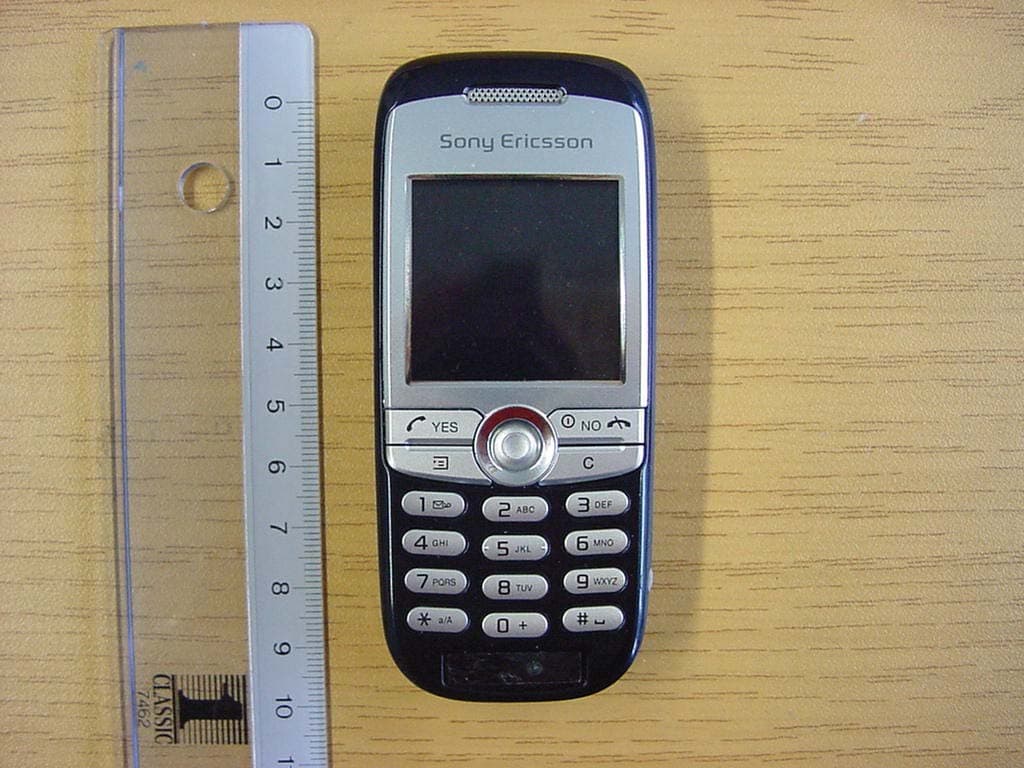

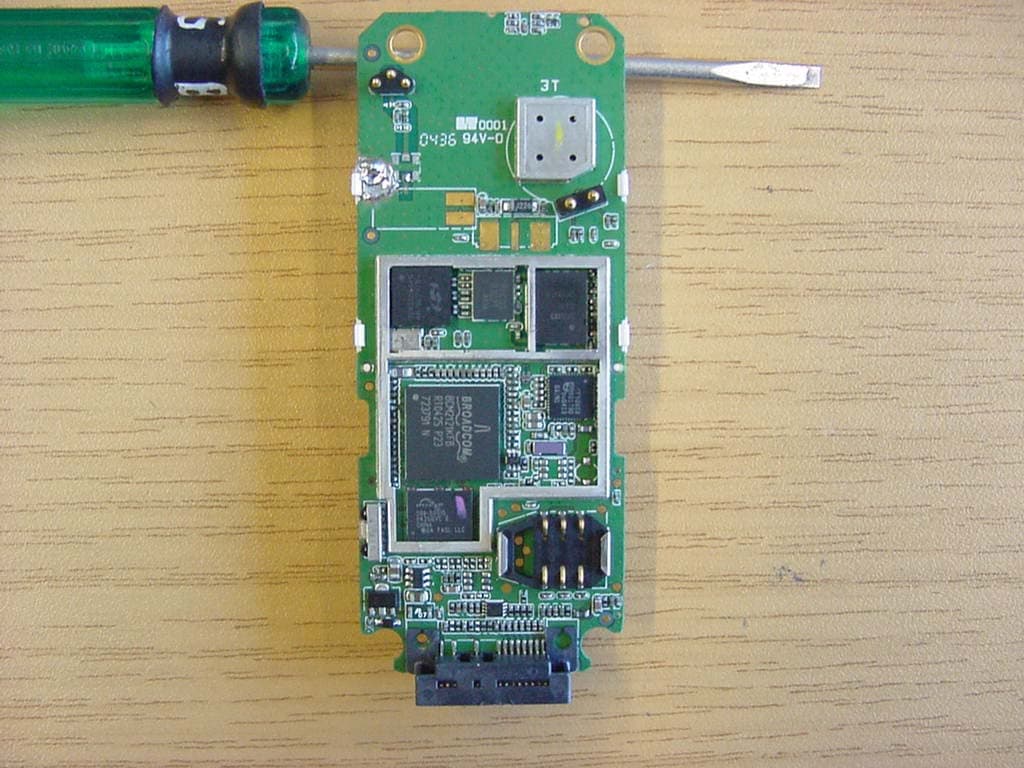

CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 44 (56) ANNEX B: Test Set-up Photos CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 45 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 46 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 47 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 48 (56) ‘ ANNEX C: External Photos CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 49 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 50 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 51 (56) ANNEX D: Internal Photos CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 52 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 53 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 54 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 55 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 56 (56)

Company Internal MARKING DRAWING 1 ( 3 ) Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 201/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2004-09-16 A Approved according to 000 21–LXE 107 42/1 J200, KRH-label, Type: AAB-1021061-BV 1 General information The format of the label is based on label SVF 930 2391. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (portrait format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1 (3,0/1,0) Line 2a in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 2a (4,6/1,0) Actual electronic serial number (IMEI) of the phone (KRH), “nnnnnnnn-nnnnnn-n” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 2b (4,6/15,3) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Company Internal MARKING DRAWING 2 ( 3 ) Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 201/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2004-09-16 A Content Format Line 2c (4,6/21,4) Production week. “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 3 (7,1/1,0) Line 4a in bar code. As desired by supplier (e.g. only actual number, with data identifier). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 4a (8,8/1,0) Supplier’s identification for trace-ability of the included telephone, as desired by supplier, (e.g. “nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 4b (8,8/9,9) Actual product number without R-state of the DPY kit in which the phone is packed, if applicable. Printed without “DPY 101”, “nnnn/nnn” Text, height 1,2 mm. Line 4c (8,8/16,4) Marking of origin. Text, height 1,2 mm. The line shall be printed as stated in the 1/151 86- document in the 1095- for the SVV, if any. Line 5 (11,2/1,0) Sony Ericsson stylized name. Graphics, height 2,0 mm. According to 190 89–EN/LZT 108 5347. Line 6 (12,8/1,0) Type number of the phone (KRH), “Type: AAB-1021061-BV”. Text, height 1,2 mm. Line 7a (14,9/1,0) “FCC ID: PY7A1021061 Text, height 1,2 mm. Line 7b (14,9/16,1) Actual location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. According to the 1050-LZT 108 6537 Uen. Line 8 (17,1/1,0) “IC: 4170B-A1021061” Text, height 1,2 mm. Line 9a (19,0/1,0) Actual model name, “J200i” Text, height 1,5 mm. Line 9b (19,0/5,8) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 10a (24,7/1,0) “CE” approval symbol. Graphics, height 5 mm. According to SVF 930 52. Line 10b (24,7/8,1) “0682” Text, height 2,0 mm. Line 11 (31,5/*) Additional field/lines. The field shall be left blank unless otherwise stated in a separate 2/151 86– document in the 1095- of the actual SVV. Company Internal MARKING DRAWING 3 ( 3 ) Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 201/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2004-09-16 A 2 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = changed since last revision.

CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 44 (56) ANNEX B: Test Set-up Photos CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 45 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 46 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 47 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 48 (56) ‘ ANNEX C: External Photos CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 49 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 50 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 51 (56) ANNEX D: Internal Photos CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 52 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 53 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 54 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 55 (56) CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 56 (56)

SecurityClass REPORT 1 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 04:239 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 041028 041028 A File SAR Test Report: PY7A1021061 Date of test: Oct. 20 to 24, 2004 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Test Responsible: Hamid kami Shirazi [email protected] Phone no: +46 46 232644 Testing Approval Mats Hansson [email protected] +46 46 19 33 57 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAB-1021061BV ; FCC ID: PY7A1021061 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2004 SecurityClass REPORT 2 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 04:239 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 041028 041028 A File 1 Table of contents 2 INTRODUCTION..................................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 A NTENNA DESCRIPTION.......................................................................................................................................................3 3.2 D EVICE DESCRIPTION...........................................................................................................................................................3 4 TEST EQUIPMENT ..............................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM............................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.....................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................4 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................5 8 TEST RESULTS ....................................................................................................................................................................7 9 REFERENCES .......................................................................................................................................................................7 10 APPENDIX .............................................................................................................................................................................8 10.1 SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.....................................................................8 10.2 SAR DISTRIBUTION PLOT...............................................................................................................................................16 10.3 P HOTOGRAPHS OF THE DEVICE UNDER TEST..................................................................................................................17 10.4 D EVICE POSITION ON SAM TWINS PHANTOM...............................................................................................................21 10.5 P ROBE CALIBRATION PARAMETERS...............................................................................................................................24 SecurityClass REPORT 3 (22) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 04:239 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 041028 041028 A File 2 Introduction In this report, compliance of the Sony Ericsson PY7A1021061portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device Under Test 3.1 Antenna Description Type Internal antenna Location Inside back, near the top Max length 38mm Dimensions Max width 14mm Configuration PIFA 3.2 Device description Device model PY7A1021061 Serial number A14901291 Mode GSM 1900 Multiple Access Scheme TDMA Maximum Output Power Setting 30.1 Factory Tolerance in Power Setting ± 0.5dB Maximum Peak Output Power 30.…

Text truncated - open the document above for the full version.

PY7A1021061SAM 4 Phantom; Left Hand Section; Po sition: (108°,59°); Frequency: 1850 MHz Probe: ET3DV6 - SN1585; ConvF(5.26,5.26,5.26); Crest factor: 8.0; Head 1900MHz: σ = 1.47 mho/m ε r = 39.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.759 mW/g, SAR (10g): 0.393 mW/g, (Worst-case extrapolation)Coarse: Dx = 12.0, Dy = 10.0, Dz = 10.0Powerdrift: -0.04 dBPY7A1021061;J200;with S/N:A14901C01291;FP1;GSM1900;Frequency 1850MHz(Ch512);Left Section phantom ; Tilt phone position;Date:041025 SAR Tot [mW/g] 8.01E-21.60E-12.40E-13.20E-14.00E-14.81E-15.61E-16.41E-17.21E-18.01E-1 10/25/04 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1021061SAM 4 Phantom; Righ Hand Section; Position: (108°,301°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(5.26,5.26,5.26); Crest factor: 8.0; Head 1900MHz: σ = 1.47 mho/m ε r = 39.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.332 mW/g, SAR (10g): 0.181 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: -0.02 dBPY7A1021061;J200;with S/N:A14901C01291;FP1;GSM1900;Frequency 1910MHz(Ch810);Right Secti on phantom; Tiltphone position;Date:041025 SAR Tot [mW/g] 3.57E-27.14E-21.07E-11.43E-11.78E-12.14E-12.50E-12.86E-13.21E-13.57E-1 10/25/04 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1021061SAM 4 Phantom; Left Hand Section; Po sition: (93°,59°); Frequency: 1850 MHz Probe: ET3DV6 - SN1585; ConvF(5.26,5.26,5.26); Crest factor: 8.0; Head 1900MHz: σ = 1.47 mho/m ε r = 39.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.842 mW/g, SAR (10g): 0.444 mW/g, (Worst-case extrapolation)Coarse: Dx = 12.0, Dy = 10.0, Dz = 10.0Powerdrift: 0.21 dBPY7A1021061;J200;with S/N:A14901C01291;FP1;GSM1900;Frequency 1850MHz(Ch512);Left Section phantom; Cheek phone position;Date:041025 Tissue's temprature 21 C-degree and ambient's temprature 21 c-degree SAR Tot [mW/g] 8.72E-21.74E-12.62E-13.49E-14.36E-15.23E-16.10E-16.98E-17.85E-18.72E-1 10/25/04 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1021061SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 8.0; Muscle 1900: σ = 1.53 mho/m ε r = 50.8 ρ = 1.00 g/cm 3 Cubes (2): SAR (1g): 0.173 mW/g ± 0.00 dB, SAR (10g): 0.0965 mW/g ± 0.00 dB, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: -0.18 dBPY7A1021061;J200;with S/N:A14901C01291/FP1G;GSM1900;Frequency 1850MHz(Ch512);Flat Section phantom; Back +15mm distance phone;Date:041019 SAR Tot [mW/g] 3.48E-26.96E-21.04E-11.39E-11.74E-12.09E-12.44E-12.78E-13.13E-13.48E-1 10/20/04 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1021061SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 8.0; Muscle 1900: σ = 1.53 mho/m ε r = 50.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0958 mW/g, SAR (10g): 0.0604 mW/g, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: -0.13 dBPY7A1021061;J200;with S/N:A14901C01291/FP1G;GSM1900;Frequency 1850MHz(Ch512);Flat Section phantom; Front +15mm distance phone;Date:041019 SAR Tot [mW/g] 1.00E-22.00E-23.00E-24.00E-25.00E-26.00E-27.00E-28.00E-29.00E-21.00E-1 10/20/04 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1021061SAM 4 Phantom; Righ Hand Section; Position: (93°,301°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(5.26,5.26,5.26); Crest factor: 8.0; Head 1900MHz: σ = 1.47 mho/m ε r = 39.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.521 mW/g, SAR (10g): 0.302 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: -0.20 dB SAR Tot [mW/g] 5.86E-21.17E-11.76E-12.34E-12.93E-13.52E-14.10E-14.69E-15.27E-15.86E-1 10/25/04 Hamid Kami ShiraziSony Ericsson Mobile Communications AB AAB-1021061-BVSAM 4 Phantom; Righ Hand Section; Position: (108°,301°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(5.26,5.26,5.26); Crest factor: 8.0; Head 1900MHz: σ = 1.47 mho/m ε r = 39.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.623 mW/g, SAR (10g): 0.349 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: -0.01 dB SAR Tot [mW/g] 6.76E-21.35E-12.03E-12.70E-13.38E-14.06E-14.73E-15.41E-16.08E-16.76E-1 10/25/04 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1021061SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1880 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 8.0; Muscle 1900: σ = 1.53 mho/m ε r = 50.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.296 mW/g, SAR (10g): 0.166 mW/g, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: -0.01 dBPY7A1021061;J200;with S/N:A14901C01291/FP1G;GSM1900;Frequency 1880MHz(Ch661);Flat Section phantom; Back +15mm distance phone;Date:041020 SAR Tot [mW/g] 2.99E-25.98E-28.97E-21.20E-11.49E-11.79E-12.09E-12.39E-12.69E-12.99E-1 10/20/04 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1021061SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1880 MHzProbe: ET3DV6 - SN1585; ConvF(4.56,4.56,4.56); Crest factor: 8.0; Muscle 1900: σ = 1.53 mho/m ε r = 50.8 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0899 mW/g, SAR (10g): 0.0546 mW/g, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: -0.07 dBPY7A1021061;J200;with S/N:A14901C01291/FP1G;GSM1900;Frequency 1880MHz(Ch661);Flat Section phantom; Front +15mm distance phone;Date:041019 SAR Tot [mW/g] 9.40E-31.88E-22.82E-23.76E-24.70E-25.64E-26.58E-27.52E-28.46E-29.40E-2 10/20/04 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1021061SAM 4 Phantom; Left Hand Section; Po sition: (93°,59°); Frequency: 1880 MHz Probe: ET3DV6 - SN1585; ConvF(5.26,5.26,5.26); Crest factor: 8.0; Head 1900MHz: σ = 1.47 mho/m ε r = 39.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.554 mW/g, SAR (10g): 0.290 mW/g, (Worst-case extrapolation)Coarse: Dx = 12.0, Dy = 10.0, Dz = 10.0Powerdrift: -0.04 dBPY7A1021061;J200;with S/N:A14901C01291;FP1;GSM1900;Frequency 1880MHz(Ch661);Left Section phantom; Cheek phone …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-0 Telefax: - 9075 Test report No.: 2-3793-01-01/04 This test report consists of 56 pages Page 1 (56) Recognized by the Federal Communications Commission Anechoic Chamber Registration No.: 90462 (FCC) Anechoic Chamber Registration No.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Test Report No.: 2-3793-01-01/04 Applicant: Sony Ericsson Mobile Type: AAB-1021061-BV Test Standards: FCC Part 24 / RSS 133 FCC ID: PY7A1021061 CETECOM ICT Services GmbH Test report No. 2-3793-01-01/04 Date: 2004.11.05 Page 2 (56) Table of Contents 1 GENERAL INFORMATION...................................................................................................................3 1.1 N OTES....................................................................................................................................................3 1.2 T ESTING LABORATORY.........................................................................................................................3 1.3 D ETAILS OF APPLICANT........................................................................................................................4 1.4 A PPLICATION DETAILS..........................................................................................................................4 1.6 T EST STANDARDS..................................................................................................................................6 2 STATEMENT OF COMPLIANCE .........................................................................................................7 2.1 S UMMARY OF MEASUREMENT RESULTS...............................................................................................7 2.1.1 PCS1900 .........................................................................…

Text truncated - open the document above for the full version.
