PY7A1021071GSM 900/1800/1900 Mobile Phone

1 Contents Getting to Know Your Phone . . . . . . . . . . . . . . . . . . 4 Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Entertainment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 More Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Additional Information . . . . . . . . . . . . . . . . . . . . . . 68 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 You can find more support, information, content downloads and settings information at www.SonyEricsson.com/support. 2 Sony Ericsson GSM 900/1800/1900 This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2004 Publication number: AE/LZT 108 7308 R1A Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your service provider if you are in doubt as to whether you can use a particular service. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. QuickShare™ is a trademark or a registered trademark of Sony Ericsson Mobile Communications AB. PlayNow™ is a trademark or a registered trademark of Sony Ericsson Mobile Communications AB. MusicDJ™ is a trademark or a registered trademark of Sony Ericsson Mobile Communications AB. 3 T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™. 1 Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2 Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3 Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227- 7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved. Other product and company names mentioned herein may be the trademarks of their respective owners. Any rights not expressly granted herein are reserved. 4 Getting to Know Your Phone Infrared port Camera b utton Screen Selection key Back key Internet b utton Microphone On/off butto n Earpiece Selection key Navigation key Clea r key Stereo headset and charger connector 5 User guide symbols The following instruction symbols appear in this user guide: Assembling your phone Insert the SIM card, attach and charge the battery to use your phone. SIM card When you register as a subscriber with a service provider, you get a SIM (Subscriber Identity Module) card. The SIM card contains a computer chip that keeps track of your phone number, the services included in your subscription, and your phonebook information, among other things. %See also page ... }Use the navigation key to scroll and select % 11 Navigating…

Text truncated - open the document above for the full version.

Confidentiality Request Datum' Date 2005-01-17 Beteckning' Reference GUG/NO5:024 Er beteckning' Your ref, Vår handläggare, namn, tfn .Attending to this mattet; name, te/ephone SEM/BGGINB Håkan Sjöberg +4646193559 Ert datum' Your date Receiver Federal Communications Commission Request for Confidentiality FCC ID: PY7A1021071 Subject: To Whom It May Cancern In accordance with §O.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below Iisted items for our mobile phone type AAB- 1021071-BV/CN, FCC ID: PY7A1021071: 1. 2. 3. 4. 5. Block Diagram Schematic Diagram Part List Operational Descriptions Mounting Drawing These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give Dur competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Type Approval Manager Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AB Momsnr .~A. 7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Int +46461941 00 Styrelsens säte: Lund Registered office: Lund Telefon' Telephone Nat 046-194000 Int +4646194000 Besöksadress. Office address Nya Vattentornet Lund Postadress' Mail SE-221 88 Lund Sweden

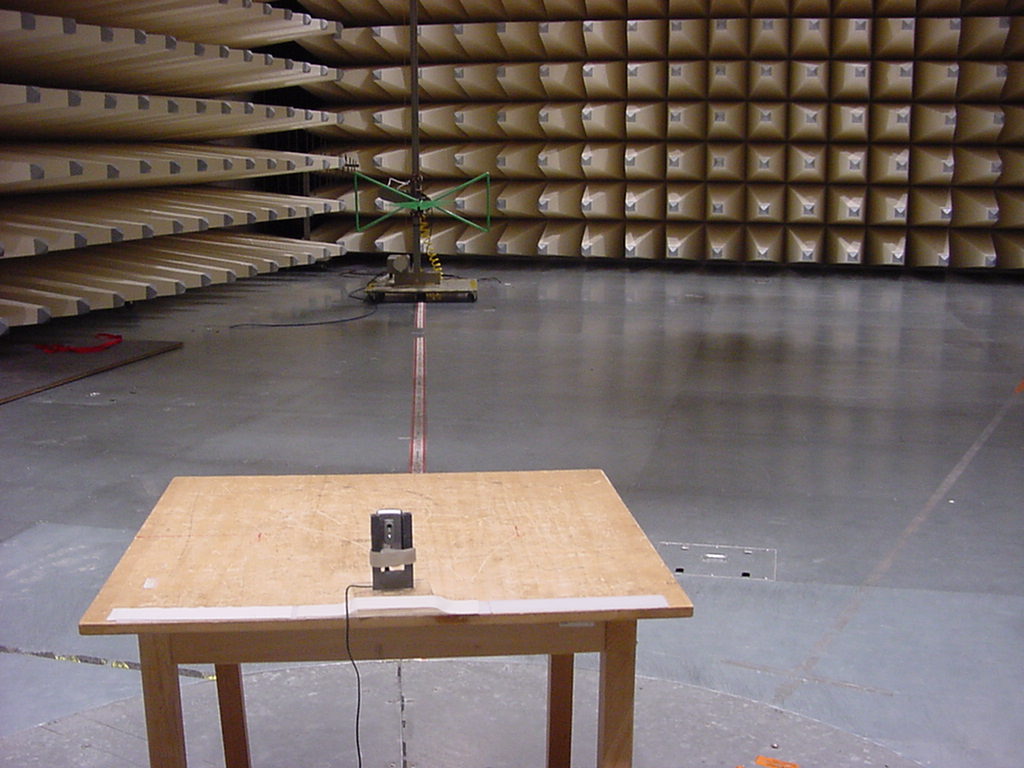

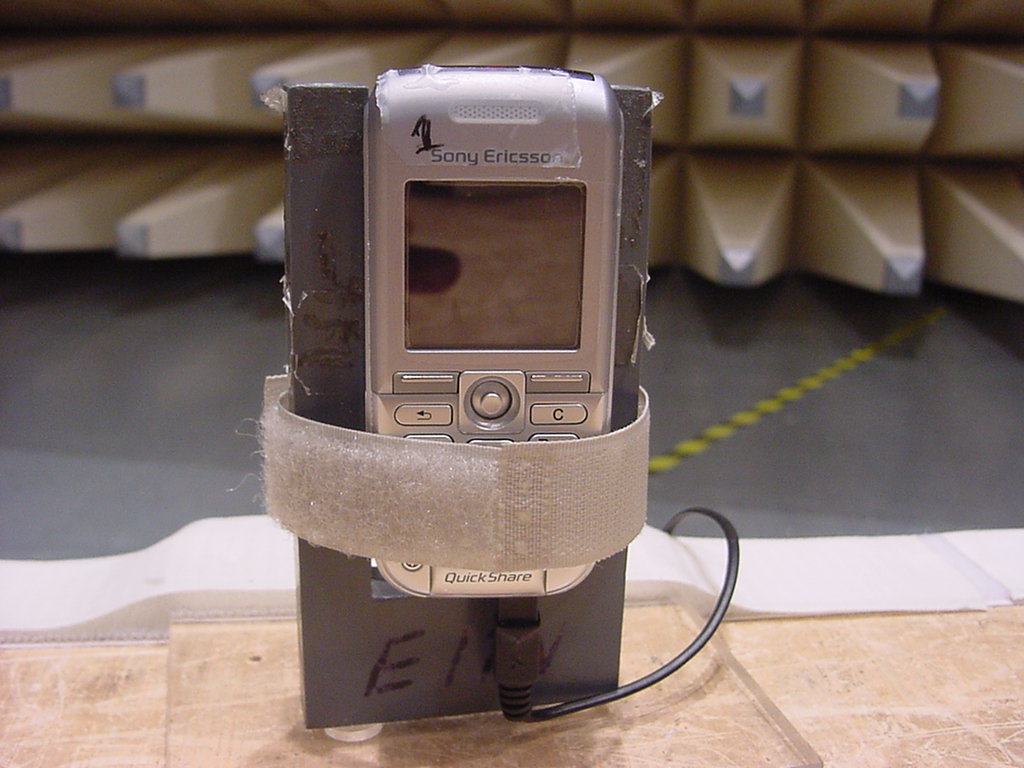

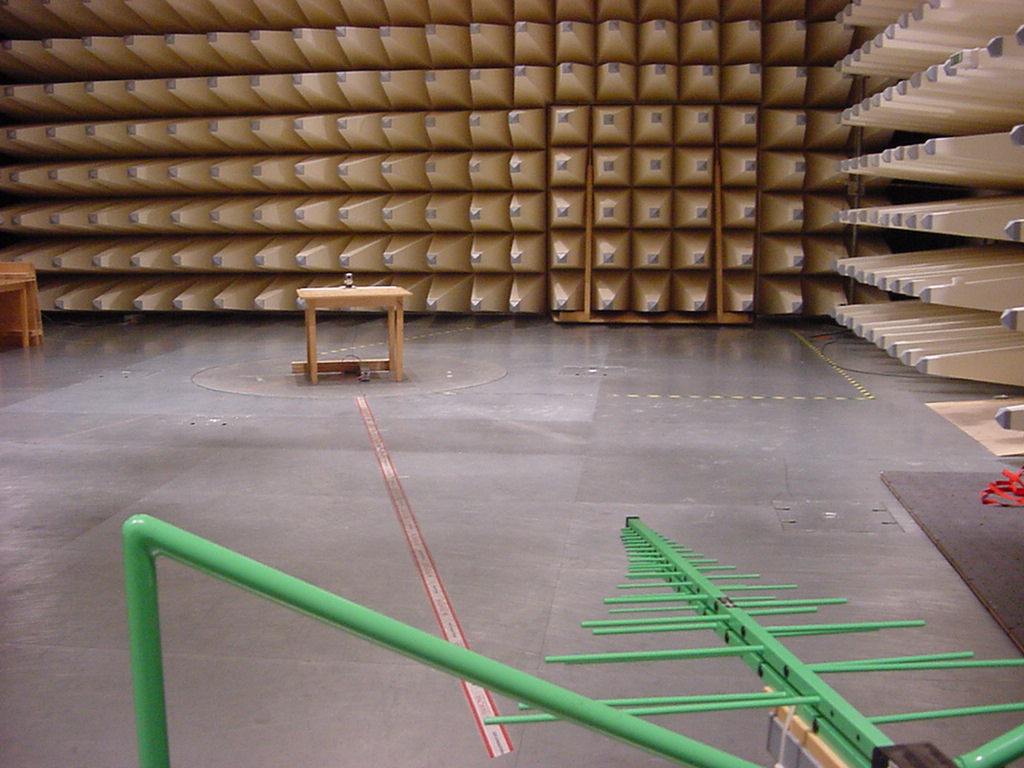

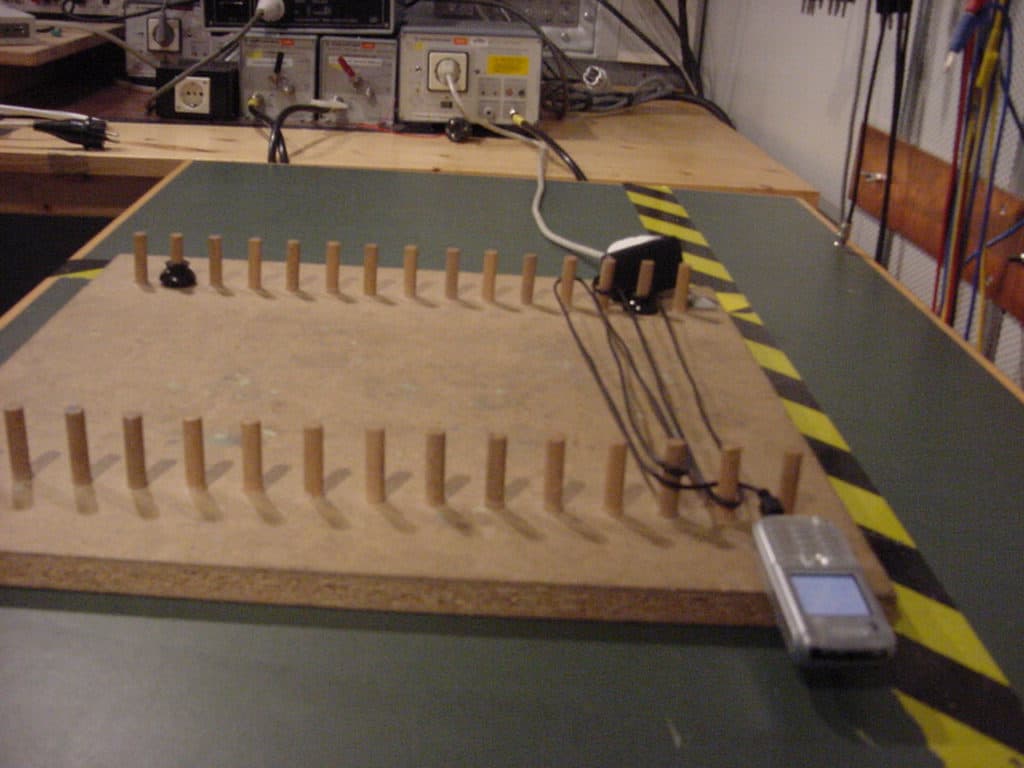

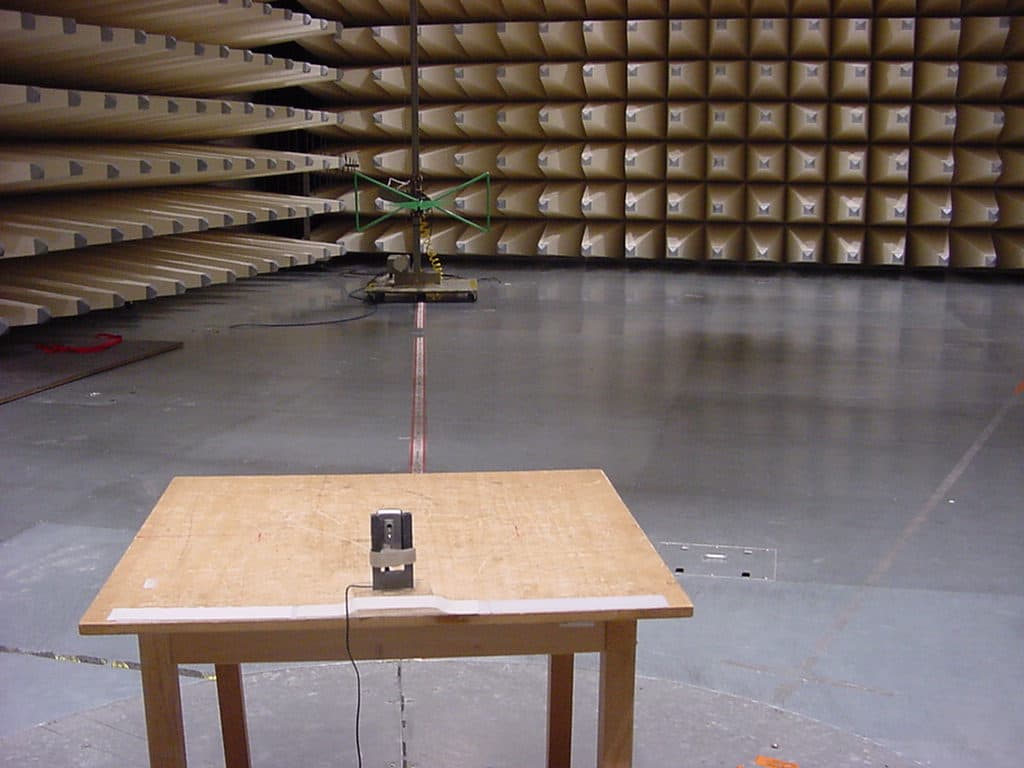

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3794-01-01/04 Date: 2004-11-29 Page 1 of 31 G:\2_RSC\PROJEKTE\04\3794_1\Task1\Annex to 2-3794-01-01_04.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Annex to Test report no. : 2-3794-01-01/04 Applicant : Sony Ericsson Mobile Communications AB Type : AAB-1021071-BV Test Standard : FCC Part 15 / RSS210 FCC ID : PY7A1021071 Certification No. IC : 4170B-A1021071 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 D-66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3794-01-01/04 Date: 2004-11-29 Page 2 of 31 Table of contents 1 GENERAL INFORMATION ......................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY........................................................................................................... 3 1.1.1 Identification of the testing laboratory ............................................................................................................... 3 1.2. NOTES......................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT............................................................................................................................................... 4 1.4 APPLICATION DETAILS................................................................................................................................................ 4 1.5 TEST ITEM................................................................................................................................................................... 5 1.6 TEST SETUP................................................................................................................................................................. 6 1.7 TEST SPECIFICATIONS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE ................................................................................................................................ 7 2.1 SUMMARY OF MEASUREMENT RESULTS...................................................................................................................... 7 2.1.1 CFR 47 Part 15 Radio frequency devices ........................................................................................................... 7 3 MEASUREMENTS AND RESULTS ............................................................................................................................. 8 4 ANNEX A: FCC PART 15 SUBPART B........................................................................................................................ 9 4.1 Conducted Limits .................................................................................................................................................... 9 5 ANNEX B PHOTOGRAPS OF TEST SITE ................................................................................................................ 15 6 ANNEX C: EXTERNAL PHOTOGRAPS OF THE EQUIPMENT.......................................................................... 18 7 ANNEX D: INTERNAL PHOTOGRAPS OF THE EQUIPMENT........................................................................... 25 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3794-01-01/04 Date: 2004-11-29 Page 3 of 31 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. TTI-P-G081/94-D0 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Gillmann D./ Hausknecht D. Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. ..................................................... / .......................................................... Responsible for testing laboratory (Gillmann D./ Hausknecht D.) ...................................................... / .......................................................... Responsible for test report (Gillmann D./ Hausknecht D.) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3794-01-01/04 Date: 2004-11-29 Page 4 of 31 1.3 Details of…

Text truncated - open the document above for the full version.

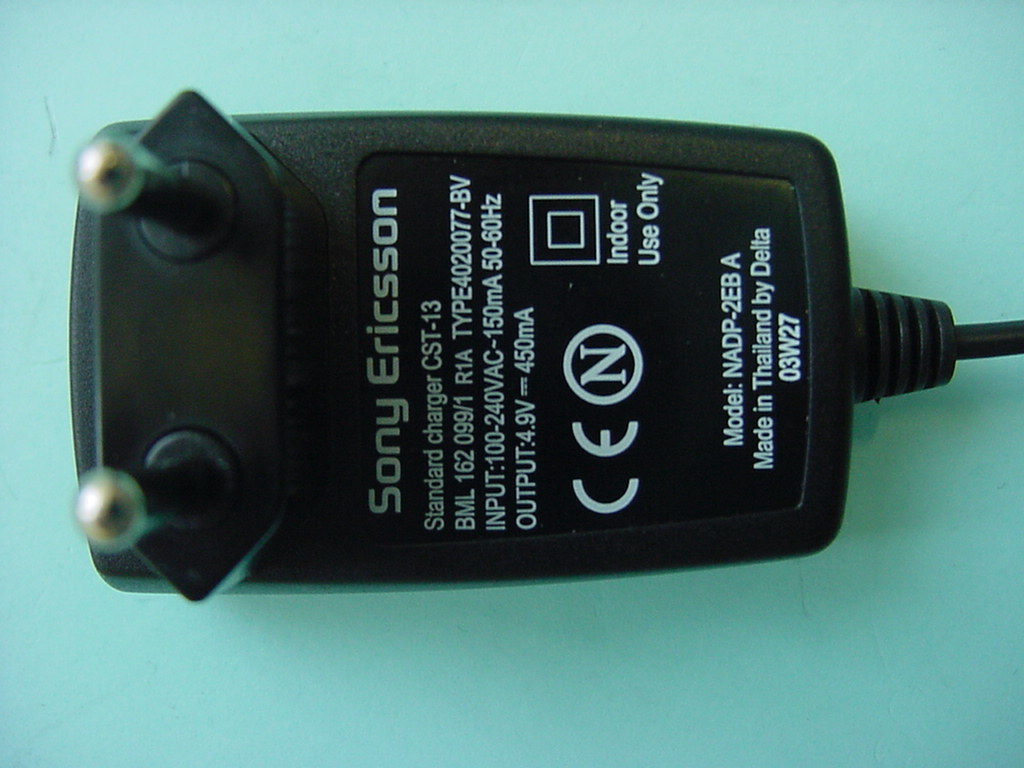

1 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 194/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2004-10-12 A 2 Approved according to 000 21–LXE 107 42/1 K300i, KRH-label, SEM, TYPE: AAB-1021071-BV 1 General information The format of the label is based on a label SVF 930 1353. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (17,0/1,0) Sony Ericsson stylized name. Graphics, height 1,4 mm. According to 190 89–EN/LZT 108 5347 Line 1b (17,0/14,0) Model name, “K300i” Text, height 1,2 mm. Line 1c (17,0/17,8) Country approval mark 2 “IC: 4170B-A1021071” Text, height 1,2 mm. Line 2a (18,9/1,0) Type number of the phone (KRH), “Type: AAB-1021071-BV”. Text, height 1,2 mm. Line 2b (18,9/17,4) Country approval mark 1 “FCC ID: PY7A1021071” Text, height 1,2 mm. Line 3 (21,9/1,0) Line 4a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,5 mm. As desired by supplier (e.g. Code 128 symbology). Line 4a (23,5/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. 2 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 194/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2004-10-12 A 2 Content Format Line 4b (23,5/25,1) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 5 (26,4/1,0) Line 6a in bar code (only actual number, without data identifier). Bar code, height 2,5 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 6a (28,1/1,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 6b (28,1/14,7) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Line 6c (28,1/19,8) Product number of the DPY kit in which the phone is packed, if applicable. Printed without “DPY 101” and R-state, “0000/000” Text, height 1,2 mm. Line 7a (28,1/28,1) CE approval symbol. Graphics, height 5 mm. According to SVF 930 52. Rotated 90° counter clockwise. Line 7b (21,2/31,2) The Notified body number. “0682” Text, height 3,0 mm. Rotated 90° counter clockwise. Line 8a (27,3/34,1) Production week, “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Rotated 90° counter clockwise. Line 8b (22,4/34,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Rotated 90° counter clockwise. Line 9 (27,5/38,0) Marking of origin. The line shall be printed as stated in a separate 1/151 86- document in the 1095- for the SVV, if any. Text, height 1,2 mm. Rotated 90° counter clockwise. Line 10 (14,5/8,5) Additional marking. The field shall be left blank unless otherwise stated in a separate 2/151 86-document in the 1095- of the actual SVV. Rotated 90° counter clockwise. 3 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 194/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2004-10-12 A 2 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3794-01-01/04 Date: 2004-11-29 Page 1 of 31 G:\2_RSC\PROJEKTE\04\3794_1\Task1\Annex to 2-3794-01-01_04.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Annex to Test report no. : 2-3794-01-01/04 Applicant : Sony Ericsson Mobile Communications AB Type : AAB-1021071-BV Test Standard : FCC Part 15 / RSS210 FCC ID : PY7A1021071 Certification No. IC : 4170B-A1021071 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 D-66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3794-01-01/04 Date: 2004-11-29 Page 2 of 31 Table of contents 1 GENERAL INFORMATION ......................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY........................................................................................................... 3 1.1.1 Identification of the testing laboratory ............................................................................................................... 3 1.2. NOTES......................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT............................................................................................................................................... 4 1.4 APPLICATION DETAILS................................................................................................................................................ 4 1.5 TEST ITEM................................................................................................................................................................... 5 1.6 TEST SETUP................................................................................................................................................................. 6 1.7 TEST SPECIFICATIONS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE ................................................................................................................................ 7 2.1 SUMMARY OF MEASUREMENT RESULTS...................................................................................................................... 7 2.1.1 CFR 47 Part 15 Radio frequency devices ........................................................................................................... 7 3 MEASUREMENTS AND RESULTS ............................................................................................................................. 8 4 ANNEX A: FCC PART 15 SUBPART B........................................................................................................................ 9 4.1 Conducted Limits .................................................................................................................................................... 9 5 ANNEX B PHOTOGRAPS OF TEST SITE ................................................................................................................ 15 6 ANNEX C: EXTERNAL PHOTOGRAPS OF THE EQUIPMENT.......................................................................... 18 7 ANNEX D: INTERNAL PHOTOGRAPS OF THE EQUIPMENT........................................................................... 25 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3794-01-01/04 Date: 2004-11-29 Page 3 of 31 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. TTI-P-G081/94-D0 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Gillmann D./ Hausknecht D. Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. ..................................................... / .......................................................... Responsible for testing laboratory (Gillmann D./ Hausknecht D.) ...................................................... / .......................................................... Responsible for test report (Gillmann D./ Hausknecht D.) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3794-01-01/04 Date: 2004-11-29 Page 4 of 31 1.3 Details of…

Text truncated - open the document above for the full version.

SecurityClass REPORT 1 (21) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 04:270 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 041123 041123 A File SAR Test Report: PY7A1021071 Date of test: Nov. 15 to 17, 2004 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Test Responsible: Hamid kami Shirazi [email protected] Phone no: +46 46 232644 Testing Approval Mats Hansson [email protected] +46 46 19 33 57 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAB-1021071BV ; FCC ID: PY7A1021071 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2004 SecurityClass REPORT 2 (21) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 04:270 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 041123 041123 A File 1 Table of contents 2 INTRODUCTION..................................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 A NTENNA DESCRIPTION.......................................................................................................................................................3 3.2 D EVICE DESCRIPTION...........................................................................................................................................................3 4 TEST EQUIPMENT ..............................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM............................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.....................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................4 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................5 8 TEST RESULTS ....................................................................................................................................................................7 9 REFERENCES .......................................................................................................................................................................7 10 APPENDIX .............................................................................................................................................................................8 10.1 SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.....................................................................8 10.2 SAR DISTRIBUTION PLOT...............................................................................................................................................16 10.3 P HOTOGRAPHS OF THE DEVICE UNDER TEST..................................................................................................................17 10.4 D EVICE POSITION ON SAM TWINS PHANTOM...............................................................................................................21 10.5 P ROBE CALIBRATION PARAMETERS...............................................................................................................................24 SecurityClass REPORT 3 (21) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Hamid Kami Shirazi GUG/N 04:270 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 041123 041123 A File 2 Introduction In this report, compliance of the Sony Ericsson PY7A1021071portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device Under Test 3.1 A…

Text truncated - open the document above for the full version.
