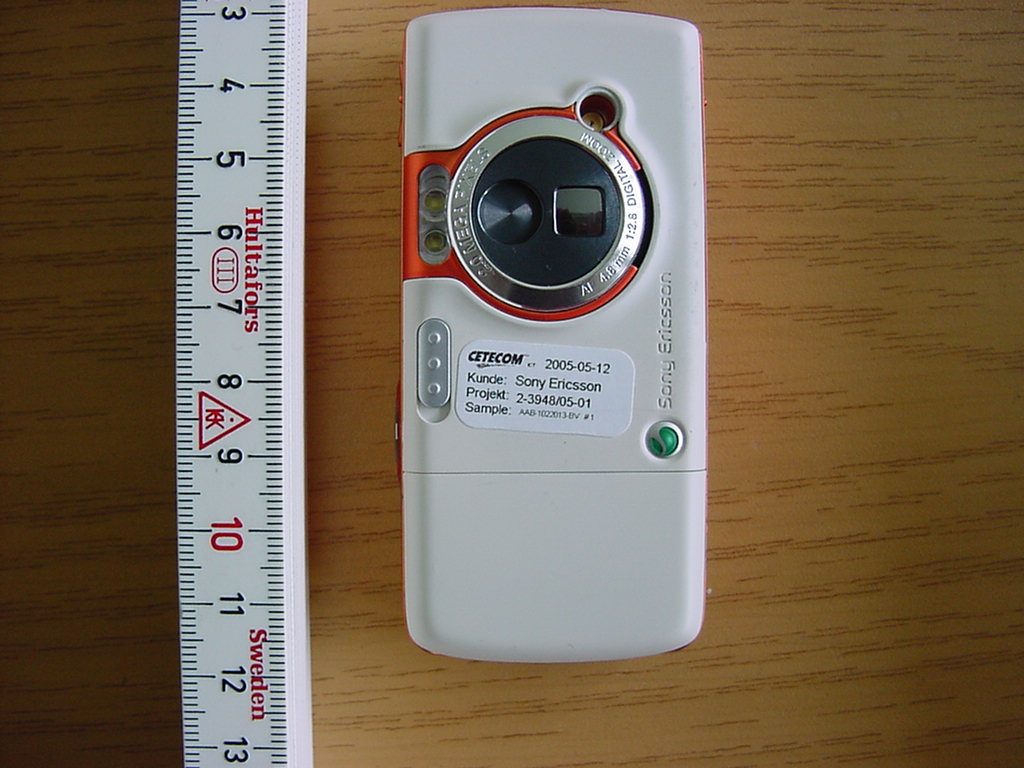

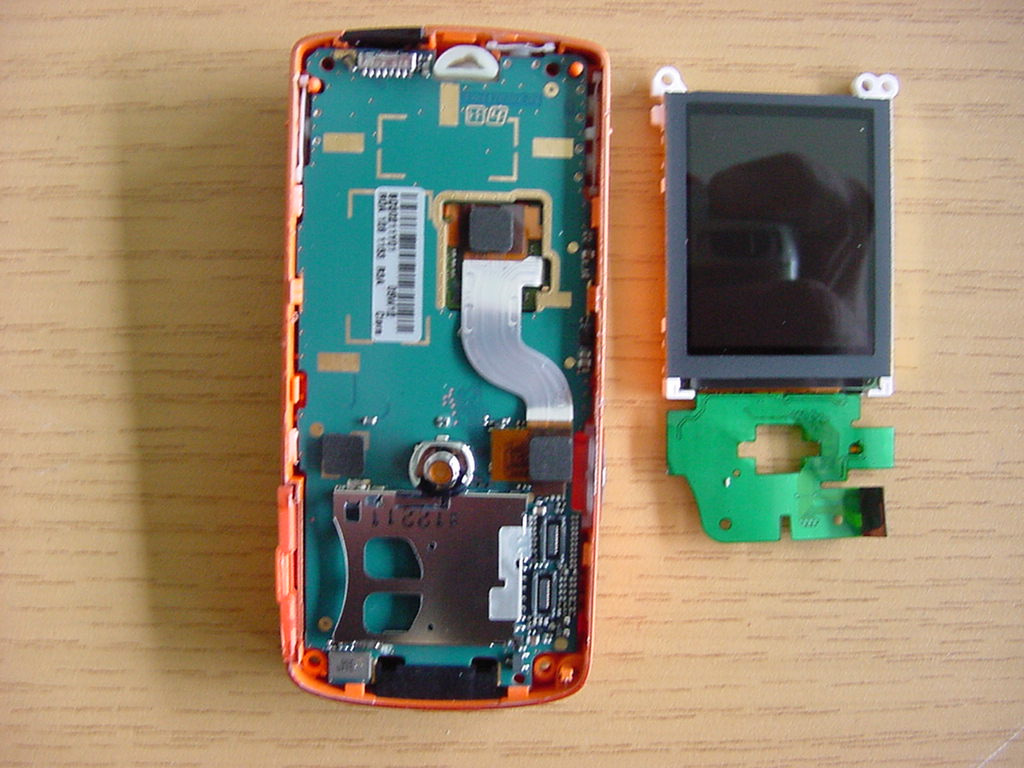

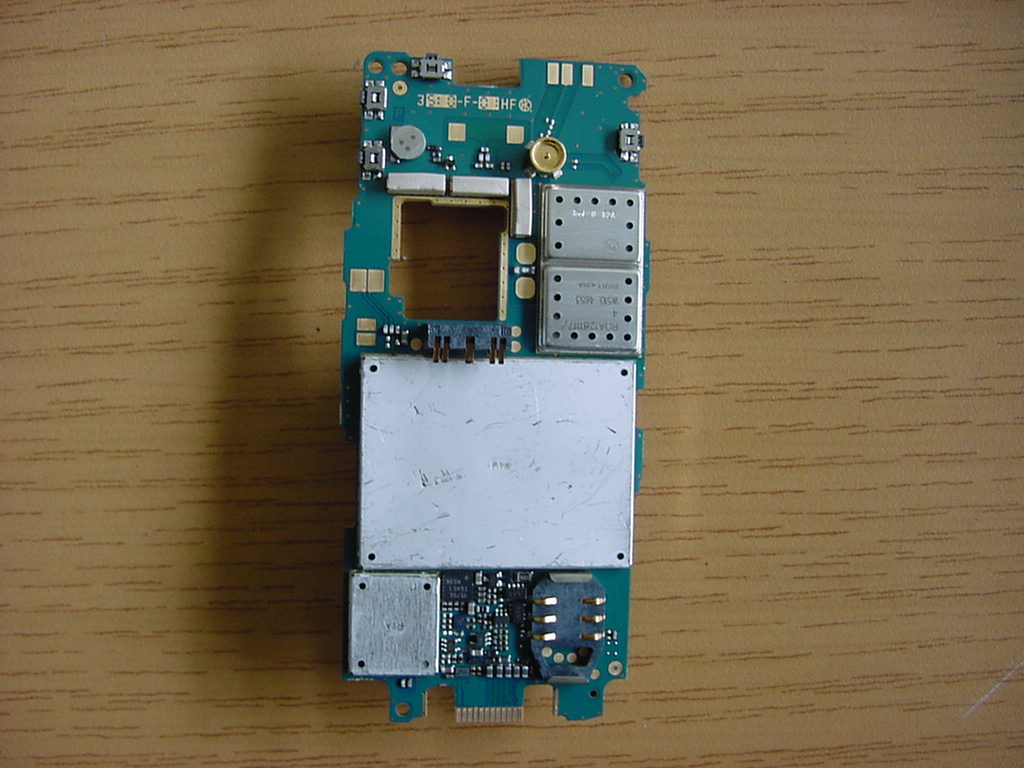

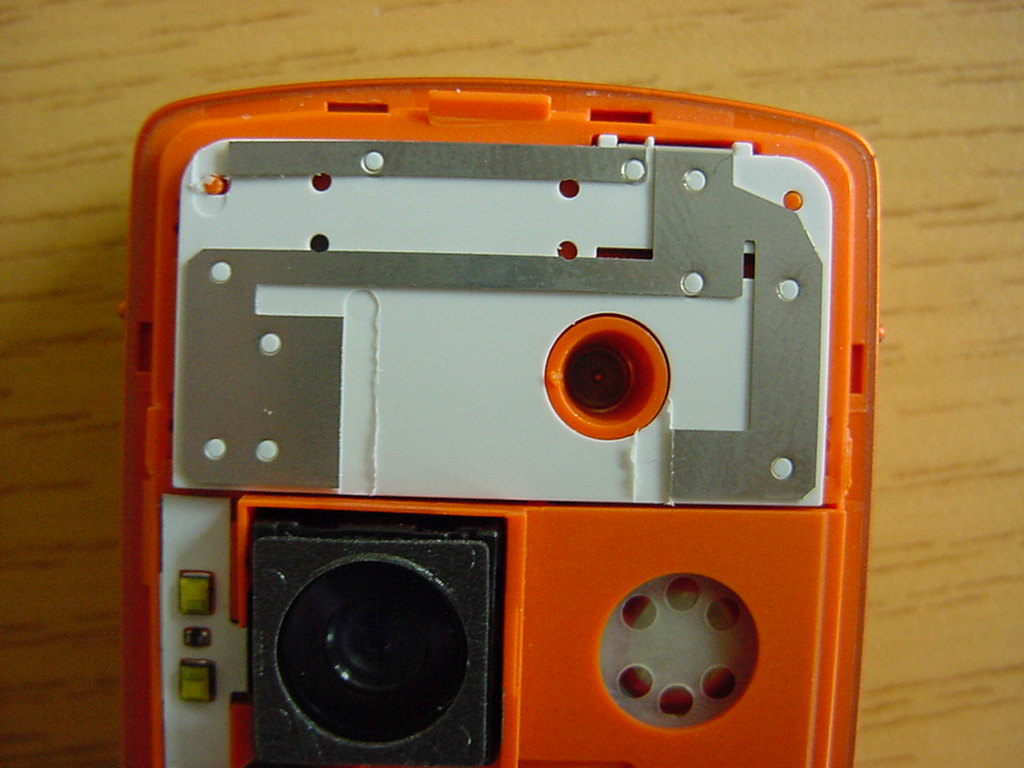

PY7A1022013Licensed transmitter

1 Contents Getting started ....................... 4 Getting to know your phone 14 Calling ................................... 22 Messaging ............................ 26 Imaging ................................. 28 Entertainment ....................... 30 Connectivity .......................... 33 Important information .......... 34 Index ..................................... 42 Additional user information You can find the Additional information user guide, containing more information about your phone, at www.SonyEricsson.com/support. www.SonyEricsson.com/support At Sony Ericsson Product Support you can find more help getting the most out of your product, including user documentation, troubleshooting, tips & tricks and software, as well as phone settings for Internet/WAP browsing and messaging. Sony Ericsson GSM 900/1800/1900 First edition (May 2005) This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2005 Publication number: AE/LZT 108 7880 R1A Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited 2 by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license. QuickShare™, PlayNow™, PhotoDJ™, MusicDJ™ and VideoDJ™ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. Memory Stick™ and Memory Stick Duo™ are trademarks or registered trademarks of Sony Corporation. Walkman™ is a registered trademark of Sony Corporation. The Walkman™ logo and symbol are registered trademarks of Sony Corporation. Microsoft, Windows and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and other countries. Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. Adobe and Photoshop are either trademarks or registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™. 1Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain 3 licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved. Other product and company names mentioned herein may be the trademarks of their respective owners. Any rights not expressly granted herein are reserved. 4 Getting started Insert battery and SIM card 2Slide the SIM card into its holder. 3Insert the battery with the label side up and the connectors facing each other. 4Slide the battery cover …

Text truncated - open the document above for the full version.

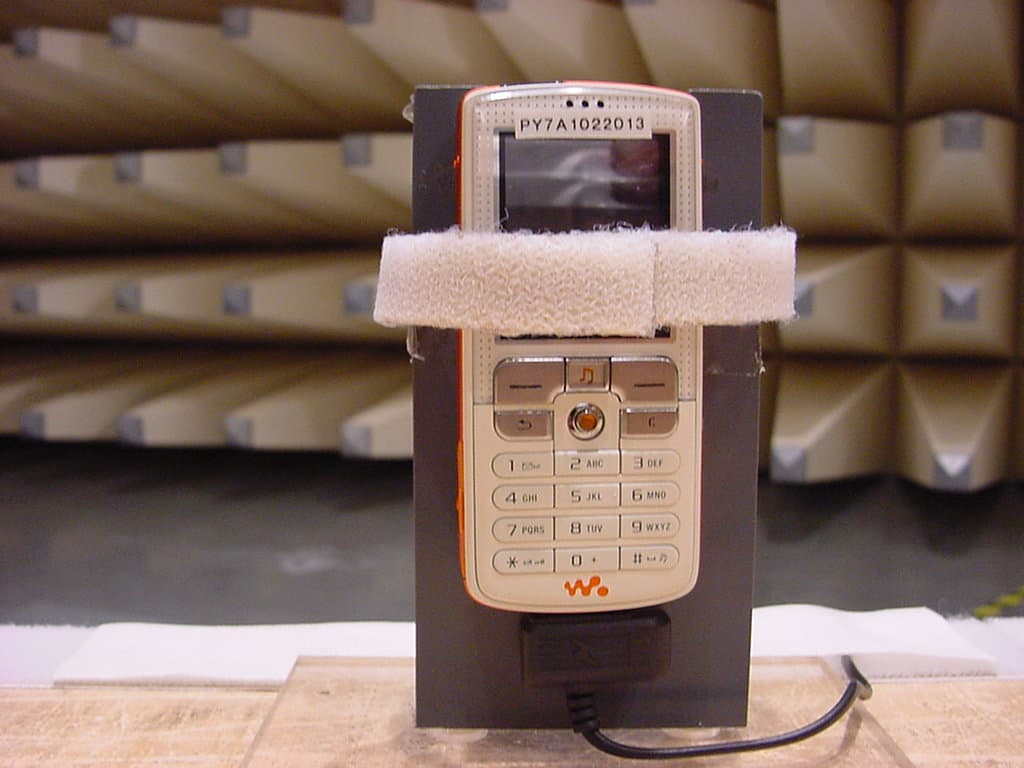

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 16 of 33 5 Annex B Photographs of Test site Photo No.: 01 ( radiated emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 17 of 33 Photo No.: 02 ( radiated emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 18 of 33 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 19 of 33 Photo No.: 04 ( conducted emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 20 of 33 6 Annex C: External Photographs of the Equipment Photo No.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 21 of 33 Photo No.: 02 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 22 of 33 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 23 of 33 Photo No.: 04 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 24 of 33 Annex D: Internal Photographs of the Equipment Photo No.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 25 of 33 Photo No.: 02 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 26 of 33 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 27 of 33 Photo No.: 04 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 28 of 33 Photo No.: 05 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 29 of 33 Photo No.: 06 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 30 of 33 Photo No.: 07 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 31 of 33 Photo No.: 08 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 32 of 33 Photo No.: 09 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 33 of 33 Photo No.: 10

1 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 338/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-06-08 A 2 Approved according to 000 21–LXE 107 42/1 W800i, KRH-label, TYPE: AAB-1022013-BV, Made in... 1 General information The format of the label is based on a label SVF 930 1371. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1 (3,5/1,0) Line 2 in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,5 mm. As desired by supplier (e.g. Code 128 symbology). Line 2 (5,2/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 3 (9,6/12,8) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 2,0 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 4a (11,5/12,8) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. 2 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 338/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-06-08 A 2 Content Format Line 4b (11,5/18,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 5 (13,5/12,8) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 6a (15,1/0,5) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. Line 6b (15,1/11,3) Product number of the DPY kit in which the phone is packed, if applicable. Printed without “DPY 101” and R-state, “0000/000” Text, height 1,2 mm. Line 6c (15,1/20,5) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 6d (15,1/27,4) The Notified body number. “0682” Text, height 1,2 mm. Line 7a (16,8/0,5) Country approval mark 2 “IC: 4170B-A1022013” Text, height 1,2 mm. Line 7b (16,8/15,8) Country approval mark 1 “FCC ID: PY7A1022013” Text, height 1,2 mm. Line 8a (18,4/0,5) Type number of the phone (KRH), “Type: AAB-1022013-BV”. Text, height 1,2 mm. Line 8b (18,4/15,3) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Line 8c (18,4/19,9) Sony Ericsson stylized name. Graphics, height 1,4 mm. According to 190 89–EN/LZT 108 5347 Line 9a (20,6/0,5) Line 3 in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 9b (20,6/26,5) Model name, “W800i” Text, height 1,2 mm. 3 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 338/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-06-08 A 2 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 16 of 33 5 Annex B Photographs of Test site Photo No.: 01 ( radiated emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 17 of 33 Photo No.: 02 ( radiated emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 18 of 33 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 19 of 33 Photo No.: 04 ( conducted emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 20 of 33 6 Annex C: External Photographs of the Equipment Photo No.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 21 of 33 Photo No.: 02 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 22 of 33 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 23 of 33 Photo No.: 04 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 24 of 33 Annex D: Internal Photographs of the Equipment Photo No.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 25 of 33 Photo No.: 02 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 26 of 33 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 27 of 33 Photo No.: 04 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 28 of 33 Photo No.: 05 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 29 of 33 Photo No.: 06 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 30 of 33 Photo No.: 07 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 31 of 33 Photo No.: 08 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 32 of 33 Photo No.: 09 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 33 of 33 Photo No.: 10

Company Internal REPORT 1 (12) Prepared (also subject responsible if other)No. LD/SEMC/BGGI/NMHamid Kami Shirazi BGGIN05:137 Approved CheckedDateRevReference LD/SEMC/BGGI/NMRamadan Plicanic 050527 050525 A File Report issued by Accredited SAR Laboratory For PY7A1022013 Date of test: 19-20-23, May, 2005 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Hamid Kami Shirazi [email protected] +4646232644 Testing Approval Ramadan Plicanic [email protected] +46 46 19 38 62 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAB-1022013-BV; FCC ID:PY7A1022013;IC:4170B-A1022013 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2005 Company Internal REPORT 2 (12) Prepared (also subject responsible if other)No. LD/SEMC/BGGI/NMHamid Kami ShiraziBGGIN05:137 Approved CheckedDateRevReference LD/SEMC/BGGI/NMRamadan Plicanic 050527050525 A File 1Table of contents 2 INTRODUCTION ............................................................................................................................................................. 3 3 DEVICE UNDER TEST ................................................................................................................................................... 3 3.1 A NTENNADESCRIPTION................................................................................................................................................... 3 3.2 D EVICE DESCRIPTION....................................................................................................................................................... 3 4 TEST EQUIPMENT.......................................................................................................................................................... 4 4.1 D OSIMETRIC SYSTEM....................................................................................................................................................... 4 4.2 A DDITIONAL EQUIPMENT................................................................................................................................................. 4 5ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ............................................................ 5 6SYSTEM ACCURACY VERIFICATION ...................................................................................................................... 5 7 SAR MEASUREMENT UNCERTAINTY ...................................................................................................................... 6 8 TEST RESULTS ................................................................................................................................................................ 7 9 REFERENCES .................................................................................................................................................................. 8 10 APPENDIX......................................................................................................................................................................... 9 10.1 P HOTOGRAPHS OF THE DEVICE UNDER TEST............................................................................................................... 10 10.2 D EVICE POSITION ONSAM TWINSPHANTOM............................................................................................................ 11 Company Internal REPORT 3 (12) Prepared (also subject responsible if other)No. LD/SEMC/BGGI/NMHamid Kami ShiraziBGGIN05:137 Approved CheckedDateRevReference LD/SEMC/BGGI/NMRamadan Plicanic 050527050525 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7A1022013 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets[1]. 3Device under Test 3.1 Antenna Description TypeBuild in LocationUp on the back side Max length32mm Dimensions Max width20mm ConfigurationPIFA 3.2Device description Device modelPY7A1022013 Serial number695146-0 Mode GSM1900 Multiple Access Scheme TDMA Maximum Output Power Setting 30.0dBm Factory Tolerance in Power Setting ±0.5dBm Maximum Peak Output Power for GPRS 28.5±0.5dBm Crest Factor 8 Transmitting Frequency Range(MHz) 1850.2 – 1909.8 Prototype or Production Unit Preproduction Device CategoryPortable RF exposure environmentGeneral population / uncontrolled Company Internal REPORT 4 (12) Prepared (also subject responsible if other)No. LD/SEMC/BGGI/NMHamid Kami ShiraziBGGIN05:137 Approved CheckedDateRevReference LD/SEMC/BGGI/NMRamadan Plicanic 050527050525 A File 4 Test equipment 4.1 Dosimetric system SAR measurements were made using the DASY3 pro…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 1 of 46 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 2-3948-01-02/05 Applicant : Sony Ericsson Mobile Communications Type : AAB-1022013-BV Test Standard : FCC Part 24 RSS 133 FCC ID : PY7A1022013 Certification No. IC : 4170B-A1022013 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-3948-01-02/05 Date: 2005-05-23 Page 2 of 46 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 25 3.1.5 Conducted Spurious Emissions ................................................................................................................... 29 3.1.6 Block Edge Compliance .............................................................................................................................. 33 3.1.7 Occupied Bandwidth................................................................................................................................... 36 4 USED TESTEQUIPMENT ....…

Text truncated - open the document above for the full version.
