PY7A1022031Licesned Transmitter

Draft for Sony Ericsson Internal Use Only - PA Draft for Sony Ericsson Internal Use Only - PA 1 Draft for Sony Ericsson Internal Use Only - PA Contents Getting to know your phone . . . . . . . . . . . . . . . . . . . 3 Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Entertainment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 More features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Important information . . . . . . . . . . . . . . . . . . . . . . . 61 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 You can find support, information and content downloads at www.SonyEricsson.com/support. 2 Draft for Sony Ericsson Internal Use Only - PA Sony Ericsson GSM 900/1800/1900 This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2005 Publication number: AE/LZT 108 8160 PA Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. 3 Draft for Sony Ericsson Internal Use Only - PA Getting to know your phone Charger and USB connector Volume button Selection key Back key “Memory Stick Micro” (“M2”) slot Activity menu key Navigation key Selection key Clear key On/off key Earpiece Infrared port Microphone Camera key 4 Draft for Sony Ericsson Internal Use Only - PA Menu overview PlayNow™*Internet services* Entertainment Online services* Games VideoDJ™ PhotoDJ™ MusicDJ™ Remote control Record sound Demo tour CameraMessaging Write new Inbox My friends* Email Call voicemail Drafts Outbox Sent messages Saved messages Templates Settings Media player File manager*** All tab Pictures... In phone tab Pictures... On Memory Stick tab Pictures... Contacts** Options: Speed dial My business card Groups** SIM contacts** Special numbers Advanced New contact Alarms Alarm Recurrent alarm Alarm signal Calls*** All tab Answered tab Dialled tab Missed tab Organizer Calendar Tasks Notes Calculator Synchronization Timer Stopwatch Applications Code memo Alarms Settings General Sounds & alerts Display Calls Connectivity* 5 Draft for Sony Ericsson Internal Use Only - PA Status bar icons IconDescription Tells you the strength of the GSM network signal. Tells you the status of the battery. Tells you the status of the battery charging. You have missed an incoming call. Call and messaging function alerts are off, alarm is still on. You have received a text message. You have received an email message. You have received a picture message. You have an ongoing call. You have an appointment reminder. You have a task reminder. The magic word is activated. *Some menus are operator-, network- and subscription-dependent. **Options when phone contacts are set to default. Options change when SIM contacts are set to default. ***Use the navigation key to move across tabs in submenus. For more information % 11 Navigating the menus. ...More settings appear. 6 Draft for Sony Ericsson Internal Use Only - PA User guide symbols The following instruction symbols appear in this user guide: Assembling your phone First insert the SIM card, then insert and charge the battery to use your phone. }Use the navigation key to scroll and select % 11 Navigating the menus. Press the navigation key centre. Press the navigation key up. Press the navigation key down. Press the navigation key to the left. Press the navigation key to the right. %See also page ... Note Indicates that a service or function is network- or subscription-dependent. Because of this, all menus may not be available in your phone. Consult your network operator for more information. Save contacts to your SIM card before you remove it from another phone. Contacts may have been saved in the phone memory % 19 Contacts. 7 Draft for Sony Ericsson Internal Use Only - PA To insert the SIM card 1Slide the cover open and lift it off. 2Insert the SIM card. Make sure the SIM card is placed under the silvery holders. 3Place the battery in the phone with the label side up and the connectors facing each other. 4Place the cover on the phone and slide it into place. 8 Draft for Sony Ericsson Internal Use Only - PA To charge the battery 1Connect the charger to the phone. The flash symbol on the charger plug must face upwards. 2It may take 30 minutes for the battery icon to appear. 3Wait approximately 2.5 hours or until the battery icon indicates that the battery is fully charged. For an indication of charging, press to activate the screen. 4Remove the charger by pulling it out. Talk-time or standby time may become noticeably shorter due to wear and you may have to replace your battery. Only use approved batteries from Sony Erics- son % 66 Battery. 9 Draft for Sony Ericsson Internal Use Only - PA "Memory Stick Micro" ("M2") Use a "Memory Stick Micro" ("M2") to store, for example, pictures. If you use a "Memory Stick Micro" ("M2") you can select to automatically store all pictures on the "Memory Stick Micro" ("M2") % 36 Camera options. To insert and remove the "Memory Sti…

Text truncated - open the document above for the full version.

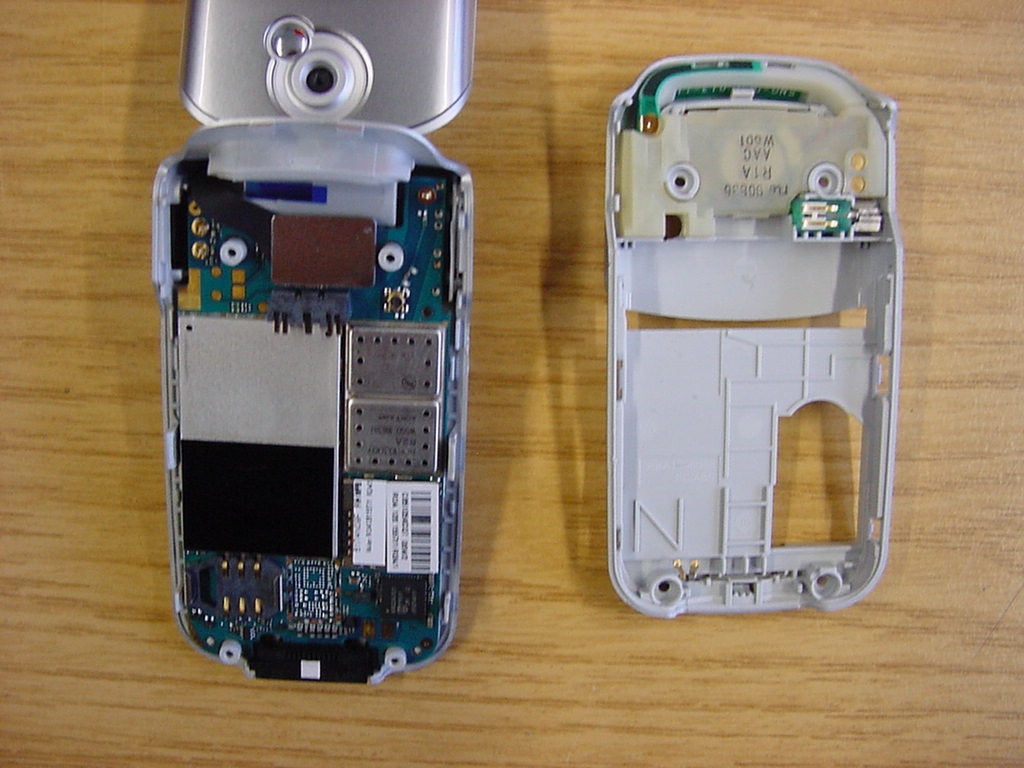

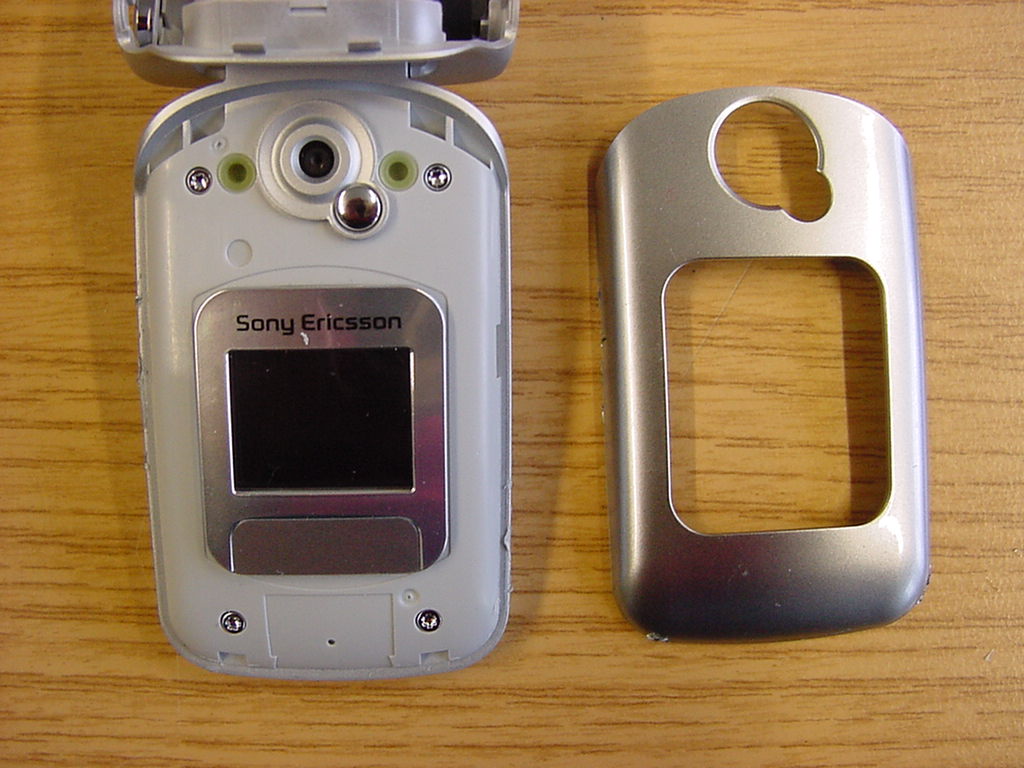

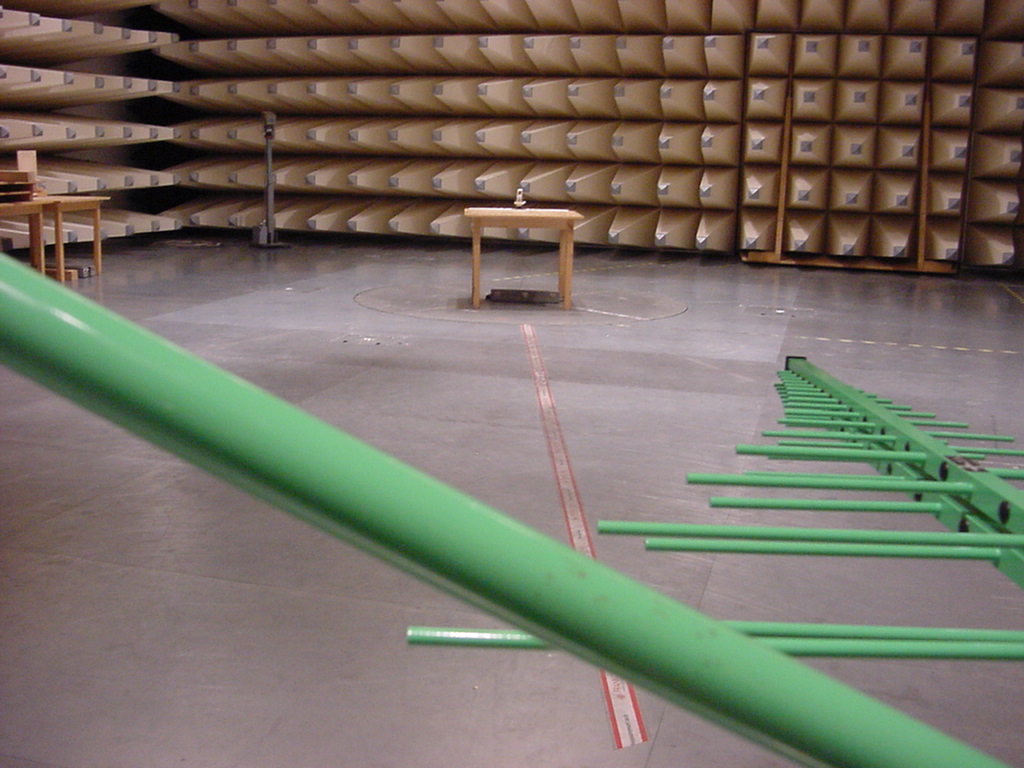

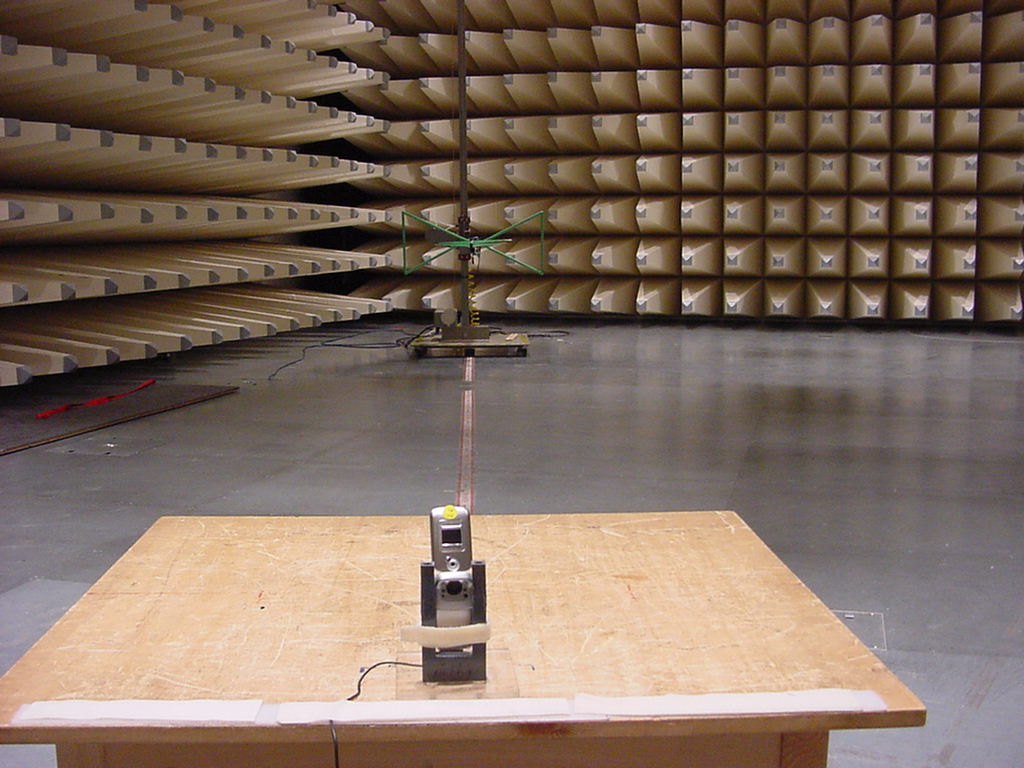

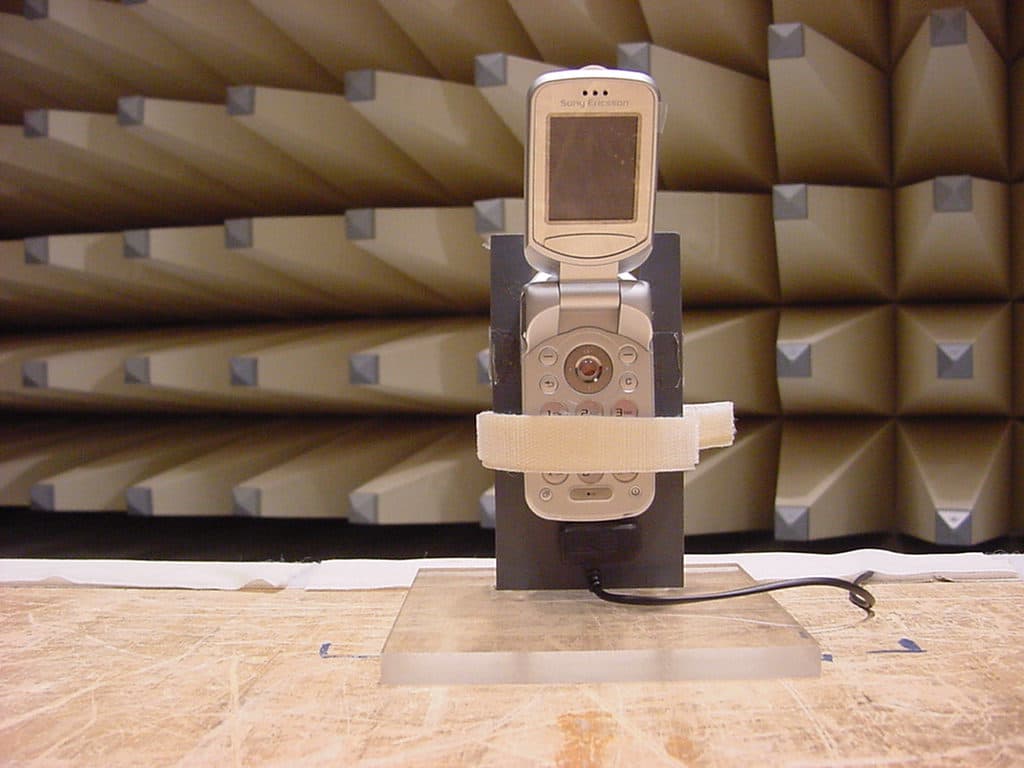

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 19 of 37 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 20 of 37 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 21 of 37 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 22 of 37 Photo 4 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 23 of 37 7 Annex C: External Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 24 of 37 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 25 of 37 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 26 of 37 Photo 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 27 of 37 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 28 of 37 8 Annex D: Internal Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 29 of 37 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 30 of 37 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 31 of 37 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 32 of 37 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 33 of 37 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 34 of 37 Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 35 of 37 Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 36 of 37 Photo 9: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 37 of 37 Photo 10

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 19 of 37 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 20 of 37 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 21 of 37 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 22 of 37 Photo 4 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 23 of 37 7 Annex C: External Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 24 of 37 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 25 of 37 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 26 of 37 Photo 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 27 of 37 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 28 of 37 8 Annex D: Internal Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 29 of 37 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 30 of 37 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 31 of 37 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 32 of 37 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 33 of 37 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 34 of 37 Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 35 of 37 Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 36 of 37 Photo 9: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-18-02/05 Date: 2006-01-23 Page 37 of 37 Photo 10

Company Internal REPORT 1 (11) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Hamid Kami Shirazi BGGIN05:363 Approved Checked Date Rev Reference LD/SEMC/BGGI/NM Ramadan Plicanic 060113 051215 A File Report issued by Accredited SAR Laboratory For PY7A1022031 Date of test: 05 to 12, Dec., 2005 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Hamid Kami Shirazi [email protected] Phone number Testing Approval Ramadan Plicanic [email protected] +46 46 19 38 62 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAB-1022031-BV; FCC ID: PY7A1022031; IC:4170B-A1022031 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2005 Company Internal REPORT 2 (11) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Hamid Kami Shirazi BGGIN05:363 Approved Checked Date Rev Reference LD/SEMC/BGGI/NM Ramadan Plicanic 060113 051215 A File 1 Table of contents 2 INTRODUCTION..................................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 A NTENNA DESCRIPTION.......................................................................................................................................................3 3.2 D EVICE DESCRIPTION...........................................................................................................................................................3 4 TEST EQUIPMENT ..............................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM............................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.....................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................5 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................6 8 TEST RESULTS ....................................................................................................................................................................7 9 REFERENCES .......................................................................................................................................................................8 10 APPENDIX .............................................................................................................................................................................9 10.1 P HOTOGRAPHS OF THE DEVICE UNDER TEST....................................................................................................................9 10.2 D EVICE POSITION ON SAM TWINS PHANTOM...............................................................................................................11 10.3 A TTECHMENTS...............................................................................................................................................................12 Company Internal REPORT 3 (11) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Hamid Kami Shirazi BGGIN05:363 Approved Checked Date Rev Reference LD/SEMC/BGGI/NM Ramadan Plicanic 060113 051215 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7A1022031 (Z530i) portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device under Test 3.1 Antenna Description Type Internal antenna Location Inside back, at the bottom Max length 38mm Dimensions Max width 16mm Configuration PIFA 3.2 Device description Device model AAB-1022031-BV (Z530i) Serial number CB5018R2X0 Mode GSM1900 GSM1900(GPRS2TX) Multiple Access Scheme TDMA TDMA Maximum Output Power Setting 30dBm 30dBm Factory Tolerance in Power Setting ±0.5dB ±0.5dB Maximum Peak Output Power 30.5dBm 30.5dBm Crest Factor 8 4 Transmitting Frequency Range(MHz) 1850.2 – 1909.8 Prototype or Production Unit Preproduction Device Category Portable RF exposure environm…

Text truncated - open the document above for the full version.

PY7A1022031SAM 4 Phantom; Left Hand Section; Po sition: (90°,59°); Frequency: 1910 MHz Probe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: σ = 1.46 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.02 mW/g, SAR (10g): 0.531 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 11.0Powerdrift: -0.08 dBPY7A1022031;S/N:CB5018R2X0/,FP1;Frequevc y 1910MHz(ch810), Left Hand Side, Cheek(70°) Phone Position, meas. Power=30.4dBm, Nom.Power=30.5dBm; ambien temprature 22(c-degree)and humidity 25%,Date:051209 SAR Tot [mW/g] 1.06E-12.12E-13.18E-14.24E-15.30E-16.37E-17.43E-18.49E-19.55E-11.06E+0 12/09/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1022031SAM 4 Phantom; Righ Hand Section; Position: (105°,301°); Frequency: 1880 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: σ = 1.46 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.477 mW/g, SAR (10g): 0.275 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: -0.04 dBPY7A1022031;S/N:CB5018R2X0/,FP1;Frequevc y 1880MHz(ch661), Right Hand Side, Tilt(85°) Phone Position, meas. Po wer=30.5dBm, Nom.Power=30.5dBm; ambien temprature 22(c-degree)and humidity 25%,Date:051208 SAR Tot [mW/g] 4.96E-29.92E-21.49E-11.98E-12.48E-12.98E-13.47E-13.97E-14.46E-14.96E-1 12/08/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1022031SAM 4 Phantom; Left Hand Section; Po sition: (105°,59°); Frequency: 1880 MHz Probe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: σ = 1.46 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.435 mW/g, SAR (10g): 0.254 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 11.0Powerdrift: -0.06 dBPY7A1022031;S/N:CB5018R2X0/,FP1;Frequevc y 1880MHz(ch661), Right Hand Side, Tilt(85°) Phone Position, meas. Po wer=30.5dBm, Nom.Power=30.5dBm; ambien temprature 22(c-degree)and humidity 25%,Date:051208 SAR Tot [mW/g] 4.56E-29.12E-21.37E-11.82E-12.28E-12.74E-13.19E-13.65E-14.10E-14.56E-1 12/09/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1022031SAM 4 Phantom; Righ Hand Section; Position: (90°,301°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: σ = 1.46 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.02 mW/g, SAR (10g): 0.535 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: -0.08 dBPY7A1022031;S/N:CB5018R2X0/,FP1;Frequevc y 1910MHz(ch810), Right Hand Side, Cheek(70°) Phone Position, meas. Power=30.4dBm, Nom.Power=30.5dBm; ambien temprature 22(c-degree)and humidity 25%,Date:051208 SAR Tot [mW/g] 1.10E-12.20E-13.31E-14.41E-15.51E-16.61E-17.71E-18.82E-19.92E-11.10E+0 12/08/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1022031SAM 4 Phantom; Left Hand Section; Po sition: (90°,59°); Frequency: 1910 MHz Probe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: σ = 1.46 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.02 mW/g, SAR (10g): 0.531 mW/g, (Worst-case extrapolation)Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.012/09/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB 0.00.10.20.30.40.50.60.70.80.9 0 10203040 SAR tot [mW/g] [mm] PY7A1022031SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(4.62,4.62,4.62); Crest factor: 4.0; Muscle 1900: σ = 1.55 mho/m ε r = 51.4 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.356 mW/g, SAR (10g): 0.222 mW/g, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: -0.20 dBPY7A1022031;S/N:CB5018R2X0/,FP1,Frequevcy 1850MHz (ch512),Front Phone + 15mm distance from flat section of phantomPosition, meas. Power=30,5dBm, Nom.Power=30,5dBm;ambien temprature 22(c-degree)and humidity 25%;. Date:051212;GPRS Measurement SAR Tot [mW/g] 3.84E-27.68E-21.15E-11.54E-11.92E-12.30E-12.69E-13.07E-13.46E-13.84E-1 12/12/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1022031SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(4.62,4.62,4.62); Crest factor: 8.3; Muscle 1900: σ = 1.55 mho/m ε r = 51.4 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.128 mW/g, SAR (10g): 0.0796 mW/g, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: 0.01 dBMulan;S/N:CB5018R2X0/,FP1,Frequevcy 1910MHz(ch810),Back Phone + 15mm distance from flat section of phantomPosition, meas. Power=30,4dBm, Nom.Power=30,5dBm;ambien temprature 22(c-degree)and humidity 25%;. Date:051212; Blue tooth SAR Tot [mW/g] 1.37E-22.74E-24.11E-25.48E-26.85E-28.22E-29.59E-21.10E-11.23E-11.37E-1 12/12/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1022031SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(4.62,4.62,4.62); Crest factor: 8.3; Muscle 1900: σ = 1.55 mho/m ε r = 51.4 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.122 mW/g, SAR (10g): 0.0760 mW/g, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: -0.01 dBMulan;S/N:CB5018R2X0/,FP1,Frequevcy 1850MHz(ch512),Back Phone + 15mm distance from flat section of phantomPosition, meas. Power=30,5dBm, Nom.Power=30,5dBm;ambien temprature 22(c-degree)and humidity 25%;. Date:051212 SAR Tot [mW/g] 1.31E-22.62E-23.93E-25.24E-26.55E-27.86E-29.17E-21.05E-11.18E-11.31E-1 12/12/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1022031SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(4.62,4.62,4.62); Crest factor: 8.3; Muscle 1900: σ = 1.55 mho/m ε r = 51.4 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0755 mW/g, SAR (10g): 0.0467 mW/g, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: 0.11 dBPY7A1022031;S/N:CB5018R2X0/,FP1,Frequevcy 1850MHz (ch512),Front Phone + 15mm distance from flat section of phantomPosition, meas. Power=30,5dBm, Nom.Power=30,5dBm;ambien temprature 22(c-degree)and humidity…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4094-18-02/05 Date: 2006-01-20 Page 1 of 46 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4094-18-02/05 Applicant : Sony Ericsson Mobile Communication Type : AAB-1022031-BV Test Standard : FCC Part 24 RSS 133 FCC ID : PY7A1022031 Certification No. IC : 4170B-A1022031 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4094-18-02/05 Date: 2006-01-20 Page 2 of 46 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLI…

Text truncated - open the document above for the full version.
