PY7A1022041Licensed Transmitter

UG.book Page 1 Friday, January 13, 2006 12:40 PM PPreflighted byreflighted byPreflighted by ( )( )( ) UG.book Page 2 Friday, January 13, 2006 12:40 PM PPreflighted byreflighted byPreflighted by ( )( )( ) 1 Sony Ericsson GSM 900/1800/1900 This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2005 Publication number: EN/LZT 108 8397 R1A Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. UG.book Page 1 Friday, January 13, 2006 12:40 PM PPreflighted byreflighted byPreflighted by ( )( )( ) 2 Menu overviewStatus bar icons * Some menus are operator-, network- and subscription-dependent. ** The menu depends on which contacts are selected as default. Alarms* Alarm Recurrent alarm Alarm signal Internet services* Entertainment Online services* PlayNow™* Games VideoDJ™ PhotoDJ™* MusicDJ™ Remote control Record sound CameraMessaging Write new Inbox My friends* Email Call voicemail Drafts Outbox Sent messages Saved messages Templates Settings Camera pictures File manager Pictures Videos Sounds Themes Web pages Games Applications Other Contacts** Options Speed dial My business card Groups SIM contacts Special numbers Advanced New contact Media player CalendarOrganizer Tasks Notes Alarms Calculator Synchronization Timer Stopwatch Applications Code memo Settings General Sounds & alerts Display Calls Connectivity IconDescription Tells you the strength of the GSM network signal. GPRS is within range and can be used. Tells you the status of the battery. Tells you the status of the battery charging. You have missed an incoming call. Call and messaging function alerts are off, alarm is still on. You have received a text message. You have received an email message. You have received a picture message. You have received a voice message. You have an ongoing call. You have an appointment reminder. You have a task reminder. The magic word is activated. Bluetooth™ wireless technology is turned on. The infrared port is turned on. UG.book Page 2 Friday, January 13, 2006 12:40 PM PPreflighted byreflighted byPreflighted by ( )( )( ) 3 Contents Contents Calling . . . . . . . . . . . . . . . . . . . . . . . . 12 Calls, contacts, voicemail, voice control, call options. Messaging . . . . . . . . . . . . . . . . . . . . . 23 Text messaging, picture messaging, voice messaging, email. Imaging . . . . . . . . . . . . . . . . . . . . . . . 29 Camera, video recorder, pictures, VideoDJ™, PhotoDJ™. Entertainment . . . . . . . . . . . . . . . . . . 35 Media player, Disc2Phone, PlayNow™, ringtones, sounds, MusicDJ™, themes, games, Java™ and more. Connectivity . . . . . . . . . . . . . . . . . . . 40 Internet and email settings, synchronizing, Bluetooth™, infrared, USB cable, update service. More features . . . . . . . . . . . . . . . . . . . 47 Alarm clock, time and date, profiles, calendar, tasks, stopwatch, calculator, SIM card lock, keypad lock etc. Troubleshooting . . . . . . . . . . . . . . . . . 54 Why doesn’t the phone work the way I want? Important information . . . . . . . . . . . . 57 Sony Ericsson Consumer Web site, safe and efficient use, warranty, declaration of conformity. Index . . . . . . . . . . . . . . . . . . . . . . . . . 70 UG.book Page 3 Friday, January 13, 2006 12:40 PM PPreflighted byreflighted byPreflighted by ( )( )( ) 4 Getting to know your phone Phone overview, assembly, SIM card, battery, turning on, use the menus, activity menu, file manager, language, entering letters, Style-up™ covers. Earpiece Infrared port Camera key Screen Navigation key Selection key Back key Microphone On/off key Activity menu key Selection key Clear key Stereo headset and charger connector 4 x D i g i t a l Z o o m 1 . 3 M E G A P I X E L S External antenna connector behind mirror Camera UG.book Page 4 Friday, January 13, 2006 12:40 PM PPreflighted byreflighted byPreflighted by ( )( )( ) 5 User guide symbols The following instruction symbols appear in this user guide: Assembling your phone Insert the SIM card and attach the battery to use your phone. SIM card When you register as a subscriber with a network operator, you get a SIM (Subscriber Identity Module) card. The SIM card contains a computer chip that keeps track of your phone number, the services included in your subscription, and your phonebook information, among other things. % See also page ... }Use the navigation key to scroll and select %8 Navigating the menus. Note This symbol indicates that a service or function is network- or subscription- dependent. Because of this, all menus may not be available in your phone. Consult your network operator for more information. Save contacts to your SIM card before you remove it from another phone. Contacts may have been saved in the phone memory % 14 Contacts. UG.book Page 5 Friday, January 13, 2006 12:40 PM PPreflighted byreflighted byPreflighted by ( )( )( ) 6 To insert the SIM card and charge the battery 1Slide the cover open and lift it off. 2Insert the SIM card. Make sure the SIM card is placed under the silvery holders. 3Place the battery in the phone with the label side up and the connectors facing each other. 4Place the cover on the phone and slide it into place. 5Connect the charger to the phone. The symbol on the charger plug must face upwards. 6It …

Text truncated - open the document above for the full version.

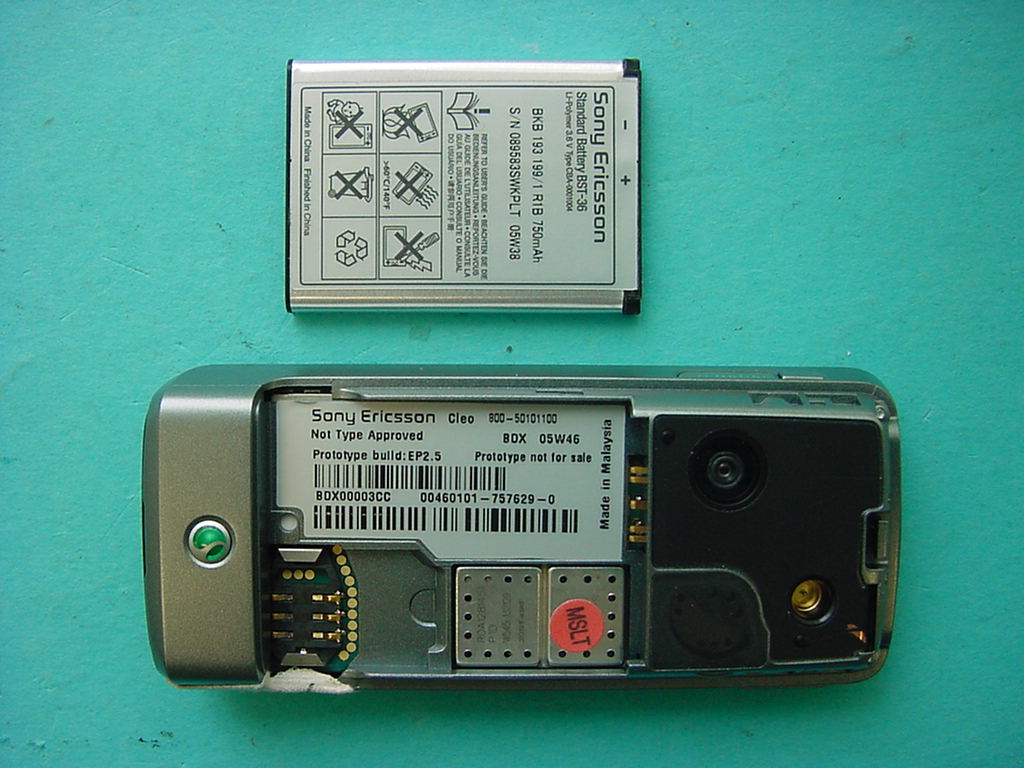

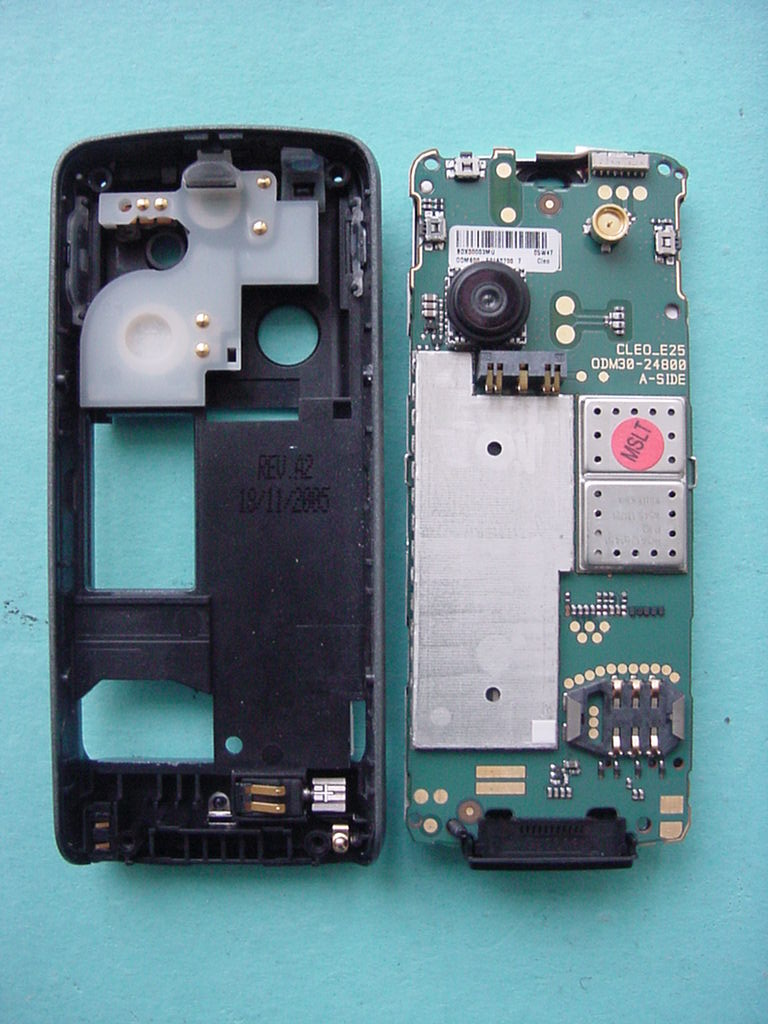

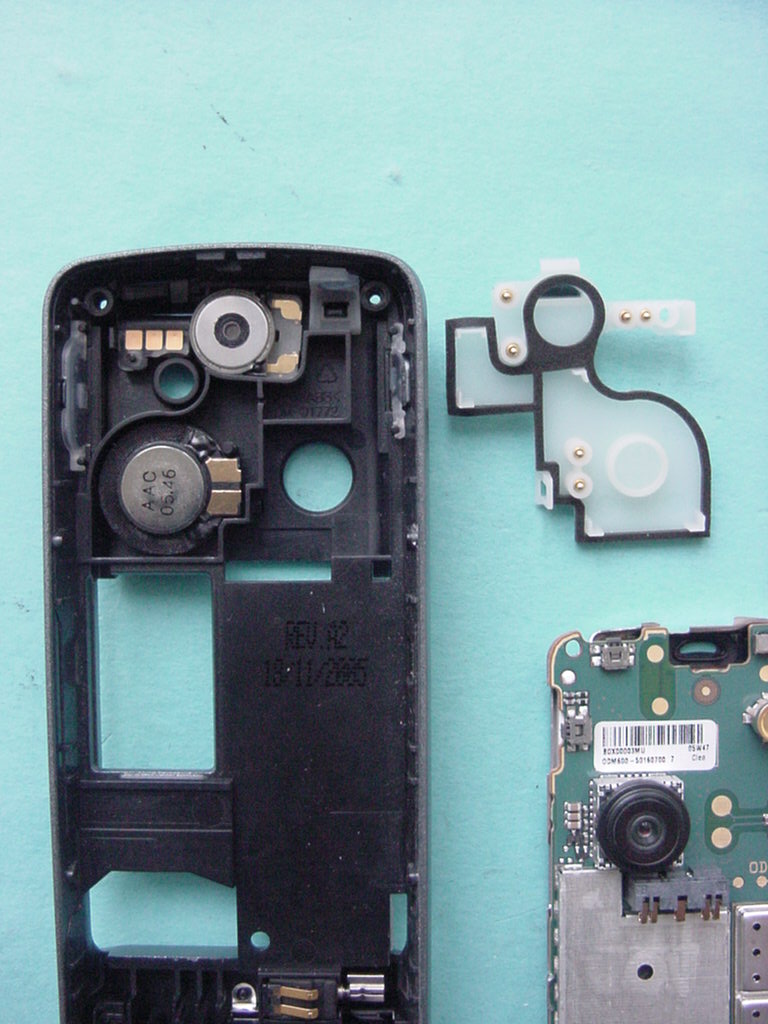

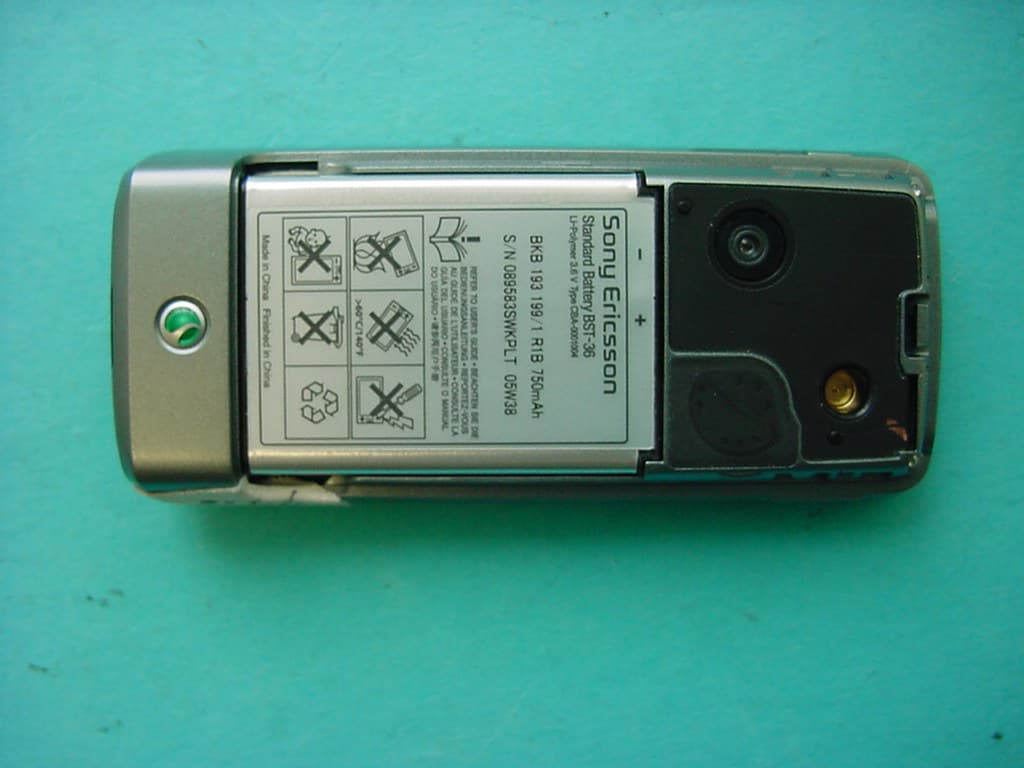

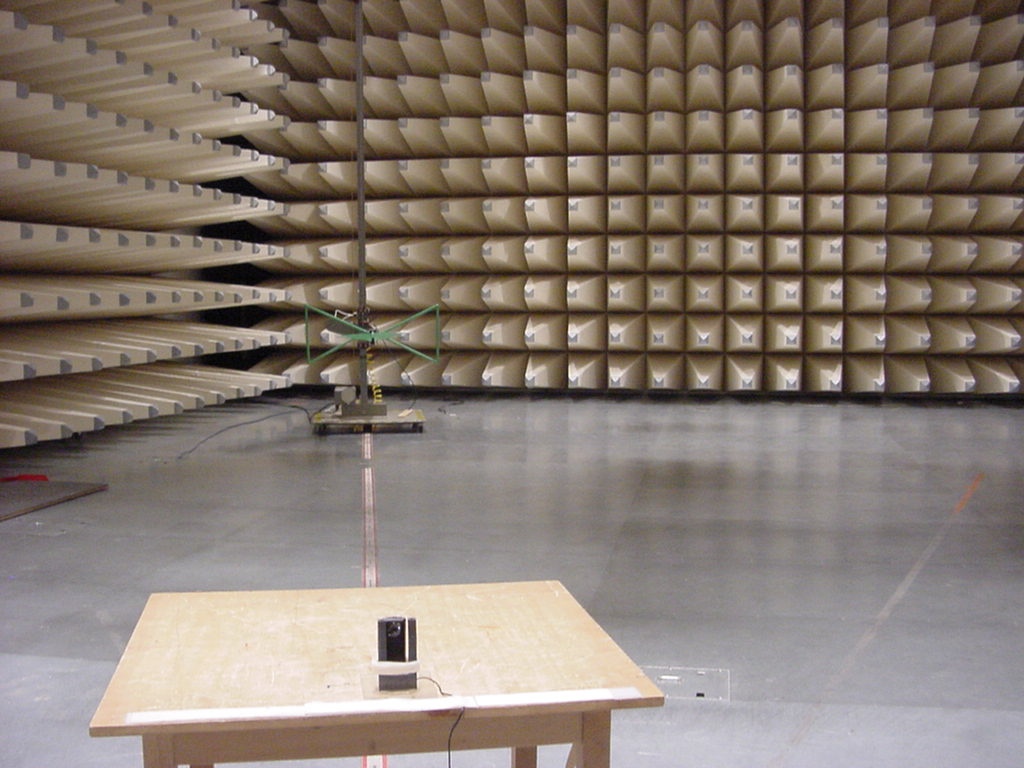

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 19 of 32 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 20 of 32 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 21 of 32 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 22 of 32 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 23 of 32 Photo 5 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 24 of 32 7 Annex C: External Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 25 of 32 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 26 of 32 8 Annex D: Internal Photographs of the Equipment Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 27 of 32 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 28 of 32 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 29 of 32 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 30 of 32 Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 31 of 32 Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 32 of 32 Photo 9:

Company Internal MARKING DRAWING 1 (4) Prepared (also subject responsible if other) No. SEM/BGUDBB, Johan Svärd 151 86–SVV 107 391/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Johan Svärd) 2005-12-29 A 2 Approved according to 000 21–LXE 107 42/1 K510i, KRH-lbl, TYPE: AAB-1022041-BV, Made in 1 General information The format of the label is based on a label SVF 930 1457 (41,27 x 19,75mm). If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (2,2/1,0) Sony Ericsson stylized name. Graphics, height 1,3 mm. According to 190 89–EN/LZT 108 5347 Line 1b (2,2/14,0) Model name, “K510i” Text, height 1,2 mm. Line 1c (2,2/19,0) Product number of the DPY kit in which the phone is packed. Printed without “DPY 101” and R-state, “0000/000” Text, height 1,2 mm. Line 1d (2,2/25,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. Line 2a (4,3/1,0) Type number of the phone (KRH), “Type: AAB-1022041-BV”. Text, height 1,2 mm. Line 2b (4,3/18,0) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Company Internal MARKING DRAWING 2 (4) Prepared (also subject responsible if other) No. SEM/BGUDBB, Johan Svärd 151 86–SVV 107 391/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Johan Svärd) 2005-12-29 A 2 Content Format Line 2c (4,3/24,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 3a (6,3/1,0) Country approval mark 1 “FCC ID: PY7A1022041” Text, height 1,2 mm. Line 3b (6,3/15,0) Country approval mark 2 “IC: 4170B-A1022041” Text, height 1,2 mm. Line 3c (6,0/31,0) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 3d (6,0/38,0) The Notified body number. “0682” Text, height 2,0 mm. Line 4a (9,0/1,0) Line 5a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 5a (10,6/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 5b (10,6/12,6) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 5c (10,6/18,2) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 6a (13,0/1,0) Line 5c in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 7 (16,5/1,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. Company Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. SEM/BGUDBB, Johan Svärd 151 86–SVV 107 391/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Johan Svärd) 2005-12-29 A 2 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision Company Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. SEM/BGUDBB, Johan Svärd 151 86–SVV 107 391/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Johan Svärd) 2005-12-29 A 2

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 19 of 32 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 20 of 32 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 21 of 32 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 22 of 32 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 23 of 32 Photo 5 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 24 of 32 7 Annex C: External Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 25 of 32 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 26 of 32 8 Annex D: Internal Photographs of the Equipment Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 27 of 32 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 28 of 32 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 29 of 32 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 30 of 32 Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 31 of 32 Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 32 of 32 Photo 9:

Company Internal REPORT 1 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN05:378 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 051229 A File Report issued by Accredited SAR Laboratory for PY7A1022041 Date of test: 22 and 27 December, 2005 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Ramadan Plicanic [email protected] +46 46 19 38 62 Testing Approval Mats Hansson [email protected] +46 46 19 33 57 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony EricssonType : AAB-1022041-BV; FCC ID : PY7A1022041; IC:4170B-A1022041 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2005 Company Internal REPORT 2 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN05:378 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 051229 A File 1 Table of contents 2 INTRODUCTION..................................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 A NTENNA DESCRIPTION.......................................................................................................................................................3 3.2 D EVICE DESCRIPTION...........................................................................................................................................................3 4 TEST EQUIPMENT ..............................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM............................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.....................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................5 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................6 8 TEST RESULTS ....................................................................................................................................................................7 9 REFERENCES .......................................................................................................................................................................8 10 APPENDIX .............................................................................................................................................................................9 10.1 P HOTOGRAPHS OF THE DEVICE UNDER TEST..................................................................................................................10 10.2 D EVICE POSITION ON SAM TWINS PHANTOM...............................................................................................................11 Company Internal REPORT 3 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN05:378 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 051229 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7A1022041 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device Under Test 3.1 Antenna Description Type Build in Location Up on the back side Max length 30mm Dimensions Max width 28mm Configuration PIFA 3.2 Device description Device model PY7A1022041 Serial number BDX00003M8 (#3711) Mode GSM1900 GSM1900GPRS Multiple Access Scheme TDMA TDMA Maximum Output Power Setting 30 dBm 29.5 dBm 30 dBm 30 dBm 29.5 dBm 30 dBm Factory Tolerance in Power Setting ±0.5 dB ±0.5 dB Maximum Peak Output Power 30.5 dBm 30 dBm 30.5 dBm 30.5 dBm 30 dBm 30.5 dBm Crest Factor 8 4 Transmitting Frequency Range(MHz) 1850.2 – 1909.8 Prototype or Production Unit Preproduction HW 2.5 Device Category Portable RF exposure environment General population / uncontrolled Company Internal REPORT 4 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN05:378 Appr…

Text truncated - open the document above for the full version.

Date/Time: 2005-12-22 14:53:55 Test Laboratory: Sony Ericsson Mobile Communications File Name: ch512_Left_Cheek_051222_RP.da4 DUT: PY7A1022041; Type: GSM 1900; Serial: #3711 Program Name: SAR Measurement on the Head Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.41 mho/m; ε r = 38.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(5.31, 5.31, 5.31); Calibrated: 2005-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn433; Calibrated: 2005-03-15 - Phantom: SAM 6; Type: SAM; Serial: 1351 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Left, Cheek/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.344 mW/g Left, Cheek/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 0.521 W/kg SAR(1 g) = 0.302 mW/g; SAR(10 g) = 0.173 mW/g Maximum value of SAR (measured) = 0.332 mW/g Page 1 of 1 Date/Time: 2005-12-27 10:39:52 Test Laboratory: Sony Ericsson Mobile Communications File Name: Verification Measurement 1900MHz_051227_RP.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d002 Program Name: Verification Measurement with BSL Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(4.69, 4.69, 4.69); Calibrated: 2005-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) - Electronics: DAE3 Sn433; Calibrated: 2005-03-15 - Phantom: SAM 6; Type: SAM; Serial: 1351 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Flat, 10mm/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 4.46 mW/g Flat, 10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.0 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 6.55 W/kg SAR(1 g) = 3.91 mW/g; SAR(10 g) = 2.08 mW/g Maximum value of SAR (measured) = 4.41 mW/g Flat, 10mm/Z Scan (1x1x16): Measurement grid: dx=20mm, dy=20mm, dz=20mm Maximum value of SAR (interpolated) = 1.45 mW/g Page 1 of 2 Page 2 of 2 Date/Time: 2005-12-22 10:26:42 Test Laboratory: Sony Ericsson Mobile Communications File Name: ch810_Right_Cheek_051222_RP.da4 DUT: PY7A1022041; Type: GSM 1900; Serial: #3711 Program Name: SAR Measurement on the Head Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used (extrapolated): f = 1909.8 MHz; σ = 1.47 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(5.31, 5.31, 5.31); Calibrated: 2005-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) - Electronics: DAE3 Sn433; Calibrated: 2005-03-15 - Phantom: SAM 6; Type: SAM; Serial: 1351 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Right, Cheek/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.532 mW/g Right, Cheek/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.2 V/m; Power Drift = -0.071 dB Peak SAR (extrapolated) = 0.903 W/kg SAR(1 g) = 0.463 mW/g; SAR(10 g) = 0.232 mW/g Maximum value of SAR (measured) = 0.529 mW/g Right, Cheek/Z Scan (1x1x16): Measurement grid: dx=20mm, dy=20mm, dz=20mm Maximum value of SAR (interpolated) = 0.073 mW/g Page 1 of 2 Page 2 of 2 Date/Time: 2005-12-27 14:49:12 Test Laboratory: Sony Ericsson Mobile Communications File Name: ch810_Flat_15mm_HF_BackToPh_051227_RP.da4 DUT: PY7A1022041; Type: GSM Triple Band; Serial: #3711 Program Name: SAR Body Measurement Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.56 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(4.69, 4.69, 4.69); Calibrated: 2005-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn433; Calibrated: 2005-03-15 - Phantom: SAM 6; Type: SAM; Serial: 1351 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Flat, 15mm/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.479 mW/g Flat, 15mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.3 V/m; Power Drift = -0.104 dB Peak SAR (extrapolated) = 0.675 W/kg SAR(1 g) = 0.426 mW/g; SAR(10 g) = 0.248 mW/g Maximum value of SAR (measured) = 0.473 mW/g 0 dB = 0.473mW/g Page 1 of 1 Date/Time: 2005-12-27 13:50:45 Test Laboratory: Sony Ericsson Mobile Communications File Name: ch810_Flat_15mm_GPRS2Slots_FrontToPh_051227_RP.da4 DUT: PY7A1022041; Type: GSM Triple Band; Serial: #3711 Program Name: SAR Body Measurement Communication System: GSM1900_GPRS; Frequency: 1909.8 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 1909.8 MHz; σ = 1.56 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(4.69, 4.69, 4.69); Calibrated: 2005-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) - Electronics: DAE3 Sn433; Calibrated: 2005-03-15 - Phantom: SAM 6; Type: SAM; Serial: 1351 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Flat, 15mm/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.167 mW/g Flat, 15mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.99 V/m; Power Drift = 0.008 dB Peak SAR (extrapolated) = 0.233 W/kg SAR(1 g) = 0.149 mW/g; SAR(10 g) = 0.091 mW/g Maximum value of SAR (measured) = 0.163 m…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4094-13-02/05 Date: 2005-12-23 Page 1 of 46 Recognized by the …

Text truncated - open the document above for the full version.
