PY7A1022044Licensed transmitter

W200_UG_P1C_EN.book Page 1 Friday, November 17, 2006 3:11 PM W200_UG_P1C_EN.book Page 2 Friday, November 17, 2006 3:11 PM 1 Contents Getting to know your phone . . . . . . . . . . . . . . . . . . 6 Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Entertainment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 More features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Important information . . . . . . . . . . . . . . . . . . . . . . 62 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 W200_UG_P1C_EN.book Page 1 Friday, November 17, 2006 3:11 PM 2 Added dimensions - Accessories from Sony Ericsson Portable Speakers MPS-60 Small yet powerful speakers that fit in your pocket. Stereo Portable Handsfree HPM-70 Deep bass with light in-ear design. Music Cable MMC-70 Connects your music mobile phone to your stereo system. W200_UG_P1C_EN.book Page 2 Friday, November 17, 2006 3:11 PM 3 Sony Ericsson GSM 900/1800/1900 This User guide is published by Sony Ericsson Mobile Communications AB or its local affiliated company, without any warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB or its local affiliated company at any time and without notice. Such changes will, however, be incorporated into new editions of this User guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2006 Publication number: EN/LZT 108 9094 P1C Please note: Some of the services in this User guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. All illustrations are for illustration only and may not accurately depict the actual phone. You can find support, information and content downloads at www.sonyericsson.com/support. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. W200_UG_P1C_EN.book Page 3 Friday, November 17, 2006 3:11 PM 4 PlayNow™ and PhotoDJ™ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. Memory Stick Micro™ and M2™ are registered trademarks of Sony corporation. WALKMAN is a trademark of Sony corporation. Microsoft® Windows® (Microsoft® Windows® Explorer) are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ JME™. 1 Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2 Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to W200_UG_P1C_EN.book Page 4 Friday, November 17, 2006 3:11 PM 5 anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3 Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved. Other product and c…

Text truncated - open the document above for the full version.

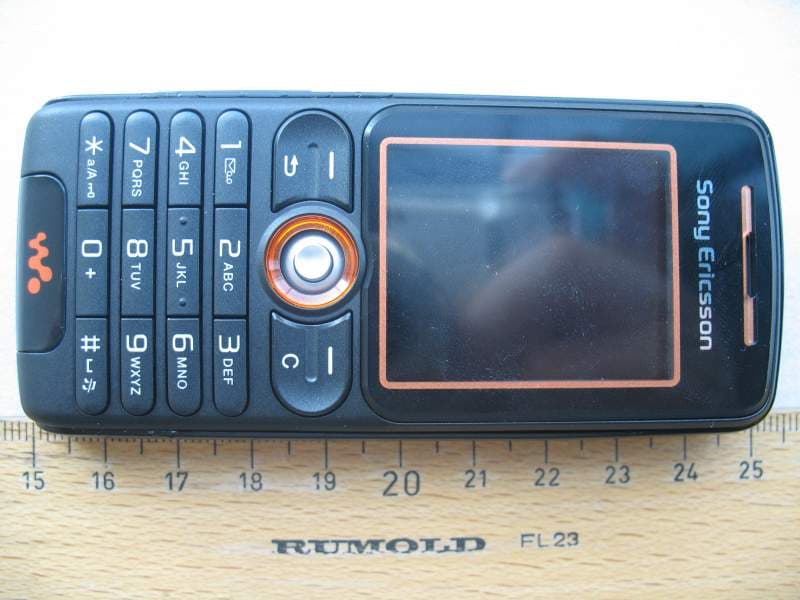

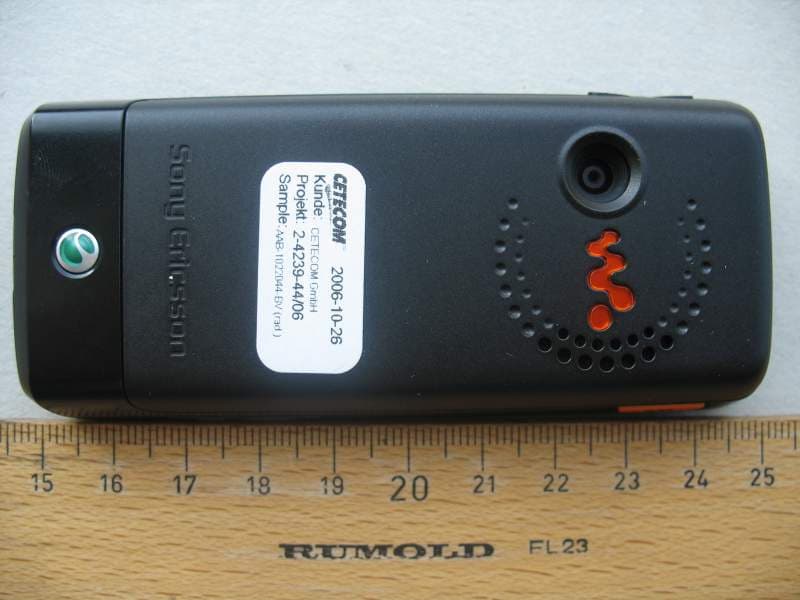

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-44-02/06 Date: 2006-10-27 Page 18 of 25 7 Annex C: External Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-44-02/06 Date: 2006-10-27 Page 19 of 25 Photo 3: Photo 4:

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/BGLDBB, Johanna Lassvik 151 86–SVV 107 642/1 Uen Approved Checked Date Rev Reference SEM/BGLDBB (Monica Towman) 2006-12-05 A 20 Approved according to 000 21–LXE 107 42/1 W200i, KRH-label, SEM, Made in 1 General information The format of the label is based on a label sized 41,27 x 19,75 mm e.g. SVF 930 1457. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (2,3/1,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 190 89–EN/LZT 108 5347 Line 1b (2,3/13,0) Model name: “W200i” Text, height 1,2 mm. Line 1c (2,3/17,1) Product number of the DPY kit in which the phone is packed, if applicable. “DPY 101 0000/000” Text, height 1,2 mm. Line 1d (2,3/28,6) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 2a (4,5/1,0) Type number of the phone (KRH), “Type: AAB-1022044-BV”. Text, height 1,2 mm. Line 2b (4,5/18,0) HW & SW information, if applicable; “FG” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV, if any. Company Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/BGLDBB, Johanna Lassvik 151 86–SVV 107 642/1 Uen Approved Checked Date Rev Reference SEM/BGLDBB (Monica Towman) 2006-12-05 A 20 Content Format Line 2c (4,5/22,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 2d (4,5/24,4) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 3a (6,5/1,0) “FCC ID: PY7A1022044” Text, height 1,2 mm. Line 3b (6,5/15,0) “IC: 4170B- A1022044” Text, height 1,2 mm. Line 4 (8,3/30,6) CE approval symbol + the notified body number “0682” Graphics, height 5mm, according to 1424-SVF 930 52 + Text, height 1,2mm. Line 5 (9,0/1,0) Line 6a in bar code. As desired by supplier (e.g. only actual number, with data identifier). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 6a (10,6/1,0) Supplier’s identification for trace- ability of the included telephone, as desired by supplier, (e.g. “nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 6b (10,6/12,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 7a (13,0/1,0) Line 6b in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 8 (15,3/1,0) Marking of origin. “Xxx” = actual country of production of the included telephone, in English. Text, height 1,5 mm. Company Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/BGLDBB, Johanna Lassvik 151 86–SVV 107 642/1 Uen Approved Checked Date Rev Reference SEM/BGLDBB (Monica Towman) 2006-12-05 A 20 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-44-02/06 Date: 2006-10-27 Page 20 of 25 Photo 5: Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-44-02/06 Date: 2006-10-27 Page 21 of 25 8 Annex D: Internal Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-44-02/06 Date: 2006-10-27 Page 22 of 25 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-44-02/06 Date: 2006-10-27 Page 23 of 25 Photo 5: Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-44-02/06 Date: 2006-10-27 Page 24 of 25 Photo 7: Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-44-02/06 Date: 2006-10-27 Page 25 of 25 Photo 9: Photo 10:

Company Internal REPORT 1 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:499 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Peter Lindeborg 061114 061114 A File Report issued by Accredited SAR Laboratory for PY7A1022044 (W200) Date of test: 6 and 7 November, 2006 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Ramadan Plicanic [email protected] +46 46 19 38 62 Testing Approval Peter Lindeborg [email protected] +46 46 212 61 80 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony EricssonType : AAB-1022044-BV; FCC ID : PY7A1022044; IC:4170B-A1022044 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2006 Company Internal REPORT 2 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:499 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Peter Lindeborg 061114 061114 A File 1 Table of contents 2 INTRODUCTION..................................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 A NTENNA DESCRIPTION.......................................................................................................................................................3 3.2 D EVICE DESCRIPTION...........................................................................................................................................................3 4 TEST EQUIPMENT ..............................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM............................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.....................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................5 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................6 8 TEST RESULTS ....................................................................................................................................................................7 9 REFERENCES .......................................................................................................................................................................8 10 APPENDIX .............................................................................................................................................................................9 10.1 P HOTOGRAPHS OF THE DEVICE UNDER TEST..................................................................................................................10 10.2 D EVICE POSITION ON SAM TWINS PHANTOM...............................................................................................................11 Company Internal REPORT 3 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:499 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Peter Lindeborg 061114 061114 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7A1022044 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device Under Test 3.1 Antenna Description Type Build in Location Up on the back side Max length 32mm Dimensions Max width 30mm Configuration PIFA 3.2 Device description Device model PY7A1022044 (W200) Serial number BDX0000TUY (#5988) Mode GSM1900 Multiple Access Scheme TDMA TDMA, GPRS 2slots Output Power Setting (dBm) fl fm fh 30.5 30.4 30.4 fl fm fh 30.5 30.4 30.4 Factory Tolerance in Power Setting ±0.5 dB ±0.5 dB Maximum Peak Output Power 30.5dBm 30.5dBm Crest Factor 8.3 4.15 Transmitting Frequency Range(MHz) 1850.2 – 1909.8 Prototype or Production Unit Preproduction HW EP2.5 Device Category Portable RF exposure environment General population / uncontrolled Company Internal REPORT 4 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Pl…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4239-44-02/06 Date: 2006-10-27 Page 1 of 36 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4239-44-02/06 Applicant : Sony Ericsson Mobile Communications AB Type : AAB-1022044-BV Test Standard : FCC Part 24 RSS-133 FCC ID : PY7A1022044 Certification No. IC : 4170B-A1022044 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4239-44-02/06 Date: 2006-10-27 Page 2 of 36 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 ADDITIONAL EUT INFORMATION FOR IC CANADA (APPENDIX 2).......................................................................... 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output ..........................................................................................................................................8 3.1.2 Frequency Stability ..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 22 3.1.5 Conducted Spurious Emissions ................................................................................................................... 25 3.1.6 Block Edge Compliance .............................................................................................................................. 28 3.1.7 Occupied Bandwidth ................................................................................................................................... 30 4 USED TEST EQUIPMENT ..................................................................................................................................... 34 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4239-44-02/06 Date: 2006-10-27 Page 3 of 36 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. DAT-P-176/94-D1 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Michael Berg Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. .................................................................................. Responsible for testing (Jako…

Text truncated - open the document above for the full version.

Company Internal REPORT 9 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:499 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Peter Lindeborg 061114 061114 A File 10 Appendix 10.1 Photographs of the device under test Front & Back sides System Connector Company Internal REPORT 10 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:499 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Peter Lindeborg 061114 061114 A File Back side with battery Company Internal REPORT 11 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:499 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Peter Lindeborg 061114 061114 A File 10.2 Device position on SAM Twins Phantom Device position against the head: Cheek (touch) phone position Device position against the head: Tilt (cheek+15deg) phone position Company Internal REPORT 12 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:499 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Peter Lindeborg 061114 061114 A File Device position against the body: 15mm distance from Phantom.
