Z320 User guide 2 Congratulations on your purchase of the Sony Ericsson Z320. For additional phone content, go to www.sonyericsson.com/fun. Register now to get free online storage and special offers at www.sonyericsson.com/myphone. For product support, go to www.sonyericsson.com/support. Instruction symbols The following instruction symbols appear in this User guide: >Use the navigation key to scroll and select. Press the navigation key up. Press the navigation key down. Press the navigation key to the left. Press the navigation key to the right. Tip Note Warning Indicates that a service or function is network- or subscription-dependent. All menus or functions may not be available in your phone. Consult your network operator for more information. 3 Prepare the phone Always turn off your phone and detach the charger before you insert or remove the SIM card. To insert the SIM card and battery 1Remove the battery cover by sliding the battery release latch down. 2Slide the SIM card into its holder with the contacts facing down. 3Insert the battery with the label side up and the connectors facing each other. 4Slide the battery cover into place and close the battery release latch . 4 Charge the battery Your phone battery is partly charged when you buy it. It takes approximately 3 hours to fully charge the battery. To charge the battery 1Connect the charger to the phone. Press a key to view the charging status on the screen. 2To remove the charger, tilt the plug upwards. It may take 30 minutes for the battery icon to appear on the screen. You can use the phone during charging. You can charge the battery for more or less than 3 hours. Interrupted charging will not damage the battery. 5 Turn the phone on To turn on the phone 1Press and hold down . 2Enter your PIN if requested. To correct mistakes, press . 3Select OK. 4Select a language. 5At first start-up, select Yes to use the setup wizard to make a phone setup. Select No to use the setup wizard later. To turn off the phone •Press and hold down . To use the setup wizard •From standby select Menu > Settings > General > Setup wizard > Basic setup. After you have turned the phone on and entered your PIN, the name of your operator appears on the screen. This view or screen is called standby. You can now make and receive calls. 6 SIM card The SIM (Subscriber Identity Module) card, which you get from your network operator, contains information about your subscription. Always turn off your phone and detach the charger before you insert or remove the SIM card. PIN code (SIM card lock) The PIN (Personal Identification Number) code is a SIM card lock that protects your subscription, but not the phone itself. If the card is locked, you have to enter the PIN code when you turn on your phone. Each PIN digit appears as *, unless it starts with emergency number digits, for example, 112 or 911. You can call an emergency number without entering a PIN. You can save contacts on the SIM card before removing if from your phone. Contacts may also be saved in the phone memory. See Contacts on page 17. If you enter the wrong PIN three times in a row, the following message appears: PIN blocked. To unblock, enter your PUK code provided by your network operator. To unblock your SIM card, see Locks on page 34 7 Menu overview CallsInternetGames CameraMessagingFile manager Write new Inbox Drafts Outbox Sent messages Saved messages Call voicemail Templates Settings Camera album Pictures Ringtones Themes Bookmarks Games Applications Other OrganizerContactsSettings Online services Alarms Applications Calendar Tasks Notes Calculator Timer Stopwatch Options New contact General Sounds & alerts Display Calls Connectivity Some menus and icons described in this document may vary depending on operator, network or subscription. Some options may vary when the default settings are changed. 8 Phone overview Camera key Back key Internet keyNavigation key Volume buttons C key (Clear) On/off key Infrared port Microphone Right selection key Left selection key Charging (USB connector) Network coverage Battery status Function for right selection key Function for left selection key CallsMenu 9 Network coverage The network bars show the strength of the GSM network. Move to another location if you have network problems. No netw. coverage means you are out of range. Battery status The outside = Good network coverage = Average network coverage = The phone battery is fully charged = The phone battery is empty Icon display Camera lens 10 Icons These icons may appear in your phone. Icon Description Battery charging, appears with battery icon. You have missed a call. See Calling on page 15. The phone is set to silent. You have received a new text message. You have received a new picture message. Ongoing call. Divert calls is activated. An alarm is activated. The loudspeaker is on. The infrared port is activated. The stopwatch is activated. 11 Shortcuts From standby you can use the navigation keys to go directly to a function: •Press to start the camera. •Press to write a message. •Press to go to your contacts. To navigate the menus •From standby select Menu and press , , or . •Press to go back one step in the menu. •Press and hold down to return to standby. •Press or to move between tabs. To delete items •Press . To set the phone to silent •Press and hold down to set silent mode on or off. To view tips and tricks •From standby select Menu > Settings > General > Setup wizard > Tips and tricks. To change a standby shortcut, go to Menu > Settings > General > Shortcuts. The camera shortcut cannot be changed. 12 Messaging Your phone supports various messaging services. Text messages You need a service centre number from your network operator to be able to send text messages. To view and set the service centre number 1From standby select Menu > Messaging > Settings > Text message > Service centre. 2If there is no number, select New ServiceCentre, enter the number including the international “+” prefix and cou…

Text truncated - open the document above for the full version.

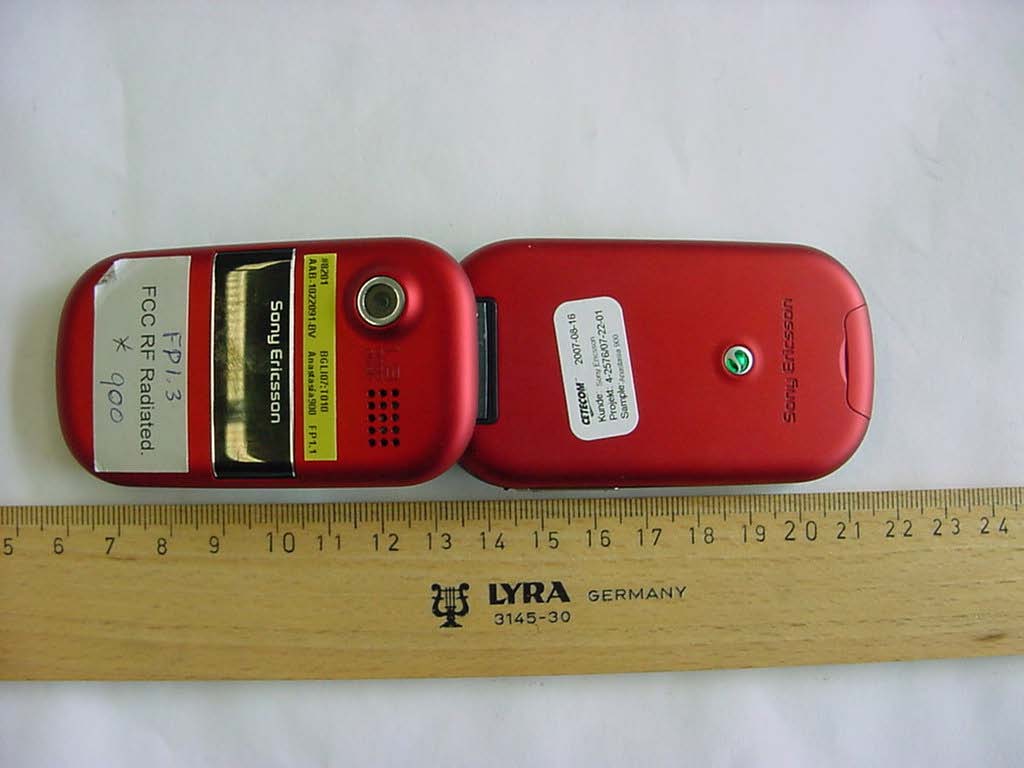

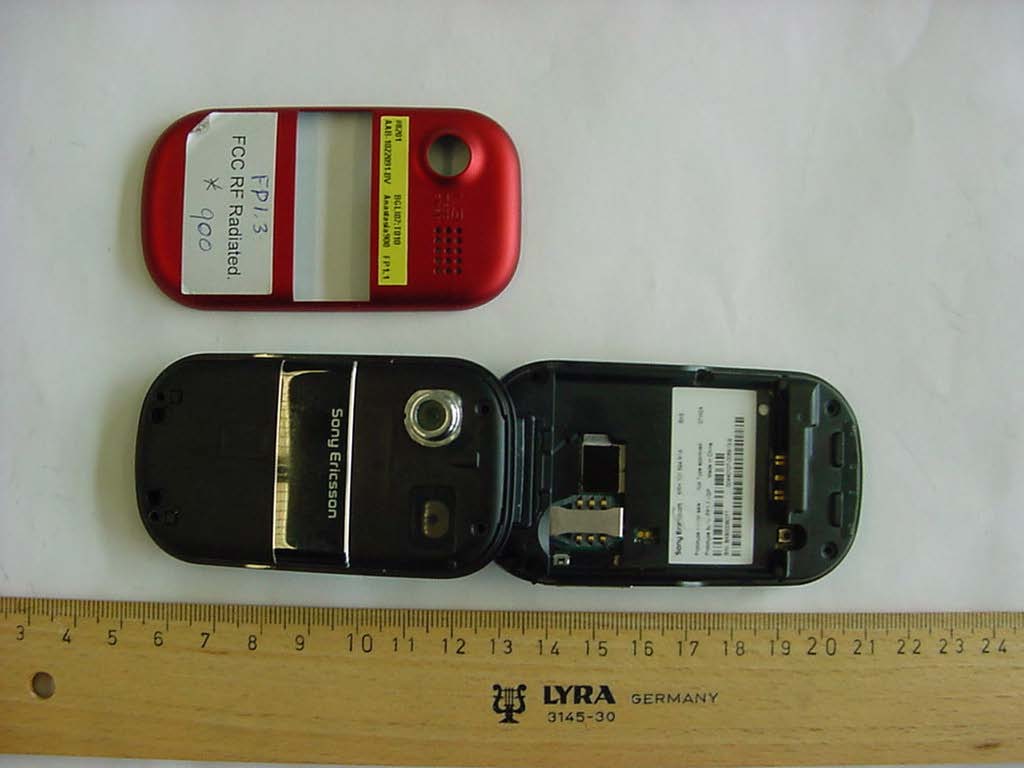

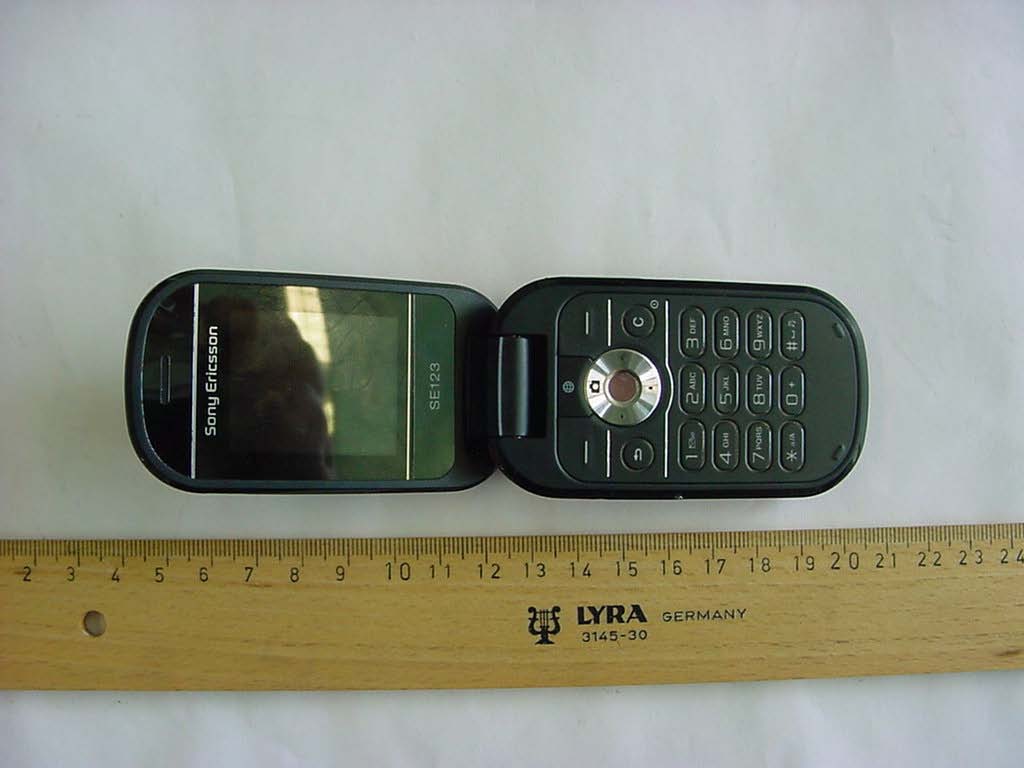

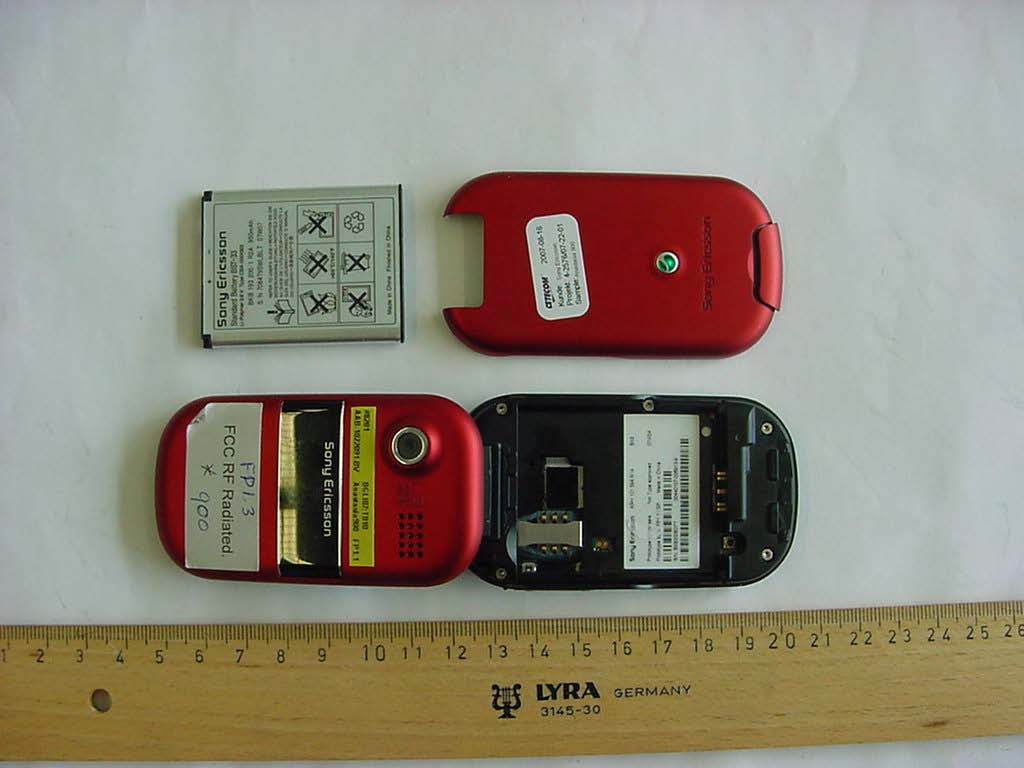

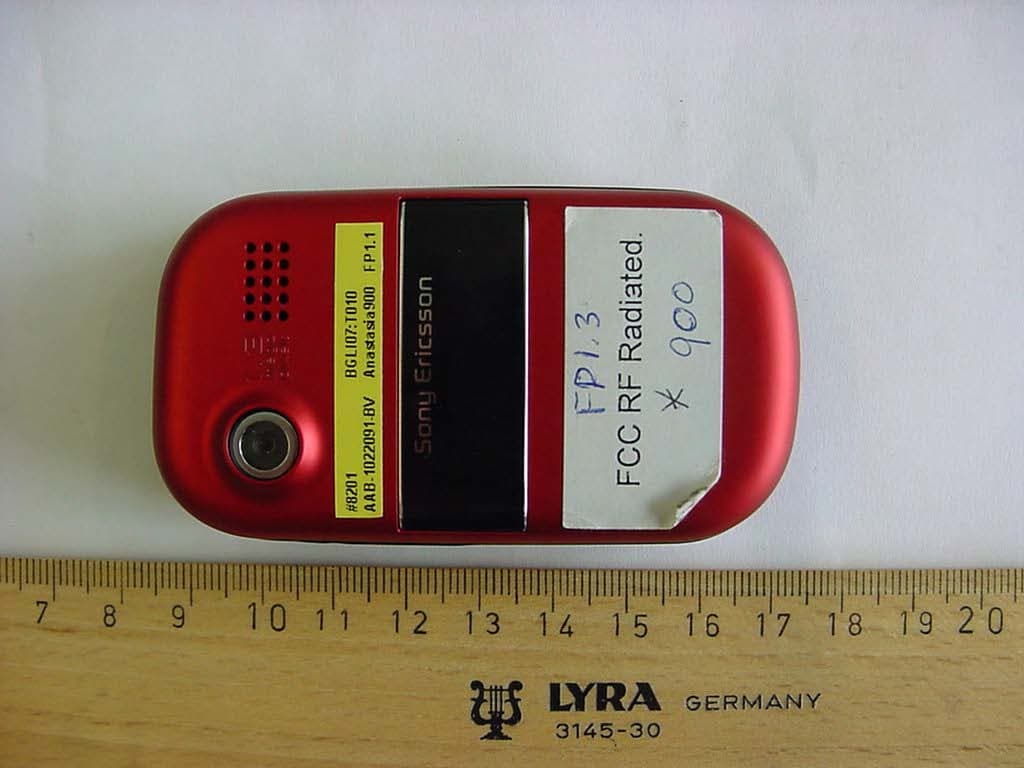

CETECOM ICT Services GmbH Annex to Test report no.: 2-4576-22-02/07 2007-08-21 Page 17 of 24 7 Photographs of t he E UT Photo No.: 01 Photo No.: 02 CETECOM ICT Services GmbH Annex to Test report no.: 2-4576-22-02/07 2007-08-21 Page 18 of 24 Photo No.: 03 Photo No.: 04 CETECOM ICT Services GmbH Annex to Test report no.: 2-4576-22-02/07 2007-08-21 Page 19 of 24 Photo No.: 05 Photo No.: 06
