PY7A1031011Licensed Transmitter

Contents 1 ContentsGetting to know your phone 4Key functions, quick keys, entering l etters. Personalizing your phone 17Download sett ings or choose from the phone. Calling 25Use the Phonebook, voice control, call options.Messaging 45Multimedia messaging, chat and email.Camera 53Use the camera.Setting up WAP and Email 56All you n eed to know about setting up WAP and email. Using WAP 63WAP browser, bookmarks. Transferring and exchanging information 66 Bluetooth wireless technology, synchronization. More features 70Calendar, alarm clock, stopwatch, timer, games.Security 78 SIM card lock, phonelock.Troubleshooting 79 Why doesn’t the phone work the way I want?Additional information 81 Safe and efficient use, warranty, declaration of conformity.Icons 89What do the icons mean?Index 95 T610UG-R3A.book Page 1 Tuesday, May 27, 2003 5:16 PM 2 Contents Sony EricssonFirst edition (May 2003)This manual is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this manual.All rights reserved.© Sony Ericsson Mobile Communications AB, 2003 Publication number: AE/LZT 123 7545 R1Please note:Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency Number 911 or 112 . Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not.Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc.T9™ Text Input is a trademark or a registered trademark of Tegic Communications.T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.End-user license agreement for Sun™ Java™ J2ME™.1. Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. T610UG-R3A.book Page 2 Tuesday, May 27, 2003 5:16 PM Contents 3 2. Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3. Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable.Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved.Other product and company names mentioned herein may be the trademarks of their respective owners.Any rights not expressly granted herein are reserved. T610UG-R3A.book Page 3 Tuesday, May 27, 2003 5:16 PM 4 Getting to know your phone Getting to know your phoneAbout this user’s guideThe “Getting to know your phone” chapter gives a quick overview of the main functions of the phone, shortcuts and general information. More information and downloads are available at www.SonyEricsson.com/ or wap.SonyEricsson.com/ Available servicesSome services and functions described in this user’s guide are network or subscription-dependent, which means that all menus may not be available in your phone. This symbol indicates that a service or function is network or subscription-dependent. Please consult your network operator for more information about your subscription. AssemblyBefore you can use your phone you need to: • Insert the SIM card.• Attach and charge the battery. See “SIM card and battery information” on page 5.Note: Always turn off the phone and detach the charger before you insert or remove a SIM card.The SIM cardWhen you register as a subscriber with a network operator, you get a SIM (Subscriber Identity Module) card. The SIM card contains a computer chip that keeps track of your phone number, the services included in your subscription, and your Phonebook information, among other things.Tip: Check if your information is saved to the SIM card before you remove it from another phone. For example, Phonebook entries may be saved in the phone memory. T610UG-R3A.book Page 4 Tuesday, May 27, 2003 5:16 PM Getting to know your phone 5 SIM card and battery informationIt may take up to 30 minutes before an icon appears when charging. 1. Insert the SIM card. Slide the metal holder over the SIM card to lock it in place. 2. Place the battery on the back of the …

Text truncated - open the document above for the full version.

Confidentiality Request Datum. Date Beteckning' Reference GUG/NO3:133 Er beteckning .y~... .~,.. 2003-05-13 Ert datum' Your date Vår handläggare, namn, tfn .Attending to this mattet; name, telephone LD/SEM/GUG/NB Håkan Sjöberg +46 46 193559 Receiver Federal Communications Commision Confidentiality Request Sony Ericsson Mobile Communications AB hereby requests that the FCC application materials Iisted below for Sony Ericsson mobile phone type AAB-1031011-BV/CN (FCC ID: PY7A1031011) shall be treated as confidential and withheld from public inspection. Electrical diagrams Component listings Technical description Block diagrams .This material contains information relating to circuit function and complexity that could be of benefit to competitors. The material contains secrets and confidential information that Sony Ericsson does not customarily release to the public and which is otherwise not generally available to the public. Please contact the undersigned if there are any further questions or additional information needed in this matter. Type Approval Manager Sony Ericsson Mobile Communications AB Nya Vattentornet 22188Lund Sweden Telephone: +46 46 193242 E-mail: [email protected] Sony Ericsson Mobile Communications AB Momsnr. ~A. 7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Int +4646194100 Styrelsens säte: Lund Registered office: Lund Telefon. Te/ephone Nat 046-194000 Int +4646194000 Besöksadress' Office address Nya Vattentornet Lund Postadress. Mail SE-221 88 Lund Sweden

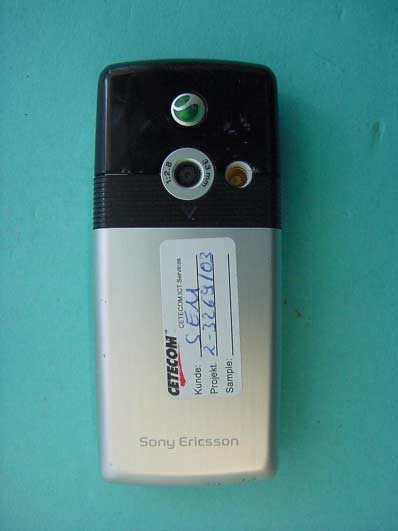

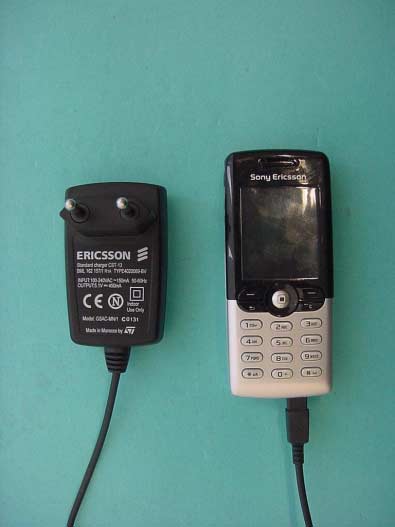

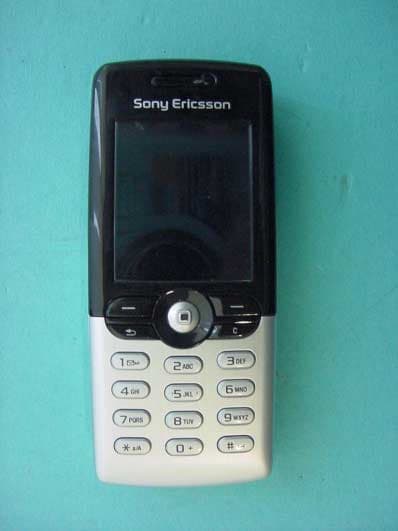

CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 63 (73) Photographs of the equipment CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 64 (73) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 65 (73) PHOTOGRAPH OF THE EQUIPMENT

Limited Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/CA/K Jeff Chlebowski / Michael Frink 151 86 – KRC 114 16 Approved Checked Date Rev Reference SEM/CA/K (Jeff Chlebowski) 2003-05-06 PD5 Approved according to: 000 21 – LXE 107 42/1 Type 103 1011-BV. Label The label used for marking is defined in the Manufacturing Specification on the SVF 930 361/1. Placing The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88) for the KRH. Print layout SAMPLE* (FPO) Sony Ericsson trademark Model Number Type number GHY 1 Y 2 Y 3 fields Country approval mark 1 Country approval mark 2 IMEI-numbers as barcode IMEI-numbers as characters Serial number as barcode Serial number as characters *UPC number as barcode *UPC num as characters Prod / Repair wk as characters Prod wk as barcode CE Marking *Note: representative sample, text in image does not match required information for this product defined in table below. Definitions: Sony Ericsson trademark Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Model number The model number is T616 and shall be printed “T616” Type number The type number is AAB-1031011-BV and shall be printed “Type AAB-1031011-BV” G-field R-state identification of the CXC-module according to the Marking data 1/151 86 for the KRC. H-field R-state identification of the KRC according to the Marking data 1/151 86 for the KRC. Y 1 -field R-state identification of the KRH according to the Marking data 1/151 86 for the KRC. Y 2 -field KRH structure identification according to the Marking data 1/151 86 for the KRC. Y 3 -field R-state identification of the ROA according to the Marking data 1/151 86 for the KRC. CDA number Marking of Origin Limited Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/CA/K Jeff Chlebowski / Michael Frink 151 86 – KRC 114 16 Approved Checked Date Rev Reference SEM/CA/K (Jeff Chlebowski) 2003-05-06 PD5 Country approval mark 1 Consist of text: FCC ID: PY7A1031011 Within a frame with height > 1,5 mm. Country approval mark 2 Consist of text: IC: 4170B-A1031011 IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). IMEI number as characters The IMEI number has format: 01AAAAAA-BBBBBB-C AAAAAA = 019700 BBBBBB = assigned serial number C = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Serial number as characters According to Ericsson group standard 0012- 101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Linköping A61 AT&T Wireless product number as bar code IF APPLICABLE, meaning KRC product structure is /54 . AT&T Wireless product number as characters IF APPLICABLE, meaning KRC product structure is /54. Product number 111111111111 (TBD). Production week (Prod wk) The production week shall be given as yyWww (yy = year, ww = week) according to the ISO 8601 standard. Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as Rywwxx (R = repair, y = year, ww = week, xx = Revision eg. 1A) Marking of origin “Made in” statement should reflect the country of origin of the 1/KRC (i.e. Made in Malaysia). CDA number The number of the CDA file loaded including the R-state of the file, eg. CDA 102 122 R1A Approval marks 1. According to 1424 - SVF 930 52 2. The notified body number from the type approval certificate, 0682. The print size (height) for the notified body number (e.g. 0682) and the corresponding approval marks shall be minimum 5 mm. This is a regulatory requirement. Limited Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/CA/K Jeff Chlebowski / Michael Frink 151 86 – KRC 114 16 Approved Checked Date Rev Reference SEM/CA/K (Jeff Chlebowski) 2003-05-06 PD5 Print regulations The printing shall be well readable and permanent. Typeface OCR-B Type size min 1.1 mm Line spacing min 1.5 mm Trademark min 1.5 mm

CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 66 (73) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 67 (73) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 68 (73) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 69 (73) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 70 (73) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 71 (73) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 72 (73) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 73 (73) PHOTOGRAPH OF THE EQUIPMENT

APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7A1031011 REPORT 1(73) Prepared (also subject responsible if other) No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-03:0065/REP Approved Checked SEM/CV/PF/P Dulce Altabella DA A I:\Dulce\FCCT616.doc E E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report of Portable Cellular Phone FCC ID: PY7A1031011 model: T616 Date of test: Date of Report: March 31 st , April 1-7, 2003 April 23rd, 2003 Laboratory: SAR Testing Laboratory Sony Ericsson Mobile Communications, Inc.7001 Development Drive, P.O. Box 13969, Research Triangle Park, NC, 27709, USA Tested by: Dulce Altabella Staff Engineer, Antenna Development Group Test Responsible: Dulce Altabella Staff Engineer, Antenna Development Group Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: Specific Absorption Rate (SAR) Dielectric parameters RF power measurement On the following types of products: Wireless communications devices. A2LA certificate #1650-01 Statement of Compliance: Sony Ericsson Mobile Communications, Inc declares under its sole responsibility that portable cellular telephone FCC ID PY7A1031011 model T616 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) © Sony Ericsson Mobile Communications, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson Mobile Communications encourages all feedback, both positive and negative, on this test report. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7A1031011 REPORT 2(73) Prepared (also subject responsible if other) No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-03:0065/REP Approved Checked SEM/CV/PF/P Dulce Altabella DA A I:\Dulce\FCCT616.doc E E E x x h h i i b b i i t t 1 1 1 1 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 3 2.1 Antenna description 3 2.2 Device description 3 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 4 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 9 References 11 Appendix 1: SAR distribution comparison for system accuracy verification 12 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 23 Appendix 3: SAR distribution plots for Body Worn Configuration 39 Appendix 4: Probe Calibration Certificate 56 Appendix 5: Measurement Uncertainty Budget 63 Appendix 6: Photographs of the device under test 67 APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7A1031011 REPORT 3(73) Prepared (also subject responsible if other) No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-03:0065/REP Approved Checked SEM/CV/PF/P Dulce Altabella DA A I:\Dulce\FCCT616.doc E E E x x h h i i b b i i t t 1 1 1 1 1. Introduction The Sony Ericsson SAR Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID PYA1031011 model T616. The Specific Absorption Rate (SAR) of this product was measured. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in [1]. 2. Description of the Device Under Test 2.1 Antenna description Type Internal antenna Location Inside the back cover, near the top Width 38 mm Dimensions Length 22 mm Configuration Patch antenna 2.2 Device description FCC ID Number / Device Model PY7A1031011 / T616 Serial number A610TV504 and A6101TV51H Mode(s) of Operation GSM 800 GSM 1900 Modulation Mode(s) TDMA TDMA Target Value for Maximum Output Power Setting 29 dBm 30 dBm Factory Tolerance Window in Power Setting ± 1.0 dB ± 1.0 dB Duty Cycle 1/8 1/8 Transmitting Frequency Rang(s) 824-849 MHz 1850-1910 MHz Production Unit or Identical Prototype (47 CFR §2..908)Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Sony Ericsson SAR Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±10.59% (K=1) with an expanded uncertainty of ±21.17% (K=2). The measurement uncertainty budget is given in Appendix 5. The list of calibrated equipment used for the measurements is shown in the following table. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7A1031011 REPORT 4(73) Prepared (also subject responsible if other) No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-03:0065/REP Approved Checked SEM/CV/PF/P Dulce Altabella DA A I:\Dulce\FCCT616.doc E E E x x h h i i b b i i t t 1 1 1 1 Description Serial Number Cal Due Date DASY3 DAE V1 416 11-Dec-2003 DASY3 DAE V1 417 11-Dec-2003 E-Field Probe ETDV6 1583 19-Dec-2003 E-Field Probe ETDV6 1586 20-Jun-2003 Dipole Validation Kit, DV835V2 428 14-Jan-2004 S.A.M. Phantom used for 835MHz 1031 Dipole Validation Kit, DV1800V2 217 14-Jan-2004 Dipole Validation Kit, DV1900V2 537 14-Jan-2004 S.A.M. Phantom used for 1900MHz 1030 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3537A01598 09-Sep-2003 Power Meter 437B 3125U113481 21-May-2003 Power Meter 437B 3110A05257 21-May-2003 Power Sensor - 8482H MY41090240 08-May-2003 Power Sensor - 8482H MY41090241 08-May-2003 Network Analyzer HP8752C 3410A3105 23-Aug-2003 Dielectr…

Text truncated - open the document above for the full version.

LZT 123 4598/30 R1 Important InformationTHIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.This mobile phone model T616 has been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value as reported to the FCC for this model phone when tested for use at the ear is 1.16 W/kg and when worn on the body is 0.71 W/kg. Body worn measurements are made while the phone is in use and worn on the body with an Ericsson or Sony Ericsson accessory. Accessories can significantly affect SAR compliance. The Federal Communication Commission requires that some manufacturers' accessories be tested, and Sony Ericsson has done so with respect to its products. Sony Ericsson has only tested Ericsson and Sony Ericsson original accessories in conjunction with Sony Ericsson phones. It is therefore recommended that only Ericsson and Sony Ericsson original accessories be used in conjunction with Sony Ericsson phones. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure.SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PY7A1031011. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) web-site at http:// phonefacts.net/ . * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephon: +49 (0)681 598-0Telefax: -9075 RSC14issue test report consist of 73 PagesPage 1 (73) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 2_3269-01-02/03 FCC Part 15.247 / CANADA RSS-210 AAB-1031011-BV FCC ID: PY7A1031011 IC: 4170B-A1031011 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 589-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21 Page 2 (73) Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21 Page 3 (73) 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2003-05-22RSC8411Berg M. DateSectionNameSignature Technical Responsibility for Area of Testing: 2003-05-22RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21 Page 4 (73) 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of Applicant Name : Sony Ericsson Mobile Communication AB Street : Nya Vattentornet City : 22188 Lund Country : Sweden Telephone : +46-46-193-242 Telefax : +46-46-193-295 Contact : Mr. Bo Johansson Telephone : +46-46-193-242 1.4 Application Details Date of receipt of application : 2003-05-14 Date of receipt of test item : 2003-05-16 Date of test : 2003-05-16/19/20 CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21 Page 5 (73) 1.5 Test Item Type of equipment : Triple Band GSM Mobile Phone (PCS 850/1800/1900 MHz) with Bluetooth ® transmitter Type designation: AAB-1031011-BV Manufacturer: Applicant Street: City: Country: Serial number: IMEI : 001003.61.072014.0 FCC – ID: Y7A1031011 IC : 4170B-A1031011 Hardware: P1B Software : R1A026 Additional information : Frequency: 2402 – 2480 MHz Type of modulation: 1M00FXD / 79M8FXD (FHSS) Number of channels : 79 Antenna: Print antenna Power supply: Li-Ion rechargeable battery 3,7V Output power: EIRP: 0.578 mW (worst case); conducted : 1.17 mW Field strength: max. 81.86 dBμV/m Occupied bandwidth: 781.563 kHz Transmitter spurious : -.- Receiver spurious. -.- Temperature range: -30°C - +60°C DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2003-05-09 Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test Specifications: FCC Part 15 §15.247 CANADA RSS-210 CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21 Page 6 (73) 2 Technical Test 2.1Summary of Test Results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4-1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn All measurements are done in accordance with the Filing and Measurement Guidelimes for Frequency Hopping Spread Spectrum Systems DA 00-705 and Appendix A “BLUETOOTH APPROVALS” The product fullfills also the requ…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 60 (73) Test setup CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 61 (73) Test site Radiated Emissions CETECOM ICT Services GmbH Test Report No.: 2_3269-01-02/03Issue Date: 2003-05-21Page 62 (73) Test site Conducted emissions
