PY7A1031012Licensed Transmitter

Contents 1 ContentsGetting to know your phone 4Key functions, quick keys, entering letters and characters.Personalizing your phone 17Download settings or choose from the phone.Calling 25Use the Phonebook, voice control, call options.Messaging 45Text, picture, chat and email.Camera 54Use the camera.Setting up WAP and email 58 All you need to know about setting up WAP and email.Using WAP 66WAP browser, bookmarks. Transferring and exchanging information 69Bluetooth wireless technology, synchronization. More features 74Calendar, alarm clock, stopwatch, timer, games.Security 82SIM card lock, phonelock.Troubleshooting 84Why doesn’t the phone work the way I want?Additional information 86Safe and efficient use, warranty, declaration of conformity.Icons 94What do the icons mean?Index 101 T637UG.book Page 1 Friday, January 9, 2004 10:46 AM 2 Contents Sony EricssonGSM 850/1800/1900First edition (January 2004)This manual is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this manual.All rights reserved.©Sony Ericsson Mobile Communications AB, 2003Publication number: AE/LZT 123 1751 R1Please note:Some of the services in this manual are not supported by all networks.Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for Safe and Efficient Use and the Limited Warranty chapters before you use your mobile phone.The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc.T9™ Text Input is a trademark or a registered trademark of Tegic Communications.T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.End-user license agreement for Sun™ Java™ J2ME™. T637UG.book Page 2 Friday, January 9, 2004 10:46 AM Contents 3 1. Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part.2. Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders.3. Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable.Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved.Other product and company names mentioned herein may be the trademarks of their respective owners.Any rights not expressly granted herein are reserved. T637UG.book Page 3 Friday, January 9, 2004 10:46 AM 4 Getting to know your phone Getting to know your phoneAbout this user’s guideThis chapter gives a quick overview of the main functions of the phone, shortcuts and general information. More information and downloads are available at www.sonyericsson.com . Available servicesSome services and functions described in this user’s guide are network or subscription-dependent, which means that all menus may not be available in your phone.This symbol indicates that a service or function is network or subscription-dependent.Please consult your network operator for more information about your subscription.AssemblyBefore you can use your phone you need to: • Insert the SIM card. • Attach and charge the battery. See “SIM card and battery information” on page 5.Note: Always turn off the phone and detach the charger before you insert or remove a SIM card.The SIM cardWhen you register as a subscriber with a network operator, you get a SIM (Subscriber Identity Module) card. The SIM card contains a computer chip that keeps track of your phone number, the services included in your subscription, and your Phonebook information, among other things.Note: Make sure that your information is saved to the SIM card before you remove it from another phone. For example, Phonebook entries may have been saved in the phone memory and not the SIM. To copy phonebook entries from phonebook to SIM, see page see “Copy names and numbers” on page 31. T637UG.book Page 4 Friday, January 9, 2004 10:46 AM Getting to know your phone 5 SIM card and battery informationIt may take up to 30 minutes before an icon appears when charging. 1. Insert the SIM card. Slide the silver holder over the SIM card to lock it in place. 2. Place the battery on …

Text truncated - open the document above for the full version.

Confidentiality Request Datum' Date Beteckning. Reference GUG/NO4:020 Er beteckning. Your reference 2004-02-06 Ert datum. Your date Vår handläggare, namn, tfn .Attending to this matter; name, te/ephone LD/SEM/GUG/NB Håkan Sjöberg +46 46 193559 Receiver Federal Communications Commission Request for Confidentiality FCC ID: PY7A1031012 Subject: Ta Wham It May Cancern: ln accordance with §O.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below Iisted items for our mobile phone type MB- 1031012-BV, FCC ID: PY7A1031012: 1. 2. 3. 4. Block Diagram Schematic Diagram Part List Operational Description These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Type Approval Manager Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AB Styrelsens säte: Lund Registered office: Lund Telefon' Te/ephone Nat 046-194000 Int +4646194000 Besöksadress. Office address Nya Vattentornet Lund Postadress. Mail SE-221 88 Lund Sweden Momsnr .~A. 7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Int +4646194100

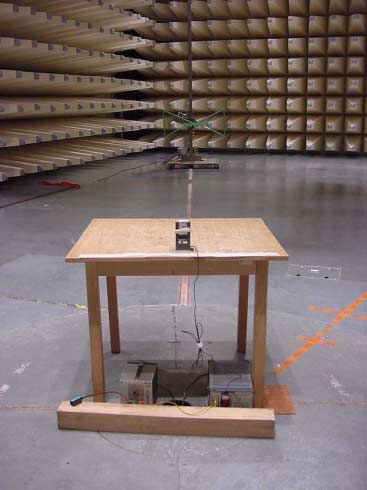

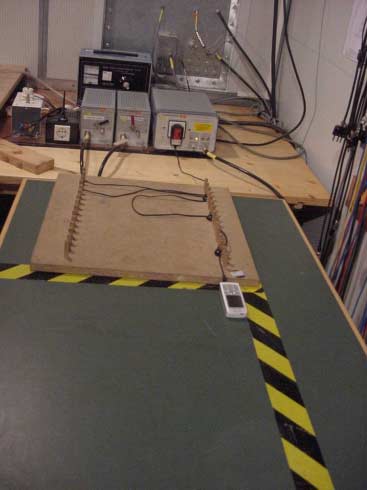

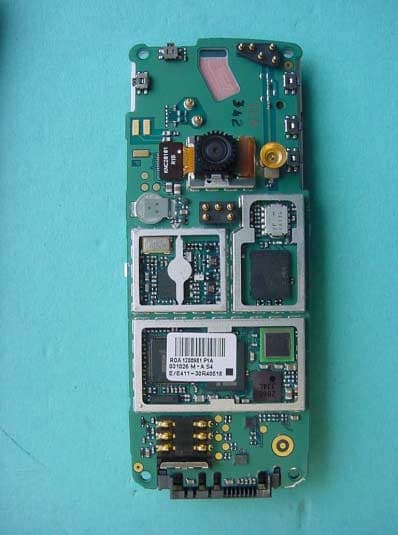

CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 104 (113) Test site CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 105 (113) Test site CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 106 (113) Test site CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 107 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 108 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 109 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 110 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 111 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 112 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 113 (113) Photographs of the equipment

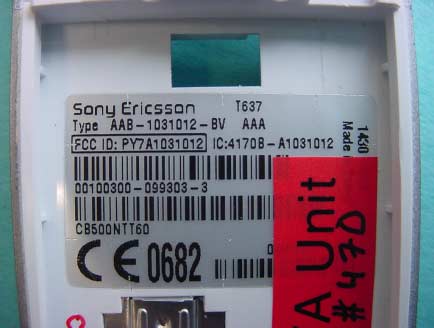

Confidential MARKING DRAWING 1(3) Prepared Date Rev Doc no. RT/SEM/CA/KA Jeff Chlebowski 2003-11-18 A 1/151 86-DPY 101 1431 Approved Checked File CA/KA (Jeff Chlebowski) 1/151 86-DPY 101 1431 Marking Drawing For T637 Type AAB-1031012-BV. Label The Label used for marking is defined in the Manufacturing Specification 1301-SVF 930 2239. Placing The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88 KRH 101 166) for the KRH. Print Layout Sony Ericsson trademark Model Number Type number GHY 1 fields Country approval mark 1 Country approval mark 2 IMEI-numbers as barcode IMEI-numbers as characters Serial number as barcode Serial number as characters Prod / Repair wk as characters CE Marking Prod wk as barcode D P Y n u m b e r , R - s t a t e M a r k i n g o f O r i g i n *Note: representative sample, text in image may not match required information for this product defined in table below. Definitions Sony Ericsson trademark Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Model number The model number is T637 and shall be printed “T637” Type number The type number is AAB-1031012-BV and shall be printed “Type AAB-1031012-BV” G-field R-state identification of the CXC 112 2713-module according to the Marking data 1/151 86 for the KRH. H-field R-state identification of the KRH according to the Marking data 1/151 86 for the KRH. Y 1 -field R-state identification of the ROA according to the Marking data 1/151 86 for the KRH. Country approval mark 1 Consist of text: FCC ID: PY7A1031012 Within a frame with height > 1,5 mm. Confidential MARKING DRAWING 2(3) Prepared Date Rev Doc no. RT/SEM/CA/KA Jeff Chlebowski 2003-11-18 A 1/151 86-DPY 101 1431 Approved Checked File CA/KA (Jeff Chlebowski) IMEI number as barcode See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). IMEI number as characters See the 1/151 86-KRH 101 166 (latest revision). The IMEI number has format: 01AAAAAA-BBBBBB-C AAAAAA = TAC BBBBBB = assigned serial number C = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as barcode According to Ericsson corporate standard 102 01 - 109. Serial number as characters According to Ericsson group standard 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Production week (Prod wk) The production week shall be given as yyWww (yy = year, ww = week) according to the ISO 8601 standard. Production week as barcode According to Ericsson corporate standard 102 01 - 109. Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as Rywwxx (R = repair, y = year, ww = week, xx = Revision eg. 1A) Reduced DPY The reduced product number of the DPY including the R-state: 1431/XX RXX Marking of origin “Made in” statement should reflect the country of origin of the KRC (i.e. Made in China). CE Marking 1. According to 1424 - SVF 930 52 2. The notified body number from the type approval certificate, 0682. The print size (height) for the notified body number (e.g. 0682) and the corresponding approval marks shall be minimum 5 mm. This is a regulatory requirement. Print regulations The printing shall be well readable and permanent. Typeface OCR-B Type size min 1.1 mm Line spacing min 1.5 mm Trademark min 1.5 mm Approval Marks min 5.0 mm Confidential MARKING DRAWING 3(3) Prepared Date Rev Doc no. RT/SEM/CA/KA Jeff Chlebowski 2003-11-18 A 1/151 86-DPY 101 1431 Approved Checked File CA/KA (Jeff Chlebowski) Product Listing In the event that this marking drawing is to be used for the production of DPA units please use the following chart for crossreferencing the DPA number to the reduced DPY number that shall appear on the KRH label. Product Number Associated DPA Customer DPY 1431/11 TBD Generic T637 DPY 1431/30 TBD Cingular DPY 1431/54 TBD AWS Revision History Revision Reason Originator PA1 Initial Release Jeff Chlebowski PA2 Corrected txt referring to G, H, Y fields to read “KRH” versus “KRC.” Jeff Chlebowski PA3 Referred to 1/151 86 KRH 101 166 for IMEI range. Removed “T637” and “DPY” from label. Jeff Chlebowski PA4 Replaced label graphic. Jeff Chlebowski

CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 104 (113) Test site CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 105 (113) Test site CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 106 (113) Test site CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 107 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 108 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 109 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 110 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 111 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 112 (113) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 113 (113) Photographs of the equipment

APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7A1031012 REPORT 1(87) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes SEM/CA/E-03:0154/REP Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\T637\Final Reports\FCCT637.doc E E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report of Portable Cellular Phone FCC ID: PY7A1031012 Model : T637 Date of test: Date of Report: December 3-30, 2003 December 31st, 2003 Laboratory: SAR Testing Laboratory Sony Ericsson Mobile Communications, Inc. 7001 Development Drive, P.O. Box 13969, Research Triangle Park, NC, 27709, USA Tested by: Rodney Dixon Technician III, Product Verification Group Gerard Hayes Consulting Engineer, Antenna/RF Development Group Test Responsible: Gerard Hayes Consulting Engineer, Antenna/RF Development Group Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: Specific Absorption Rate (SAR) Dielectric parameters RF power measurement On the following types of products: Wireless communications devices. A2LA certificate #1650-01 Statement of Compliance: Sony Ericsson Mobile Communications, Inc declares under its sole responsibility that portable cellular telephone FCC ID PY7A1031012 model T637 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) © Sony Ericsson Mobile Communications, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson Mobile Communications encourages all feedback, both positive and negative, on this test report. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7A1031012 REPORT 2(87) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes SEM/CA/E-03:0154/REP Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\T637\Final Reports\FCCT637.doc E E E x x h h i i b b i i t t 1 1 1 1 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 3 2.1 Antenna description 3 2.2 Device description 3 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 4 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 9 References 12 Appendix 1: SAR distribution comparison for system accuracy verification 13 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 25 Appendix 3: SAR distribution plots for Body Worn Configuration 40 Appendix 4: Probe Calibration Certificate 65 Appendix 5: Measurement Uncertainty Budget 75 Appendix 6: Photographs of the device under test 79 APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7A1031012 REPORT 3(87) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes SEM/CA/E-03:0154/REP Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\T637\Final Reports\FCCT637.doc E E E x x h h i i b b i i t t 1 1 1 1 1. Introduction The Sony Ericsson SAR Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID PYA1031012 model T637. The Specific Absorption Rate (SAR) of this product was measured. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in [1]. 2. Description of the Device Under Test 2.1 Antenna description Type Internal antenna Location Inside the back cover, near the top Width 38 mm Dimensions Length 22 mm Configuration Patch antenna 2.2 Device description FCC ID Number / Device Model PY7A1031012 / T637 Serial number CB500NTTHN and CB500NTT7Y Mode(s) of Operation GSM 800 GSM 1900 Modulation Mode(s) TDMA TDMA Target Value for Maximum Output Power Setting 33 dBm 30 dBm Factory Tolerance Window in Power Setting ± 1.0 dB ± 1.0 dB Duty Cycle 1/8 1/8 Transmitting Frequency Rang(s) 824-849 MHz 1850-1910 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Sony Ericsson SAR Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±10.61% (K=1) with an expanded uncertainty of ±21.22% (K=2). The measurement uncertainty budget is given in Appendix 5. The list of calibrated equipment used for the measurements is shown in the following table. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7A1031012 REPORT 4(87) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes SEM/CA/E-03:0154/REP Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\T637\Final Reports\FCCT637.doc E E E x x h h i i b b i i t t 1 1 1 1 Description Serial Number Cal Due Date DASY3 DAE V1 392 18-Jul-2004 DASY3 DAE V1 431 18-Jul-2004 DASY3 DAE V1 432 18-Jul-2004 E-Field Probe ETDV6 1538 29-Jul-2004 E-Field Probe ETDV6 1586 28-Aug-2004 Dipole Validation Kit, DV835V2 428 14-Jan-2004 S.A.M. Phantom used for 835MHz (Head) 1023 S.A.M. Phantom used for 835MHz (Body) 1031 Dipole Validation Kit, DV1900V2 536 14-Jan-2004 S.A.M. Phantom used for 1900MHz (Head) 1020 S.A.M. Phantom used for 1900MHz (Body) 1030 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generato…

Text truncated - open the document above for the full version.

LZT 123 4598/34 R1 Important InformationTHIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.This mobile phone model T637 has been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value as reported to the FCC for this model phone when tested for use at the ear is 1.41/kg and when worn on the body is 1.04 W/kg. Body worn measurements are made while the phone is in use and worn on the body with an Ericsson or Sony Ericsson accessory supplied with or designated for use with this phone. It is therefore recommended that only Ericsson and Sony Ericsson original accessories be used in conjunction with Sony Ericsson phones. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure.SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PY7A1031012. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) web-site at http:// phonefacts.net/ . * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. LZT 123 4598-34 R1.fm Page i Monday, January 12, 2004 11:38 AM

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11Issued test report consists of 113 pagesPage 1 (113) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2_3492-01-01/03 FCC Part 24/22/15 AAB-1031012-BV FCC ID: PY7A1031012 IC: 4170B-A1031012 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 2 (113) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 3 (113) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-081/94-D0 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of applicant Name : Sony Ericsson Mobile Communications AB Street : Nya Vattentornet City : 221 88 Lund Country : Sweden Telephone : +46 46 193242 Telefax : +46 46 193295 Contact : Mr. Bo Johansson Telephone : +46 46 193242 e-mail: [email protected] 1.4 Application details Date of receipt of application : 2004-01-05 Date of receipt of test item : 2004-01-05 Date of test : 2004-01-05 to 2004-01-09 CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 4 (113) 1.5 Test item Type of equipment : GSM/PCS 850/1800/1900 mobile phone with Bluetooth transmitter Type designation: AAB-1031012-BV Manufacturer:applicant Street: City: Country: Serial numbers:CB500NTT60 CB500NTTLA IMEI: Additional information: : 00.1003.00.099266.00 Frequency:1850.2 – 1909.8 MHz and 824.2 – 848.8 MHz Type of modulation:300KGXW / 300KG7W Number of channels :300 (PCS1900) and 125 (PCS850) Antenna:Integral antenna Power supply:3,6V DC Li-Polymer Battery Output power GSM 850:cond.: 34.0 dBm Peak, ERP: 24.5 dBm (Burst); EIRP: 26.65 dBm (Burst) Output power GSM 1900 :cond : 30.70 dBm Peak, ERP: 28.0 dBm (Burst); EIRP: 30.15 dBm (Burst) Temperature range :-30°C - +60°C FCC – ID:PY7A1031012 IC :4170B-A1031012 Hardware:EP1 Software:R3A010 1.6Test standards: FCC Part 24, 22 FCC Part 15 CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 5 (113) 2 Technical test For Part 24/22 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in GSM mode. Device is able to transmit data in GPRS mode also. But because the current measurements are performed in PEAK mode no other results from GPRS mode are possible. The only different is the modulation average power, which is 3 dB higher (by using 2 timeslots in the Up-link (GPRS mode 10)). Remarks: Test setup: The radiated measurements were performed with an AC/DC charging unit No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2004-01-09RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 2004-01-09RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 6 (113) 2.2Test report TEST REPORT Test report no. : 2_3492-01-01/03 CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 7 (113) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE PART PCS 1900 POWER OUTPUT SUBCLAUSE § 24.2328 FREQUENCY STABILITY SUBCLAUSE § 24.23511 AFC FREQ ERROR VS. VOLTAGE12 AFC FREQ ERROR VS. TEMPERATURE12 EMISSIONS LIMITS SUBCLAUSE §24.23814 RECEIVER SPURIOUS RADIATION SUBCLAUSE § 15.10926 CONDUCTED SPURIOUS EMISSIONS31 BLOCK EDGE COMPLIANCE FOR BLOCK A AND C40 OCCUPIED BANDWIDTH SUBCLAUSE §2.98942 CONDUCTED EMISSIONS SUBCLAUSE § 15.107/20748 PART PCS 850 POWER OUTPUT SUBCLAUSE § 22.91351 FREQUENCY STABILITY SUBCLAUSE § 22.35554 AFC FREQ ERROR VS. VOLTAGE55 AFC FREQ ERROR VS. TEMPERATURE55 EMISSIONS LIMITS SUBCLAUSE §22.91757 RECEIVER SPURIOUS RADIATION SUBCLAUSE § 15.10969 CONDUCTED SPURIOUS EMISSIONS74 BLOCK EDGE REQUIREMENTS83 OCCUPIED BANDWIDTH SUBCLAUSE §2.98985 EMISSION LIMITATIONS FOR CELLULAR SUBCLAUSE §22.917(F)92 CONDUCTED EMISSIONS SUBCLAUSE § 15.107/20798 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS102 TEST SITE104 CETECOM ICT Services GmbH Test report no..: 2_3492-01-01/03Issue Date: 2004-01-06Page 8 (113) REFERENCE NUMBER(S) OF TEST EQUIP…

Text truncated - open the document above for the full version.
