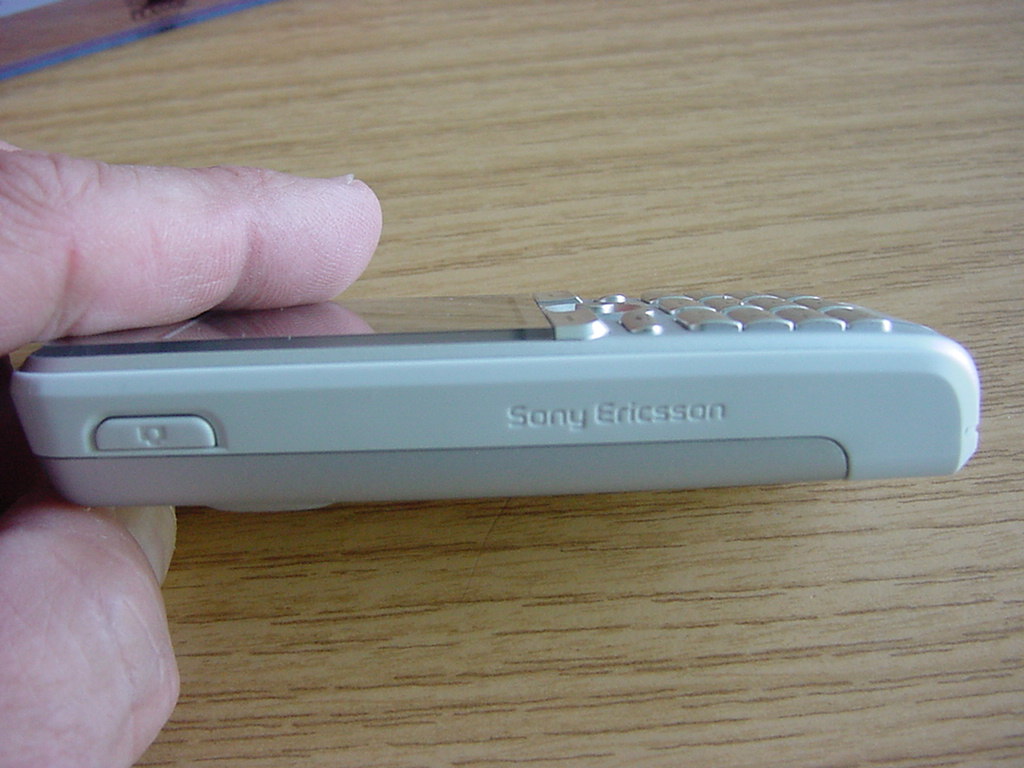

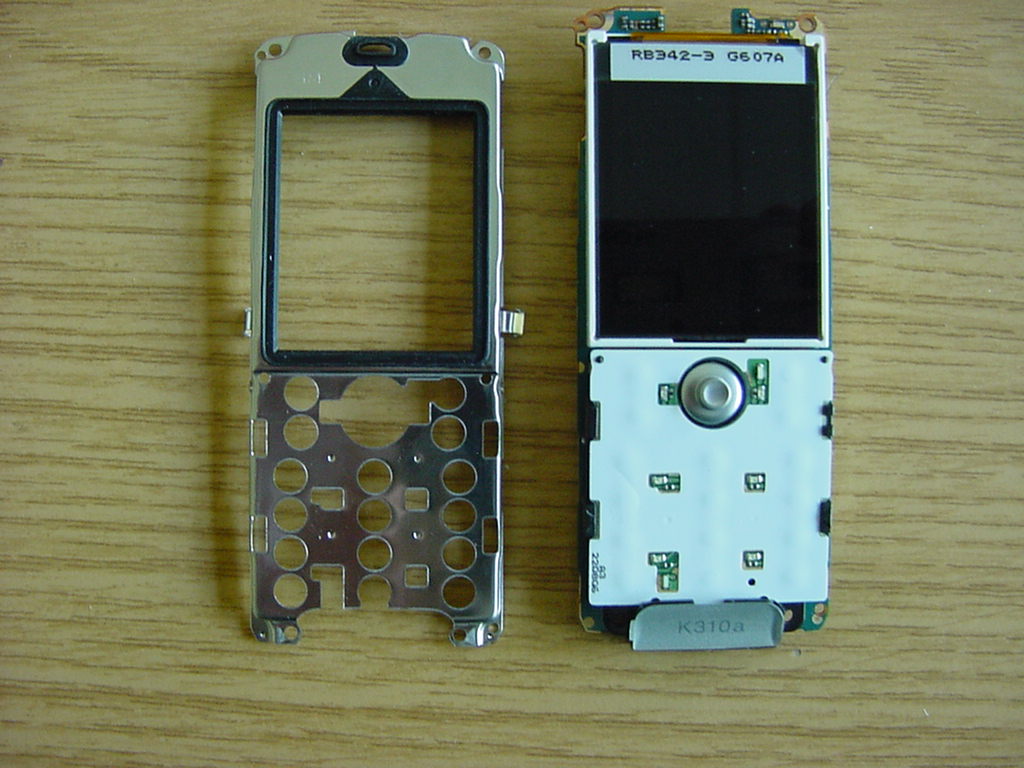

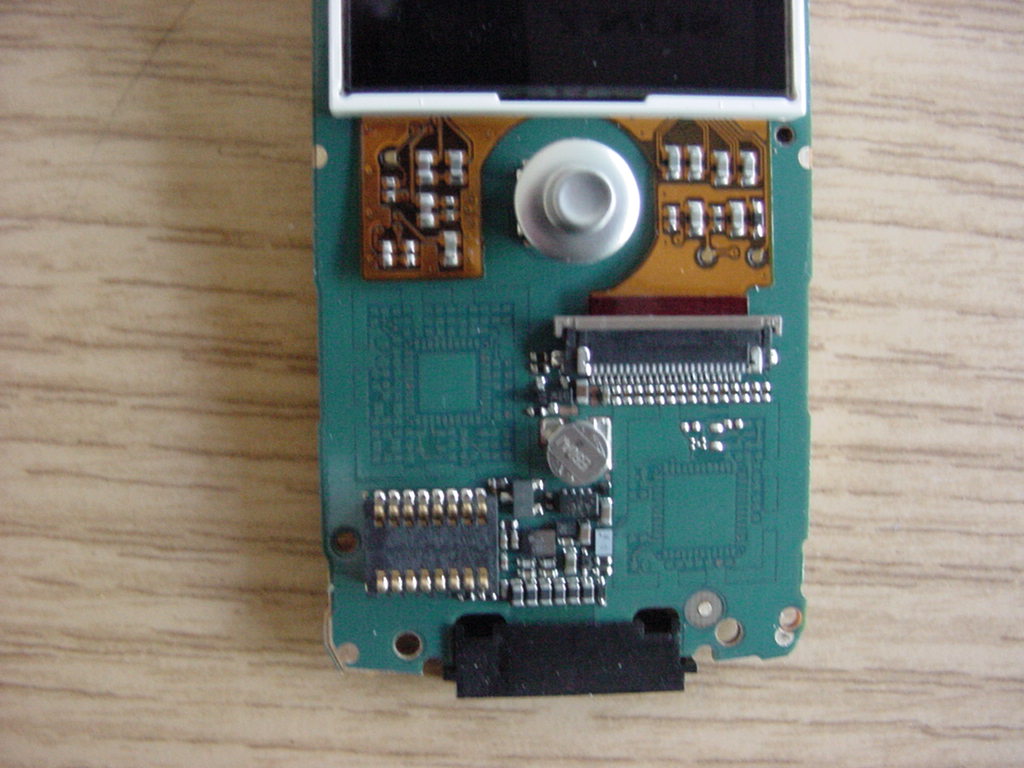

PY7A1032012GSM 850/1800/1900 mobile phone with GPRS

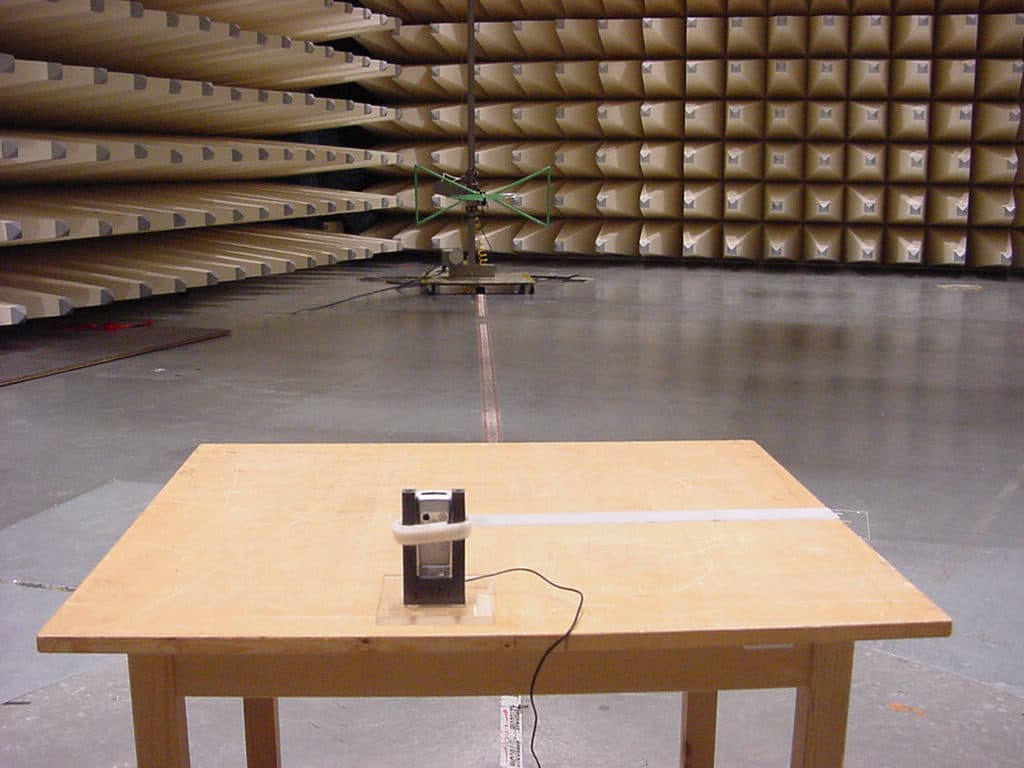

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 19 of 41 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 20 of 41 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 21 of 41 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 22 of 41 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 23 of 41 Photo 5 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 24 of 41 7 Annex C: External Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 25 of 41 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 26 of 41 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 27 of 41 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 28 of 41 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 29 of 41 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 30 of 41 8 Annex D: Internal Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 31 of 41 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 32 of 41 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 33 of 41 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 34 of 41 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 35 of 41 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 36 of 41 Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 37 of 41 Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 38 of 41 Photo 9: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 39 of 41 Photo 10: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 40 of 41 Photo 11: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 41 of 41 Photo 12:

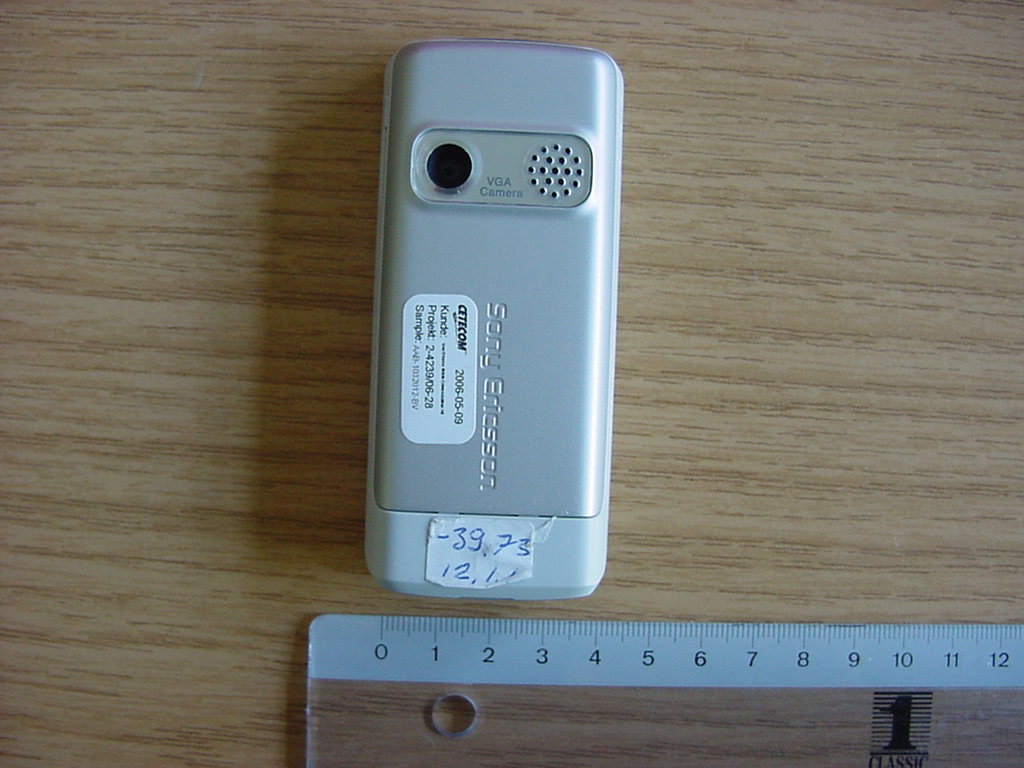

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 479/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2006-03-22 A 3 Approved according to 000 21–LXE 107 42/1 K310a, KRH-lbl, TYPE: AAB-1032012-BV, Made in... 1 General information The format of the label is based on a label SVF 930 1457 (41,27 x 19,75mm). If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (2,2/1,0) Sony Ericsson stylized name. Graphics, height 1,3 mm. According to 190 89–EN/LZT 108 5347 Line 1b (2,2/14,0) Model name, “K310a” Text, height 1,2 mm. Line 1c (2,2/19,0) Product number of the DPY kit in which the phone is packed. Printed without “DPY 101” and R-state, “0000/000” Text, height 1,2 mm. Line 1d (2,2/25,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. Line 2a (4,3/1,0) Type number of the phone (KRH), “Type: AAB-1032012-BV”. Text, height 1,2 mm. Line 2b (4,3/18,0) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Company Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 479/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2006-03-22 A 3 Content Format Line 2c (4,3/24,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 3a (6,3/1,0) Country approval mark 1 “FCC ID: PY7A1032012” Text, height 1,2 mm. Line 3b (6,3/15,0) Country approval mark 2 “IC: 4170B-A1032012” Text, height 1,2 mm. Line 3c (6,0/31,0) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 3d (6,0/38,0) The Notified body number. “0682” Text, height 2,0 mm. Line 4 (9,0/1,0) Line 5a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 5a (10,6/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 5b (10,6/12,6) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 5c (10,6/18,2) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 6 (13,0/1,0) Line 5c in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 7 (16,5/1,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. Company Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 479/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2006-03-22 A 3 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 19 of 41 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 20 of 41 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 21 of 41 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 22 of 41 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 23 of 41 Photo 5 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 24 of 41 7 Annex C: External Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 25 of 41 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 26 of 41 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 27 of 41 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 28 of 41 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 29 of 41 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 30 of 41 8 Annex D: Internal Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 31 of 41 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 32 of 41 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 33 of 41 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 34 of 41 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 35 of 41 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 36 of 41 Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 37 of 41 Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 38 of 41 Photo 9: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 39 of 41 Photo 10: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 40 of 41 Photo 11: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-28-02/06 Date: 2006-05-15 Page 41 of 41 Photo 12:

Date/Time: 2006-05-03 14:36:34 Test Laboratory: Sony Ericsson Mobile Communications File Name: Ch190_R_Cheek_060503.da4 DUT: PY7A1032012; Type: GSM 850; Serial: 4671 Program Name: (Right-Hand Side) Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; ı = 0.864 mho/m; İ r = 40.8; ȡ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1585; ConvF(6.77, 6.77, 6.77); Calibrated: 2006-03-16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn419; Calibrated: 2006-03-08 - Phantom: SAM 3; Type: SAM; Serial: 1137 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Touch position - Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.10 mW/g Touch position - Middle/Zoom Scan (7x7x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.6 V/m; Power Drift = -0.050 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.697 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.07 mW/g 0 dB = 1.07mW/g Page 1 of 1 2006-05-22file://Q:\System Accuracy Verification\1900MHz\2006\Ch190_R_Cheek_060502\Ch... Date/Time: 2006-05-08 14:23:54 Test Laboratory: Sony Ericsson Mobile Communications File Name: Ch190_Body_HandsFree_060508.da4 DUT: PY7A1032012; Type: GSM 850; Serial: #4671 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; ı = 1.02 mho/m; İ r = 55.1; ȡ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1585; ConvF(6.53, 6.53, 6.53); Calibrated: 2006-03-16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn419; Calibrated: 2006-03-08 - Phantom: SAM 3; Type: SAM; Serial: 1137 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 d=15mm,Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.604 mW/g d=15mm,Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.0 V/m; Power Drift = 0.004 dB Peak SAR (extrapolated) = 0.748 W/kg SAR(1 g) = 0.558 mW/g; SAR(10 g) = 0.398 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.589 mW/g 0 dB = 0.589mW/g Page 1 of 1 2006-05-22file://Q:\System Accuracy Verification\1900MHz\2006\Ch190_Body_HandsFree_06... Date/Time: 2006-05-03 15:34:16 Test Laboratory: Sony Ericsson Mobile Communications File Name: Ch128_R_Tilt_060503.da4 DUT: PY7A1032012; Type: GSM 850; Serial:# 4671 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 825 MHz; ı = 0.853 mho/m; İ r = 40.9; ȡ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1585; ConvF(6.77, 6.77, 6.77); Calibrated: 2006-03-16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn419; Calibrated: 2006-03-08 - Phantom: SAM 3; Type: SAM; Serial: 1137 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Tilt position - Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.524 mW/g Tilt position - Low/Zoom Scan (7x7x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.1 V/m; Power Drift = -0.143 dB Peak SAR (extrapolated) = 0.671 W/kg SAR(1 g) = 0.483 mW/g; SAR(10 g) = 0.333 mW/g Maximum value of SAR (measured) = 0.520 mW/g 0 dB = 0.520mW/g Page 1 of 1 2006-05-22file://Q:\System Accuracy Verification\1900MHz\2006\Ch128_R_Tilt_060502\Ch12... Date/Time: 2006-05-03 09:29:55 Test Laboratory: Sony Ericsson Mobile Communications File Name: Ch128_L_Cheek_060503.da4 DUT: PY7A1032012; Type: GSM 850; Serial:# 4671 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 825 MHz; ı = 0.853 mho/m; İ r = 40.9; ȡ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1585; ConvF(6.77, 6.77, 6.77); Calibrated: 2006-03-16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn419; Calibrated: 2006-03-08 - Phantom: SAM 3; Type: SAM; Serial: 1137 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Touch position - Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.859 mW/g Touch position - Low/Zoom Scan (7x7x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.0 V/m; Power Drift = -0.031 dB Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.782 mW/g; SAR(10 g) = 0.550 mW/g Maximum value of SAR (measured) = 0.833 mW/g 0 dB = 0.833mW/g Page 1 of 1 2006-05-22file://Q:\System Accuracy Verification\1900MHz\2006\Ch128_L_Cheek_060503\Ch... Date/Time: 2006-05-08 15:51:30 Test Laboratory: Sony Ericsson Mobile Communications File Name: Ch128_Body_GPRS2TX_060508.da4 DUT: PY7A1032012; Type: GSM 850; Serial:# 4671 Communication System: GSM850 GPRS2TX; Frequency: 824.2 MHz;Duty Cycle: 1:4.15 Medium parameters used (interpolated): f = 824.2 MHz; ı = 1.01 mho/m; İ r = 55.2; ȡ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1585; ConvF(6.53, 6.53, 6.53); Calibrated: 2006-03-16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn419; Calibrated: 2006-03-08 - Phantom: SAM 3; Type: SAM; Serial: 1137 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 d=15mm,Low GPRS2TX/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.18 mW/g d=15mm,Low GPRS2TX/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8…

Text truncated - open the document above for the full version.

Company Internal INSTRUCTION 1 (20) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 03:141 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 060220 E File Note: Any hard copy of this document is for reference only. Due to template and application dependecies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a corect and valid version. Any outdated hard copy is invalid and must be removed from possible use. Sony Ericsson SAR Measurement Specification of Wireless Terminals Contents 1 Introduction and scope ........................................................................................................2 2 References ........................................................................................................................... 2 3 Physical quantities, units and constants............................................................................... 4 4 Definitions ........................................................................................................................... 4 5 Measurement system specifications .................................................................................... 4 5.1 General ................................................................................................................................ 4 5.2 Phantom............................................................................................................................... 5 5.3 SAR measurement equipment ............................................................................................. 5 5.4 Scanning system .................................................................................................................. 6 5.5 Wireless device holder ........................................................................................................ 6 5.6 Other equipment .................................................................................................................. 6 6 Protocol for SAR assessment .............................................................................................. 7 6.1 Measurement preparation ....................................................................................................7 6.2 Tests to be performed .......................................................................................................... 7 6.3 Measurement procedure ......................................................................................................7 6.4 Post processing .................................................................................................................... 8 7 Measurement uncertainty .................................................................................................... 9 Annex A Tissue simulating material preparation .............................................................................. 9 Annex B Dielectric property measurements .................................................................................... 12 Annex C SAR measurement procedure ........................................................................................... 13 Annex D Measurement system performance check and validation ................................................. 15 Annex E Uncertainty budgets for 1g and 10g SAR assessments with DASY................................. 17 Company Internal INSTRUCTION 2 (20) Prepared (also subject responsible if other) No. LD/SEMC/BGUG/NM Ramadan Plicanic GUG/N 03:141 Approved Checked Date Rev Reference LD/SEMC/BGUG/NMC Mats Hansson 060220 E File Note: Any hard copy of this document is for reference only. Due to template and application dependecies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a corect and valid version. Any outdated hard copy is invalid and must be removed from possible use. 1. Introduction and scope It is a Sony Ericsson policy that all RF transmitting product models shall comply with relevant recommendations, standards and regulations on human exposure to electromagnetic fields. In the reference section below, the most important RF safety guidelines are listed [9-13]. If no national standard or regulation is available in a country, the international recommendation from ICNIRP [9] shall be applied. The RF safety guidelines specify basic restrictions and reference levels. In the frequency range of interest for mobile communications, the basic restrictions are expressed as Specific Absorption Rate (SAR) limits and the reference levels as field strength or power density limits. The reference levels are provided for the purpose of simple measurements of compliance with the basic restrictions, and they are primarily applicable in the far-field region of a RF source. Measured values greater than the reference levels do not necessarily mean that the basic restrictions are exceeded. In the near-field region of mobile communication devices (handsets), field strength values exceeding the reference levels may be observed. Compliance with the basic SAR restrictions has therefore to be verified. SAR (W/kg) is a measure of the rate of RF energy absorption in tissue. The localized SAR limits depend on whether the device is classified for use by the general public (uncontrolled environment) or workers (controlled environment). Mobile communication equipment are usually used by the general public and should consequently be in compliance with the general public limits, which are 2.0 W/kg averaged in 10 gram of tissue in the ICNIRP guidelines [9] and 1.6 W/kg averaged in 1 gram in the ANSI/IEEE standard [10]. Because of the lower limit and the smaller averaging mass, the ANSI/IEEE limit is slightly more conservative than the ICNIRP limit. The averaging times are also different, 6 minutes in the ICNIRP recommendations and 30 minutes in the IEE…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4239-28-02/06 Date: 2006-05-12 Page 1 of 83 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4239-28-02/06 Applicant : Sony Ericsson Mobile Communication s AB Type : AAB-1032012-BV Test Standard : FCC Part 22, 24 RSS132, 133 FCC ID : PY7A1032012 Certification No. IC : 4170B-A1032012 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4239-28-02/06 Date: 2006-05-12 Page 2 of 83 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS..................................................................................................................................…

Text truncated - open the document above for the full version.
