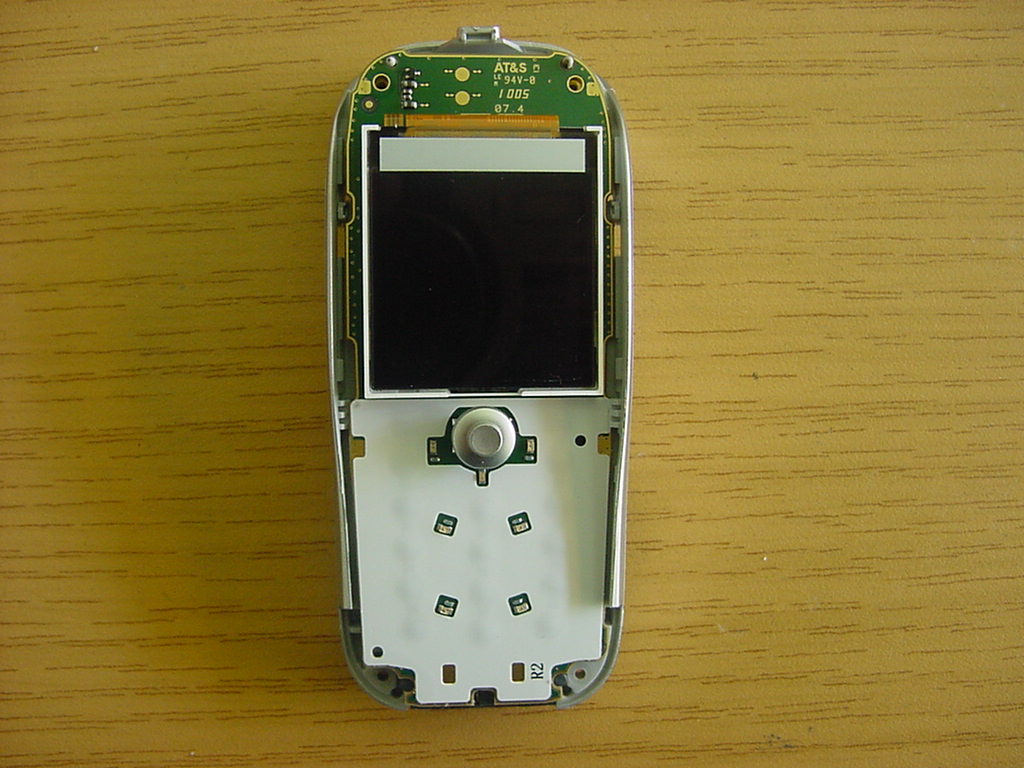

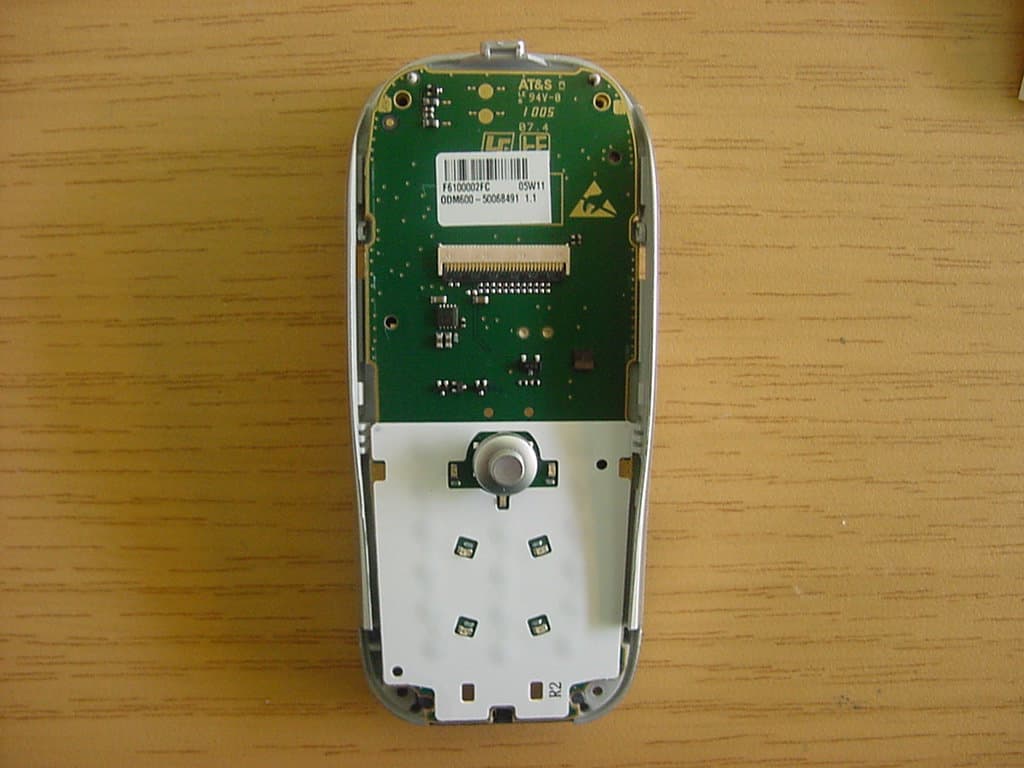

PY7A1041021Licensed Transmitter

a PPreflighted byreflighted byPreflighted by ( )( )( ) PPreflighted byreflighted byPreflighted by ( )( )( ) 1 Contents Getting to Know Your Phone . . . . . . . . . . . . . . . . . . 4 User Guide Symbols . . . . . . . . . . . . . . . . . . . . . . . . 5 Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Entertainment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 More Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Additional Information . . . . . . . . . . . . . . . . . . . . . . 67 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 You can find support, information, content downloads and an icon glossary at www.SonyEricsson.com/support PPreflighted byreflighted byPreflighted by ( )( )( ) 2 Sony Ericsson GSM 850/1900 First edition (March 2005) This user guide is published by Sony Ericsson, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2005 Publication number: AE/LZT 108 7959 R1A Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. QuickShare™, PlayNow™ and MusicDJ™ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, PPreflighted byreflighted byPreflighted by ( )( )( ) 3 and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™. 1 Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2 Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3 Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227- 7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved. Other product and company names mentioned herein may be the trademarks of their respective owners. Any rights not expressly granted herein are reserved. PPreflighted byreflighted byPreflighted by ( )( )( ) 4 Getting to Know Your Phone Selection key Back key Earpiece Screen Selection key Navigation key Clear key and On/Off button Microphone Stereo headset and charger connector PPreflighted byreflighted byPreflighted by ( )( )( ) 5 User Guide Symbols The following instruction symbols appear in this user guide: Assembling Your Phone Insert the SIM card, attach and charge the battery to use your phone. SIM Card When you register as a subscriber with a service provider, you get a SIM (Subscriber Identity Module) card. The SIM card contains a computer chip that keeps track of your phone number, the service…

Text truncated - open the document above for the full version.

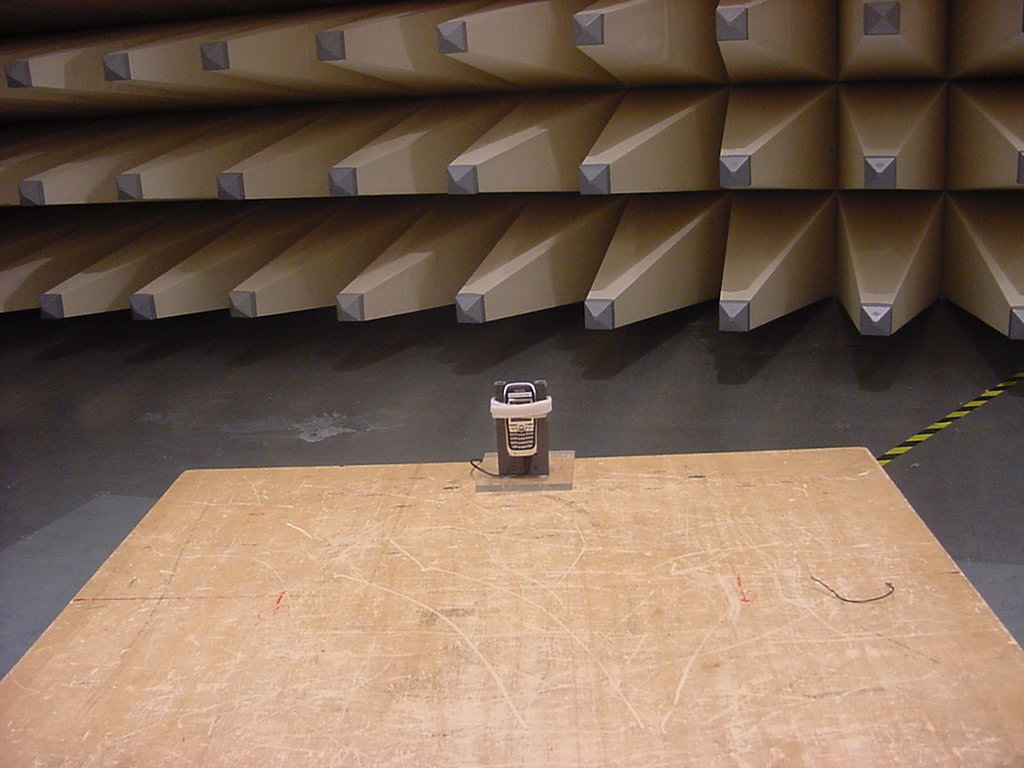

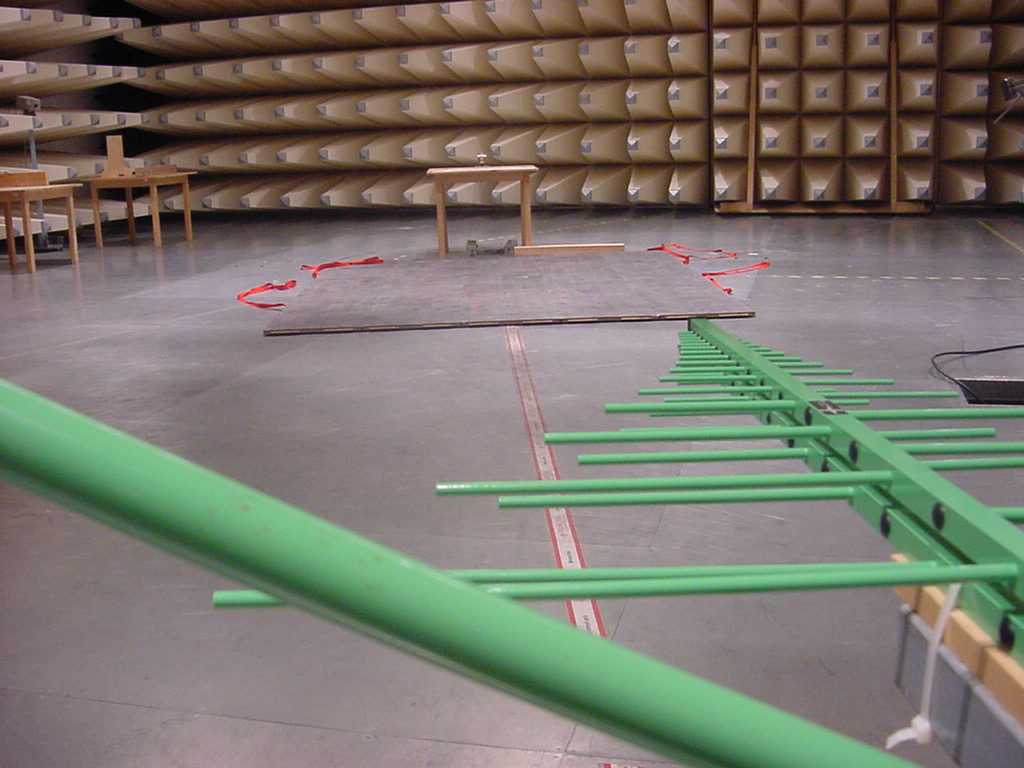

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3949-01-02/05 Date: 2005-06-01 Page 1 of 28 \\ut55\2_PROJEKTE\05\3949_1\Task2(MCP)\Erg\Annex to 2-3949-01-02_05.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Annex to Test report no. : 2-3949-01-02/05 Applicant : Sony Ericsson Mobile Communications AB Type : AAA-1041021-BV Test Standard : FCC Part 15 / RSS210 FCC ID : PY7A1041021 Certification No. IC : 4170B-A1041021 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3949-01-02/05 Date: 2005-06-01 Page 2 of 28 Table of contents 1 GENERAL INFORMATION ......................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY........................................................................................................... 3 1.1.1 Identification of the testing laboratory ............................................................................................................... 3 1.2. NOTES......................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT............................................................................................................................................... 4 1.4 APPLICATION DETAILS................................................................................................................................................ 4 1.5 TEST ITEM................................................................................................................................................................... 5 1.6 TEST SETUP................................................................................................................................................................. 6 1.7 TEST SPECIFICATIONS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE ................................................................................................................................ 7 2.1 SUMMARY OF MEASUREMENT RESULTS...................................................................................................................... 7 2.1.1 CFR 47 Part 15 Radio frequency devices ........................................................................................................... 7 3 MEASUREMENTS AND RESULTS ............................................................................................................................. 8 4 ANNEX A: FCC PART 15 SUBPART B........................................................................................................................ 9 4.1 Conducted Limits .................................................................................................................................................... 9 5 ANNEX B PHOTOGRAPS OF TEST SITE ................................................................................................................ 16 6 ANNEX C: EXTERNAL PHOTOGRAPS OF THE EQUIPMENT.......................................................................... 21 7 ANNEX D: INTERNAL PHOTOGRAPS OF THE EQUIPMENT........................................................................... 23 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3949-01-02/05 Date: 2005-06-01 Page 3 of 28 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. TTI-P-G081/94-D0 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Gillmann D. / Hausknecht D. Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. ........................................... / ........................................... Responsible for testing laboratory (Gillmann D. / Hausknecht D.) ........................................... / ........................................... Responsible for test report (Gillmann D. / Hausknecht D.) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3949-01-02/05 Date: 2005-06-01 Page 4 of 28 1.3 Details of Applicant Name : Sony Ericsson Mobile Communications AB Address : Nya Vattentornet City : 22188 Lund Country : Sweden Phone : + 46 46 193242 Fax : + 46 46 193295 Contact : Mr. Bo. J…

Text truncated - open the document above for the full version.

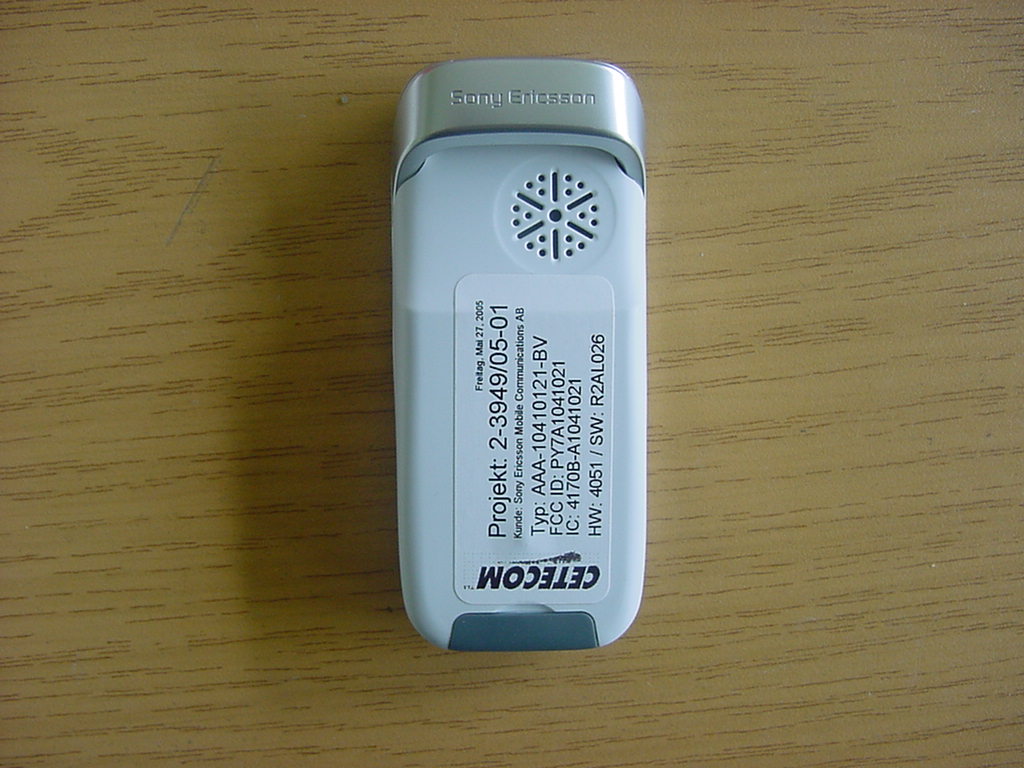

1 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 331/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2005-05-23 C 2 Approved according to 000 21–LXE 107 42/1 J300a, KRH-label, SEM, TYPE: AAA-1041021-BV 1 General information The format of the label is based on a label SVF 930 2411. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1 (2,9/1,0) Line 2 in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 2 (4,6/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 3 (7,0/1,0) Line 4 in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 4 (8,8/1,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. 2 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 331/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2005-05-23 C 2 Content Format Line 5 (11,8/1,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 6 (12,9/27,0) SIM-card symbol. Graphics, height 7,3 mm. According to 1424–SVF 930 1418. Line 7 (15,0/1,0) Marking of origin. The line shall be printed as stated in a separate 1/151 86- document in the 1095- for the SVV, if any. Text, height 1,2 mm. Line 8 (22,6/2,0) Additional marking. The field shall be left blank unless otherwise stated in a separate 2/151 86- document in the 1095- of the actual SVV. Line 9a (44,2/7,6) Sony Ericsson stylized name. Graphics, height 2,0 mm. According to 190 89–EN/LZT 108 5347. Rotated 90° counter clockwise. Line 9b (26,9/7,5) Model name, “J300a” Text, height 1,2 mm. Rotated 90° counter clockwise. Line 10a (44,2/10,0) Type number of the phone (KRH), “Type: AAA-1041021-BV”. Text, height 1,2 mm. Rotated 90° counter clockwise. Line 10b (27,5/10,0) R-state identification field, G- and H-fields: e.g. “AA” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Rotated 90° counter clockwise. Line 11a (44,2/12,5) Product number of the DPY kit in which the phone is packed, if applicable. Printed without “DPY 101” and R-state, “0000/000” Text, height 1,2 mm. Rotated 90° counter clockwise. Line 11b (36,9/12,5) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Rotated 90° counter clockwise. Line 11c (28,8/12,5) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Rotated 90° counter clockwise. Line 12a (44,2/14,9) Country approval mark 1 “FCC ID: PY7A1041021” Text, height 1,2 mm. Rotated 90° counter clockwise. Line 12b (29,7/14,9) Country approval mark 2 “IC: 4170B-A1041021” Text, height 1,2 mm. Rotated 90° counter clockwise. 3 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 331/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2005-05-23 C 2 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3949-01-02/05 Date: 2005-06-01 Page 1 of 28 \\ut55\2_PROJEKTE\05\3949_1\Task2(MCP)\Erg\Annex to 2-3949-01-02_05.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Annex to Test report no. : 2-3949-01-02/05 Applicant : Sony Ericsson Mobile Communications AB Type : AAA-1041021-BV Test Standard : FCC Part 15 / RSS210 FCC ID : PY7A1041021 Certification No. IC : 4170B-A1041021 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3949-01-02/05 Date: 2005-06-01 Page 2 of 28 Table of contents 1 GENERAL INFORMATION ......................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY........................................................................................................... 3 1.1.1 Identification of the testing laboratory ............................................................................................................... 3 1.2. NOTES......................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT............................................................................................................................................... 4 1.4 APPLICATION DETAILS................................................................................................................................................ 4 1.5 TEST ITEM................................................................................................................................................................... 5 1.6 TEST SETUP................................................................................................................................................................. 6 1.7 TEST SPECIFICATIONS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE ................................................................................................................................ 7 2.1 SUMMARY OF MEASUREMENT RESULTS...................................................................................................................... 7 2.1.1 CFR 47 Part 15 Radio frequency devices ........................................................................................................... 7 3 MEASUREMENTS AND RESULTS ............................................................................................................................. 8 4 ANNEX A: FCC PART 15 SUBPART B........................................................................................................................ 9 4.1 Conducted Limits .................................................................................................................................................... 9 5 ANNEX B PHOTOGRAPS OF TEST SITE ................................................................................................................ 16 6 ANNEX C: EXTERNAL PHOTOGRAPS OF THE EQUIPMENT.......................................................................... 21 7 ANNEX D: INTERNAL PHOTOGRAPS OF THE EQUIPMENT........................................................................... 23 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3949-01-02/05 Date: 2005-06-01 Page 3 of 28 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. TTI-P-G081/94-D0 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Gillmann D. / Hausknecht D. Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. ........................................... / ........................................... Responsible for testing laboratory (Gillmann D. / Hausknecht D.) ........................................... / ........................................... Responsible for test report (Gillmann D. / Hausknecht D.) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3949-01-02/05 Date: 2005-06-01 Page 4 of 28 1.3 Details of Applicant Name : Sony Ericsson Mobile Communications AB Address : Nya Vattentornet City : 22188 Lund Country : Sweden Phone : + 46 46 193242 Fax : + 46 46 193295 Contact : Mr. Bo. J…

Text truncated - open the document above for the full version.

PY7A1041021SAM 3 Phantom; Flat Section; Position: (270°,90°); Frequency: 837 MHzProbe: ET3DV6 - SN1582; ConvF(6.76,6.76,6.76); Crest factor: 8.0; Muscle 835-900 Mode: σ = 1.00 mho/m ε r = 54.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.396 mW/g, SAR (10g): 0.270 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.09 dBPY7A1041021,S/N:FP6100002NE;frequevc y 836.6MHz(ch190),Front si de Phone Position+15mm distance from flat section of pantom, meas. Power=32.9dBm, Nom.Power=33dBm; ambien temprature 23°C,and humidity 40%,Date:050602 SAR Tot [mW/g] 3.95E-27.90E-21.19E-11.58E-11.98E-12.37E-12.77E-13.16E-13.56E-13.95E-1 06/02/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041021SAM 3 Phantom; Flat Section; Position: (270°,90°); Frequency: 837 MHzProbe: ET3DV6 - SN1582; ConvF(6.76,6.76,6.76); Crest factor: 4.0; Muscle 835-900 Mode: σ = 1.00 mho/m ε r = 54.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.26 mW/g, SAR (10g): 0.878 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.05 dBPY7A1041021,S/N:FP6100002NE;frequevc y 836.6MHz(ch190),Back side Phone Position+15mm distance from flat section of pantom, meas. Power=32.9dBm, Nom.Power=33dBm; ambien temprature 23°C,and humidity 40%,Date:050602_GPRS Measurement SAR Tot [mW/g] 1.30E-12.60E-13.90E-15.20E-16.50E-17.80E-19.10E-11.04E+01.17E+01.30E+0 06/02/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041021SAM 3 Phantom; Flat Section; Position: (270°,90°); Frequency: 837 MHzProbe: ET3DV6 - SN1582; ConvF(6.76,6.76,6.76); Crest factor: 8.0; Muscle 835-900 Mode: σ = 1.00 mho/m ε r = 54.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.945 mW/g, SAR (10g): 0.648 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.05 dBPY7A1041021,S/N:FP6100002NE;frequevc y 836.6MHz(ch190),Back side Phone Position+15mm distance from flat section of pantom, meas. Power=32.9dBm, Nom.Power=33dBm; ambien temprature 23°C,and humidity 40%,Date:050602 SAR Tot [mW/g] 9.73E-21.95E-12.92E-13.89E-14.87E-15.84E-16.81E-17.78E-18.76E-19.73E-1 06/02/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041021SAM 3 Phantom; Righ Hand Section; Position: (110°,301°); Frequency: 824 MHzProbe: ET3DV6 - SN1582; ConvF(7.11,7.11,7.11); Crest factor: 8.0; Head 825-915MHz: σ = 0.90 mho/m ε r = 42.1 ρ = 1.00 g/cm 3 Cubes (2): SAR (1g): 0.614 mW/g ± 0.00 dB, SAR (10g): 0.413 mW/g ± 0.01 dB, (Worst-case extrapolation)Coarse: Dx = 12.0, Dy = 12.0, Dz = 12.0Powerdrift: -0.14 dB SAR Tot [mW/g] 6.55E-21.31E-11.97E-12.62E-13.28E-13.93E-14.59E-15.24E-15.90E-16.55E-1 05/27/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041021SAM 3 Phantom; Righ Hand Section; Position: (95°,301°); Frequency: 824 MHzProbe: ET3DV6 - SN1582; ConvF(7.11,7.11,7.11); Crest factor: 8.0; Head 825-915MHz: σ = 0.90 mho/m ε r = 42.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.888 mW/g, SAR (10g): 0.602 mW/g, (Worst-case extrapolation)Coarse: Dx = 12.0, Dy = 12.0, Dz = 12.0Powerdrift: -0.08 dBPY7A1041021,S/N:F6100002NE;frequevcy 824.2M Hz(ch128), Right Hand Side,Cheek (95°) Phone Position, meas. Power=33dBm, Nom.Power=33dBm; ambien temprature 24(c-degree)and humidity 50%,Date:050527 SAR Tot [mW/g] 9.24E-21.85E-12.77E-13.70E-14.62E-15.54E-16.47E-17.39E-18.32E-19.24E-1 05/27/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041021SAM 3 Phantom; Left Hand Section; Po sition: (110°,59°); Frequency: 837 MHz Probe: ET3DV6 - SN1582; ConvF(7.11,7.11,7.11); Crest factor: 8.0; Head 825-915MHz: σ = 0.89 mho/m ε r = 42.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.566 mW/g, SAR (10g): 0.393 mW/g, (Worst-case extrapolation)Coarse: Dx = 12.0, Dy = 10.0, Dz = 10.0Powerdrift: -0.00 dBPY7A1041021,S/N:F6100002NE;frequevcy 836.60M Hz(ch190), Left Hand Side,Tilt (95°) Phone Position, meas. Power=32.9dBm, Nom.Power=33dBm; ambien temprature 24(c-degree)and humidity 50%,Date:050530 SAR Tot [mW/g] 6.00E-21.20E-11.80E-12.40E-13.00E-13.60E-14.20E-14.80E-15.40E-16.00E-1 05/30/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041021SAM 3 Phantom; Left Hand Section; Position: (95°,59°); Frequency: 824 MHzProbe: ET3DV6 - SN1582; ConvF(7.11,7.11,7.11); Crest factor: 8.0; Head 825-915MHz: σ = 0.89 mho/m ε r = 42.1 ρ = 1.00 g/cm 3 Cubes (2): SAR (1g): 0.820 mW/g ± 0.03 dB, SAR (10g): 0.563 mW/g ± 0.01 dB, (Worst-case extrapolation)Coarse: Dx = 12.0, Dy = 10.0, Dz = 10.0Powerdrift: 0.22 dBPY7A1041021,S/N:F6100002NE;frequevcy 824.2M Hz(ch128),Left Hand Side,Cheek (95°) Phone Position, meas. Power=33dBm, Nom.Power=33dBm; ambien temprature 24(c-degree)and humidity 50%,Date:050527 SAR Tot [mW/g] 8.75E-21.75E-12.63E-13.50E-14.38E-15.25E-16.13E-17.00E-17.87E-18.75E-1 05/30/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041021SAM 3 Phantom; Flat Section; Position: (270°,90°); Frequency: 824 MHzProbe: ET3DV6 - SN1582; ConvF(6.76,6.76,6.76); Crest factor: 8.0; Muscle 835-900 Mode: σ = 1.00 mho/m ε r = 54.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.370 mW/g, SAR (10g): 0.254 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.08 dBPY7A1041021,S/N:FP6100002NE;frequevc y 824.2MHz(ch128),Front si de Phone Position+15mm distance from flat section of pantom, meas. Power=33dBm, Nom.Power=33dBm; ambien temprature 23°C,and humidity 40%,Date:050602 SAR Tot [mW/g] 3.79E-27.58E-21.14E-11.52E-11.90E-12.27E-12.65E-13.03E-13.41E-13.79E-1 06/02/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041021SAM 3 Phantom; Flat Section; Position: (270°,90°); Frequency: 824 MHzProbe: ET3DV6 - SN1582; ConvF(6.76,6.76,6.76); Crest factor: 4.0; Muscle 835-900 Mode: σ = 1.00 mho/m ε r = 54.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.30 mW/g, SAR (10g): 0.896 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.07 dBPY7A1041021,S/N:FP6100002NE;frequevc y 824.2MHz(ch128),Back side Phone Position+15mm distance from flat section of pantom, meas. Po…

Text truncated - open the document above for the full version.

Company Internal REPORT 1 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Hamid Kami Shirazi BGGIN05:156 Approved Checked Date Rev Reference LD/SEMC/GGI/NM Ramadan Plicanic 050609 050608 A File Report issued by Accredited SAR Laboratory For PY7A1041021 Date of test: 27maj to 2 June, 2005 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Hamid Kami Shirazi [email protected] +46 46232644 Testing Approval Ramadan Plicanic [email protected] +46 46 193 862 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAA-1041021-BV; FCC ID: FY7A1041021; IC:4170B-A1041021 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legisla…

Text truncated - open the document above for the full version.
