PY7A1041031GSM 850/1900 Mobile Phone

Z100-UG-EN.book Page 1 Thursday, August 11, 2005 10:13 AM Z100-UG-EN.book Page 2 Thursday, August 11, 2005 10:13 AM 1 Contents Getting to know your phone . . . . . . . . . . . . . . . . . . . 4 Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Menu overview . . . . . . . . . . . . . . . . . . . . . . . . 11 Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Personalizing your phone . . . . . . . . . . . . . . . . . . . 39 Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 More features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Additional information . . . . . . . . . . . . . . . . . . . . . . 64 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Z100-UG-EN.book Page 1 Thursday, August 11, 2005 10:13 AM 2 Sony Ericsson GSM 850/1900 This user guide is published by Sony Ericsson, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. © Sony Ericsson Mobile Communications AB, 2005 Publication number: AE/LZT 108 8045 R1A. Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and theLimited warranty chapters before you use your mobile phone. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Z100-UG-EN.book Page 2 Thursday, August 11, 2005 10:13 AM 3 Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. Other product and company names may be the trademarks of their respective owners. Sony Ericsson advises users to backup their personal data information. All illustrations are for illustration only and may not accurately depict the actual phone. Any rights not expressly granted herein are reserved. Z100-UG-EN.book Page 3 Thursday, August 11, 2005 10:13 AM 4 Getting to know your phone Speaker Screen NO key Power on/off Navigation key Clear key Microphone Volume keys Option key YES key Z100-UG-EN.book Page 4 Thursday, August 11, 2005 10:13 AM 5 Assembling your phone Before you can use your phone you need to: • Insert the SIM card. • Attach and charge the battery. User guide symbols The following symbols appear in this user guide: SIM card and battery information The SIM (Subscriber Identity Module) card, which you get from your network operator, contains information about your subscription and phonebook. Always turn off the phone and detach the charger before you insert or remove a SIM card. }Use the navigation key to scroll and select. %See also page.xx Important Note This symbol indicates that a service or function is network – or subscription-dependent. Because of this, all menus may not be available in your phone. Please consult your network operator for more information. If you have been using a SIM card in another phone, make sure that your information is saved to the SIM card before you remove it from the other phone. %17 Phonebook. Z100-UG-EN.book Page 5 Thursday, August 11, 2005 10:13 AM 6 To insert the SIM card and charge the battery BKB 193 199/y rrr S/N XXXXXXAABBCC yyWwww Z100-UG-EN.book Page 6 Thursday, August 11, 2005 10:13 AM 7 1Remove the battery cover as shown in the picture. 2Insert the SIM card. Make sure the SIM card is placed under the silvery holders. 3Place the battery on the back of the phone with the label side up and the connectors facing each other. 4Place the battery cover as shown in the picture and slide it into place. 5Connect the charger to the phone at the flash symbol. The flash symbol on the charger plug must face upwards. 6It may take up to 30 minutes before the battery icon appears on the screen. 7Wait approximately 4 hours or until the battery icon indicates that the battery is fully charged. If you do not see the battery icon after this time, press any key to activate the screen. 8Remove the charger by tilting the plug upwards. PIN You may need a PIN (Personal Identification Number) to activate the services in your phone. Your PIN is provided by your network operator. If you make a mistake while entering your PIN, delete the number by pressing . You must reset the time and date when you remove the battery.…

Text truncated - open the document above for the full version.

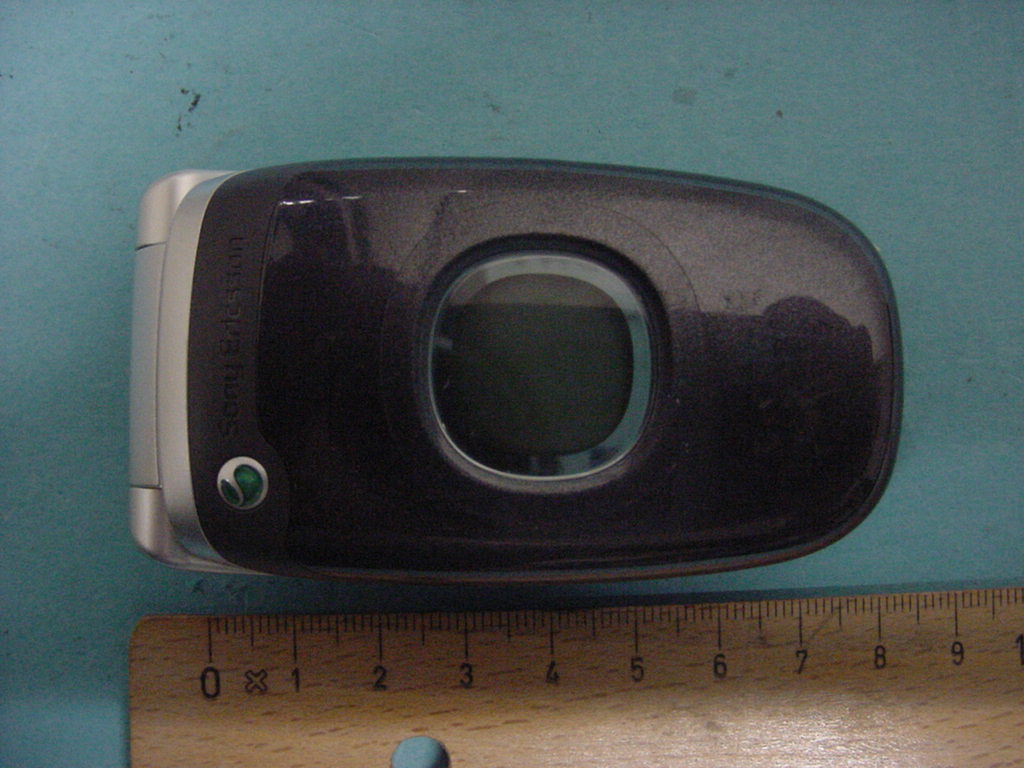

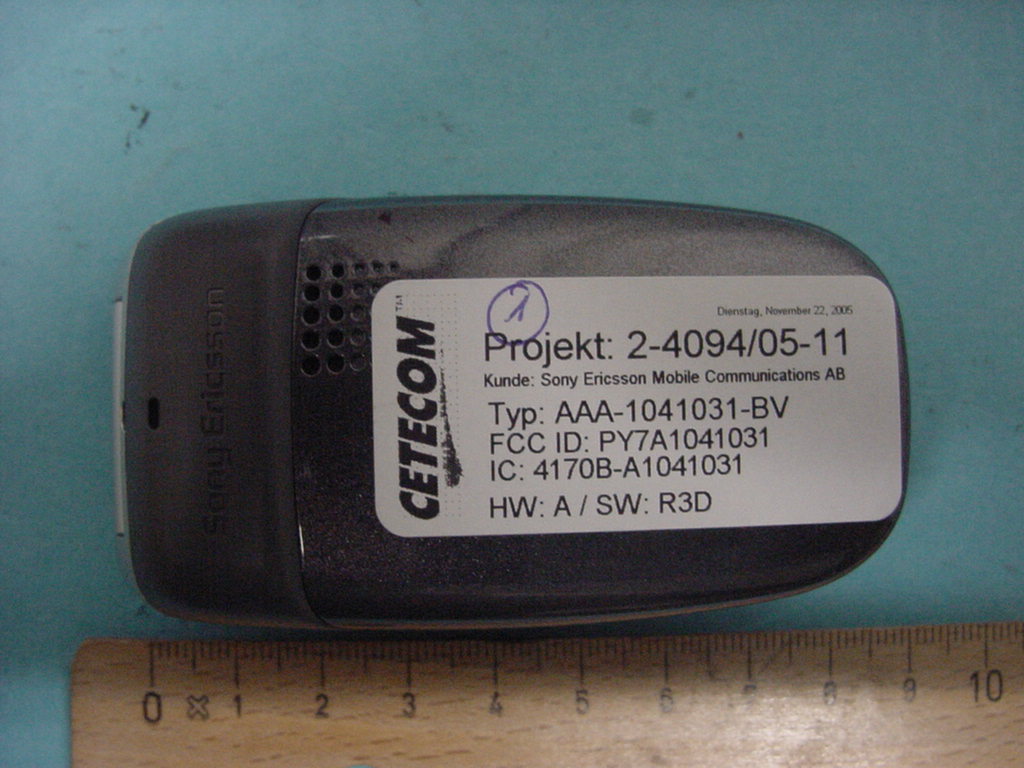

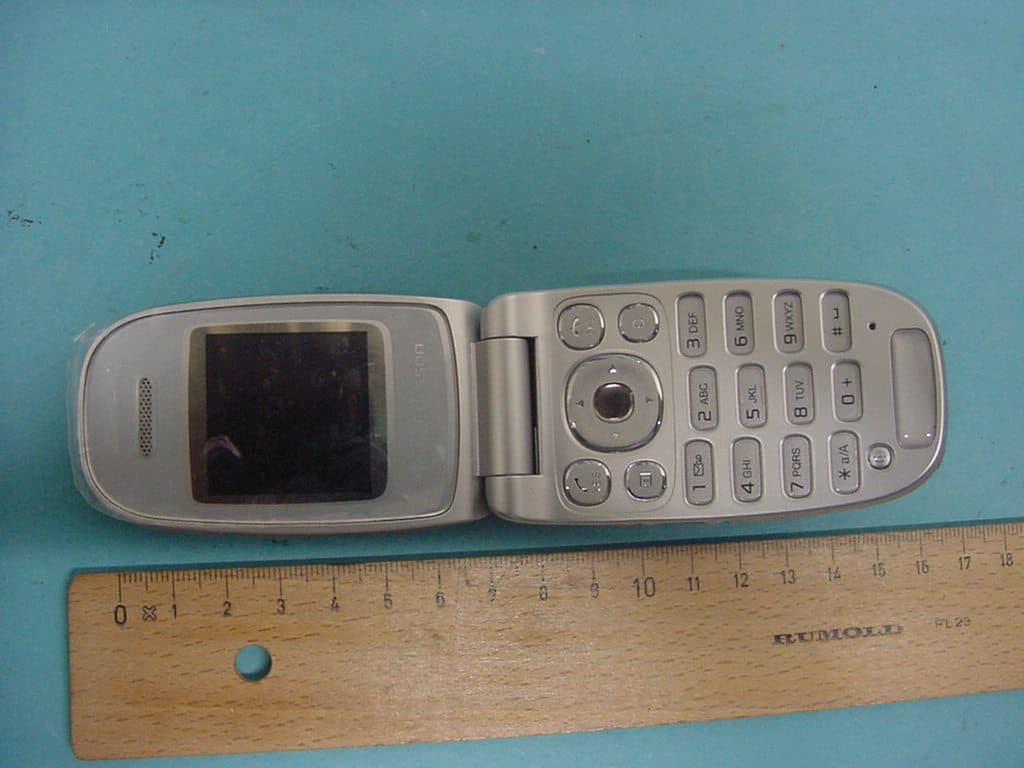

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 25 of 34 7 Annex C: External Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 26 of 34 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 27 of 34 Photo 3:

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 29 of 34 8 Annex D: Internal Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 30 of 34 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 31 of 34 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 32 of 34 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 33 of 34 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 34 of 34 Photo 6:

PY7A1041031SAM 3 Phantom; Flat Section; Position: (270°,90°); Frequency: 824 MHzProbe: ET3DV6 - SN1585; ConvF(6.65,6.65,6.65); Crest factor: 8.3; Muscle 835: V = 1.00 mho/m H r = 54.0 U = 1.00 g/cm 3 Cubes (2): SAR (1g): 0.390 mW/g ± 0.03 dB, SAR (10g): 0.260 mW/g ± 0.02 dB, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.06 dBS/N-TP8103200Q;Frequevcy 824.2MHz(ch128),Back Phone + 15mm distance from flat section of phantomPosition, meas. Power=33,2dBm, Nom.Power=33,2dBm;ambien temprature 24(c-degree)and humidity 49%; Phone in Open state. Date:051115 SAR Tot [mW/g] 4.11E-28.22E-21.23E-11.64E-12.06E-12.47E-12.88E-13.29E-13.70E-14.11E-1 11/15/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041031SAM 4 Phantom; Righ Hand Section; Position: (90°,301°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: V = 1.47 mho/m H r = 38.0 U = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.930 mW/g, SAR (10g): 0.488 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: -0.19 dBS/N-TP8103200Q;Frequevcy 1910MHz(ch810), Right Hand Side,Cheek(90°) Phone Positionmeas. Power=30.8dBm, Nom.Power=30.8dBm; ambien temprature 24(c-degree)and humidity 49%; Date:051114 SAR Tot [mW/g] 1.04E-12.09E-13.13E-14.18E-15.22E-16.26E-17.31E-18.35E-19.40E-11.04E+0 11/14/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041031SAM 4 Phantom; Left Hand Section; Position: (105°,59°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: V = 1.47 mho/m H r = 38.0 U = 1.00 g/cm 3 Cubes (2): SAR (1g): 0.269 mW/g ± 0.00 dB, SAR (10g): 0.161 mW/g ± 0.00 dB, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 11.0Powerdrift: -0.01 dBS/N-TP8103200Q;Frequevcy 1910MHz(ch810), Left Hand Side,Tilt(105°) Phone Positionmeas. Power=30.8dBm, Nom.Power=30.8dBm; ambien temprature 24(c-degree)and humidity 49%; Date:051114 SAR Tot [mW/g] 2.95E-25.90E-28.85E-21.18E-11.47E-11.77E-12.06E-12.36E-12.65E-12.95E-1 11/14/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041031SAM 4 Phantom; Left Hand Section; Position: (90°,59°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: V = 1.47 mho/m H r = 38.0 U = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.07 mW/g, SAR (10g): 0.566 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 11.0Powerdrift: -0.00 dBS/N-TP8103200Q;Frequevcy 1910MHz(ch810), Left Hand Side,Cheek(90°) Phone Positionmeas. Power=30.8dBm, Nom.Power=30.8dBm; ambien temprature 24(c-degree)and humidity 49%; Date:051114 SAR Tot [mW/g] 1.13E-12.27E-13.40E-14.53E-15.67E-16.80E-17.93E-19.06E-11.02E+01.13E+0 11/14/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041031SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(4.62,4.62,4.62); Crest factor: 8.3; Muscle 1900: V = 1.54 mho/m H r = 51.8 U = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0524 mW/g, SAR (10g): 0.0331 mW/g, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: -0.02 dBS/N-TP8103200Q;Frequevcy 1910MHz(ch810),Front Phone + 15mm distance from flat section of phantomPosition, meas. Power=30,8dBm, Nom.Power=30,8dBm;ambien temprature 24(c-degree)and humidity 49%; Phone in Open state. Date:051110 SAR Tot [mW/g] 5.70E-31.14E-21.71E-22.28E-22.85E-23.42E-23.99E-24.56E-25.13E-25.70E-2 11/10/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041031SAM 4 Phantom; Flat Section; Position: (270°,90°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(4.62,4.62,4.62); Crest factor: 8.3; Muscle 1900: V = 1.54 mho/m H r = 51.8 U = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.737 mW/g, SAR (10g): 0.367 mW/g, (Worst-case extrapolation)Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0Powerdrift: -0.05 dBS/N-TP8103200Q;Frequevcy 1910MHz(ch810),Back Phone + 15mm distance from flat section of phantomPosition, meas. Power=30,8dBm, Nom.Power=30,8dBm;ambien temprature 24(c-degree)and humidity 49%; Phone in Open state. Date:051110 SAR Tot [mW/g] 7.73E-21.55E-12.32E-13.09E-13.87E-14.64E-15.41E-16.18E-16.96E-17.73E-1 11/10/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041031SAM 4 Phantom; Righ Hand Section; Position: (105°,301°); Frequency: 1880 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: V = 1.47 mho/m H r = 38.0 U = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.251 mW/g, SAR (10g): 0.148 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: -0.05 dBS/N-TP8103200Q;Frequevcy 1880MHz(ch661), Right Hand Side,Tilt(105°) Phone Positionmeas. Power=30.8dBm, Nom.Power=30.8dBm; ambien temprature 24(c-degree)and humidity 49%; Date:051111 SAR Tot [mW/g] 2.64E-25.28E-27.92E-21.06E-11.32E-11.58E-11.85E-12.11E-12.38E-12.64E-1 11/14/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041031SAM 4 Phantom; Righ Hand Section; Position: (90°,301°); Frequency: 1880 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: V = 1.47 mho/m H r = 38.0 U = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.02 mW/g, SAR (10g): 0.544 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: -0.01 dBS/N-TP8103200Q;Frequevcy 1880MHz(ch661), Right Hand Side,Cheek(90°) Phone Positionmeas. Power=30.8dBm, Nom.Power=30.8dBm; ambien temprature 24(c-degree)and humidity 49%; Date:051111 SAR Tot [mW/g] 1.17E-12.35E-13.52E-14.70E-15.87E-17.04E-18.22E-19.39E-11.06E+01.17E+0 11/11/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7A1041031SAM 4 Phantom; Left Hand Section; Position: (105°,59°); Frequency: 1880 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.3; Head 1900MHz: V = 1.47 mho/m H r = 38.0 U = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.288 mW/g, SAR (10g): 0.171 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 11.0Powerdrift: -0.14 dBS/N-TP8103200Q;Frequevcy 1880MH…

Text truncated - open the document above for the full version.

Company Internal REPORT 1 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Hamid Kami Shirazi BGGIN05:343 Approved Checked Date Rev Reference LD/SEMC/BGGI/NM Ramadan Plicanic 051122 051122 A File Report issued by Accredited SAR Laboratory For PY7A1041031 (Z300a) Date of test: 9, to15, 11 2005 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Hamid Kami Shirazi [email protected] +46 46232644 Testing Approval Ramadan Plicanic [email protected] +46 46 19 38 62 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type; FCC ID: PY7A1041031; IC:4170B-A1041031 To which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2005 Company Internal REPORT 2 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Hamid Kami Shirazi BGGIN05:343 Approved Checked Date Rev Reference LD/SEMC/BGGI/NM Ramadan Plicanic 051122 051122 A File 1 Table of contents 2 INTRODUCTION..................................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 A NTENNA DESCRIPTION.......................................................................................................................................................3 3.2 D EVICE DESCRIPTION...........................................................................................................................................................3 4 TEST EQUIPMENT ..............................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM............................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.....................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................5 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................6 8 TEST RESULTS ....................................................................................................................................................................7 9 REFERENCES .......................................................................................................................................................................8 10 APPENDIX .............................................................................................................................................................................9 10.1 P HOTOGRAPHS OF THE DEVICE UNDER TEST....................................................................................................................9 10.2 D EVICE POSITION ON SAM TWINS PHANTOM...............................................................................................................11 10.3 A TTECHMENTS...............................................................................................................................................................12 Company Internal REPORT 3 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Hamid Kami Shirazi BGGIN05:343 Approved Checked Date Rev Reference LD/SEMC/BGGI/NM Ramadan Plicanic 051122 051122 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7A1041031 (Z300a) portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device under Test 3.1 Antenna Description Type Internal antenna Location Inside back, at the middle Max length 38mm Dimensions Max width 16mm Configuration PIFA 3.2 Device description Device model PY7A1041031(Z300a) Serial number TP8103200Q Mode GSM 850 GSM1900 Multiple Access Scheme TDMA TDMA Ch128 Ch190 Ch251 Maximum Output Power Setting (dBm) 32.7 32.4 31.5 30.3 Factory Tolerance in Power Setting ±0.5dBm Ch128 Ch190 Ch251 Maximum Peak Output Power (dBm) 33.2 32.9 32.0 30.8 Crest Factor 8 Transmitting Frequency Range(MHz) 824.2 – 848.8 1850.2 – 1909.8 Prototype or Production Unit Preproduction Dev…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 1 of 84 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4094-11-02/05 Applicant : Sony Ericsson Mobile Communications AB Type : AAA-1041031-BV Test Standard : FCC Part 22, 24 RSS132, 133 FCC ID : PY7A1041031 Certification No. IC : 4170B-A1041031 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4094-11-02/05 Date: 2005-11-25 Page 2 of 84 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 2.1.2 GSM 850 ....................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 27 3.1.5 Conducted Spurious Emissions ................................................................................................................... 31 3.1.6 Block Edge Compliance .............................................................................................................................. 35 3.1.7 Occupied Bandwidth................................................................................................................................... 38 3.2 PART GSM 850 .................................................................................................................................................. 45 3.2.1 RF Power Output ........................................................................................................................................ 45 3.2.2 Frequency Stability..................................................................................................................................... 48 3.2.3 Radiated Emissions..................................................................................................................................... 51 3.2.4 Receiver Radiated Emissions ...................................................................................................................... 63 3.2.5 Conducted Spurious Emissions ................................................................................................................... 67 3.2.6 Block Edge Compliance .............................................................................................................................. 71 4 USED TESTEQUIPMENT ...................................................................................................................................... 81 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report N…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 22 of 34 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 23 of 34 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-11-02/05 Date: 2005-11-25 Page 24 of 34 Photo 3 (Conducted Emissions):
