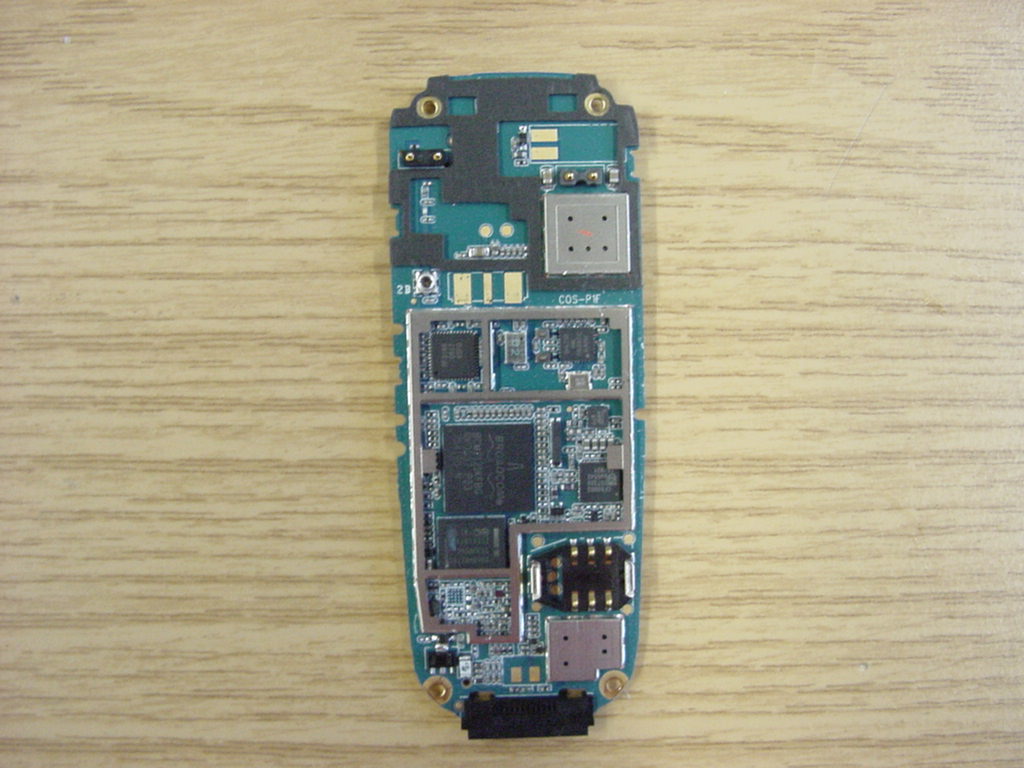

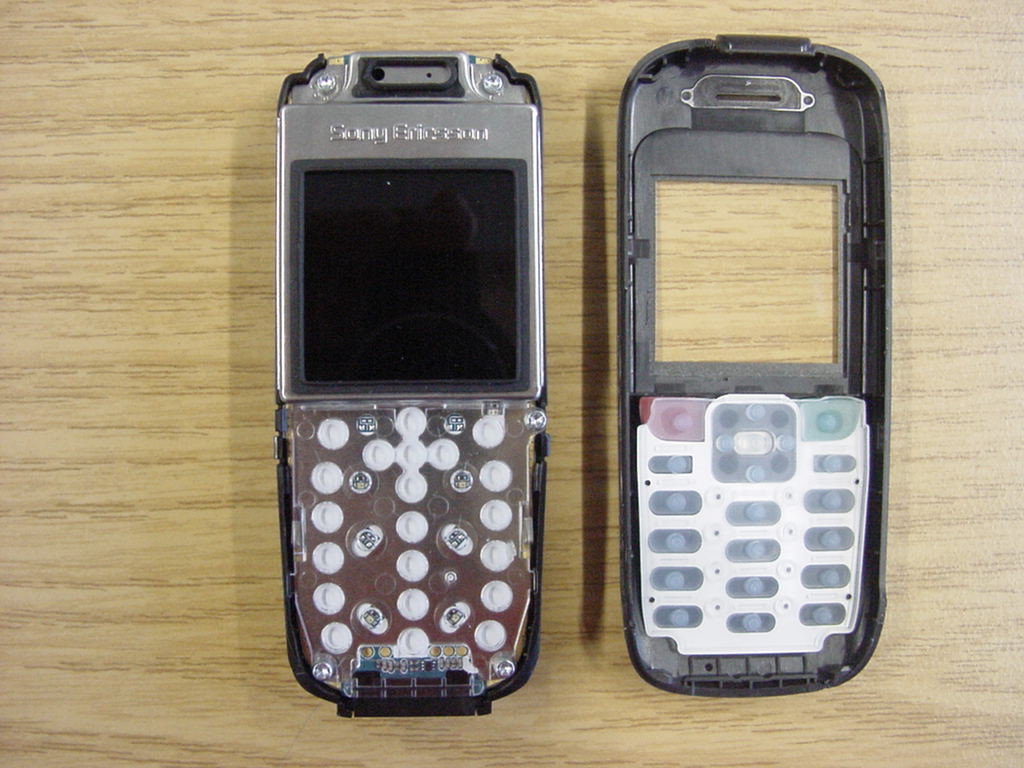

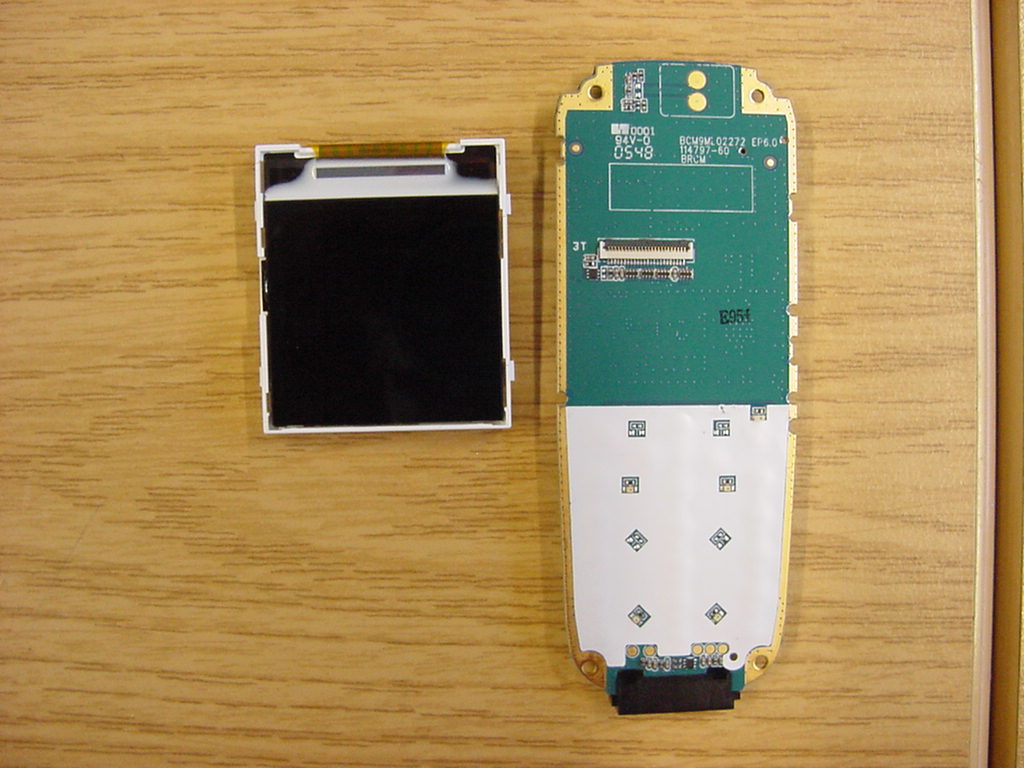

PY7A1042012Licensed Transmitter

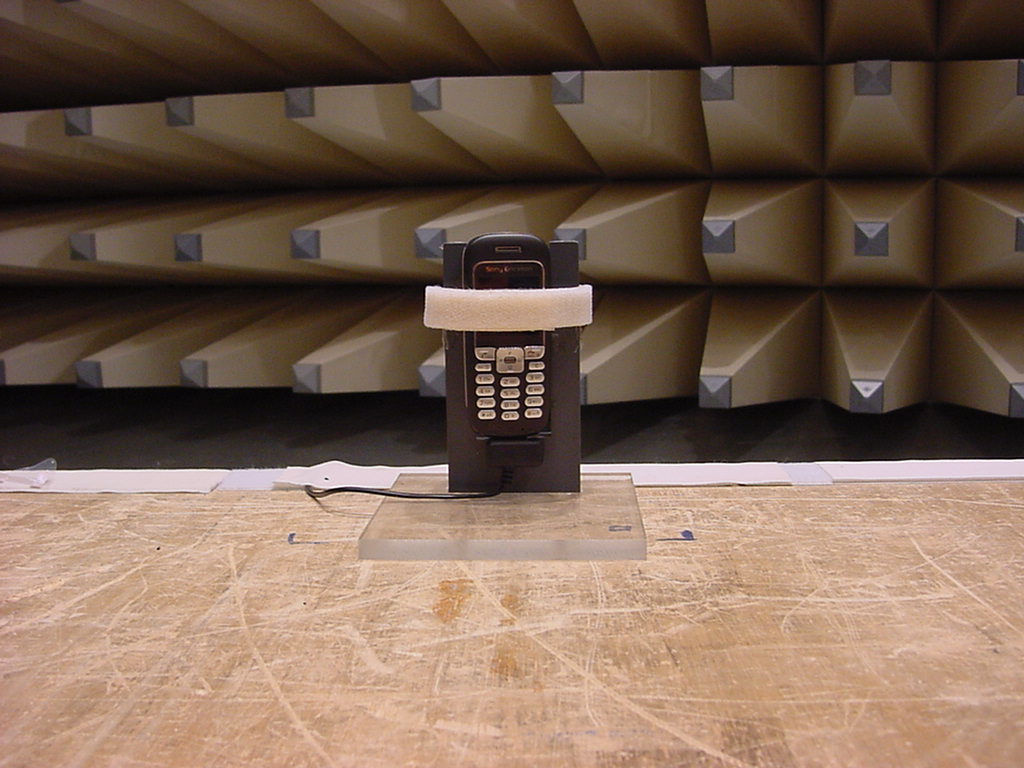

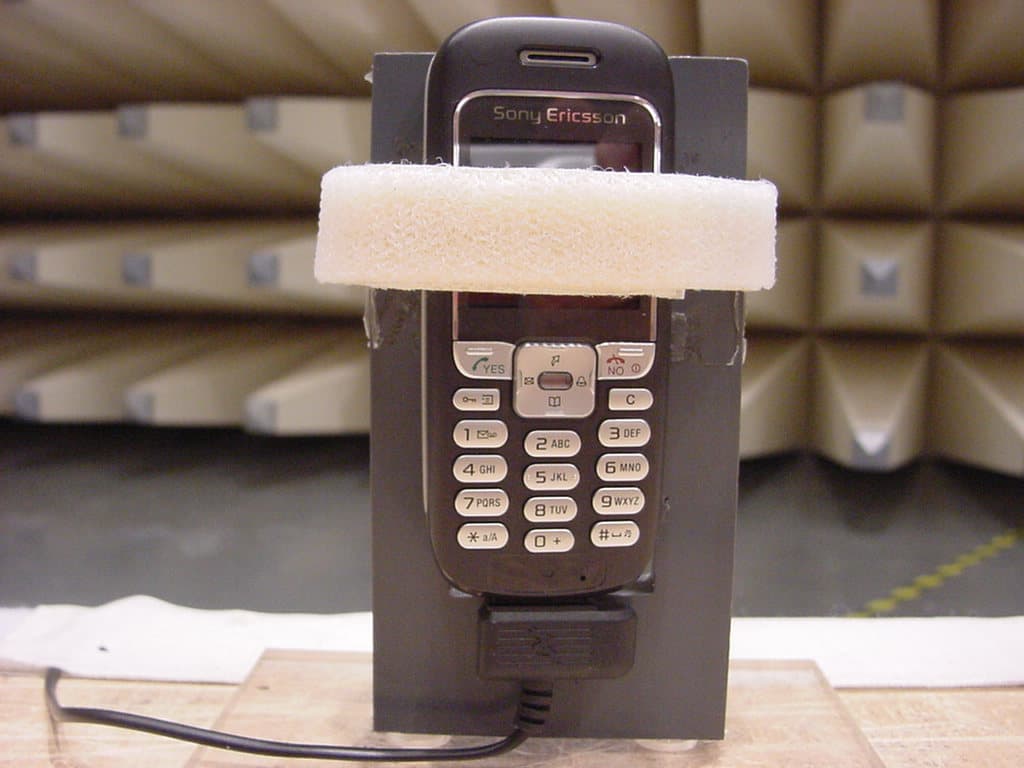

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 20 of 36 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 21 of 36 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 22 of 36 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 23 of 36 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 24 of 36 Photo 5 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 25 of 36 7 Annex C: External Photographs of the Equipment Photo No.: 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 26 of 36 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 27 of 36 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 28 of 36 8 Annex D: Internal Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 29 of 36 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 30 of 36 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 31 of 36 Photo No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 32 of 36 Photo No.: 5 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 33 of 36 Photo No.: 6 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 34 of 36 Photo No.: 7 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 35 of 36 Photo No.: 8 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 36 of 36 Photo No.: 9

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 470/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-12-21 A 4 Approved according to 000 21–LXE 107 42/1 J220a, KRH-label, TYPE: AAA-1042012-BV, Made in... 1 General information The format of the label is based on a label SVF 930 2481. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (2,6/1,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 190 89–EN/LZT 108 5347 Line 1b (2,2/15,0) Model name, “J220a” Text, height 1,2 mm. Line 1c (2,2/20,0) Product number of the DPY kit in which the phone is packed. Printed without “DPY 101” and R-state, “0000/000” Text, height 1,2 mm. Line 1d (2,2/28,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. Line 1e (2,2/33,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 2a (4,2/1,0) Type number of the phone (KRH), “Type: AAA-1042012-BV”. Text, height 1,2 mm. Line 2b (4,2/18,0) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Company Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 470/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-12-21 A 4 Content Format Line 2c (4,2/25,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 3a (6,5/1,0) “FCC ID: PY7A1042012” Text, height 1,2 mm. Line 3b (6,5/16,0) “IC: 4170B-A1042012” Text, height 1,2 mm. Line 4 (8,6/1,0) Line 5a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 5a (10,6/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 5b (10,6/13,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. Supplied by system. Line 6 (13,0/1,0) Line 5b in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 7 (15,0/1,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. Company Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 470/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-12-21 A 4 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 20 of 36 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 21 of 36 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 22 of 36 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 23 of 36 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 24 of 36 Photo 5 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 25 of 36 7 Annex C: External Photographs of the Equipment Photo No.: 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 26 of 36 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 27 of 36 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 28 of 36 8 Annex D: Internal Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 29 of 36 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 30 of 36 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 31 of 36 Photo No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 32 of 36 Photo No.: 5 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 33 of 36 Photo No.: 6 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 34 of 36 Photo No.: 7 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 35 of 36 Photo No.: 8 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-15-02/05 Date: 2006-01-14 Page 36 of 36 Photo No.: 9

Company Internal REPORT 1 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:042 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 060207 A File Report issued by Accredited SAR Laboratory for PY7A1042012 (J220a) Date of test: 30 January, 1,2 and 3 February 2006 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Ramadan Plicanic [email protected] +46 46 19 38 62 Testing Approval Mats Hansson [email protected] +46 46 19 33 57 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type : AAA-1042012-BV; FCC ID : PY7A1042012; IC:4170B-A1042012 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2006 Company Internal REPORT 2 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:042 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 060207 A File 1 Table of contents 2 INTRODUCTION..................................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 A NTENNA DESCRIPTION.......................................................................................................................................................3 3.2 D EVICE DESCRIPTION...........................................................................................................................................................3 4 TEST EQUIPMENT ..............................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM............................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.....................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................5 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................6 8 TEST RESULTS ....................................................................................................................................................................7 9 REFERENCES .......................................................................................................................................................................8 10 APPENDIX .............................................................................................................................................................................9 10.1 P HOTOGRAPHS OF THE DEVICE UNDER TEST..................................................................................................................10 10.2 D EVICE POSITION ON SAM TWINS PHANTOM...............................................................................................................11 Company Internal REPORT 3 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:042 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 060207 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7A1042012 (J220a) portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device Under Test 3.1 Antenna Description Type Build in Location Up on the back side Max length 38mm Dimensions Max width 26mm Configuration PIFA 3.2 Device description Device model PY7A1042012 (J220a) Serial number WUJI000105 (#3993) Mode GSM850 GSM1900 Multiple Access Scheme TDMA Maximum Output Power Setting (dBm) fl fm fh 32.7 32 32.5 fl fm fh 29.6 29.6 29.8 Factory Tolerance in Power Setting (dB) ±0.5 Maximum Peak Output Power (dBm) fl fm fh 33.2 32.5 33 fl fm fh 30.1 30.1 30.3 Crest Factor 8 Transmitting Frequency Range(MHz) 824.2 – 848.8 1850.2 – 1909.8 Prototype or Production Unit Preproduction HW P1F Device Category Portable RF exposure environment General population / uncontrolled Company Internal REPORT 4 (12) Prepared (also subject responsible if other) No. LD/SEMC/B…

Text truncated - open the document above for the full version.

Date/Time: 2006-02-01 09:32:28 Test Laboratory: Sony Ericsson Mobile Communications File Name: Verification Measurement 1900MHz_060201_RP.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d002 Program Name: Verification Measurement on 1900MHz with HSL Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; ı = 1.47 mho/m; İ r = 39; ȡ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(5.23, 5.23, 5.23); Calibrated: 2006-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN640; Calibrated: 2006-01-18 - Phantom: SAM 6; Type: SAM; Serial: 1351 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Flat, 10mm/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 4.63 mW/g Flat, 10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.8 V/m; Power Drift = -0.046 dB Peak SAR (extrapolated) = 8.14 W/kg SAR(1 g) = 4.15 mW/g; SAR(10 g) = 2.11 mW/g Maximum value of SAR (measured) = 4.62 mW/g Page 1 of 1 Date/Time: 2006-02-03 10:10:57 Test Laboratory: Sony Ericsson Mobile Communications File Name: Verification Measurement 835MHz_060203_RP.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:484 Program Name: Verification Measurement on 835MHz with BTSL Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; ı = 1.02 mho/m; İ r = 57.6; ȡ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(6.51, 6.51, 6.51); Calibrated: 2006-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN640; Calibrated: 2006-01-18 - Phantom: SAM 6; Type: SAM; Serial: 1351 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Flat, 15mm/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.09 mW/g Flat, 15mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 33.8 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.657 mW/g Maximum value of SAR (measured) = 1.09 mW/g Page 1 of 1 Date/Time: 2006-01-30 08:28:11 Test Laboratory: Sony Ericsson Mobile Communications File Name: Verification Measurement 835MHz_060130_RP.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:484 Program Name: Verification Measurement for 835MHz with HSL Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; ı = 0.88 mho/m; İ r = 41.3; ȡ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(6.82, 6.82, 6.82); Calibrated: 2006-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN640; Calibrated: 2006-01-18 - Phantom: SAM 5; Type: SAM; Serial: 1352 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Flat, 15mm/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.01 mW/g Flat, 15mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 33.5 V/m; Power Drift = -0.046 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 0.932 mW/g; SAR(10 g) = 0.608 mW/g Maximum value of SAR (measured) = 1.01 mW/g Page 1 of 1 Date/Time: 2006-02-02 09:33:48 Test Laboratory: Sony Ericsson Mobile Communications File Name: Verification Measurement 1900MHz_060202_RP.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d002 Program Name: Verification Measurement on 1900MHz with BTSL Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; ı = 1.55 mho/m; İ r = 51.6; ȡ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(4.6, 4.6, 4.6); Calibrated: 2006-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN640; Calibrated: 2006-01-18 - Phantom: SAM 6; Type: SAM; Serial: 1351 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Flat, 10mm/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 4.68 mW/g Flat, 10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.4 V/m; Power Drift = -0.044 dB Peak SAR (extrapolated) = 7.41 W/kg SAR(1 g) = 4.1 mW/g; SAR(10 g) = 2.14 mW/g Maximum value of SAR (measured) = 4.61 mW/g Page 1 of 1 Date/Time: 2006-02-01 10:40:11 Test Laboratory: Sony Ericsson Mobile Communications File Name: ch661_Right_Cheek_060201_RP.da4 DUT: PY7A1042012; Type: GSM Dual Band; Serial: #3993 Program Name: SAR Measurement on Head Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; ı = 1.45 mho/m; İ r = 39.1; ȡ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1815; ConvF(5.23, 5.23, 5.23); Calibrated: 2006-01-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN640; Calibrated: 2006-01-18 - Phantom: SAM 6; Type: SAM; Serial: 1351 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Right, Cheek/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.329 mW/g Right, Cheek/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = -0.005 dB Peak SAR (extrapolated) = 0.497 W/kg SAR(1 g) = 0.300 mW/g; SAR(10 g) = 0.179 mW/g Maximum value of SAR (measured) = 0.324 mW/g Page 1 of 1 Date/Time: 2006-02-01 16:13:44 Test Laboratory: Sony Ericsson Mobile Communications File Name: ch661_Left_Tilt_060201_RP.da4 DUT: PY7A1042012; Type: GSM Dual Band; Serial: #3993 Program Name: SAR Measurement on Head Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; ı = 1.45 mho…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4094-15-02/05 Date: 2006-01-12 Page 1 of 80 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4094-15-02/05 Applicant : Sony Ericsson Mobile Communication Type : AAA-1042012-BV Test Standard : FCC Part 22, 24 RSS132, 133 FCC ID : PY7A1042012 Certification No. IC : 4170B-A1042012 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4094-15-02/05 Date: 2006-01-12 Page 2 of 80 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 2.1.2 GSM 850 ....................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 25 3.1.6 Block Edge Compliance .............................................................................................................................. 33 3.1.7 Occupied Bandwidth................................................................................................................................... 36 3.2 PART GSM 850 .................................................................................................................................................. 43 3.2.1 RF Power Output ........................................................................................................................................ 43 3.2.2 Frequency Stability..................................................................................................................................... 46 3.2.3 Radiated Emissions..................................................................................................................................... 48 3.2.4 Receiver Radiated Emissions ...................................................................................................................... 59 3.2.5 Conducted Spurious Emissions .......................................…
