PY7A1061011PCS Mobile Phone

T292a 1 Contents Getting started 3 Make and receive the first call. Getting to know your phone 7 Key functions, quick keys, entering letters and characters. Personalizing your phone 17 Choose ringtone, theme and other settings. Calling 24 Use the phonebook, call options. Setting up Mobile Internet 41 Set up internet and email. Messaging 47 Chat, email, text and pictures. Using Mobile Internet 55 WAP browser, bookmarks. More features 59 Calendar, alarm clock, stopwatch, timer, games. Security 65 SIM card lock, phone lock. Troubleshooting 67 Why doesnít the phone work the way I want? 69 Sony Ericsson Consumer web site, safe and efficient use, warranty. Icons 77 What do the icons mean? Index 83 2 Sony Ericsson This manual is published by Sony Ericsson, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson at any time and without notice. Such changes will, however, be incorporated into new editions of this manual. © 2005 Sony Ericsson Mobile Communications AB All rights reserved. Publication number: AE/LZT 123 8124 PA1 Please note: Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are not sure whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. The marble logo is a trademark of Sony Ericsson Mobile Communications AB. Sony is a trademark of Sony Corporation and Ericsson is a trademark of Telefonaktiebolaget L M Ericsson. T9ô Text Input is a trademark or a registered trademark of Tegic Communications. T9ô Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/ DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Other product and company names may be the trademarks of their respective owners. Any rights not expressly granted herein are reserved. Getting started3 Getting started About this userís guide For ease of reference, the ìGetting to know your phoneî chapter gives a quick overview of the main functions of the phone, shortcuts and general information. More information and downloads are available at www.SonyEricsson.com, www.SonyEricsson.com/fun or wap.SonyEricsson.com. Note: Throughout this manual, WAP and Web are used interchangeably to refer to internet services. Available services Some services and functions described in this userís guide are network- or subscription-dependent. Because of this, some menus may not be available in your phone. This symbol indicates that a service or function is network or subscription- dependent. Please consult your network operator for more information about your subscription. The SIM card When you register as a subscriber with a network operator, you get a SIM (Subscriber Identity Module) card. The SIM card contains a computer chip that keeps track of your phone number, the services included in your subscription, and your phonebook information. Tip: Check if your information is saved to the SIM card before you remove it from another phone. For example, phonebook entries may be saved in the phone memory. For instructions on copying your SIM card information to your phone, see ìPhonebookî on page 28. Assembly Before you can use your phone you need to: ï Insert the SIM card. ï Attach and charge the battery. See ìSIM card and battery informationî on page 4. Note: Always turn off the phone and detach the charger before you insert or remove a SIM card. 4Getting started SIM card and battery information It may take up to 30 minutes before an icon appears when charging if the battery is completely discharged. 1.Insert the SIM card. Make sure the SIM card is placed under the metal clips. 2.Place the battery on the back of the phone with the connectors facing each other (label side up). 3.Place the back cover into the bottom of the phone and slide it up until it clicks into place. 4.Connect the charger to the phone at the lightning bolt symbol. The lightning bolt symbol on the charger plug must face upwards. 5.It may take up to 30 minutes before the battery charging icon appears in the display. Wait approximately 4 hours or until the icon indicates that the battery is fully charged. If you do not see the battery icon after this time, press any key or the center select key to activate the display. The display will ìsleepî during charging. 6.Remove the charger by tilting the plug upwards. Note: You have to insert the SIM card and charge the battery before you can use the phone. Getting started5 Holding the Phone Hold your mobile phone as you would any other telephone. Internal Antenna Your phone is equipped with an internal antenna. For best reception, try to hold your phone so your hand does not cover the internal antenna.The antenna is located on the back of the phone under the Sony Ericsson logo. Turning On the Phone Press and hold NO until you hear a tone. Enter your Personal Identity Number (PIN), if you have one for your SIM card. Your PIN is provided by your network operator. If you make a mistake while entering your PIN, delete the wrong number by pressing . If your PIN starts with the same digits as an emergency number, for example 911, the digits are not hidden with an * when you enter them. This is so that you can see and call an emergency number without entering a PIN. See ìEmergency callsî on page 26 for more information. Note: If you enter the wrong PIN three times in a row, the SIM card is blocked and the message PIN blocked appears. To unblock it, you…

Text truncated - open the document above for the full version.

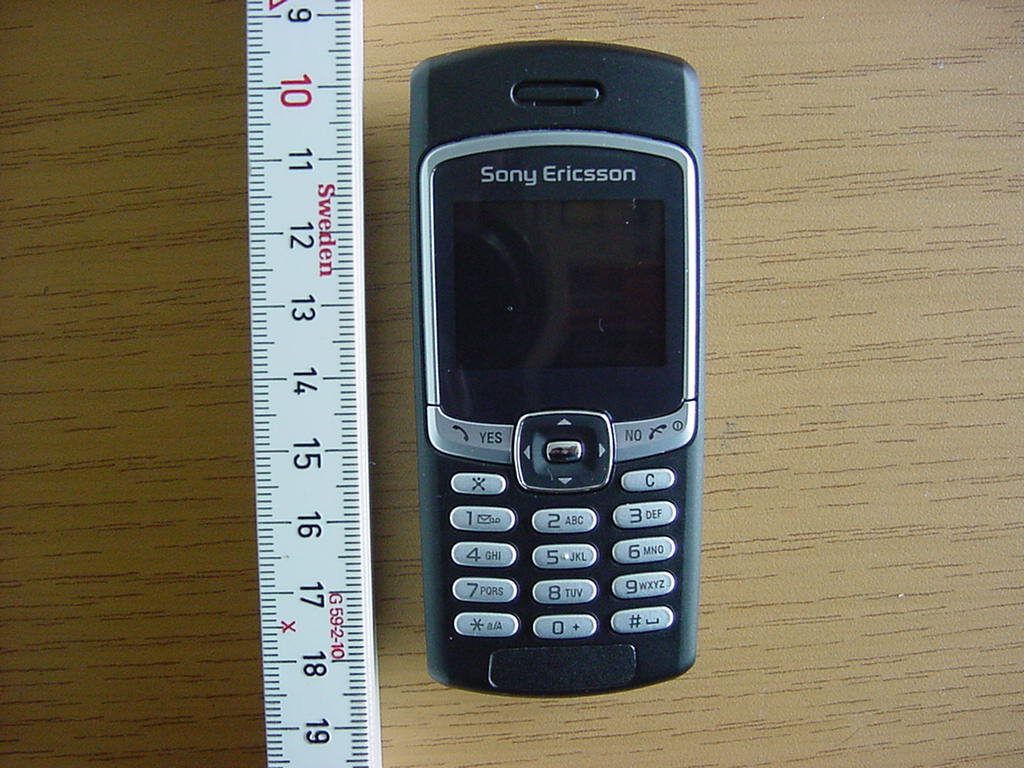

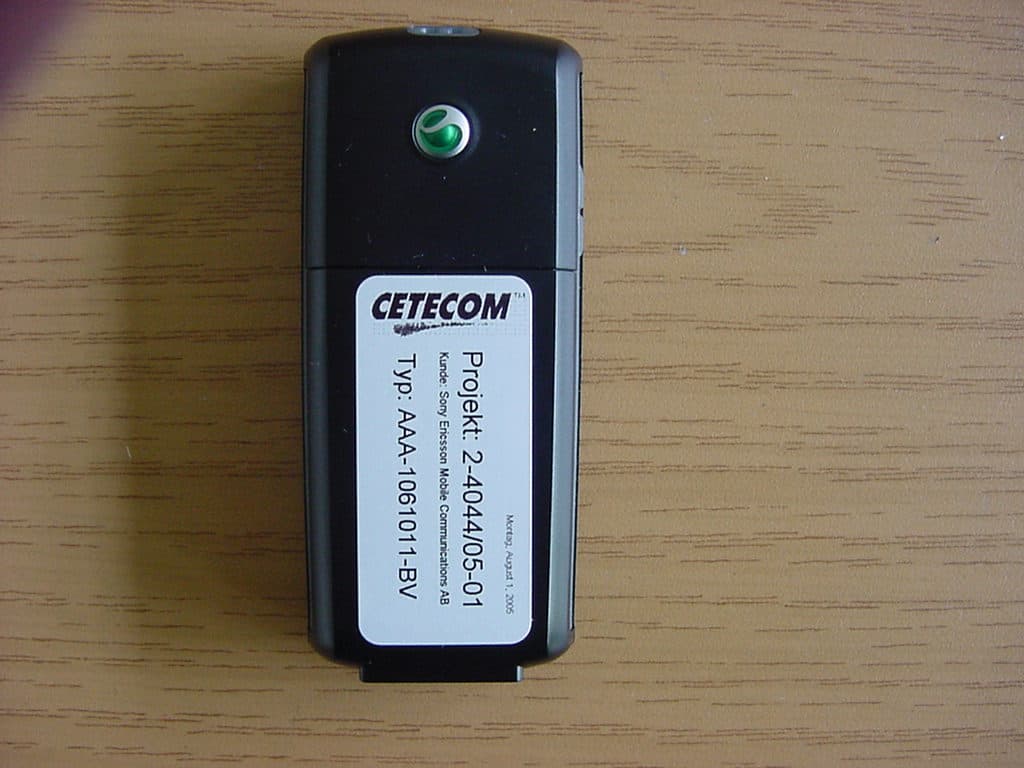

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 22 of 38 6 Annex C: External Photographs of the Equipment Photo: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 23 of 38 Photo: 2

Confidential MARKING DRAWING 1(3) Prepared Date Rev Doc no. RT/SEM/CA/KA Christer Andersson 2005-07-07 A 1/151 86-DPY 101 1500 Approved Checked File CA/KA (Christer Andersson) Marking Drawing T292a Type AAA-1061011-BV = T292a Label The Label used for marking is defined in the Manufacturing Specification 1301-SVF 930 2239. Placing The label shall be placed on the back of the telephone according to the Assembly Drawing for the KRH. Print Layout 8, 9, 10 Line 1 2 3 4 5 6 7 Confidential MARKING DRAWING 2(3) Prepared Date Rev Doc no. RT/SEM/CA/KA Christer Andersson 2005-07-07 A 1/151 86-DPY 101 1500 Approved Checked File CA/KA (Christer Andersson) Definitions: Sony Ericsson trademark Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). IMEI number as characters The IMEI number has format: 01AAAAAA-BBBBBB-C AAAAAA = (see 1/151-86-KRH 101 295 latest rev for this information) BBBBBB = assigned serial number C = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as bar code As desired by supplier (only actual number, with data identifier). Serial number as characters Supplier’s identification for traceability of the KRH, as desired by the supplier. Country approval mark 1 Consist of text: FCC ID: PY7-A1061011 Within a frame with height > 1,5 mm. Country approval mark 2 Consist of text: IC: 4170B-A1061011 Line Text 1. Sony Ericsson Trademark 2. IMEI Number as Bar Code 3. IMEI Number as Characters 4. Serial Number as Bar Code 5. Serial Number as Characters 6. Country Approval mark 1 7. Country Approval mark 2. 8. Model number, Reduced DPY number & r-state, Type approval number GHY1 fields. 9. 10. Marking of Origin Build week Confidential MARKING DRAWING 3(3) Prepared Date Rev Doc no. RT/SEM/CA/KA Christer Andersson 2005-07-07 A 1/151 86-DPY 101 1500 Approved Checked File CA/KA (Christer Andersson) Model Number The model number is T292a and shall be printed “T292a” Reduced DPY Reduced DPY-Number & r-state. The reduced DPY number leaves out the 3 digit number prefix (ex: DPY 101 1500 R1A would be printed DPY 1500 R1A) Type Number The type number is AAA 1061011-BV and shall be printed “AAA-1061011-BV” G – Field R-State identification of the CXC-module according to the Marking Data 1/151-86-KRH 101 295. H-field R-state identification of the KRH according to the Marking data 1/151-86-KRH 101 295. Y 1 -field R-state identification of the ROA according to the Marking data 1/151-86-KRH 101 295. Marking of origin “Made in” statement should reflect the country of origin of the 1/KRH (i.e. Made in Malaysia). Build Week Build Week, in format year W XX, ie 05W18 is equal to build year 2005, Week 18. Print regulations The printing shall be well readable and permanent. Typeface OCR-B Type size min 1.1 mm Line spacing min 1.5 mm Trademark min 1.5 mm Approval Marks min 5.0 mm Revision Table Revision Date Reason A 2005-07-07 Initial Release

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 28 of 38 7 Annex D: Internal Photographs of the Equipment Photo: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 29 of 38 Photo: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 30 of 38 Photo: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 31 of 38 Photo: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 32 of 38 Photo: 5 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 33 of 38 Photo: 6 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 34 of 38 Photo: 7 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 35 of 38 Photo: 8 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 36 of 38 Photo: 9 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4044-01-02/05 Date: 2005-08-05 Page 37 of 38 Photo:10

APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 2(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 Table of Contents 1. Introduction3 2. Description of the Device Under Test3 2.1 Antenna description3 2.2 Device description3 3. Test Equipment Used4 3.1 Dosimetric System4 3.2 Additional Equipment4 4. Electrical parameters of the tissue simulating liquid5 5. System Accuracy Verification6 6. Test Results7 6.1 Head Adjacent Test Results7 6.2 Body-Worn Test Results10 References14 Appendix 1: SAR distribution comparison for system accuracy verification15 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use21 Appendix 3: SAR distribution plots for Body Worn Configuration30 Appendix 4: Probe Calibration Certificate43 Appendix 5: Measurement Uncertainty Budget48 Appendix 6: Photographs of the device under test58 APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 3(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 1.Introduction The Sony Ericsson SAR Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC IDPY7A1061011modelT292A . The Specific Absorption Rate (SAR) of this product was measured. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in [1]. 2.Description of the Device Under Test 2.1Antenna description TypeInternal antenna LocationInside back cover, above the battery comp. Width32mm Length29mm Dimensions Height 5mm ConfigurationPIFA – Type Antenna 2.2Device description FCC ID Number / Device ModelPY7A1061011 /T292A Serial numberBD30226DW3 Mode(s) of OperationGSM 1900 Modulation Mode(s)TDMA f low 24.5 dBm + 0.8dB / -1.0 dB f mid 24.5 dBm + 0.8dB / -1.0 dB Target Value and Factory Tolerance Window for Maximum Output Power Setting f high 24.5 dBm + 0.8dB / -1.0 dB Calibration Frequency (f low , f mid , f high )f low Duty Cycle1/8 GSM Transmitting Frequency Rang(s)1850-1910 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device CategoryPortable RF Exposure LimitsGeneral Population / Uncontrolled APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 4(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 3.Test Equipment Used 3.1Dosimetric System The Sony Ericsson SAR Laboratory utilizes Dosimetric Assessment Systems (Dasy3™ v3.1dfor body-worn measurements and Dasy4™ for adjacent to head measurements) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±10.73% (K=1) with an expanded uncert ainty of ±21.45% (K=2) for Dasy3™ v3.1d and ±9.46% (K=1) with an expanded uncertainty of ±18.91% (K=2) for Dasy4™. The measurement uncertainty budget is given in Appendix 5 for both systems . The list of calibrated equipment used for the measurements is shown in the following table. DescriptionSerial NumberCal Due Date DASY3 DAE V134512-Nov-2005 DASY3 DAE V1417 11-Nov-2005 E-Field Probe ETDV6158626-May-2006 E-Field Probe ETDV6158726-May-2006 Dipole Validation Kit, DV1900V253619-May-2006 S.A.M. Phantom used for 1900MHz (Head)1335 S.A.M. Phantom used for 1900MHz (Body)1020 3.2Additional Equipment DescriptionSerial NumberCal Due Date Signal Generator HP8648C3537A01598August 30, 2006 Power Meter 437B3125U16382December 8, 2005 Power Meter 437B3125U13729January 6, 2006 Power Sensor - 8482HMY41090240April 29, 2006 Power Sensor - 8482HMY41090239April 29, 2006 Dielectric Probe Kit HP85070BUS33020390July 4, 2006 Digital Thermometer 61220-601 And Probe (61220-604)350078November 5, 2005 Digital Hygrometer/ Thermometer21242911November 3, 2005 HP RF Amplifier 8347A3307A1069May 4, 2006 APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 5(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 4.Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permi tivity,ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the dielectric probe kit.These values, along with the temperature of the simulated tissue are shown in the table below. A mass density of ρ=1g/cm3 was entered into the system in all the cases . It can be seen that the measured parameters are within tolerance of the recommended limits [1]. During the tests, the amb ient temperature of the laboratory was in the range 22.6 - 23.7°C, the relative humidity was 43.2% - 48.5%, and the liquid depth above the ear reference points was more than 15.0 cm for all the cases. It is seen that the measured parameters are satisfactory for compliance testing. Dielectric Parameters f (MHz) Tissue type Limits / Measured ε r σ (S/m) Simulated Tissue Temp(°C) Measured, 28-June-0540.01.45123.7 Measured, 29-June-0539.991.42923.5 Head Recommended Limits40.001.4020-25 Measured, 30-June-0551.211.48723.8 1900 Body Recommended Limits53.301.5220-25 The list of ingredients and the percent composition used for the simulated tissue are indicated in the table below. Ingredient 1800/1900MHz Head 1900MHz Body Sugar---- DGBE44.92%30.82% Water54.90%68.89% Salt0.18%0.29% HEC---- Bact.---- APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY…

Text truncated - open the document above for the full version.

APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 43(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 Appendix 4 Probe Calibration Certificates APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 44(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 45(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 46(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 47(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 48(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 Appendix 5 Measurement Uncertainty Budget APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 49(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 Table 1 a. Uncertainty Budget for System Performance Check (Dipole & flat phantom) DASY3 System abcd e = f(d,k) fg h = c x f / e i = c x g / e k Uncertainty Component Sec. Tol. (± %) Prob . Dist. Div. c i (1-g) c i (10-g) 1-g u i (±%) 10-g u i (±%) v i Measurement System Probe Calibration (k=1)E2.14.8N1114.84.8∞ Axial IsotropyE.2.24.7R1.730.7070.7071.91.9∞ Hemispherical IsotropyE.2.29.6R1.730.7070.7073.93.9∞ Boundary EffectE.2.38.3R1.73114.84.8∞ LinearityE.2.44.7R1.73112.72.7∞ System Detection LimitsE.2.51.0R1.73110.60.6∞ Readout ElectronicsE.2.61.0N1111.01.0∞ Response TimeE.2.70.0R1.73110.00.0∞ Integration Time E.2.80.0R1.73110.00.0∞ RF Ambient Conditions E.6.13.0R1.73111.71.7∞ Probe Positioner Mechanical Tolerance(corresponds to the mechanical constrains of the robot) E.6.20.4R1.73110.20.2∞ P P r r o o b b e e P P o o s s i i t t i i o o n n i i n n g g w w i i t t h h r r e e s s p p e e c c t t t t o o P P h h a a n n t t o o m m S S h h e e l l l l E.6.32.9R1.73111.71.7∞ Extrapolation, interpolation and Integration Algorithms for Max. SAR Evaluation E.53.9R1.73112.32.3∞ Dipole Dipole Axis to Liquid Distance8, E.4.21.0R1.73110.60.6∞ Input Power and SAR Drift Measurement 8, 6.6.25.0R1.73112.92.9∞ Phantom and Tissue Parameters Phantom Uncertainty - shell thickness tolerance E.3.14.0R1.73112.32.3∞ Liquid Conductivity - deviation E.3.24.3R1.730.640.431.591.07∞ APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 50(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 from target values (5) Liquid Conductivity - measurement uncertainty (6) E.3.36.20R1.730.640.432.291.54∞ Liquid Permittivity - deviation from target values (5) E.3.23.7R1.730.60.491.281.05∞ Liquid Permittivity - measurement uncertainty (6) E.3.36.08R1.730.60.492.111.72∞ Combined Standard Uncertainty RSS10.6110.31 Expanded Uncertainty (95% C.L.) 21.2220.62 APPLICANT: Sony Ericsson Mobile Communications Inc.FCC ID: PY7A1061011 REPORT 51(68) Prepared (also subject responsible if other)No. SEM/CV/PF/PGerard Hayes REP 2005 004 T292A 01 ApprovedChecked SEM/CV/PF/PGerard HayesC X:\SAR Chamber \FCC reports\T292A\Final Reports\FCCT292A.doc E E E x x h h i i b b i i t t 1 1 1 1 Table 1 b. Uncertainty Budget for System Performance Check (Dipole & flat phantom) DASY4 System abcd e = f(d,k) fg h = c x f / e i = c x g / e k Uncertainty Component Sec. Tol. (± %) Prob . Dist. Div. c i (1-g) c i (10-g) 1-g u i (±%) 10-g u i (±%) v i Measurement System Probe Calibration (k=1)E2.1 4.7R1.730.7070.7071.91.9∞ Axial IsotropyE.2.2 9.6R1.730.7070.7073.93.9∞ Hemispherical IsotropyE.2.2 1.0R1.73110.60.6∞ Boundary EffectE.2.3 4.7R1.73112.72.7∞ LinearityE.2.4 1.0R1.73110.60.6∞ System Detection LimitsE.2.5 1.0N1111.01.0∞ Readout ElectronicsE.2.6 0.8R1.73110.50.5∞ Response TimeE.2.7 2.6R1.73111.51.5∞ Integration Time E.2.8 4.7R1.730.7070.7071.91.9∞ RF Ambient Conditions E.6.13.0R1.73111.71.7∞ Probe Positioner Mechanical Tolerance(corresponds to the mechanical constrains of the robot) E.6.20.4R1.73110.20.2∞ P P r r o o b b e e P P o o s s i i t t i i o o n n i i n n g g w w i i t t h h r r e e s s p p e e c c t t t t o o P P h h a a n n t t o o m m S S h h e e l l l l E.6.32.9R1.73111.71.7∞ Extrapolation, interpolation and Integration Algorithms for Max. SAR Evaluation E.51.0R1.73110.60.6∞ Dipole Dipole Axis to Liquid Distance8, E.4.21.0R1.73110.60.6∞ Input Power and SAR Drift Measurement 8, 6.6.25.0R1.73112.92.9∞ Phantom and Tissue Parameters Phantom Uncertainty - shell thickne…

Text truncated - open the document above for the full version.

Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 45 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 46 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 47 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 48 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 49 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 50 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 51 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 52 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 53 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 54 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 55 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 56 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 57 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 58 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 59 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 60 of 65 © 2005 PCTEST Engineering Laboratory, Inc. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 63 of 65 © 2005 PCTEST Engineering Laboratory, Inc. 1 5. C O N C L US IO N The measurements indicate that the wireless communications device complies with the HAC limits specified in accordance with the ANSI PC63.19 Standard and FCC WT Docket No. 01-309 RM-8658. Precise laboratory measures were taken to assure repeatability of the tests. The tested device complies with the requirements in respect to all parameters specific to the test. The test results and statements relate only to the item(s) tested. Please note that the M-rating for this equipment only represents the field interference possible against a hypothetical and typical hearing aid. The measurement system and techniques presented in this evaluation are proposed in the ANSI standard as a means of best approximating wireless device compatibility with a hearing-aid. The literature is under continual re-construction. Reviewed by: PCTEST   HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0507060490-R1.PY6 June 29 - July 7, 2005 PCS GSM Phone PY7A1061011 Page 64 of 65 © 2005 PCTEST Engineering Laboratory, Inc. 1 6. R E FE R E NC ES 1. ANSI PC63.19-2005 D3.6, American National Standard for Methods of Measurement of Compatibility between Wireless communication devices and Hearing Aids.”, New York, NY, IEEE, April 2005. 2. Berger, H. S., “Compatibility Between Hearing Aids and Wireless Devices,” Electronic Industries Forum, Boston, MA, May, 1997 3. Berger, H. S., “Hearing Aid and Cellular Phone Compatibility: Working Toward Solutions,” Wireless Telephones and Hearing Aids: New Challenges for Audiology, Gallaudet University, Washington, D.C., May, 1997 (To be reprinted in the American Journal of Audiology). 4. Berger, H. …

Text truncated - open the document above for the full version.
