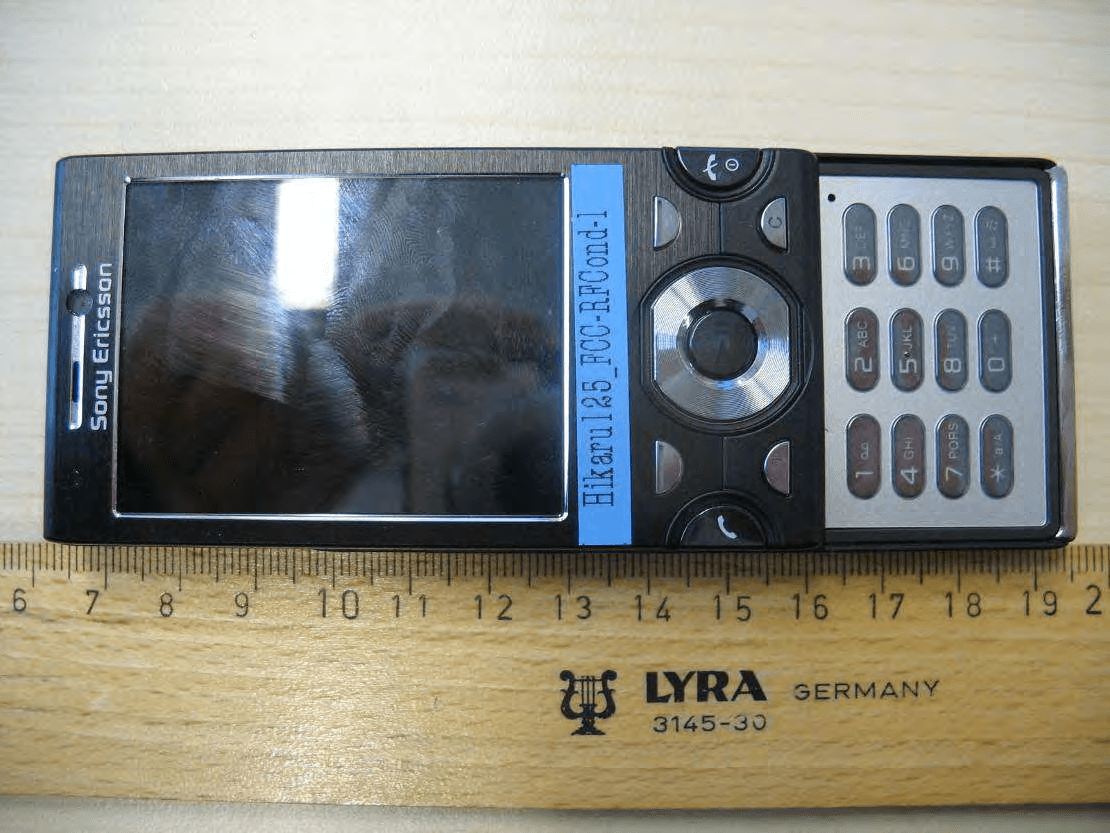

PY7A3880035GSM 850/900/1800/1900 GPRS / EDGE / UMTS FDD1&2&5 HSDPA / HSUPA mobile phone with Bluetooth, WLAN, A-GPS, FM receiver

8VHUJXLGH : Thank you for purchasing a Sony Ericsson W995 Walkman™. For additional phone content, go to www.sonyericsson.com/fun. Register now to get free online storage and special offers at www.sonyericsson.com/myphone. For product support, go to www.sonyericsson.com/support Please read the Important information before you use your phone. Instruction symbols These symbols may appear in the User guide. Note Tip Warning >Use a selection or navigation key to scroll and select. See Navigation on page 8. 2 Getting started Assembly Before you start using your phone, you need to insert a SIM card and the battery. To insert the SIM card 1 Unlock the battery cover lock. 2 Remove the battery cover. 3 Slide the SIM card into its holder with the gold-coloured contacts facing down. 3 To insert the battery 1 Insert the battery with the label side up and the connectors facing each other. 2 Attach the battery cover and lock it. 4 Turning on the phone To turn on the phone 1 Press and hold down . 2 Enter your SIM card PIN, if requested, and select OK. 3 Select a language. 4 Follow the instructions to use the setup wizard for basic settings and useful tips. If you want to correct a mistake when you enter your PIN, press . Help In addition to this User guide, an extended User guide, Feature guides and more information are available at www.sonyericsson.com/support. Help and information are also available in your phone. To access the User guide • Select Menu > Settings > User help > User guide. 5 To view tips and tricks • Select Menu > Settings > User help > Tips and tricks. To view information about functions • Scroll to a function and select Info, if available. In some cases, Info appears under Options. Charging the battery The phone battery is partly charged when you buy it. To charge the battery 1 Connect the charger to the phone. It takes approximately 2.5 hours to fully charge the battery. Press a key to view the screen. 2 Remove the charger by tilting the plug upwards. You can use your phone while it is charging. You can charge the battery at any time and for more or less than 2.5 hours. You can interrupt the charging without damaging the battery. 6 Phone overview 1Ear speaker 10 8 7 2 3 4 1 5 6 9 11 12 13 2Screen light sensor 3Screen 4Connector for charger, handsfree and USB cable 5Selection keys 6Navigation key 7Call key 8Activity menu key 9Walkman™ key 10Video call camera 11End, On/off key 12C key (Clear) 13Silent key 7 Contacts You can save names, phone numbers and personal information in Contacts. Information can be saved in the phone memory or on the SIM card. You can synchronize your contacts using the Sony Ericsson PC Suite. To add a phone contact 1 Select Menu > Contacts. 2 Scroll to New contact and select Add. 3 Enter the name and select OK. 4 Scroll to New number: and select Add. 5 Enter the number and select OK. 6 Select a number option. 7 Scroll between the tabs and add information to the fields. 8 Select Save. Calling contacts To call with Smart search 1 Press – to enter a sequence of (at least two) digits. All entries which match the sequence of digits or corresponding letters are shown in a list. 2 Scroll to a contact or a phone number and press . To turn on or off Smart search 1 Select Menu > Settings > Calls > Smart search. 2 Select an option. Walkman™ You can listen to music, audio books and podcasts. Use Media Go™ to transfer content to and from your phone. For 14 To mute the microphone during a call 1 Press and hold down . 2 Press and hold down again to resume. To turn on the loudspeaker during a call • Press SpkrOn. Do not hold your phone to your ear when using the loudspeaker. This could damage your hearing. Emergency calls Your phone supports international emergency numbers, for example, 112 or 911. You can normally use these numbers to make emergency calls in any country, with or without the SIM card inserted, if you are within range of a network. In some countries, other emergency numbers may also be promoted. Your network operator may therefore have saved additional local emergency numbers on the SIM card. To make an emergency call • Enter 112 (the international emergency number) and press . To view your local emergency numbers 1 Select Menu > Contacts. 2 Scroll to New contact and select Options > Special numbers > Emergency nos.. Call List You can view information about recent calls. To call a number from the call list 1 Press and scroll to a tab. 2 Scroll to a name or a number and press . 13 4 When a word is written, press to add a space. Calling Making and Receiving Calls You need to turn on your phone and be within range of a network. To make a call 1 Enter a phone number (with international country code and area code, if applicable). 2 Press . You can call numbers from your contacts and call list. See Contacts on page 14, and Call List on page 13. To end a call • Press . To make international calls 1 Press and hold down until a “+” sign appears. 2 Enter the country code, area code (without the first zero) and phone number. 3 Press . To answer a call • Press . To reject a call • Press . To change the ear speaker volume during a call • Press the volume key up or down. 12 To change text input method • When you enter text, press and hold down . To shift between capitals and lower-case letters • When you enter text, press . To enter numbers • When you enter text, press and hold down – . To enter periods and commas • When you enter text, press . To enter a symbol 1 When you enter text, select Options > Add symbol. 2 Scroll to a symbol and select Insert. To enter text using T9™ Text Input 1 Select, for example, Menu > Messaging > Write new > Message. 2 If is not displayed, press and hold down to change to T9 Text Input. 3 Press each key only once, even if the letter you want is not the first letter on the key. For example, to write the word “Jane”, press , , , . Write the whole word before looking at the suggestions. 4 Use or to view suggestions. 5 Press to accept a sugge…

Text truncated - open the document above for the full version.

Datum' Date Beteckning • Reference Sony Ericsson VA, handlagga,e, namn, Ifn • Attending to this matter, name, telephone Ert datum' Your date Er beteckning • Your reference Confidentiality Request 2009-04-14 CCDA09:187 SEM/CCDALE Afrah Sadiq +46 10 80 12250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7A3880035 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AS requests confidentiality for the below listed items for our mobile phone type AAD­ 3880035-BV, FCC 10: PY7A3880035: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AS considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AS also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AS Styrelsens sate: Lund Registered office: Lund Talofn.n • To/onhnnt3 Momsnr • V.A. T.No: SE556615665801 Organisationsnr • Reg No: 55661 5-6658

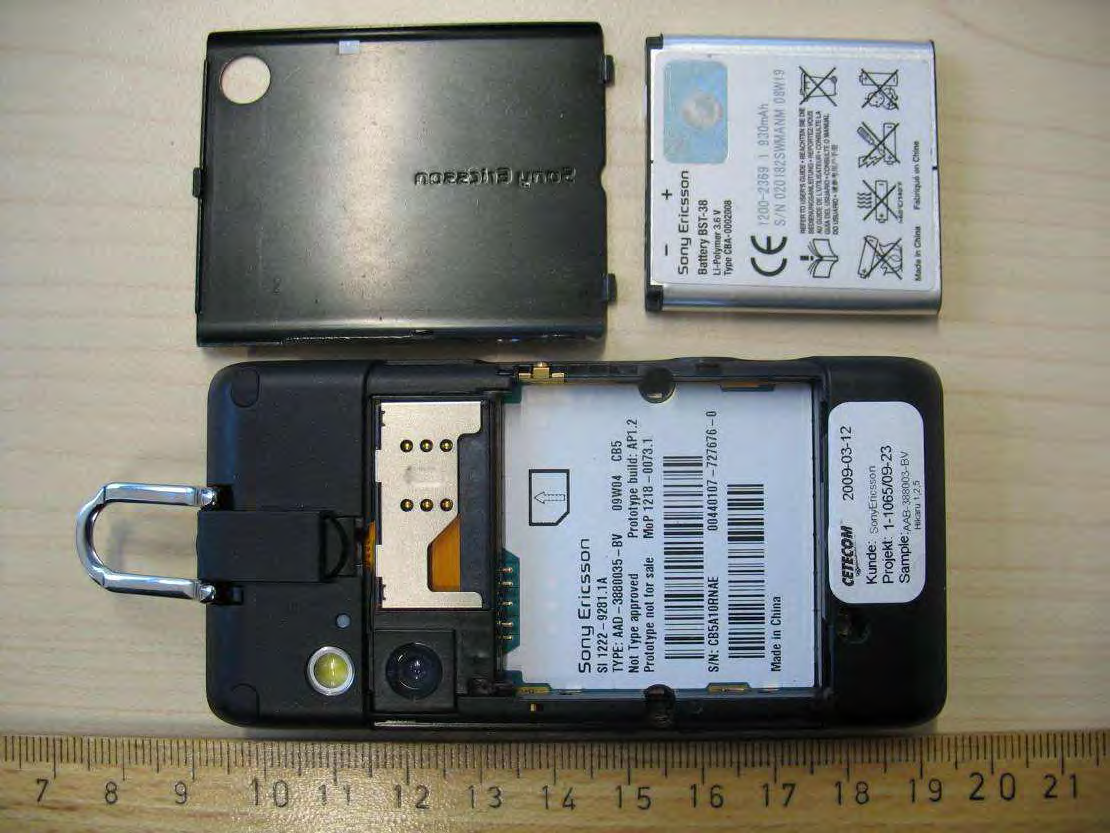

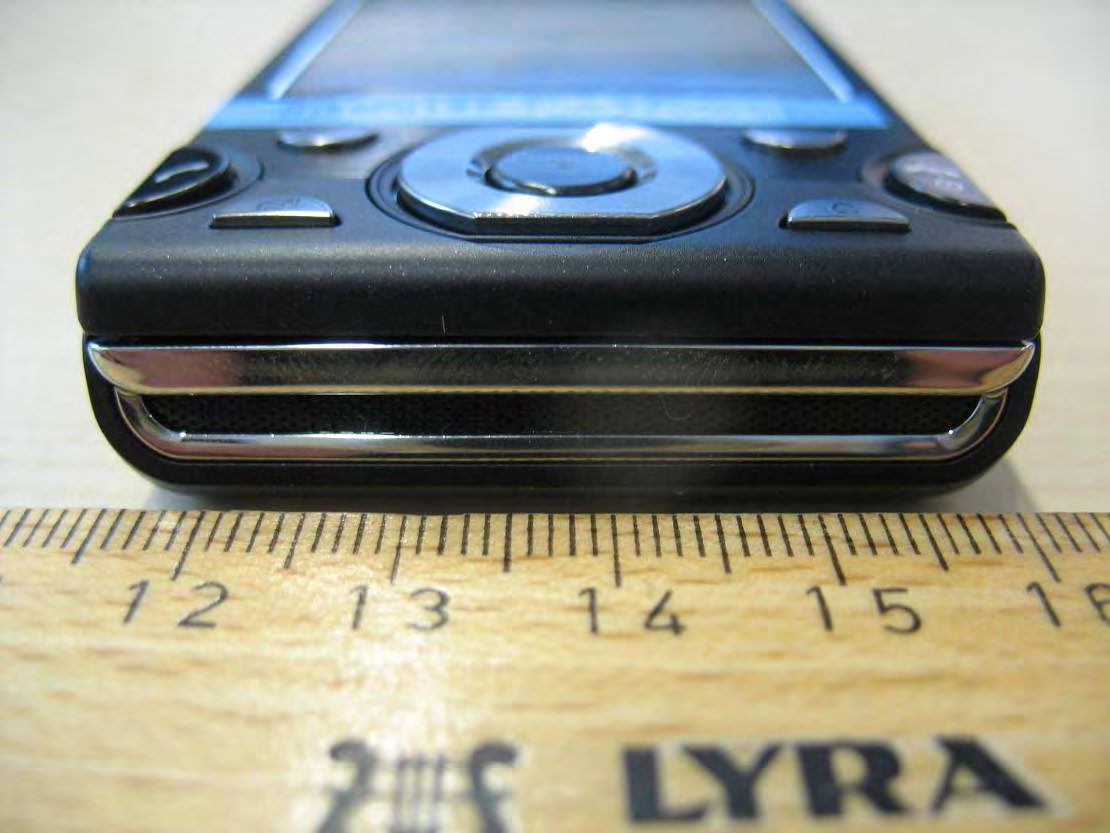

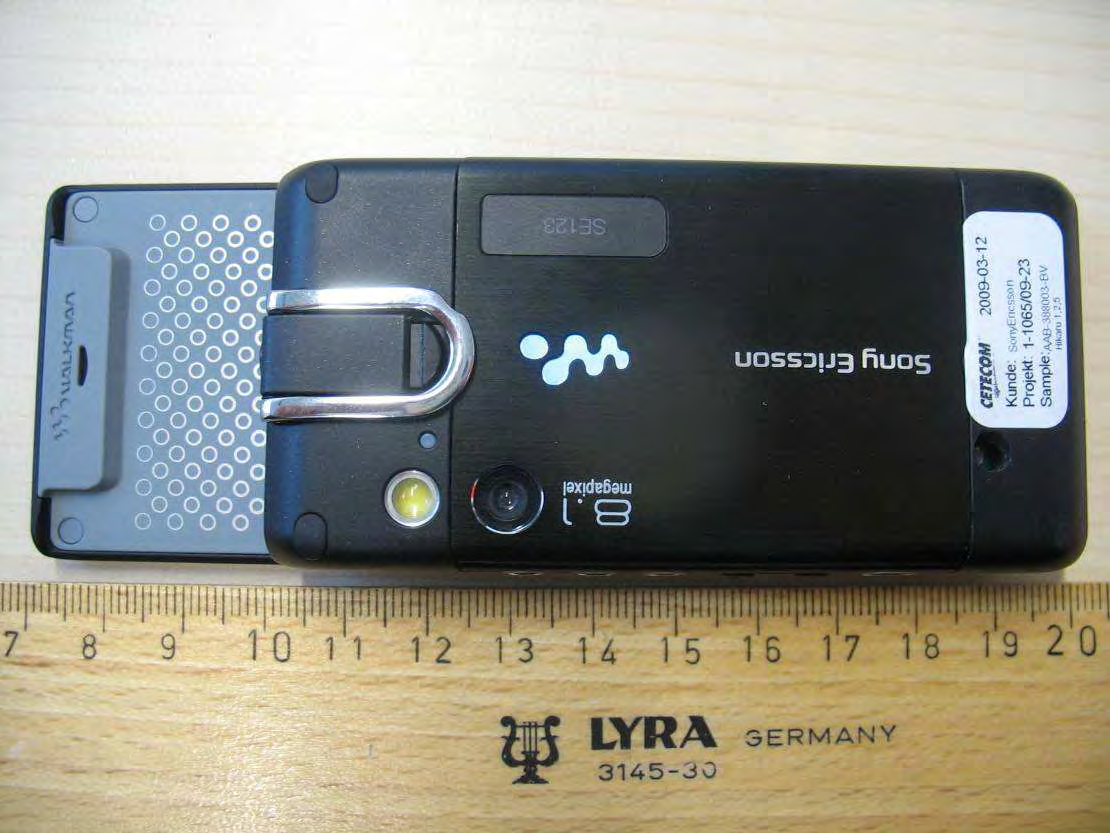

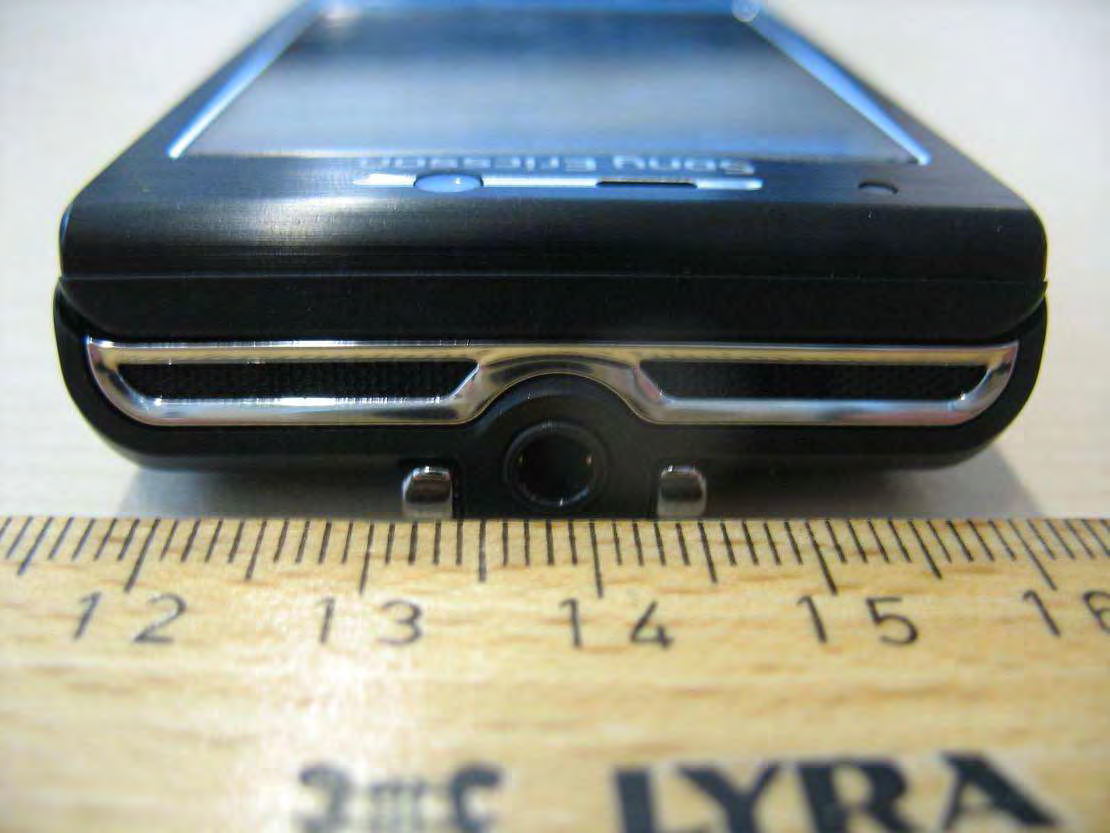

CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-23-02/09 2009-03-25 Page 16 of 24 8 Photographs of t he E UT Photo documentation Photo 4: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-23-02/09 2009-03-25 Page 17 of 24 Photo 5: Photo 6: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-23-02/09 2009-03-25 Page 18 of 24 Photo 7: Photo 8: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-23-02/09 2009-03-25 Page 19 of 24 Photo 9: Photo 10:

Company Internal MARKING DRAWING 1 (4) Prepared (also subject responsible if other) No. SEM/CCDGP, Delia Aulisio XXXX-XXXX Uen Approved Checked Date Rev Reference SEM/CCDGP, Delia Aulisio 2009-04-06 1 6 W995a, Mobile Phone label content, Made in... Type Number: AAD-3880035-BV FCC ID: PY7A3880035 Canada IC: 4170B-A3880035 1 General information Mobile Phone label part no • 1218-0980 Mobile Phone label content part no • 1224-2719 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 4/0113-LXE 108 063 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1 (8,0/23,0) SIM-card logo Graphics, height 6 mm. According to 1001-4476. Rotated 90° counter- clockwise. Line 2a (9,0/2,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925. Line 2b (9,0/16,5) Model Name “W995a” Text, height 1,2 mm. Line 3 (9,2/2,0) Product number without revision of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 4a (13,0/2,0) “TYPE: AAD-3880035-BV” Text, height 1,2 mm. Line 4b (13,0/19,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under specifying document in product model. Line 4c (13,0/26,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 5a (15,0/2,0) “FCC ID: PY7A3880035” Text, height 1,2 mm. Company Internal MARKING DRAWING 2 (4) Prepared (also subject responsible if other) No. SEM/CCDGP, Delia Aulisio XXXX-XXXX Uen Approved Checked Date Rev Reference SEM/CCDGP, Delia Aulisio 2009-04-06 1 6 Line 5b (15,0/19,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 6a (17,0/2,0) “IC: 4170B- A3880035” Text, height 1,2 mm. Line 6b (17,0/19,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 7 (18,0/3,0) Line 8a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 8a (22,0/3,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 8b (22,0/16,0) Actual electronic serial number (IMEI) of the Mobile Phone, “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 9 (25,0/3,0) Line 8b in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 10a (31,0/3,0) CE approval symbol Graphics, height 5 mm. According to 1210-0131. Line 10b (31,0/11,0) The notified body number “0682” Text, height 1,2 mm. Line 10c (31,0/17,0) “Alert Symbol” Graphics, height 5 mm According to 1001-5859 Line 10d (31,0/32,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. Line 11 (37,0/3,0) Marking of origin: “Xxx”= actual country of production of the included telephone, in English. Text, height 1,2 mm. Company Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. SEM/CCDGP, Delia Aulisio XXXX-XXXX Uen Approved Checked Date Rev Reference SEM/CCDGP, Delia Aulisio 2009-04-06 1 6 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 2.1 Conceptual picture double underlined = major changes since last revision. Company Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. SEM/CCDGP, Delia Aulisio XXXX-XXXX Uen Approved Checked Date Rev Reference SEM/CCDGP, Delia Aulisio 2009-04-06 1 6 Label placement To find the label follow these steps: 1. Remove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-23-02/09 2009-03-25 Page 20 of 24 Photo 11: Photo 12: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-23-02/09 2009-03-25 Page 21 of 24 Photo 13: Photo 14: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-23-02/09 2009-03-25 Page 22 of 24 Photo 15: Photo 16: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-23-02/09 2009-03-25 Page 23 of 24 Photo 17: Photo 18: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-23-02/09 2009-03-25 Page 24 of 24 Photo 19: Photo 20:

CETECOM ICT Services GmbH Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Phone: +49 (0) 681-598-0 Fax: -9075 RSC-Laboratory 2009-03-25 Page 1 of 104 Accredited testing-laboratory DAR registration number: DAT-P-176/94-D1 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3462C-1 (IC) Certification ID: DE 0001 Accreditation ID: DE 0002 Accredited Bluetooth ® Test Facility (BQTF) The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license Test report no. : 1-1065-23-02/09 Type identification : AAD-3880035-BV Applicant : Sony Ericsson Mobile Communications AB FCC ID : PY7A3880035 IC Certification No : 4170B-A3880035 Test standards : 47 CFR Part 2 47 CFR Part 22 47 CFR Part 24 RSS - 132 Issue 2 RSS - 133 Issue 5 CETECOM ICT Services GmbH Test report no.: 1-1065-23-02/09 2009-03-25 Page 2 of 104 Table of contents 1 G e n e r a l i n f o r m a t i o n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . 3 1.1 Notes ...................................................................................................................................................................3 1.2 Testing laboratory ...............................................................................................................................................4 1.3 Details of applicant .............................................................................................................................................4 1.4 Application details ..............................................................................................................................................4 2 T e s t s t a n d a r d / s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . 5 3 T e c h n i c a l t e s t s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . 6 3.1 Details of manufacturer .......................................................................................................................................6 3.1.1 Test item......................................................................................................................................................7 3.2 Test Setup............................................................................................................................................................8 4 S t a t e m e n t o f C o m p l i a n c e . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 9 4.1 Summary of Measurement Results......................................................................................................................9 4.1.1 Labeling requirements.................................................................................................................................9 4.1.2 PCS 1900.....................................................................................................................................................9 4.1.3 GSM 850 .....................................................................................................................................................9 4.1.4 UMTS Band II...........................................................................................................................................10 4.1.5 UMTS Band V ..........................................................................................................................................10 4.1.6 Receiver ....................................................................................................................................................10 5 M e a s u r e m e n t s a n d r e s u l t s . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 1 1 5.1 Labeling ............................................................................................................................................................11 5.2 PART PCS 1900 ...............................................................................................................................................11 5.2.1 RF Power Output.......................................................................................................................................11 5.2.2 Frequency Stability ...................................................................................................................................16 5.2.3 Radiated Emissions ...................................................................................................................................19 5.2.4 Conducted Spurious Emissions .................................................................................................................23 5.2.5 Block Edge Compliance............................................................................................................................26 5.2.6 Occupied Bandwidth .................................................................................................................................29 5.3 PART GSM 850 ................................................................................................................................................36 5.3.1 RF Pow…

Text truncated - open the document above for the full version.
