PY7A3880058GSM/GPRS/EDGE(850/900/1800/1900MHz) / UMTS-FDD1&8 / HSPA mobile phone with Bluetooth, WLAN, GPS/A-GPS, FM receiver

Vivaz ™ User guide Please read the Important information before you use your mobile phone. Experience more. Discover how. Fill it with pop and let it rock. Share your life in pictures. Or why not go online for the latest updates? Your new phone is the key to a wider world. And it’s just around the corner. Get started with this User guide. And join us online to get the full picture. Music, games, apps, updates, downloads, support and more. All in one place: www.sonyericsson.com/Vivaz Don’t forget to update your phone software. See Updating your phone on page 8. 2 Getting started Assembly Before you start using your phone, you need to insert a SIM (Subscriber Identity Module) card and the battery. To insert the SIM card 1 Remove the battery cover. 2 Put the SIM card into its holder with the gold-coloured contacts facing down. 3 To insert the battery 1 Insert the battery with the label side up and the connectors facing each other. 2 Put the battery cover into place. 4 To charge the phone using the power adapter • Connect the phone to a power outlet using the USB cable provided and the power adapter. You can use your phone while it is charging. You can charge the battery at any time and for more or less than 3 hours using the power adapter. You can interrupt the charging without damaging the battery. 5 To charge the phone using a computer • Connect the phone to a USB port on a computer using the USB cable provided. Memory card Your phone supports memory cards, adding more storage space to your phone. A memory card used in your phone can also be used with other compatible devices. You can move content between your memory card and the phone memory. To insert or remove a memory card 1 Insert the memory card with the gold-coloured contacts facing down. 2 To remove the memory card, press and select Remove memory card, then press your finger down on the card and slide it out. 6 Turning on the phone To turn on the phone 1 Press and hold down . 2 Enter your SIM card PIN, if requested, and select OK. 3 The first time you turn on the phone, follow the instructions to use the setup wizard for basic settings and useful tips. Help You can find Help on most applications in Organiser or you can access Help from within a specific application by selecting Options. To access the general Help in your phone • Select Menu > Organiser > Help. To view Help when you are in an application • Select Options > Help. 7 Updating your phone You can update your phone to the most recent software for optimal performance and to get the latest enhancements. You need a USB cable and an Internet-connected PC. To learn how, go to www.sonyericsson.com/update. Remember to back up your phone content before updating. To see how to back up your phone content, see the Extended User guide on the memory card. You can also access this document at www.sonyericsson.com/support. 8 Phone overview 3 4 5 6 1 2 9 7 8 1On/off key, lock key 2Ear speaker 33.5 mm headset connector 4Connector for USB cable 5Loud speaker 6Touch screen 7End key 8Main menu key 9Call key 9 10Volume, digital zoom keys 10 11 12 13 14 11Camera light 12Camera 13Video key 14Photo key 10 Menu overview* PlayNow™ Internet Applications Radio, TrackID™, Media server, Downl. chat apps, IM, Conversations, Web publishing, Record sound Camera Messaging Media Photo, Music, Video Location services Google Maps, Location, Wisepilot Contacts Calendar Log** Organiser File manager, Clock, RoadSync, SonyEricsson Sync, Google, Search, Notes, Dictionary, Converter, Calculator, Adobe PDF, Quickoffice, Help Settings Personal Profiles, Themes, Standby Phone Date and time, Language, Display, Download settings, Sensor settings, Touch input, Accessories, Application sett., Phone mgmt. Application mgr 11 Installed apps., Installation files, Install settings Calling Call, Speed dialling, Voicemail, Divert calls, Call barring Connectivity Network, Wi-Fi, Bluetooth, USB, Destinations, Connection mgr, Data transfer, Remote drives, Admin. settings * Some menus are operator-, network- and subscription-dependent. ** You can use touch functionality to scroll between tabs in submenus. For more information, see Navigation on page 14. 12 Status icons Status icons appear at the top of the screen. You can tap status icons to view more information or change settings. Battery fully charged Network signal strength Messages in the outbox GSM available Missed call Handsfree connected Call diverted Text message received New email received Headphone inserted GPS connected Alarm activated Bluetooth™ connected Keylock activated USB data transferring Data synchronising Flight mode activated Secure Wi-Fi™ network connected Wi-Fi™ network connected 13 3G available HSDPA available EGPRS available Navigation You can move through menus with your fingertips or with a stylus. Tap or double-tap an item to select or open it. You can also switch between running applications. To access the main menu • Press the main menu key. To unlock the phone manually • Press and select Unlock. To lock the phone manually • Press twice. To view running applications 1 Press and hold down the main menu key. 2 To switch to a running application, tap it. Leaving applications running in the background increases the demand on battery power and reduces the battery life. To end a function • In most cases, select Options > Exit. To delete items • In most applications, to delete items such as files, folders, messages, or media files, select an item, and then select Options > Delete. 14 Standby After you have turned on your phone and entered your PIN, the name of the network operator appears. This view is called standby. Your phone is now ready to use. To return to standby • Press . Default standby screen The default standby screen provides five different views: Favourite contacts view Social networking view Flow view Album view Shortcuts view The icon for some views, for example, the Album view, may change according to the content displayed on the standby scr…

Text truncated - open the document above for the full version.

Datum'Date Beteckning . Reference Son Ericsson VAr handlaggare, namn, tfn . AHending to this maHer, name, telephone Ert datum' Your date Er beteckning . Your reference Confidentiality Request 2009-12-02 CCDA09:603 SEM/CCDALE Afrah Sadiq +46 10 8012250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7A3880058 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AS requests confidentiality for the below listed items for our mobile phone type AAD­ 3880058-BV, FCC 10: PY7A3880058: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AS considers to be proprietary. confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AS also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards. Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AB Styrelsens sate: Lund Momsnr • II.A. T.No: SE556615665801 Registered office: Lund Organisationsnr • Reg No: 556615-6658 Postadress • Mail Besiiksadress • Office address Telefon • Telephone Telefax • Telefax SE-221 88 Lund Nya Vattentomet Nat 046-19 40 00 Nat 046-194100 Sweden Lund Int +4646194000 Int +4646194100

Datum'Date Beteckning • Reference Sony Ericsson Ert datum' Your date Er beteckning • Your reference Var handlaggare, namn, tIn' Attending to this matter, name, telephone Short Term Confidentiality Request 2009-12-16 CCDA09:643 SEM/CCDALE Afrah Sadiq + 46108012250 Receiver Federal Communications Commission Subject: Request for Temporary Confidentiality FCC 10: PY7A3880058 To Whom It May Concern: In accordance with §0.459 of CFR 47 and Public Notice DA 04-1705, Sony Ericsson Mobile Communications AS requests in addition to confidentiality request CCDA09:603 temporary confidentiality for 180 days of the below listed items for our mobile phone type AAD-3880058-BV, FCC ID: PY7A3880058: 1. User Manual 2. Test set-up 3. External and Internal photos When the announcement of the product is done, the TCB will be notified to remove the Short Term Confidentiality. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AB / Sony Ericsson Mobile Communications AS Postadress • Mail SE-221 88 Lund Sweden Besoksadress • Office address Nya Vattentornet Lund Styrelsens sate: Lund Registered office: Lund Teleton • Telephone Nat 046-194000 Int +4646194000 • Momsnr • V.A. T.No: SE556615665801 Organisationsnr' Reg No: 556615-6658 Teletax • Te/efax Nat 046-1941 00 Int +46461941 00

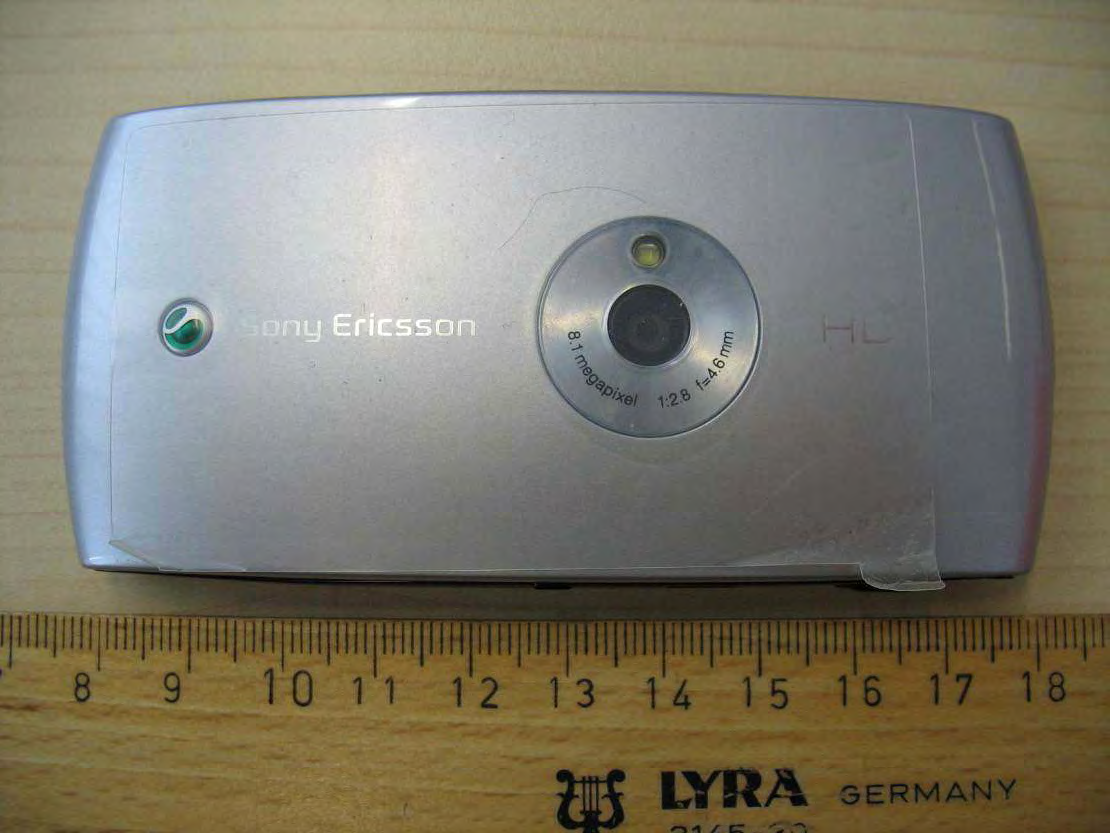

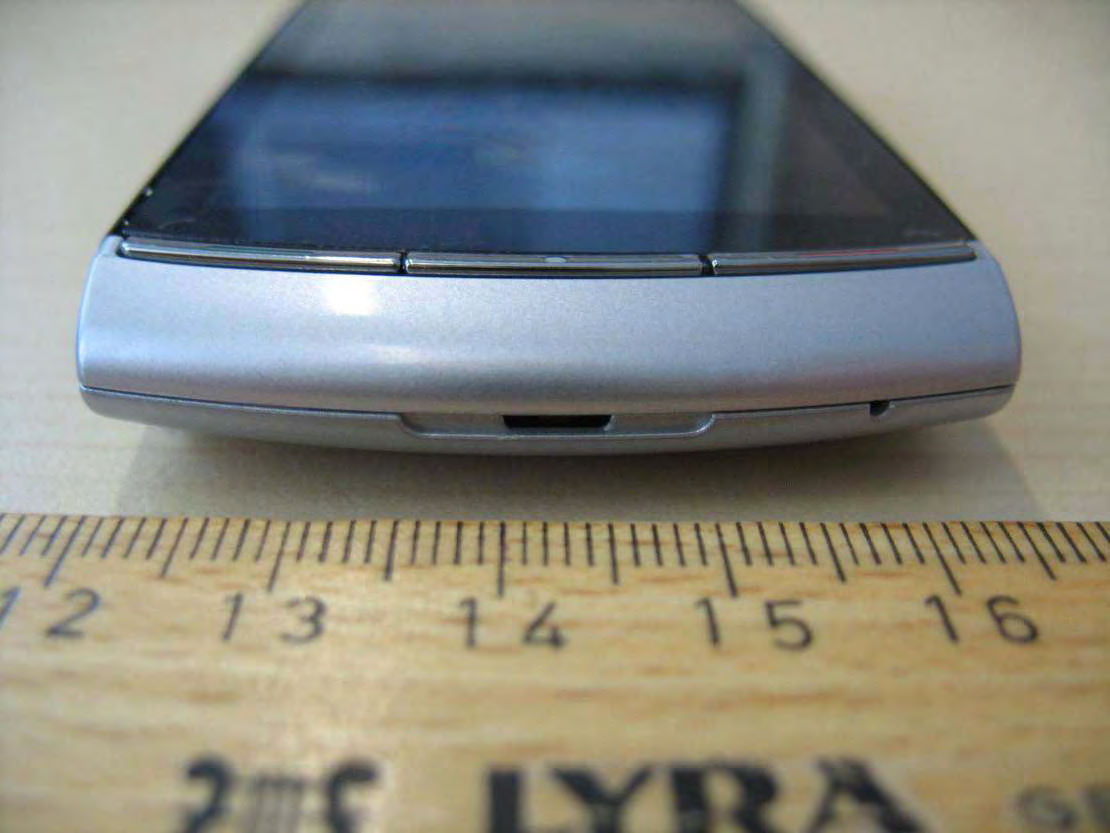

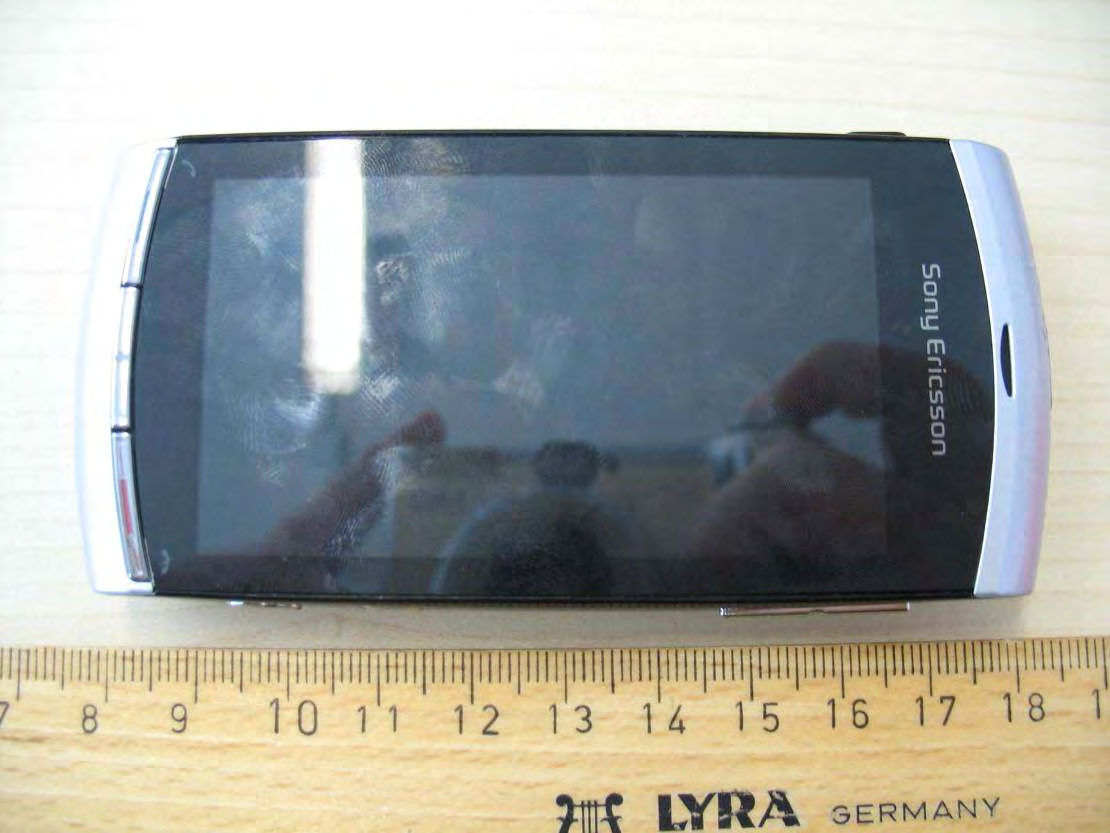

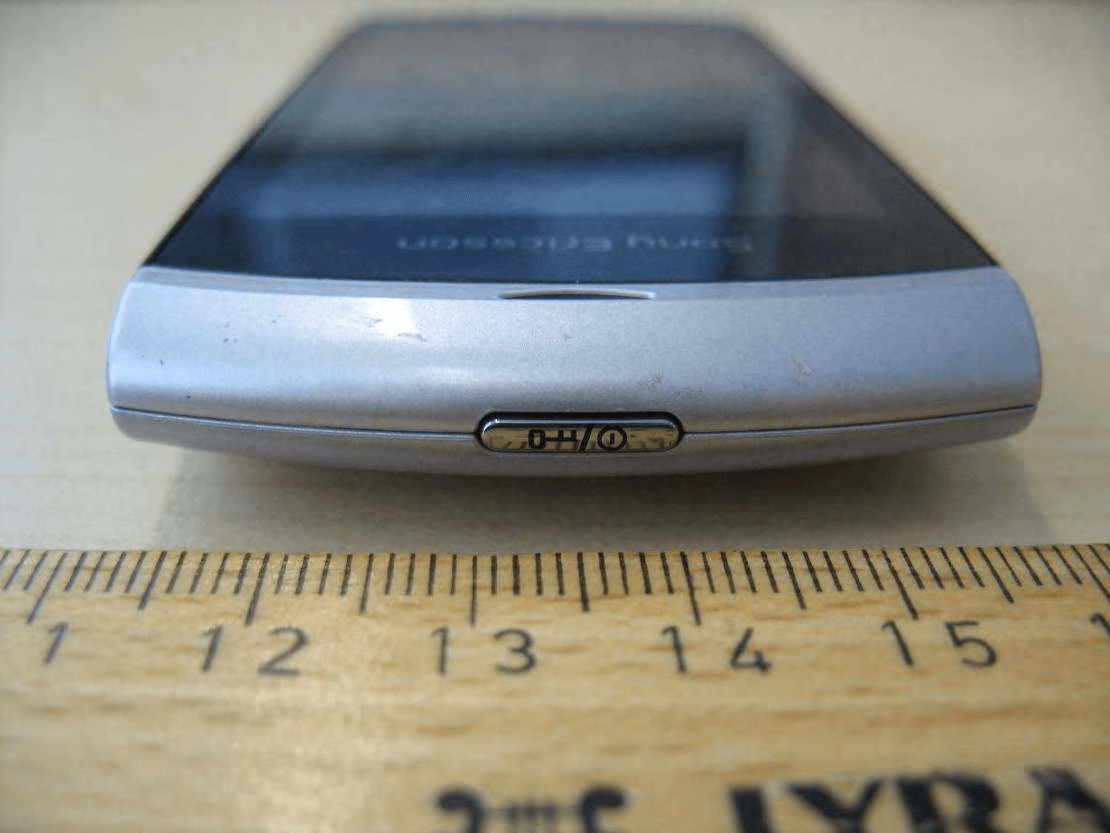

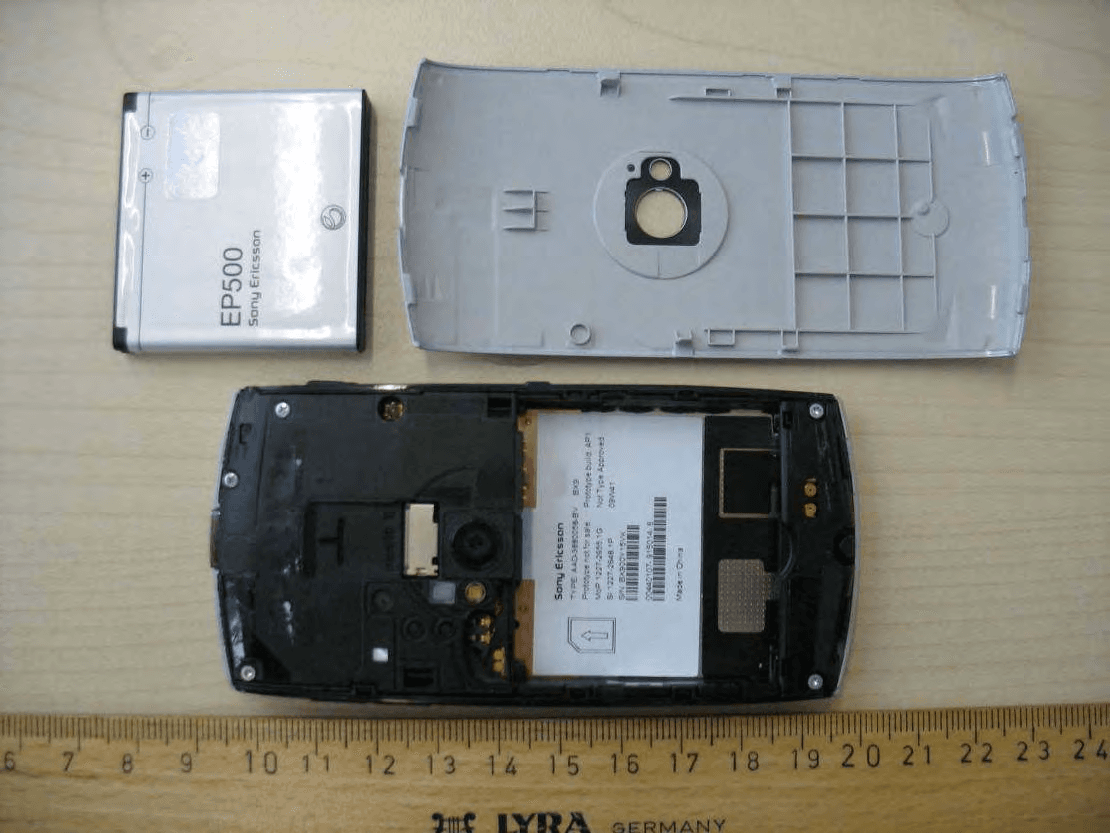

CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-66-02/09 2009-12-16 Page 17 of 24 8 Photographs of t he E UT Photo documentation Photo 4: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-66-02/09 2009-12-16 Page 18 of 24 Photo 5: Photo 6: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-66-02/09 2009-12-16 Page 19 of 24 Photo 7: Photo 8: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-66-02/09 2009-12-16 Page 20 of 24 Photo 9: Photo 10:

Company Internal MARKING DRAWING 1 (4) Prepared (also subject responsible if other) No. SEM/CCMVGP, Leif Hedin 1232-0736 Uen Approved Checked Date Rev Reference SEM/CCMVGP, Leif Hedin 2009-12-09 2 5 U5i, Mobile Phone label content, ROW, Made in... Type Number: AAD-3880058-BV FCC ID: PY7A3880058 Canada IC: 4170B-A3880058 1 General information Mobile Phone label part no • 1227-2631 Mobile Phone label content part no • 1232-0735 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1a (5,0/14,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925. Line 1b (5,0/29,0) Model Name “U5i” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2 (7,0/14,0) Product number without revision of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 3a (9,0/14,0) “TYPE: AAD-3880058-BV” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 3b (9,0/30,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under specifying document in product model. Line 3c (9,0/36,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 4a (10,3/14,0) “FCC ID: PY7A3880058” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 4b (10,3/30,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Company Internal MARKING DRAWING 2 (4) Prepared (also subject responsible if other) No. SEM/CCMVGP, Leif Hedin 1232-0736 Uen Approved Checked Date Rev Reference SEM/CCMVGP, Leif Hedin 2009-12-09 2 5 Line 5a (13,7/4,8) SIM card logo Graphics height 8,0mm According to 1001-6195 Line 5b (13,5/14,0) “IC: 4170B-A3880058” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 5c (13,5/30,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 6 (16,0/4,0) Line 7a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 7a (18,0/4,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 7b (18,0/17,0) Actual electronic serial number (IMEI) of the Mobile Phone, “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 8 (21,0/4,0) Line 7b in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 9a (26,0/4,0) CE approval symbol Graphics, height 5 mm. According to 1210-0131. Line 9b (26,0/12,0) The notified body number “0682” Text, height 1,2 mm. Line 9c (26,0/17,0) “Alert Symbol” Graphics, height 5 mm According to 1001-5859 Line 9d (26,0/24,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. Line 10 (29,0/4,0) Marking of origin. “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. Company Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. SEM/CCMVGP, Leif Hedin 1232-0736 Uen Approved Checked Date Rev Reference SEM/CCMVGP, Leif Hedin 2009-12-09 2 5 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision. Company Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. SEM/CCMVGP, Leif Hedin 1232-0736 Uen Approved Checked Date Rev Reference SEM/CCMVGP, Leif Hedin 2009-12-09 2 5 Label placement To find the label follow these steps: 1. Remove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-66-02/09 2009-12-16 Page 21 of 24 Photo 11: Photo 12: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-66-02/09 2009-12-16 Page 22 of 24 Photo 13: Photo 14: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-66-02/09 2009-12-16 Page 23 of 24 Photo 15: Photo 16: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-66-02/09 2009-12-16 Page 24 of 24 Photo 17: Photo 18:

Company Internal REPORT 1 (16) Prepared (also subject responsible if other) No. LD/SEMC/CCMVALE Kent Lorentzon CCDA09:612 Approved Checked Date Rev Reference LD/SEMC/CCMVALEC Peter Lindeborg PL 091221 B File Report issued by Accredited SAR Laboratory for FCC ID: PY7A3880058 (U5i) IC: 4170B-A3880058 (U5i) Date of test: 2009-11-09 – 2009-12-07 Laboratory: Sony Ericsson SAR Test Laboratory Sony Ericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Kent Lorentzon [email protected] +46 10 80 19043 Testing Approval: Peter Lindeborg [email protected] +46 10 80 24368 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type: AAD-3880058-BV FCC ID: PY7A3880058 IC: 4170B-A3880058 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2005). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2009 Company Internal REPORT 2 (16) Prepared (also subject responsible if other) No. LD/SEMC/CCMVALE Kent Lorentzon CCDA09:612 Approved Checked Date Rev Reference LD/SEMC/CCMVALEC Peter Lindeborg PL 091221 B File Table of contents 1 INTRODUCTION..................................................................................................................................................................3 2 CUSTOMER DETAILS ........................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 ANTENNA DESCRIPTION...................................................................................................................................................3 3.2 DEVICE DESCRIPTION......................................................................................................................................................4 4 TEST EQUIPMENT ..............................................................................................................................................................6 4.1 DOSIMETRIC SYSTEM.......................................................................................................................................................6 4.2 ADDITIONAL EQUIPMENT.................................................................................................................................................6 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................7 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................8 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................9 8 TEST RESULTS ..................................................................................................................................................................10 9 REFERENCES .....................................................................................................................................................................12 APPENDIX ....................................................................................................................................................................................13 9.1 PHOTOGRAPHS OF THE DEVICE UNDER TEST..................................................................................................................13 9.2 DEVICE POSITION AT SAM TWIN PHANTOM.................................................................................................................14 9.3 ATTACHMENTS...............................................................................................................................................................16 Company Internal REPORT 3 (16) Prepared (also subject responsible if other) No. LD/SEMC/CCMVALE Kent Lorentzon CCDA09:612 Approved Checked Date Rev Reference LD/SEMC/CCMVALEC Peter Lindeborg PL 091221 B File 1 Introduction In this test report, compliance of the Sony Ericsson PY7A3880058 (U5i) portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 2 Customer details Company Name: Sony Ericsson Mobile Communications AB Address: Sony Ericsson Mobile Tokyo, Japan Contact Name: Masahiro Kurosawa 3 Device Under Test 3.1 Antenna Description Type Internal antenna Location Bottom of phone Main and BT antennas distance 84,3 mm Max length 44 mm Dimensions Max width 13 mm Configuration Monopole Company Internal REPORT 4 (16) Prepared (also subject responsible if other) No. LD/SEMC/CCMVAL…

Text truncated - open the document above for the full version.

Cali bration Laboratory of s Schweizerischer Kalibrierdienst Schmid & Partner Service suisse d'etalonnage Engineering AG Servizio svizzero di taratura Zeughausstrasse 43,8004 Zurich, Switzerland S Swiss Calibration Service Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of calibration certificates Accreditation No.: SCS 108 Client Object @ $$## I. Calibration procedure(s) January 21,2008 Cal~brat~on date t 4 Cond~t~on of the calibrated ltem In Tolerance ,,' a ‘. t This calibration certificate documents the traceability to national standards, which realize the physical units of measurements (SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature (22 k 3)"C and humidity < 70%. Calibration Equipment used (M&TE critical for calibration) I Primary Standards Power meter EPM-442A Power sensor HP 8481 A Reference 20 dB Attenuator Reference 10 dB Attenuator Reference Probe ET3DV6 (HF) DAE4 ID # Cal Date (Calibrated by, Certificate No.) Scheduled Calibration GB37480704 04-Oct-07 (METAS, NO. 217-00736) Oct-08 US37292783 04-Oct-07 (METAS, NO. 217-00736) Oct-08 SN: 5086 (20g) 07-Aug-07 (METAS, NO 21 7-0071 8) Aug-08 SN: 5047.2 (lor) 07-Aug-07 (METAS, No 21 7-0071 8) Aug-08 SN 1507 26-Oct-07 (SPEAG, NO. ET3-1507-0ct07) Oct-08 SN 601 03-Jan-08 (SPEAG, No. DAE4-601-Jan08) Jan-09 I Name Function Signature I Secondary Standards Power sensor HP 8481 A RF generator R&S SMT-06 Network Analyzer HP 8753E Calibrated by: Approved by: ID # Check Date (in house) Scheduled Check MY41 09231 7 18-Oct-02 (SPEAG, in house check Oct-07) In house check: Oct-09 100005 04-Aug-99 (SPEAG, in house check Oct-07) In house check: Oct-09 US37390585 S4206 18-Oct-01 (SPEAG, in house check Oct-07) In house check: Oct-08 Katja Pdccwic T Manager &- Issued: January 22, 2008 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: D835V2-4d039-Jan08 Page 1 of 9 Calibration Laboratory of s Schweizerischer Kalibrierdienst Schmid & Partner Service suisse d'etalonnage Engineering AG Servizio svizzero di taratura Zeughausstrasse 43,8004 Zurich, Switzerland S Swiss Calibration Service Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of calibration certificates Accreditation No.: SCS 108 Glossary: TSL tissue simulating liquid ConvF sensitivity in TSL I NORM x,y,z NIA not applicable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2003, "IEEE Recommended Practice for Determining the Peak Spatial- Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Comrr~unications Devices: Measurement Techniques", December 2003 b) IEC 62209-1, "Procedure to measure the Specific Absorption Rate (SAR) for hand-held devices used in close proximity to the ear (frequency range of 300 MHz to 3 GHz)", February 2005 c) Federal Communications Commission Office of Engineering & Technology (FCC OET), "Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields; Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Expos~~re to Radiofrequency Emissions", Supplement C (Edition 01-01) to Bulletin 65 Additional Documentation: d) DASY4 System Handbook Methods Applied and Interpretation of Parameters: Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented parallel to the body axis. Feed Point Impedance and Return Loss: These parameters are measured with the dipole positioned under the liquid filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty required. Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. SAR measured: SAR measured at the stated antenna input power. SAR normalized: SAR as measured, normalized to an input power of 1 W at the antenna connector. SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. Certificate No: D835V2-4d039-Jan08 Page 2 of 9 I Phantom I Modular Flat Phantom V4.9 I I Measurement Conditions DASY system configuration, as far as not given on page 1. DASY Version Extrapolation I Frequency I 835 MHz * 1 MHz I I Distance Dipole Center - TSL Zoom Scan Resolution DASY4 Advanced Extrapolation I Nominal Head TSL parameters 1 22.0 "C I 41.5 1 0.90 mholm V4.7 15 mm dx, dy, dz = 5 mm Head TSL parameters The following parameters and calculations were applied. with Spacer Temperature SAR result with Head TSL Measured Head TSL parameters Head TSL temperature during test Permittivity Conductivity (22.0 k 0.2) "C (21.7 + 0.2) "C SAR averaged over 1 cm3 (1 g) of Head TSL SAR measured SAR normalized SAR for nominal Head TSL parameters ' 1 Correction to nominal TSL parameters according to d), chapter "SAR Sensitivities" Certificate No: D835V2-4d039-Jan08 Page 3 of 9 43.1 * 6 % ---- Condition 250 mW input power normalized to 1 W normalized to 1 W 1.58 mW I g 6.32 mW I g 6.38 mW / g + 16.5 % (k=2) SAR averaged over 10 cm3 (1 0 g) of Head TSL SAR measured SAR normalized SAR for nominal Head TSL parameters ' 0.92 mholm k 6 % ---- 2.40 mW I g 9.60 mW I g 9.68 mW / g + 17.0 % (k=2) condition 250 mW input power n…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Phone: +49 (0) 681-598-0 Fax: -9075 RSC-Laboratory 2009-11-26 Page 1 of 63 Accredited testing-laboratory DAR registration number: DAT-P-176/94-D1 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3462C-1 (IC) Certification ID: DE 0001 Accreditation ID: DE 0002 Accredited Bluetooth ® Test Facility (BQTF) The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license Test report no. : 1-1065-66-02/09 Type identification : AAD-3880058-BV Applicant : Sony Ericsson Mobile Communications AB FCC ID : PY7A3880058 IC Certification No : 4170B-A3880058 Test standards : 47 CFR Part 2 47 CFR Part 22 47 CFR Part 24 RSS - 132 Issue 2 RSS - 133 Issue 5 CETECOM ICT Services GmbH Test report no.: 1-1065-66-02/09 2009-11-26 Page 2 of 63 Table of contents 1 G e n e r a l i n f o r m a t i o n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . 3 1.1 Notes ...................................................................................................................................................................3 1.2 Testing laboratory ...............................................................................................................................................4 1.3 Details of applicant .............................................................................................................................................4 1.4 Application details ..............................................................................................................................................4 2 T e s t s t a n d a r d / s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . 5 3 T e c h n i c a l t e s t s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . 6 3.1 Details of manufacturer .......................................................................................................................................6 3.1.1 Test item......................................................................................................................................................6 3.2 Test Setup............................................................................................................................................................7 4 S t a t e m e n t o f C o m p l i a n c e . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .…
