PY7A3880059GSM/GPRS/EDGE(850/900/1800/1900MHz) / UMTS-FDD1&2&5 / HSPA mobile phone with Bluetooth, WLAN, GPS/A-GPS, FM receiver

Vivaz ™ User guide Please read the Important information before you use your mobile phone. Experience more. Discover how. Fill it with pop and let it rock. Share your life in pictures. Or why not go online for the latest updates? Your new phone is the key to a wider world. And it’s just around the corner. Get started with this User guide. And join us online to get the full picture. Music, games, apps, updates, downloads, support and more. All in one place: www.sonyericsson.com/Vivaz Don’t forget to update your phone software. See Updating your phone on page 8. 2 Getting started Assembly Before you start using your phone, you need to insert a SIM (Subscriber Identity Module) card and the battery. To insert the SIM card 1 Remove the battery cover. 2 Put the SIM card into its holder with the gold-coloured contacts facing down. 3 To insert the battery 1 Insert the battery with the label side up and the connectors facing each other. 2 Put the battery cover into place. 4 To charge the phone using the power adapter • Connect the phone to a power outlet using the USB cable provided and the power adapter. You can use your phone while it is charging. You can charge the battery at any time and for more or less than 3 hours using the power adapter. You can interrupt the charging without damaging the battery. 5 To charge the phone using a computer • Connect the phone to a USB port on a computer using the USB cable provided. Memory card Your phone supports memory cards, adding more storage space to your phone. A memory card used in your phone can also be used with other compatible devices. You can move content between your memory card and the phone memory. To insert or remove a memory card 1 Insert the memory card with the gold-coloured contacts facing down. 2 To remove the memory card, press and select Remove memory card, then press your finger down on the card and slide it out. 6 Turning on the phone To turn on the phone 1 Press and hold down . 2 Enter your SIM card PIN, if requested, and select OK. 3 The first time you turn on the phone, follow the instructions to use the setup wizard for basic settings and useful tips. Help You can find Help on most applications in Organiser or you can access Help from within a specific application by selecting Options. To access the general Help in your phone • Select Menu > Organiser > Help. To view Help when you are in an application • Select Options > Help. 7 Updating your phone You can update your phone to the most recent software for optimal performance and to get the latest enhancements. You need a USB cable and an Internet-connected PC. To learn how, go to www.sonyericsson.com/update. Remember to back up your phone content before updating. To see how to back up your phone content, see the Extended User guide on the memory card. You can also access this document at www.sonyericsson.com/support. 8 Phone overview 3 4 5 6 1 2 9 7 8 1On/off key, lock key 2Ear speaker 33.5 mm headset connector 4Connector for USB cable 5Loud speaker 6Touch screen 7End key 8Main menu key 9Call key 9 10Volume, digital zoom keys 10 11 12 13 14 11Camera light 12Camera 13Video key 14Photo key 10 Menu overview* PlayNow™ Internet Applications Radio, TrackID™, Media server, Downl. chat apps, IM, Conversations, Web publishing, Record sound Camera Messaging Media Photo, Music, Video Location services Google Maps, Location, Wisepilot Contacts Calendar Log** Organiser File manager, Clock, RoadSync, SonyEricsson Sync, Google, Search, Notes, Dictionary, Converter, Calculator, Adobe PDF, Quickoffice, Help Settings Personal Profiles, Themes, Standby Phone Date and time, Language, Display, Download settings, Sensor settings, Touch input, Accessories, Application sett., Phone mgmt. Application mgr 11 Installed apps., Installation files, Install settings Calling Call, Speed dialling, Voicemail, Divert calls, Call barring Connectivity Network, Wi-Fi, Bluetooth, USB, Destinations, Connection mgr, Data transfer, Remote drives, Admin. settings * Some menus are operator-, network- and subscription-dependent. ** You can use touch functionality to scroll between tabs in submenus. For more information, see Navigation on page 14. 12 Status icons Status icons appear at the top of the screen. You can tap status icons to view more information or change settings. Battery fully charged Network signal strength Messages in the outbox GSM available Missed call Handsfree connected Call diverted Text message received New email received Headphone inserted GPS connected Alarm activated Bluetooth™ connected Keylock activated USB data transferring Data synchronising Flight mode activated Secure Wi-Fi™ network connected Wi-Fi™ network connected 13 3G available HSDPA available EGPRS available Navigation You can move through menus with your fingertips or with a stylus. Tap or double-tap an item to select or open it. You can also switch between running applications. To access the main menu • Press the main menu key. To unlock the phone manually • Press and select Unlock. To lock the phone manually • Press twice. To view running applications 1 Press and hold down the main menu key. 2 To switch to a running application, tap it. Leaving applications running in the background increases the demand on battery power and reduces the battery life. To end a function • In most cases, select Options > Exit. To delete items • In most applications, to delete items such as files, folders, messages, or media files, select an item, and then select Options > Delete. 14 Standby After you have turned on your phone and entered your PIN, the name of the network operator appears. This view is called standby. Your phone is now ready to use. To return to standby • Press . Default standby screen The default standby screen provides five different views: Favourite contacts view Social networking view Flow view Album view Shortcuts view The icon for some views, for example, the Album view, may change according to the content displayed on the standby scr…

Text truncated - open the document above for the full version.

Datum· Date Beteckning • Reference Sony Ericsson Va.r handlaggare, namn, tfn . Attending to this matter, name, telephone Ert datum· Your date Er beteckning • Your reference Confidential 1(1) Prepared by SEM/CCDALE Afrah Sadiq + 46108012250 Contents responsible if other than preparer Document number CCDA09:622 Dale 2009-12-09 Remarks Revision A Approved by SEM/CCDALEC Peter Lindeborg + 46108024368 Receiver: Federal Communication Commission and Certification and Engineering Bureau Industry Canada Application Type number: AAD-3880059-BV, FCC ID: PY7A3880059, Canada IC: 4170B-A3880059 Statement on WLAN hardware Sony Ericsson mobile phone U5a (FCC 10 PY7A3880059, IC: 4170B-A3880059) uses the exact same WLAN hardware and software as U5i (FCC 10 PY7A3880058, IC: 4170B-A3880058). Based on this, FCC part 15.247 and RSS - 210 Issue 7 report (report no. 1-1065-66­ 06/09, dated 2009-12-07) issued for U5i also applies for U5a. Peter Lindeborg Technical Manager -EMF and Safety Sony Ericsson Mobile Communications AB - Lund Sony Ericsson Mobile Communications AS Styrelsens sate: Lund Momsnr • V.A. T.No: SE556615665801 Registered office: Lund Organisationsnr • Reg No: 556615-6658 Postadress • Mail Bes6ksadress • Office address Telefon • Telephone TeJefax • Te/efax SE-221 88 Lund Nya Vattentornet Nat 046-19 40 00 Nat 046-1941 00 Sweden Lund Int +4646194000 Int +46461941 00

Datum' Date Beteckning . Reference Sony flcsson VAr handlaggare, namn, tin • Attending to this matter, name, telephone Ert datum' Your date Er beteckning • Your reference Confidentiality Request 2009-12-09 CCDA09:614 SEM/CCDALE Afrah Sadiq +46 10 8012250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7A3880059 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below listed items for our mobile phone type MD­ 3880059-BV, FCC ID: PY7A3880059: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AB / Sony Ericsson Mobile Communications AS Styrelsens sate: Lund Momsnr • II.A. T.No: SE556615665801 Registered office: Lund Organisationsnr' Reg No: 556615-6658 Postadress • Mail Bes6ksadress • Office address Telefon • Telephone Telefax • Telefax SE-221 88 Lund Nya Vattentornet Nat 046-19 40 00 Nat 046-194100 Sweden Lund Int +4646194000 Int +4646194100

Datum'Date Beteckning • Reference Sony ricsson VAr handlaggare, namn, tfn • Attending to this matter, name, telephone Ert datum' Your date Er beteckning • Your reference Short Term Confidentiality Request 2009-12-29 CCDA09:654 SEM/CCDALE Afrah Sadiq +46 10 8012250 Receiver Federal Communications Commission Subject: Request for Temporary Confidentiality FCC 10: PY7A3880059 To Whom It May Concern: In accordance with §0,459 of CFR 47 and Public Notice DA 04-1705, Sony Ericsson Mobile Communications AB requests in addition to confidentiality request CCDA09:614 temporary confidentiality for 180 days of the below listed items for our mobile phone type AAD-3880059-BV, FCC 10: PY7A3880059: 1. User Manual 2. Test set-up 3. External and Internal photos When the announcement of the product is done, the TCB will be notified to remove the Short Term Confidentiality. Please contact the undersigned if there are any further questions or additional information needed in this matter. Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AS / Sony Ericsson Mobile Communications AS Styrelsens sate: Lund Momsnr • II.A. TNo: SE556615665801 Registered office: Lund Organisalionsnr • Reg No: 556615-6658 Postadress • Mail Bes6ksadress • Office address Telefon • Telephone Telefax • Telefax SE-221 88 Lund Nya Vattentornet Nat 046-19 40 00 Nat 046-1941 00 Sweden Lund Int +4646194000 Int +46461941 00

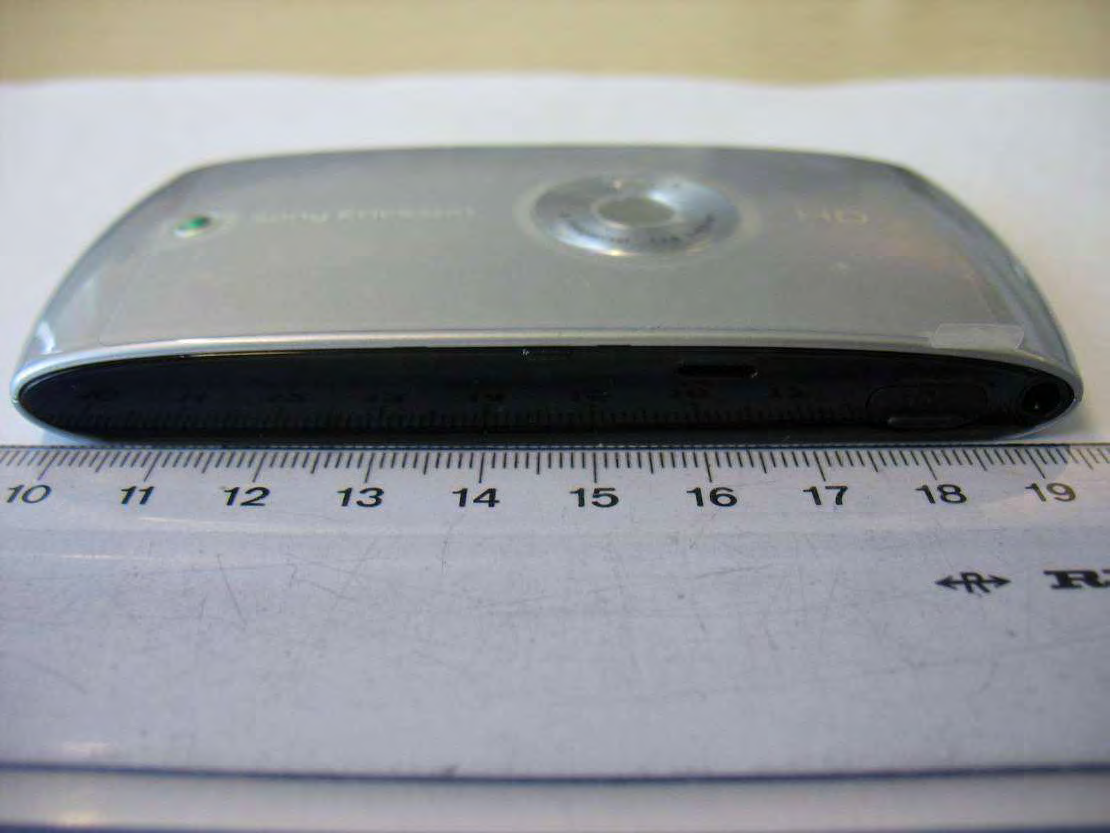

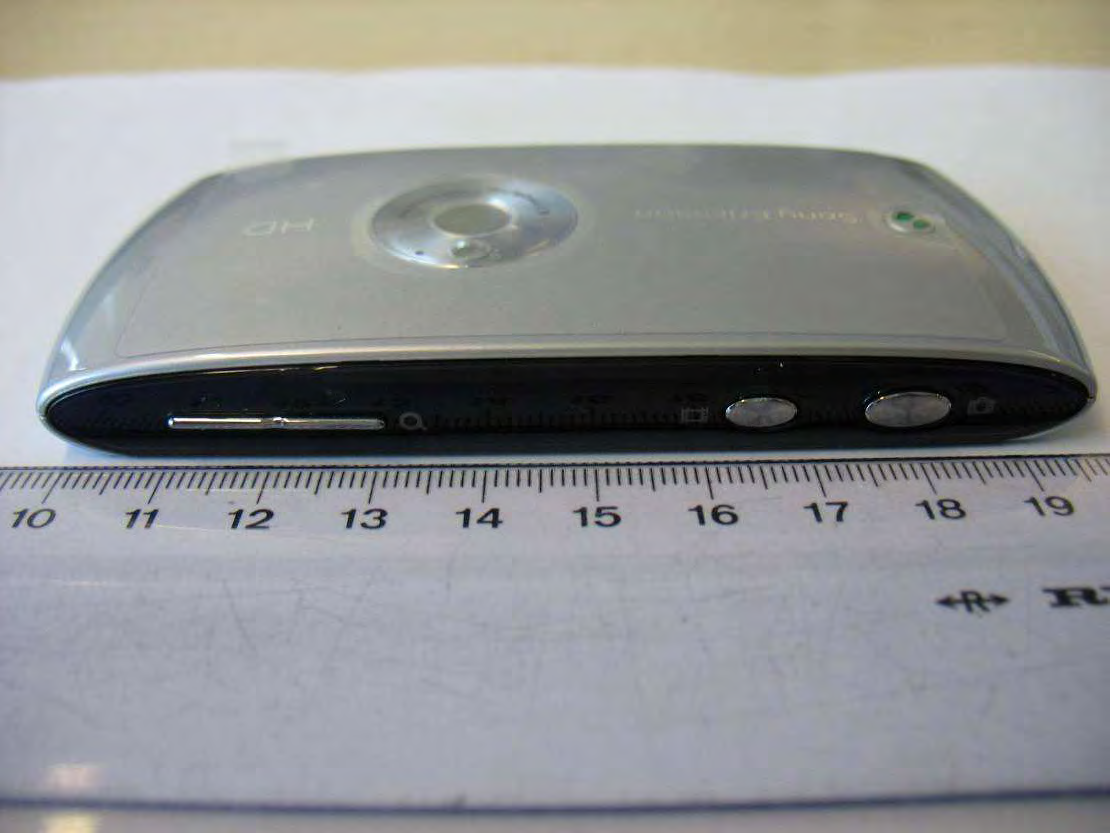

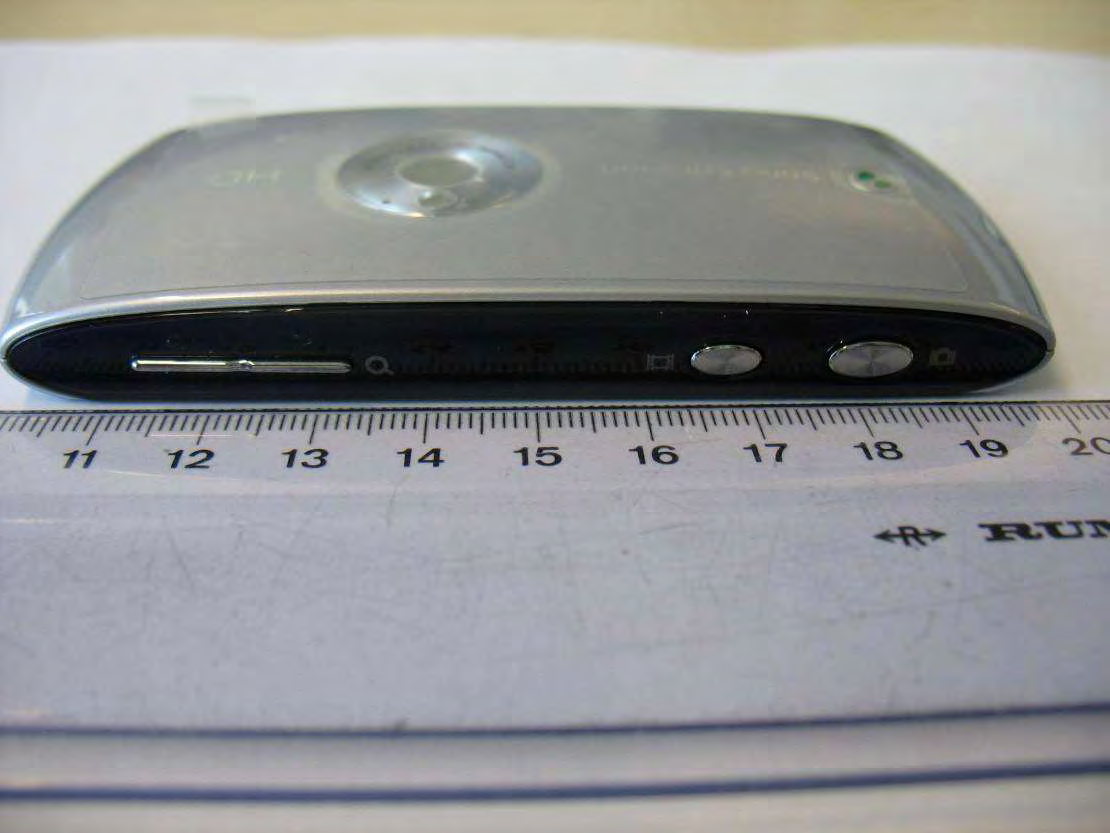

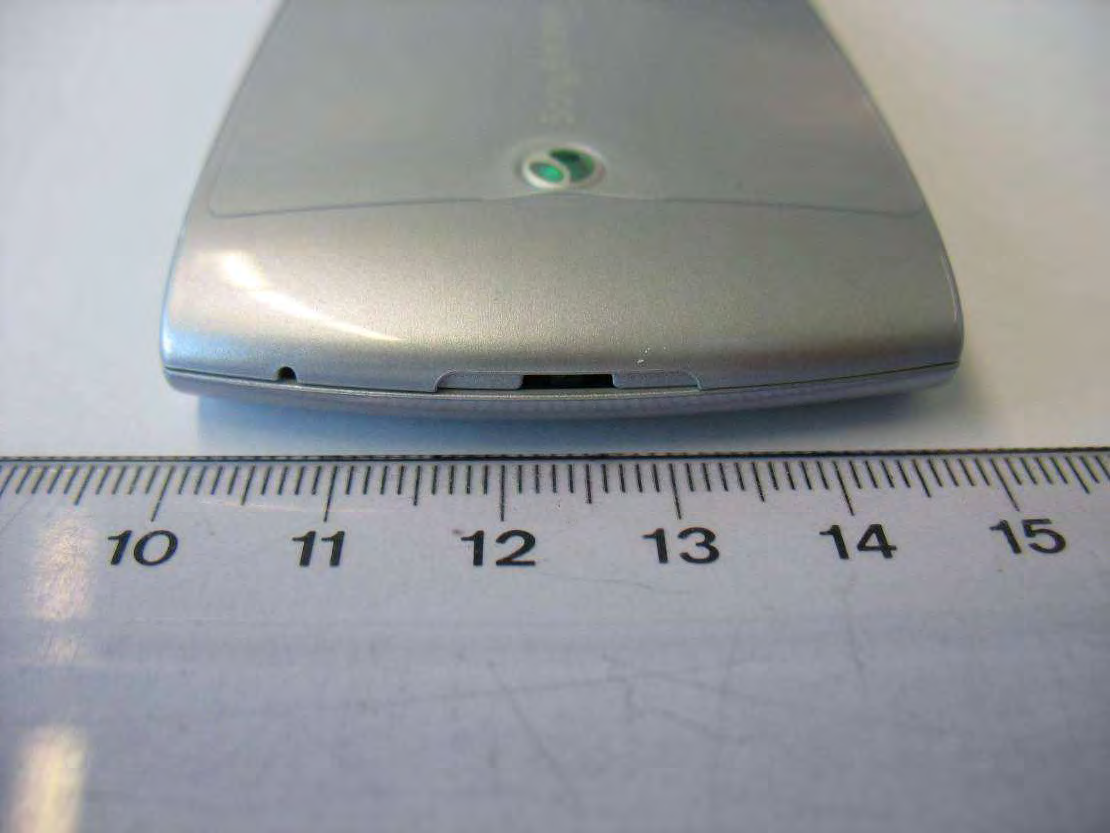

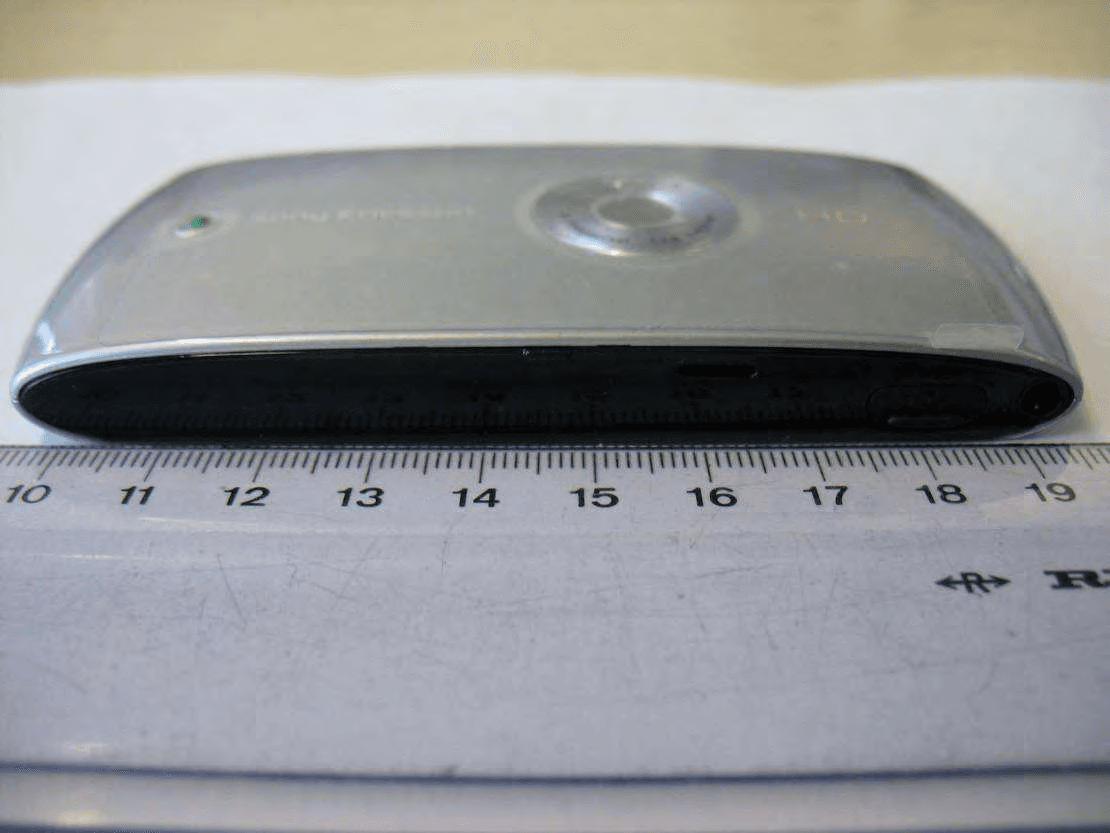

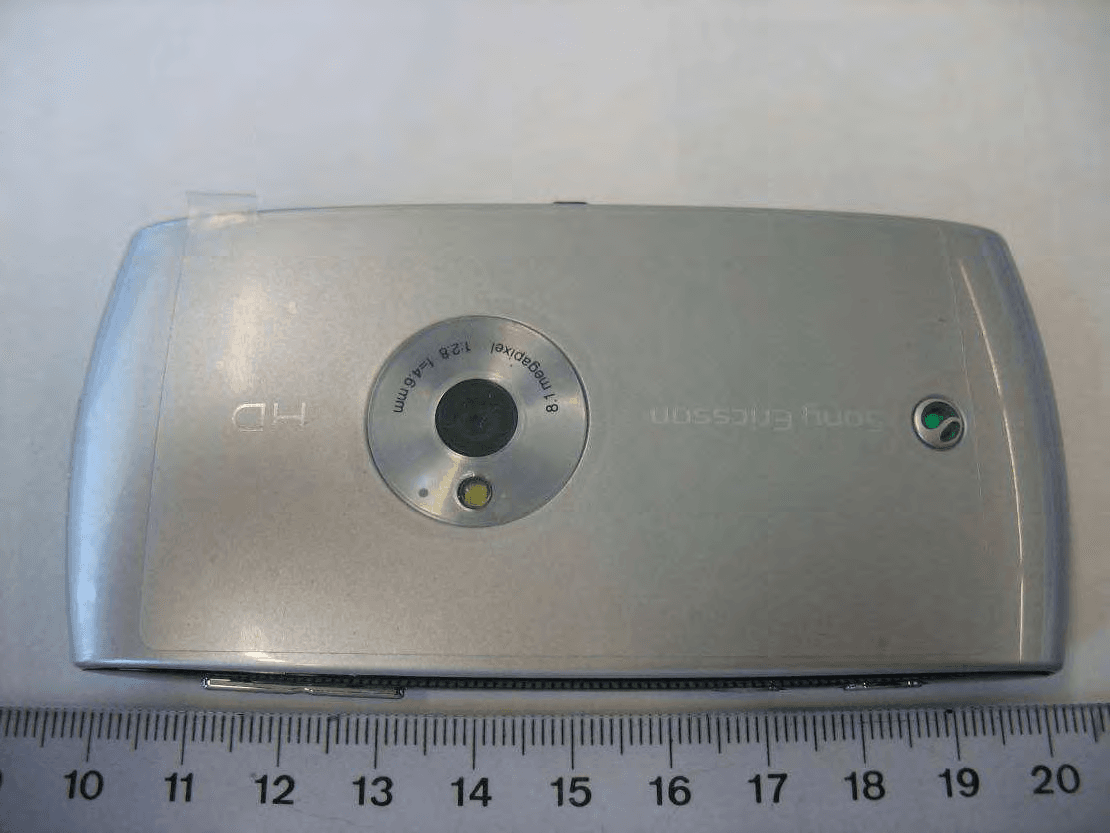

CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 16 of 27 8 Photographs of t he E UT Photo documentation Photo 4: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 17 of 27 Photo 5: Photo 6: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 18 of 27 Photo 7: Photo 8: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 19 of 27 Photo 9: Photo 10:

Company Internal MARKING DRAWING 1 (4) Prepared (also subject responsible if other) No. SEM/CCMVGP, Leif Hedin 1232-0736 Uen Approved Checked Date Rev Reference SEM/CCMVGP, Leif Hedin 2009-12-09 2 5 U5a, Mobile Phone label content, ROW, Made in... Type Number: AAD-3880059-BV FCC ID: PY7A3880059 Canada IC: 4170B-A3880059 1 General information Mobile Phone label part no • 1227-2631 Mobile Phone label content part no • 1232-0735 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1a (5,0/14,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925. Line 1b (5,0/29,0) Model Name “U5a” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2 (7,0/14,0) Product number without revision of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 3a (9,0/14,0) “TYPE: AAD-3880059-BV” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 3b (9,0/30,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under specifying document in product model. Line 3c (9,0/36,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 4a (10,3/14,0) “FCC ID: PY7A3880059” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 4b (10,3/30,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Company Internal MARKING DRAWING 2 (4) Prepared (also subject responsible if other) No. SEM/CCMVGP, Leif Hedin 1232-0736 Uen Approved Checked Date Rev Reference SEM/CCMVGP, Leif Hedin 2009-12-09 2 5 Line 5a (13,7/4,8) SIM card logo Graphics height 8,0mm According to 1001-6195 Line 5b (13,5/14,0) “IC: 4170B-A3880059” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 5c (13,5/30,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 6 (16,0/4,0) Line 7a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 7a (18,0/4,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 7b (18,0/17,0) Actual electronic serial number (IMEI) of the Mobile Phone, “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 8 (21,0/4,0) Line 7b in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 9a (26,0/4,0) CE approval symbol Graphics, height 5 mm. According to 1210-0131. Line 9b (26,0/12,0) The notified body number “0682” Text, height 1,2 mm. Line 9c (26,0/17,0) “Alert Symbol” Graphics, height 5 mm According to 1001-5859 Line 9d (26,0/24,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. Line 10 (29,0/4,0) Marking of origin. “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. Company Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. SEM/CCMVGP, Leif Hedin 1232-0736 Uen Approved Checked Date Rev Reference SEM/CCMVGP, Leif Hedin 2009-12-09 2 5 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision. Company Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. SEM/CCMVGP, Leif Hedin 1232-0736 Uen Approved Checked Date Rev Reference SEM/CCMVGP, Leif Hedin 2009-12-09 2 5 Label placement To find the label follow these steps: 1. Remove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 20 of 27 Photo 11: Photo 12: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 21 of 27 Photo 13: Photo 14: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 22 of 27 Photo 15: Photo 16: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 23 of 27 Photo 17: Photo 18: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 24 of 27 Photo 19: Photo 20: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 25 of 27 Photo 21: Photo 22: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 26 of 27 Photo 23: Photo 24: CETECOM ICT Services GmbH Annex to Test report no.: 1-1065-67-02/09-A 2010-02-02 Page 27 of 27 Photo 25: Photo 26:

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2009-12-09 Page 1 of 158 Accredited testing laboratory DAR registration number: DAT-P-176/94-D1 Test report no. : 1-1065-64-03/09 Type identification : AAD-3880059-BV Test specification : IEEE 1528-2003 FCC-ID : PY7A3880059 IC-ID : 4170B-A3880059 CETECOM ICT Services GmbH Test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 2 of 158 Table of Contents 1 General Information............................................................................................................................................................... 4 1.1 Notes................................................................................................................................................................................ 4 1.1.1 Statement of Compliance ....................................................................................................................................... 4 1.2 Testing laboratory............................................................................................................................................................ 5 1.3 Details of applicant.......................................................................................................................................................... 5 1.4 Application details........................................................................................................................................................... 5 1.5 Test item .......................................................................................................................................................................... 6 1.6 Test specification(s) ........................................................................................................................................................ 6 1.6.1 RF exposure limits ................................................................................................................................................. 6 2 Technical test ......................................................................................................................................................................... 6 2.1 Summary of test results ................................................................................................................................................... 6 2.2 Test environment ............................................................................................................................................................. 6 2.3 Measurement and test set-up ........................................................................................................................................... 6 2.4 Measurement system ....................................................................................................................................................... 6 2.4.1 System Description ................................................................................................................................................ 6 2.4.2 Test environment ................................................................................................................................................... 6 2.4.3 Probe description ................................................................................................................................................... 6 2.4.4 Phantom description............................................................................................................................................... 6 2.4.5 Device holder description ...................................................................................................................................... 6 2.4.6 Scanning procedure................................................................................................................................................ 6 2.4.7 Spatial Peak SAR Evaluation................................................................................................................................. 6 2.4.8 Data Storage and Evaluation.................................................................................................................................. 6 2.4.9 Test equipment utilized .......................................................................................................................................... 6 2.4.10 Tissue simulating liquids: dielectric properties...................................................................................................... 6 2.4.11 Tissue simulating liquids: parameters ....................................................................................................................6 2.4.12 Measurement uncertainty evaluation for SAR test ................................................................................................ 6 2.4.13 Measurement uncertainty evaluation for system validation................................................................................... 6 2.4.14 System validation................................................................................................................................................... 6 2.4.15 Validation procedure.............................................................................................................................................. 6 2.5 Test Results ..................................................................................................................................................................... 6 2.5.1 Conducted power measurements ........................................................................................................................... 6 2.5.2 Conducted power measurements GSM 850 MHz..........................................................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2009-12-09 Page 1 of 47 Accredited testing laboratory DAR registration number: DAT-P-176/94-D1 Appendix to test report 1-1065-64-03/09 Calibration data, Phantom certificate and detail information of the DASY4 System CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 2 of 47 Table of Content 1 Calibration report “Probe ET3DV6” .................................................................................................................................... 3 2 Calibration report “900 MHz System validation dipole” ................................................................................................... 12 3 Calibration report “1900 MHz System validation dipole” ................................................................................................. 21 4 Calibration report “2450 MHz System validation dipole” ................................................................................................. 30 5 Calibration certificate of Data Aquisition Unit (DAE) ...................................................................................................... 39 6 Certificate of “SAM Twin Phantom V4.0/V4.0C” ........................................................................................................... 40 7 Application Note System Performance Check ................................................................................................................... 42 2009-12-09 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 3 of 47 1 Calibration report “Probe ET3DV6” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 4 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 5 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 6 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 7 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 8 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 9 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 10 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 11 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 12 of 47 2 Calibration report “900 MHz System validation dipole” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 13 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 14 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 15 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 16 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 17 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 18 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 19 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 20 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 21 of 47 3 Calibration report “1900 MHz System validation dipole” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 22 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 23 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 24 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 25 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 26 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 27 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 28 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 29 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 30 of 47 4 Calibration report “2450 MHz System validation dipole” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 31 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As of 2009-12-09 Page 32 of 47 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 1-1065-64-03/09 As …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Phone: +49 (0) 681-598-0 Fax: -9075 RSC-Laboratory 2009-12-16 Page 1 of 69 Accredited testing-laboratory DAR registration number: DAT-P-176/94-D1 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3462C-1 (IC) Certification ID: DE 0001 Accreditation ID: DE 0002 Accredited Bluetooth ® Test Facility (BQTF) The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license Test report no. : 1-1065-66-06/09-A Type identification : AAD-3880058-BV Applicant : Sony Ericsson Mobile Communications AB FCC ID : PY7A3880058 IC Certification No : 4170B-A3880058 Test standards : 47 CFR Part 15 RSS - 210 Issue 7 CETECOM ICT Services GmbH Test report no.: 1-1065-66-06/09-A 2009-12-16 Page 2 of 69 Table of contents 1 G e n e r a l i n f o r m a t i o n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . …

Text truncated - open the document above for the full version.
