PY7A3880076GSM 850/900/1800/1900 GPRS / EDGE / UMTS FDD1&2&5 / HSPA mobile phone with Bluetooth, WLAN 802.11bg, GPS, FM receiver

Sony Ericsson Vivaz ™ pro User guide Please read the Important information before you use your mobile phone. Experience more. Discover how. Fill it with pop and let it rock. Share your life in pictures. Or why not go online for the latest updates? Your new phone is the key to a wider world. And it’s just around the corner. Get started with this User guide. And join us online to get the full picture. Music, games, apps, updates, downloads, support and more. All in one place: www.sonyericsson.com/Vivazpro Don’t forget to update your phone software. See Updating your phone on page 8. Help in the phone An extended User guide is saved on your phone memory card. You can also access this document at www.sonyericsson.com/support. Help on most applications is available from the Organiser in your phone. To access the extended User guide 1 Select Menu > Organiser > File manager. 2 Select your memory card and then select the User guide pdf file. To view Help when you are in an application • Select Options > Help. 2 Getting started Assembly Before you start using your phone, you need to insert a SIM (Subscriber Identity Module) card and the battery. To insert the SIM card 2 1 1 Remove the battery cover. 2 Put the SIM card into its holder with the gold-coloured contacts facing down. 3 To insert the battery 2 1 2 2 1 1 Insert the battery with the label side up and the connectors facing each other. 2 Put the battery cover into place. Charging the phone The phone battery is partly charged when you buy it. The indicator light is on when you charge the phone. 4 For more information on how the indicator light functions, see the extended User guide. When the battery is completely discharged, it may take several minutes before the indicator light turns on, but the charging function will still be running. 5 To charge the phone using the power adapter • Connect the phone to a power outlet using the USB cable provided and the power adapter. You can use your phone while it is charging. You can charge the battery at any time and for more or less than 3 hours using the power adapter. You can interrupt the charging without damaging the battery. 6 To charge the phone using a computer • Connect the phone to a USB port on a computer using the USB cable provided. Memory card Your phone supports memory cards, adding more storage space to your phone. A memory card used in your phone can also be used with other compatible devices. You can move content between your memory card and the phone memory. To insert or remove a memory card 1 Insert the memory card with the gold-coloured contacts facing down. 2 To release and remove the memory card, press and select Remove memory card, then press the edge of the memory card inwards. 7 Turning on the phone To turn on the phone 1 Press and hold down . 2 Enter your SIM card PIN, if requested, and select OK. 3 The first time you turn on the phone, follow the instructions to use the setup wizard for basic settings and useful tips. Updating your phone You can update your phone to the most recent software for optimal performance and to get the latest enhancements. You need a USB cable and an Internet-connected PC. To learn how, go to www.sonyericsson.com/update. Remember to back up your phone content before updating. To see how to back up your phone content, see the Extended User guide pre-loaded on the memory card. You can also access this document at www.sonyericsson.com/support. 8 Multitasking Your phone lets you view and switch between all running applications. To view running applications 1 Press and hold down the main menu key. 2 To switch to a running application, tap it. Leaving applications running in the background increases the demand on battery power and reduces the battery life. To end a function • In most cases, select Options > Exit. To delete items • In most applications, to delete items such as files, folders, messages, or media files, select an item, and then select Options > Delete. 9 Phone overview 4 1 5 9 6 3 2 7 8 1Light sensor 2Ear speaker 3Connector for USB cable 43.5 mm headset connector 5Slideout keyboard 6Touch screen 7End key 8Main menu key 9Call key 10 10On/off key 10 11 12 13 14 16 15 17 11Tally light 12Camera light 13Camera 14Volume, digital zoom keys 15Video key 16Photo key 17Loud speaker 11 Menu overview* PlayNow™ Internet Applications Radio, TrackID™, Media server, Downl. chat apps, IM, Conv. msgng, Web publishing, Record sound Camera Messaging Media Photo, Music, Video Location services Google Maps, Location, Wisepilot Contacts Calendar Log** Organiser File manager, Clock, RoadSync SonyEricsson Sync Google, Search, Notes, Dictionary, Converter, Calculator, Adobe PDF, Quickoffice, Help Settings Personal Profiles, Themes, Standby Phone Date and time, Language, Display, Download settings, Sensor settings, Touch input, Accessories, Application sett., Phone management 12 Application mgr Installed app., Installation files, Install settings Telephony Call sett., Speed dialling, Voicemail, Divert calls, Call barring Connectivity Network, Wi-Fi, Bluetooth, USB, Destinations, Connection mgr, Data transfer, Remote drives, Admin. settings * Some menus are operator-, network- and subscription-dependent. ** You can use touch functionality to scroll between tabs in submenus. For more information, see Navigation on page 15. Icons on the main menu may change as the theme changes. 13 Status icons Status icons appear at the top of the screen. You can tap status icons to view more information or change settings. Battery fully charged Network signal strength Messages in the outbox GSM available Missed call Handsfree connected Call diverted Text message received New email received Headphone inserted GPS connected Alarm activated Bluetooth™ connected Keylock activated USB data transferring Data synchronising Flight mode activated Secure Wi-Fi™ network connected Wi-Fi™ network connected 14 3G available HSDPA available EGPRS available Navigation You can move through menus with yo…

Text truncated - open the document above for the full version.

Sony Ericsson Confidential 1(1) Prepared by SEMC/CVVALG Afrah Sadiq + 46108012250 Contents responsible if other than preparer Document number CVVA10:147 Date 2010-04-19 Remarks Revision A Approved by SEMC/CWALG Johan Wedin Svensk tel +46 108011987 Receiver: Federal Communication Commission and Certification and Engineering Bureau Industry Canada Application Type number: AAO-3880076-BV, FCC 10: PY7A3880076, Canada IC: 4170B-A3880076 Statement on WLAN hardware Sony Ericsson mobile phone U8a (FCC ID PY7A3880076, IC: 4170B-A3880076) uses the exact same WLAN hardware and software as U8i (FCC ID PY7A3880077, IC: 4170B-A3880077). Based on this, FCC part 15.247 and RSS -210 Issue 7 report (report no. 1-1954-11­ 06/10, dated 2010-03-29) issued for U8i also applies for U8a. Best regards, Sony Ericsson Mobile Communications AS S\yrelsens sate: Lund Momsnr. VAT.No: SE556615665801 Registered office: Lund Organisa\ionsnr • Reg No: 556615-6658 Pos\adress • Mail Bes6ksadress • Office address Telefon • Telephone Telefax • Telefax SE-221 88 Lund Nya Vatlen\orne\ Nat 010-80 00000 Nat 010-80 02040 Sweden Lund Int +46 10 80 00000 Int +46 10 80 02040

Sony Ericsson Confidentiality Request 2010-04-19 CVVA10:141 SEMC/CVVALG Afrah Sadiq +46 10 80 12250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7A3880076 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below listed items for our mobile phone type AAD­ 3880076-BV, FCC 10: PY7A3880076: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AS Styrelsens sate: Lund Momsnr • II.A. T.No: SE556615665801 Registered office: Lund Organisationsnr • Reg No: 556615-6658 Postadress • Mail Besbksadress • Office address Telefon • Telephone Telefax • Telefax SE-221 88 Lund Nya Vattentornet Nat 010-80 00000 Nat 010-80 02040 Sweden Lund Int +46 10 80 00000 Int +46 10 80 02040

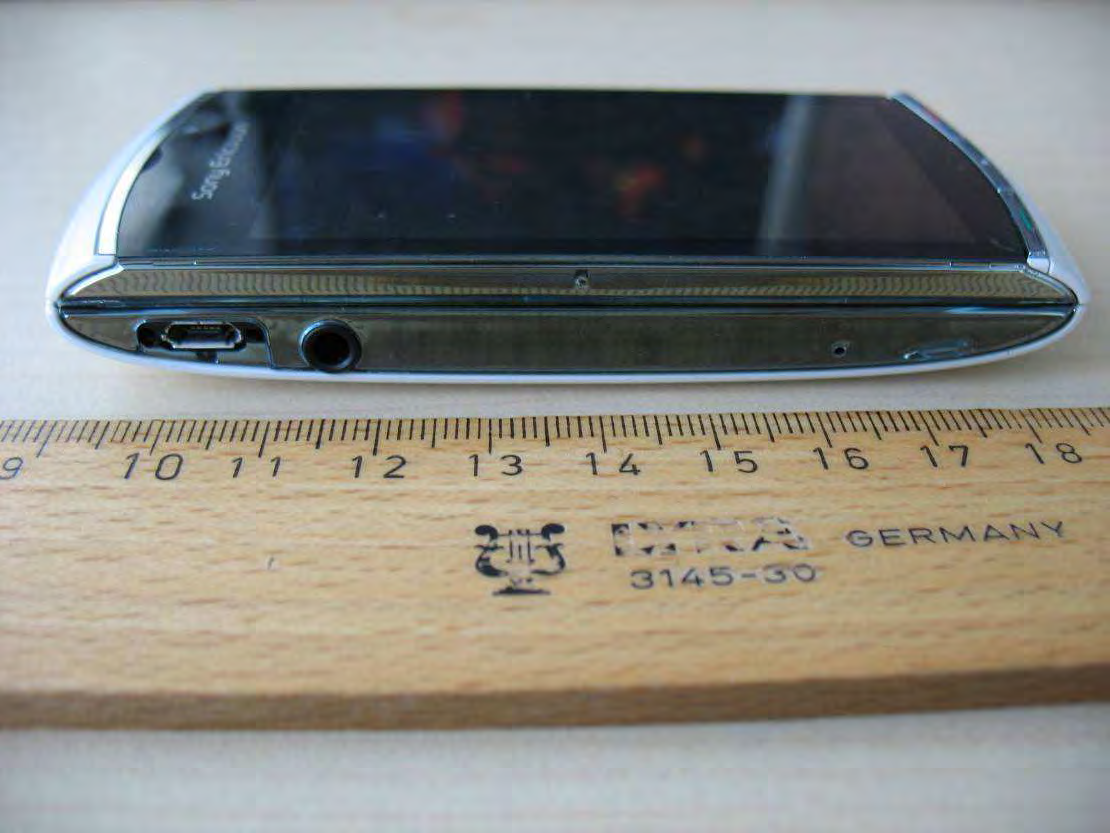

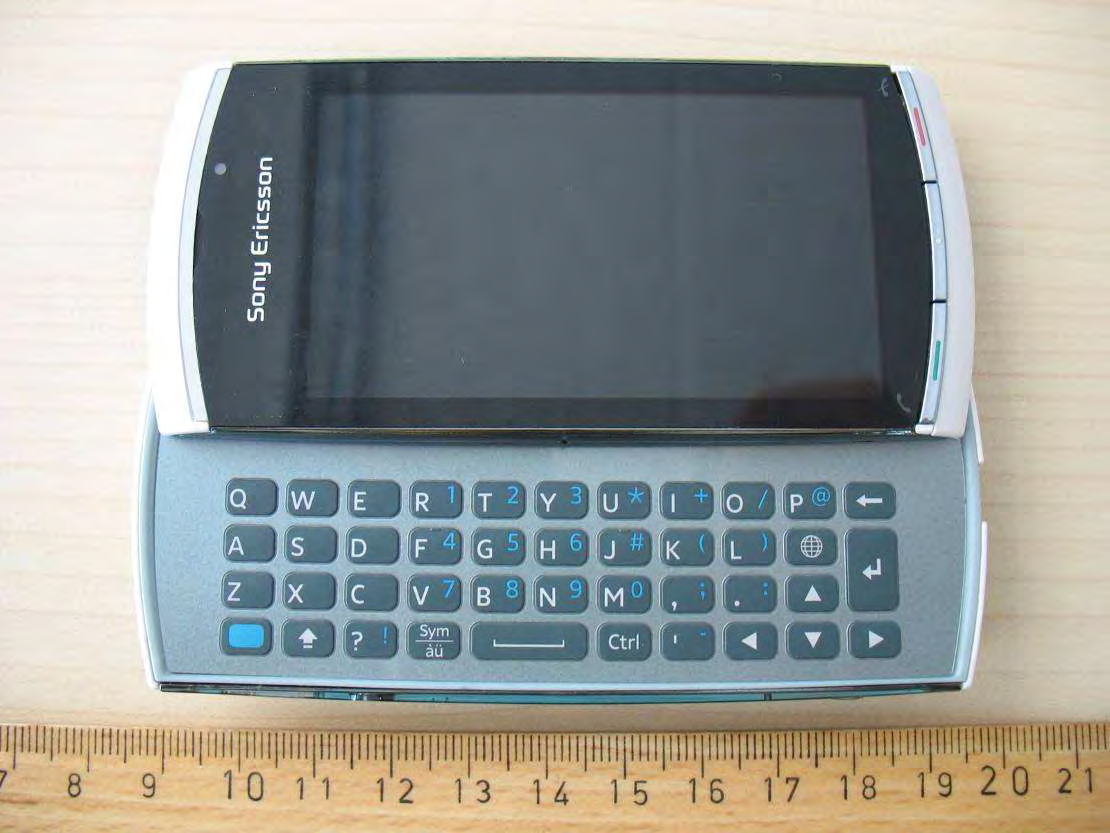

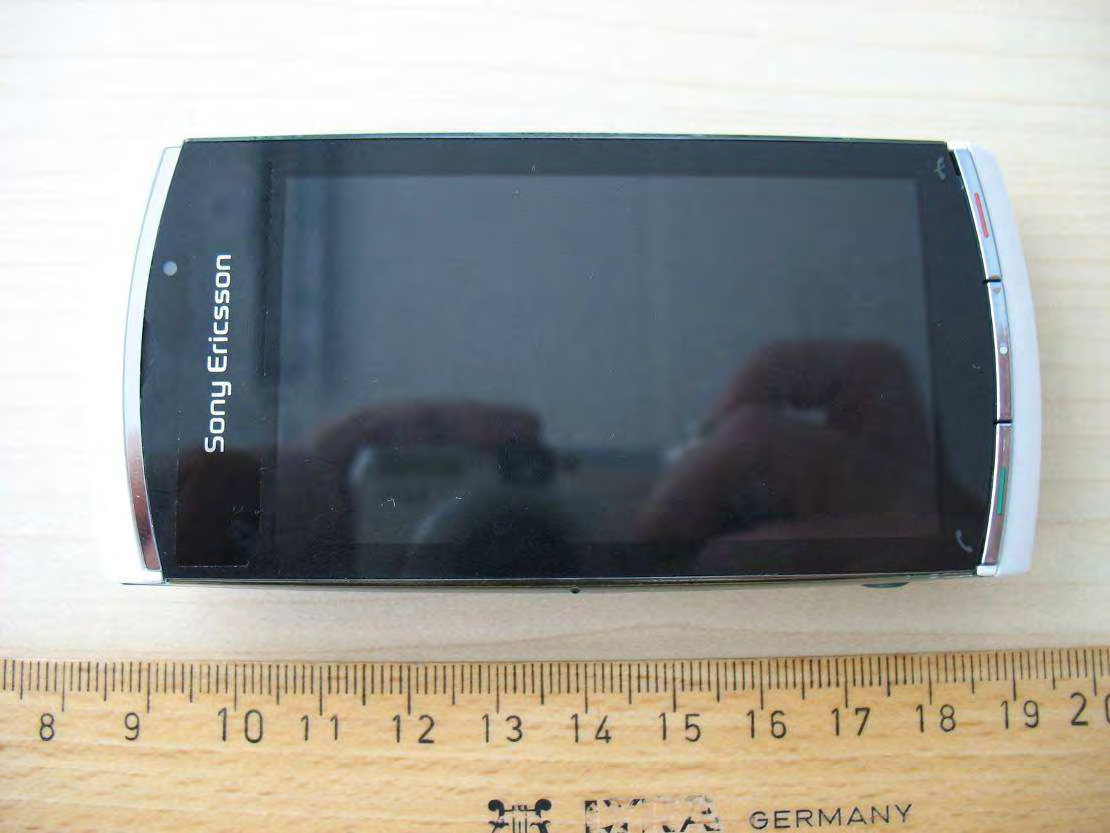

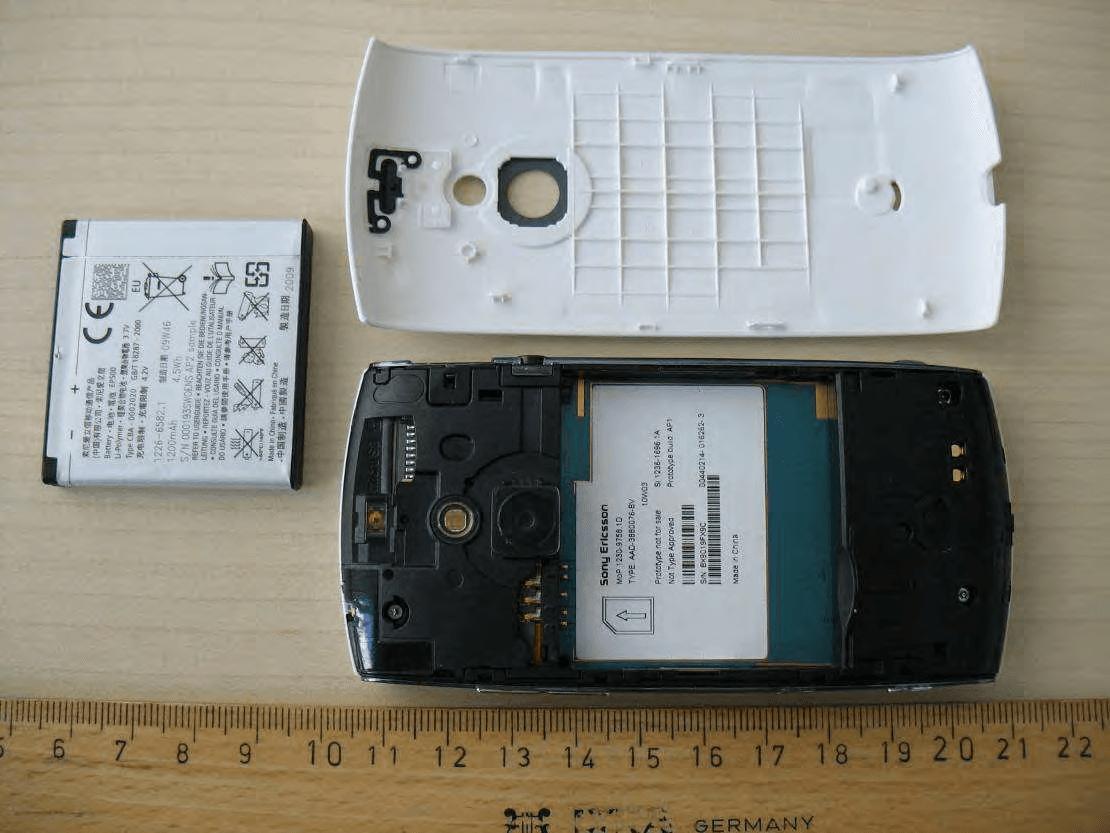

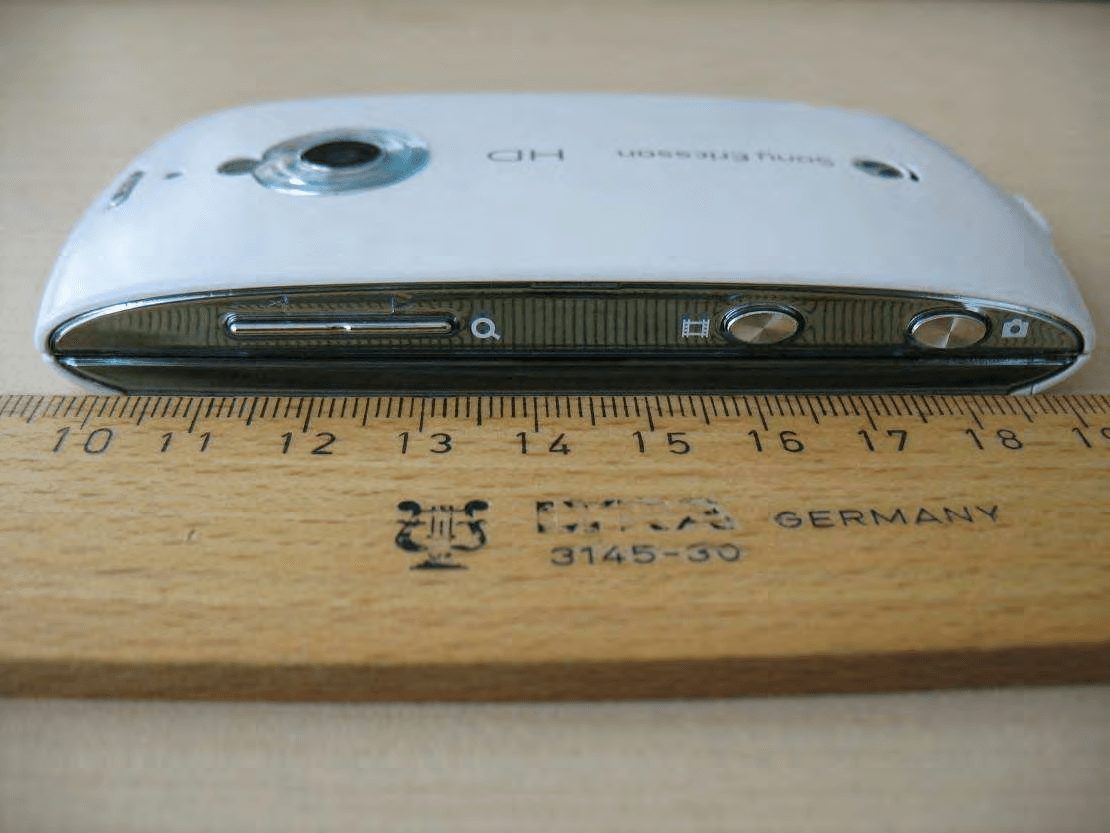

CETECOM ICT Services GmbH Annex to Test report no.: 1-1954-17-02/10 2010-03-24 Page 16 of 24 8 Photographs of t he E UT Photo documentation Photo 4: CETECOM ICT Services GmbH Annex to Test report no.: 1-1954-17-02/10 2010-03-24 Page 17 of 24 Photo 5: Photo 6: Photo 7: CETECOM ICT Services GmbH Annex to Test report no.: 1-1954-17-02/10 2010-03-24 Page 18 of 24 Photo 8: CETECOM ICT Services GmbH Annex to Test report no.: 1-1954-17-02/10 2010-03-24 Page 19 of 24 Photo 9: Photo 10: Photo 11: CETECOM ICT Services GmbH Annex to Test report no.: 1-1954-17-02/10 2010-03-24 Page 20 of 24 Photo 12:

1 (4) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/CVVGP, Leif Hedin 1235-8299 Uen Approved Checked Date Rev Reference SEM/CVVGP, Leif Hedin 2010-03-09 1 2 U8a, Mobile Phone label content, Made in... 1 General information Mobile Phone label part no • 1227-2631 Mobile Phone label content part no • 1235-8298 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1a (5,5/12,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925. Line 1b (2,0/26,0) Model Name “U8a” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2 (7,0/12,0) Product number without revision of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 3a (9,0/12,0) “TYPE: AAD-3880076-BV” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 3b (9,0/28,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under specifying document in product model. Line 4a (11,0/12,0) “FCC ID: PY7A3880076” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 4b (11,0/28,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 5a (13,0/5,0) SIM-card logo Graphics height 5,0mm. According to 1001-6195 document. Line 5b (13,0/12,0) “IC: 4170B-A3880076” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 5c (13,0/28,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 5d (13,0/31,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. 2 (4) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/CVVGP, Leif Hedin 1235-8299 Uen Approved Checked Date Rev Reference SEM/CVVGP, Leif Hedin 2010-03-09 1 2 Line 6 (15,0/12,0) Line 7a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 7a (17,0/12,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 7b (17,0/25,0) Actual electronic serial number (IMEI) of the Mobile Phone, “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 8 (19,0/12,0) Line 7b in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 9a (21,0/2,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. Line 9b (21,0/12,0) Marking of origin. “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. Line 10a (27,0/2,0) CE approval symbol Graphics, height 5 mm. According to 1210-0131. Line 10b (27,0/9,5) The notified body number “0682” Text, height 1,2 mm. Line 10c (27,0/14,0) “Alert Symbol” Graphics, height 5 mm According to 1001-5859 Company Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. SEM/CVVGP, Leif Hedin 1235-8299 Uen Approved Checked Date Rev Reference SEM/CVVGP, Leif Hedin 2010-03-09 1 2 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision. Company Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. SEM/CVVGP, Leif Hedin 1235-8299 Uen Approved Checked Date Rev Reference SEM/CVVGP, Leif Hedin 2010-03-09 1 15 Label placement To find the label follow these steps: 1. Remove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

CETECOM ICT Services GmbH Annex to Test report no.: 1-1954-17-02/10 2010-03-24 Page 21 of 24 Photo 13: Photo 14: Photo 15: CETECOM ICT Services GmbH Annex to Test report no.: 1-1954-17-02/10 2010-03-24 Page 22 of 24 Photo 16: CETECOM ICT Services GmbH Annex to Test report no.: 1-1954-17-02/10 2010-03-24 Page 23 of 24 Photo 17: Photo 18: Photo 19: CETECOM ICT Services GmbH Annex to Test report no.: 1-1954-17-02/10 2010-03-24 Page 24 of 24

FCC ID: PY7A3880076 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 39 0Y1002240312.PY7 02/24/10 - 03/15/10 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone with Bluetooth and WLAN © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/18/2010 Applicant Name: Date of Testing: Sony Ericsson Mobile Communications AB 02/24/10 - 03/15/10 Nya Vattentornet Test Site/Location: Lund PCTEST Lab, Columbia, MD, USA Sweden 22188 Test Report Serial No.: 0Y1002240312.PY7 TYPE NUMBER: FCC ID: IC NO: AAD-3880076-BV PY7A3880076 4170B-A3880076 APPLICANT: SONY ERICSSON MOBILE COMMUNICATIONS AB EUT Type: 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Digital Transmission System (DTS) Model(s): Kanna 125 Tx Frequency: 824.20 - 848.80 MHz (GSM 850) /1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) / 1852.4 - 1907.6 MHz (UMTS II) 2412 - 2462 MHz (WLAN) Conducted Power: 33.6 dBm GSM 850 / 30.6 dBm GSM 1900 23.7 dBm UMTS V / 23.2 dBm UMTS II 18.2 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.58 W/kg GSM 850 Head SAR / 0.97 W/kg GSM 850 Body SAR 1.03 W/kg GSM 1900 Head SAR / 0.54 W/kg GSM 1900 Body SAR 0.67 W/kg UMTS V Head SAR / 0.73 W/kg UMTS V Body SAR 1.28 W/kg UMTS II Head SAR / 0.54 W/kg UMTS II Body SAR 0.48 W/kg 2.4 GHz WLAN Head SAR / 0.1 W/kg 2.4 GHz WLAN Body SAR Test Device SN: Pre-Production [S/N: BX9019JEAK, BX9019FWUN, BX9019FWM3] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: PY7A3880076 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 39 0Y1002240312.PY7 02/24/10 - 03/15/10 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone with Bluetooth and WLAN © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/18/2010 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 16 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 17 12 SYSTEM VERIFICATION .............................................................................................................. 18 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 20 14 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 22 15 SAR DATA SUMMARY ................................................................................................................. 25 16 EQUIPMENT LIST ......................................................................................................................... 32 17 CONCLUSION ............................................................................................................................... 33 18 REFERENCES .............................................................................................................................. 34 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 36 FCC ID: PY7A3880076 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 39 0Y1002240312.PY7 02/24/10 - 03/15/10 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone with Bluetooth and WLAN © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/18/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public …

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: PY7A3880076; Type: 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone with Bluetooth a nd WLAN; Serial: BX9019JEAK Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.889 mho/m; ε r = 40.55; ρ = 1000 kg/m 3 Phantom secti on: Right Section Test Date: 02-26-2010; Ambient Temp: 23.0 ° C ; Tissue Temp: 21.9 ° C Probe: ES3DV2 - SN3022; ConvF(6.04, 6.04, 6.04); Calibrated: 9/18/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 5/14/2009 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 850, Right Head, Touch, High.ch Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.6 V/m Peak SAR (extrapolated) = 0.744 W/kg SAR(1 g) = 0.584 mW/g; SAR(10 g) = 0.427 mW/g 0 dB = 0.645mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PY7A3880076; Type: 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone with Bluetooth and WLAN; Serial: BX9019JEAK Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.875 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom sectio n: Right Section Test Date: 02-26-2010; Ambient Temp: 23.0 ° C ; Tissue Temp: 21.9 ° C Probe: ES3DV2 - SN3022; ConvF(6.04, 6.04, 6.04); Calibrated: 9/18/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 5/14/2009 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 850, Right Head, Tilt, Mid.ch Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Valu e = 20.7 V/m Peak SAR (extrapolated) = 0.465 W/kg SAR(1 g) = 0.359 mW/g; SAR(10 g) = 0.265 mW/g 0 dB = 0.399mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PY7A3880076; Type: 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone with Bluetooth and WLAN; Serial: BX9019JEAK Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.873 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom sectio n: Left Section Test Date: 02-26-2010; Ambient Temp: 23.0 ° C ; Tissue Temp: 21.9 ° C Probe: ES3DV2 - SN3022; ConvF(6.04, 6.04, 6.04); Calibrated: 9/18/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 5/14/2009 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 850, Left Head, Touch, Low.ch Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Valu e = 10.1 V/m Peak SAR (extrapolated) = 0.701 W/kg SAR(1 g) = 0.540 mW/g; SAR(10 g) = 0.390 mW/g 0 dB = 0.597mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PY7A3880076; Type: 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone with Bluetooth a nd WLAN; Serial: BX9019JEAK Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.873 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section : Left Section Test Date: 02-26-2010; Ambient Temp: 23.0 ° C ; Tissue Temp: 21.9 ° C Probe: ES3DV2 - SN3022; ConvF(6.04, 6.04, 6.04); Calibrated: 9/18/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 5/14/2009 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 850, Left Head, Tilt, Low.ch Area Sca n (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.0 V/m Peak SAR (extrapolated) = 0.432 W/kg SAR(1 g) = 0.338 mW/g; SAR(10 g) = 0.250 mW/g 0 dB = 0.375mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PY7A3880076; Type: 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone with Bluetooth and W LAN; Serial: BX901 9FWUN Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom sectio n: Right Section Test Date: 02-24-2010; Ambient Temp: 24.3 ° C ; Tissue Temp: 20.4 ° C Probe: ES3DV3 - SN3209; ConvF(5.1, 5.1, 5.1); Calibrated: 4/15/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 5/25/2009 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 1900, Right Head, Touch, Mid.ch Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Valu e = 23.6 V/m Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.783 mW/g; SAR(10 g) = 0.482 mW/g 0 dB = 0.929mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PY7A3880076; Type: 850/1900 GSM/GPRS/EDGE and II/V UMTS/HSPA Phone w ith Bluetooth and WLAN; Serial: BX901 9FWUN Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom sectio n: Right Section Test Date: 02-24-2010; Ambient Temp: 24.3 ° C ; Tissue Temp: 20.4 ° C Probe: ES3DV3 - SN3209; ConvF(5.1, 5.1, 5.1); Calibrated: 4/15/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 5/25/2009 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 1900, Right Head, Tilt, Mid.ch Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measur…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Phone: +49 (0) 681-598-0 Fax: -9075 RSC-Laboratory 2010-03-29 Page 1 of 102 Accredited testing-laboratory DAR registration number: DGA-PL-176/94-D1 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3462C-1 (IC) Certification ID: DE 0001 Accreditation ID: DE 0002 Accredited Bluetooth ® Test Facility (BQTF) The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license Test report no. : 1-1954-11-06/10 Type identification : AAD-3880077-BV Applicant : Sony Ericsson Mobile Communications AB FCC ID : PY7A3880077 IC Certification No : 4170B-A3880077 Test standards : 47 CFR Part 15 RSS - 210 Issue 7 CETECOM ICT Services GmbH Test report no.: 1-1954-11-06/10 2010-03-29 Page 2 of 102 Table of contents 1 G e n e r a l i n f o r m a t i o n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . 3 1.1 Notes ...................................................................................................................................................................3 1.2 Testing laboratory ...............................................................................................................................................4 1.3 Details of applicant .............................................................................................................................................4 1.4 Application details ..............................................................................................................................................4 2 T e s t s t a n d a r d / s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . 5 3 T e c h n i c a l t e s t s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . 6 3.1 Details of manufacturer .......................................................................................................................................6 3.1.1 Test item......................................................................................................................................................6 3.1.2 Additional EUT information For IC Canada (appendix 2)..........................................................................7 3.1.3 Extreme conditions testing values ...............................................................................................................8 4 S u m m a r y o f M e a s u r e m e n t R e s u l t s a n d l i s t o f a l l p e r fo r m e d t e s t c a s e s . . . . . . . . . . . . . . . . . . . . . . . . . . 9 5 R F m e a s u r e m e n t t e s t i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 1 0 5.1 Description of test set-up..............…

Text truncated - open the document above for the full version.
