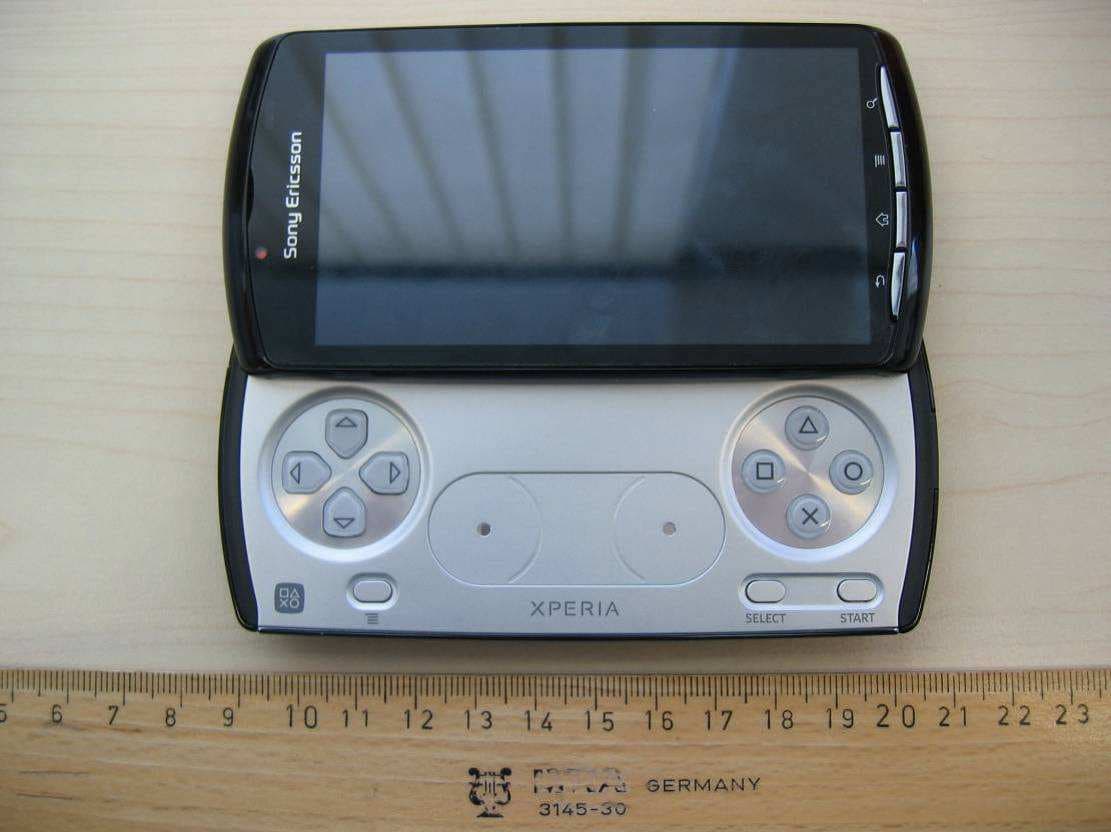

PY7A3880088GSM 850/900/1800/1900 GPRS / EDGE / UMTS FDD1&8 / HSPA mobile phone with Bluetooth, WLAN 802.11bgn, GPS/A-GPS and FM receiver

PLAY Startup guide Sony Ericsson Mobile Communications AB SE-221 88 Lund, Sweden www.sonyericsson.com January 28, 2011 04:16:15 Phone basics Phone overview 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1. Light sensor/Proximity sensor 2. Ear speaker 3. Front camera 4. Directional buttons 5. Headset connector 6. Game menu 7. Joystick 8. Touch pad 9. Connector for charger/USB cable 10. Select key 11. Start key 12. Button 13. Button 14. Button 15. Button 16. Back key 17. Home key 18. Menu key 19. Search key 20. Touch screen Turning on the phone To turn on the phone January 28, 2011 04:16:16 To enter your SIM card PIN code • Tap the numbers on the screen to enter the personal identification number (PIN) for your SIM card. To correct a mistake made while entering your PIN, press . Waking up the screen To activate the screen • Press or press briefly. To unlock the screen • Drag the icon to the right across the screen. Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen from any application or screen • Open a window showing your most recently used applications Menu • Open a list of options available in the current screen or application Search • Shortcut to Google™ Search Using the touch screen To open or highlight an item • Tap the item. January 28, 2011 04:16:16 To scroll • Drag your finger in the direction you want to scroll on the screen. To scroll more quickly, flick your finger in the direction you want to go on the screen. To zoom with two fingers • Place two fingers on the screen at once and pinch them together (to zoom out) or spread them apart (to zoom in). Use the zoom function when viewing photos and maps, or when browsing the web. Typing text To display the keyboard to enter text • Tap a text entry field. Using the keyboard 12:45 3G ,. QW E R T Y U I O P A S DF GH J K L Z X C V B NM 5 71 6432 January 28, 2011 04:16:17 1Change the character case and turn on the caps lock. For some languages, this key is used to access extra characters in the language 2 Close the keyboard view 3 Display numbers and symbols. Touch and hold to display smileys 4 Enter a space 5 Open the input settings menu to change, for example, the Writing languages or Quick text settings 6 Enter a carriage return or confirm text input 7 Delete a character before the cursor To change writing language 1 When you enter text, tap , or touch and hold if you have already selected more than one input language. 2 Tap Writing languages and select the languages you want to use for writing. If you have selected more than one input language, tap to switch between the selected writing languages. To change quick text settings 1 When you enter text, tap , or touch and hold . 2 Tap Quick text settings. 3 Select the desired settings. Gaming To launch the PlayStation® Pocket • From your Home screen, tap , then find and tap PlayStation® Pocket. January 28, 2011 04:16:17 Set up your phone The first time you start your phone, a setup guide explains basic phone functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide 1 From the Home screen, tap . 2 Tap Setup guide. Android™ – what and why? An Android™ phone is based on an open source platform, and is pre-loaded with Google™ services. To make the best out of any provided Google™ services, you should create a Google™ account and sign in to it when you first start your phone. With the account, you can extend the functionality of the phone by downloading applications and games from a constantly growing collection at Android Market™. You need to have Internet access for many of the features in Android. Accounts and services Use online services in your phone. Sign in with your existing account or sign up and create an account. Google™ account Use Gmail™ to send emails, Google Talk™ to chat with friends, and Android Market™ to download applications. Sony Ericsson account Store your phone contacts on a secure Sony Ericsson server, and you'll always have a backup online. You can also store your phone calendar and Internet bookmarks in your Sony Ericsson account. Exchange Active Sync account Synchronize your phone with your corporate Exchange Active Sync account. This way, you keep your work email, contacts and calendar events with you at all times. To add an account 1 From your Home screen, tap . 2 Tap Settings > Accounts & sync > Add account. 3 Tap the account type you want to add and then follow the registration wizard. January 28, 2011 04:16:17 Welcome Digital User guide for the environment As a step toward a more environment-friendly approach we have focused on what you need to get started in this Startup guide, and added a full digital User Guide, one of our GreenHeart™ innovations, in the phone and on our support web. We hope you enjoy our efforts! Important information Please read the Important information leaflet before you use your mobile phone. Assembly To remove the battery cover You may need to press quite firmly when you’re removing the cover. To insert the SIM card and the battery To attach the battery cover January 28, 2011 04:16:16 January 28, 2011 11:21:20 • From your Home screen, slide out the gaming keypad. The PlayStation® Pocket starts automatically. If you don't want the PlayStation® Pocket to start when you slide out gaming keypad, you can disable this option in the PlayStation® Pocket menu. 1237-1153.2 Getting contacts into your phone The first time you open the Phonebook, you get hints on how to start adding contacts to your phone. This is a good time to choose a method that suits your situation and setup. View all import options on www.sonyericsson.com/support/contacts. Example of methods: Synchronize your phone with contacts already stored with an online synchronization service, such as Sony Ericsson Sync or Google Sync™. Import contacts from a SIM card. You may not be able to transfer all i…

Text truncated - open the document above for the full version.

FCC Statement Declaration of Conformity Sony Ericsson R800i UMTS HSPA Band 1 8 GSM GPRS/EDGE 850/900/1800/1900 Important Information United States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the safe and efficient use chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.32 W/kg*, and when worn on the body is 0.31 W/kg* for speech and 1.40 W/kg* for data calls. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate Sony Ericsson accessory and worn on the body. For devices which include “WiFi hotspot” functionality, body-worn SAR measurements for operation of the device operating in WiFi hotspot mode were taken using a separation distance of 10mm. 2 Use of third-party accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PY7A3880088. Additional information on SAR can be found on the Cellular Telecommunications & Internet Association (CTIA) website at http://www.phonefacts.net. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le TAS, reportez-vous au chapitre sur l'utilisation efficace et sans danger du guide de l'utilisateur. Le TAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.32 W/kg* lorsqu'il est testé en utilisation près de l'oreille, et de 0.31 W/kg* pour les appels vocaux et de 1.40 W/kg* pour les transmissions de données lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate 4 avec un accessoire Sony Ericsson et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », en mode d'utilisation porté sur le corps, les mesures du TAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires ti…

Text truncated - open the document above for the full version.

Important information Sony Ericsson Consumer Web site At www.sonyericsson.com/support there is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently. Service and support You have access to a portfolio of exclusive service advantages such as: • Global and local Web sites providing support. • A global network of Contact Centers. • An extensive network of Sony Ericsson service partners. • A warranty period. Learn more about the warranty conditions in theLimited warrantysection. At www.sonyericsson.com/support, you can find the latest support tools and information. For operator-specific services and features, please contact your network operator. You can also contact our Contact Centers. If your country/region is not represented in the list below, please contact your local dealer. (Calls are charged according to national rates, including local taxes, unless the phone number is a toll-free number.) If your product needs service, please contact the dealer from whom it was purchased, or one of our service partners. For warranty claims, save proof of purchase. Guidelines for Safe and Efficient Use Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product checked by a certified service partner before charging or using it. Recommendations for care and safe use of our products • Handle with care and keep in a clean and dust-free place. • Warning! May explode if disposed of in fire. • Do not expose to liquid or moisture or excess humidity. 2 • For optimum performance, the product should not be operated in temperatures below -10°C(+14°F) or above +45°C(+113°F). Do not expose the battery to temperatures above +60°C(+140°F). • Do not expose to flames or lit tobacco products. • Do not drop, throw or try to bend the product. • Do not paint or attempt to disassemble or modify the product. Only Sony Ericsson authorised personnel should perform service. • Consult with authorised medical staff and the instructions of the medical device manufacturer before using the product near pacemakers or other medical devices or equipment. • Discontinue use of electronic devices, or disable the radio transmitting functionality of the device, where required or requested to do so. • Do not use where a potentially explosive atmosphere exists. • Do not place the product, or install wireless equipment, in the area above an air bag in a car. • Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact. • Do not use the Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure. Children Warning! Keep out of the reach of children. Do not allow children to play with mobile phones or accessories. They could hurt themselves or others. Products may contain small parts that could become detached and create a choking hazard. Power supply (Charger) Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When a power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. 3 Use of charging devices that are not Sony Ericsson branded may pose increased safety risks. Battery New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for the intended purpose only. Charge the battery in temperatures between +5°C(+41°F) and +45°C(+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony Ericsson service partners should remove or replace built-in batteries. Use of batteries that are not Sony Ericsson branded may pose increased safety risks. Replace the battery only with another Sony Ericsson battery that has been qualified with the product per the standard IEEE-1725. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. Personal medical devices Mobile phones may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm(6 inches) between the phone and the device. Use the phone at your right ear. Do not carry the phone in your breast pocket. Turn off the phone if you suspect interference. For all medical devices, consult a physician and the manufacturer. Driving Some vehicle manufacturers forbid the use of phones in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with the vehicle manufacturer's representative to be sure that the mobile phone or Bluetooth handsfree will not affect the electronic systems in the vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed. 4 GPS/Location based functions Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony Ericsson does not make any representation or warranty as to the accuracy of such location information. Use of location-based information by the device may not be uninterrupted or error free and may additionally be dependent on network service availability. Please note that functionality may be reduced or prevented in certain environments such as building interiors or areas adjacent to buildings. Caution: Do not use GPS functionality in a manner which causes distraction from d…

Text truncated - open the document above for the full version.

Sony Ericsson Confidentiality Request 2011-02-17 CVDVBA 11 :025 SEMC/CVDVBA Afrah Sadiq +46 108012250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A3880088 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AS requests confidentiality for the below listed items for our mobile phone type AAD­ 3880088-BV, FCC 10: PY7A3880088: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AS considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AS also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, .-::---~-== ~ Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AS Styrelsens sate: Lund Momsnr· II.A. T.No: SE556615665801 Registered office: Lund Organisationsnr. Reg No: 556615-6658 Postadress • Mail Besoksadress • Office address Telefon • Telephone Telefax • Telefax SE-221 88 Lund Nya Vattentornet Nat 010-8000000 Nat 010-8002040 Sweden Lund Int +46 10 80 00000 Int +46 1080 02040

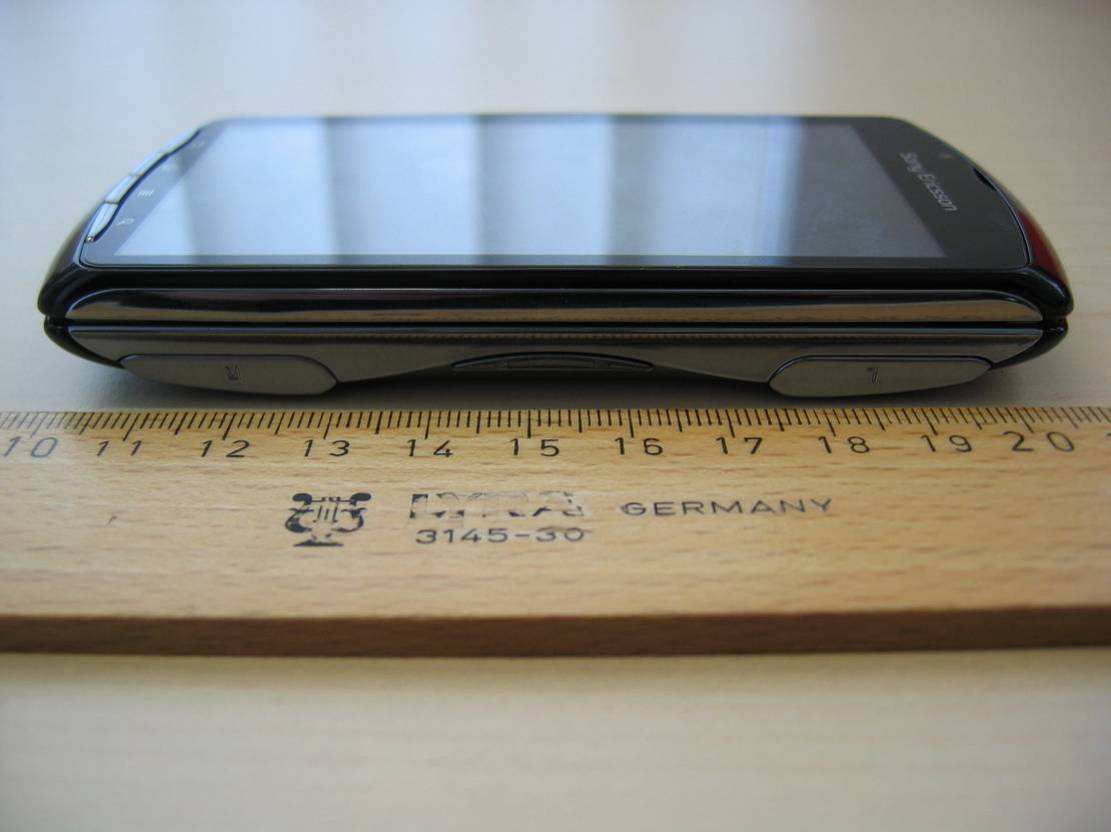

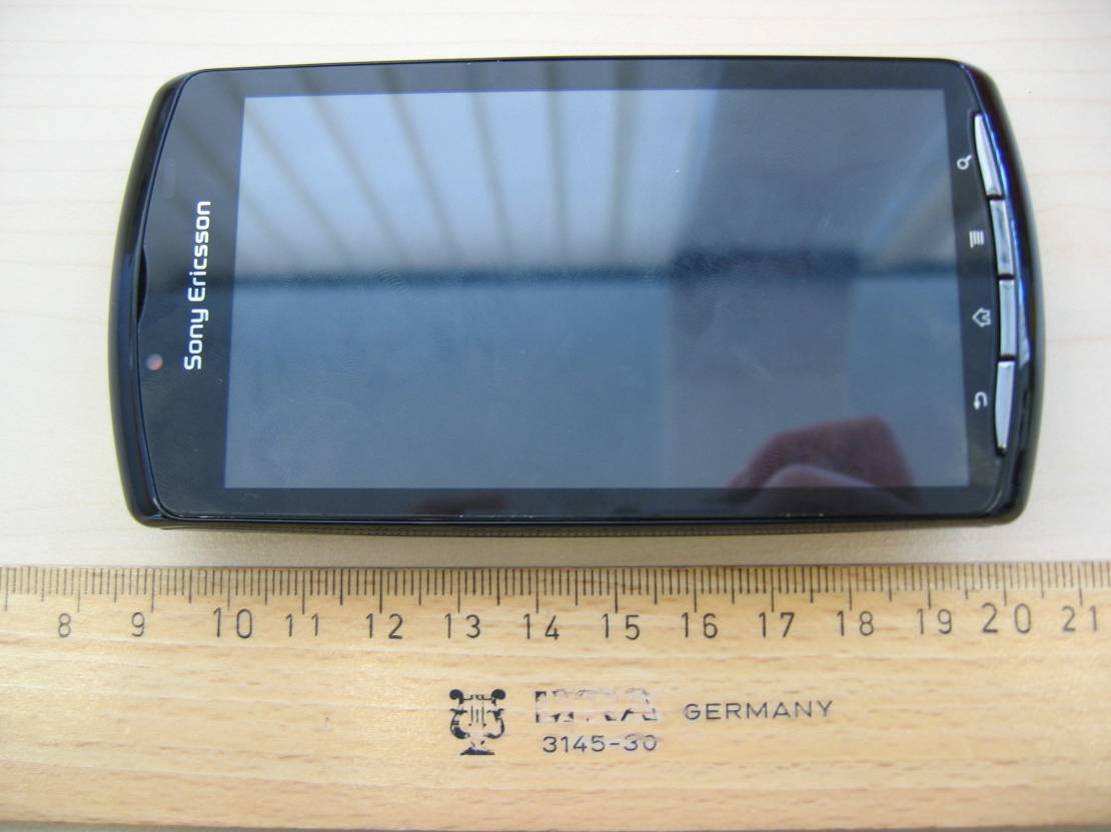

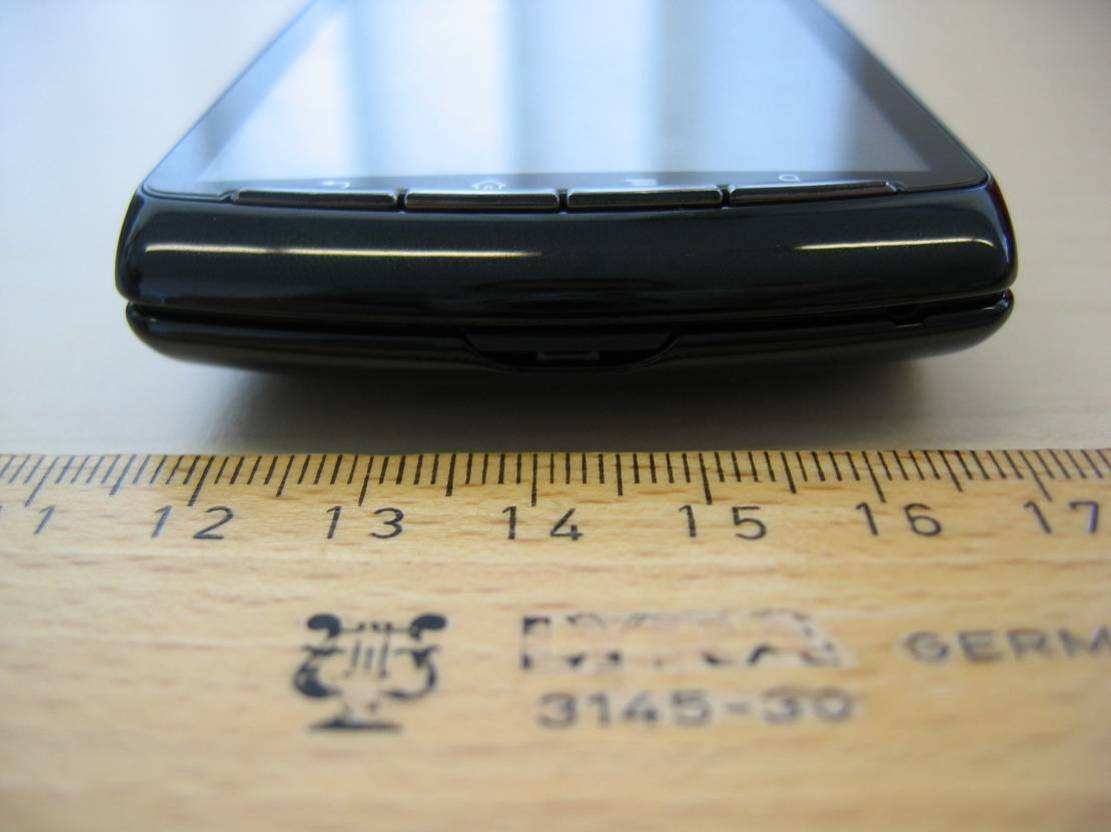

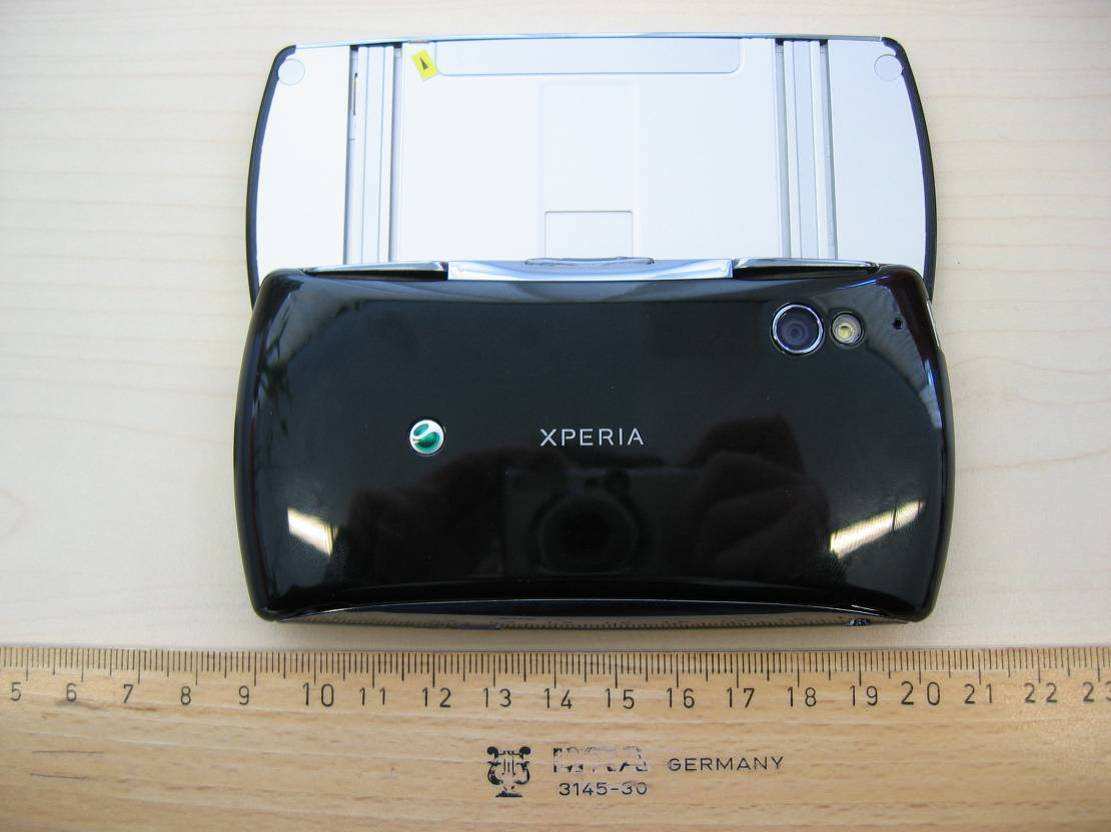

Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 18 of 29 An ne x B E x te rna l ph ot ogra phs o f the E UT Photo documentation Photo 4: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 19 of 29 Photo 5: Photo 6: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 20 of 29 Photo 7: Photo 8: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 21 of 29 Photo 9: Photo 10:

1 ( 3) Company Internal MARKING DRAWI NG Prepared (also subject responsible if other) No. SEM/CVVGP, Anna Englund 1237-0954 Uen Approved Checked Date Rev Reference SEM/CVVGP, Anna Englund 2010-12-02 1 7 R800i, Mobile Phone label, ROW, made in... 1 General information Mobile Phone label part no  1233-5697 Mobile Phone label content part no  1237-0953 Bar code  Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen  Quiet zone: No bar codes are allowed to be closer to a label edge than 4 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1a (7,0/6,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925 Line 1b (7,0/24,0) Model Name “R800i” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2a (14,0/6,0) Product number of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 2b (14,0/24,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 3a (18,0/6,0) “TYPE: AAD-3880088-BV” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 3b (18,0/24,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Documents Line 4a (20,0/6,0) ”FCC ID: PY7A3880088” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 4b (20,0/24,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 5a (22,0/6,0) “IC: 4170B-A3880088” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 5b (22,0/24,0) Repair week, if applicable. “Ryy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 6 (28,0/6,0) Line 6 in bar code, according to line 7a. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Company Internal MARKING DRAWING 2 ( 3) Prepared (also subject responsible if other) No. SEM/CVVGP, Anna Englund 1237-0954 Uen Approved Checked Date Rev Reference SEM/CVVGP, Anna Englund 2010-12-02 1 7 Line 7a (30,0/6,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,5 mm. Defined by supplier. Line 7b (30,0/20,0) Actual electronic serial number (IMEI) of the mobile phone, “00000000-000000-0” Text, height 1,5mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 8 (33,06,0) Line 8 in bar code, according to line 7b. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 9a (47,0/4,0) CE approval symbol, the NB-“0682” and “Alert Symbol” in one artwork Graphics, height 5 mm. According to 1242-7470 Line 9b (47,0/33,5) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. Line 10 (54,0/9,0) A circle shaped hole in the drawing, already made in the label material Ø=5 mm Line 11 (58,0/3,0) Marking of origin; “Made in Xxx” “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision. Confidential MARKING DRAWING 3(3) Document number Revision 1237-0954 Uen 1 Prepared by Date SEM/CVVGP, Anna Englund 2010-12-02 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CVVGP, Anna Englund Note: Any hard copy of this document is for reference only. Due to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Label placement To find the label follow these steps: 1. Remove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 22 of 29 An ne x C Inte r na l p ho to gra phs o f the E UT Photo documentation Photo 11: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 23 of 29 Photo 12: Photo 13: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 24 of 29 Photo 14: Photo 15: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 25 of 29 Photo 16: Photo 17: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 26 of 29 Photo 18: Photo 19: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 27 of 29 Photo 20: Photo 21: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 28 of 29 Photo 22: Photo 23: Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 29 of 29 An ne x D Doc u me n t his to r y Version Applied changes Date of release 1.0 Initial release 2011-02-02 An ne x E Fur the r in for ma ti o n Glossary DUT - Device under Test EMC - Electromagnetic Compatibility EUT - Equipment under Test FCC - Federal Communication Commission FCC ID - Company Identifier at FCC HW - Hardware IC - Industry Canada Inv. No. - Inventory number N/A - not applicable S/N - Serial Number SW - Software

2011-02-02 Page 1 of 29 TEST REPORT Annex to Test Report No.: 1-2977-06-02/11 Testing Laboratory Applicant CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom-ict.de e-mail: [email protected] Accredited Test Laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAR registration number: DGA-PL-176/94-D1 Area of Testing: Radio Satellite Communications Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/Sweden Phone: +46 46 19 30 00 Fax: +46 46 19 32 95 Contact: Johan Wedin e-mail: [email protected] Phone: +46 70 71 95 73 6 Manufacturer Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/Sweden Test Standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices ICES-003 Issue 4 Spectrum Management and Telecommunications Policy Interference-Causing Equipment Standard For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Mobile Phone GSM/EDGE 850,900,1800,1900; UMTS FDD1, FDD8; BT2.1+EDR; WLAN; A-GPS; FM Rx Model name: AAD-3880088-BV FCC ID: PY7A3880088 IC: 4170B-A3880088 Frequency [MHz]: 824.2 – 848.8 MHz, 1850.2 – 1909.8 MHz Power supply: 3.60V DC by Li-Polymer Battery Temperature range: -30 °C to 60 °C Test performed: Test Report authorised: 2011-02-02 Jakob Reschke 2011-02-02 Stefan Bös Annex to Test Report No.: 1-2977-06-02/11 2011-02-02 Page 2 of 29 1 Table of contents 1 Table of contents............................................................................................................................................2 2 General Information .......................................................................................................................................3 2.1 Notes.....................................................................................................................................................3 2.2 Application details...............................................................................................................................3 3 Test standard/s ...............................................................................................................................................3 4 Test Environment ...........................................................................................................................................3 5 Test item ..........................................................................................................................................................4 6 Test Laboratories sub-contracted ................................................................................................................4 7 Summary of Measurement Results ..............................................................................................................5 7.1 Receiver................................................................................................................................................5 8 Measurement Results ....................................................................................................................................6 8.1 RX Spurious Emissions Conducted < 30 MHz .................................................................................6 8.2 Spurious Emissions Radiated – Receiver Mode ..............................................................................9 9 Test equipment and ancillaries used for tests ..........................................................................................14 Annex A Photographs of the test setup ......................................................................................................16 Annex B External photographs of the EUT.................................................................................................18 Annex C Internal …

Text truncated - open the document above for the full version.
