PY7A3880101GSM/GRPS/EGPRS/WCDMA/HSPA/WLAN/BT Mobile Phone

Neo Startup guide Sony Ericsson Mobile Communications AB SE-221 88 Lund, Sweden www.sonyericsson.com January 28, 2011 02:47:31 1245-7089.1 Phone basics Phone overview 1 9 13 2 4 3 12 11 10 5 6 7 8 January 28, 2011 02:47:32 1. HDMI connector 2. Connector for charger/USB cable 3. Headset connector 4. Ear speaker 5. Light sensor 6. Front camera 7. Proximity sensor 1 8. Proximity sensor 2 9. Touch screen 10. Menu key 11. Home key 12. Back key 13. Main microphone 14. Power key/Screen lock 15. Notification LED/ Battery status 16. Camera LED flash 17. Camera lens 18. Volume key/Zoom key 19. Camera key 20. Speaker 21. Second microphone Turning on the phone To turn on the phone To enter your SIM card PIN code • Tap the numbers on the screen to enter the personal identification number (PIN) for your SIM card. To correct a mistake made while entering your PIN, press . Waking up the screen To activate the screen • Press or press briefly. To unlock the screen • Drag the icon to the right across the screen. The keys January 28, 2011 02:47:32 Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen or to the Application screen from any application or screen • Open a window showing your most recently used applications Menu • Open a list of options available in the current screen or application Using the touch screen To open or highlight an item • Tap the item. To scroll • Drag your finger in the direction you want to scroll on the screen. To scroll more quickly, flick your finger in the direction you want to go on the screen. To zoom with two fingers • Place two fingers on the screen at once and pinch them together (to zoom out) or spread them apart (to zoom in). Use the zoom function when viewing photos and maps, or when browsing the web. January 28, 2011 02:47:32 Typing text To display the keyboard to enter text • Tap a text entry field. Using the keyboard 12:45 3G ,. QW E R T Y U I O P A S DF GH J K L Z X C V B NM 5 71 6432 1Change the character case and turn on the caps lock. For some languages, this key is used to access extra characters in the language 2Close the keyboard view 3Display numbers and symbols. Touch and hold to display smileys 4Enter a space 5Open the input settings menu to change, for example, the Writing languages or Quick text settings 6Enter a carriage return or confirm text input 7Delete a character before the cursor January 28, 2011 02:47:32 Set up your phone The first time you start your phone, a setup guide explains basic phone functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide 1 From the Home screen, tap . 2 Tap Setup guide. Android™ – what and why? An Android™ phone is based on an open source platform, and is pre-loaded with Google™ services. To make the best out of any provided Google™ services, you should create a Google™ account and sign in to it when you first start your phone. With the account, you can extend the functionality of the phone by downloading applications and games from a constantly growing collection at Android Market™. You need to have Internet access for many of the features in Android. Accounts and services Use online services in your phone. Sign in with your existing account or sign up and create an account. Google™ account Use Gmail™ to send emails, Google Talk™ to chat with friends, and Android Market™ to download applications. Sony Ericsson account Store your phone contacts on a secure Sony Ericsson server, and you'll always have a backup online. You can also store your phone calendar and Internet bookmarks in your Sony Ericsson account. Exchange Active Sync account Synchronise your phone with your corporate Exchange Active Sync account. This way, you keep your work email, contacts and calendar events with you at all times. To add an account 1 From your Home screen, tap . 2 Tap Settings > Accounts & sync > Add account. 3 Tap the account type you want to add and then follow the registration wizard. January 28, 2011 02:47:32 Welcome Digital User guide for the environment As a step towards a more environment-friendly approach we have focused on what you need to get started in this Startup guide, and added a full digital User Guide, one of our GreenHeart™ innovations, in the phone and on our support web. We hope you enjoy our efforts! Important information Please read the Important information leaflet before you use your mobile phone. Assembly To remove the battery cover You may need to press quite firmly when you’re removing the cover. To insert the SIM card and the battery To attach the battery cover January 28, 2011 02:47:32 January 28, 2011 04:04:14 14 15 16 17 18 21 19 20 Getting contacts into your phone The first time you open the Phonebook, you get hints on how to start adding contacts to your phone. This is a good time to choose a method that suits your situation and setup. View all import options on www.sonyericsson.com/support/contacts. Example of methods: Synchronise your phone with contacts already stored with an online synchronisation service, such as Sony Ericsson Sync or Google Sync™. Import contacts from a SIM card. You may not be able to transfer all information from one phone to another using this method because of limited memory on the SIM card. The online synchronisation method works best for most users. This way, you always have a backup online. To synchronise your phone contacts with a synchronisation account 1 From your Home screen, tap , then tap Phonebook. 2 Press , then tap Settings > Accounts & sync. 3 To set up a synchronisation account, tap Add account and follow the on-screen instructions. If you have already set up a synchronisation account and you want to sync with that account, tap the account, press , and tap Sync now. To import contacts from a SIM card 1 From your Home screen, tap , then tap Phonebook. 2 Press , then tap Import contacts > SIM card. 3 If you …

Text truncated - open the document above for the full version.

Sony Ericsson Confidentiality Request 2011-03-13 CVDVBA11 :092 SEMC/CVDVBA Afrah Sadiq +46 108012250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A3880101 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AS requests confidentiality for the below listed items for our mobile phone type AAD­ 3880101-BV, FCC 10: PY7A3880101: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AS considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AS also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, :7 Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AS Styrelsens sate: Lund Momsnr· II.A. INo: SE556615665801 Registered office: Lund Organisationsnr • Reg No: 556615-6658 Postadress • Mail Besoksadress • Office address Telelon • Telephone Telelax • Telelax SE-221 88 Lund Nya Vattentornet Nat 010-80 00000 Nat 010-80 02040 Sweden Lund Int +46 10 80 00000 Int +46 10 80 02040

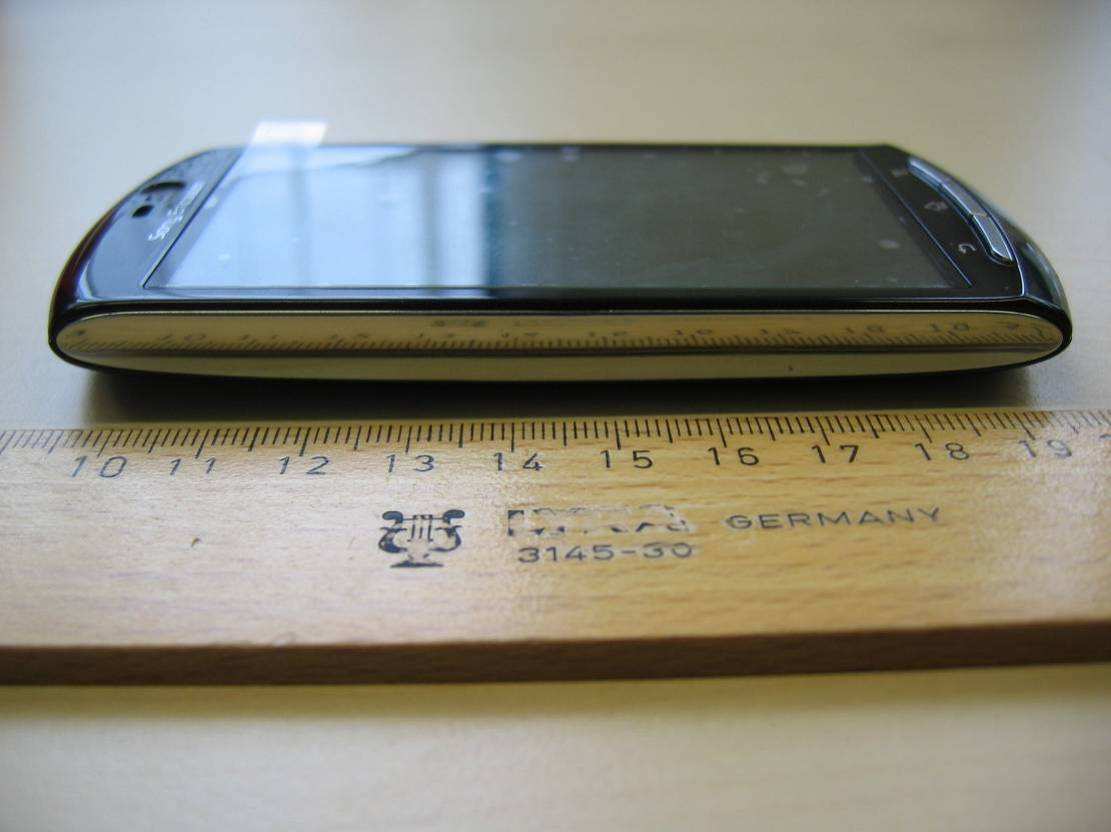

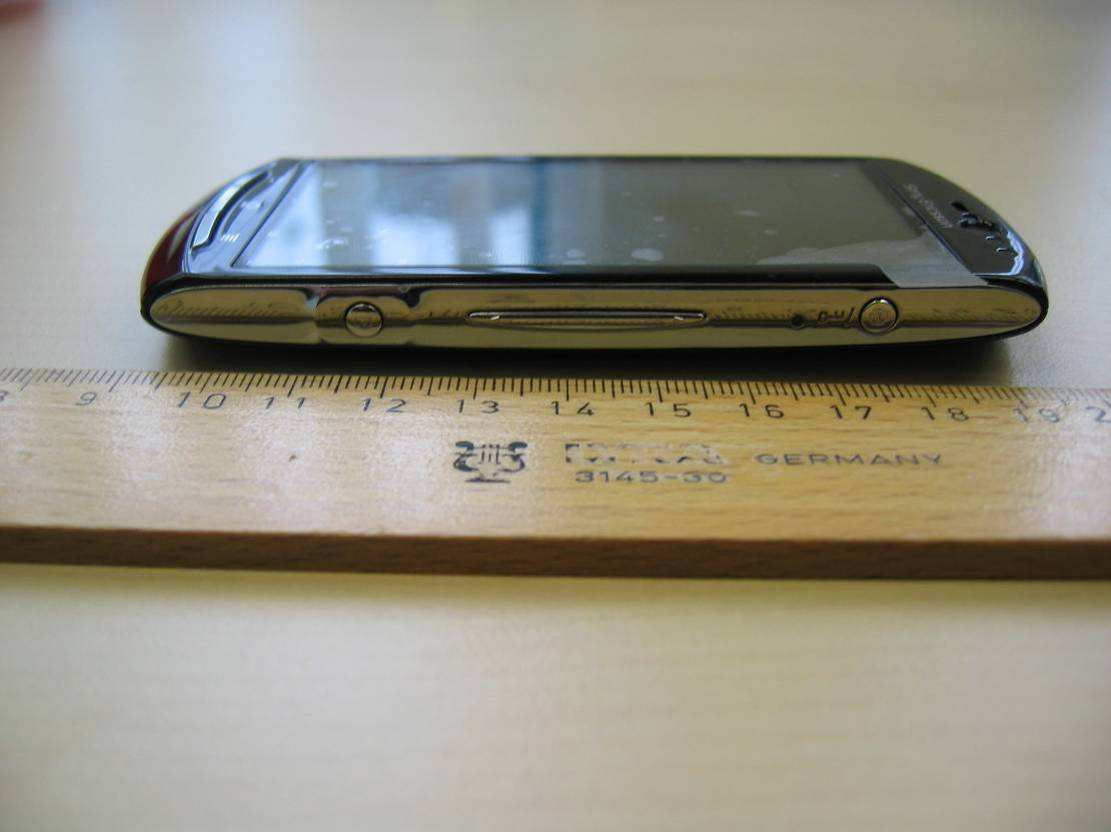

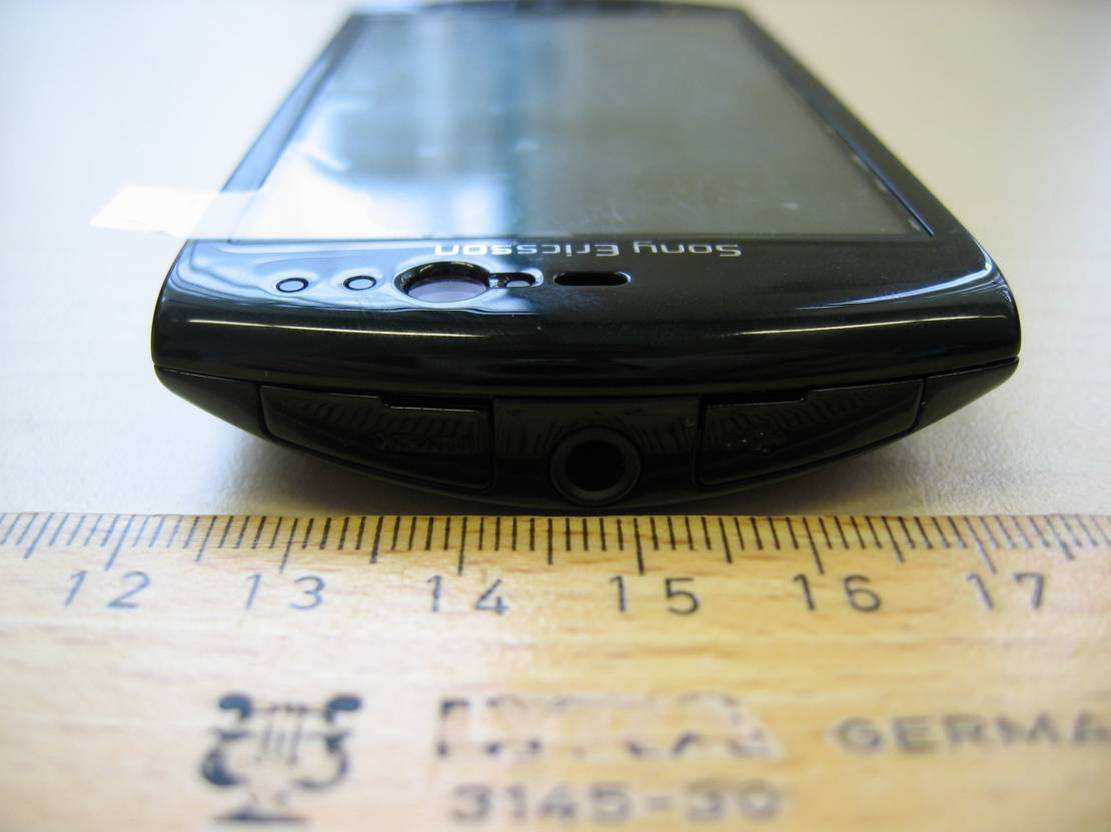

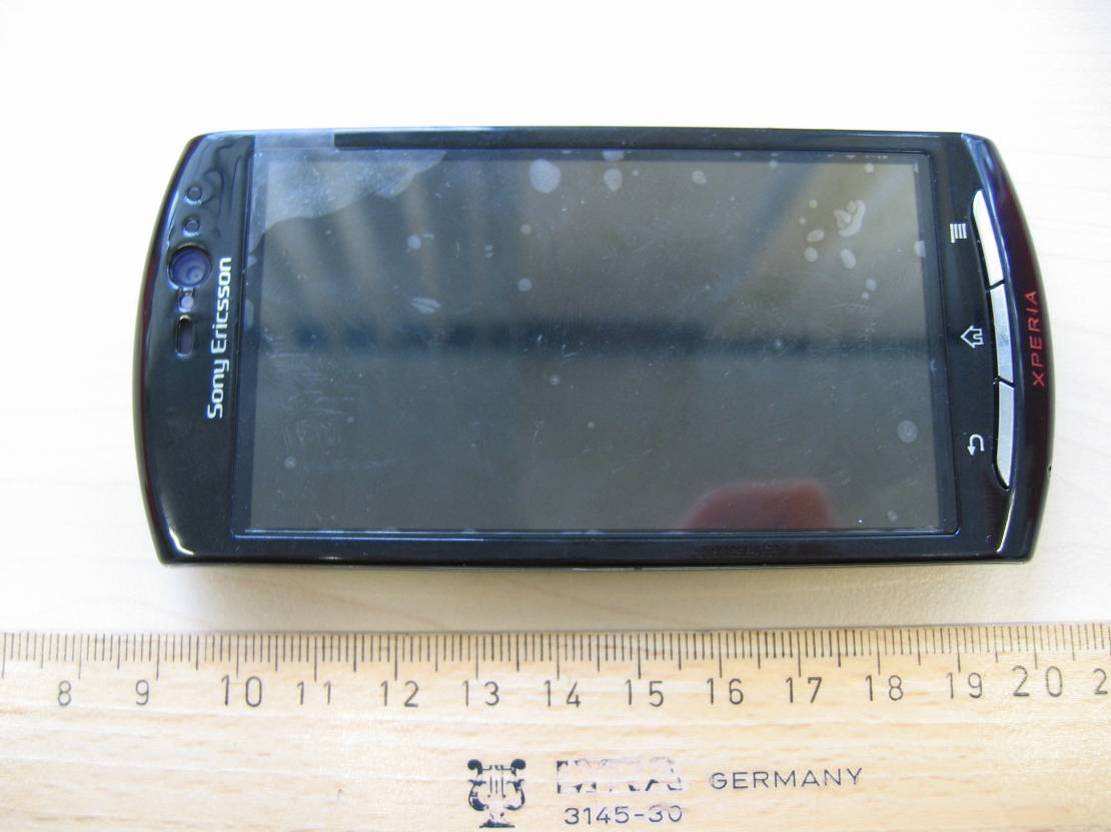

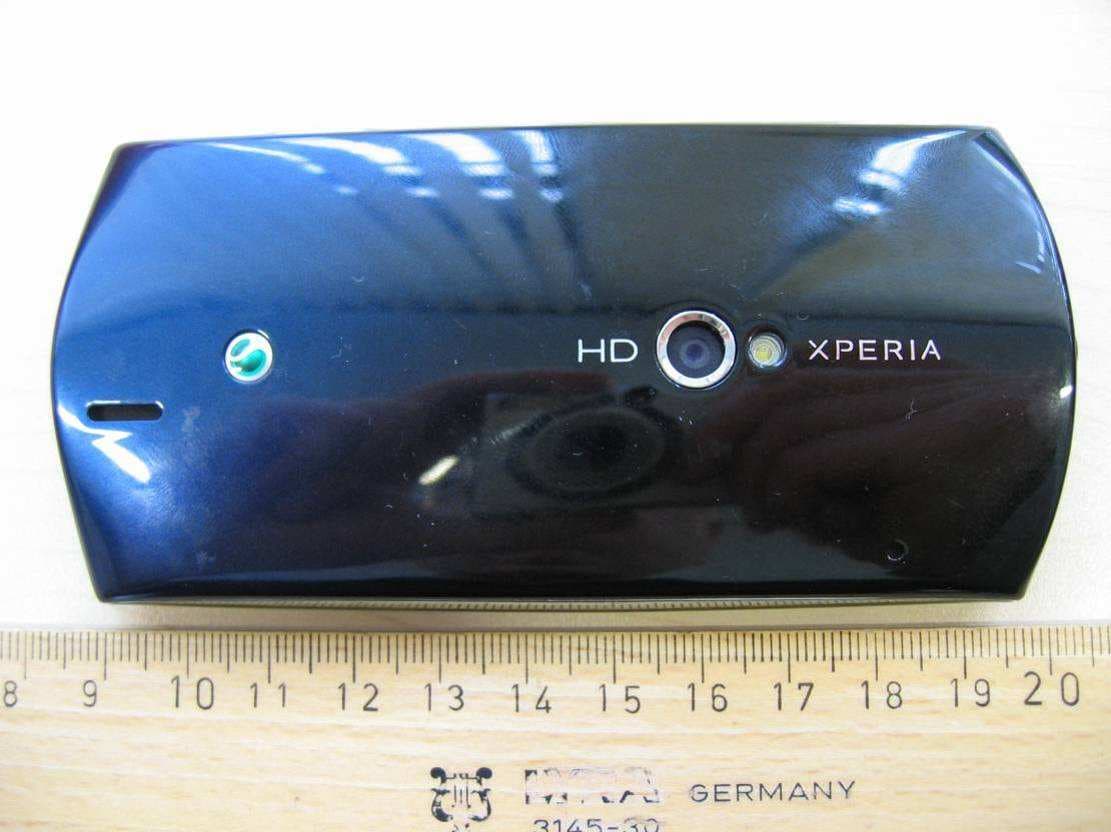

Annex to Test Report No.: 1-1954-57-02/10 2011-02-15 Page 18 of 29 An ne x B E x te rna l ph ot ogra phs o f the E UT Photo documentation Photo 3: Annex to Test Report No.: 1-1954-57-02/10 2011-02-15 Page 19 of 29 Photo 4: Photo 5: Annex to Test Report No.: 1-1954-57-02/10 2011-02-15 Page 20 of 29 Photo 6: Photo 7: Annex to Test Report No.: 1-1954-57-02/10 2011-02-15 Page 21 of 29 Photo 8:

1 (2) Comp any Internal MARKING DR AWING Prepared (also subject responsible if other) No. SEM/CVVGP, Anna Englund 1245-6334 Uen Approved Checked Date Rev Reference SEM/CVVGP, Anna Englund 2010-12-28 1 4 MT15a, Mobile Phone label, a-version, made in... 1 General information Mobile Phone label part no  1240-9989 Mobile Phone label content part no  1245-6363 Bar code  Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen  Quiet zone: No bar codes are allowed to be closer to a label edge than 4 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1 (10,0/9,5) SIM-card logo Graphics height 7,0mm acc to 1001-6195 Line 2a (13,0/3,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925 Line 2b (13,0/21,0) Model Name “MT15a” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 3a (15,0/3,0) Product number of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 3b (15,0/21,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 4a (21,0/3,0) “TYPE: AAD-3880101-BV” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 4b (21,0/21,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Documents Line 5a (23,0/3,0) ”FCC ID: PY7A3880101” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 5b (23,0/21,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 6a (25,0/3,0) “IC: 4170B-A3880101” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 6b (25,0/21,0) Repair week, if applicable. “Ryy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Company Internal MARKING DRAWING 2 (2) Prepared (also subject responsible if other) No. SEM/CVVGP, Anna Englund 1245-6334 Uen Approved Checked Date Rev Reference SEM/CVVGP, Anna Englund 2010-12-28 1 4 Line 7 (30,0/4,0) Line 7 in bar code, according to line 8a. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 8a (32,0/4,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,5 mm. Defined by supplier. Line 8b (32,0/18,0) Actual electronic serial number (IMEI) of the mobile phone, “00000000-000000-0” Text, height 1,5mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 9 (35,0/4,0) Line 8 in bar code, according to line 7b. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 10a (41,0/3,0) CE approval symbol, the NB-“0682” and “Alert Symbol” in one artwork Graphics, height 5 mm. According to 1242-7470 Line 10b (41,0/37,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. Line 11 (45,0/3,0) Marking of origin; “Made in Xxx” “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision. Confidential MARKING DRAWING 1(1) Document number Revision 1245-6334 Uen C Prepared by Date 2010-12-28 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by Note: Any hard copy of this document is for reference only. Due to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Label placement To find the label follow these steps: 1. Remove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

Test report no.: 1-1954-56-04/10 2011-02-18 Page 71 of 76 An ne x C Inte r na l p ho to gra phs o f the E UT Photo 1: Photo 2: Test report no.: 1-1954-56-04/10 2011-02-18 Page 72 of 76 Photo 3: Photo 4: Test report no.: 1-1954-56-04/10 2011-02-18 Page 73 of 76 Photo 5: Photo 6: Test report no.: 1-1954-56-04/10 2011-02-18 Page 74 of 76 Photo 7: Photo 8: Test report no.: 1-1954-56-04/10 2011-02-18 Page 75 of 76 Photo 9: Photo 9: Test report no.: 1-1954-56-04/10 2011-02-18 Page 76 of 76 Photo 11: An ne x D Doc u me n t his to r y Version Applied changes Date of release 1.0 Initial release 2011-02-18 An ne x E Fur the r in for ma ti o n Glossary DUT - Device under Test EMC - Electromagnetic Compatibility EUT - Equipment under Test FCC - Federal Communication Com mission FCC ID - Company Identifier at FCC H W - Hardware IC - Industry Canada Inv. No. - Inventory number N/A - not applicable S/N - Serial Number S W - Software

2011-02-15 Page 1 of 29 TEST REPORT Annex to Test Report No.: 1-1954-57-02/10 Testing Laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom-ict.de e-mail: [email protected] Accredited Test Laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAR registration number: DGA-PL-176/94-D1 Area of Testing: Radio Satellite Communications Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/Sweden Phone: +46 46 19 30 00 Fax: +46 46 19 32 95 Contact: Johan Wedin e-mail: [email protected] Phone: +46 70 71 95 73 6 Manufacturer Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/Sweden Test Standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices ICES-003 Issue 4 Spectrum Management and Telecommunications Policy Interference-Causing Equipment Standard For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Mobile Phone GSM/EDGE 850,900,1800,1900; UMTS FDD1, FDD2, FDD5; BT2.1+EDR; WLAN; A-GPS Model name: AAD-3880101-BV FCC ID: PY7A3880101 IC: 4170B-A3880101 Frequency [MHz]: 824.2 – 848.8 MHz, 1850.2 – 1909.8 MHz Power supply: 3.70 V DC by Li-Ion Battery (BA700) and Power Supply Temperature range: -30 °C to 60 °C Test performed: Test Report authorised: 2011-02-15 Jakob Reschke 2011-02-15 Stefan Bös Annex to Test Report No.: 1-1954-57-02/10 2011-02-15 Page 2 of 29 1 Table of contents 1 Table of contents............................................................................................................................................2 2 General Information .......................................................................................................................................3 2.1 Notes.....................................................................................................................................................3 2.2 Application details...............................................................................................................................3 3 Test standard/s ...............................................................................................................................................3 4 Test Environment ...........................................................................................................................................3 5 Test item ..........................................................................................................................................................4 6 Test Laboratories sub-contracted ................................................................................................................4 7 Summary of Measurement Results ..............................................................................................................5 7.1 Receiver................................................................................................................................................5 8 Measurement Results ....................................................................................................................................6 8.1 RX Spurious Emissions Conducted < 30 MHz .................................................................................6 8.2 Spurious Emissions Radiated – Receiver Mode ..............................................................................9 9 Test equipment and ancillaries used for tests ..........................................................................................14 Annex A Photographs of the test setup ......................................................................................................16 Annex B External photographs of the EUT.................................................................................................18 Annex C Internal photographs of the EUT ..................................................................................................22 Annex D Document history ..........................................................................................................................29 Annex E Further information........................................................................................................................29 Annex to Test Report No.: 1-1954-57-02/10 2011-02-15 Page 3 of 29 2 General Information 2.1 Notes The test results of this test report relate exclusively to the test item specified in this test report. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CETECOM ICT Services GmbH. 2.2 Application details Date of receipt of order: 2010-11-29 Date of receipt of test item: 2011-01-31 Start of test: 2011-01-31 End of test: 2011-02-15 Person(s) present during the test: -/- 3 Test standard/s Test Standard Version Test Standard Description 47 CFR Part 15 2009-10 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices ICES-003 Issue 4 2004-04 Spectrum Management and Telecommunications Policy Interference-Causing Equipment Standard 4 Test Environment Temperature: T nom T max T min 23 °C during room temperature tests 60 °C during high temperature test -30 °C during low temperature test Relative humidity content: 40 % Air pressure: not relevant for this kind of testing Power supply: V nom V max V min 3.70 V DC by Li-Ion Battery (BA700) and Power Supply 4.40 V 3.30 V Annex to Test Report No.: 1-1954-57-02/10 2011-02-15 Page 4 of 29 5 Test item Kind of test ite…

Text truncated - open the document above for the full version.

Annex to Test Report No.: 1-1954-57-02/10 2011-02-15 Page 16 of 29 An ne x A P ho tog ra phs o f t h e te s t s e tu p Photo documentation Photo 1: Annex to Test Report No.: 1-1954-57-02/10 2011-02-15 Page 17 of 29 Photo 2:
