PY7A3880106Mobile phone with Bluetooth, WLAN 802.11bgn, GPS/A-GPS, ANT+ and FM Rx

Xperia ™ mini Startup guide Sony Ericsson Mobile Communications AB SE-221 88 Lund, Sweden www.sonyericsson.com 1245-3545.1 1245-3545.1 Phone basics Phone overview 1 5 10 11 8 9 7 6 243 12 13 16 14 15 20 17 18 19 1. Power key/Screen lock 2. Notification LED/ Battery status 3. Ear speaker 4. Second microphone 5. Light sensor 6. Proximity sensor 2 7. Proximity sensor 1 8. Touch screen 9. Menu key 10. Back key 11. Home key 12. Camera LED flash 13. Volume key/Zoom key 14. Camera lens 15. Speaker 16. Camera key 17. Strap hole 18. Headset connector 19. Main microphone 20. Connector for charger/USB cable Turning on the phone To turn on the phone To enter your SIM card PIN code • Tap the numbers on the screen to enter the personal identification number (PIN) for your SIM card. Waking up the screen To activate the screen • Press or press briefly. To unlock the screen • Drag the icon to the right across the screen. Using the hardware keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen or to the Application screen from any application or screen • Press and hold to open a window showing your most recently used applications Menu • Open a list of options available in the current screen or application Using the touch screen To open or highlight an item • Tap the item. To scroll • Drag or flick your finger in the direction you want to scroll on the screen. To zoom with two fingers • Place two fingers on the screen at once and pinch them together (to zoom out) or spread them apart (to zoom in). Typing text Use either the Phonepad or the on-screen keyboard to enter letters, numbers and other characters. The Phonepad is similar to a standard 12-key telephone keypad while the on-screen keyboard has a QWERTY layout. Phonepad The Phonepad is similar to a standard 12-key telephone keypad. It gives you predictive text and multi-tap input options. You can activate the Phonepad text input method via the keyboard settings. The Phonepad is only available in portrait orientation. Using the Phonepad 1 7 8 ’ ’’ . - ABC DEF? JKLMNOGHI ! TUVWXYZPQRS 5 123 3 46 2 1Choose a text input option 2Change the character case and turn on the caps lock. For some languages, this key is used to access extra characters in the language. 3Display numbers 4Display symbols and smileys 5Enter a space 6Open the input settings menu to change, for example, the Writing languages. This key also changes the writing language when more than one input language is selected. 7Enter a carriage return or confirm text input 8Delete a character before the cursor All illustrations are for illustration purposes only and may not accurately depict the actual phone. To display the Phonepad to enter text • While holding the phone in portrait orientation, tap a text entry field. To enter text using the Phonepad When using the Phonepad, you can choose from two input options: • When appears in the Phonepad, tap each character key only once, even if the letter you want is not the first letter on the key. Tap the word that appears or tap to view more word suggestions and select a word from the list. • When appears in the Phonepad, tap the on- screen key for the character you want to enter. Keep pressing this key until the desired character is selected. Then do the same for the next character you want to enter, and so on. Set up your phone The first time you start your phone, a setup guide explains basic phone functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide 1 From the Home screen, tap . 2 Tap Setup guide. Android™ – what and why? An Android™ phone is based on an open source platform, and is pre-loaded with Google™ services. To make the best out of any provided Google™ services, you should create a Google™ account and sign in to it when you first start your phone. With the account, you can extend the functionality of the phone by downloading applications and games from a constantly growing collection at Android Market™. You need to have Internet access for many of the features in Android. Accounts and services Use online services in your phone. Sign in with your existing account or sign up and create an account. Google™ account Use Gmail™ to send emails, Google Talk™ to chat with friends, and Android Market™ to download applications. Sony Ericsson account Store your phone contacts on a secure Sony Ericsson server, and you'll always have a backup online. Exchange Active Sync account Synchronise your phone with your corporate Exchange Active Sync account. This way, you keep your work email, contacts and calendar events with you at all times. To add an account 1 From your Home screen, tap . 2 Tap Settings > Accounts & sync > Add account. 3 Tap the account type you want to add and then follow the registration wizard. Welcome Digital User guide This Startup guide is aimed at getting you through the first hour of using your new phone. As part of our Greenheart™ initiatives, we have placed a full-length User guide in the phone and on the web. By keeping the full User guide in digital format, we have cut down substantially on the amount of paper we print. You can find more information on how to access the in-phone User guide and other support at the end of this Startup guide. Important information Please read the Important information leaflet before you use your mobile phone. Assembly To remove the battery cover To insert the SIM card and the battery To attach the battery cover May 18, 2011 03:54:42 ST15i__Booklet_EN_1245-3545.1.pdf 1 of 2 Getting contacts into your phone The first time you open the Contacts application, you get hints on how to start adding contacts to your phone. This is a good time to choose a method that suits your situation and setup. View all import options on www.sonyericsson.com/support/ contacts. Here are two recommended options: Synchronise your phone with contacts already s…

Text truncated - open the document above for the full version.

Sony Ericsson Confidentiality Request 2011-07-14 CVDVBA11 :339 SEMC/CVDVBA Afrah Sadiq +46 10 80 12250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7A3880106 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AS requests confidentiality for the below listed items for our mobile phone type AAD­ 3880106-BV, FCC 10: PY7A3880106: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operationalrrechnical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AS considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AS also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, Staff Verification Engineer Global Type Approval Sony Ericsson Mobile Communications Nya Vallentornet 221 88 Lund , Sweden Fax: +46 10 80 02441 sonyericssoll .COnl Sony Ericsson Mobile Communications AB Styrelsens sate: Lund Momsnr. VA. T.No: SE556615665801 Registered office: Lund Organisationsnr • Reg No: 556615-6658 Postadress • Mail Besbksadress • Office address Telefon • Telephone Telefax • Telefax SE-221 88 Lund Nya Vattentornet Nat 010-80 00000 Nat 010-80 02040 Sweden Lund I nt +46 10 80 00000 Int +46 10 80 02040

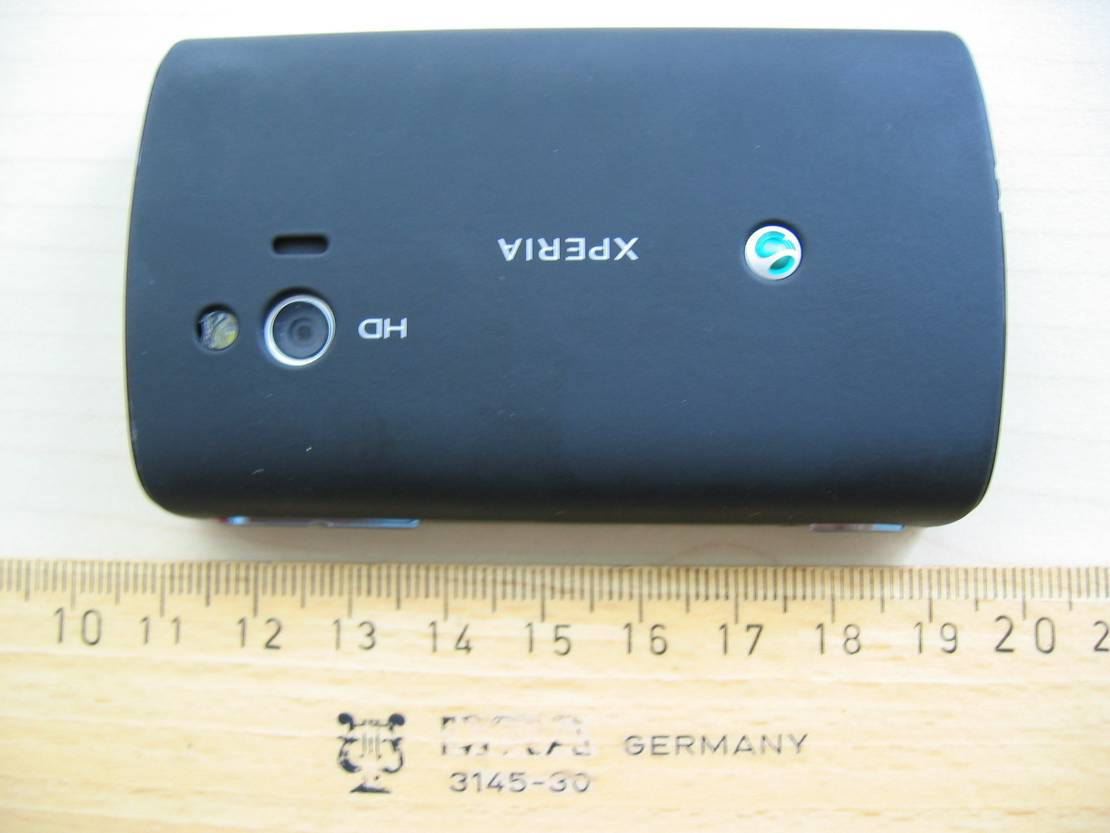

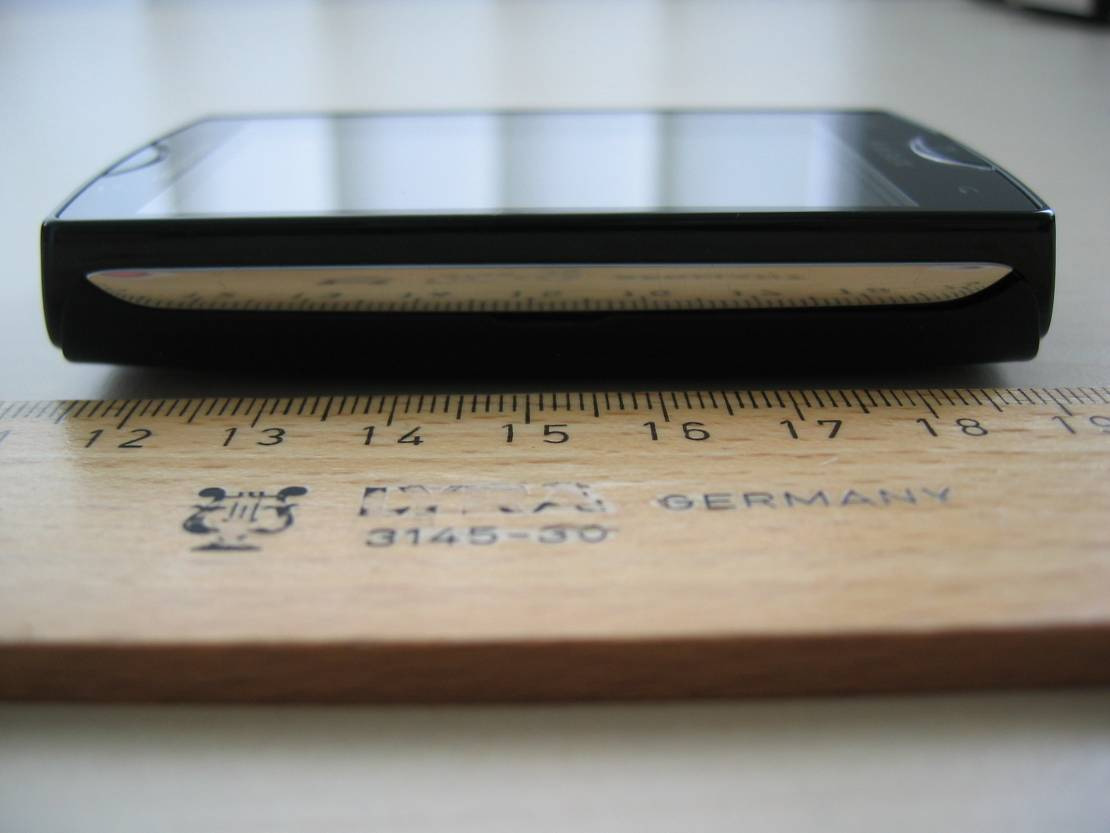

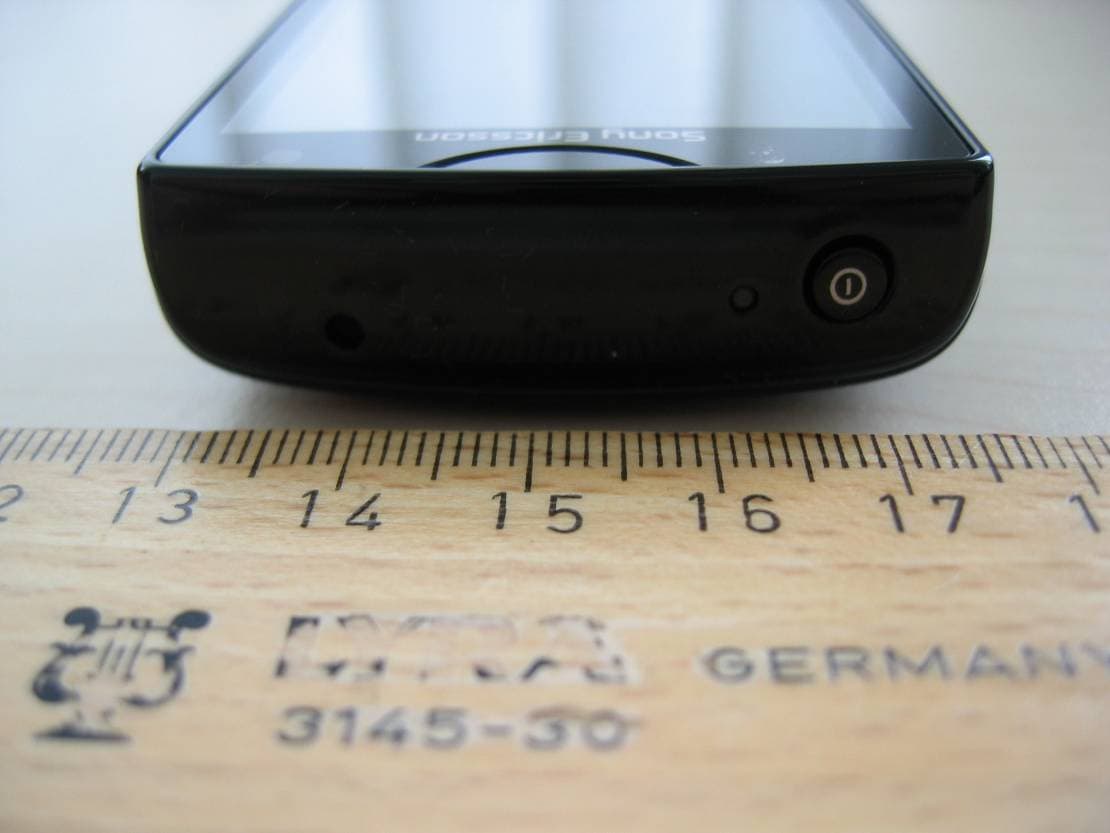

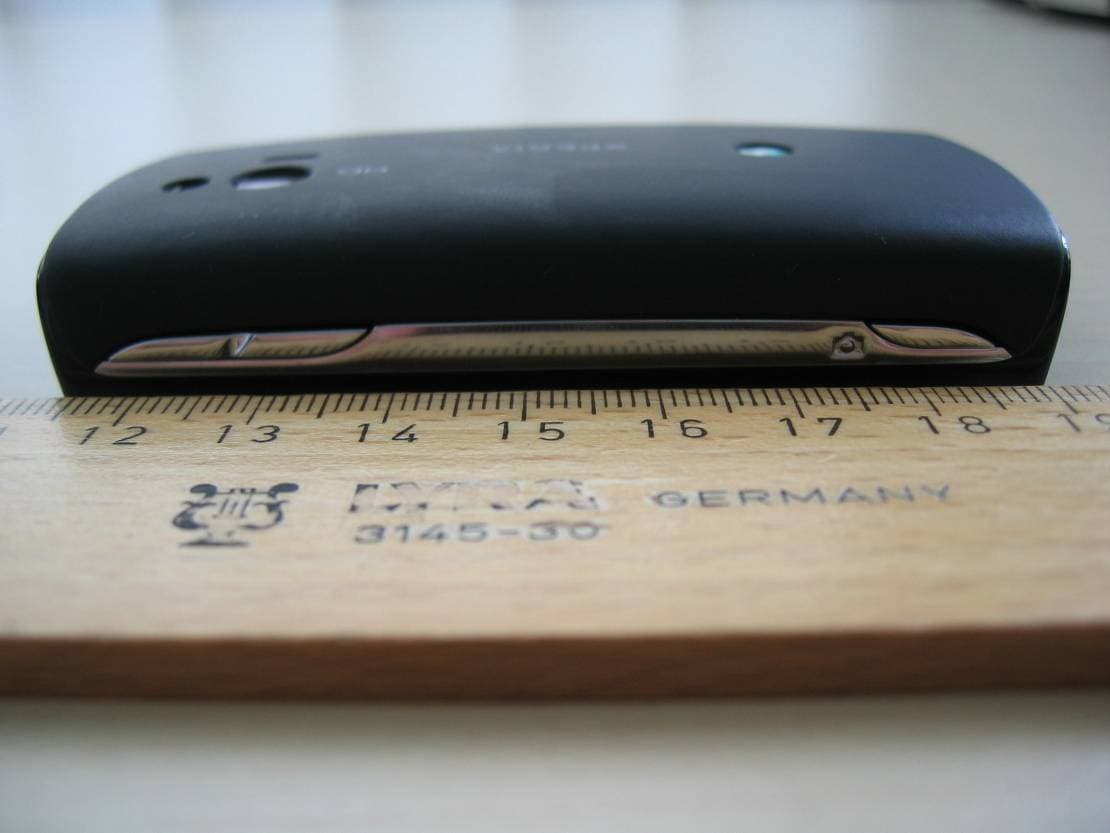

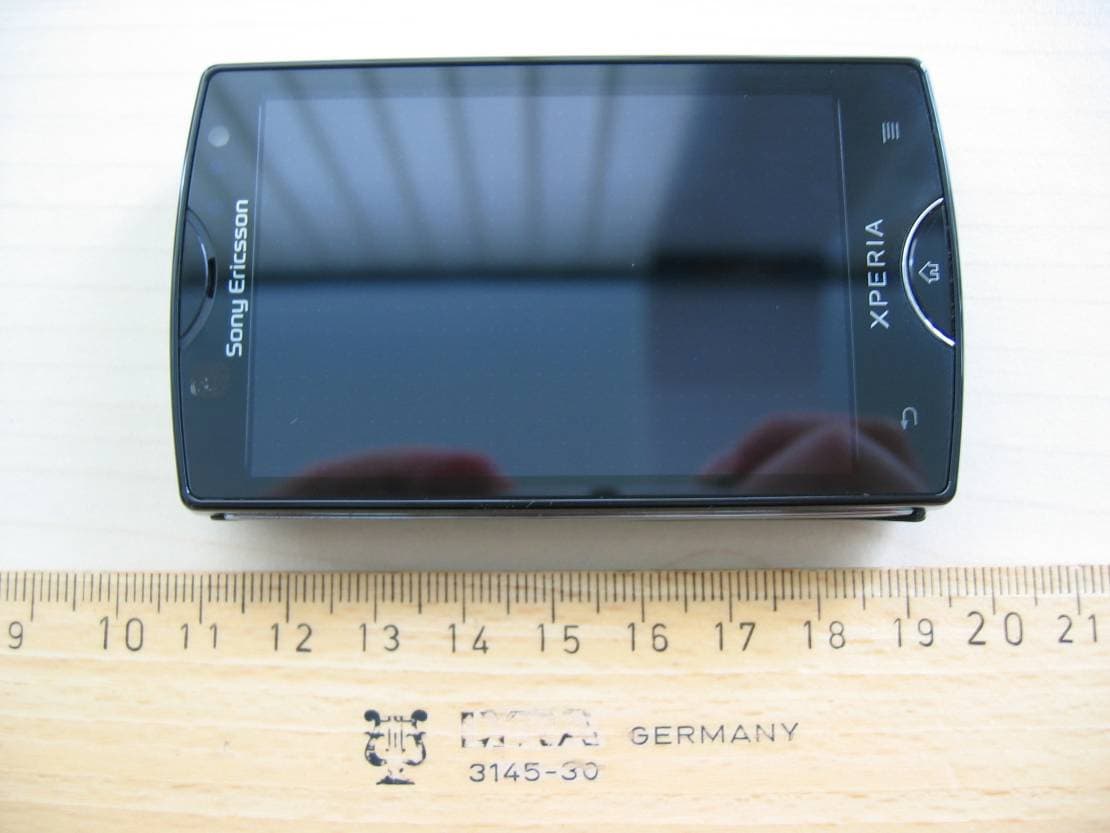

Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 18 of 27 An ne x B E x te rna l ph ot ogra phs o f the E UT Photo documentation Photo 4: Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 19 of 27 Photo 5: Photo 6: Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 20 of 27 Photo 7: Photo 8: Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 21 of 27 Photo 9:

Company Internal MARKING DRAWING 1 (2) Prepared (also subject responsible if other) No. SEM/CVVGP, Leif Hedin 1245-3910 Uen Approved Checked Date Rev Reference SEM/CVVGP, Leif Hedin 2011-04-20 1 2 ST15a, Mobile Phone label, a-version, made in... 1 General information MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1a (4,0/2,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925 Line 1b (4,0/20,0) Model Name “ST15a” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2a (6,2/2,0) Product number of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 2b (6,2/20,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 3a (8,5/2,0) “TYPE: AAD-3880106-BV” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 3b (8,5/20,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Documents Line 4 (9,0/27,0) SIM-card logo Graphics height 7,0mm according to 1001-6195 Line 5a (11,5/2,0) ”FCC ID: PY7A3880106” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 5b (11,5/20,0) Production week (flash), “yyWww” (yy = year, ww = week) Text, height 1,2 mm. Line 6a (14,5/2,0) “IC: 4170B-A3880106” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 6b (14,5/20,0) Repair week, if applicable. “RyyWww” (yy = year, ww = week) Text, height 1,2 mm. Mobile Phone label part no • 1241-3099 Mobile Phone label content part no • 1245-3909 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. Company Internal MARKING DRAWING 2 (2) Prepared (also subject responsible if other) No. SEM/CVVGP, Leif Hedin 1245-3910 Uen Approved Checked Date Rev Reference SEM/CVVGP, Leif Hedin 2011-04-20 1 2 Line 7 (18,0/2,0) Line 7 in bar code, according to line 8a. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 8a (20,0/2 ,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,5 mm. Defined by supplier. Line 8b (20,0/17,0) Actual electronic serial number (IMEI) of the mobile phone, “00000000-000000-0” Text, height 1,5mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 9 (23,0/2 ,0) Line 9 in bar code, according to line 8b. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 10a (29,3/2,0) CE approval symbol, the NB-“0682” and “Alert Symbol” in one artwork Graphics, height 5 mm. According to 1242-7470 Line 10b (29,3/32,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. Line 11 (32,2/2,0) Marking of origin; “Made in Xxx” “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision. Confidential MARKING DRAWING 1(1) Document number Revis ion 1245-3910 Uen Prepared by Date 2011-04-20 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by Note: Any hard copy of this document is for reference only. D u e to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Label placement To find the label follow these steps: 1 . R emove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 22 of 27 An ne x C Inte r na l p ho to gra phs o f the E UT Photo documentation Photo 10: Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 23 of 27 Photo 11: Photo 12: Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 24 of 27 Photo 13: Photo 14: Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 25 of 27 Photo 15: Photo 16: Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 26 of 27 Photo 17: Annex to Test Report No.: 1-2977-45-02/11 2011-06-16 Page 27 of 27 An ne x D Doc u me n t his to r y Version Applied changes Date of release 1.0 Initial release 2011-06-16 An ne x E Fur the r in for ma ti o n Glossary DUT - Device under Test EMC - Electromagnetic Compatibility EUT - Equipment under Test FCC - Federal Communication Commission FCC ID - Company Identifier at FCC HW - Hardware IC - Industry Canada Inv. No. - Inventory number N/A - not applicable S/N - Serial Number SW - Software

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Sony Ericsson, ST15a To: OET Bulletin 65 Supplement C: (2001-01) RSS-102 Issue 4 March 2010 Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: (APPROVED SIGNATORY) Checked By: Scott D’Adamo (APPROVED SIGNATORY) Issue Date: 04 July 2011 Test Dates: 25 May 2011 to 30 June 2011 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 2 of 206 RFI Global Services Ltd. This page has been left intentionally blank. Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 3 of 206 RFI Global Services Ltd. TABLE OF CONTENTS 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 9 4. Deviations from the Test Specification ......................................................................... 10 5. Operation and Configuration of the EUT during Testing ............................................ 11 6. Summary of Test Results ............................................................................................... 13 7. Measurements, Examinations and Derived Results .................................................... 15 8. Measurement Uncertainty .............................................................................................. 39 Appendix 1. Test Equipment Used .................................................................................... 46 Appendix 2. Measurement Methods .................................................................................. 49 Appendix 3. SAR Distribution Scans ................................................................................ 51 Appendix 4. Photographs ................................................................................................ 165 Appendix 5. Validation of System ................................................................................... 194 Appendix 6. Simulated Tissues ....................................................................................... 203 Appendix 7. DASY4 System Details ................................................................................ 204 Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 4 of 206 RFI Global Services Ltd. 1. Customer Information Company Name: Sony Ericsson Mobile Communications AB Address: Nya Vattentornet 22188 Lund Sweden Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 5 of 206 RFI Global Services Ltd. 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Smart Mobile Phone with GSM 2G Quad Band, 3G Tri band and WiFi Tech 802.11b/g/n. Brand Name: Sony Ericsson Model Name or Number: ST15a Serial Number: BX902DCMLA IMEI Number: 004402141374169 Hardware Version Number: AP2 Software Version Number: 4.0.B.2.5 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: PY7A3880106 IC Certification Number: 4170B-A3880106 Country of Manufacture: China Date of Receipt: 25 May 2011 Note(s): This sample was used to perform 2G WWAN SAR evaluation only. The sample supports simultaneous transmission with the WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Identification of Equipment Under Test (EUT) (Continued) Description: Smart Mobile Phone with GSM 2G Quad Band, 3G Tri band and WiFi Tech 802.11b/g/n. Brand Name: Sony Ericsson Model Name or Number: ST15a Serial Number: BX902DCMA5 IMEI Number: 00440214 1374193 Hardware Version Number: AP2 Software Version Number: 4.0.B.2.5 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: PY7A3880106 IC Certification Number: 4170B-A3880106 Country of Manufacture: China Date of Receipt: 25 May 2011 Note(s): This Sample was used to perform WLAN SAR evaluation only. The sample supports simultaneous transmission with it WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 6 of 206 RFI Global Services Ltd. 2.2. Description of EUT The Equipment Under Test is a Smart Mobile Phone with GSM 2G Quad Band, 3G tri-band and WiFi. The EUT has GPRS Class 12, UMTS FDD I, II, V With HSPA, WLAN 802.11b/g/n and Bluetooth mode capabilities. 2.3. Modifications Incorporated in the EUT EUT (IMEI: 004402141374169) was setup for WWAN test only; EUT (IMEI: 004402141374193) was setup for WLAN test only. 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Battery Brand Name: Sony Ericsson Model Name or Number: EP500 Serial Number: 130364SWOENS Cable Length and Type: Not Applicable Country of Manufa…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 51 of 206 RFI Global Services Ltd. Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/81726JD04/001 Touch Left GSM CH190 SCN/81726JD04/002 Tilt Left GSM CH190 SCN/81726JD04/003 Touch Right GSM CH190 SCN/81726JD04/004 Tilt Right GSM CH190 SCN/81726JD04/005 Touch Left GSM CH128 SCN/81726JD04/006 Touch Left GSM CH251 SCN/81726JD04/007 Front of EUT Facing Phantom GPRS CH190 SCN/81726JD04/008 Rear of EUT Facing Phantom GPRS CH190 SCN/81726JD04/009 Rear of EUT Facing Phantom GPRS CH128 SCN/81726JD04/010 Rear of EUT Facing Phantom GPRS CH251 SCN/81726JD04/011 Left Hand Side of EUT Facing Phantom GPRS CH190 SCN/81726JD04/012 Right Hand Side of EUT Facing Phantom GPRS CH190 SCN/81726JD04/013 Top of EUT Facing Phantom GPRS CH190 SCN/81726JD04/014 Rear of EUT Facing Phantom With PHF GPRS CH190 SCN/81726JD04/015 Rear of EUT Facing Phantom EGPRS CH190 SCN/81726JD04/016 Rear of EUT Facing Phantom GSM CH190 SCN/81726JD04/017 Touch Left PCS CH661 SCN/81726JD04/018 Tilt Left PCS CH661 SCN/81726JD04/019 Touch Right PCS CH661 SCN/81726JD04/020 Tilt Right PCS CH661 SCN/81726JD04/021 Tilt Right PCS CH512 SCN/81726JD04/022 Tilt Right PCS CH810 SCN/81726JD04/023 Front of EUT Facing Phantom GPRS CH661 SCN/81726JD04/024 Rear of EUT Facing Phantom GPRS CH661 SCN/81726JD04/025 Left Hand Side of EUT Facing Phantom GPRS CH661 SCN/81726JD04/026 Right Hand Side of EUT Facing Phantom GPRS CH661 SCN/81726JD04/027 Top of EUT Facing Phantom GPRS CH661 SCN/81726JD04/028 Rear of EUT Facing Phantom PCS CH661 SCN/81726JD04/029 Rear of EUT Facing Phantom EGPRS CH661 SCN/81726JD04/030 Rear of EUT Facing Phantom EGPRS CH512 SCN/81726JD04/031 Rear of EUT Facing Phantom EGPRS CH810 SCN/81726JD04/032 Rear of EUT Facing Phantom with PHF EGPRS CH810 Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 52 of 206 RFI Global Services Ltd. SAR Distribution Scans (continued) Scan Reference Number Title SCN/81726JD04/033 Touch Left UMTS FDD II CH9400 SCN/81726JD04/034 Tilt Left UMTS FDD II CH9400 SCN/81726JD04/035 Touch Right UMTS FDD II CH9400 SCN/81726JD04/036 Touch Right UMTS FDD II CH9262 SCN/81726JD04/037 Touch Right UMTS FDD II CH9538 SCN/81726JD04/038 Tilt Right UMTS FDD II CH9400 SCN/81726JD04/039 Tilt Right UMTS FDD II CH9262 SCN/81726JD04/040 Tilt Right UMTS FDD II CH9538 SCN/81726JD04/041 Front of EUT Facing Phantom UMTS FDD II CH9400 SCN/81726JD04/042 Rear of EUT Facing Phantom UMTS FDD II CH9400 SCN/81726JD04/043 Left Hand Side of EUT Facing Phantom UMTS FDD II CH9400 SCN/81726JD04/044 Right Hand Side of EUT Facing Phantom UMTS FDD II CH9400 SCN/81726JD04/045 Top of EUT Facing Phantom UMTS FDD II CH9400 SCN/81726JD04/046 Rear of EUT Facing Phantom UMTS FDD II + HSDPA CH9400 SCN/81726JD04/047 Rear of EUT Facing Phantom UMTS FDD II + HSPA CH9262 SCN/81726JD04/048 Rear of EUT Facing Phantom UMTS FDD II + HSPA CH9400 SCN/81726JD04/049 Rear of EUT Facing Phantom UMTS FDD II + HSPA CH9538 SCN/81726JD04/050 Rear of EUT Facing Phantom UMTS FDD II CH9262 SCN/81726JD04/051 Rear of EUT Facing Phantom UMTS FDD II CH 9538 SCN/81726JD04/052 Rear of EUT Facing Phantom With PHF UMTS FDD II CH9262 SCN/81726JD04/053 Rear of EUT Facing Phantom UMTS FDD II CH9262 SCN/81726JD04/054 Rear of EUT Facing Phantom UMTS FDD II CH9400 SCN/81726JD04/055 Rear of EUT Facing Phantom UMTS FDD II CH9538 SCN/81726JD04/056 Touch Left UMTS FDD V CH4183 SCN/81726JD04/057 Tilt Left UMTS FDD V CH4183 SCN/81726JD04/058 Touch Right UMTS FDD V CH4183 SCN/81726JD04/059 Tilt Right UMTS FDD V CH4183 SCN/81726JD04/060 Touch Right UMTS FDD V CH4132 SCN/81726JD04/061 Touch Right UMTS FDD V CH4233 SCN/81726JD04/062 Front of EUT Facing Phantom UMTS FDD V CH4183 SCN/81726JD04/063 Rear of EUT Facing Phantom UMTS FDD V CH4183 SCN/81726JD04/064 Rear of EUT Facing Phantom UMTS FDD V CH4132 SCN/81726JD04/065 Rear of EUT Facing Phantom UMTS FDD V CH4233 SCN/81726JD04/066 Left Hand Side of EUT Facing Phantom UMTS FDD V CH4183 SCN/81726JD04/067 Right Hand Side of EUT Facing Phantom UMTS FDD V CH4183 SCN/81726JD04/068 Top of EUT Facing Phantom UMTS FDD V CH4183 SCN/81726JD04/069 Rear of EUT Facing Phantom UMTS FDD V + HSDPA CH4183 Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 53 of 206 RFI Global Services Ltd. SAR Distribution Scans (continued) Scan Reference Number Title SCN/81726JD04/070 Rear of EUT Facing Phantom UMTS FDD V + HSPA CH4183 SCN/81726JD04/071 Rear of EUT Facing Phantom with PHF UMTS FDD V CH4132 SCN/81726JD04/072 Rear of EUT Facing Phantom UMTS FDD V CH4132 SCN/81726JD04/073 Rear of EUT Facing Phantom UMTS FDD V CH4183 SCN/81726JD04/074 Rear of EUT Facing Phantom UMTS FDD V CH4233 SCN/81726JD04/075 Touch Left WLAN 802.11b 1 Mbps CH6 SCN/81726JD04/076 Tilt Left WLAN 802.11b 1 Mbps CH6 SCN/81726JD04/077 Touch Right WLAN 802.11b 1 Mbps CH6 SCN/81726JD04/078 Tilt Right WLAN 802.11b 1 Mbps CH6 SCN/81726JD04/079 Touch Right WLAN 802.11b 1 Mbps CH1 SCN/81726JD04/080 Touch Right WLAN 802.11b 1 Mbps CH11 SCN/81726JD04/081 Touch Right WLAN 802.11g 6 Mbps CH6 SCN/81726JD04/082 Touch Right WLAN 802.11n 6.5 Mbps CH6 SCN/81726JD04/083 Front of EUT Facing Phantom WLAN 802.11b 1 Mbps CH6 SCN/81726JD04/084 Rear of EUT Facing Phantom WLAN 802.11b 1 Mbps CH6 SCN/81726JD04/085 Left Hand Side of EUT Facing Phantom WLAN 802.11b 1 Mbps CH6 SCN/81726JD04/086 Right Hand Side of EUT Facing Phantom WLAN 802.11b 1 Mbps CH6 SCN/81726JD04/087 Base of EUT Facing Phantom WLAN 802.11b 1 Mbps CH6 SCN/81726JD04/088 Rear of EUT Facing Phantom WLAN 802.11g 6 Mbps CH6 SCN/81726JD04/089 Rear of EUT Facing Phantom WLAN 802.11n 6.5 Mbps CH6 SCN/81726JD04/090 Rear of EUT Facing Phantom WLAN 802.11b 1 Mbps CH1 SCN/81726JD04/091 Rear of EUT Facing Phantom WLAN 802.11b 1 Mbps CH11 SCN/81726JD04/092 Rear of EUT Fac…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 165 of 206 RFI Global Services Ltd. Appendix 4. Photographs This appendix contains the following photographs: Photo Reference Number Title PHT/81726JD04/001 Test configuration for the measurement of Specific Absorption Rate (SAR) PHT/81726JD04/002 Touch Left PHT/81726JD04/003 Tilt Left PHT/81726JD04/004 Touch Right PHT/81726JD04/005 Tilt Right PHT/81726JD04/006 Front of EUT Facing Phantom PHT/81726JD04/007 Rear of EUT Facing Phantom PHT/81726JD04/008 Left Hand Side of EUT Facing Phantom PHT/81726JD04/009 Right Hand Side of EUT Facing Phantom PHT/81726JD04/010 Top of EUT Facing Phantom PHT/81726JD04/011 Base of EUT Facing Phantom PHT/81726JD04/012 General Set Up of Rear of EUT Facing Phantom with PHF PHT/81726JD04/013 Front View of EUT PHT/81726JD04/014 Rear View of EUT PHT/81726JD04/015 Left Hand Side View of EUT PHT/81726JD04/016 Right Hand Side View of EUT PHT/81726JD04/017 Top View of EUT PHT/81726JD04/018 Base View of EUT PHT/81726JD04/019 Internal View of EUT (WWAN Sample) PHT/81726JD04/020 Internal View of EUT (WLAN Sample) PHT/81726JD04/021 Battery View PHT/81726JD04/022 PHF View PHT/81726JD04/023 900 MHz Head Fluid Level PHT/81726JD04/024 900 MHz Body Fluid Level PHT/81726JD04/025 1900 MHz Head Fluid Level PHT/81726JD04/026 1900 MHz Body Fluid Level PHT/81726JD04/027 2450 MHz Head Fluid Level PHT/81726JD04/028 2450 MHz Body Fluid Level Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 166 of 206 RFI Global Services Ltd. PHT/81726JD04/001: Test configuration for the measurement of Specific Absorption Rate (SAR) Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 167 of 206 RFI Global Services Ltd. PHT/81726JD04/002: Touch Left Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 168 of 206 RFI Global Services Ltd. PHT/81726JD04/003: Tilt Left Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 169 of 206 RFI Global Services Ltd. PHT/81726JD04/004: Touch Right Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 170 of 206 RFI Global Services Ltd. PHT/81726JD04/005: Tilt Right Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 171 of 206 RFI Global Services Ltd. PHT/81726JD04/006: Front of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 172 of 206 RFI Global Services Ltd. PHT/81726JD04/007: Rear of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 173 of 206 RFI Global Services Ltd. PHT/81726JD04/008: Left Hand Side of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 174 of 206 RFI Global Services Ltd. PHT/81726JD04/009: Right Hand Side of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 175 of 206 RFI Global Services Ltd. PHT/81726JD04/010: Top of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 176 of 206 RFI Global Services Ltd. PHT/81726JD04/011: Base of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 177 of 206 RFI Global Services Ltd. PHT/81726JD04/012: General Set Up of Rear of EUT Facing Phantom with PHF Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 178 of 206 RFI Global Services Ltd. PHT/81726JD04/013: Front View of EUT Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 179 of 206 RFI Global Services Ltd. PHT/81726JD04/014: Rear View of EUT Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 180 of 206 RFI Global Services Ltd. PHT/81726JD04/015: Left Hand Side View of EUT Test Report Serial No: RFI/SAR/RP81726JD04A V2.0 Version 2.0 Issue Date: 04 July 2011 Page: 181 of 206 RFI Global Services Ltd. PHT/81726JD04/016: Right H…

Text truncated - open the document above for the full version.
