PY7A3880118Mobile phone with Bluetooth, WLAN 802.11bgn, GPS/A-GPS, ANT+ and FM Rx

Xperia ™ ray Startup guide Sony Ericsson Mobile Communications AB SE-221 88 Lund, Sweden www.sonyericsson.com 1250-1262.1 Welcome Important information Please read the Important information leaflet before you use your mobile phone. Assembly To remove the battery cover Use a thumb nail so that you can lift up the cover with more force. To insert the SIM card and the battery To attach the battery cover Phone basics Phone overview 5 7 6 8 3214 911 10 13 12 18 19 15 17 16 14 1. Front camera lens 2. Ear speaker 3. Power key 4. Headset connector 5. Light sensor 6. Proximity sensor 7. Touch screen 8. Notification LED/Battery status 9. Menu key 10. Home key 11. Back key 12. Camera LED light 13. Main camera lens 14. Second microphone 15. Connector for charger/ USB cable 16. Strap hole 17. Main microphone 18. Speaker 19. Volume key/Zoom key Turning on the phone To turn on the phone It might take a while for the phone to start up. Waking up the screen To activate the screen • Press or press briefly. To unlock the screen • Drag the icon to the right across the screen. Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen • Activate the screen if the screen goes dark • Press and hold to open a window showing your most recently used applications Menu • Open a list of options available in the current screen or application Set up your phone What is Android? Android is your phone's operating system. Since it's developed by Google™, your phone is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. With a Google account you can access Android Market™ – an application store providing both free and paid applications for easy download to your phone. What is different about Android? Android™ is an open system, which means that you're not limited to using applications and services from only one provider. Google™ account Use Gmail™ to send emails, Google Talk™ to chat with friends, and Android Market™ to download applications. To add an account 1 From your Home screen, tap . 2 Tap Settings > Accounts & sync > Add account. 3 Tap the account type you want to add and then follow the registration wizard. Basic settings The first time you start your phone, a setup guide explains basic phone functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide 1 From the Home screen, tap . 2 Find and tap Setup guide. Transferring contacts from your old phone When you buy a new phone, one of the first challenges is to transfer your contacts and phone numbers from your old phone. This procedure can sometimes be complicated. In this section we give you the big picture and outline solutions based on the type of your old phone. We also tell you where you can find detailed step-by-step instructions. My old phone is a non- Android™ phone Sony Ericsson Transfer the contacts from your old Sony Ericsson phone to your new phone in a few steps: 1 New phone: Connect your new phone to an Internet-connected PC using a USB cable. 2 New phone: If prompted, tap the screen to launch the installation of PC Companion on the PC. 3 PC: In PC Companion, select the option to transfer or synchronize your contacts. 4 With your old phone and its USB cable at hand, follow the instructions on the PC screen to transfer your contacts from the old phone to your new one. To view detailed step-by-step instructions, visit www.sonyericsson.com/support/contacts. Nokia Transfer the contacts from your old Nokia Symbian™ phone to your new phone in a few steps. This method only works for Nokia phones using the S60 platform. 1 New phone: Connect your new phone to an Internet-connected PC using a USB cable. 2 New phone: If prompted, tap the screen to launch the installation of PC Companion on the PC. 3 PC: In PC Companion, select the option to transfer or synchronize your contacts. 4 With your old phone and its USB cable at hand, follow the instructions on the PC screen to transfer your contacts from the old phone to your new one. To view detailed step-by-step instructions, visit www.sonyericsson.com/support/contacts. iPhone™ Transfer your iPhone™ contacts to your new phone via a Google™ account: 1 Connect your iPhone to a PC and start the iTunes™ application. Click the Info tab in iTunes™ and select to sync the phone with Google™ Contacts. If you use a Mac® computer, you'll need to export your contacts in vCard format from the Mac® Address Book into a vCard file, and then import the vCard file into your Google™ account. 2 Once your iPhone contacts are moved to your Google™ account, you'll need to synchronize your new phone with your Google™ account. To view detailed step-by-step instructions, visit www.sonyericsson.com/support/contacts. Other phone Transfer the contacts from your old phone to a computer and then use Google Sync™ to transfer the contacts to your new phone. 1 Old phone: Transfer the contacts from your old phone to a computer. The most practical way to do this is by using a memory card. 2 Make a note of where you copy the contacts file. This kind of file is usually in vCard (.vcf) or a .csv format. 3 Computer: Go to www.google.com/contacts and sign in, or create a new Google™ account. Click Import and browse to the location of the contacts file, then click Open. Your contacts are now stored in your Google account. 4 New phone: Set up your Google account to work in the phone and then synchronize your contacts. You can also use a mobile phone management software application to transfer the contacts to a computer. To view detailed step-by-step instructions, visit www.sonyericsson.com/support/contacts. My old phone is an Android™ phone Transfer the contacts from your old Android phone directly to your new phone with Google sync™: 1 Synchronize the contacts from your old phone with …

Text truncated - open the document above for the full version.

Sony Ericsson Confidentiality Request 2011-07-07 CVDVBA11 :307 SEMC/CVDVBA Afrah Sadiq +4610 8012250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7A3880118 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below listed items for our mobile phone type AAD­ 3880118-BV, FCC 10: PY7A3880118: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. OperationallTechnical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, Afrah Sadiq Staff Verification Engineer Global Type Approval Sony Ericsson Mobile Communications Nya Vattentornet 221 88 Lund, Sweden Fa x: +46 108002441 sonyericsson .com Sony Ericsson Mobile Communications AB Styrelsens sate: Lund Momsnr. VA.TNo: SE55661 5665801 Registered office: Lund Organisat ionsnr • Reg No: 556615-6658 Postadress • Mail Besbksadress • Office address Telefon • Tel ephone Telefax • Telefax SE-22 1 88 Lund Sw eden (\Jya Vattentornet Lund Nat Int 046-194000 +46 46 19 40 00 Nat int 046-1 9 4 1 00 +46 46 1 9 41 00

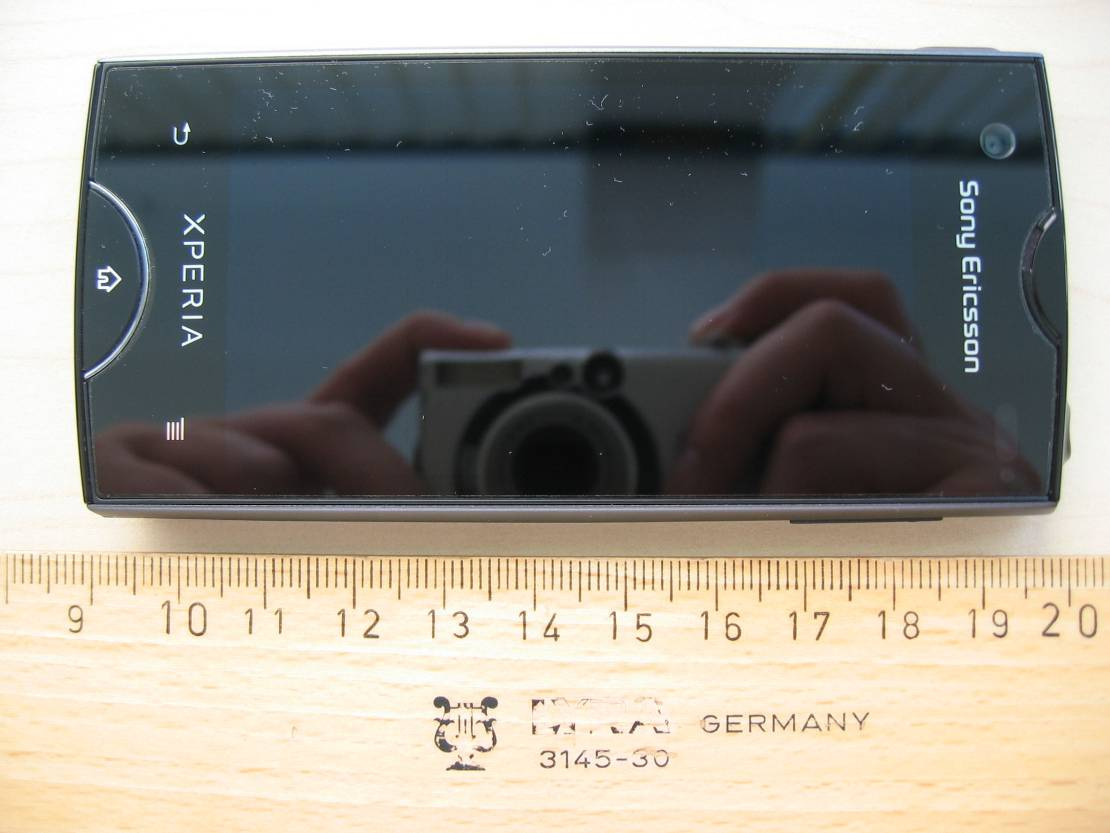

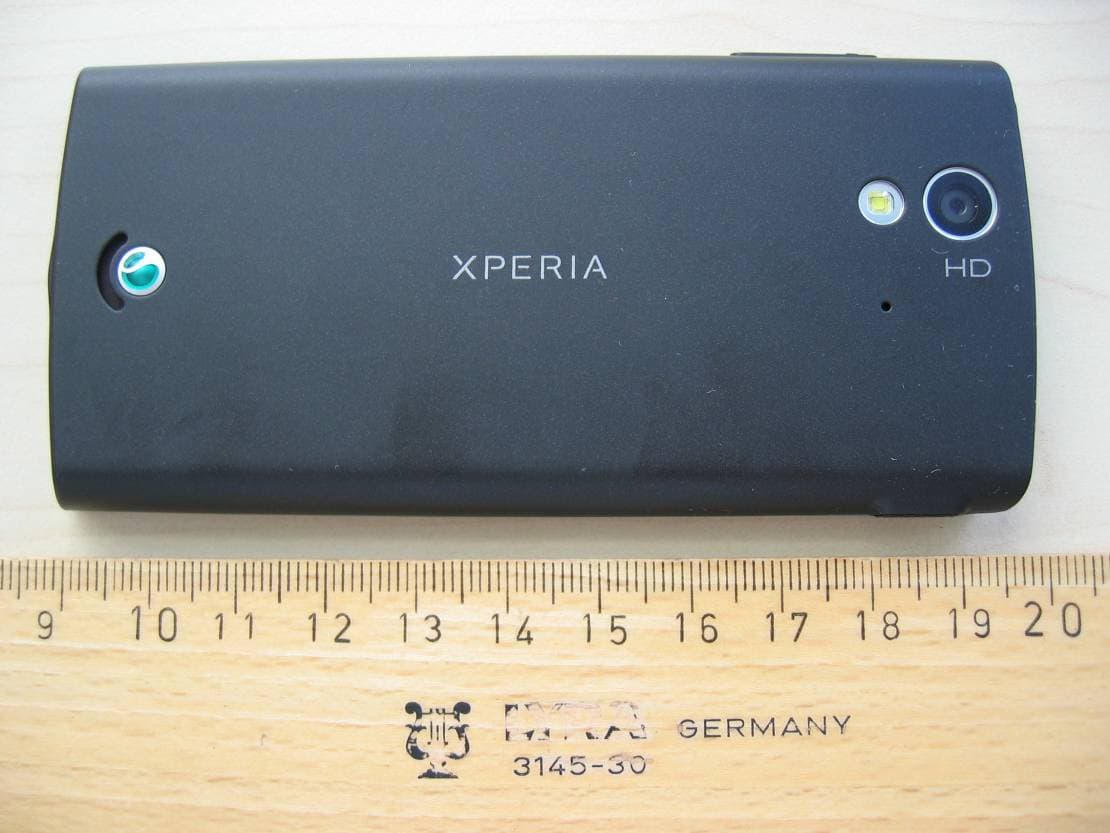

Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 18 of 28 An ne x B E x te rna l ph ot ogra phs o f the E UT Photo documentation Photo 3: Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 19 of 28 Photo 4: Photo 5: Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 20 of 28 Photo 6: Photo 7: Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 21 of 28 Photo 8:

1 (2) Company Internal MARKING DRAWI NG Prepared (also subject responsible if other) No. SEM/CVVGP, Anna Englund 1248-1656 Uen Approved Checked Date Rev Reference SEM/CVVGP, Anna Englund 2011-05-02 1 3 ST18a, Mobile Phone label, a-version, made in... 1 General information Mobile Phone label part no  1247-9837 Mobile Phone label content part no  1248-1655 Bar code  Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen  Quiet zone: No bar codes are allowed to be closer to a label edge than 3 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1a (6,0/3,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925 Line 1b (6,0/21,0) Model Name “ST18a” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2a (8,0/3,0) Product number of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 2b (8,0/21,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 3a (10,0/3,0) “TYPE: AAD-3880118-BV” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 3b (10,0/21,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Documents Line 4a (12,0/3,0) ”FCC ID: PY7A3880118” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 4b (12,0/21,0) Production week (flash), “yyWww” (yy = year, ww = week) Text, height 1,2 mm. Line 5a (14,0/3,0) “IC: 4170B-A3880118” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 5b (14,0/21,0) Repair week, if applicable. “RyyWww” (yy = year, ww = week) Text, height 1,2 mm. Line 6 (17,0/4,0) Line 6 in bar code, according to line 7a. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Company Internal MARKING DRAWING 2 (2) Prepared (also subject responsible if other) No. SEM/CVVGP, Anna Englund 1248-1656 Uen Approved Checked Date Rev Reference SEM/CVVGP, Anna Englund 2011-05-02 1 3 Line 7a (19,0/4,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,5 mm. Defined by supplier. Line 7b (19,0/18,0) Actual electronic serial number (IMEI) of the mobile phone, “00000000-000000-0” Text, height 1,5mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 8 (21,0/4,0) Line 8 in bar code, according to line 7b. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 9 (27,0/3,0) CE approval symbol, the NB-“0682” and “Alert Symbol” in one artwork Graphics, height 5 mm. According to 1242-7470 Line 10 (37,0/3,0) Marking of origin; “Made in Xxx” “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. Line 11 (38,0/29,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision. Confidential MARKING DRAWING 1(1) Document number Re vision 1248-1656 Uen Date 2011-05-02 Note: Any hard copy of this document is for reference only. D u e to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Label placement To find the label follow these steps: 1 . Remove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 22 of 28 An ne x C Inte r na l p ho to gra phs o f the E UT Photo documentation Photo 9: Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 23 of 28 Photo 10: Photo 11: Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 24 of 28 Photo 12: Photo 13: Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 25 of 28 Photo 14: Photo 15: Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 26 of 28 Photo 16: Photo 17: Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 27 of 28 Photo 18: Annex to Test Report No.: 1-2977-58-02/11 2011-06-20 Page 28 of 28 An ne x D Doc u me n t his to r y Version Applied changes Date of release 1.0 Initial release 2011-06-20 An ne x E Fur the r in for ma ti o n Glossary AVG - Average DUT - Device under test EMC - Electromagnetic Compatibility EN - European Standard EUT - Equipment under test ETSI - European Telecommunications Standard Institute FCC - Federal Communication Commission FCC ID - Company Identifier at FCC HW - Hardware IC - Industry Canada Inv. No. - Inventory number N/A - Not applicable PP - Positive peak QP - Quasi peak S/N - Serial number SW - Software

2011-06-24 Page 1 of 182 TEST REPORT Test Report No.: 1-2977-48-03/11 Testing Laboratory Applicant CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAkkS registration number: D-PL-12076-01-01 Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/SWEDEN Phone: +46 46 19 30 00 Contact: Johan Wedin e-mail: [email protected] Phone: +46 7 07 19 57 36 Fax: +46 46 19 32 95 Manufacturer Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/SWEDEN Test Standard/s IEEE 1528-2003 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR)in the Human Head from Wireless Communications Devices: Measurement Techniques OET Bulletin 65 Supplement C Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Issue 4 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Mobile Phone Device type: portable device Model name: AAD-3880118-BV S/N serial number: CB511TPMCG / CB511TPMC4 (WLAN) FCC-ID: PY7A3880118 IC: 4170B-A3880118 IMEI-Number: 00440214-299756-2 / 00440214-299846-1 (for WLAN) Hardware status: AP1 Software status: 4.0.A.2.276 Frequency: see technical details Antenna: integrated antenna Battery option: Li-ion battery 3.7V / 1500mAh Accessories: stereo headset Test sample status: production unit Exposure category: general population / uncontrolled environment This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test Report authorised: Test performed: 2011-06-24 Thomas Vogler 2011-06-24 Oleksandr Hnatovskiy Test report no.: 1-2977-48-03/11 2011-06-24 Page 2 of 182 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information .................................................................................................................................. 3 2.1 Notes ................................................................................................................................................ 3 2.2 Application details ......................................................................................................................... 3 2.3 Statement of compliance ............................................................................................................... 3 2.4 Technical details............................................................................................................................. 4 3 Test standard/s: ......................................................................................................................................... 5 3.1 RF exposure limits ......................................................................................................................... 5 4 Summary of Measurement Results ......................................................................................................... 6 5 Test Environment ...................................................................................................................................... 6 6 Test Set-up ................................................................................................................................................. 7 6.1 Measurement system ..................................................................................................................... 7 6.1.1 System Description ................................................................................................................ 7 6.1.2 Test environment ................................................................................................................... 8 6.1.3 Probe description ................................................................................................................... 8 6.1.4 Phantom description .............................................................................................................. 9 6.1.5 Device holder description ...................................................................................................... 9 6.1.6 Scanning procedure ............................................................................................................ 10 6.1.7 Spatial Peak SAR Evaluation .............................................................................................. 11 6.1.8 Data Storage and Evaluation............................................................................................... 12 6.1.9 Tissue simulating liquids: dielectric properties .................................................................... 14 6.1.10 Tissue simulating liquids: parameters ................................................................................. 15 6.1.11 Measurement uncertainty evaluation for SAR test .............................................................. 16 6.1.12 Measurement uncertainty evaluation for system validation ................................................ 17 6.1.13 System validation ................................................................................................................ 18 6.1.14 Validation procedure ............................................................................................................ 19 7 Detailed Test Results .............................................................................................................................. 2…

Text truncated - open the document above for the full version.

2011-06-24 Page 1 of 60 TEST REPORT Test Report No.: 1-2977-48-03/11 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAR registration number: DAT-P-176/94-D1 Appendix with Calibration data, Phantom certificate and system validation information 2011-06-24 Test report no.: 1-2977-48-03/11 2011-06-24 Page 2 of 60 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 Calibration report “Probe ET3DV6” ......................................................................................................... 3 3 Calibration report “Probe ET3DV6” ....................................................................................................... 14 4 Calibration report “900 MHz System validation dipole” ...................................................................... 25 5 Calibration report “1900 MHz System validation dipole” .................................................................... 34 6 Calibration report “2450 MHz System validation dipole” .................................................................... 43 7 Calibration certificate of Data Acquisition Unit (DAE) ........................................................................ 52 8 Calibration certificate of Data Acquisition Unit (DAE) ........................................................................ 53 9 Certificate of “SAM Twin Phantom V4.0/V4.0C’’ ................................................................................. 54 10 Application Note System Performance Check .............................................................................. 55 10.1 Purpose of system performance check ................................................................................. 55 10.2 System Performance check procedure .................................................................................. 55 10.3 Uncertainty Budget ................................................................................................................... 56 10.4 Power set-up for validation ...................................................................................................... 59 10.5 Laboratory reflection ................................................................................................................ 60 10.6 Additional system checks ........................................................................................................ 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 3 of 60 2 Calibration report “Probe ET3DV6” Test report no.: 1-2977-48-03/11 2011-06-24 Page 4 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 5 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 6 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 7 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 8 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 9 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 10 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 11 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 12 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 13 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 14 of 60 3 Calibration report “Probe ET3DV6” Test report no.: 1-2977-48-03/11 2011-06-24 Page 15 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 16 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 17 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 18 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 19 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 20 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 21 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 22 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 23 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 24 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 25 of 60 4 Calibration report “900 MHz System validation dipole” Test report no.: 1-2977-48-03/11 2011-06-24 Page 26 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 27 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 28 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 29 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 30 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 31 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 32 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 33 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 34 of 60 5 Calibration report “1900 MHz System validation dipole” Test report no.: 1-2977-48-03/11 2011-06-24 Page 35 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 36 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 37 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 38 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 39 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 40 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 41 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 42 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 43 of 60 6 Calibration report “2450 MHz System validation dipole” Test report no.: 1-2977-48-03/11 2011-06-24 Page 44 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 45 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 46 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 47 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 48 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 49 of 60 Test report no.: 1-2977-48-03/11 2011-06-24 Page 50 of 60

2011-06-21 Page 1 of 106 TEST REPORT Test report no.: 1-2977-58-02/11 Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited test laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAkkS registration number: D-PL-12076-01-01 Area of Testing: Radio/Satellite Communications Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund / SWEDEN Phone: +46 46 19 30 00 Fax: +46 46 19 32 95 Contact: Håkan Sjöberg e-mail: [email protected] Phone: +46 46 19 35 59 Manufacturer Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund / SWEDEN Test standard/s 47 CFR Part 22 Title 47 of the Code of Federal Regulations; Chapter I Part 22 - Public mobile services 47 CFR Part 24 Title 47 of the Code of Federal Regulations; Chapter I Part 24 - Personal communications services RSS - 132 Issue 2 Spectrum Management and Telecommunications Policy - Radio Standards Specifications Cellular Telephones Employing New Technologies Operating in the Bands 824-849 MHz and 869-894 MHz For further applied test standards please refer to section 3 of this test report. Test item Kind of test item: Mobile Phone GPRS/EDGE 850/900/1800/1900; UMTS (HSDPA/HSUPA) FDDI/FDDII/FDDV/FDDVI; BT+EDR; WLAN; AGPS; ANT+ Model name: AAD-3880118-BV FCC ID: PY7A3880118 IC: 4170B-A3880118 Frequency: GSM: 824.2 – 848.8 MHz, 1850.2 – 1909.8 MHz UMTS: 826.4 – 848.6 MHz, 1852.4 – 1907.6 MHz Power supply: 3.70 V DC by Li-Ion Battery (BA700) and Power Supply Temperature range: -30 °C to 60 °C Test performed: Test report authorised: 2011-06-21 Jakob Reschke 2011-06-21 Stefan Bös Test report no.: 1-2977-58-02/11 2011-06-20 Page 2 of 106 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General information ....................................................................................................................................... 4 2.1 Notes ..................................................................................................................................................... 4 2.2 Application details ............................................................................................................................... 4 3 Test standard/s ............................................................................................................................................... 4 4 Test environment ............................................................................................................................................ 4 5 Test item .......................................................................................................................................................... 5 6 Test laboratories sub-contracted ................................................................................................................. 5 7 Summary of measurement results ............................................................................................................... 6 7.1 GSM 850 ................................................................................................................................................ 6 7.2 PCS 1900 .............................................................................................................................................. 6 7.3 UMTS band II ........................................................................................................................................ 7 7.4 UMTS band V........................................................................................................................................ 7 7.5 Receiver ................................................................................................................................................ 7 8 RF measurement testing................................................................................................................................ 8 8.1 Description of test setup ..................................................................................................................…

Text truncated - open the document above for the full version.
