PY7A3880120Mobile phone with Bluetooth, WLAN 802.11bgn, GPS/A-GPS, ANT+, RFID and FM Rx

Startup guide English Xperia™ S LT26i Sony Ericsson Mobile Communications AB SE-221 88 Lund, Sweden www.sonyericsson.com 1257-0390.1 Welcome Important information Please read the Important information leaflet before you use your mobile phone. Assembly To remove the back cover To insert the micro SIM card Your phone requires a micro SIM card. For more information, contact your network operator. To attach the back cover Phone basics Phone overview 12 4 910 15 14 5 6 7 12 11 8 3 13 NFC 17 22 19 16 21 18 20 1. Power key 2. Headset connector 3. Ear speaker 4. Front camera lens 5. HDMI™ connector 6. Volume key/Zoom key 7. Camera key 8. Menu key 9. Home key 10. Back key 11. Touchscreen 12. Connector for charger/USB cable 13. Proximity sensor 14. Light sensor 15. Notification LED (Battery status) 16. Camera lens 17. Camera LED light 18. Speaker 19. Second microphone 20. NFC detection area 21. Main microphone 22. Strap hole Use the accessories provided with your phone, or other compatible accessories, for optimal performance. Turning on the phone To turn on the phone It may take a while for the phone to start up. Waking up the screen To activate the screen • Briefly press the power key . To unlock the screen • Drag to the right across the screen. Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen • Press and hold to open a window showing your most recently used applications Menu • Open a list of options available in the current screen or application Set up your phone What is Android? Android is your phone's operating system. Since it's developed by Google™, your phone is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. With a Google account you can access Android Market™ – an application store providing both free and paid applications for easy download to your phone. What is different about Android? Android™ is an open system, which means that you're not limited to using applications and services from only one provider. Google™ account Use Gmail™ to send emails, Google Talk™ to chat with friends, and Android Market™ to download applications. To add an account 1 From your Home screen, tap . 2 Tap Settings > Accounts & sync > Add account. 3 Tap the account type you want to add and then follow the registration wizard. Basic settings The first time you start your phone, a setup guide explains basic phone functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Find and tap Setup guide. Transferring contacts to your new phone Transferring contacts to your new phone can sometimes be complicated, but help is available. You can transfer contacts from several phone brands, including iPhone, Samsung, HTC and Nokia. You need: • An Internet-connected PC running Windows® • A USB cable for your old phone • A USB cable for your new Android™ phone • Your old phone • Your new Android™ phone If you don't have access to all of the items listed above, go to www.sonyericsson.com/support/contacts to find out about other ways to transfer your contacts. Get started transferring your contacts Use the PC Companion program to transfer your contacts. It's free, and the installation files are already saved on your new phone. PC Companion also offers a range of other features, including help to update your phone software. To install PC Companion 1 New phone: Turn on your new Android™ phone and connect it to a PC using a USB cable. 2 New phone: Tap Install to install PC Companion on the PC. 3 Computer: If a popup window appears, select Run Startme.exe. In the new popup window that appears, click Install to start the installation and then follow the instructions to complete the installation. To transfer contacts to your new phone using PC Companion 1 Make sure that PC Companion is installed on your PC. 2 Open the PC Companion program on the PC, then click Contacts Setup and follow the instructions to transfer your contacts. Finding your way Home screen Your phone Home screen is the equivalent of the desktop on a computer. You can customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items. The Home screen extends beyond the regular screen display width, so you need to flick left or right to view content in one of the screen's four extensions. The items in the bar at the bottom of the screen are always available for quick access. To go to the Home screen • Press . To browse the Home screen • Flick right or left. To change your Home screen wallpaper 1 From your Home screen, press . 2 Tap Wallpaper, then select a wallpaper. Widgets Widgets are small applications that you can use directly on your Home screen. For example, the Music player widget allows you to start playing music directly, and the Timescape™ widget displays incoming messages. Application screen The Application screen, which you open from your Home screen, contains the applications that come installed with your phone as well as the applications you download. The Application screen extends beyond the regular screen width, so you need to flick left and right to view all content. To open the Application screen • From your Home screen, tap . To open an application • From your Home screen or the Application screen, tap the application. Applications An application is a phone program that helps you perform a task. For example, there are applications to make calls, take photos and download more applications. Status and notifications The status bar at the top of your screen shows what's going on in your phone. For example, new message and calendar notifications appear here. A notification light also gives you battery status information and some notifications. For example, a flashing blue light means there is a new…

Text truncated - open the document above for the full version.

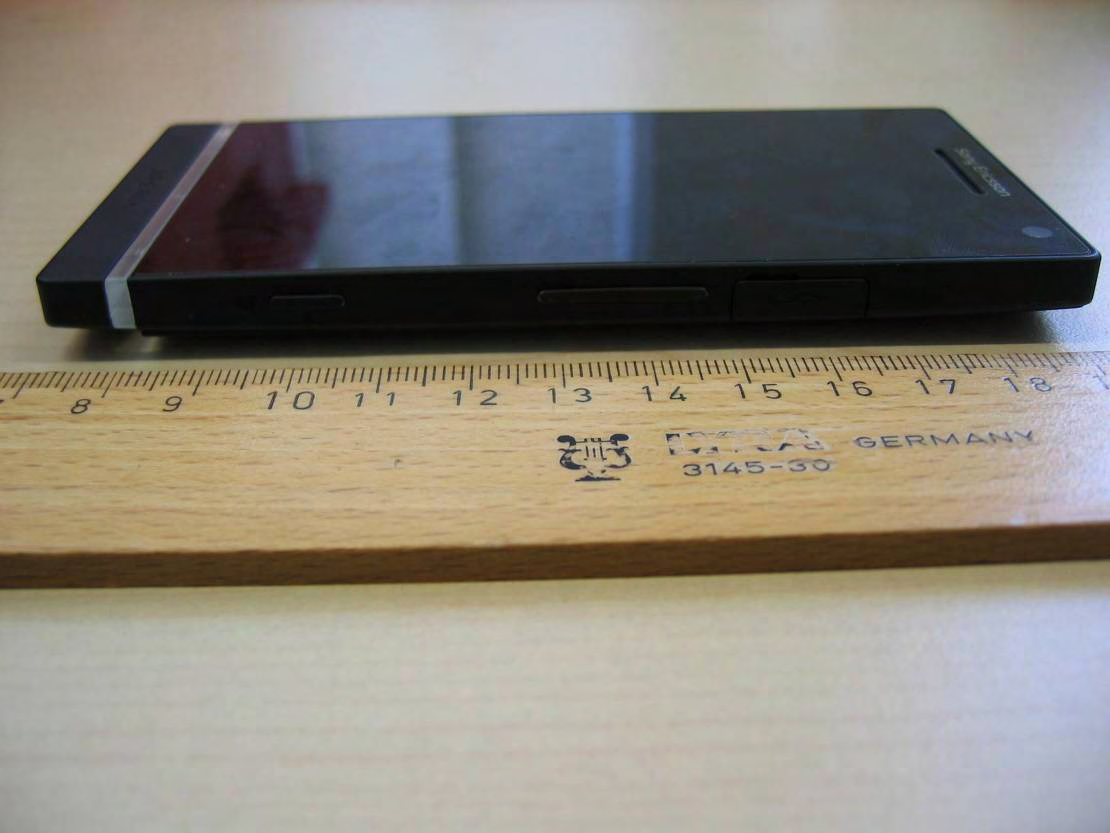

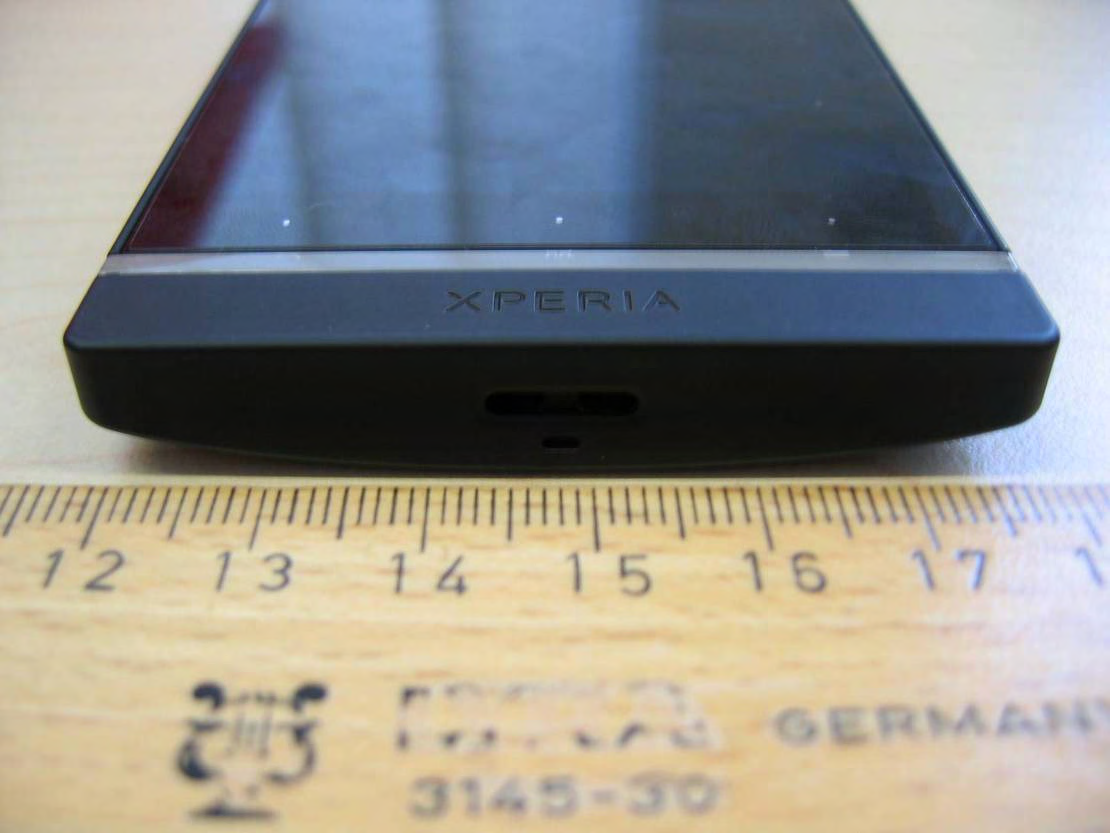

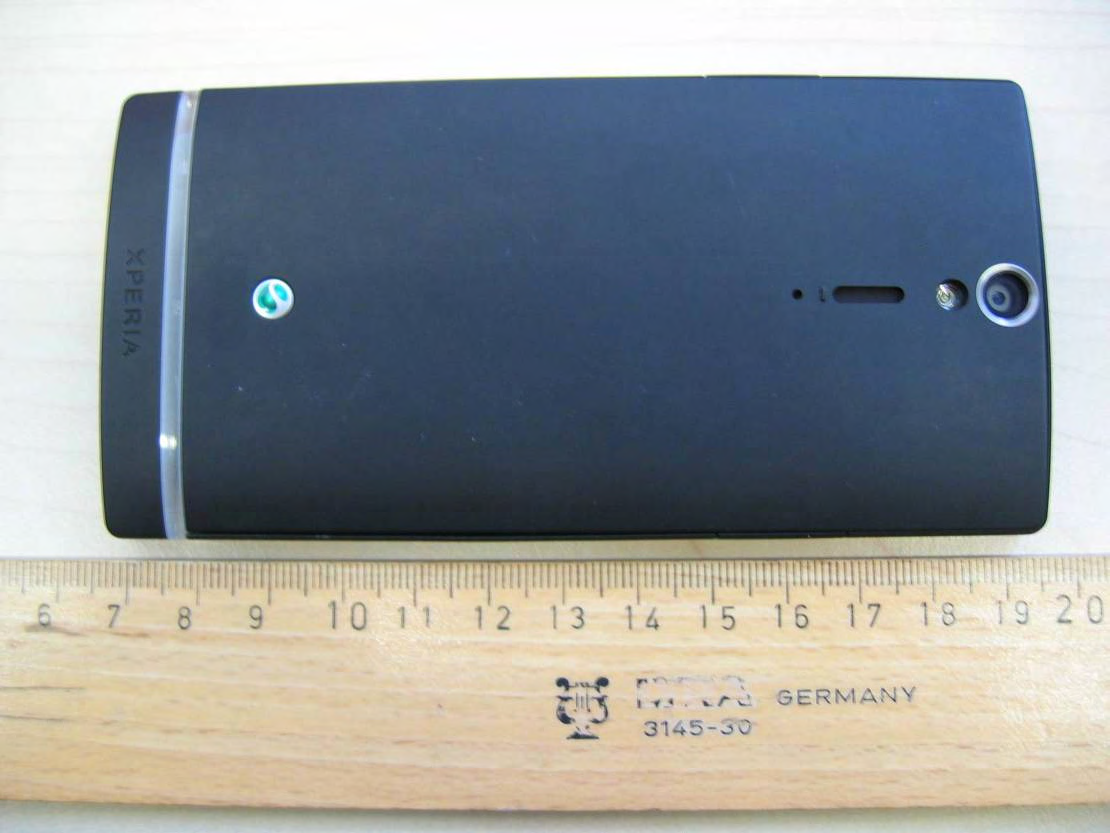

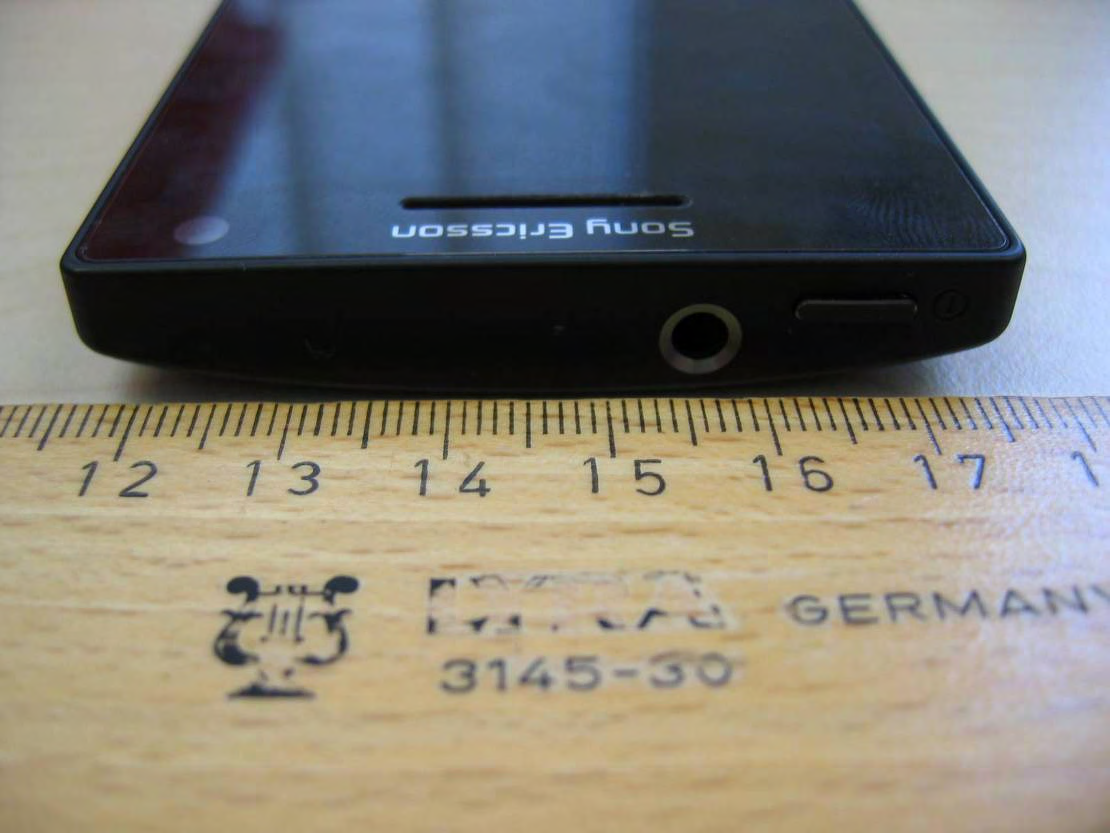

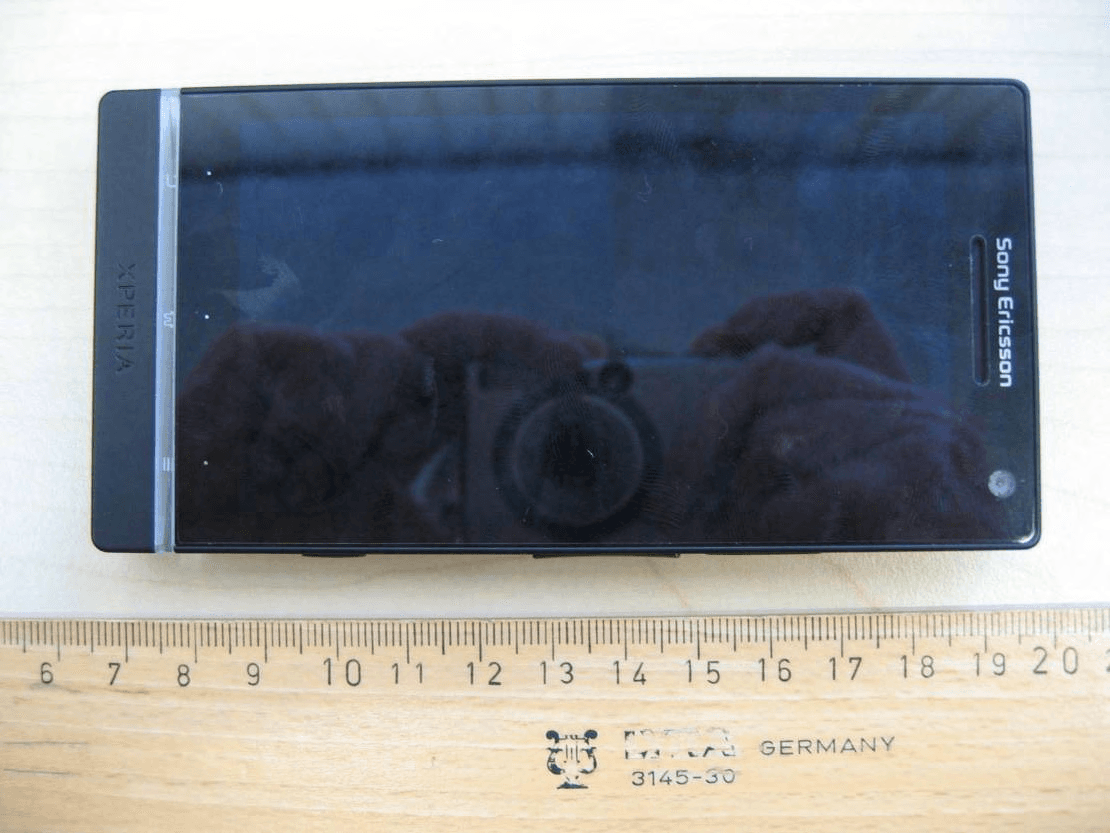

Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 18 of 31 An ne x B E x te rna l ph ot ogra phs o f the E UT Photo documentation Photo 3: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 19 of 31 Photo 4: Photo 5: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 20 of 31 Photo 6: Photo 7: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 21 of 31 Photo 8:

Company Internal MARKING DRAWING 1 (2) Prepared (also subject responsible if other) No. SEM/CVVGP, Leif Hedin 1257-3980 Uen Approved Checked Date Rev Reference SEM/CVVGP, Leif Hedin 2011-12-06 1 2 LT26i, Mobile Phone label, ROW, made in... 1 General information MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1a (2,2/1,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925 Line 1b (2,2/18,0) Model Name “LT26i” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2a (4,8/1,0) “TYPE: AAD-3880120-AV” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2b (4,8/18,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Documents Line 2c (4,8/25,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 3a (7,0/1,0) Product number of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 3b (7,0/18,0) Production week (flash), “yyWww” (yy = year, ww = week) Text, height 1,2 mm. Line 4 (9,0/18,0) Repair week, if applicable. “RyyWww” (yy = year, ww = week) Text, height 1,2 mm. Line 5a (15,0/1,0) ”FCC ID: PY7A3880120” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 5b (15,0/16,0) “IC: 4170B-A3880120” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 6 (18,0/2,0) Line 6 in bar code, according to line 7a. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Mobile Phone label part no • 1248-2396 Mobile Phone label content part no • 1257-3979 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. Company Internal MARKING DRAWING 2 (2) Prepared (also subject responsible if other) No. SEM/CVVGP, Leif Hedin 1257-3980 Uen Approved Checked Date Rev Reference SEM/CVVGP, Leif Hedin 2011-12-06 1 2 Line 7a (19,5/1,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,5 mm. Defined by supplier. Line 7b (19,5/16,0) Actual electronic serial number (IMEI) of the mobile phone, “00000000-000000-0” Text, height 1,5mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 8 (22,0/2,0) Line 8 in bar code, according to line 7b. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 9 (27,0/1,0) CE approval symbol, the NB-“0682” and “Alert Symbol” in one artwork Graphics, height 5 mm. According to 1242-7470 Line 10a (45,5/1,0) Marking of origin; “Made in Xxx” “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. Line 10b (45,5/25,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision.

Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 22 of 31 An ne x C Inte r na l p ho to gra phs o f the E UT Photo documentation Photo 9: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 23 of 31 Photo 10: Photo 11: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 24 of 31 Photo 12: Photo 13: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 25 of 31 Photo 14: Photo 15: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 26 of 31 Photo 16: Photo 17: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 27 of 31 Photo 18: Photo 19: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 28 of 31 Photo 20: Photo 21: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 29 of 31 Photo 22: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 30 of 31 An ne x D Doc u me n t his to r y Version Applied changes Date of release 1.0 Initial release 2011-12-16 An ne x E Fur the r in for ma ti o n Glossary AVG - Average DUT - Device under test EMC - Electromagnetic Compatibility EN - European Standard EUT - Equipment under test ETSI - European Telecommunications Standard Institute FCC - Federal Communication Commission FCC ID - Company Identifier at FCC HW - Hardware IC - Industry Canada Inv. No. - Inventory number N/A - Not applicable PP - Positive peak QP - Quasi peak S/N - Serial number SW - Software Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 31 of 31 An ne x F Ac c re di ta t ion Ce r t ific a te Front side of the certificate Back side of the certificate Note: The current certificate including annex is published on our website (see link below) or may be received from CETECOM ICT Services on request. http://www.cetecom.com/fileadmin/de/CETECOM_D_Saarbruecken/accreditations_Jan_2010/DAKKS_Akkredi_ Urk_EN17025-En_incl_Annex.pdf

2011-12-16 Page 1 of 31 TEST REPORT Annex to Test Report No.: 1-2977/11-95-02-A Testing Laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom-ict.de e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Area of Testing: Radio/Satellite Communications Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/SWEDEN Phone: +46 46 19 30 00 Fax: +46 46 19 32 95 Contact: Håkan Sjöberg e-mail: [email protected] Phone: +46 46 19 35 59 Manufacturer Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/SWEDEN Test Standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices ICES-003 Issue 4 Spectrum Management and Telecommunications Policy Interference-Causing Equipment Standard For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: GSM Mobile Phone 850/900/1800/1900; GPRS/EGPRS; UMTS FDDI/FDDII/FDDV/FDDVIII; HSPA; RFID; BT EDR; WLAN b/g/n; ANT+; GPS Model name: AAD-3880120-AV FCC ID: PY7A3880120 IC: 4170B-A3880120 Frequency [MHz]: GSM: 824.2 – 848.8 MHz, 1850.2 – 1909.8 MHz UMTS: 826.4 – 848.6 MHz, 1852.4 – 1907.6 MHz Technology tested: GSM, UMTS Antenna: Integrated antenna Power Supply: 3.70 V DC by Li-Ion Battery Temperature Range: +23°C Test report authorised: Test performed: 2011-12-16 Stefan Bös 2011-12-16 Jakob Reschke Senior Testing Manager Testing Manager Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 2 of 31 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General Information ....................................................................................................................................... 3 2.1 Notes ..................................................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 4 Test Environment ........................................................................................................................................... 3 5 Test item .......................................................................................................................................................... 4 6 Test Laboratories sub-contracted ................................................................................................................ 4 7 Summary of Measurement Results .............................................................................................................. 5 7.1 Receiver ................................................................................................................................................ 5 8 Measurement Results .................................................................................................................................... 6 8.1 RX Spurious Emissions Conducted < 30 MHz ................................................................................. 6 8.2 Spurious Emissions Radiated – Receiver Mode .............................................................................. 9 9 Test equipment and ancillaries used for tests .......................................................................................... 14 10 Observations ......................................................................................................................................... 15 Annex A Photographs of the test setup ...................................................................................................... 16 Annex B External photographs of the EUT ................................................................................................. 18 Annex C Internal photographs of the EUT .................................................................................................. 22 Annex D Document history .......................................................................................................................... 30 Annex E Further information ........................................................................................................................ 30 Annex F Accreditation Certificate ............................................................................................................... 31 Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 3 of 31 2 General Information 2.1 Notes The test results of this test report relate exclusively to the test item specified in this test report. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CETECOM ICT Services GmbH. 2.2 Application details Date of receipt of order: 2011-10-19 Date of receipt of test item: 2011-12-02 Start of test: 2011-12-02 End of test: 2011-12-08 Person(s) present during the test: -/- 3 Test standard/s Test Standard Date Test Standard Description 47 CFR P…

Text truncated - open the document above for the full version.

Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 16 of 31 An ne x A P ho tog ra phs o f t h e te s t s e tu p Photo documentation Photo 1: Annex to Test Report No.: 1-2977/11-95-02-A 2011-12-16 Page 17 of 31 Photo 2:
