PY7A3880133Mobile phone with Bluetooth, WLAN 802.11bgn, GPS/A-GPS, ANT+ and FM Rx

Xperia ™ mini Extended User guide Contents Important information..................................................................6 Android™ – what and why?.........................................................7 Applications........................................................................................7 Getting started..............................................................................8 Assembly............................................................................................8 Turning on the phone..........................................................................9 Screen lock.........................................................................................9 Setup guide........................................................................................9 Accounts and services......................................................................10 Getting to know your phone......................................................11 Phone overview.................................................................................11 Using the hardware keys...................................................................12 Charging the battery.........................................................................12 Using the touch screen.....................................................................13 Home screen....................................................................................14 Accessing and using applications......................................................17 Status and notifications.....................................................................18 Phone settings menu........................................................................19 Typing text........................................................................................19 Keyboard and Phonepad settings.....................................................22 Adjusting the volume.........................................................................22 Customising your phone...................................................................23 Battery..............................................................................................25 Memory............................................................................................26 Stereo portable handsfree.................................................................27 Internet and messaging settings........................................................27 Using Data monitor...........................................................................28 Turning off data traffic.......................................................................29 Data roaming....................................................................................29 Network settings...............................................................................29 Calling..........................................................................................31 Emergency calls................................................................................31 Call handling.....................................................................................31 Voicemail..........................................................................................32 Multiple calls.....................................................................................32 Conference calls...............................................................................33 Call settings......................................................................................34 Contacts .....................................................................................35 Opening Contacts for the first time....................................................35 2 This is an Internet version of this publication. © Print only for private use. Getting contacts into your phone......................................................35 Contacts screen overview.................................................................36 Managing your contacts....................................................................36 Communicating with your contacts...................................................38 Sharing your contacts.......................................................................38 Backing up contacts.........................................................................39 Messaging...................................................................................40 Using text and multimedia messaging...............................................40 Text and multimedia message options..............................................41 Email............................................................................................42 Using email.......................................................................................42 Using email accounts........................................................................44 Gmail™ and other Google™ services ...............................................44 Google Talk™ ............................................................................46 Sony Ericsson Timescape™......................................................47 Timescape™ main view....................................................................47 Timescape™ widget.........................................................................47 Using Timescape™...........................................................................48 Timescape™ settings........................................................................50 Getting started with Android Market™....................................51 Payment options...............................................................................51 Downloading from Android Market™................................................51 Clearing your application data...........................................................52 Permissions.............................…

Text truncated - open the document above for the full version.

Sony Ericsson Confidential 1 (1) Prepared by SEMC/CV DVBA Afrah Sadiq + 46 10 80 12250 Contents responsible if other t han preparer Document number CVDVBA11 :488 Date 2011-09-15 Remarks Revision A Approved by SEMC/CVDVBA Hakan Sjoberg tel +46 10 80 13559 Receiver: Federal Communication Commission and Certification and Engineering Bureau Industry Canada Application: Type number: AAD-3880133-BV, FCC ID: PY7A3880133, Canada IC: 4170B-A3880133 Statement on WLAN hardware Sony Ericsson mobile phone S51 SE (FCC 10: PY7 A3880133, IC: 4170B-A3880133) uses the exact same WLAN hardware and software as ST15i (FCC 10: PY7 A3880 107, IC : 4170B-A38801 07) . Based on this, FCC part 15.247 and RSS - 210 Issue 7 report (report no. 1-2977-40­ 06/11 , dated 2011-06-06) issued for ST15i also applies for S51 SE. Best regards, Hakan Sjoberg Acting Manager -HW Verification Global Type Approval Sony Ericsson Mobile Communications (Sweden)AB

Sony Ericsson Confidentiality Request 2011-09-14 CVDVBA 11:4 76 SEMC/CVDVBA Afrah Sadiq +46 10 80 12250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7A3880133 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below listed items for our mobile phone type MD­ 3880133-BV, FCC 10: PY7A3880133: 1. Block Diagram 2. Schematic Diagram 3. Part List 4 . OperationallTechnical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, ~--~~------------ Afrah Sadiq Staff Verification Engineer Global Type Approval Sony Ericsson Mobile Communications Nya Vattentornet 221 88 Lund, Sweden Fax: +46 10 80 02441 sonyericsson.com

Sony Ericsson Short Term Confidentiality Request 2011-09-15 CVDVBA 11 :489 SEMC/CVDVBA Afrah Sadiq +46108012250 Receiver Federal Communications Commission Subject: Request for Temporary Confidentiality FCC 10: PY7 A3880133 To Whom It May Concern: In accordance with §0.459 of CFR 47 and Public Notice OA 04-1705, Sony Ericsson Mobile Communications AB requests in addition to confidentiality request CVOVBA 11 :476 temporary confidentiality for 180 days of the below listed items for our mobile phone type AAO-3880133-BV, FCC 10: PY7 A3880133: 1. User Manual 2. Test set-up 3. External and I nternal photos When the announcement of the product is done, the TCB will be notified to remove the Short Term Confidentiality. Please contact the undersigned if there are any further questions or additional information needed in this matter. Afrah Sadiq Staff Verification Engineer Global Type Approval Sony Ericsson Mobile Communications Nya Vattentornet 221 88 Lund, Sweden Fax: +46 108002441 ~.\'.d£sson.com

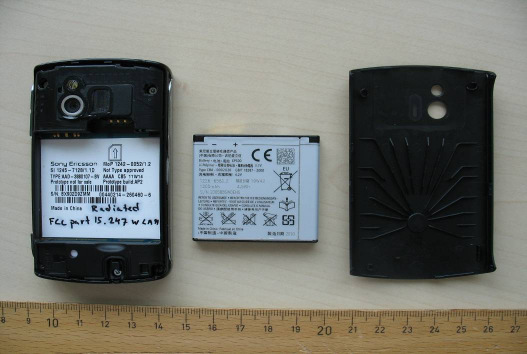

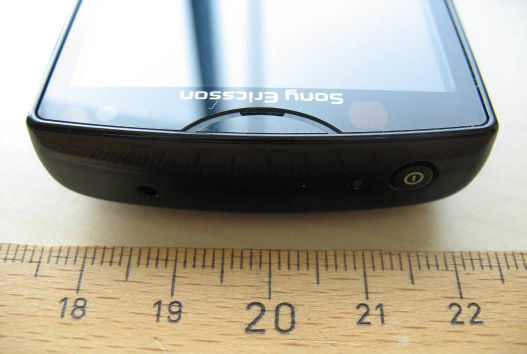

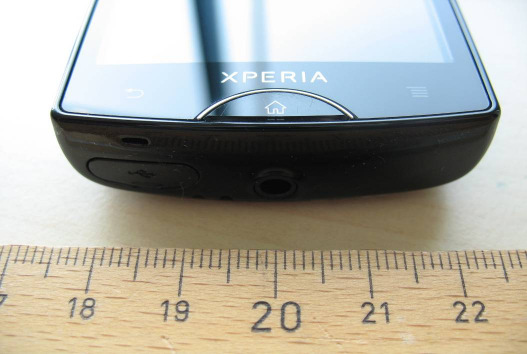

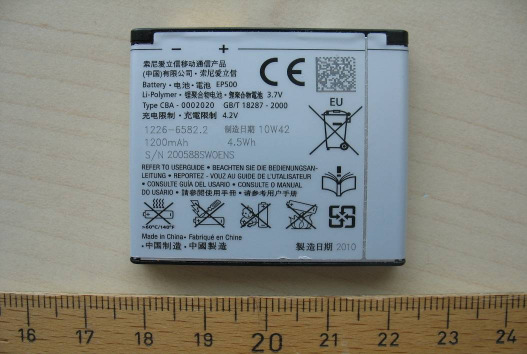

Test report no.: 1-2977-40-06/11 2011-06-06 Page 138 of 154 Anne x B E x te r na l pho to gr a phs of t he E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-2977-40-06/11 2011-06-06 Page 139 of 154 Photo 3: Photo 4: Test report no.: 1-2977-40-06/11 2011-06-06 Page 140 of 154 Photo 5: Photo 6: Test report no.: 1-2977-40-06/11 2011-06-06 Page 141 of 154 Photo 7: Photo 8: Test report no.: 1-2977-40-06/11 2011-06-06 Page 142 of 154 Photo 9: Photo 10: Test report no.: 1-2977-40-06/11 2011-06-06 Page 143 of 154 Photo 11: Photo 12:

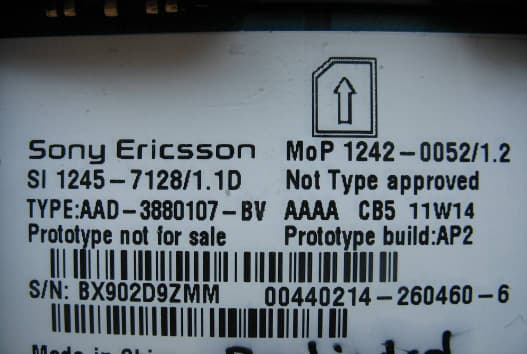

Company Internal MARKING DRAWING 1 (6) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1256-1093 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-08-31 2 2 S51SE, Mobile Phone label content, Black, Emobile, JP 1 General information Core Unit label part no 1241-3099 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scalable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1 (3,0/2,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925 Line 2, a (5,0/2,0) Product number of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm Line 2, b (5,0/20,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm Company Internal MARKING DRAWING 2 (6) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1256-1093 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-08-31 2 2 Line 3, a (4,3/ 32,8) “Caution symbol” Graphics, height 3.0 mm. According to 1234-3774 Line 3, b (4,3/ 37,0) “Caution” in Japanese Graphics, height 3.0 mm. According to 1234-3790 Line 4, a (6,7/2,0) Type number of the phone, “TYPE: AAD-3880133-BV Text, height 1,2 mm. According to Chapter 1 in MLCI Line 4, b (6,7/20,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Documents Line 5, a (8,4/2,0) “FCC ID: PY7A3880133” Text, height 1,2 mm. According to Chapter 1 in MLCI Line 5, b (8,4/20,0) Production week (flash), “yyWww” (yy = year, ww = week) Text, height 1,2 mm. Line 6 (9,0/27,0) SIM-card logo Graphics height 7,2mm According to 1001-6195 document Line 7, a (10,2/2,0) “IC: 4170B-A3880133” Text, height 1,2 mm According to Chapter 1 in MLCI Line 7, b (10,2/20,0) Repair week, if applicable. “RyyWww” (yy = year, ww = week) Text, height 1,2 mm Line 8 (12,0/2,0) Production date in Japanese (eg: year+ 年+ month+月 ): 20XX 年 XX 月 Text, height 1,2 mm. Graphics, height 1,5 mm. According to 1234-3763, 1235-6102 and 1235-6103 Company Internal MARKING DRAWING 3 (6) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1256-1093 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-08-31 2 2 Line 9 (14,0/2,0) Line 9 in bar code, according to line 10, a. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology) Line 10, a (16,0/2,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier Line 10, b (16,0/33,0) Caution sentence and “Do not remove this label” statement in Japanese: Graphics, height 11,0 mm. According to 1255-3399, on seven rows. Line 11, a (18,0/2,0) Actual electronic serial number (IMEI) of the Mobile Phone, “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR- CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 11, b (18,0/19,5) Model name in Japanese and colour name in English : Graphics, height 2.0 mm. According to 1255-3400 Line 12 (20,0/2,0) Line 12 in bar code, according to line 11, b (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Company Internal MARKING DRAWING 4 (6) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1256-1093 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-08-31 2 2 Line 13 (23,5/2,0) Emobile Sentence and Manufacturer name in Japanese: Graphics, height 3,5 mm. According to 1255-3402, on two rows Line 14 (25,5/10,3) Local Type Approval Number: 202XY111297763 Text, height 1,2 mm. Line 15 (26,8/10,3) Local Type Approval Number: 202MW111297763 Text, height 1,2 mm. Line 16 (28,2/8,4) Local Type Approval Number: R 202WW111297763 Text, height 1,2 mm. Line 17 (28,4/7,8) Square around R, see Line 16 Width 1,5 x Height 2,0 mm Line 18 (29,7/10,3) Local Type Approval Number: 202WW1112977631 Text, height 1,2 mm. Line 19, a (30,5/21,0) “Bluetooth value” logotype Graphics, min. height 4mm. According to 1234-3850. Line 19, b (30,5/34,7) “Bluetooth Symbol” Graphics, min. height 5mm, according to 1247- 9918 Line 19, c “Li-ion 00 Symbol” Graphics, min. height Company Internal MARKING DRAWING 5 (6) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1256-1093 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-08-31 2 2 (30,5/38,8) 5mm, according to 1235- 2267 Line 20, a (31,2/2,0) “JATE” logo Graphics, height 5 mm. According to 1234-3837 Line 20, b (31,2/10,3) Local Type Approval Number: 202WW1112977632 Text, height 1,2 mm. Line 21 (32,6/8,4) Local Type Approval Number: T AD 11-0017 202 Text, height 1,2 mm Line 22 (32,8/7,8) Square around T, see Line 20 Width 1,5 x Height 2,0 mm Line 23 (36,3/33,0) WEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202- 5537 Line 24 (38,3/2,0) “CE approval symbol, The notified body number 0682 and Alert Symbol” Graphics, height 5 mm. According to 1242-7470 Line 25 (38,7/32,0) Marking of origin. “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. Company Internal MARKING DRAWING …

Text truncated - open the document above for the full version.

Test report no.: 1-2977-40-06/11 2011-06-06 Page 144 of 154 Anne x C Inte r na l p ho togr a p hs o f the E U T Photo documentation: Photo 1: Photo 2: Test report no.: 1-2977-40-06/11 2011-06-06 Page 145 of 154 Photo 3: Photo 4: Test report no.: 1-2977-40-06/11 2011-06-06 Page 146 of 154 Photo 5: Photo 6: Test report no.: 1-2977-40-06/11 2011-06-06 Page 147 of 154 Photo 7: Photo 8: Test report no.: 1-2977-40-06/11 2011-06-06 Page 148 of 154 Photo 9: Photo 10: Test report no.: 1-2977-40-06/11 2011-06-06 Page 149 of 154 Photo 11: Photo 12: Test report no.: 1-2977-40-06/11 2011-06-06 Page 150 of 154 Photo 13: Photo 14: Test report no.: 1-2977-40-06/11 2011-06-06 Page 151 of 154 Photo 15: Photo 16: Test report no.: 1-2977-40-06/11 2011-06-06 Page 152 of 154 Photo 17: Photo 18: Test report no.: 1-2977-40-06/11 2011-06-06 Page 153 of 154 Photo 19: Test report no.: 1-2977-40-06/11 2011-06-06 Page 154 of 154 Anne x D Doc u me nt his tor y Version Applied changes Date of release 1.0 Initial release 2011-06-06 Anne x E Fur the r i nfor ma tio n Glossary DUT - Device under Test EMC - Electromagnetic Compatibility EUT - Equipment under Test FCC - Federal Communication Commission FCC ID - Company Identifier at FCC HW - Hardware IC - Industry Canada Inv. No. - Inventory number N/A - not applicable S/N - Serial Number SW - Software

Company Internal REPORT 1 (18) Prepared (also subject responsible if other) No. BA/SEMC/CVVBAU Robert Carr CVDVBA11:436. Approved Checked Date Rev Reference BA/SEMC/CVVBAU Jon Kenny JK 110907 A File Test Report issued by Accredited SAR Laboratory for FCC ID: PY7A3880133 (S51SE) to FCC OET BULLETIN 65 SUPPLEMENT C 01-01 IEEE STD 1528:2003 IC RSS-102 ISSUE 4 Date of test: 2011-08-08 to 2011-08-25 Laboratory: Sony Ericsson SAR Test Laboratory Sony Ericsson Mobile Communications AB Maplewood, Chineham Business Park Basingstoke, RG24 8YB, England Testing Engineer: Robert Carr [email protected] +44 2087625959 Testing Approval: Jon Kenny [email protected] +44 2087625957 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type AAD-3880133-BV; FCC ID PY7A3880133; IC 4170B-A3880133 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2005). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2011 Company Internal REPORT 2 (18) Prepared (also subject responsible if other) No. BA/SEMC/CVVBAU Robert Carr CVDVBA11:436. Approved Checked Date Rev Reference BA/SEMC/CVVBAU Jon Kenny JK 110907 A File Table of contents 1 INTRODUCTION ............................................................................................................................................................. 3 2 CUSTOMER DETAILS .................................................................................................................................................... 3 3 DEVICE UNDER TEST.................................................................................................................................................... 3 3.1 ANTENNA DESCRIPTION............................................................................................................................................... 3 3.2 DEVICE DESCRIPTION .................................................................................................................................................. 4 4 TEST EQUIPMENT .......................................................................................................................................................... 6 4.1 DOSIMETRIC SYSTEM ................................................................................................................................................... 6 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ............................................................ 7 6 SYSTEM ACCURACY VERIFICATION ...................................................................................................................... 8 6.1 DIELECTRICS FOR FREQUENCIES TESTED ...................................................................................................................... 9 7 SAR MEASUREMENT UNCERTAINTY .................................................................................................................... 10 8 .................................................................................................................................................................................................. 11 8.1 TEST RESULTS ............................................................................................................................................................ 11 8.2 SIMULTANEOUS TRANSMITTERS ................................................................................................................................ 14 9 REFERENCES................................................................................................................................................................. 15 APPENDIX ............................................................................................................................................................................... 16 9.1 PHOTOGRAPHS OF THE DEVICE UNDER TEST .............................................................................................................. 16 9.2 DEVICE POSITION AT SAM TWIN PHANTOM .............................................................................................................. 17 9.3 ATTACHMENTS .......................................................................................................................................................... 18 Company Internal REPORT 3 (18) Prepared (also subject responsible if other) No. BA/SEMC/CVVBAU Robert Carr CVDVBA11:436. Approved Checked Date Rev Reference BA/SEMC/CVVBAU Jon Kenny JK 110907 A File 1 Introduction In this test report, compliance of the Sony Ericsson FCC ID: PY7A3880133 (S51SE) portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 2 Customer details Company Name: Sony Ericsson Mob Comm AB Address: Nya Vatten…

Text truncated - open the document above for the full version.

2011-06-06 Page 1 of 154 TEST REPORT Test report no.: 1-2977-40-06/11 Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited test laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAkkS registration number: D-PL-12076-01-01 Area of Testing: Radio/Satellite Communication Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund / SWEDEN Phone: +46 46 19 30 00 Fax: +46 46 19 32 95 Contact: Håkan Sjöberg e-mail: [email protected] Phone: +46 46 19 35 59 Manufacturer Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund / SWEDEN Test standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices RSS - 210 Issue 8 Spectrum Management and Telecommunications - Radio Standards Specification Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment For further applied test standards please refer to section 3 of this test report. Test item Kind of test item: GSM Mobile Phone 850/900/1800/1900; GPRS/EGPRS; UMTS FDDI/FDDVIII HSDPA/HSUPA; BT+EDR; WLAN; A-GPS Model name: AAD-3880107-BV FCC ID: PY7A3880107 IC: 4170B-A3880107 Frequency: ISM band 2400 MHz to 2483.5 MHz (Lowest channel 01 – 2412 MHz, Highest channel 11 – 2462 MHz) Power supply: 3.70 V DC by power supply / battery EP500 + charger EP800 Temperature range: -20 °C to +55 °C Test performed: Test report authorised: 2011-06-06 Marco Bertolino 2011-06-06 Stefan Bös Test report no.: 1-2977-40-06/11 2011-06-06 Page 2 of 154 1 Table of contents 1 Table of contents ..................................................................................................................................... 2 2 General information ................................................................................................................................. 3 2.1 Notes .............................................................................................................................................. 3 2.2 Application details ......................................................................................................................... 3 3 Test standard/s ........................................................................................................................................ 3 4 Test environment ..................................................................................................................................... 3 5 Test item ................................................................................................................................................... 4 6 Test laboratories sub-contracted ............................................................................................................ 4 7 Summary of measurement results .......................................................................................................... 5 8 RF measurement testing.......................................................................................................................... 6 8.1 Description of test setup ............................................................................................................... 6 8.1.1 Radiated measurements ....................................................................................................... 6 8.1.2 Conducted measurements .................................................................................................... 7 8.2 Additional comments .................................................................................................................... 7 8.3 RSP100 test report cover sheet / performance test data ............................................................. 8 9 Measurement results ............................................................................................................................... 9 9.1 Maximum output power (conducted) ............................................................................................ 9 9.2 Antenna gain................................................................................................................................ 20 9.3 Maximum output power............................................................................................................... 23 9.4 Power spectral density ................................................................................................................ 30 9.5 Spectrum bandwidth of a FHSS system – 6 dB bandwidth ....................................................... 36 9.6 Spectrum bandwidth of a FHSS system – 20 dB bandwidth ..................................................... 42 9.7 Band edge compliance conducted ............................................................................................. 48 9.8 Band edge compliance radiated ................................................................................................. 52 9.9 TX spurious emissions conducted ............................................................................................. 59 9.10 TX spurious emissions radiated.............................................................................................. 77 9.11 RX spurious emissions radiated ........................................................................................... 115 9.12 TX spurious emissions radiated < 30 MHz............................................................................ 120 9.13 TX spurious emissions conducted < 30 MHz........................................................................ 126 10 Test equipment and ancillaries used for tests............................................................................. 131 Annex A Photographs of the test setup .................…

Text truncated - open the document above for the full version.

Test report no.: 1-2977-40-06/11 2011-06-06 Page 133 of 154 Anne x A P hoto gr a phs of t he te s t s e tu p Photo documentation: Photo 1: chamber C Photo 2: chamber C Test report no.: 1-2977-40-06/11 2011-06-06 Page 134 of 154 Photo 3: chamber C Photo 4: chamber C Test report no.: 1-2977-40-06/11 2011-06-06 Page 135 of 154 Photo 5: chamber C Photo 6: chamber C Test report no.: 1-2977-40-06/11 2011-06-06 Page 136 of 154 Photo 7: chamber C Photo 8: AC conducted Test report no.: 1-2977-40-06/11 2011-06-06 Page 137 of 154 Photo 9: chamber F Photo 10: chamber F

Company Internal REPORT 16 (18) Prepared (also subject responsible if other) No. BA/SEMC/CVVBAU Robert Carr CVDVBA11:436. Approved Checked Date Rev Reference BA/SEMC/CVVBAU Jon Kenny JK 110907 A File Append…

Text truncated - open the document above for the full version.
