PY7A5880005PCS GSM Phone

S002 read this manual to masterthe cellular phone Introduction Thank you for purchasing the S002. Before using your S002, be sure to read the S002 Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.Manuals for the S002The S002 comes with the Basic Manual and Instruction Manual. For learning the basics: Read the S002 Basic Manual (this manual). For learning details on using each function: Read the supplied S002 Instruction Manual (Japanese). Be sure to read the Safety Precautions " " to ensure proper usage of the S002. The keyword searchable au Online Manual is also available on the au homepage:http://www.au.kddi.com/manual/index.html To access from EZweb: R Top Menu/Search (au Customer Support) (Online Manual) Scan this QR code to access the au Online Manual. • 1 Illustrations and Screenshots in This Manual Illustrations and Screenshots in This Manual Note on Illustrations The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below. Key Illustration Key Illustration & R L F N C 123456789*0# p cjs m % o Note on Screenshots The screenshots in this manual are simplified and may look different from the actual cell phone screens. 2 Notes on Cell Phone Use Notes on Cell Phone Use Cell Phone EtiquetteThe cell phone always emits weak radio waves when power is on.Use the cell phone in an enjoyable and safe manner without forgetting to be considerate of others around you. Use of cell phones is not allowed in some places.Do not use the cell phone while you are driving. Doing so is both dangerous and prohibited by law.Using a cell phone in an aircraft is prohibited by law. Set Airplane Mode to ON and turn the cell phone power off.Radio waves from cell phones may interfere with medical electrical equipment.Some people close to you in crowded places such as packed trains may be using a cardiac pacemaker. Turn the cell phone off in such places.Abide by the rules of hospitals and other medical institutions where it is forbidden to use or carry cell phones.Be considerate of where you use the cell phone and how loudly you talk.Do not make calls in theaters, museums, libraries, and other similar places. Turn power off or turn on manner mode not to disturb others around you by ring tones.Do not use the cell phone on a street where you might interrupt the flow of pedestrians.Move to areas where you will not inconvenience others on trains or in hotel lobbies.Refrain from talking in a loud voice. •• •• •••• Obtain the permission of other people before you take their photos with the cell phone's camera.Do not record information with the cell phone's camera in bookstores and other locations where taking photos is not permitted. Do Not Use the Cell Phone While Driving!Turn off your cell phone or put it in Drive Mode while driving. Do not use the cell phone while driving a car/motorcycle or riding a bicycle. It may result in a traffic accident. Using a cell phone while driving is prohibited by law. Using a cell phone while riding a bicycle may also be punishable by law. Prohibited! Looking at a cell phone displayTalking on a cell phone while holding it Drive ModeIn Drive Mode, a Japanese message meaning "I am driving right now. Please leave your name and message after the beep." is played when a call is received, and asks the caller to leave a message on the answer memo. When the standby screen is displayed, press , use to select Tools , and then press (Select). Use to select Manner , and then press (Select). Use to select Drive , and then press (Set). •• •• 3 Notes on Cell Phone Use Disaster Message Board Service When a large scale disaster occurs, you can register your safety information from EZweb. The registered information can be referred from anywhere in Japan from EZweb or Internet. When a large scale disaster occurs, from an au phone, you can register your safety information (i.e. your condition and comments) to the (Disaster Message Board) created on the EZweb.After registration of your safety information, e-mail is sent to your family or acquaintances you have previously designated to notify that your safety information has been uploaded to the (Disaster Message Board).You can inquire for safety information of a person by entering his/her phone number from EZweb or Internet.** To inquire from other carriers' cell phone, a PHS or PC, access "http://dengon.ezweb.ne.jp/". Access R Top Menu/Search (Disaster Message Board)http://dengon.ezweb.ne.jp/ ••• The maximum storage period of the registered information is 72 hours.The maximum available number of registrations is 10 per phone number. When the number of registrations exceeds 10, the oldest one is overwritten.The demonstration of this service can be referred to anytime by pressing Top Menu/Search (au Customer Support) (Search ) (Disaster Message Board (Demo Version)).To view the Disaster Message Board in English, select English from the top menu of the Disaster Message Board. •••• Registering safety information Registering safety information Inquiring for safety information Inquiring for safety information 4 Contents Contents IntroductionIllustrations and Screenshots in This Manual 1Notes on Cell Phone Use 2 Cell Phone Etiquette ..................................................... 2 Do Not Use the Cell Phone While Driving! ................... 2Disaster Message Board Service ................................. 3 Contents 4Getting Ready 6 Checking the Contents of the Box ................................ 6Names of Parts ............................................................. 7 Charging the Battery Pack............................................ 8Learning the Basics ...................................................... 9Turning On Power ....................................................... 1…

Text truncated - open the document above for the full version.

Company Internal LETTER 1(1) Document number Revision 3/0061-LXE 108 58 Uen PA2 Prepared by Date SEM/CCMVAR EDWARD LI 2009-09-17 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by Note: Any hard copy of this document is for reference only. Due to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A5880005 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications (USA) Inc. requests confidentiality for the listed items below for our mobile phone type AAH-5880005-BV, FCC ID: PY7A5880005 1. Block Diagram 2. Operational / Technical Description 3. Parts List 4. Tune-up info / procedure 5. Schematic Diagram These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications (USA) Inc. considers to be proprietary, confidential and custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications (USA) Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, Edward Li Global Type Approval Sony Ericsson Mobile Communications (USA) Inc.

Company Internal LETTER 1(1) Document number Revision 4/0061-LXE 108 58 Uen PA2 Prepared by Date SEM/CCMVAR EDWARD LI 2009-09-17 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by Note: Any hard copy of this document is for reference only. Due to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Receiver Federal Communications Commission Subject: Request for Temporary Confidentiality FCC ID: PY7A5880005 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications (USA) Inc. requests in addition to confidentiality request 2/0061-1/FCP 119 0724 temporary confidentiality for 180 days for the listed items below for our mobile phone type AAH-5880005-BV, FCC ID: PY7A5880005 1. External and internal photographs 2. Test setup 3. User Guide When the announcement of the product is done, the TCB will be notified to remove the Short Term Confidentiality. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, Edward Li Global Type Approval Sony Ericsson Mobile Communications (USA) Inc.

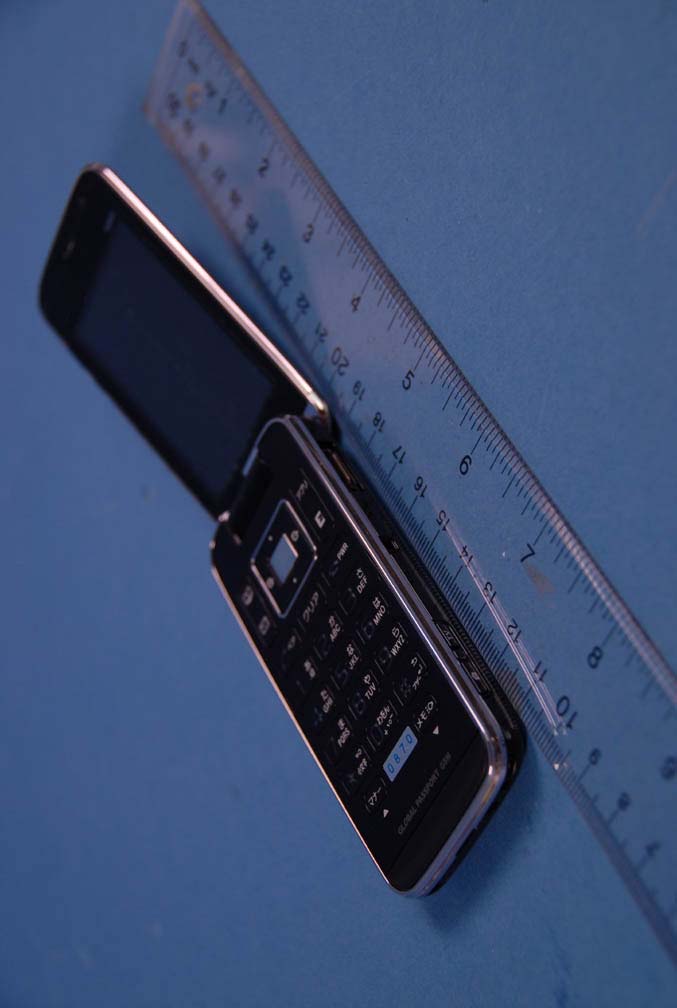

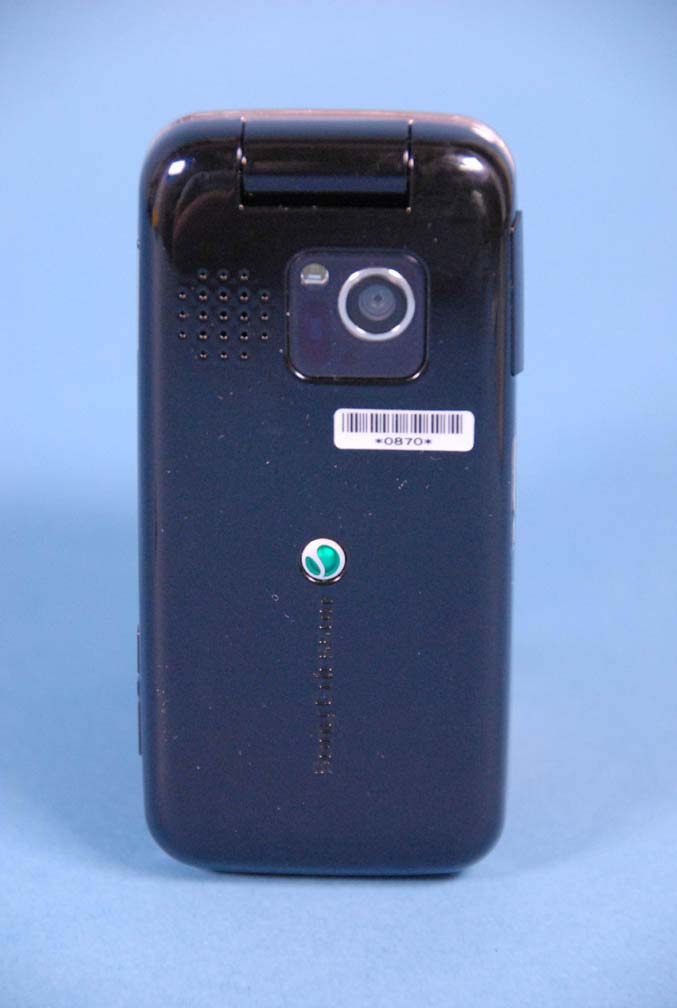

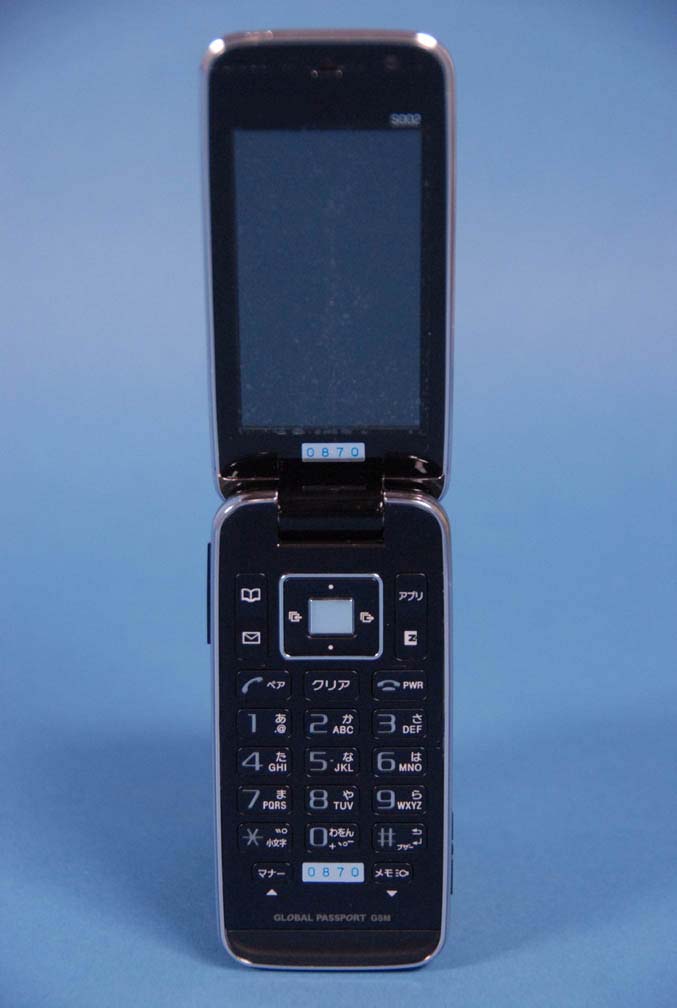

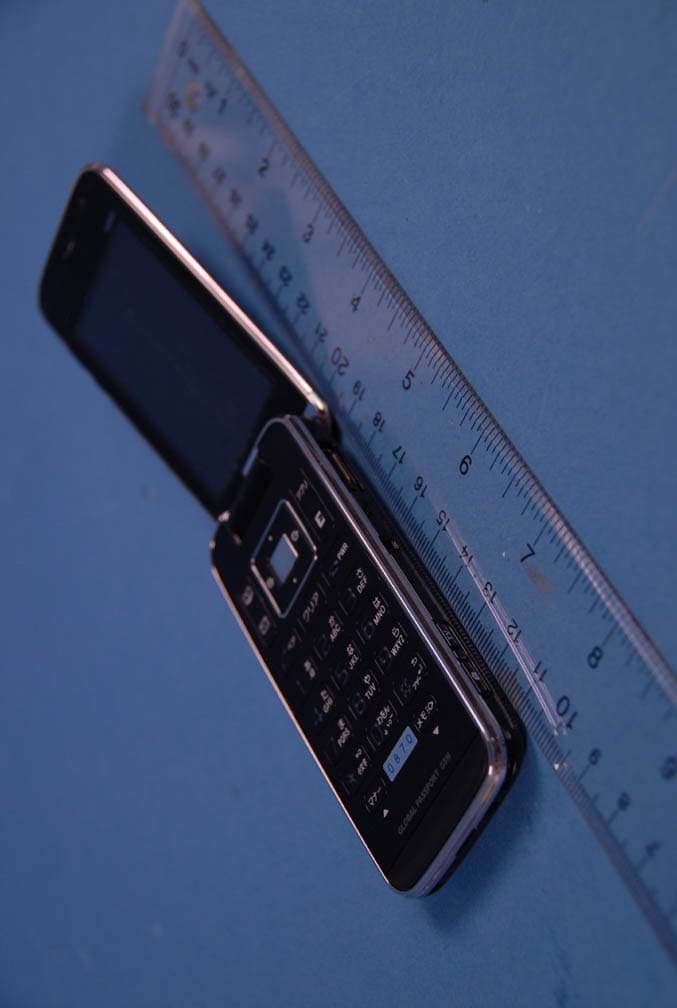

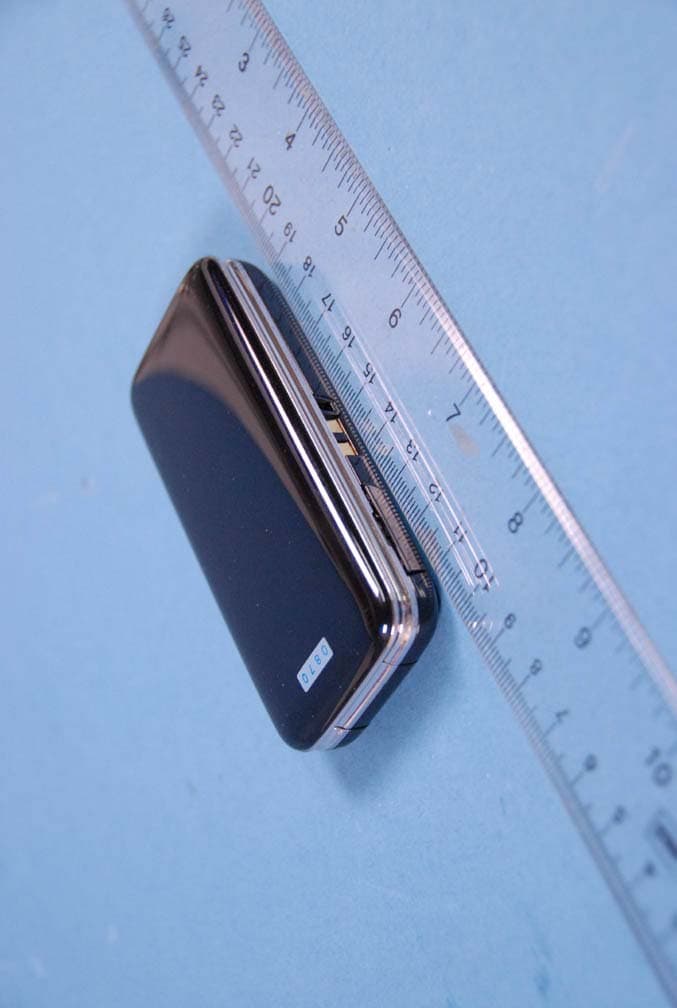

SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 External Photos EUT Type: PCS GSM Phone Page 1 of 5 © 2009 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 External Photos EUT Type: PCS GSM Phone Page 2 of 5 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 External Photos EUT Type: PCS GSM Phone Page 3 of 5 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 External Photos EUT Type: PCS GSM Phone Page 4 of 5 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 External Photos EUT Type: PCS GSM Phone Page 5 of 5 © 2009 PCTEST Engineering Laboratory Inc. 1/174 60-1/FCP 119 0849 Uen Rev PA1PTX-940 Picture of Final Phone Label2009-08-271 PTX-940 Picture of Final Phone Label The label will be visible at the time of purchase. AAH-5880005-BV

Confidential MARKING DRAWING 1(3) Document number Revision 1/151 86-1/FCP 119 0849 Uen PA2 Prepared by Date SEM/CCDAT YUMA TAMARU 2009-05-22 Contents responsible if other than preparer Remarks Approved by This document is managed in metaDoc. Note: Any hard copy of this document is for reference only. Due to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. AAH-5880005-BV PTX-940 Marking Drawing (Label Details) 1. General Information This is KDDI’s OEM product. The label is based on the requirement of KDDI and it has been approved. 2. Printing Information Content Format Line 1 FCC ID: PY7A5880005 Text, height : 1.0mm Line 2 Operator's name (Logo: au by KDDI) Graphic, height : 2.5mm Line 3a Official name (CDMA SO002) Text, height : 1.4mm Line 3b IC ID: 4170B-A5880005 Text, height : 1.0mm Line 4a Telecommunications mark Graphic, height : 1.0mm Line 4b JATE number: ADXX-XXXXXXX Text, height : 1.0mm Line 5 TELEC number (for CDMA): 001XZAAXXXX Text, height : 1.0mm Line 6 Sony Ericsson stylized name Graphic, height : 2.0mm Line 7a Radio Law certification number mark Graphic, height : 1.0mm Line 7b TELEC number (for MC-CDMA): 001XZAAXXXX Text, height : 1.0mm Line 8a Operator’s product code Text, height : 1.2mm Line 8b SO002XXX Text, height : 1.2mm Line 8c TELEC number (for T-CDMA): 001NZAAXXXX Text, height : 1.0 mm Line 9 TELEC symbol Graphic, height : φ5.2mm Line 10a The name of distribution company Text, height : 1.2mm Line 10b KDDI Inc and Okinawa Cellular Telephone Company Text, height : 1.2mm Line 11a The name of manufacture Text, height : 1.2mm Line 11b Sony Ericsson Mobile Communications AB Text, height : 1.2mm Line 12a Made in Japan Text, height : 1.2 mm Line 12b Type number: AAH-5880005-BV Text, height : 1.2mm Confidential MARKING DRAWING 2(3) Document number Revision 1/151 86-1/FCP 119 0849 Uen PA2 Line 13 Trash can mark Graphic, height : 5.0mm Line 14 Recycling Li-ion symbol Graphic, height : 4.0mm Line 15 au IC card Graphic, height : 1.0mm Line 16a Caution message. "Please do not peel off this sticker" Text, height : 1.0mm Line 16b Please be careful with inserting direction Text, height : 1.0mm Line 17a Caution symbol Graphic, height : 1.2mm Line 17b Caution message. "Please turn off power in an airplane and in a hospital Text, height : 1.0mm Line 18 Symbol of insertion direction for auIC card and micro SD card Graphic, height : 4.4mm Line 19 Date of manufacture (Year/Month) Text, height : 1.5mm Line 20 Line 22 in bar code for Manufacturing number for KDDI Bar code height : 2.5mm Line 21 CE approved symbol Graphic, height : 5.0mm Line 22 Manufacturing number for KDDI (SSOXXXXXXXXXX) Text, height : 1.5mm Line 23 Line 24 in bar code for IMEI number Bar code height : 2.5mm Line 24 IMEI number (IMEI XXXXXXXXXXXXXXXXXXXX) Text, height : 1.5mm 3. Layout Confidential MARKING DRAWING 3(3) Document number Revision 1/151 86-1/FCP 119 0849 Uen PA2 4. Dimensions

SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 1 of 13 © 2009 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 2 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 3 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 4 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 5 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 6 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 7 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 8 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 9 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 10 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 11 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 12 of 13 © 2009 PCTEST Engineering Laboratory Inc. SONY ERICSSON MOBILE COMMUNICATION INC. FCC ID: PY7A5880005 Model: PTX-940 Internal Photos EUT Type: PCS GSM Phone Page 13 of 13 © 2009 PCTEST Engineering Laboratory Inc.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: PTX-940; Type: 1900 GSM/GPRS Phone with RFID (Rcv.Only) Serial: IMEI: 0044 01077210389 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain; Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Test Date: 08-20-2009; Ambient Temp: 24.3 °C; Tissue Temp: 22.7 °C Probe: ES3DV3 - SN3213; ConvF(5.02, 5.02, 5.02); Calibrated: 4/15/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/21/2009 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Mouth-Jaw SAR, Mid.ch, Standard Battery, Space: 2.3 cm, Replacing Right Head-Touch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.66 V/m Peak SAR (extrapolated) = 0.526 W/kg SAR(1 g) = 0.341 mW/g; SAR(10 g) = 0.214 mW/g 0 dB = 0.402mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PTX-940; Type: 1900 GSM/GPRS Phone with RFID (Rcv.Only) Serial: IMEI: 0044 01077210389 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain; Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 08-20-2009; Ambient Temp: 24.3 °C; Tissue Temp: 22.7 °C Probe: ES3DV3 - SN3213; ConvF(5.02, 5.02, 5.02); Calibrated: 4/15/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/21/2009 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Right Head, Tilt, Mid.ch, Standard Battery Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.99 V/m Peak SAR (extrapolated) = 0.455 W/kg SAR(1 g) = 0.297 mW/g; SAR(10 g) = 0.176 mW/g 0 dB = 0.356mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PTX-940; Type: 1900 GSM/GPRS Phone with RFID (Rcv.Only) Serial: IMEI: 004401077210389 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain; Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Test Date: 08-20-2009; Ambient Temp: 24.3 °C; Tissue Temp: 22.7 °C Probe: ES3DV3 - SN3213; ConvF(5.02, 5.02, 5.02); Calibrated: 4/15/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/21/2009 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Mouth-Jaw SAR, Mid.ch, Standard Battery, Space: 2.3 cm, Replacing Left Head -Touch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.66 V/m Peak SAR (extrapolated) = 0.526 W/kg SAR(1 g) = 0.341 mW/g; SAR(10 g) = 0.214 mW/g 0 dB = 0.402mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PTX-940; Type: 1900 GSM/GPRS Phone with RFID (Rcv.Only) Serial: IMEI: 0044 01077210389 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain; Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 08-20-2009; Ambient Temp: 24.3 °C; Tissue Temp: 22.7 °C Probe: ES3DV3 - SN3213; ConvF(5.02, 5.02, 5.02); Calibrated: 4/15/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/21/2009 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Left Head, Tilt, Mid.ch, Standard Battery Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.6 V/m Peak SAR (extrapolated) = 0.379 W/kg SAR(1 g) = 0.256 mW/g; SAR(10 g) = 0.160 mW/g 0 dB = 0.298mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PTX-940; Type: 1900 GSM/GPRS Phone with RFID (Rcv.Only) Serial: IMEI: 0044 01077210389 Communication System: GSM1900 GPRS; 2 Tx slots; Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium: 1900 Muscle; Medium parameters used: f = 1880 MHz; σ = 1.55 mho/m; ε r = 53.1; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 08-20-2009; Ambient Temp: 24.5 °C; Tissue Temp: 22.8°C Probe: ES3DV3 - SN3213; ConvF(4.52, 4.52, 4.52); Calibrated: 4/15/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/21/2009 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Body SAR, Back side, Mid.ch, 2 Tx Slots, Standard Battery Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.583 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.9 V/m Peak SAR (extrapolated) = 0.768 W/kg SAR(1 g) = 0.522 mW/g; SAR(10 g) = 0.331 mW/g 0 dB = 0.603mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PTX-940; Type: 1900 GSM/GPRS Phone with RFID (Rcv.Only) Serial: IMEI: 0044 01077210389 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain; Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Test Date: 08-20-2009; Ambient Temp: 24.3 °C; Tissue Temp: 22.7 °C Probe: ES3DV3 - SN3213; ConvF(5.02, 5.02, 5.02); Calibrated: 4/15/2009 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/21/2009 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Mouth-Jaw SAR, Mid.ch, Standard Battery, Space; 2.3cm, Replacing Right and Left Hea…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PY7A5880005 CERTIFICATION REPORT Quality Manager Filename: Test Dates: EUT Type: 0908191565.PTX 08/20/09 - 08/28/09 1900 GSM/GPRS Phone with RFID (Rcv.Only) Page 1 of 25 © 2009 PCTEST Engineering Laboratory, Inc. REV 6.5 06/15/09 Applicant Name: Date of Testing: SONY ERICSSON MOBILE COMMUNICATION INC. 08/20/09 - 08/28/09 7001 Development Drive Test Site/Location: Research Triangle Park, NC 27709 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0908191565.PTX FCC ID: PY7A5880005 APPLICANT: SONY ERICSSON MOBILE COMMUNICATION INC. EUT Type: 1900 GSM/GPRS Phone with RFID (Rcv.Only) Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): PTX-940 Tx Frequency: 1850.20 - 1909.80 MHz (GSM PCS) Conducted Power: 30.43 dBm GSM 1900 Max. SAR Measurement: 0.341 W/kg GSM 1900 Head SAR 0.522 W/kg GSM 1900 Body SAR Test Device Serial No.: Pre-Production [S/N: IMEI: 004401077210389] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: PY7A5880005 CERTIFICATION REPORT Quality Manager Filename: Test Dates: EUT Type: 0908191565.PTX 08/20/09 - 08/28/09 1900 GSM/GPRS Phone with RFID (Rcv.Only) Page 2 of 25 © 2009 PCTEST Engineering Laboratory, Inc. REV 6.5 06/15/09 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 16 12 SYSTEM VERIFICATION.............................................................................................................. 17 13 RF CONDUCTED POWER ........................................................................................................... 19 14 SAR DATA SUMMARY ................................................................................................................. 20 15 EQUIPMENT LIST......................................................................................................................... 22 16 CONCLUSION............................................................................................................................... 23 17 REFERENCES .............................................................................................................................. 24 Reviewed by: FCC ID: PY7A5880005 CERTIFICATION REPORT Quality Manager Filename: Test Dates: EUT Type: 0908191565.PTX 08/20/09 - 08/28/09 1900 GSM/GPRS Phone with RFID (Rcv.Only) Page 3 of 25 © 2009 PCTEST Engineering Laboratory, Inc. REV 6.5 06/15/09 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave [3] is used for guidance in measuring the Specific Absorption Rate (SAR) due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to tho…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PY7A5880005 FCC Pt. 24 GSM MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0908191567.PY7 August 27 - 28, 2009 PCS GSM Phone Page 1 of 23 © 2009 PCTEST Engineering Laboratory, Inc. REV 3.8SBG 05/13/2009 Applicant Name: Date of Testing: SONY ERICSSON MOBILE COMMUNICATION INC. August 27 - 28, 2009 7001 Development Drive Test Site/Location: Research Triangle Park, NC 27709 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0908191567.PY7 FCC ID: PY7A5880005 APPLICANT: SONY ERICSSON MOBILE COMMUNICATION INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §24(E) EUT Type: PCS GSM Phone Model(s): PTX-940 Tx Frequency Range: 1850.20 - 1909.80MHz (PCS GSM) Max. RF Output Power: 1.6 W EIRP PCS GSM (32.04 dBm) Emission Designator(s): 245KGXW (PCS GSM) Test Device Serial No.: identical prototype [S/N: 004401077212443, 004401077212567] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP for Part 24. This device also contains functions that are not operational in U.S. territories. This report is applicable only to U.S. operations. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification Reviewed by: FCC ID: PY7A5880005 FCC Pt. 24 GSM MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0908191567.PY7 August 27 - 28, 2009 PCS GSM Phone Page 2 of 23 © 2009 PCTEST Engineering Laboratory, Inc. REV 3.8SBG 05/13/2009 TABLE OF CONTENTS FCC PART 24 MEASUREMENT REPORT...........…

Text truncated - open the document above for the full version.
