PY7A5880012CDMA 2000 and GSM 900/1800/1900 GPRS mobile phone with Bluetooth, W-LAN and GPS

read this manual to masterthe cellular phone S007 1248-0031.1 In case above numbers are not available, Introduction Thank you for purchasing the S007. Before using your S007, be sure to read the S007 Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.Manuals for the S007There are three manuals for the S007: the Basic Manual, printed Instruction Manual (Japanese) and full Instruction Manual (Japanese). For learning the basics: Read the S007 Basic Manual (this manual) or printed S007 Instruction Manual (Japanese). For learning details of each function: The full Instruction Manual (Japanese) gives detailed instructions on using each function and can be downloaded from the au homepage: http://www.au.kddi.com/torisetsu/index.html To ensure proper usage of the S007, be sure to read the Safety Precautions " " in the Instruction Manual. The keyword searchable au Online Manual is also available on the au homepage: http://www.au.kddi.com/manual/index.html To access from EZweb (free of packet communication charge): R au Customer Support OK (Online Manual) Scan this QR code to access the au Online Manual. • 1 Illustrations and Screenshots in This Manual Illustrations and Screenshots in This Manual Note on Illustrations The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below. Key Illustration Key Illustration cjs C & F L m N ( 123456789*0# f o g % ) R Note on Screenshots The screenshots in this manual are simplified and may look different from the actual cell phone screens. 2 Notes on Cell Phone Use Notes on Cell Phone Use Cell Phone EtiquetteThe cell phone always emits weak radio waves when power is on.Use the cell phone in an enjoyable and safe manner without forgetting to be considerate of others around you. Use of cell phones is not allowed in some places.Do not use the cell phone while you are driving. Doing so is both dangerous and prohibited by law.Using a cell phone in an aircraft is prohibited by law. Set Airplane Mode to ON and turn the cell phone power off.Radio waves from cell phones may interfere with medical electrical equipment.Some people close to you in crowded places such as packed trains may be using a cardiac pacemaker. Turn the cell phone off in such places.Abide by the rules of hospitals and other medical institutions where it is forbidden to use or carry cell phones.Be considerate of where you use the cell phone and how loudly you talk.Do not make calls in theaters, museums, libraries, and other similar places. Turn power off or turn on manner mode not to disturb others around you by ring tones.Do not use the cell phone on a street where you might interrupt the flow of pedestrians.Move to areas where you will not inconvenience others on trains or in hotel lobbies.Refrain from talking in a loud voice. •• •• •••• Obtain the permission of other people before you take their photos with the cell phone's camera.Do not record information with the cell phone's camera in bookstores and other locations where taking photos is not permitted. Do Not Use the Cell Phone While Driving!Turn off your cell phone or put it in Drive Mode while driving. Do not use the cell phone while driving a car/motorcycle or riding a bicycle. It may result in a traffic accident. Using a cell phone while driving is prohibited by law. Using a cell phone while riding a bicycle may also be punishable by law. Prohibited! Looking at a cell phone displayTalking on a cell phone while holding it Drive ModeIn Drive Mode, a Japanese message meaning "I am driving right now. Please leave your name and message after the beep." is played when a call is received, and asks the caller to leave a message on the answer memo. When the standby screen is displayed, press , use to select Drive , and then press (Set). •• • • 3 Notes on Cell Phone Use Disaster Message Board Service When a large scale disaster occurs, you can register your safety information from EZweb. The registered information can be referred from anywhere in Japan from EZweb or Internet. When a large scale disaster occurs, from an au phone, you can register your safety information (i.e. your condition and comments) to the (Disaster Message Board) created on the EZweb.After registration of your safety information, e-mail is sent to your family or acquaintances you have previously designated to notify that your safety information has been uploaded to the (Disaster Message Board).You can inquire for safety information of a person by entering his/her phone number from EZweb or Internet.** To inquire from other carriers' cell phone, a PHS or PC, access "http://dengon.ezweb.ne.jp/". Access R au one Top (Disaster Message Board)http://dengon.ezweb.ne.jp/ ••• Registered information is stored until the service set up for the disaster ends.The maximum available number of registrations is 10 per phone number. When the number of registrations exceeds 10, the oldest one is overwritten.The demonstration of this service can be referred to anytime by pressing au Customer Support OK (Disaster Message Board (Demo Version)).To view the Disaster Message Board in English, select English from the top menu of the Disaster Message Board. •••• Registering safety information Registering safety information Inquiring for safety information Inquiring for safety information 4 Contents Contents IntroductionIllustrations and Screenshots in This Manual 1 Notes on Cell Phone Use 2 Cell Phone Etiquette ..................................................... 2 Do Not Use the Cell Phone While Driving! ................... 2Disaster Message Board Service ................................. 3 Contents 4Getting Ready 6 Checking the Contents of the Box ................................ 6Names of Parts ..................................................…

Text truncated - open the document above for the full version.

Sony Ericsson Confidentiality Request 2011-04-13 CVDVBA11 :132 SEMC/CVDVBA Afrah Sadiq +46 10 80 12250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A5880012 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AS requests confidentiality for the below listed items for our mobile phone type AAH­ 5880012-BV, FCC 10: PY7A5880012: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. OperationallTechnical Descriptions these items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AS considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AS also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Afrah Sadiq Staff Verification Engineer Global Type Approval Sony Ericsson Mobile Communications Nya Vattentornet 221 88 Lund, Sweden Fax: +4610 80 02441 sonverlcsson.com

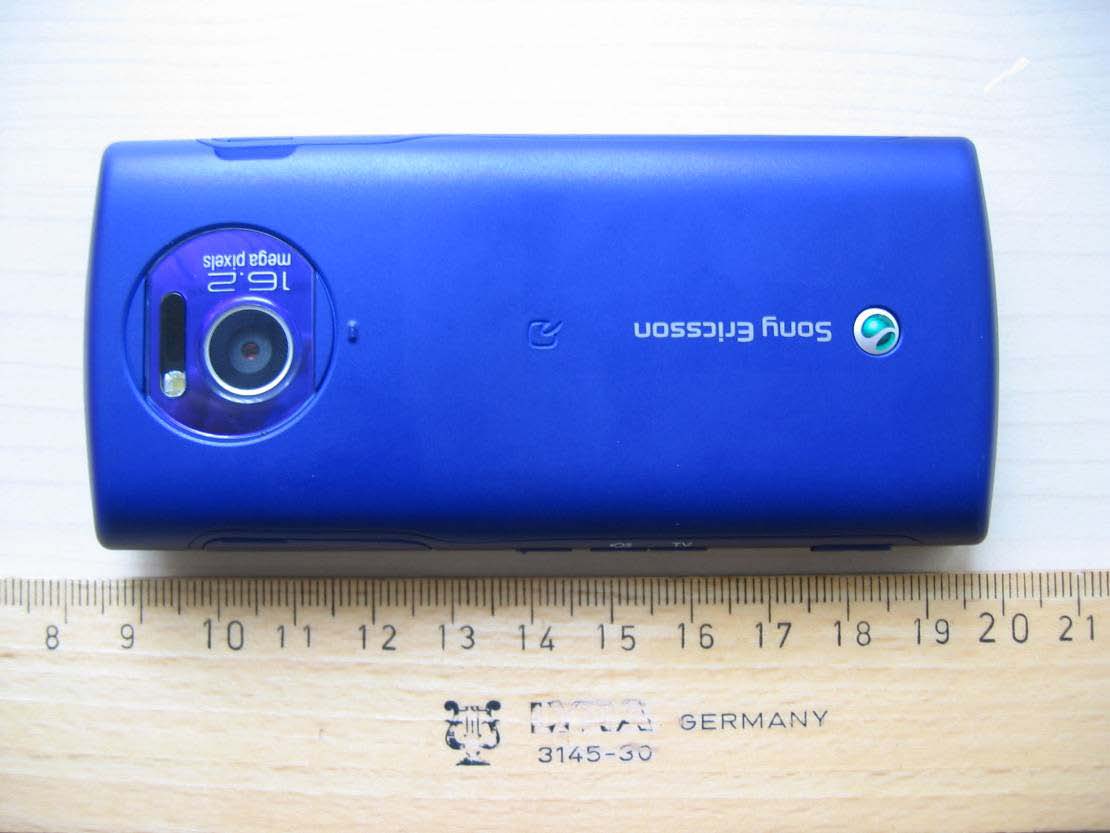

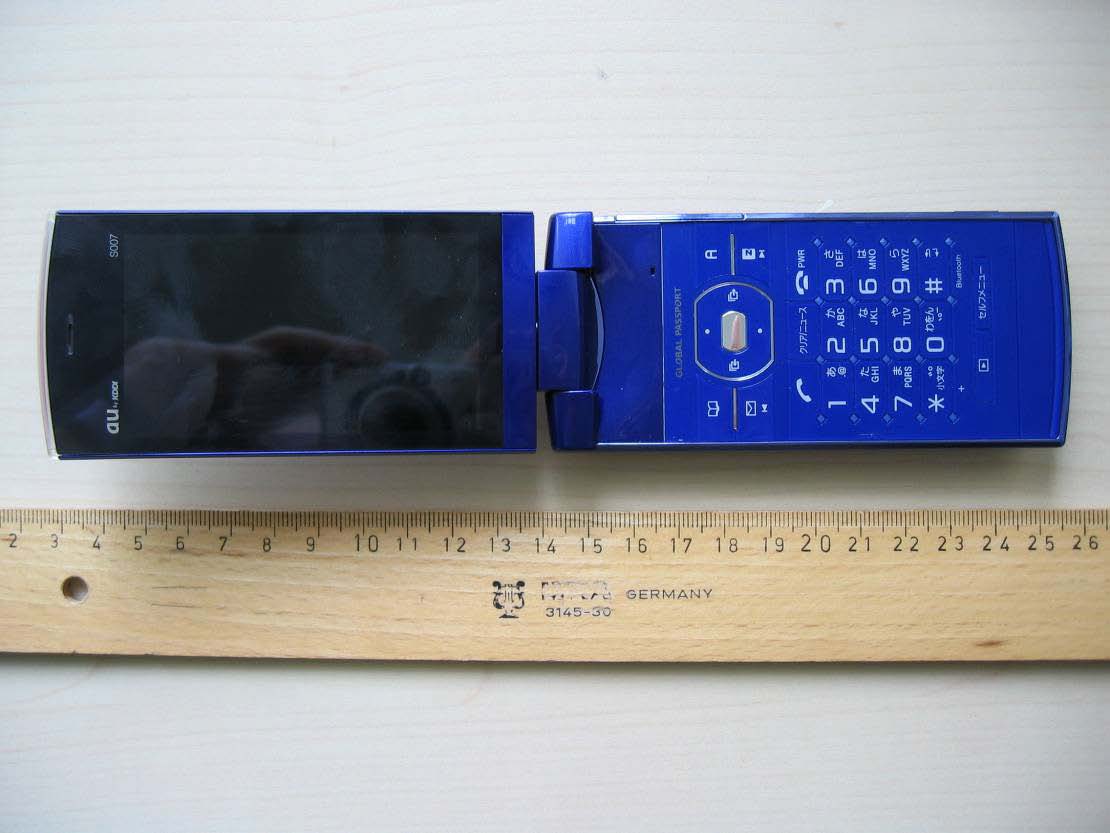

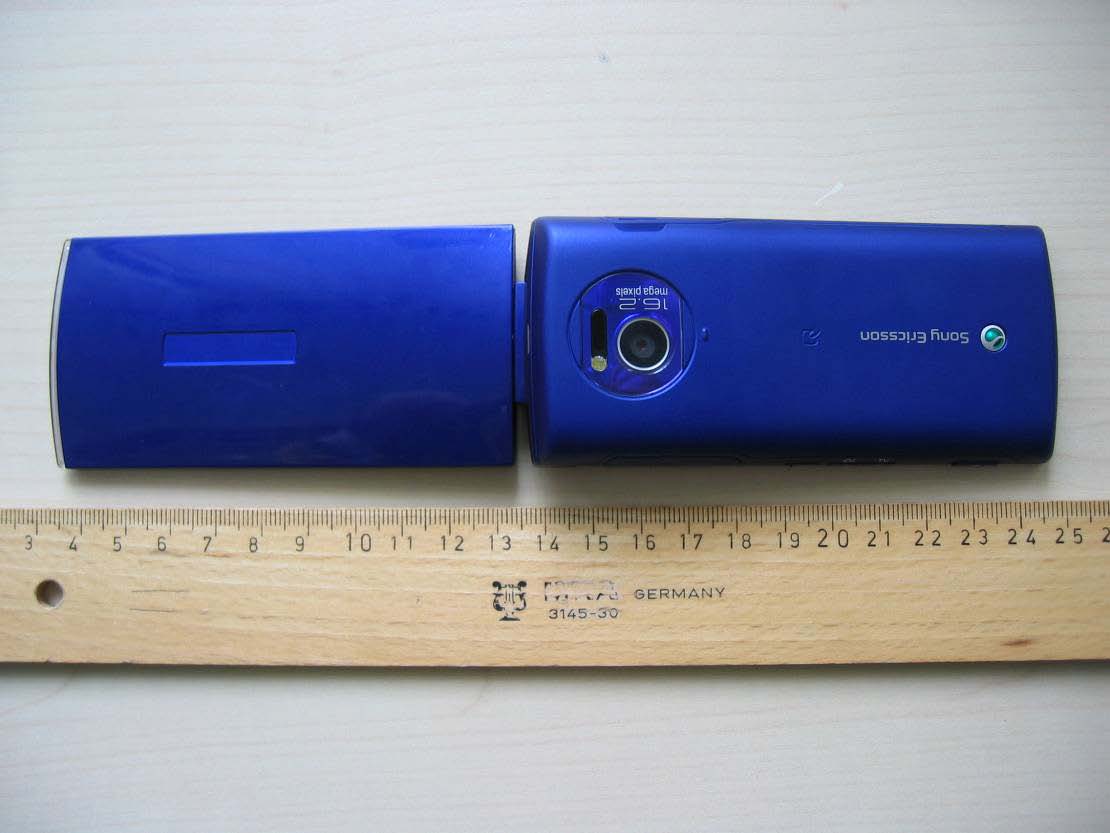

Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 18 of 33 Annex B External photographs of the EUT Photo documentation Photo 3: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 19 of 33 Photo 4: Photo 5: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 20 of 33 Photo 6: Photo 7: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 21 of 33 Photo 8: Photo 9: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 22 of 33 Photo 10: Photo 11: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 23 of 33 Photo 12: Photo 13: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 24 of 33 Photo 14: Photo 15: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 25 of 33 Photo 16: Photo 17: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 26 of 33 Photo 18:

Confidential MARKING DRAWING 1(3) Document number Revision 1/151 86-1/FCP 119 1116/12 Uen A Prepared by Date SEM/CVOVBAT ERIKO MAEDA 2011-03-22 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CVOAAPP (TOSHIYUKI SHITE) Note: Any hard copy of this document is for reference only. Due to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. AAH-5880012-BV SO007 Marking Drawing (Label Details) 1. General Information This is KDDI’s OEM product. The label is based on the requirement of KDDI and it has been approved. 2. Printing Information Content Format Line 1&2 Please insert the auIC card sideways Text, height : 1.3 mm Line 3 Symbol of insertion direction for auIC card Graphic, height : 3.5 mm Line 4 & 5a Operator's name (Logo: au by KDDI) Graphic, height : 2.5 mm Line 5b Official name (CDMA SO007) Text, height : 1.4 mm Line 6 Sony Ericsson stylized name Graphic, height : 2.0 mm Line 7a Operator’s product code Text, height : 1.2 mm Line 7b SO006XXX (Operator's product code) Text, height : 1.2 mm Line 8a Type number: AAH-5880012-BV Text, height : 1.2 mm Line 8b HW&SW identification field: AAAA Text, height : 1.2 mm Line 9 The name of distribution company: KDDI Inc and Okinawa Cellular Telephone Company Text, height : 1.2 mm Line 10a Manufacture : Applicant Text, height : 1.2 mm Line 10b Sony Ericsson Mobile Communications AB (The name of manufacture) Text, height : 1.2 mm Line 11 JATE number: ADXX-XXXXXXX Text, height : 1.1 mm Line 12 Telecommunications mark Graphic, height : 1.5 mm Line 13 TELEC number (for CDMA): 001XZAAXXXX Text, height : 1.1 mm Line 14 TELEC number (for MC-CDMA): 001ZYAAXXXX Text, height : 1.1 mm Line 15 TELEC number (for T-CDMA): 001NXAAXXXX Text, height : 1.1 mm Line 16 Radio Law certification number mark Graphic, height : 1.5 mm Line 17 TELEC symbol Graphic, height : 5.2 mm Line 18 TELEC number (for T-CDMA MC): 001XUAAXXXX Text, height : 1.1 mm Line 19 TELEC number (for Bluetooth): 001WWDAXXXX Text, height : 1.1 mm Line 20 FCC ID: PY7A5880012 Text, height : 1.1 mm Confidential MARKING DRAWING 2(3) Document number Revision 1/151 86-1/FCP 119 1116/12 Uen A Line 21a Bluetooth figure mark (Bluetooth logo) Graphic, height : 3.0 mm Line 21b ARIB mark Graphic, height : 2.5 mm Line 22 IC ID: 4170B-A5880012 Text, height : 1.1 mm Line 23 Date of manufacture Text, height : 1.5 mm Line 24 Line 22 in bar code for Manufacturing number for KDDI Bar code height : 2.5 mm Line 25 20XX/XX (Year/Month: Date of manufacture) Text, height : 1.5 mm Line 26 Manufacturing number for KDDI (SSOXXXXXXXXXX) Text, height : 1.5 mm Line 27 Line 24 in bar code for IMEI number Bar code height : 2.5 mm Line 28 IMEI number (IMEI XXXXXXXXXXXXXXXXXXXX) Text, height : 1.5 mm Line 29 Recycling Li-ion symbol Graphic, height : 5.0 mm Line 30a CE approved symbol Graphic, height : 5.0 mm Line 30b Alert mark Graphic, height : 5.0 mm Line 30c Trash can mark Graphic, height : 5.0 mm Line 31a Caution symbol Graphic, height : 1.2 mm Line 31b Caution message. "Please turn off power in an airplane and in a hospital Text, height : 1.2 mm Line 32a Caution message. "Please do not peel off this sticker" Text, height : 1.2 mm Line 32b Marking of Origin: Made in Japan Text, height : 1.2 mm 3. Layout Confidential MARKING DRAWING 3(3) Document number Revision 1/151 86-1/FCP 119 1116/12 Uen A 4. Dimensions Confidential MARKING DRAWING 1(1) Document number Revision 1/151 86-1/FCP 119 1116/12 UenC Note: Any hard copy of this document is for reference only. Due to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Label placement To find the label follow these steps: 1. Remove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 27 of 33 Annex C Internal photographs of the EUT Photo documentation Photo 19: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 28 of 33 Photo 20: Photo 21: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 29 of 33 Photo 22: Photo 23: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 30 of 33 Photo 24: Photo 25: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 31 of 33 Photo 26: Photo 27: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 32 of 33 Photo 28: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 33 of 33 Annex D Document history Version Applied changes Date of release 1.0 Initial release 2011-03-29 Annex E Further information Glossary DUT - Device under Test EMC - Electromagnetic Compatibility EUT - Equipment under Test FCC - Federal Communication Commission FCC ID - Company Identifier at FCC HW - Hardware IC - Industry Canada Inv. No. - Inventory number N/A - not applicable S/N - Serial Number SW - Software

2011-03-29 Page 1 of 33 TEST REPORT Annex to Test Report No.: 1-2977-25-02/11 Testing Laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom-ict.de e-mail: [email protected] Accredited Test Laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAR registration number: DGA-PL-176/94-D1 Area of Testing: Radio Satellite Communications Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/Sweden Phone: +46 46 19 30 00 Fax: +46 46 19 32 95 Contact: Johan Wedin e-mail: [email protected] Phone: +46 70 71 95 73 6 Manufacturer Sony Ericsson Mobile Communications AB Nya Vattentornet 22188 Lund/Sweden Test Standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices ICES-003 Issue 4 Spectrum Management and Telecommunications Policy Interference-Causing Equipment Standard For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Mobile Phone 900/1800/1900/BT2.1+EDR, WLAN ,GPS Model name: AAH-5880012-BV FCC ID: PY7A5880012 IC: 4170B-A5880012 Frequency : 824.70 – 848.31 MHz, 1850.20 – 1909.80 MHz Power supply: 3.70 V DC by Li-Ion Battery and Power Supply Temperature range: -30 °C to 60 °C Test performed: Test Report authorised: 2011-03-29 Jakob Reschke 2011-03-29 Stefan Bös Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 2 of 33 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General Information ....................................................................................................................................... 3 2.1 Notes ..................................................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 4 Test Environment ........................................................................................................................................... 3 5 Test item .......................................................................................................................................................... 4 6 Test Laboratories sub-contracted ................................................................................................................ 4 7 Summary of Measurement Results .............................................................................................................. 5 7.1 Receiver ................................................................................................................................................ 5 8 Measurement Results .................................................................................................................................... 6 8.1 RX Spurious Emissions Conducted < 30 MHz ................................................................................. 6 8.2 Spurious Emissions Radiated – Receiver Mode .............................................................................. 9 9 Test equipment and ancillaries used for tests .......................................................................................... 14 Annex A Photographs of the test setup ...................................................................................................... 16 Annex B External photographs of the EUT ................................................................................................. 18 Annex C Internal photographs of the EUT .................................................................................................. 27 Annex D Document history .......................................................................................................................... 33 Annex E Further information ........................................................................................................................ 33 Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 3 of 33 2 General Information 2.1 Notes The test results of this test report relate exclusively to the test item specified in this test report. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CETECOM ICT Services GmbH. 2.2 Application details Date of receipt of order: 2011-03-15 Date of receipt of test item: 2011-03-18 Start of test: 2011-03-18 End of test: 2011-03-25 Person(s) present during the test: -/- 3 Test standard/s Test Standard Version Test Standard Description 47 CFR Part 15 2009-10 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices ICES-003 Issue 4 2004-04 Spectrum Management and Telecommunications Policy Interference-Causing Equipment Standard 4 Test Environment Temperature: T nom T max T min 21 °C during room temperature tests 60 °C during high temperature test -30 °C during low temperature test Relative humidity content: 39 % Air pressure: not relevant for this kind of testing Power supply: V nom V max V min 3.70 V DC by Li-Ion Battery and Power Supply 4.40 V 3.30 V Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 4 of 33 5 Test item Kind of test item : Mobile Phone 900/1800/1900/…

Text truncated - open the document above for the full version.

Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 16 of 33 Annex A Photographs of the test setup Photo documentation Photo 1: Annex to Test Report No.: 1-2977-25-02/11 2011-03-29 Page 17 of 33 Photo 2:
