PY7A5880013Mobile phone with Bluetooth, WLAN 802.11bgn, GPS/A-GPS, FM receiver and RFID

read this manual to masterthe cellular phone IS11S Introduction Thank you for purchasing the IS11S. Before using your IS11S, be sure to read the IS11S Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.Manuals for the IS11SThere are three manuals for the IS11S: the Basic Manual, printed Instruction Manual (Japanese) and full Instruction Manual (Japanese). For learning the basics: Read the IS11S Basic Manual (this manual) or printed IS11S Instruction Manual (Japanese). For learning details of each function: The full Instruction Manual (Japanese) gives detailed instructions on using each function and can be downloaded from the au homepage: http://www.au.kddi.com/torisetsu/index.html To ensure proper usage of the IS11S, be sure to read the Safety Precautions " " in the Instruction Manual. The keyword searchable au Online Manual is also available on the au homepage: http://www.au.kddi.com/manual/index.htmlScan this QR code to access the au Online Manual. 1 Illustrations and Screenshots in This Manual Illustrations and Screenshots in This Manual Note on Illustrations The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. Note on Screenshots The screenshots in this manual are simplified and may look different from the actual cell phone screens. 2 Notes on Cell Phone Use Notes on Cell Phone Use Cell Phone EtiquetteThe cell phone always emits weak radio waves when power is on.Use the cell phone in an enjoyable and safe manner without forgetting to be considerate of others around you. Use of cell phones is not allowed in some places.Do not use the cell phone while you are driving. Doing so is both dangerous and prohibited by law.Using a cell phone in an aircraft is prohibited by law. Set Airplane Mode to ON and turn the cell phone power off.Radio waves from cell phones may interfere with medical electrical equipment.Some people close to you in crowded places such as packed trains may be using a cardiac pacemaker. Turn the cell phone off in such places.Abide by the rules of hospitals and other medical institutions where it is forbidden to use or carry cell phones.Be considerate of where you use the cell phone and how loudly you talk.Do not make calls in theaters, museums, libraries, and other similar places. Turn power off or turn on manner mode not to disturb others around you by ring tones.Do not use the cell phone on a street where you might interrupt the flow of pedestrians.Move to areas where you will not inconvenience others on trains or in hotel lobbies.Refrain from talking in a loud voice. •• •• •••• Obtain the permission of other people before you take their photos with the cell phone's camera.Do not record information with the cell phone's camera in bookstores and other locations where taking photos is not permitted. Do Not Use the Cell Phone While Driving!Turn off your cell phone or put it in Drive Mode while driving. Do not use the cell phone while driving a car/motorcycle or riding a bicycle. It may result in a traffic accident. Using a cell phone while driving is prohibited by law. Using a cell phone while riding a bicycle may also be punishable by law. Prohibited! Looking at a cell phone displayTalking on a cell phone while holding it Drive ModeIn Drive Mode, a Japanese message meaning "I am driving right now. Please leave your name and message after the beep." is played when a call is received, and asks the caller to leave a message on the answer memo. When the standby screen is displayed, press , use to select Drive , and then press (Set). •• • • 3 Contents Contents IntroductionIllustrations and Screenshots in This Manual 1 Notes on Cell Phone Use 2 Cell Phone Etiquette ..................................................... 2 Do Not Use the Cell Phone While Driving! ................... 2 Contents 3Getting Ready 5 Checking the Contents of the Box ................................ 5Names of Parts ............................................................. 6 Charging the Battery Pack............................................ 7Turning On Power ......................................................... 8Switching the Display Language to English.................. 8Initial Setup ................................................................... 8 Checking Your Phone Number...................................... 8Inserting/Removing microSD Memory Card ................. 9 Security Code and Passwords ..................................... 9 Learning the Basics 10 Operating the Touch Panel ......................................... 10Viewing the Home Screen .......................................... 11Using the Application Screen ..................................... 12Opening the Applications screen ................................ 12 Making and Answering Calls 13 Making a Call .............................................................. 13 Making an International Call ....................................... 13Answering a Call ........................................................ 14Returning a Call (Outgoing History/Incoming History) .......................... 14One-ring Calls ............................................................ 14Adjusting the Earpiece Volume during a Call ............. 15Turning On Manner Mode ........................................... 15 Changing the Incoming Ring Tone ............................. 15Adjusting the Incoming Ring Tone Volume ................. 16 Global Function 17 Setting the Area .......................................................... 17 Obtaining the Latest PRL (Preferred Roaming List) ... 17Calling Japan from Overseas ..................................... 18 Character Input 19 Character Entry Modes .............................................. 19Entering Alphanumeric Characters ............................ 19Entering E-mail Add…

Text truncated - open the document above for the full version.

Sony Ericsson Confidentiality Request 2011-04-11 CVDVBA11:124 SEMC/CVDVBA Afrah Sadiq +46 1080 12250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A5880013 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below listed items for our mobile phone type AAH­ 5880013-BV, FCC ID: PY7A5880013: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. OperationallTechnical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. BestReg~ ?';1i .. Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AB

Sony Ericsson Short Term Confidentiality Request 2011-04-11 CVDVBA11:129 SEM/CCDALE Afrah Sadiq +46 10 80 12250 Receiver Federal Communications Commission Subject: Request for Temporary Confidentiality FCC ID: PY7A5880013 To Whom It May Concern: In accordance with §0.459 of CFR 47 and Public Notice DA 04-1705, Sony Ericsson Mobile Communications AB requests in addition to confidentiality request CVDVBA11 :124 temporary confidentiality for 180 days of the below listed items for our mobile phone type AAH-5880013-BV. FCC 10: PY7A5880013: 1. User Manual 2. Test set-up 3. External and Internal photos When the announcement of the product is done, the TCB will be notified to remove the Short Term Confidentiality. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, Afrah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AB

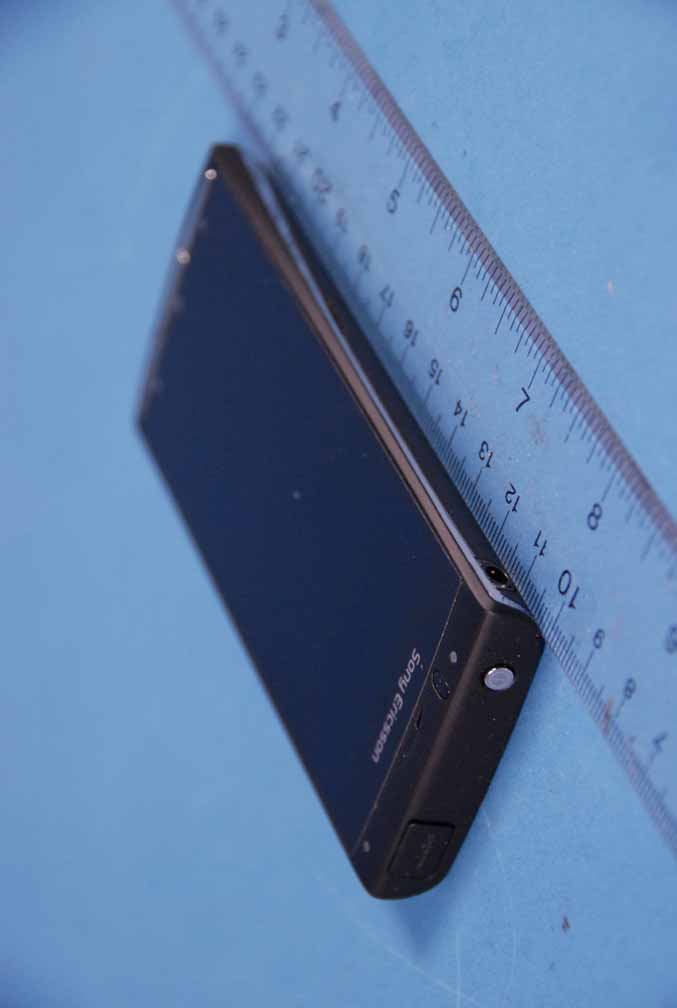

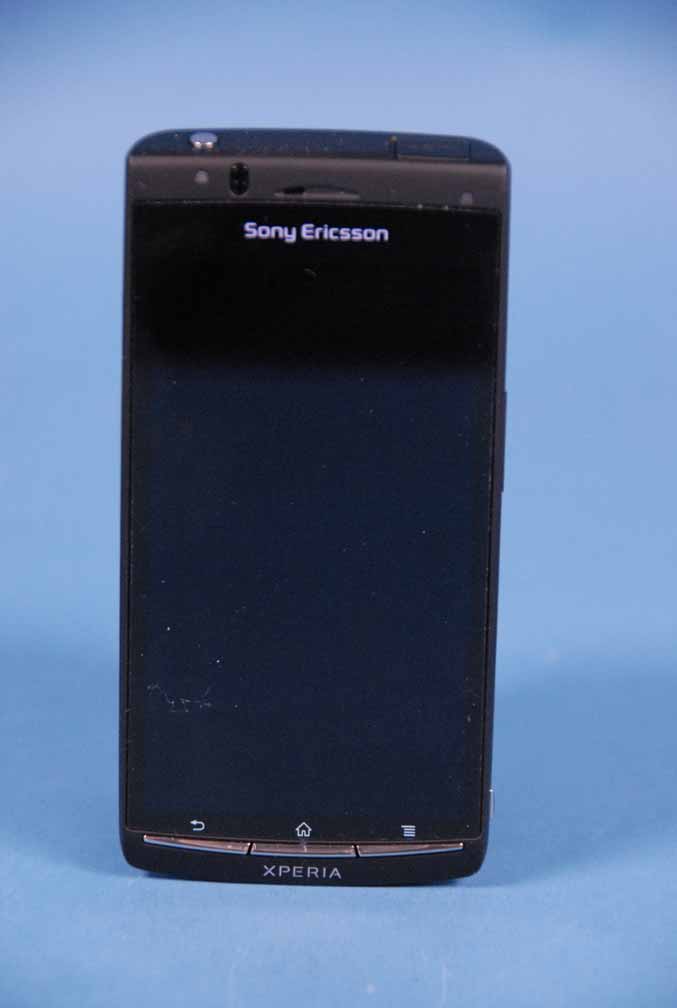

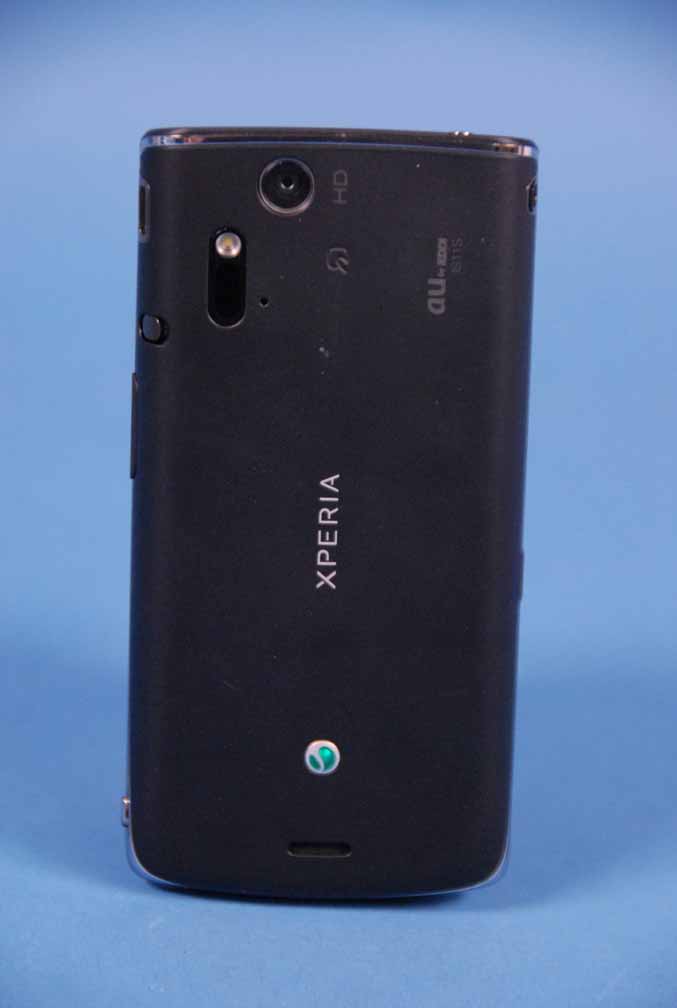

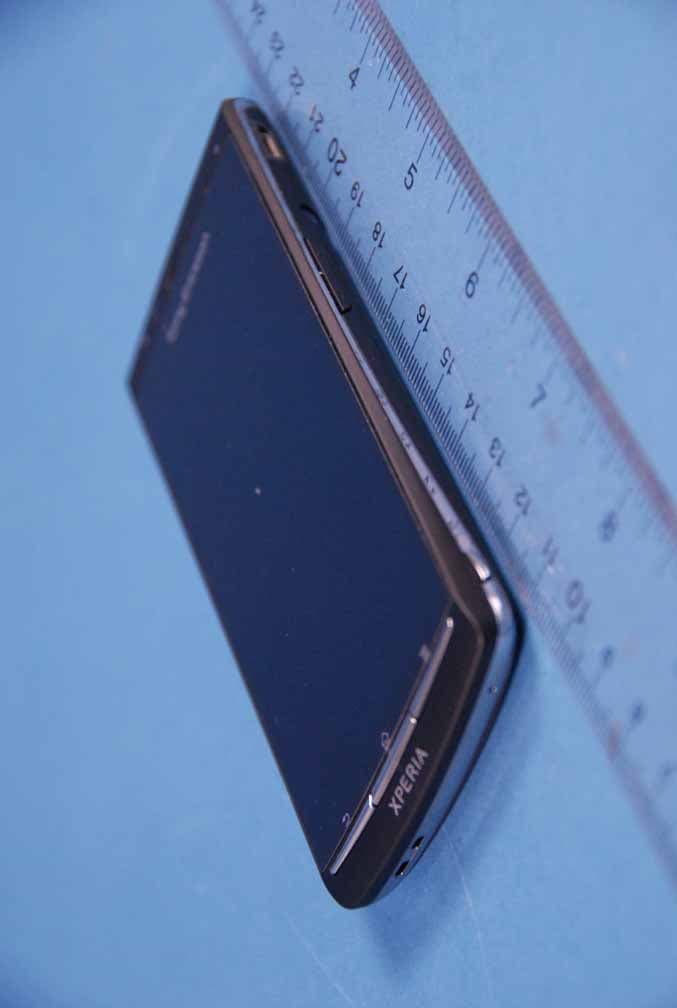

Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 External Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 1 of 5 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 External Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 2 of 5 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 External Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 3 of 5 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 External Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 4 of 5 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 External Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 5 of 5 © 2011 PCTEST Engineering Laboratory Inc.

Company Internal MARKING DRAWINGLABEL CONTENT 1 (9) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1248-6309 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-02-28 3 3State: Released CDMA SOI11, Mobile Phone label content, Black, KDDI, JP 1 General information Core Unit label part no 1243-8535 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scalable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1 (8,0/15,2) Sentence in Japanese “ “ Graphics, height 1,2 mm. According to 1247-9978, on two rows Company Internal MARKING DRAWINGLABEL CONTENT 2 (9) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1248-6309 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-02-28 3 3State: Released Line 2 (8,5/29,0) SIM-card logo Graphics height 5,5mm According to 1235-2274 document Line 3 (9,5/43,0) Memory card Micro SD logo Graphics height 5,5mm According to 1246-1770 document Line 4, a (12,0/2,0) KDDI logo “ “ Graphics, height 3,0 mm. According to 1247-9959 Line 4, b (12,0/15,5) Model Name “CDMA SOI11” Text, height 1,2 mm. According to Chapter 1 in MLCI Line 4, c (12,0/36,2) Local Type Approval Number: T ADXX-XXXXXXX Text, height 1,2 mm Line 5 (12,2/35,8) Square around T, see Line 4, c Width 1,5 x Height 2,0 mm Company Internal MARKING DRAWINGLABEL CONTENT 3 (9) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1248-6309 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-02-28 3 3State: Released Line 6 (13,7/38,5) Local Type Approval Number: 001XZAA1315 Text, height 1,2 mm. Line 7 (14,0/2,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925 Line 8 (15,0/29,0) “JATE” logo Graphics, height 5 mm. According to 1234-3837 Line 9 (15,2/38,5) Local Type Approval Number: 001ZYAA1113 Text, height 1,2 mm. Line 10, a (15,8/2,0) Sentence in Japanese “ ” Graphics, height 1,2 mm. According to 1248-3733 Line 10, b (15,8/10,5) SOI11MKA Text, height 1,2 mm. Line 11 (16,8/38,5) Local Type Approval Number: 001NXAA1180 Text, height 1,2 mm. Company Internal MARKING DRAWINGLABEL CONTENT 4 (9) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1248-6309 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-02-28 3 3State: Released Line 12, a (17,3/2,0) Product number of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm Line 12, b (17,3/18,5) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm Line 13 (18,2/36,2) Local Type Approval Number: R 001XUAA1009 Text, height 1,2 mm. Line 14 (18,5/35,8) Square around R, see Line 13 Width 1,5 x Height 2,0 mm Line 15, a (19,0/2,0) Type number of the phone, “TYPE: AAH-5880013-BV”. Text, height 1,2 mm. According to Chapter 1 in MLCI Line 15, b (19,0/18,5) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Documents Line 16 (20,0/38,5) Local Type Approval Number: 001WWDA1464 Text, height 1,2 mm Line 17 (20,3/30,0) “Bluetooth Symbol” Graphics, min. height 5mm, according to 1247- 9918 Line 18 (20,8/2,0) Production date in Japanese (eg: year / month : 20XX / XX Text, height 1,2 mm. Graphics, height 1,5 mm. According to 1234-3763 Line 19 (21,5/38,5) Local Type Approval Number: 202WWxxxxxx Text, height 1,2 mm. Company Internal MARKING DRAWINGLABEL CONTENT 5 (9) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1248-6309 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-02-28 3 3State: Released Line 20 (23,3/2,0) Line 20 in bar code, according to line 21, b. As desired by supplier (e.g. only actual number). Bar code, height 2,5 mm. As desired by supplier (e.g. Code 128 symbology). Please copy the number from row 21, b to get the correct text. Line 21, a (25,8/2,0) Sentence in Japanese “ “ Graphics, height 1,5 mm. According to 1248-5489 Line 21, b (25,8/16,8) Product ID number: “SSŌGWxxxxxx” Copy the number from this row to get the correct text. Text, height 1,2 mm Line 22 (28,8/35,8) “Bluetooth value” logotype Graphics, min. height 4mm. According to 1234-3850. Line 23 (32,0/2,0) Line 23 in bar code, according to line 24 (only actual number, without data identifier). Bar code, height 6,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 24 (33,5/2,0) Actual electronic serial number (IMEI) of the Mobile Phone, “000000000000000” Text, height 1,2 mm. In the format TAC-SNR- CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Company Internal MARKING DRAWINGLABEL CONTENT 6 (9) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1248-6309 Approved Checked Date Rev Reference Leif Hedin (23056584) 2011-02-28 3 3State: Released Line 25 (37,3/20,0) “CE approval symbol, The notified body number 0682 and Alert Symbol” Graphics, height 5 mm. According to 1242-7470 Line 26, a (39,5/2,0) KDDI Sentence in Japanese “ “ Graphics, height 1,5 mm. According to 1248-3718 Line 26, b (39,5/27,3) “FCC ID: PY7A5880013” Text, height 1,2 mm. According to Chapter 1 in MLCI Line 26, c (39,5/42,3) Production week (flash), “yyWww” (yy = year, ww = week) Text, height 1,2 mm. Line 27, a (41,7/27,5) “IC ID: 4170B-A…

Text truncated - open the document above for the full version.

Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 Internal Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 1 of 9 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 Internal Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 2 of 9 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 Internal Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 3 of 9 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 Internal Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 4 of 9 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 Internal Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 5 of 9 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 Internal Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 6 of 9 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 Internal Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 7 of 9 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 Internal Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 8 of 9 © 2011 PCTEST Engineering Laboratory Inc. Sony Ericsson Mobile Communications AB FCC ID: PY75880013 Model: CDMA SOI11 Internal Photos EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 9 of 9 © 2011 PCTEST Engineering Laboratory Inc.

Reviewed by: Model: CDMA SOI11 FCC Pt. 15B VERIFICATION / RSS-GEN TEST REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103140521.PY7 March 17, 2011 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 1 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 4.9VT 10/22/2010 Manufacturer Name & Address: Date of Testing: Sony Ericsson Mobile Communications AB March 17, 2011 Nya Vattentornet Test Site/Location: Lund PCTEST Lab, Columbia, MD, USA Sweden 22188 Test Report Serial No.: 0Y1103140521.PY7 TRADE NAME: SONY ERICSSON MODEL: CDMA SOI11 U.S. RESPONSIBLE PARTY Sony Ericsson Mobile Communications AB Address: Nya Vattentornet Lund Sweden 22188 EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Model: CDMA SOI11 FCC Rule Part(s): FCC Part 15 Subpart B, Part 2 (Verification) FCC Classification: FCC Class B Digital Device IC Specification(s): RSS-GEN Test Procedure: ANSI C63.4-2003 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 (See Test Report). The results shown herein are also deemed satisfactory evidence of compliance with Industry Canada Interference-Causing Equipment Standard ICES-003. These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com VERIFICATION OF COMPLIANCE FCC Part 15B Verification / RSS-GEN Reviewed by: Model: CDMA SOI11 FCC Pt. 15B VERIFICATION / RSS-GEN TEST REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103140521.PY7 March 17, 2011 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 2 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 4.9VT 10/22/2010 TABLE OF CONTENTS FCC Class B MEASUREMENT REPORT.....................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE .................................................................................................................................................. 4 1.2 PCTEST TEST LOCATION ................................................................................................................... 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................ 5 2.2 OPERATION MODE.............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ............................................................................. 5 3.0 DESCRIPTION OF TEST.................................................................................................................6 3.1 EVALUATION PROCEDURE................................................................................................................ 6 3.2 CONDUCTED EMISSIONS ................................................................................................................... 6 3.3 RADIATED EMISSIONS........................................................................................................................ 7 4.0 SAMPLE CALCULATIONS ..............................................................................................................8 4.1 CONDUCTED EMISSION MEASUREMENT SAMPLE CALCULATION ............................................... 8 4.2 RADIATED EMISSION MEASUREMENT SAMPLE CALCULATION.................................................... 8 5.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 6.0 ENVIRONMENTAL CONDITIONS .................................................................................................10 7.0 TEST DATA ....................................................................................................................................11 7.1 SUMMARY .......................................................................................................................................... 11 7.2 RADIATED MEASUREMENT DATA ................................................................................................... 12 7.3 LINE CONDUCTED MEASUREMENT DATA ..................................................................................... 13 8.0 CONCLUSION................................................................................................................................15 9.0 TEST SETUP PHOTOGRAPHS ....................................................................................................16 10.0 EUT PHOTOGRAPHS .........................................…

Text truncated - open the document above for the full version.

Reviewed by: Model: CDMA SOI11 FCC Pt. 15B VERIFICATION / RSS-GEN TEST REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103140522.PY7 March 17, 2011 850/1900 GSM and Cellular CDMA Phone with Bluetooth, WLAN and GPS Page 1 of 19 © 2011 PCTEST Engineering Laboratory, Inc. REV 4.9VT 10/22/2010 Manufacturer Name & Address: Date of Testing: Sony Ericsson Mobile Communications AB March 17, 2011 Nya Vattentornet Test Site/Location: Lund PCTEST Lab, Columbia, MD, USA Sweden 22188 Test Report Serial No.: 0Y1103140522.PY7 TRADE NAME: SONY ERICSSON MODEL: CDMA SOI11 U.S. RESPONSIBLE PARTY Sony Ericsson Mobile Communications AB Address: Nya Vattentornet Lund Sweden 22188 EUT Type: 850/1900 GSM and Cellular CDMA Phone with Bluetooth, WLAN and GPS Model: CDMA SOI11 FCC Rule Part(s): FCC Part 15 Subpart B, Part 2 (Verification) FCC Classification: FCC Class B Digital Device IC Specification(s): RSS-GEN Test Procedure: ANSI C63.4-2003 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 (See Test Report). The results shown herein are also deemed satisfactory evidence of compliance with Industry Canada Interference-Causing Equipment Standard ICES-003. These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com VERIFICATION OF COMPLIANCE FCC Part 15B Verification / RSS-GEN Reviewed by: Model: CDMA SOI11 FCC Pt. 15B VERIFICATION / RSS-GEN TEST REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103140522.PY7 March 17, 2011 850/1900 GSM and Cellular CDMA Phone with Bluetooth, WLAN and GPS Page 2 of 19 © 2011 PCTEST Engineering Laboratory, Inc. REV 4.9VT 10/22/2010 TABLE OF CONTENTS FCC Class B MEASUREMENT REPORT.....................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE .................................................................................................................................................. 4 1.2 PCTEST TEST LOCATION ................................................................................................................... 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................ 5 2.2 OPERATION MODE.............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ............................................................................. 5 3.0 DESCRIPTION OF TEST.................................................................................................................6 3.1 EVALUATION PROCEDURE................................................................................................................ 6 3.2 CONDUCTED EMISSIONS ................................................................................................................... 6 3.3 RADIATED EMISSIONS........................................................................................................................ 7 4.0 SAMPLE CALCULATIONS ..............................................................................................................8 4.1 CONDUCTED EMISSION MEASUREMENT SAMPLE CALCULATION ............................................... 8 4.2 RADIATED EMISSION MEASUREMENT SAMPLE CALCULATION.................................................... 8 5.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 6.0 ENVIRONMENTAL CONDITIONS .................................................................................................10 7.0 TEST DATA ....................................................................................................................................11 7.1 SUMMARY .......................................................................................................................................... 11 7.2 RADIATED MEASUREMENT DATA ................................................................................................... 12 7.3 LINE CONDUCTED MEASUREMENT DATA ..................................................................................... 13 8.0 CONCLUSION................................................................................................................................15 9.0 TEST SETUP PHOTOGRAPHS ....................................................................................................16 10.0 EUT PHOTOGRAPHS ..........................…

Text truncated - open the document above for the full version.

Reviewed by: Model: CDMA SOI11 FCC Pt. 15B VERIFICATION / RSS-GEN TEST REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103140521.PY7 March 17, 2011 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 16 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 4.9VT 10/22/2010 9.0 TEST SETUP PHOTOGRAPHS Reviewed by: Model: CDMA SOI11 FCC Pt. 15B VERIFICATION / RSS-GEN TEST REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103140521.PY7 March 17, 2011 850/1900 GSM and Cellular CDMA Phone with Bluetooth and WLAN Page 17 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 4.9VT 10/22/2010 Reviewed by: Model: CDMA …
