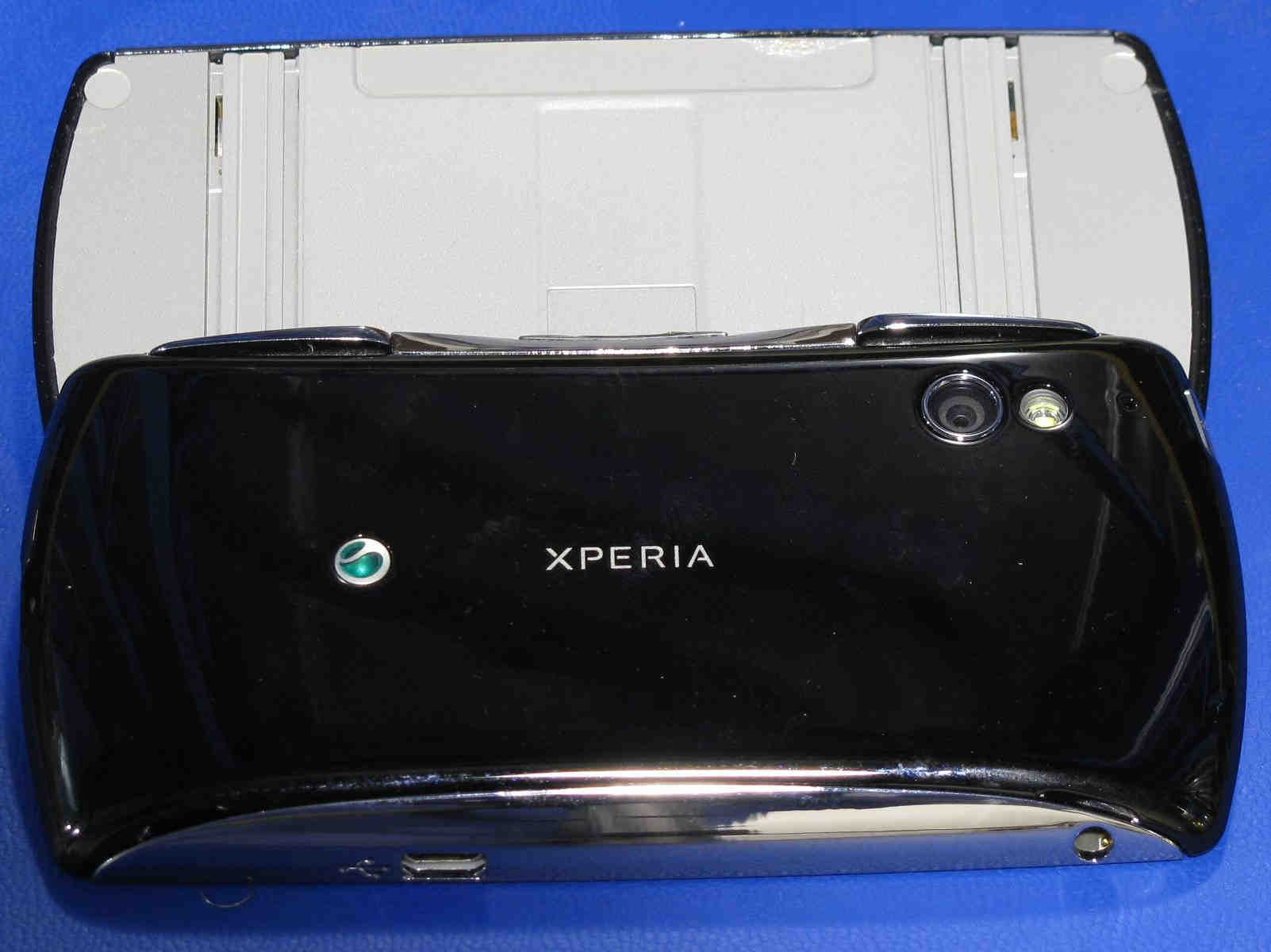

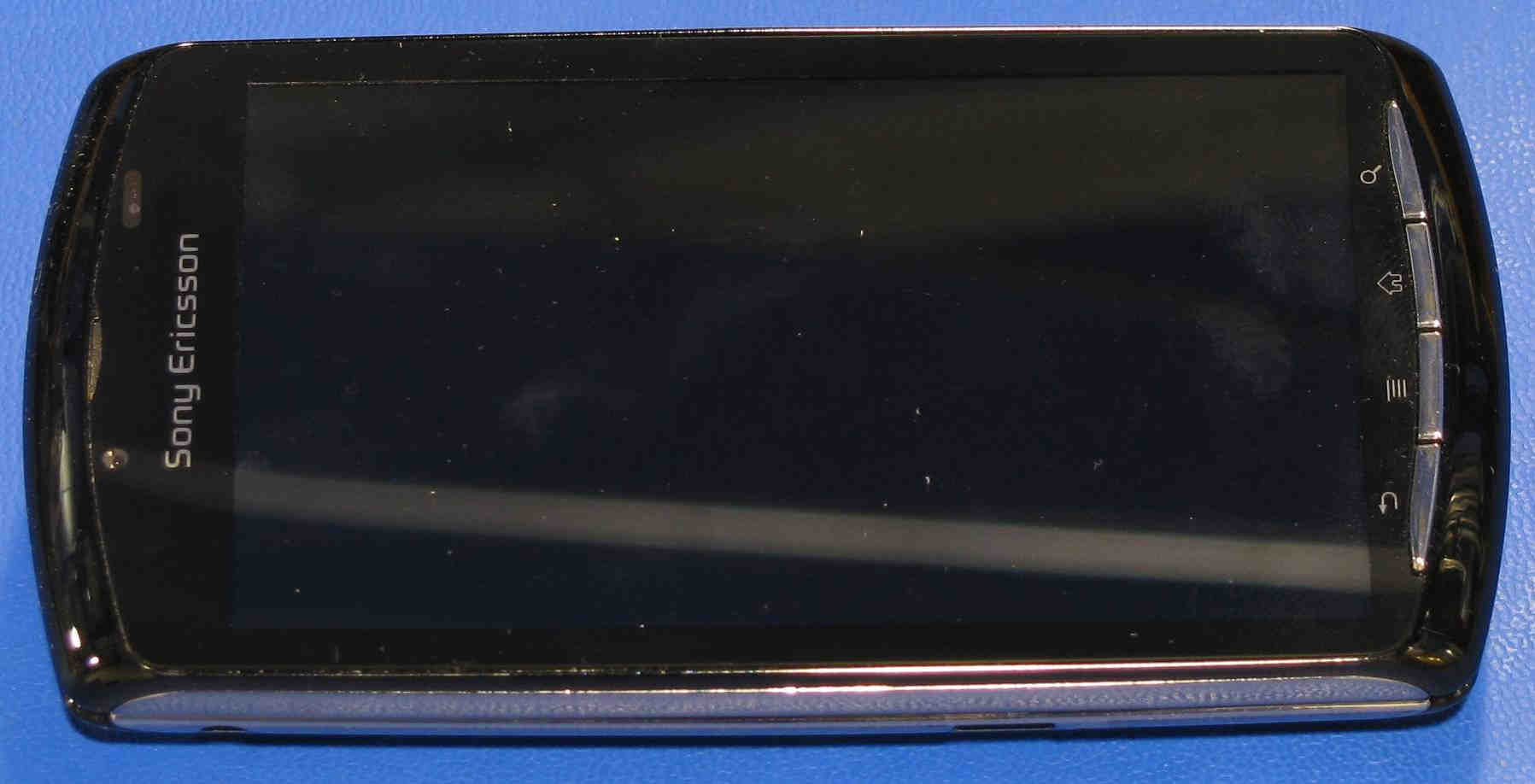

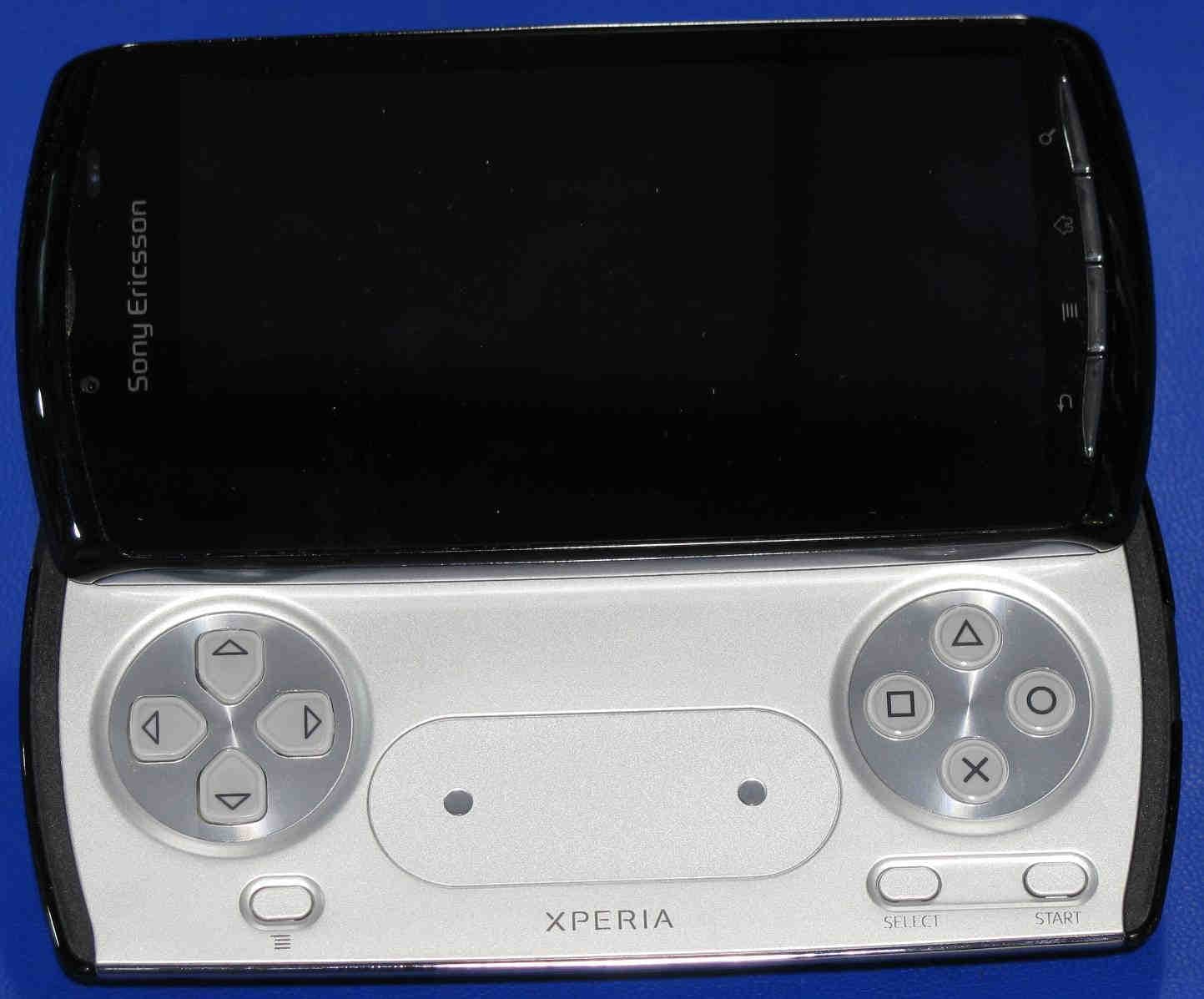

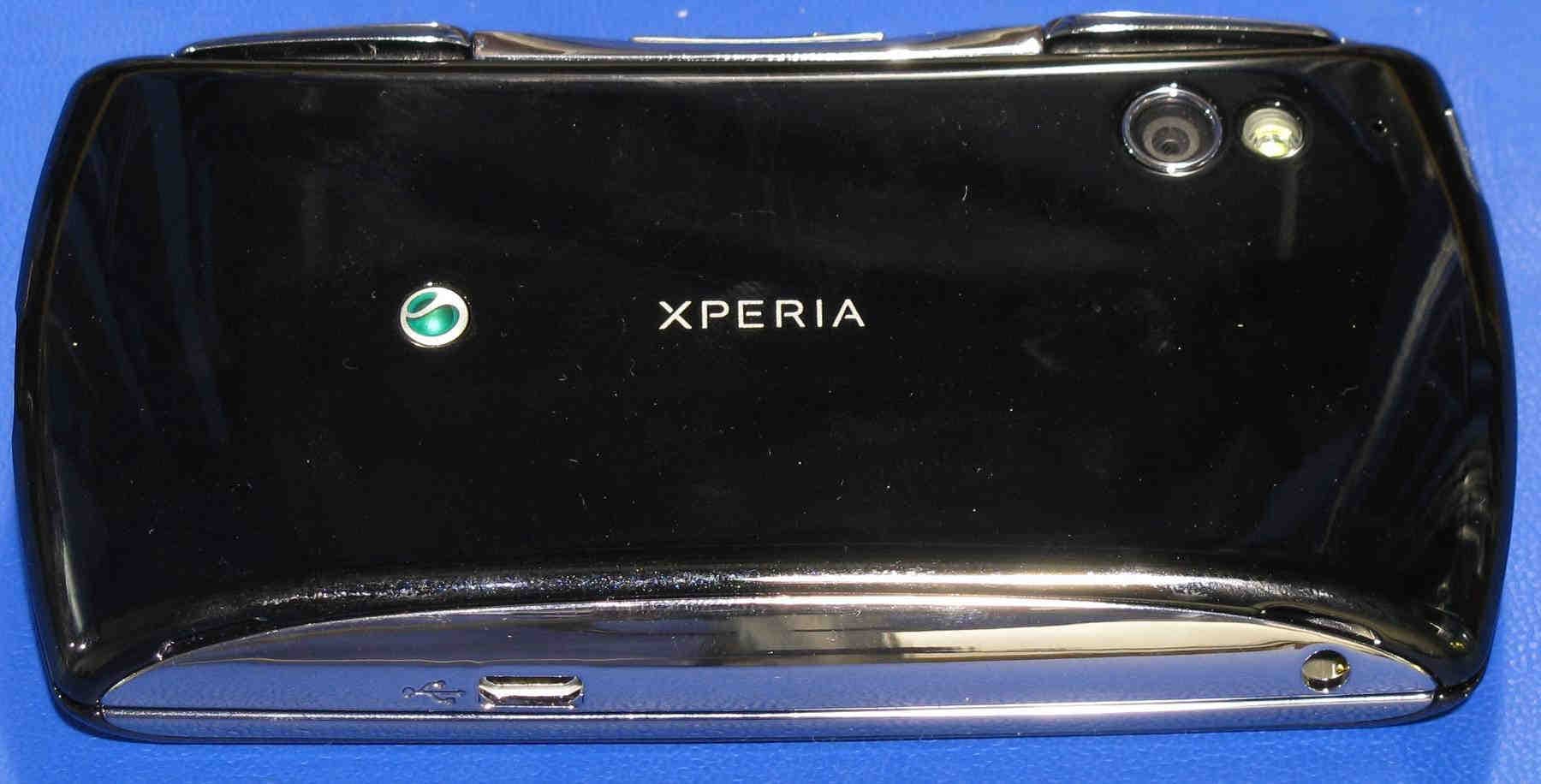

PY7A6880004Verizon-R800x

Important information Sony Ericsson Consumer Web site At www.sonyericsson.com/support there is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently. Service and support You have access to a portfolio of exclusive service advantages such as: • Global and local Web sites providing support. • A global network of Contact Centers. • An extensive network of Sony Ericsson service partners. • A warranty period. Learn more about the warranty conditions in theLimited warrantysection. At www.sonyericsson.com/support, you can find the latest support tools and information. For operator-specific services and features, please contact your network operator. You can also contact our Contact Centers. If your country/region is not represented in the list below, please contact your local dealer. (Calls are charged according to national rates, including local taxes, unless the phone number is a toll-free number.) If your product needs service, please contact the dealer from whom it was purchased, or one of our service partners. For warranty claims, save proof of purchase. Guidelines for Safe and Efficient Use Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product checked by a certified service partner before charging or using it. Recommendations for care and safe use of our products • Handle with care and keep in a clean and dust-free place. • Warning! May explode if disposed of in fire. • Do not expose to liquid or moisture or excess humidity. 2 • For optimum performance, the product should not be operated in temperatures below -10°C(+14°F) or above +45°C(+113°F). Do not expose the battery to temperatures above +60°C(+140°F). • Do not expose to flames or lit tobacco products. • Do not drop, throw or try to bend the product. • Do not paint or attempt to disassemble or modify the product. Only Sony Ericsson authorised personnel should perform service. • Consult with authorised medical staff and the instructions of the medical device manufacturer before using the product near pacemakers or other medical devices or equipment. • Discontinue use of electronic devices, or disable the radio transmitting functionality of the device, where required or requested to do so. • Do not use where a potentially explosive atmosphere exists. • Do not place the product, or install wireless equipment, in the area above an air bag in a car. • Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact. • Do not use the Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure. Children Warning! Keep out of the reach of children. Do not allow children to play with mobile phones or accessories. They could hurt themselves or others. Products may contain small parts that could become detached and create a choking hazard. Power supply (Charger) Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When a power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. 3 Use of charging devices that are not Sony Ericsson branded may pose increased safety risks. Battery New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for the intended purpose only. Charge the battery in temperatures between +5°C(+41°F) and +45°C(+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony Ericsson service partners should remove or replace built-in batteries. Use of batteries that are not Sony Ericsson branded may pose increased safety risks. Replace the battery only with another Sony Ericsson battery that has been qualified with the product per the standard IEEE-1725. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. Personal medical devices Mobile phones may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm(6 inches) between the phone and the device. Use the phone at your right ear. Do not carry the phone in your breast pocket. Turn off the phone if you suspect interference. For all medical devices, consult a physician and the manufacturer. Driving Some vehicle manufacturers forbid the use of phones in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with the vehicle manufacturer's representative to be sure that the mobile phone or Bluetooth handsfree will not affect the electronic systems in the vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed. 4 GPS/Location based functions Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony Ericsson does not make any representation or warranty as to the accuracy of such location information. Use of location-based information by the device may not be uninterrupted or error free and may additionally be dependent on network service availability. Please note that functionality may be reduced or prevented in certain environments such as building interiors or areas adjacent to buildings. Caution: Do not use GPS functionality in a manner which causes distraction from d…

Text truncated - open the document above for the full version.

Sony Ericsson Confidentiality Request 2011-02-22 SEMC/CVDVBA Afrah Sadiq +46 10 80 12250 Federal Communications Commission 445 1i h Street SW Washington, DC 20554 Subject: Limited Agency Agreement Re: We, (Sony Ericsson Mobile Communications AB), hereby authorized Intertek Testing Services to act as our agent for the purpose of preparing application for FCC 10 number (PY7A6880004) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2011-02-22). The limited agency agreement expires on (2011-03-30) unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Signature: Name: Johan Wedin Svensk Company: Sony Ericsson Mobile Communications (Sweden)AB Address: Nya Vattentornet, Lund SE-22188, Sweden Phone: +46(0) 707 19 57 36 Fax: +46(0) 46 19 32 95 Email:[email protected] Sony Ericsson Mobile Communications AB Styrelsens sate: Lund Momsnr • v.A. INa: SE556615665801 Registered office: Lund Organisationsnr • Reg No: 556615-6658 Postadress • Mail Besiiksadress • Office address Telefon • Telephone Telefax • Telefax SE-221 88 Lund Nya Vattentornet Nat 010-8000000 Nat 010-8002040 Sweden Lund Int +46 10 80 00000 Int +46 10 80 02040

Sony Ericsson Confidentiality Request 2011-01-05 CVVA10:458 SEMC/CVVALE Afrah Sadiq +46 108012250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7A6880004 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below listed items for our mobile phone type AAJ­ 6880004-BV, FCC 10: PY7A6880004: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. OperationallTechnical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Afr-ah Sadiq Development Engineer - Global Type Approval Sony Ericsson Mobile Communications AS Sony Ericsson Mobile Communications AS Styrelsens sate: Lund Momsnr • v.A. INo: SE556615665801 Registered office: Lund Organisationsnr • Reg No: 556615-6658 Postadress • Mail Bes6ksadress • Office address Telefon • Telephone Telefax • Telefax SE-221 88 Lund Nya Vatlentornet Nat 010-80 00000 Nat 010-80 02040 Sweden Lund Int +46 10 80 00000 Int +46 10 80 02040

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/CVVGP, Anna Englund1249-4508 Uen Approved Checked Date Rev Reference 2011-02-11 1 SEM/CVVGP, Anna Englund R800x, Mobile Phone label, Verizon X-version, Made in... 1 General information Mobile Phone label part no • 1233-5697 Mobile Phone label content part no • 1249-4507 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 4 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1a (7,0/6,0) Sony Ericsson stylized name. Graphics, height 1,5 mm. According to 1200-1925 Line 1b (7,0/24,0) Model Name//SKU “R800x” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2 (9,0/6,0) Marking of origin; “Made in Xxx” “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. Line 3a (13,0/6,0) Product number of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm. Line 3b (13,0/24,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 4a (18,0/6,0) “TYPE: AAJ-6880004-BV” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 4b (18,0/24,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Documents Line 5a (20,0/6,0) ”FCC ID: PY7A6880004” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 5b (20,0/24,0) Production week (flash), “yyWww” (yy = year, ww = week) Text, height 1,2 mm. Company Internal MARKING DRAWING 2 ( 3) Prepared (also subject responsible if other) No. SEM/CVVGP, Anna Englund 1249-4508 Uen Approved Checked Date Rev Reference 2011-02-11 1 SEM/CVVGP, Anna Englund Line 6a (22,0/6,0) “IC: 4170B-A6880004” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 6b (22,0/24,0) Repair week, if applicable. “RyyWww” (yy = year, ww = week) Text, height 1,2 mm. Line 7 (28,0/6,0) Line 7 in bar code, according to line 8. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology, code set B). Line 8 (30,06,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,5 mm. Defined by supplier. Line 9 (30,06,0) Line 9 in bar code, (only actual number, without data identifier), according to line 10 Bar code, height 2 mm. Code 39 Regular symbology, without check digit. Line 10 (26,0/17,0) Electronic serial number of the included telephone, “MEID HEX: 00000000000000” Text, height 1,5 mm. In the format TAC-SNR-CD, 14 digit TAC and SNR derived from pos 500 in BOM. Line 11a (47,0/3,0) CE approval symbol, the NB-“0682” and “Alert Symbol” in one artwork Graphics, height 5 mm. According to 1242-7470 Line 11b (47,0/33,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. Line 12 (54,0/9,0) A circle shaped hole in the drawing, already made in the label material Ø=5 mm 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture Company Internal MARKING DRAWING 3 ( 3) Prepared (also subject responsible if other) No. SEM/CVVGP, Anna Englund 1249-4508 Approved Checked Date Rev Reference 2011-02-11 1 SEM/CVVGP, Anna Englund double underlined = major changes since last revision. Label placement To find the label follow these steps: 1. Remove the cover on the rear side of the product. 2. Remove the battery. 3. The label is located behind the battery. Rear side of the phone Place for battery Label placement

Shield in place Close up with shield removed

Type No.:AAJ-6880004 FCC ID: PY7A6880004 IC Cert. No.: 4170B-6880004 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 44 0Y1012212020.PY7 12/29/10 - 02/16/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Applicant Name: Date of Testing: Sony Ericsson Mobile Communications AB 12/29/10 - 02/16/11 Nya Vattentornet Test Site/Location: Lund PCTEST Lab, Columbia, MD, USA Sweden 22188 Test Report Serial No.: 0Y1012212020.PY7 TYPE NUMBER: FCC ID: IC Cert. No.: AAJ- 6880004 PY7A6880004 4170B-6880004 APPLICANT: SONY ERICSSON MOBILE COMMUNICATIONS AB EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] Model(s): R800X Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 190 8.75 MHz (PCS CDMA) 2412 - 2462 MHz (WLAN) Conducted Power: 24.84 dBm Cell. CDMA / 24.82 dBm PCS CDMA 17.40 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.37 W/kg Cell. CDMA Head SAR / 1.21 W/kg Cell. CDMA Body SAR 0.76 W/kg PCS CDMA H ead SAR / 1.20 W/kg PCS CDMA Body SAR 0.07 W/kg 2.4 GHz WLAN Head SAR / 0.12 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: CB5A1CGM3P, CB5A1CEQB8, CB5A1CGM3P, CB5A1CGM3A, CB5A1CGM4A] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6 54 ht tp://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Type No.:AAJ-6880004 FCC ID: PY7A6880004 IC Cert. No.: 4170B-6880004 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 44 0Y1012212020.PY7 12/29/10 - 02/16/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 19 13 SINGLE TX SAR CONSIDERATIONS .......................................................................................... 21 14 SYSTEM VERIFICATION .............................................................................................................. 22 15 SAR DATA SUMMARY ................................................................................................................. 24 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 31 17 EQUIPMENT LIST ......................................................................................................................... 33 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 34 19 CONCLUSION ............................................................................................................................... 35 20 REFERENCES .............................................................................................................................. 36 21 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 38 Type No.:AAJ-6880004 FCC ID: PY7A6880004 IC Cert. No.: 4170B-6880004 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 44 0Y1012212020.PY7 12/29/10 - 02/16/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 1 INTRODUCTION The FCC has adopted the guidelines for evaluating th…

Text truncated - open the document above for the full version.

APPENDIX C: PROBE CALIBRATION

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Sony Ericsson Mobile Communications AB on the “Zeus” Mobile Phone Type AAJ-6880004-BV Page 1 of 29 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 100240318LEX-002 Project Number: G100240318 Report Issue Date: 1/7/2011 Product Name: “Zeus” Mobile Phone Type AAJ-6880004-BV FCCID: PY7A6880004 ICID: 4170B-A6880004 Standards: FCC Part 22 Subpart H FCC Part 24 Subpart E RSS-132 Issue 2 RSS-133 Issue 5 RSS-GEN Issue 3 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 Sony Ericsson Mobile Communications AB Nya Vattentornet Lund, Sweden 22188 Report prepared by Report reviewed by Bryan Taylor, Team Leader Jason Centers, Senior Project Engineer Intertek Report Number: 100240318LEX-002 Issued: 1/7/2011 EMC Report for Sony Ericsson Mobile Communications AB on the “Zeus” Mobile Phone Type AAJ-6880004-BV FCCID:PY7A6880004; ICID:4170B-A6880004 Page 2 of 29 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Conducted Output Power.................................................................................................................... 6 5 Occupied Bandwidth ........................................................................................................................... 8 6 Conducted Spurious Emissions at Antenna Terminals ................................................................. 10 7 Radiated Output Power ..................................................................................................................... 19 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 20 9 Frequency Stability ............................................................................................................................ 23 10 Radiated Spurious Emissions (Receiver) .................................................................................... 26 11 Measurement Uncertainty.............................................................................................................. 28 12 Revision History ............................................................................................................................. 29 Intertek Report Number: 100240318LEX-002 Issued: 1/7/2011 EMC Report for Sony Ericsson Mobile Communications AB on the “Zeus” Mobile Phone Type AAJ-6880004-BV FCCID:PY7A6880004; ICID:4170B-A6880004 Page 3 of 29 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Conducted Output Power §2.1046 §24.232(d) RSS-132 (4.4), RSS-133 (4.1), RSS-133 (6.4) Pass 8 Occupied Bandwidth §2.1049, §22.917(b)(d), and §24.238(a) RSS-GEN (4.6.1), RSS-133 (2.3) Pass 10 Conducted Spurious Emissions §2.1049, §2.1051, §22.917(a)(b), and § 24.238(a)(b) RSS-132 (4.5), RSS-133 (6.5.1) Pass 19 Radiated Output Power § 22.913(a) and § 24.232(c) RSS-132 (4.4), RSS-133 (6.4) Pass 20 Radiated Spurious Emissions (Transmitter) §2.1053, §22.917(a)(b), and §24.238(a)(b) RSS-132 (4.5), RSS-133 (6.5) Pass 23 Frequency Stability §2.1055, §22.355, and §24.235 RSS-132 (4.3), RSS-133 (6.3) Pass 26 Radiated Spurious Emissions (Receiver) --- RSS-132 (4.6), RSS-133 (6.6), RSS-GEN (4.10) Pass Intertek Report Number: 100240318LEX-002 Issued: 1/7/2011 EMC Report for Sony Ericss…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PY7A6880004 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1012212021.PY7 1/3/2011 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 1 of 79 © 2011 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 Applicant Name: Date of Testing: Sony Ericsson Mobile Communications AB 1/3/2011 Nya Vattentornet Test Site/Location: Lund PCTEST Lab, Columbia, MD, USA Sweden 22188 Test Report Serial No.: 0Y1012212021.PY7 TYPE NUMBER: AAJ-6880004 FCC ID: PY7A6880004 APPLICANT: SONY ERICSSON MOBILE COMMUNICATIONS AB Application Type: Certification FCC Rule Part(s): § 20.19(b) HAC Standard: ANSI C63.19-2007 §6.3(v), §7.3(v); FCC Classification: Licensed Transmitter Held to Ear (PCE) Digital Transmission System (DTS) EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Model(s): R800X Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: HAC RFE] C63.19-2007 HAC Category: M4 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested and are for North American Bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY Reviewed by: FCC ID: PY7A6880004 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1012212021.PY7 1/3/2011 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 2 of 79 © 2011 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. FCC 3G MEASUREMENTS .......................................................................................................... 20 10. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 11. EQUIPMENT LIST......................................................................................................................... 24 12. MEASUREMENT UNCERTAINTY ................................................................................................ 25 13. TEST DATA ................................................................................................................................... 26 14. CALIBRATION CERTIFICATES................…

Text truncated - open the document above for the full version.
