PY7AC052013Licensed transmitter

Confidential 1(1) Document number Revision BGGIN06:185 Uen A Prepared by Date KI/SEM/BGGINK Lennart Skoglund + 46 8 757 2533 2006-05-20 Contents responsible if other than preparer Remarks Approved by KI/SEM/BGGINK Kenth Skoglund Receiver: Federal Communication Commission Application PY7AC052013 Declaration on Hardware Sony Ericsson mobile phone Z525i HW B (FCC ID PY7AC052013) uses the exact same hardware as Z520i HW B (FCC ID PY7AC052011). The only difference is the PTT key and color. Therefore the RF reports of Z520i are reused in this filing - for SAR we have submitted new report. Best regards, ___________________ Kenth Skoglund Head of Type Approval Department Sony Ericsson Mobile Communications AB –Kista Stockholm

Company Internal 1(1) Document number Revision BGGIN06:182 A Prepared by Date BGGINK Lennart Skoglund 2006-05-18 Contents responsible if other than preparer Remarks Approved by BGGINK Kenth Skoglund Reference FCC Request For Confidentiality AAC-1052013-xx Subject: Request for Confidentiality FCC ID: PY7AC052013 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB hereby requests Confidentiality for the following items • Block Diagrams (Exhibit 4) • Electrical Diagrams (Exhibit 5) • Component Listings (Exhibit 10) • Technical Descriptions (Exhibit12). This items contains detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Regards, Lennart Skoglund

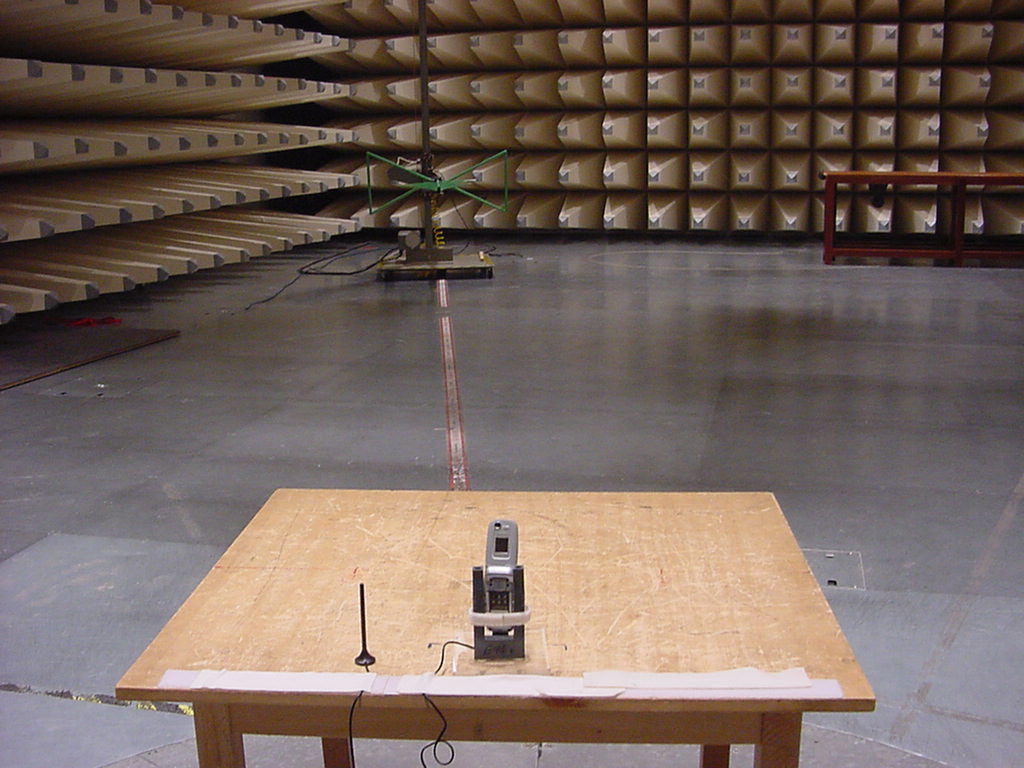

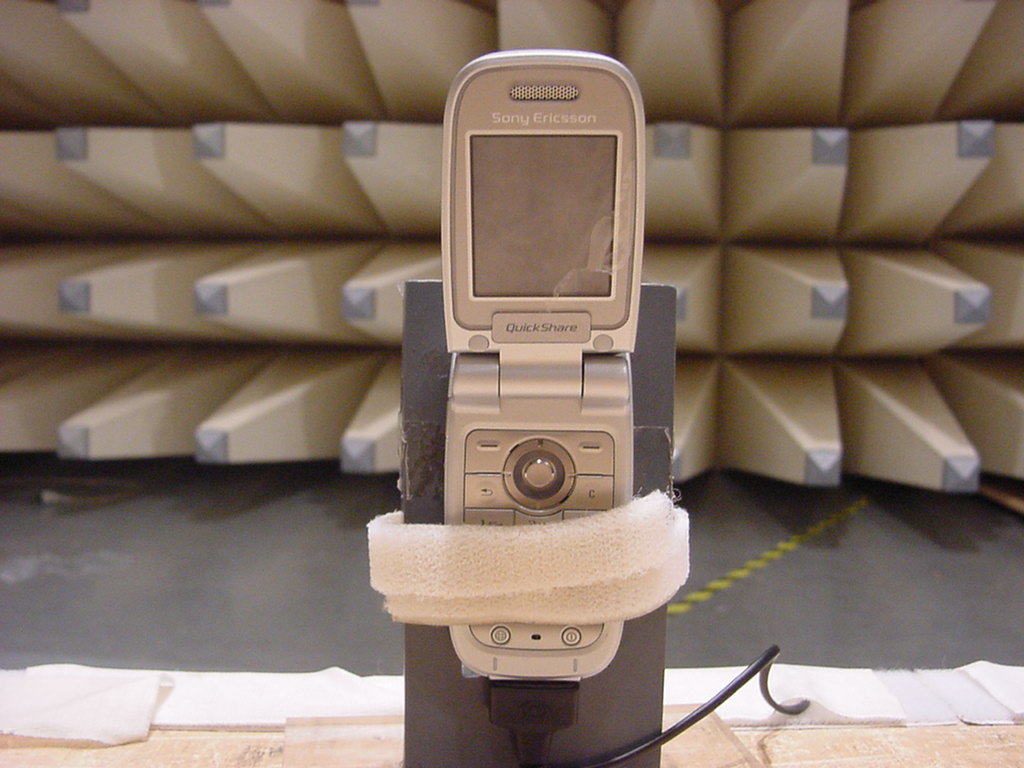

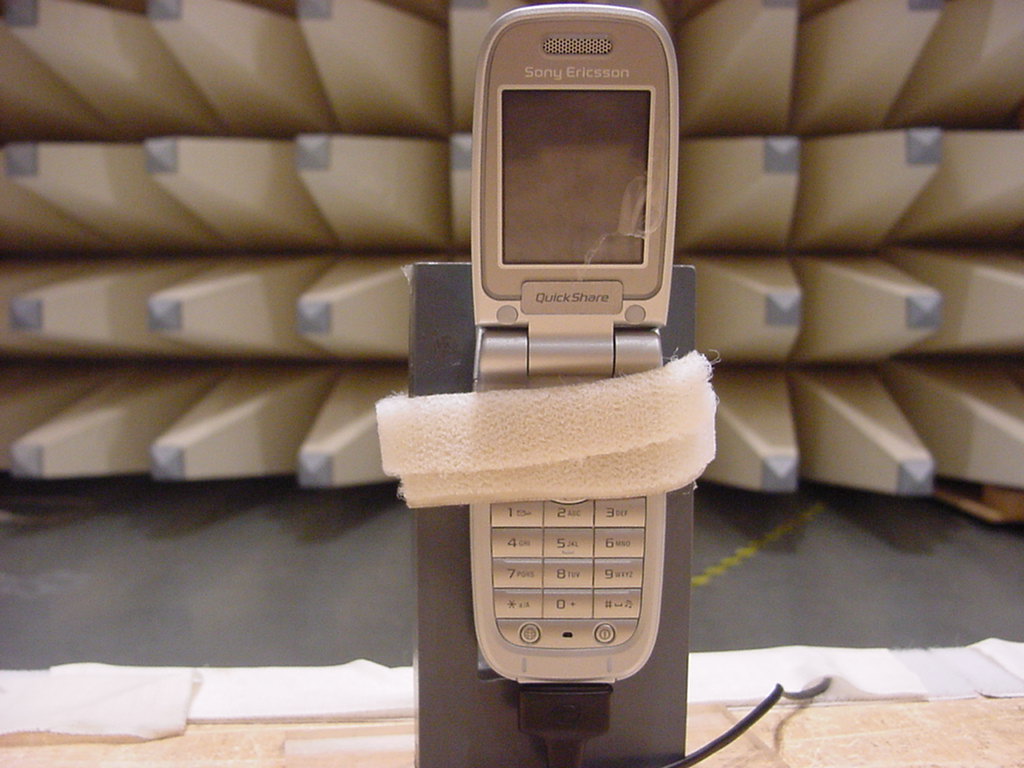

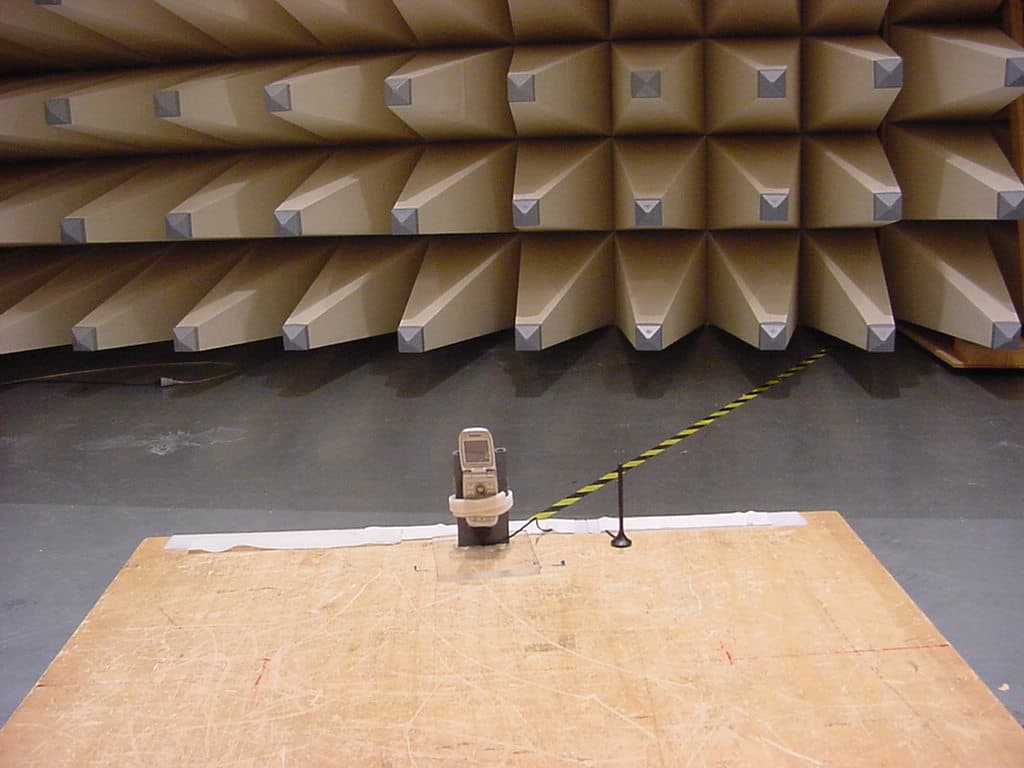

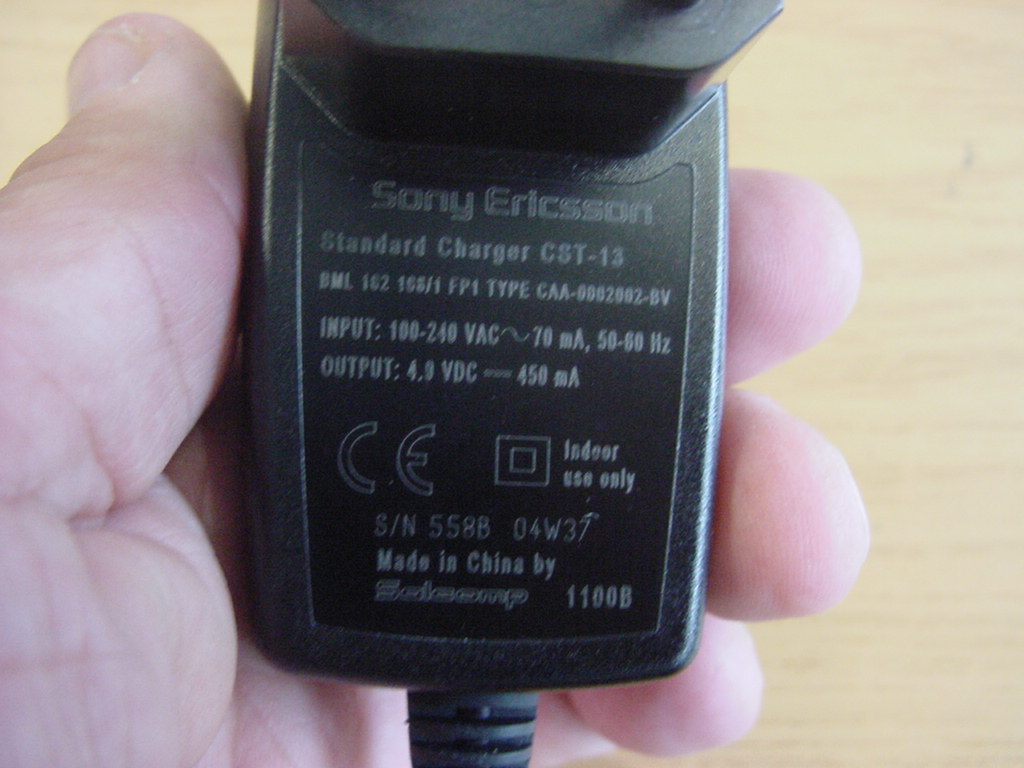

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 15 of 37 5 Annex B Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 16 of 37 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 17 of 37 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 18 of 37 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 19 of 37 Photo 5 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 20 of 37 Photo 6 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 21 of 37 6 Annex C: External Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 22 of 37 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 23 of 37 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 24 of 37 Photo No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 25 of 37 Photo No.: 5 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 26 of 37 Photo No.: 6 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 27 of 37 Photo No.: 7 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 28 of 37 Photo No.:8 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 29 of 37 Photo No.: 9 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 30 of 37 7 Annex D: Internal Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 31 of 37 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 32 of 37 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 33 of 37 Photo No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 34 of 37 Photo No.: 5 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 35 of 37 Photo No.: 6 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 36 of 37 Photo No.: 7 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 37 of 37 Photo No.: 8

3 Confidential MARKING DRAWING 1(3) Prepared Date Rev Doc no. RT/SEM/CA/KA Mike Sink 2006-01-18 A 1/151 86-DPY 101 101 2955/1 Approved Checked File 1/151 86-DPY 101 2955/1 Marking Drawing For Katherine Note: This marking drawing is applicable for all Katherine variants Type AAC-1052013 Label The Label used for marking is defined in the Manufacturing Specification 1301-SVF 930 1447. Placing Labels The labels shall be placed on the back of the telephone according to the Assembly Drawing (151 88 KRH 101 220) for the KRH. Print Layout Section 1 Section 2 SAMPLE ONLY *Note: representative samples, text in image may not match required information for this product defined in table below. Line Text 1. Sony Ericsson Trademark, Model Number 2. Type Number, GHY1 Fields, 7 Digit Repair Code 3. Country Approval Mark 1, Country Approval Mark 2 4. IMEI-Numbers as Barcode 5. IMEI-Numbers as characters 6. Serial number as barecode 7. Serial number as characters 8. Prod/Repair wk as characters & Prod wk as barcode 9. UPC numbers as barcode & UPC number as characters 10. Reduced DPY number & r-state 11. Marking of Origin 12 CE Marking 3 Confidential MARKING DRAWING 2(3) Prepared Date Rev Doc no. RT/SEM/CA/KA Mike Sink 2006-01-18 A 1/151 86-DPY 101 101 2955/1 Approved Checked File Definitions Sony Ericsson trademark Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Model number The model number is Z525i and shall be printed “Z525i” Type number The type number is AAC-1052013-BV and shall be printed “AAC-1052013-BV” G-field R-state identification of the CXC module according to the G- Field section of 1/151 86- KRH 101 454. H-field R-state identification of the KRH according to the H-Field section of 1/151 86- KRH 101 454. Y 1 -field R-state identification of the ROA according to the Y-Field section of 1/151 86- KRH 101 454. Country approval mark 1 Consist of text: FCC ID: PY7AC052013 Within a frame with height > 1,5 mm. Country approval mark 2 Consist of text: IC ID: 4170B-AC052013 Within a frame with height > 1,5 mm. IMEI number as barcode See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). IMEI number as characters See the 1/151 86-KRH 101 454 (latest revision). The text ‘IMEI:’ shall come before the IMEI number. Therefore the format shall be IMEI: 01AAAAAA-BBBBBB-C AAAAAA = TAC BBBBBB = assigned serial number C = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as barcode According to Ericsson corporate standard 102 01 - 109. Serial number as characters According to Ericsson group standard 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 The text ‘MSN:’ shall come before the Serial number. UPC Code as Barcode See below for definition of UPC-number. The UPC code shall only contain the digits of the UPC number UPC Code as Characters The text ‘UPC:’ shall come before the UPC number. Therefore the format shall be UPC: 095673 XXXXX, where XXXXX indicates the last five digits of the UPC number for the specific DPY. Production week (Prod wk) The production week shall be given as yyWww (yy = year, ww = week) according to the ISO 8601 standard. Production week as barcode According to Ericsson corporate standard 102 01 - 109. Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as Rywwxx (R = repair, y = year, ww = week, xx = Revision eg. 1A) Reduced DPY The reduced product number of the DPY leaves out the 3 digit number prefix (ex: DPY 101 2955/4 R2A would be printed DPY 2955/4 R2A). 3 Confidential MARKING DRAWING 3(3) Prepared Date Rev Doc no. RT/SEM/CA/KA Mike Sink 2006-01-18 A 1/151 86-DPY 101 101 2955/1 Approved Checked File Marking of origin “Made in” statement should reflect the country of origin of the KRC (i.e. Made in Malaysia). CE Marking 1. N/A 2. N/A Print guidelines/regulations The printing shall be well readable and permanent. Typeface OCR-B Type size min 1.1 mm Line spacing min 1.5 mm Trademark min 1mm (required) Approval Marks min 5.0 mm Product Listing In the event that this marking drawing is to be used for the production of DPA units please use the following chart for cross-referencing the DPA number to the reduced DPY number that shall appear on the KRH label. Product Number Associated DPA Customer DPY 101 2955/1 N/A N/A

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 15 of 37 5 Annex B Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 16 of 37 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 17 of 37 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 18 of 37 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 19 of 37 Photo 5 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 20 of 37 Photo 6 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 21 of 37 6 Annex C: External Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 22 of 37 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 23 of 37 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 24 of 37 Photo No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 25 of 37 Photo No.: 5 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 26 of 37 Photo No.: 6 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 27 of 37 Photo No.: 7 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 28 of 37 Photo No.:8 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 29 of 37 Photo No.: 9 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 30 of 37 7 Annex D: Internal Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 31 of 37 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 32 of 37 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 33 of 37 Photo No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 34 of 37 Photo No.: 5 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 35 of 37 Photo No.: 6 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 36 of 37 Photo No.: 7 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4071-01-02/05 Date: 2005-08-19 Page 37 of 37 Photo No.: 8

APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AC052013 REPORT 1(90) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 005 Z525i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z520I\Final Reports\FCCZ520I.doc E E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report of Portable Cellular Phone FCC ID: PY7AC052013 Model : Z525i Date of test: Date of Report: February 28 – March 12, 2006 April 27-28, 2006 (PTT Testing) May 12, 2006 Laboratory: SAR Testing LaboratorySony Ericsson Mobile Communications, Inc.7001 Development Drive, P.O. Box 13969, Research Triangle Park, NC, 27709, USA Tested by: Rodney Dixon Eng. Technician IV, Product Verification Group Test Responsible: Gerard Hayes Technical Manager Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: Specific Absorption Rate (SAR) Dielectric parameters RF power measurement On the following types of products: Wireless communications devices.A2LA certificate #1650-01 Statement of Compliance: Sony Ericsson Mobile Communications, Inc declares under its sole responsibility that portable cellular telephone FCC ID PY7AC052013 model Z525i to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) © Sony Ericsson Mobile Communications, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson Mobile Communications encourages all feedback, both positive and negative, on this test report. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AC052013 REPORT 2(90) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 005 Z525i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z520I\Final Reports\FCCZ520I.doc E E E x x h h i i b b i i t t 1 1 1 1 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 3 2.1 Antenna description 3 2.2 Device description 3 3. Test Equipment Used 4 3.1 Dosimetric System 4 3.2 Additional Equipment 4 4. Electrical parameters of the tissue simulating liquid 5 5. System Accuracy Verification 6 6. Test Results 7 6.1 Head Adjacent Test Results 7 6.2 Body-Worn Test Results 11 References 13 Appendix 1: SAR distribution comparison for system accuracy verification 14 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 21 Appendix 3: SAR distribution plots for Body Worn Configuration 58 Appendix 4: Probe Calibration Certificate 71 Appendix 5: Measurement Uncertainty Budget 76 Appendix 6: Photographs of the device under test 82 APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AC052013 REPORT 3(90) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 005 Z525i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z520I\Final Reports\FCCZ520I.doc E E E x x h h i i b b i i t t 1 1 1 1 1. Introduction The Sony Ericsson SAR Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID PY7AC052013 model Z525i. This phone is identical to FCC ID PY7AC052011 model Z520i (Hardware Version B) with added push-to-talk (PTT) functionality that is enabled in GSM Mode with 1/8 duty cycle. The Specific Absorption Rate (SAR) of this product was measured. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in [1]. 2. Description of the Device Under Test 2.1 Antenna description Type PIFA- Type Antenna Location External plastic loop, near the hinge Width 40 mm Length 30 mm Dimensions Height 8mm 2.2 Device description FCC ID Number / Device Model PY7AC052013 / Z525i (formerly PY7AC052011 / Z520i Hardware B) Serial number BD3050NURF BD3050PJL1 BD3050NURF BD3050PJBB Mode(s) of Operation GSM 800 GSM 1900 Modulation Mode(s) TDMA TDMA f low 32.2 dBm +0.4/-1.2 dB f low 30.0 dBm +0.5/-1.5 dB f mid 31.7 dBm +0.4/-0.7 dB f mid 30.0 dBm +0.5/-1.5 dB Target Value and Factory Tolerance Window for Maximum Output Power Setting GSM Mode: 1/8 Duty Cycle f high 31.7 dBm +0.3/-0.7 dB f high 30.0 dBm +0.5/-1.5 dB f low 32.2 dBm max. f low Same as GSM 1:8 f mid 31.6 dBm max. f mid Same as GSM 1:8 GPRS Mode: 2/8 Duty Cycle Target Maximum Output Power Setting (adjusted from GSM mode) f high 31.2 dBm ± 0.3 dB f high Same as GSM 1:8 Calibration Frequency (f low , f mid , f high ) f high f mid Transmitting Frequency Rang(s) 824-849 MHz 1850-1910 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AC052013 REPORT 4(90) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 005 Z525i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z520I\Final Reports\FCCZ520I.doc E E E x x h h i i b b i i t t 1 1 1 1 3. Test Equipment Used 3.1 Dosimetric System The Sony Ericsson SAR Laboratory utilizes Dosimetric Assessment Systems (Dasy4™) for adjacent to head and body-worn measurements manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±9.49% (K=1) with an expanded uncertainty of ±18.98% (K=2) for …

Text truncated - open the document above for the full version.

APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AC052013 REPORT 46(90) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 005 Z525i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z520I\Final Reports\FCCZ520I.doc E E E x x h h i i b b i i t t 1 1 1 1 1900 GSM Band: Distribution and Extrapolation of Maximum SAR Model: Z520i SN: BD3050NURF with Standard Battery: BST-37 Left Side, Tilt Position. Date/Time: 3/10/2006 4:01:17 PM File Name: 10Mar06_Z520i_GSM1900_NURF_LT01.da4 DUT: Z520i Program Notes: Battery: BST-37 Humidity: 33.2% Ambient Temp: 22.5 C Simulant Temp: 22.4 C Communication System: DCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Head 1800/1900 MHzMedium parameters used (interpolated): f = 1850.2 MHz; s = 1.41 mho/m; e r = 38.6; ? = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1539; ConvF(4.55, 4.55, 4.55); Calibrated: 11/22/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn345; Calibrated: 11/10/2005 - Phantom: SAM with CRP (High Band Head); Type: SAM; Serial: TP: 1054 - Measurement SW: DASY4, V4.6 Build 23; Post processing SW: SEMCAD, V1.8 Build 160 Low Channel/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.104 mW/g Low Channel/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.45 V/m; Power Drift = -0.095 dB Peak SAR (extrapolated) = 0.142 W/kg SAR(1 g) = 0.093 mW/g; SAR(10 g) = 0.057 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.103 mW/g Low Channel/Zoom Scan (31x31x36)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.45 V/m; Power Drift = -0.095 dB Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.142 mW/g APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AC052013 REPORT 47(90) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 005 Z525i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z520I\Final Reports\FCCZ520I.doc E E E x x h h i i b b i i t t 1 1 1 1 0 dB = 0.142mW/g APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AC052013 REPORT 48(90) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 005 Z525i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z520I\Final Reports\FCCZ520I.doc E E E x x h h i i b b i i t t 1 1 1 1 1900 GSM Band: Distribution and Extrapolation of Maximum SAR Model: Z520i SN: BD3050NURF with Standard Battery: BST-37 Right Side, Cheek/Touch Position with Blue Tooth. Date/Time: 3/10/2006 7:42:44 PM File Name: 10Mar06_Z520i_GSM1900_NURF_BT_RC01.da4 DUT: Z520i Program Notes: Battery: BST 37 Humidity: 34% Ambient Temp: 22.3C Simulant Temp: 22.4C Communication System: DCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Head 1800/1900 MHzMedium parameters used (interpolated): f = 1850.2 MHz; s = 1.41 mho/m; e r = 38.6; ? = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1539; ConvF(4.55, 4.55, 4.55); Calibrated: 11/22/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn345; Calibrated: 11/10/2005 - Phantom: SAM with CRP (High Band Head); Type: SAM; Serial: TP: 1054 - Measurement SW: DASY4, V4.6 Build 23; Post processing SW: SEMCAD, V1.8 Build 160 Low Channel/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.579 mW/g Low Channel/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.06 V/m; Power Drift = 0.030 dB Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.517 mW/g; SAR(10 g) = 0.253 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.606 mW/g Low Channel/Zoom Scan (31x31x36)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.06 V/m; Power Drift = 0.030 dB Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.07 mW/g APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AC052013 REPORT 49(90) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 005 Z525i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z520I\Final Reports\FCCZ520I.doc E E E x x h h i i b b i i t t 1 1 1 1 0 dB = 1.07mW/g APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AC052013 REPORT 50(90) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 005 Z525i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z520I\Final Reports\FCCZ520I.doc E E E x x h h i i b b i i t t 1 1 1 1 1900 GSM Band: SAR Distribution and Extrapolation of Maximum SAR Model: Z525I SN: BD3050PJBB with Standard Battery: BST-37 PTT, 25mm Separation, Flat section, Open Position. Date/Time: 4/28/2006 11:51:25 AM File Name: 28Apr06_Z525i_GSM1900_PJBB_open_PTT01.da4 DUT: Z525i Program Notes: Battery BST-37 Humidity: 40.7% Ambient Temp: 23.8 C Simulant Temp: 23.6 C Communication System: DCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Head 1800/1900 MHzMedium parameters used (interpolated): f = 1850.2 MHz; s = 1.42 mho/m; e r = 38.6; ? = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1539; ConvF(4.55, 4.55, 4.55); Calibrated: 11/22/2005 …

Text truncated - open the document above for the full version.
