PY7AD021021Licensed TRansmitter

1 ContentsGetting started . . . . . . . . . . . . . . . . . . 5Assemble the phone, SIM card, battery, make a call.Getting to know your phone . . . . . . . . 9Phone overview, use the menu s, enter letters, activity menu, file manager.Calling . . . . . . . . . . . . . . . . . . . . . . . . 19Calls, video calls, contacts, voice control, call options.Messaging . . . . . . . . . . . . . . . . . . . . . 39Text messaging, picture messaging, voice messaging, email, My friends.Imaging . . . . . . . . . . . . . . . . . . . . . . . 49Camera, video recorder, pictures, PhotoDJ™.Entertainment . . . . . . . . . . . . . . . . . . 54Media player, radio, Play Now™, ringtones, MusicDJ™, VideoDJ™, sound recorder, themes, games. Connectivity . . . . . . . . . . . . . . . . . . . . 64Internet and email settings, browsing, synchronizing, Bluetooth, infrared, USB cable.More features . . . . . . . . . . . . . . . . . . . 74Time and date, alarm clock, calendar, tasks, Java™ applications, SIM card lock, etc.Troubleshooting . . . . . . . . . . . . . . . . . 83Why doesn’t the phone work the way I want?Additional information . . . . . . . . . . . . 89Sony Ericsson Consumer Web site, safe and efficient use, warranty, declaration of conformity.Icons . . . . . . . . . . . . . . . . . . . . . . . . . 97Icon descriptionsIndex . . . . . . . . . . . . . . . . . . . . . . . . . 99 Mirai_UG_R1A.book Page 1 Tuesday, June 14, 2005 10:14 AM 2 Sony EricssonUMTS-GSM 900/1800/1900First edition (April 2005)This user guide is publish ed by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide.All rights reserved.©Sony Ericsson Mobile Communications AB, 2005Publication number: AE/LZT 108 7739 R1A Please note:Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112 . Please contact your networ k operator or service provider if you are in doubt whether you can use a particular service or not.Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson , are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no ci rcumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content.The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license.3GPP is a trademark of ETSI in France and other jurisdictions.QuickShare™, PlayNow™, MusicDJ™, PhotoDJ™ and VideoDJ™ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.Real is a trademark or a registered trademark of RealNetworks, Inc. Mirai_UG_R1A.book Page 2 Tuesday, June 14, 2005 10:14 AM 3 Microsoft, Windows and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and other countries.Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.T9™ Text Input is a trademark or a registered trademark of Tegic Communications.T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™.1 Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2 Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U. S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3 Restricted Rights: Use, duplication or disclosure by the United States gover nment is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the softwar…

Text truncated - open the document above for the full version.

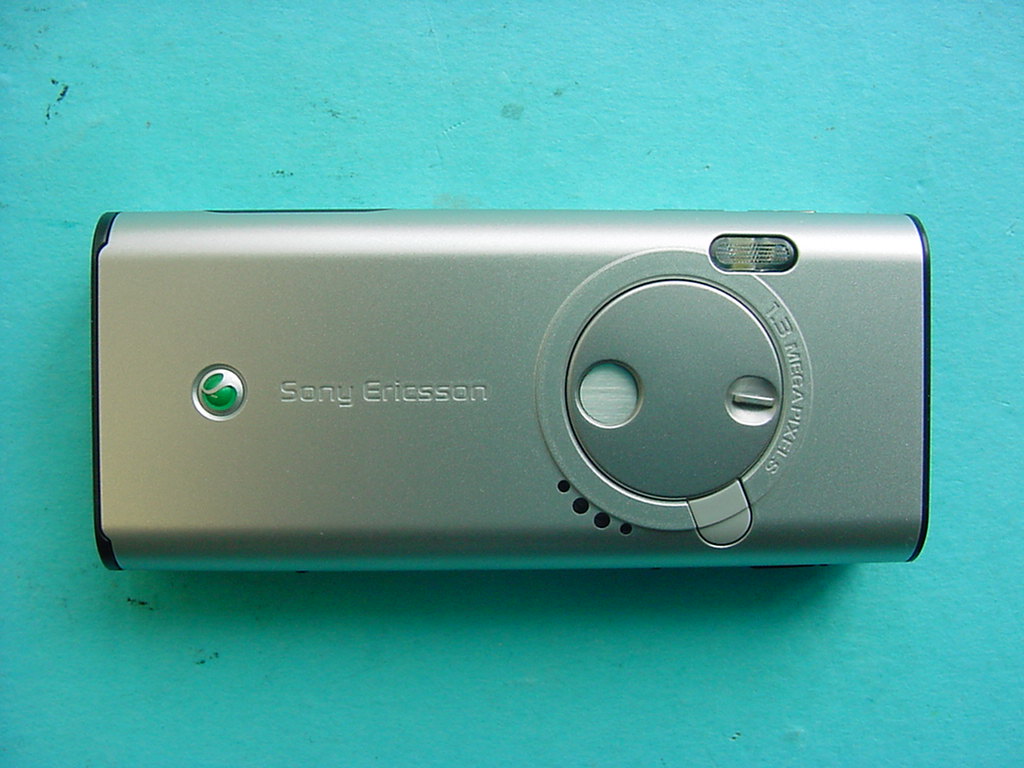

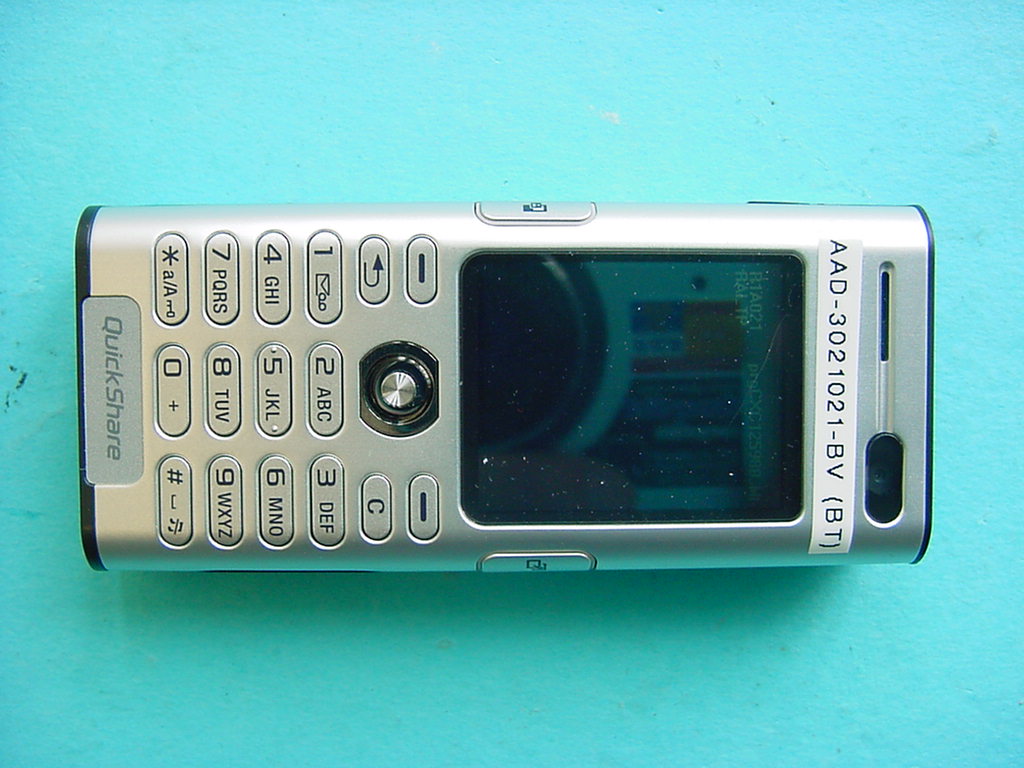

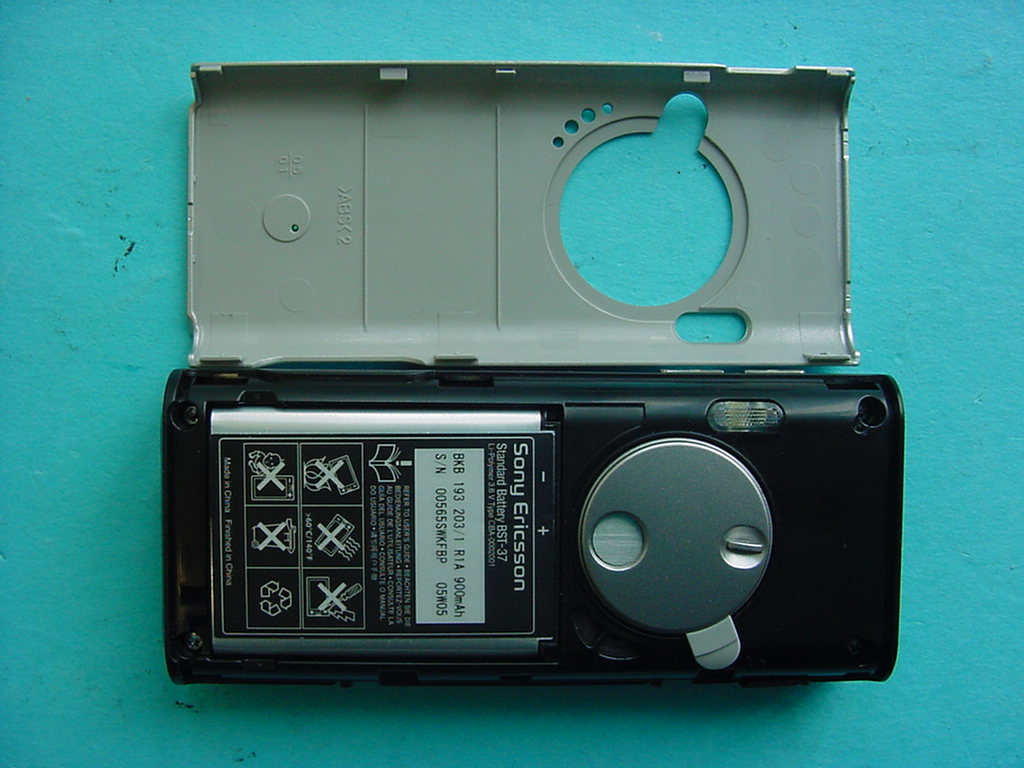

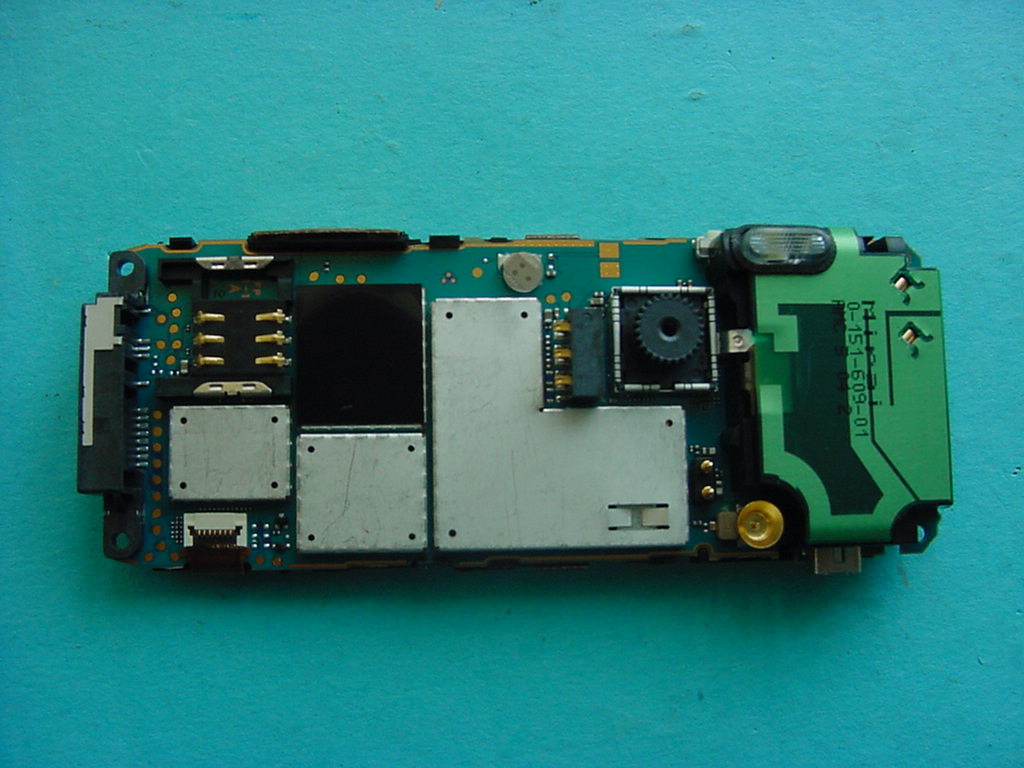

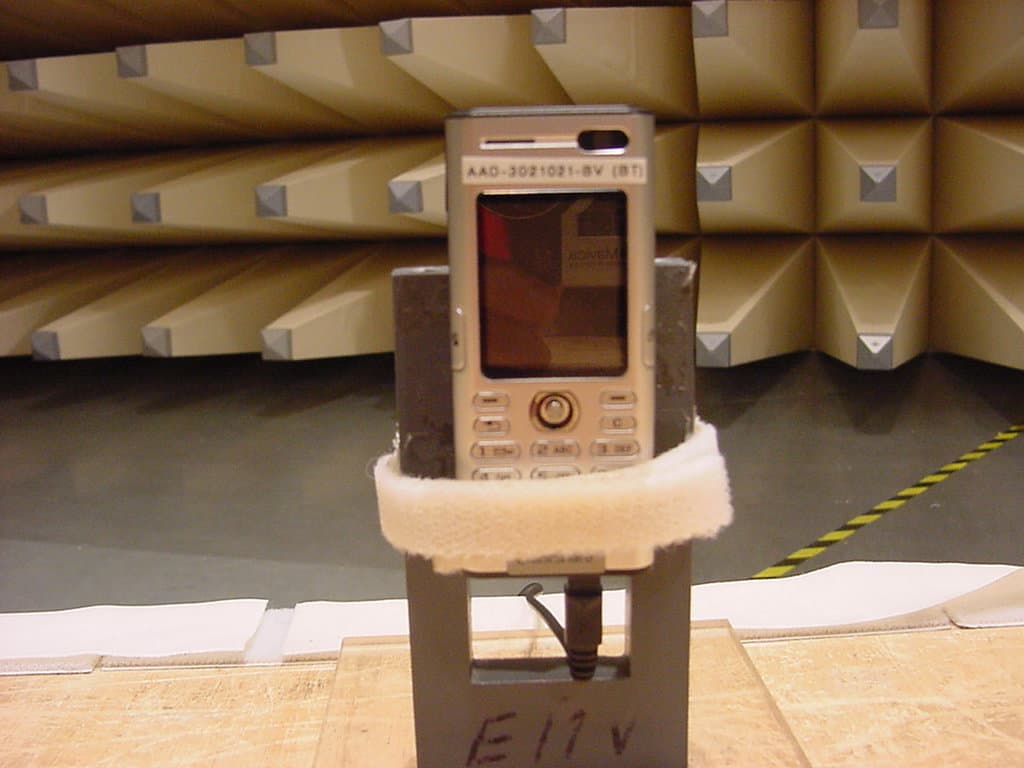

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 40 of 50 4 Photographs Photographs of Test Site: Photo 1: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 41 of 50 Photo 2: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 42 of 50 Photo 3: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 43 of 50 Photographs of EUT: Photo 1: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 44 of 50 Photo 2: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 45 of 50 Photo 3: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 46 of 50 Photo 4: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 47 of 50 Photo 5: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 48 of 50 Photo 6: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 49 of 50 Photo 7: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 50 of 50 Photo 8:

1 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 304/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2005-04-25 A 2 Approved according to 000 21–LXE 107 42/1 K600i, KRH-label, TYPE: AAD-3021021-BV, Made in... 1 General information The format of the label is based on a label SVF 930 2406 (40,4 x 31,4 mm). If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1 (1,0/29,0) SIM-card logo Graphics, height 7,3 mm. According to 1424-SVF 930 1418. Rotated 90° Clockwise. Line 2a (20,7/1,0) Sony Ericsson stylized name. Graphics, height 2,0 mm. According to 190 89–EN/LZT 108 5347 Line 2b (20,2/18,0) Model name, “K600i” Text, height 1,2 mm. Line 2c (20,2/23,0) Product number of the DPY kit in which the phone is packed. Printed without “DPY 101” and R-state, “0000/000” Text, height 1,2 mm. Line 3a (22,2/1,0) Type number of the phone (KRH), “Type: AAD-3021021-BV”. Text, height 1,2 mm. Line 3b (22,2/18,0) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Line 3c (22,2/24,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. 2 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 304/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2005-04-25 A 2 Content Format Line 3d (22,2/27,5) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 3e (22,2/34,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 4a (24,0/1,0) Country approval mark 1 “FCC ID: PY7AD021021” Text, height 1,2 mm. Line 4b (24,0/15,0) Country approval mark 2 “IC: 4170B-AD021021” Text, height 1,2 mm. Line 5 (26,5/1,0) Line 6a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 6a (28,0/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 6b (28,0/13,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 2,0 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 6c (28,0/28,5) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 6d (28,0/35,3) The Notified body number. “0682” Text, height 2,0 mm. Line 7a (30,2/1,0) Line 6b in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 7b (30,2/27,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. 3 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGURDBB, Niklas Lövberg 151 86–SVV 107 304/1 Uen Approved Checked Date Rev Reference SEM/BGURDBB (Niklas Lövberg) 2005-04-25 A 2 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision.

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 40 of 50 4 Photographs Photographs of Test Site: Photo 1: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 41 of 50 Photo 2: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 42 of 50 Photo 3: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 43 of 50 Photographs of EUT: Photo 1: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 44 of 50 Photo 2: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 45 of 50 Photo 3: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 46 of 50 Photo 4: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 47 of 50 Photo 5: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 48 of 50 Photo 6: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 49 of 50 Photo 7: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 50 of 50 Photo 8:

G:\2_RSC\PROJEKTE\05\3904_1\Task3(BLU_FCC)\2-3904-01-03-05 FCC.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-DO Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no.: 2-3904-01-03-05 FCC Part 15.247 / CANADA RSS-210 FCC ID: PY7AD021021 / IC: 4170B-AD021021 AAD-3021021-BV CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 D-66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 2 of 50 Table of contents 1. ADMINISTRATIVE DATA ...................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.1.2 Organizational items..................................................................................................................................... 3 1.1.3 Applicant ́s details ........................................................................................................................................ 4 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 4 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 5 1.3.1 EUT: Type, S/N etc. ...................................................................................................................................... 5 1.3.2 If RF component testing only, describtion of additional used HW/SW ......................................................... 5 1.3.3 Additional EUT information For IC Canada (appendix 2)...........................................................................6 1.3.4 EUT operating modes ................................................................................................................................... 6 1.3.5 Extreme conditions testing values................................................................................................................. 7 2. TESTSTANDARD & SUMMARY LIST OF ALL PERFORMED TEST CASES .............................................. 8 3. RF MEASUREMENT TESTING ............................................................................................................................. 9 3.1 DESCRIPTION OF TEST SET-UP................................................................................................................................9 3.1.1 Radiated measurements ................................................................................................................................ 9 3.1.2 Conducted measurements ............................................................................................................................. 9 3.2 REFERENCED DOCUMENTS................................................................................................................................... 10 3.3 ADDITIONAL COMMENTS..................................................................................................................................... 10 3.4 ANTENNA GAIN................................................................................................................................................... 10 3.5 CARRIER FREQUENCY SEPARATION §15.247(A1)................................................................................................. 11 3.6 NUMBER OF HOPPING CHANNELS §15.247(A1) .................................................................................................... 12 3.7 TIME OF OCCUPANCY (DWELL TIME) §15.247(A1 III).......................................................................................... 13 3.8 POWER SPECTRAL DENSITY (HYBRID SYSTEM IN INQUIRY MODE/PAGE SCAN) §15.247(D) ................................. 14 3.9 SPECTRUM BANDWIDTH OF A FHSS SYSTEM / 20DB BANDWITH §15.247(A1)................................................... 15 3.10 MAXIMUM OUTPUT POWER (CONDUCTED) § 15.247 (B) (1) ................................................................................ 17 3.11 MAX. PEAK OUTPUT POWER (RADIATED) § 15.247 (B) (1)................................................................................... 19 3.12 BAND-EDGE COMPLIANCE OF CONDUCTED EMISSIONS §15.247 (C) ..................................................................... 20 3.13 BAND-EDGE COMPLIANCE OF RADIATED EMISSIONS §15.205 .............................................................................. 23 3.14 SPURIOUS EMISSIONS - CONDUCTED (TRANSMITTER) § 15.247 (C) (1) ............................................................... 27 3.15 SPURIOUS EMISSIONS - RADIATED (TRANSMITTER) § 15.247 (C) (1)................................................................... 29 3.16 SPURIOUS EMISSIONS - RADIATED (RECEIVER) § 15.109..................................................................................... 34 3.17 SPURIOUS EMISSIONS - RADIATED <30 MHZ § 15.109 ........................................................................................ 36 3.18 CONDUCTED EMISSIONS <30 MHZ § 15.107/207 ................................................................................................ 37 4 PHOTOGRAPHS ..................................................................................................................................................... 40 ANNEX 1: TECHNICAL PRODUCT DESCRIPTION SRD-T…

Text truncated - open the document above for the full version.

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 40 of 50 4 Photographs Photographs of Test Site: Photo 1: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 41 of 50 Photo 2: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 42 of 50 Photo 3: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 43 of 50 Photographs of EUT: Photo 1: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 44 of 50 Photo 2: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 45 of 50 Photo 3: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 46 of 50 Photo 4: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 47 of 50 Photo 5: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 48 of 50 Photo 6: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 49 of 50 Photo 7: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3904-01-03-05 Date: 2005-03-21 Page 50 of 50 Photo 8:
