PY7AD022011Licensed Transmitter

1Contents Draft for Sony Ericsson Internal Use Only P1C Contents Getting started ................... 4 Calling ............................... 26 Messaging ........................ 31 Imaging ............................. 33 Entertainment ................... 35 Connectivity ...................... 38 Important information ...... 40 Index ................................. 49 Additional user information You can find the Additional information user guide, containing more information about your phone, at www.SonyEricsson.com/support. www.SonyEricsson.com/support At Sony Ericsson Product Support you can find more help getting the most out of your product, including user documentation, troubleshooting, tips & tricks and software, as well as phone settings for Internet/WAP browsing and messaging. Sony Ericsson GSM 900/1800/1900 This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2005 Publication number: EN/LZT 108 7448 P1C Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity 2Contents Draft for Sony Ericsson Internal Use Only P1C or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license. QuickShare, PlayNow, MusicDJ, PhotoDJ and VideoDJ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. Memory Stick™, Memory Stick Duo™ and Memory Stick PRO Duo™ are trademarks or registered trademarks of Sony Corporation. Walkman™ and the Walkman™ logo and symbol are registered trademarks of Sony Corporation. Real is a trademark or a registered trademark of RealNetworks, Inc. RealPlayer® for Mobile is included under license from RealNetworks, Inc. Copyright 1995-2004, RealNetworks, Inc. All rights reserved. Microsoft, Windows and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and other countries. Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™. 1Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re- export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright© SyncML initiative Ltd. (1999-2002). All rights reserved. Other product and company names mentioned herein may be the trademarks of their respective owners. Any rights not expressly granted herein are reserved. 4Getting started Draft for Sony Ericsson Internal Use Only P1C Getting started SIM card and battery To insert the SIM card and battery …

Text truncated - open the document above for the full version.

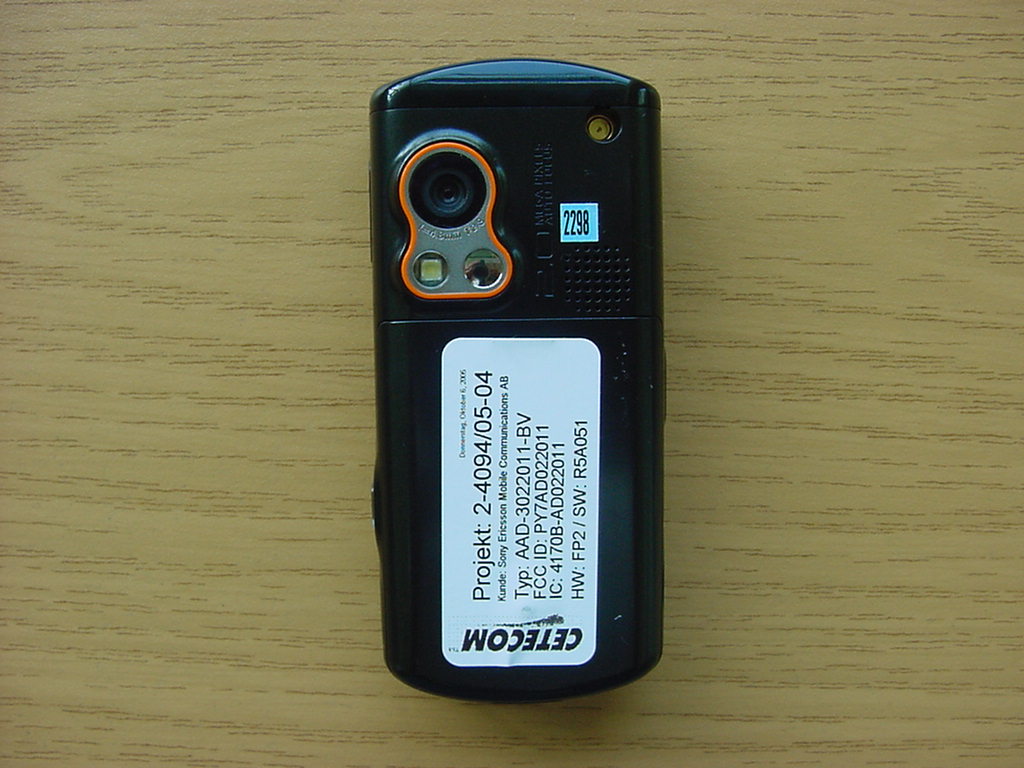

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 19 of 36 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 20 of 36 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 21 of 36 Photo 3 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 22 of 36 7 Annex C: External Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 23 of 36 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 24 of 36 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 25 of 36 Photo No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 26 of 36 8 Annex D: Internal Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 27 of 36 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 28 of 36 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 29 of 36 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 30 of 36 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 31 of 36 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 32 of 36 Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 33 of 36 Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 34 of 36 Photo 9: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 35 of 36 Photo 10: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 36 of 36 Photo 11:

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 360/3 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-09-05 B 3 Approved according to 000 21–LXE 107 42/1 W900i, KRH-lbl, Europe, TYPE: AAD-3022011-BV,Made in 1 General information The format of the label is based on a label SVF 930 863 (rounded corner top left). If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (2,2/2,0) Product number of the DPY kit in which the phone is packed. Printed without R-state, “DPY 101 0000/000” Text, height 1,2 mm. Line 1b (2,2/13,5) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 2a (4,0/1,0) Sony Ericsson stylized name. Graphics, height 1,3 mm. According to 190 89–EN/LZT 108 5347 Line 2b (3,8/13,0) Model name, “W900i” Text, height 1,2 mm. Line 3a (5,7/1,0) Country approval mark 1 “FCC ID: PY7AD022011” Text, height 1,2 mm. Line 3b (6,0/26,0) WEEE Trashcan without bar Graphics, minimum height 5 mm. According to 1424-SVF 930 1444/1. Line 4 (7,6/1,0) Country approval mark 2 “IC: 4170B-AD022011” Text, height 1,2 mm. Line 5a (9,4/1,0) Type number of the phone (KRH), “Type: AAD-3022011-BV”. Text, height 1,2 mm. Company Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 360/3 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-09-05 B 3 Content Format Line 5b (9,4/19,0) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Line 6 (11,6/1,0) Line 7a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 7a (13,2/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 7b (13,2/14,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. Line 7c (13,2/18,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 8 (17,5/1,0) Line 9a in bar code (only actual number, without data identifier). Bar code, height 4,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 9a (20,0/1,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 9b (20,0/15,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. Line 9c (20,0/31,5) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Rotated 90° counter clockwise. Line 9d (12,1/31,5) The Notified body number. “0682” Text, height 2,0 mm. Rotated 90° counter clockwise. Company Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 360/3 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-09-05 B 3 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 19 of 36 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 20 of 36 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 21 of 36 Photo 3 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 22 of 36 7 Annex C: External Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 23 of 36 Photo No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 24 of 36 Photo No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 25 of 36 Photo No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 26 of 36 8 Annex D: Internal Photographs of the Equipment Photo No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 27 of 36 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 28 of 36 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 29 of 36 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 30 of 36 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 31 of 36 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 32 of 36 Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 33 of 36 Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 34 of 36 Photo 9: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 35 of 36 Photo 10: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 36 of 36 Photo 11:

D1900 V2SAM 4 Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 1.0; Head 1900MHz: σ = 1.40 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 Cubes (2): SAR (1g): 3.96 mW/g ± 0.07 dB, SAR (10g): 2.00 mW/g ± 0.06 dB, (Worst-case extrapolation)Coarse: Dx = 17.0, Dy = 17.0, Dz = 17.0Powerdrift: -0.02 dBP=100mW, d=10mm, 1900MHz dipol D1900V2 s/n 5d002Target values: 1g mass 39.2 mW/g, 10g mass 20.6 mW/gMeasured values: 1g mass 39.6mW/g(+1,0%), 10g mass 20.0mW/g(-2.9%) LIQUID'S Temprature 22C,Ambeint Temprature 24C ,humidity36% SAR Tot [mW/g] 4.57E-19.14E-11.37E+01.83E+02.28E+02.74E+03.20E+03.65E+04.11E+04.57E+0 07/28/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB D1900 V2SAM 4 Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 1.0; Head 1900MHz: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 3.97 mW/g, SAR (10g): 2.03 mW/g, (Worst-case extrapolation)Coarse: Dx = 17.0, Dy = 17.0, Dz = 17.0Powerdrift: -0.01 dBP=100mW, d=10mm, 1900MHz dipol D1900V2 s/n 5d002Target values: 1g mass 39.2 mW/g, 10g mass 20.16mW/gMeasured values: 1g mass 39.7mW/g(+1.3%), 10g mass 20.0mW/g(-1.5%) LIQUID'S Temprature 22C,Ambeint Temprature 24C ,humidity36% SAR Tot [mW/g] 4.57E-19.14E-11.37E+01.83E+02.28E+02.74E+03.20E+03.65E+04.11E+04.57E+0 07/29/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB D1900 V2SAM 4 Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 1.0; Head 1900MHz: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cubes (2): SAR (1g): 3.93 mW/g ± 0.07 dB, SAR (10g): 2.01 mW/g ± 0.07 dB, (Worst-case extrapolation)Coarse: Dx = 17.0, Dy = 17.0, Dz = 17.0Powerdrift: -0.02 dBP=100mW, d=10mm, 1900MHz dipol D1900V2 s/n 5d002Target values: 1g mass 39.2 mW/g, 10g mass 20.6 mW/gMeasured values: 1g mass 39.3mW/g(+0.3%), 10g mass 20.1mW/g(-2.4%) LIQUID'S Temprature 22C,Ambeint Temprature 24C ,humidity36% SAR Tot [mW/g] 4.45E-18.91E-11.34E+01.78E+02.23E+02.67E+03.12E+03.56E+04.01E+04.45E+0 08/01/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB D1900 V2SAM 4 Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHzProbe: ET3DV6 - SN1585; ConvF(4.62,4.62,4.62); Crest factor: 1.0; Muscle 1900: σ = 1.56 mho/m ε r = 51.4 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 4.13 mW/g, SAR (10g): 2.10 mW/g, (Worst-case extrapolation)Coarse: Dx = 17.0, Dy = 17.0, Dz = 17.0Powerdrift: 0.00 dBP=100mW, d=10mm, 1900MHz dipol D1900V2 s/n 5d002Target values: 1g mass 39.6mW/g, 10g mass 20.9mW/gMeasured values: 1g mass 41.3mW/g(+4,3%), 10g mass 21.0mW/g(+0.5%) BODY LIQUID'S Temprature 22°C ; Room's Temprature 23°C,Humidity 40% SAR Tot [mW/g] 4.65E-19.30E-11.39E+01.86E+02.32E+02.79E+03.25E+03.72E+04.18E+04.65E+0 08/04/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB D1900 V2SAM 4 Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHzProbe: ET3DV6 - SN1585; ConvF(4.62,4.62,4.62); Crest factor: 1.0; Muscle 1900: σ = 1.52 mho/m ε r = 50.9 ρ = 1.00 g/cm 3 Cubes (2): SAR (1g): 4.06 mW/g ± 0.07 dB, SAR (10g): 2.10 mW/g ± 0.05 dB, (Worst-case extrapolation)Coarse: Dx = 17.0, Dy = 17.0, Dz = 17.0Powerdrift: -0.03 dBP=100mW, d=10mm, 1900MHz dipol D1900V2 s/n 5d002Target values: 1g mass 39.6mW/g, 10g mass 20.9mW/gMeasured values: 1g mass 40.6mW/g(+2,5%), 10g mass 21.0mW/g(+0.5%) BODY LIQUID'S Temprature 22°C ; Room's Temprature 23°C,Humidity 40% SAR Tot [mW/g] 4.69E-19.38E-11.41E+01.88E+02.34E+02.81E+03.28E+03.75E+04.22E+04.69E+0 08/31/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7AD022011SAM 4 Phantom; Righ Hand Section; Position: (105°,301°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.0; Head 1900MHz: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.281 mW/g, SAR (10g): 0.156 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: -0.01 dBPY7AD022011,S/N:BF7ZA50107;Frequevc y 1850MHz(ch512), Right Hand Side, Tilt(105°) Phone Position, meas. Power=30.4dB m, Nom.Power=30.5dBm; ambien temprature 23(c-degree)and humidity 40%,Date:050801;Phone in close state. SAR Tot [mW/g] 3.07E-26.14E-29.21E-21.23E-11.54E-11.84E-12.15E-12.46E-12.76E-13.07E-1 08/01/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7AD022011SAM 4 Phantom; Righ Hand Section; Position: (105°,301°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.0; Head 1900MHz: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.291 mW/g, SAR (10g): 0.165 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: 0.03 dBPY7AD022011,S/N:BF7ZA50107;Frequevc y 1850MHz(ch512), Right Hand Side, Tilt(105°) Phone Position, meas. Power=30.4dB m, Nom.Power=30.5dBm; ambien temprature 23(c-degree)and humidity 40%,Date:050728 SAR Tot [mW/g] 2.93E-25.86E-28.79E-21.17E-11.46E-11.76E-12.05E-12.34E-12.64E-12.93E-1 07/28/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7AD022011SAM 4 Phantom; Righ Hand Section; Position: (90°,301°); Frequency: 1910 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.0; Head 1900MHz: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.402 mW/g, SAR (10g): 0.245 mW/g, (Worst-case extrapolation)Coarse: Dx = 11.0, Dy = 11.0, Dz = 10.0Powerdrift: 0.00 dBPY7AD022011,S/N:BF7ZA50107;Frequevc y 1850MHz(ch512),Right Hand Side, Cheek(90°) Phone Position, meas. Power=30.4dB m, Nom.Power=30.5dBm; ambien temprature 23(c-degree)and humidity 40%,Date:050801;Phone in close state. SAR Tot [mW/g] 4.38E-28.76E-21.31E-11.75E-12.19E-12.63E-13.07E-13.50E-13.94E-14.38E-1 08/01/05 Hamid Kami ShiraziSony Ericsson Mobile Communications AB PY7AD022011SAM 4 Phantom; Righ Hand Section; Position: (90°,301°); Frequency: 1850 MHzProbe: ET3DV6 - SN1585; ConvF(5.03,5.03,5.03); Crest factor: 8.0; Head 1900MHz: σ = 1.40 mho/m ε r = 39.4 ρ = 1.00 …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4094-04-01/05 Date: 2005-10-11 Page 1 of 46 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4094-04-01/05 Applicant : Sony Ericsson Mobile Communications AB Type : AAD-3022011-BV Test Standard : FCC Part 24 RSS132, 133 FCC ID : PY7AD022011 Certification No. IC : 4170B-AD022011 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4094-04-01/05 Date: 2005-10-11 Page 2 of 46 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 25 3.1.5 Conducted Spurious Emissions ................................................................................................................... 29 3.1.6 Block Edge Compliance .............................................................................................................................. 33 3.1.7 Occupied Bandwidth............................................................................................................................…

Text truncated - open the document above for the full version.
