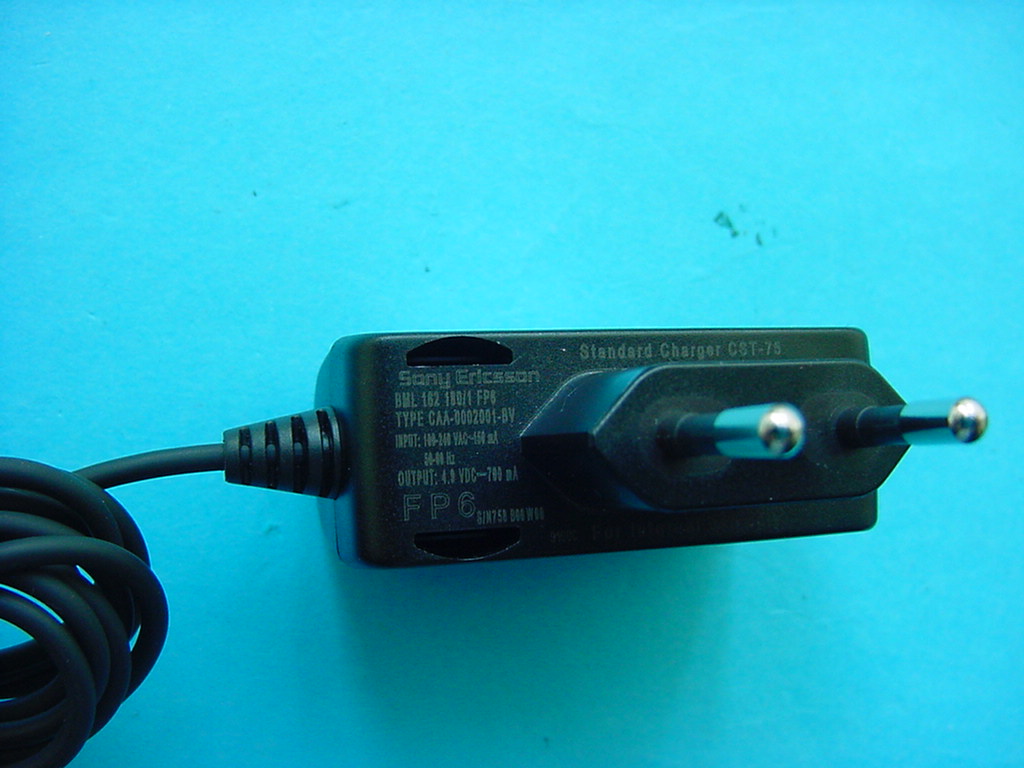

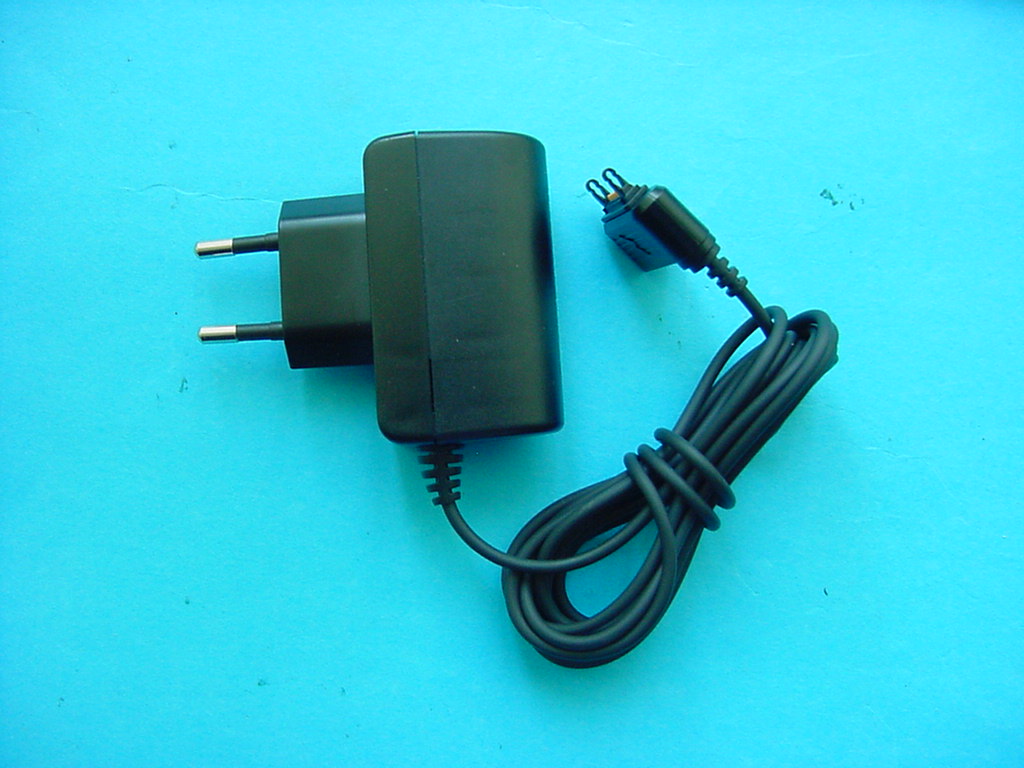

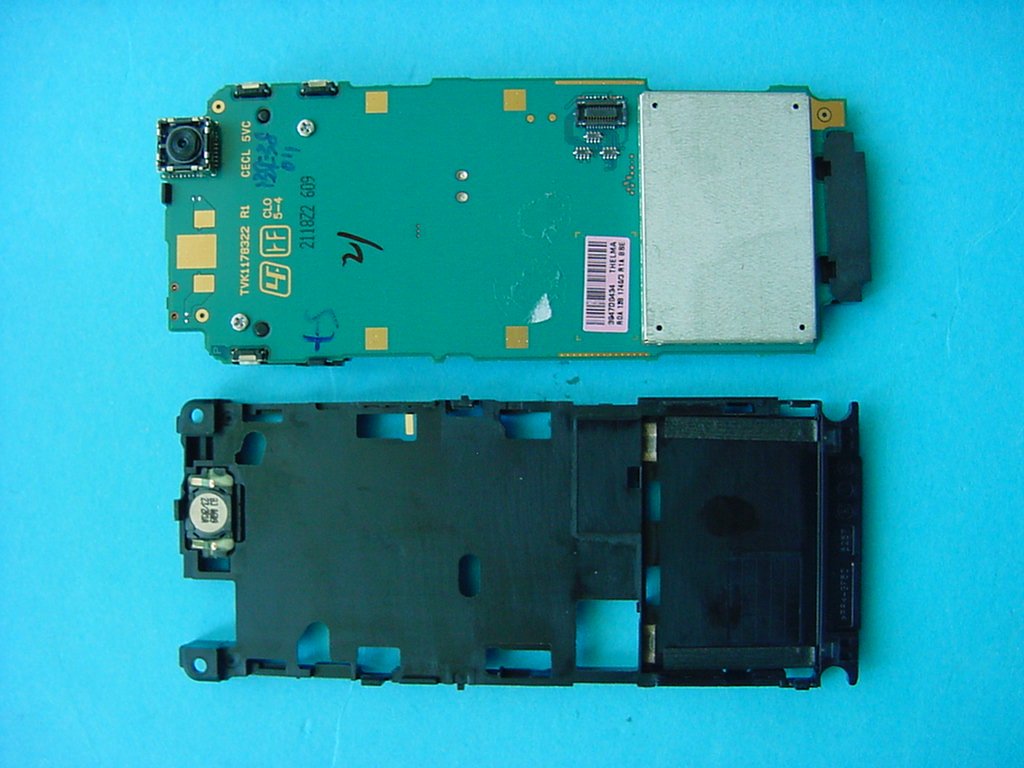

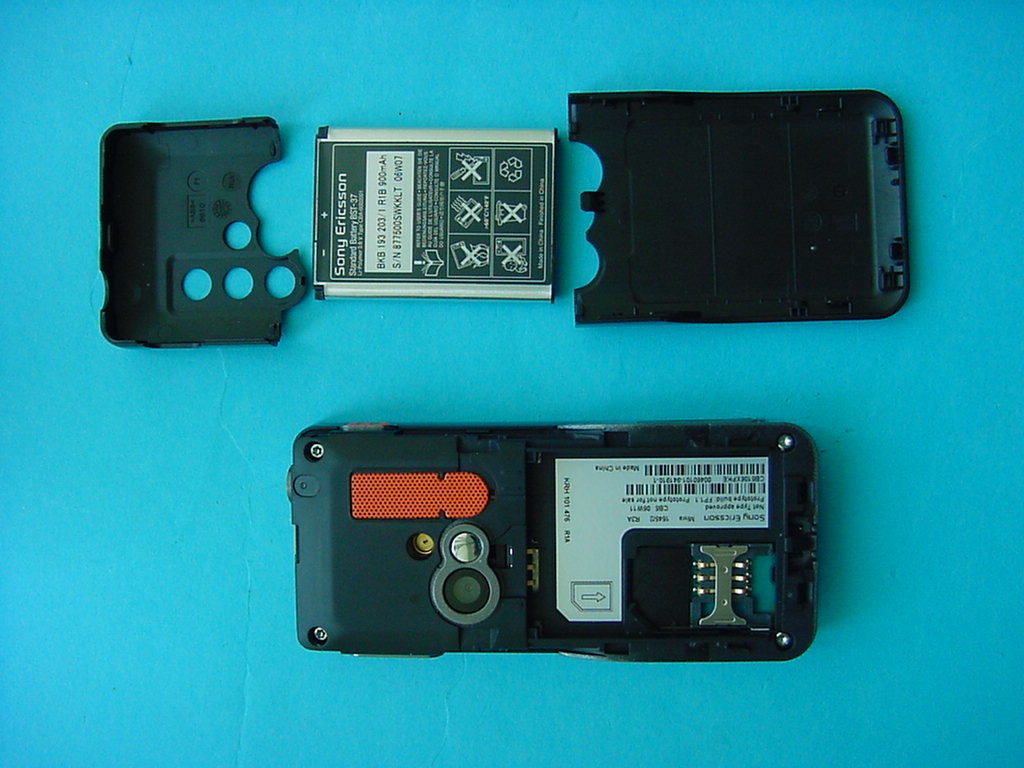

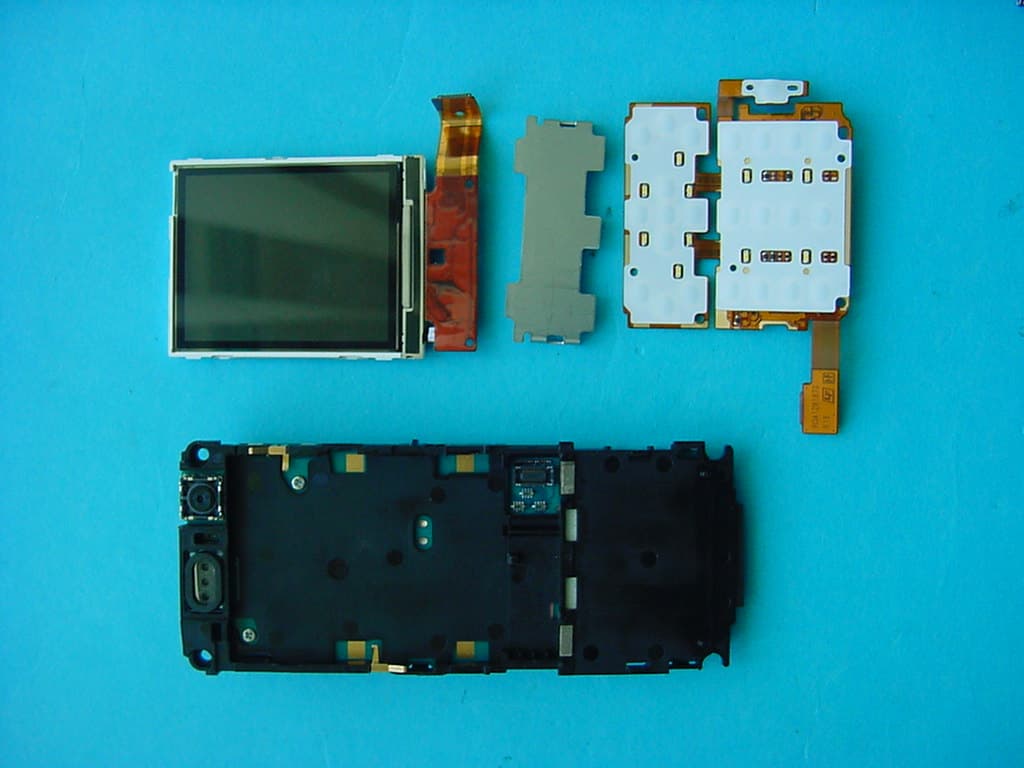

PY7AD022042Licensed Transmitter

1 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 447/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2006-06-22 C 3 Approved according to 000 21–LXE 107 42/1 V630i, KRH-label, TYPE: AAD-3022042-BV, Made in... 1 General information The format of the label is based on a label SVF 930 2406 (40,4 x 31,4 mm). If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1 (1,0/29,0) SIM-card logo Graphics, height 7,3 mm. According to 1424-SVF 930 1418. Rotated 90° Clockwise. Line 2a (20,7/1,0) Sony Ericsson stylized name. Graphics, height 2,0 mm. According to 190 89–EN/LZT 108 5347 Line 2b (20,2/18,0) Model name, “V630i” Text, height 1,2 mm. Line 2c (20,2/23,0) Product number of the DPY kit in which the phone is packed. Printed without R-state, “DPY 101 0000/000” Text, height 1,2 mm. Line 3a (22,2/1,0) Type number of the phone (KRH), “Type: AAD-3022042-BV”. Text, height 1,2 mm. Line 3b (22,2/18,0) HW & SW fields, “FG” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. 2 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 447/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2006-06-22 C 3 Content Format Line 3c (22,2/24,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. According to 1050-LZT 108 6537. Line 3d (22,2/27,5) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 3e (22,2/34,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 4a (24,0/1,0) Country approval mark 1 “FCC ID: PY7AD022042” Text, height 1,2 mm. Line 4b (24,0/15,0) Country approval mark 2 “IC: 4170B-AD022042” Text, height 1,2 mm. Line 5 (26,5/1,0) Line 6a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 6a (28,0/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 6b (28,0/13,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 2,0 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 6c (28,0/28,5) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 6d (28,0/35,3) The Notified body number. “0682” Text, height 2,0 mm. Line 7a (30,2/1,0) Line 6b in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 7b (30,2/27,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. 3 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 447/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2006-06-22 C 3 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision.

1Contents Contents Getting started ................... 4 SIM card, battery, turning on, help, calls, Toolbar, PC Suite software, camera, blog. Getting to know the phone ............................ 8 Keys, menus, navigation, entering letters, My Files, memory card. Calling ............................... 17 Calls, video calls, contacts, call list, voice control, groups, business cards. Messaging ........................ 24 Text messaging, picture messaging, email, Vodafone Messenger. Imaging ............................. 31 Camera, video, blog, pictures. Entertainment ................... 34 Music and Video player, ringtones. Connectivity ..................... 35 Vodafone live!, Internet, synchronising, Bluetooth, USB cable, update service. More features ................... 42 Alarm clock, calendar. Important information ...... 44 Index ................................. 52 www.sonyericsson.com/support At Sony Ericsson Product Support there is more information and help to get the most out of your product: User guide with additional information, troubleshooting, tips and tricks, software, settings for Internet and messaging. V630i-SHUG-Vodafone-R1A-EN.book Page 1 Thursday, May 4, 2006 2:36 PM PPreflighted byreflighted byPreflighted by ( )( )( ) 2Contents Sony Ericsson UMTS 2100 GSM 900/1800/1900 This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2006 Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license. MusicDJ, PhotoDJ and VideoDJ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. Memory Stick Micro™ and M2™ are registered trademarks of Sony Corporation. Real is a trademark or a registered trademark of RealNetworks, Inc. RealPlayer® for Mobile is included under license from RealNetworks, Inc. Copyright 1995-2004, RealNetworks, Inc. All rights reserved. Adobe® Photoshop® Album Starter Edition is a registered trademark of Adobe Systems Incorporated. Microsoft, Windows and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and other countries. Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. V630i-SHUG-Vodafone-R1A-EN.book Page 2 Thursday, May 4, 2006 2:36 PM PPreflighted byreflighted byPreflighted by ( )( )( ) Publication number: EN/LZT 108 8568 R2A 3Contents End-user license agreement for Sun™ Java™ J2ME™. 1Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data a…

Text truncated - open the document above for the full version.

Applicant: Sony Ericsson Mobile Communications AB Correspondence Reference Number: 30109 731 Confirmation Number: TC428485 Date of Original Email: 07/12/2006 Subject: Request for additional information 1) Please clarify if SAR was tested with BT both on and off? Retest as necessary. Answer: It has been tested with BT both on and off. The column with "speech, HBH610a" is the test with BT. This is also described in the Test Result text on page 7 in the report. 2) Please describe video conference calls, usage positions and modes of transmission. Answer: Video call is only possible in the WCDMA mode (Band 1 not working in USA) and uses the same transmission as all calls in WCMDA (datacall). Video calls are not possible in GSM operating mode, for which this certification was made.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 17 of 27 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 18 of 27 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 19 of 27 Photo 3 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 20 of 27 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 21 of 27 7 Annex C: External Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 22 of 27 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 23 of 27 Photo 5: Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 24 of 27 Photo 7: Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 25 of 27 8 Annex D: Internal Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 26 of 27 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 27 of 27 Photo 5: Photo 6:

1 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 447/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2006-06-22 C 3 Approved according to 000 21–LXE 107 42/1 V630i, KRH-label, TYPE: AAD-3022042-BV, Made in... 1 General information The format of the label is based on a label SVF 930 2406 (40,4 x 31,4 mm). If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1 (1,0/29,0) SIM-card logo Graphics, height 7,3 mm. According to 1424-SVF 930 1418. Rotated 90° Clockwise. Line 2a (20,7/1,0) Sony Ericsson stylized name. Graphics, height 2,0 mm. According to 190 89–EN/LZT 108 5347 Line 2b (20,2/18,0) Model name, “V630i” Text, height 1,2 mm. Line 2c (20,2/23,0) Product number of the DPY kit in which the phone is packed. Printed without R-state, “DPY 101 0000/000” Text, height 1,2 mm. Line 3a (22,2/1,0) Type number of the phone (KRH), “Type: AAD-3022042-BV”. Text, height 1,2 mm. Line 3b (22,2/18,0) HW & SW fields, “FG” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. 2 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 447/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2006-06-22 C 3 Content Format Line 3c (22,2/24,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. According to 1050-LZT 108 6537. Line 3d (22,2/27,5) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 3e (22,2/34,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 4a (24,0/1,0) Country approval mark 1 “FCC ID: PY7AD022042” Text, height 1,2 mm. Line 4b (24,0/15,0) Country approval mark 2 “IC: 4170B-AD022042” Text, height 1,2 mm. Line 5 (26,5/1,0) Line 6a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 6a (28,0/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 6b (28,0/13,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 2,0 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 6c (28,0/28,5) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 6d (28,0/35,3) The Notified body number. “0682” Text, height 2,0 mm. Line 7a (30,2/1,0) Line 6b in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 7b (30,2/27,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. 3 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 447/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2006-06-22 C 3 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 17 of 27 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 18 of 27 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 19 of 27 Photo 3 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 20 of 27 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 21 of 27 7 Annex C: External Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 22 of 27 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 23 of 27 Photo 5: Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 24 of 27 Photo 7: Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 25 of 27 8 Annex D: Internal Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 26 of 27 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 27 of 27 Photo 5: Photo 6:

Company Internal REPORT 1 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:197 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 060530 060530 A File Report issued by Accredited SAR Laboratory for PY7AD022042 (K618i/c) Date of test: 24 and 28 May, 2006 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Ramadan Plicanic [email protected] +46 46 19 38 62 Testing Approval Mats Hansson [email protected] +46 46 19 33 57 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony EricssonType : AAD-3022042-BV; FCC ID : PY7AD022042; IC:4170B-AD022042 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2006 Company Internal REPORT 2 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:197 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 060530 060530 A File 1 Table of contents 2 INTRODUCTION..................................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 A NTENNA DESCRIPTION.......................................................................................................................................................3 3.2 D EVICE DESCRIPTION...........................................................................................................................................................3 4 TEST EQUIPMENT ..............................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM............................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.....................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................5 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................6 8 TEST RESULTS ....................................................................................................................................................................7 9 REFERENCES .......................................................................................................................................................................8 10 APPENDIX .............................................................................................................................................................................9 10.1 P HOTOGRAPHS OF THE DEVICE UNDER TEST..................................................................................................................10 10.2 D EVICE POSITION ON SAM TWINS PHANTOM...............................................................................................................11 Company Internal REPORT 3 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:197 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 060530 060530 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7AD022042 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device Under Test 3.1 Antenna Description Type Build in Location Up on the back side Max length 38mm Dimensions Max width 28mm Configuration PIFA 3.2 Device description Device model PY7AD022042 Serial number CB5106WNFH (#4785) Mode GSM1900 Multiple Access Scheme TDMA TDMA, GPRS 2slots Output Power Setting fl fm fh 31.2 31.1 30.9 fl fm fh 31.2 31.1 30.9 Factory Tolerance in Power Setting ±0.5 dB ±0.5 dB Maximum Peak Output Power 31.0dBm 31.0dBm Crest Factor 8.3 4.15 Transmitting Frequency Range(MHz) 1850.2 – 1909.8 Prototype or Production Unit Preproduction HW FP1.1 R1.1 Device Category Portable RF exposure environment General population / uncontrolled Company Internal REPORT 4 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN06:197 Appro…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4239-07-02/06 Date: 2006-05-12 Page 1 of 39 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4239-07-02/06 Applicant : Sony Ericsson Mobile Communication Type : AAD-3022042-BV Test Standard : FCC Part 24 RSS-133 FCC ID : PY7AD022042 Certification No. IC : 4170B-AD022042 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4239-07-02/06 Date: 2006-05-12 Page 2 of 39 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS...................…

Text truncated - open the document above for the full version.
