PY7AF052043Licensed transmitter

1Contents Contents Getting started ................... 4 Assembly, SIM card, battery, turning on, help, calls. Getting to know the phone 8 Phone overview, icons, menus, enter- ing letters, activity menu, File manager, Memory Stick Micro™ (M2™). Calling ............................... 20 Calls, contacts, voice control, call options. Messaging ........................ 34 Text messaging, picture messaging, voice messaging, email, My friends. Imaging ............................. 46 Camera, pictures, PhotoDJ™. Entertainment ................... 51 Handsfree, Music, radio, PlayNow™, MusicDJ™, VideoDJ™, themes, games and more. Connectivity ..................... 61 Settings, using Internet, RSS, synchronizing, Bluetooth™ device, infrared, USB cable, update service. More features ................... 73 Alarm clock, calendar, tasks, profiles, time and date, SIM card lock, etc. Troubleshooting ............... 79 Why doesn’t the phone work the way I want it to? Important information ...... 85 Sony Ericsson Consumer Web site, service and support, safe and efficient use, end user license agreement, warranty, declaration of conformity. Index ................................. 95 2 Sony Ericsson GSM 850/900/1800/1900 This User guide is published by Sony Ericsson, without any warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson at any time and without notice. Such changes will, however, be incorporated into new editions of this User guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2006 Publication number: AE/LZT 123 8365 P1C Please note: Some of the services in this User guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. Bluetooth™ is a trademark or registered trademark of Bluetooth SIG Inc. PlayNow, MusicDJ, PhotoDJ, VideoDJ, and TrackID are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. Memory Stick Micro™ and M2™ are trademarks or registered trademarks of Sony Corporation. Adobe™ and Photoshop™ are trademarks or registered trademarks of Adobe Systems incorporated in the United States and/or other countries. Microsoft, Windows and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and other countries. Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Smart-Fit Rendering is a trademark or registered trademark of ACCESS CO., LTD. in Japan and other countries. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™. 1Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not 3 modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re- export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved. Other product and company names mentioned herein may be the trademarks of their respective owners. Any rights not expressly granted herein ar…

Text truncated - open the document above for the full version.

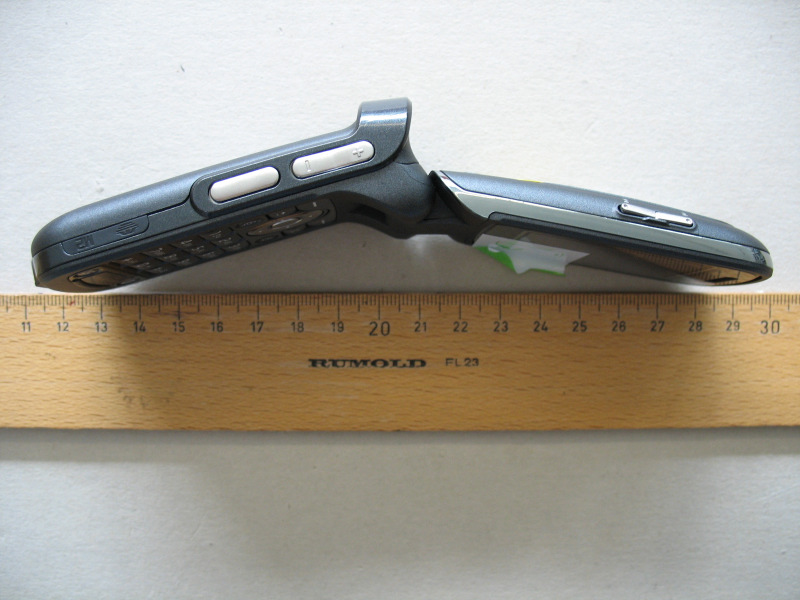

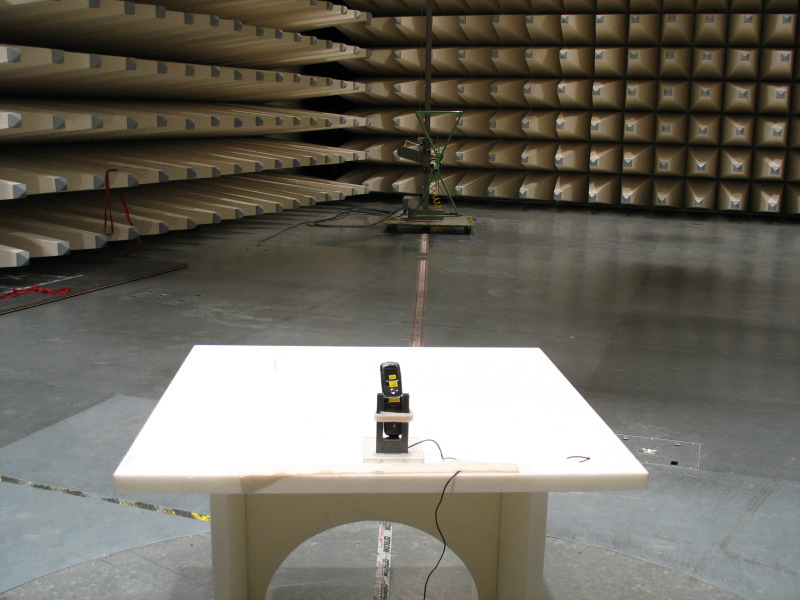

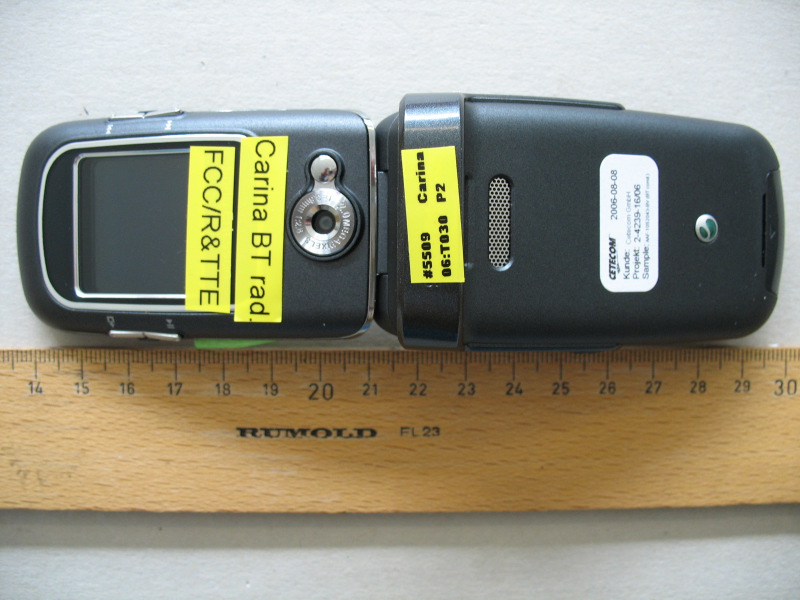

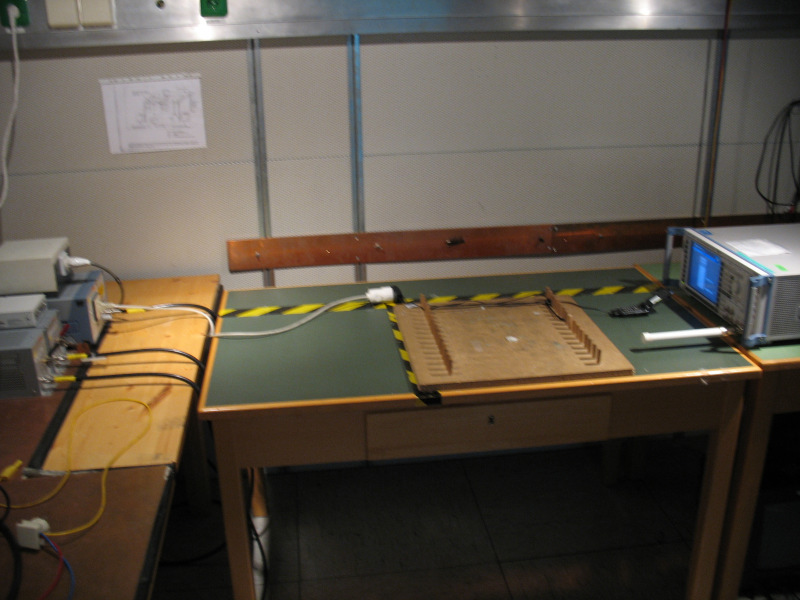

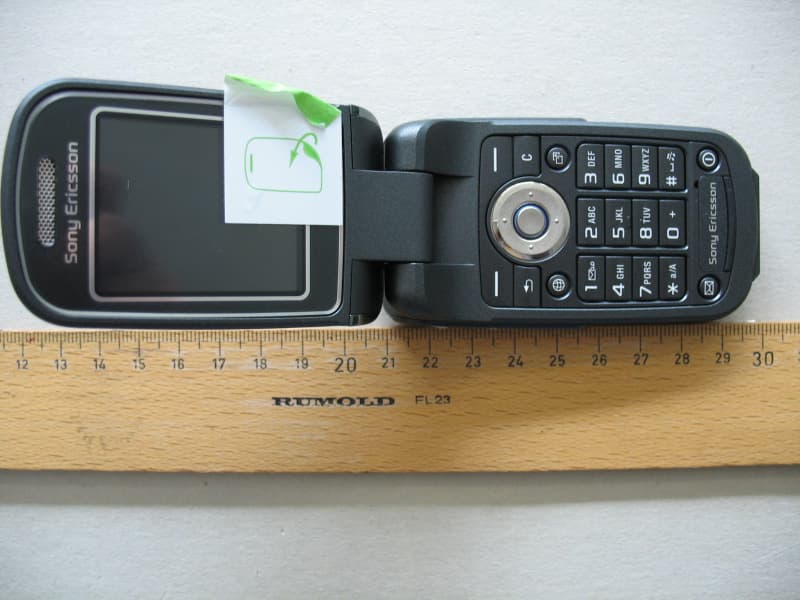

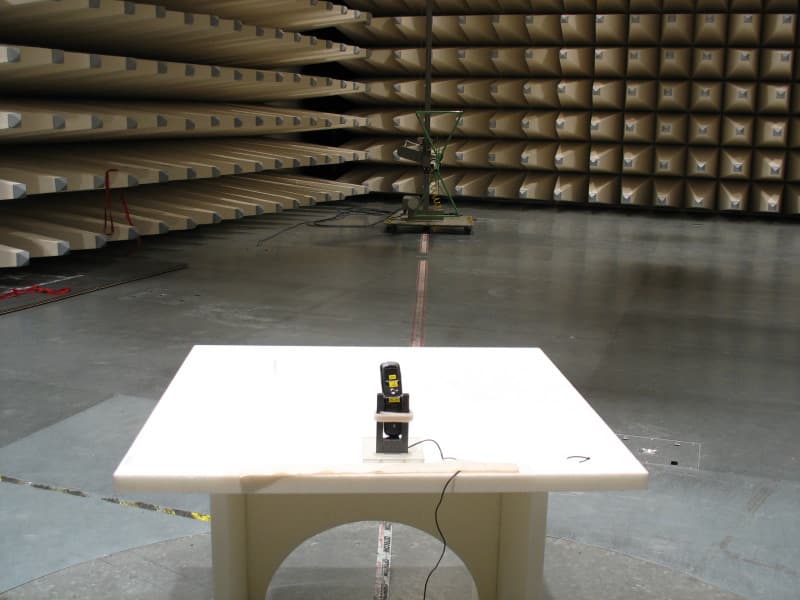

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 20 of 29 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 21 of 29 Photo 3 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 22 of 29 7 Annex C: External Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 23 of 29 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 24 of 29 Photo 5: Photo 6:

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lˆvberg 151 86ñSVV 107 524/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lˆvberg) 2006-07-27 C 3 Approved according to 000 21ñLXE 107 42/1 Z710i, KRH-lbl, TYPE: AAF-1052043-BV, Made in 1 General information The format of the label is based on a label SVF 930 2440. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01ñ109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01ñ1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). ì(x/y)î under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1a (2,5/2,0) Sony Ericsson stylized name. Graphics, height 1,4 mm. According to 190 89ñEN/LZT 108 5347 Line 1b (2,2/14,0) Model name, ìZ710iî Text, height 1,2 mm. Line 1c (2,2/19,0) Product number of the DPY kit in which the phone is packed. Printed without R-state, ìDPY 101 0000/000î Text, height 1,2 mm. Line 1d (2,2/31,0) Location code of where the phone is flashed, if applicable, ìFFFî Text, height 1,2 mm. According to 1050-LZT 108 6537. Line 2a (4,4/1,0) Type number of the phone (KRH), ìType: AAF-1052043-BVî. Text, height 1,2 mm. Line 2b (4,4/16,0) HW & SW fields, ìFGî Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Company Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lˆvberg 151 86ñSVV 107 524/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lˆvberg) 2006-07-27 C 3 Content Format Line 2c (4,4/21,0) Production week (flash), ìyyíWíwwî (yy = year, ww = week) Text, height 1,2 mm. Line 2d (4,4/28,0) Repair week, if applicable. ìRyíWíwwî (y = year, ww = week) Text, height 1,2 mm. Line 2e (5,6/34,0) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 2f (5,6/40,8) The Notified body number. ì0682î Text, height 2,0 mm. Line 3a (6,6/1,0) Country approval mark 1 ìFCC ID: PY7AF052043î Text, height 1,2 mm. Line 3b (6,6/15,0) Country approval mark 2 ìIC: 4170B-AF052043î Text, height 1,2 mm. Line 4 (9,0/1,0) Line 5a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 5a (10,8/1,0) Supplierís identification for trace- ability of the telephone, as desired by supplier (e.g. ìS/N: nnnÖ.î for serial number). Text, height 1,2 mm. Defined by supplier. Line 5b (10,8/14,0) Actual electronic serial number (IMEI) of the phone (KRH), ì00000000-000000-0î Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 6a (15,5/1,0) Line 5b in bar code (only actual number, without data identifier). Bar code, height 4,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 6b (15,5/27,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. Company Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lˆvberg 151 86ñSVV 107 524/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lˆvberg) 2006-07-27 C 3 3 Marking of Origin 3.1 Content ìMade in Xxxî; ìXxxî = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 25 of 29 8 Annex D: Internal Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 26 of 29 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 27 of 29 Photo 5: Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 28 of 29 Photo 7: Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 29 of 29 Photo 9:

APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AF052043 REPORT 1(91) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 010 Z710i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z710I\Final Reports\FCCZ710I.doc E E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report of Portable Cellular Phone FCC ID: PY7AF052043 Model : Z710i Date of test: Date of Report: July 17 – July 10, 2006 July 25, 2006 Laboratory: SAR Testing LaboratorySony Ericsson Mobile Communications, Inc.7001 Development Drive, P.O. Box 13969, Research Triangle Park, NC, 27709, USA Tested by: Rodney Dixon Eng. Technician IV, Product Verification Group Test Responsible: Gerard Hayes Technical Manager Accreditation: A2LA Certificate #1650-01 This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: Specific Absorption Rate (SAR) Dielectric parameters RF power measurement On the following types of products: Wireless communications devices. Statement of Compliance: Sony Ericsson Mobile Communications, Inc declares under its sole responsibility that portable cellular telephone FCC ID PY7AF052043 model Z710i to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) © Sony Ericsson Mobile Communications, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson Mobile Communications encourages all feedback, both positive and negative, on this test report. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AF052043 REPORT 2(91) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 010 Z710i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z710I\Final Reports\FCCZ710I.doc E E E x x h h i i b b i i t t 1 1 1 1 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 3 2.1 Antenna description 3 2.2 Device description 3 3. Test Equipment Used 4 3.1 Dosimetric System 4 3.2 Additional Equipment 4 4. Electrical parameters of the tissue simulating liquid 5 5. System Accuracy Verification 6 6. Test Results 7 6.1 Head Adjacent Test Results 7 6.2 Body-Worn Test Results 10 References 14 Appendix 1: SAR distribution comparison for system accuracy verification 15 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 20 Appendix 3: SAR distribution plots for Body Worn Configuration 41 Appendix 4: Probe Calibration Certificate 66 Appendix 5: Measurement Uncertainty Budget 71 Appendix 6: Photographs of the device under test 77 APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AF052043 REPORT 3(91) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 010 Z710i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z710I\Final Reports\FCCZ710I.doc E E E x x h h i i b b i i t t 1 1 1 1 1. Introduction The Sony Ericsson SAR Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID PY7AF052043 model Z710i. The Specific Absorption Rate (SAR) of this product was measured. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in [1]. 2. Description of the Device Under Test 2.1 Antenna description Type PIFA- Type Antenna Location External plastic loop, near the hinge Width 40.5 mm Length 7.7 mm Dimensions Height 11.6 mm 2.2 Device description FCC ID Number / Device Model PY7AF052043 / Z710i Serial number BD3090JUPA BD3090JLMF BD3090JLP2 Mode(s) of Operation Transmitting Frequency Range GSM 800 824-849 MHz GSM 1900 1850-1910 MHz Modulation Mode(s) TDMA TDMA f low 31.5 dBm +0.2/-1.0 dB f low 29.8 dBm +0.2/-1.0 dB f mid 32.1 dBm +0.2/-1.0 dB f mid 30.0 dBm +0.2/-1.0 dB Target Value and Factory Tolerance Window for Maximum Output Power Setting GSM Mode: 1/8 Duty Cycle f high 32.1 dBm +0.2/-1.0 dB f high 30.6 dBm +0.2/-1.0 dB f low 30.2 dBm max. f low Same as GSM 1:8 f mid 30.3 dBm max. f mid Same as GSM 1:8 GPRS Mode: 2/8 Duty Cycle Target Maximum Output Power Setting (adjusted from GSM mode) f high 30.3 dBm max f high Same as GSM 1:8 f low 28.0 dBm max. f low 27.5 dBm max. f mid 28.2 dBm max. f mid 27.2 dBm max. EGPRS Mode: 2/8 Duty Cycle Target Maximum Output Power Setting (adjusted from GSM mode) f high 28.2 dBm max f high 27.2 dBm max Calibration Frequency f high f mid Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PY7AF052043 REPORT 4(91) Prepared (also subject responsible if other) No. SEM/CV/PF/P Gerard Hayes and Rodney Dixon REP 2006 010 Z710i 02 Approved Checked SEM/CV/PF/P Gerard Hayes A X:\SAR Chamber\FCC reports\Z710I\Final Reports\FCCZ710I.doc E E E x x h h i i b b i i t t 1 1 1 1 3. Test Equipment Used 3.1 Dosimetric System The Sony Ericsson SAR Laboratory utilizes Dosimetric Assessment Systems (Dasy4™) for adjacent to head and body-worn measurements manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±9.7% (K=1) with an expanded uncertainty of ±19.3% (K=2) for Dasy4™. The measurement uncertainty budget is given in Appendix 5 for the system…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4239-16-02/06 Date:2006-09-04 Page 1 of 69 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4239-16-02/06 Applicant : Sony Ericsson Mobile Communications AB Type : AAF-1052043-BV Test Standard : FCC Part 22, 24 RSS-132, -133 FCC ID : PY7AF052043 Certification No. IC : 4170B-AF052043 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4239-16-02/06 Date:2006-09-04 Page 2 of 69 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 ADDITIONAL EUT INFORMATION FOR IC CANADA (APPENDIX 2).......................................................................... 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 2.1.2 GSM 850 ....................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output ..........................................................................................................................................8 3.1.2 Frequency Stability ..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 22 3.1.5 Conducted Spurious Emissions ................................................................................................................... 25 3.1.6 BLOCK EDGE COMPLIANCE............................................................................................................................. 28 3.1.7 Occupied Bandwidth ................................................................................................................................... 31 3.2 PART GSM 850 .................................................................................................................................................. 38 3.2.1 RF Power Output ........................................................................................................................................ 38 3.2.2 Frequency Stability ..................................................................................................................................... 41 3.2.3 Radiated Emissions..................................................................................................................................... 44 3.2.4 Receiver Radiated Emissions ...................................................................................................................... 51 3.2.5 Conducted Spurious Emissions ................................................................................................................... 54 3.2.6 Block Edge Compliance .............................................................................................................................. 57 3.2.7 Occupied Bandwidth ................................................................................................................................... 60 4 USED TEST EQUIPMENT .............................................................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 1 of 29 M:\06\4239_16\Task2(MCP)\2-4239-16-02_06 FCC Part 22-24 Edge Annex.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Annex to Test report no. : 2-4239-16-02/06 Applicant : Sony Ericsson Mobile Communications AB Test Standard : FCC Part 15 / RSS-210 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 2 of 29 Table of contents 1 GENERAL INFORMATION ......................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY........................................................................................................... 3 1.1.1 Identification of the testing laboratory ............................................................................................................... 3 1.2. NOTES......................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT............................................................................................................................................... 4 1.4 APPLICATION DETAILS................................................................................................................................................ 4 1.5 TEST SET-UP DESCRIPTION.......................................................................................................................................... 5 1.6 TEST SPECIFICATIONS.................................................................................................................................................. 5 2 STATEMENT OF COMPLIANCE ................................................................................................................................ 6 2.1 SUMMARY OF MEASUREMENT RESULTS...................................................................................................................... 6 2.1.1 CFR 47 Part 15 Radio frequency devices ........................................................................................................... 6 3 MEASUREMENTS AND RESULTS ............................................................................................................................. 7 4 ANNEX A: FCC PART 15 SUBPART B........................................................................................................................ 8 4.1 CONDUCTED LIMITS.................................................................................................................................................... 8 4.2 RECEIVER SPURIOUS EMISSION RADIATED (IDLE MODE) ............................................................................................ 13 5 USED TESTEQUIPMENT ............................................................................................................................................ 17 6 ANNEX B: PHOTOGRAPHS OF TEST SITE ........................................................................................................... 20 7 ANNEX C: EXTERNAL PHOTOGRAPHS OF THE EQUIPMENT....................................................................... 22 8 ANNEX D: INTERNAL PHOTOGRAPHS OF THE EQUIPMENT........................................................................ 25 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-16-02/06 Date: 2006-09-04 Page 3 of 29 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. DAT-P-176/94-D1 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Stefan Bös Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM I…

Text truncated - open the document above for the full version.
