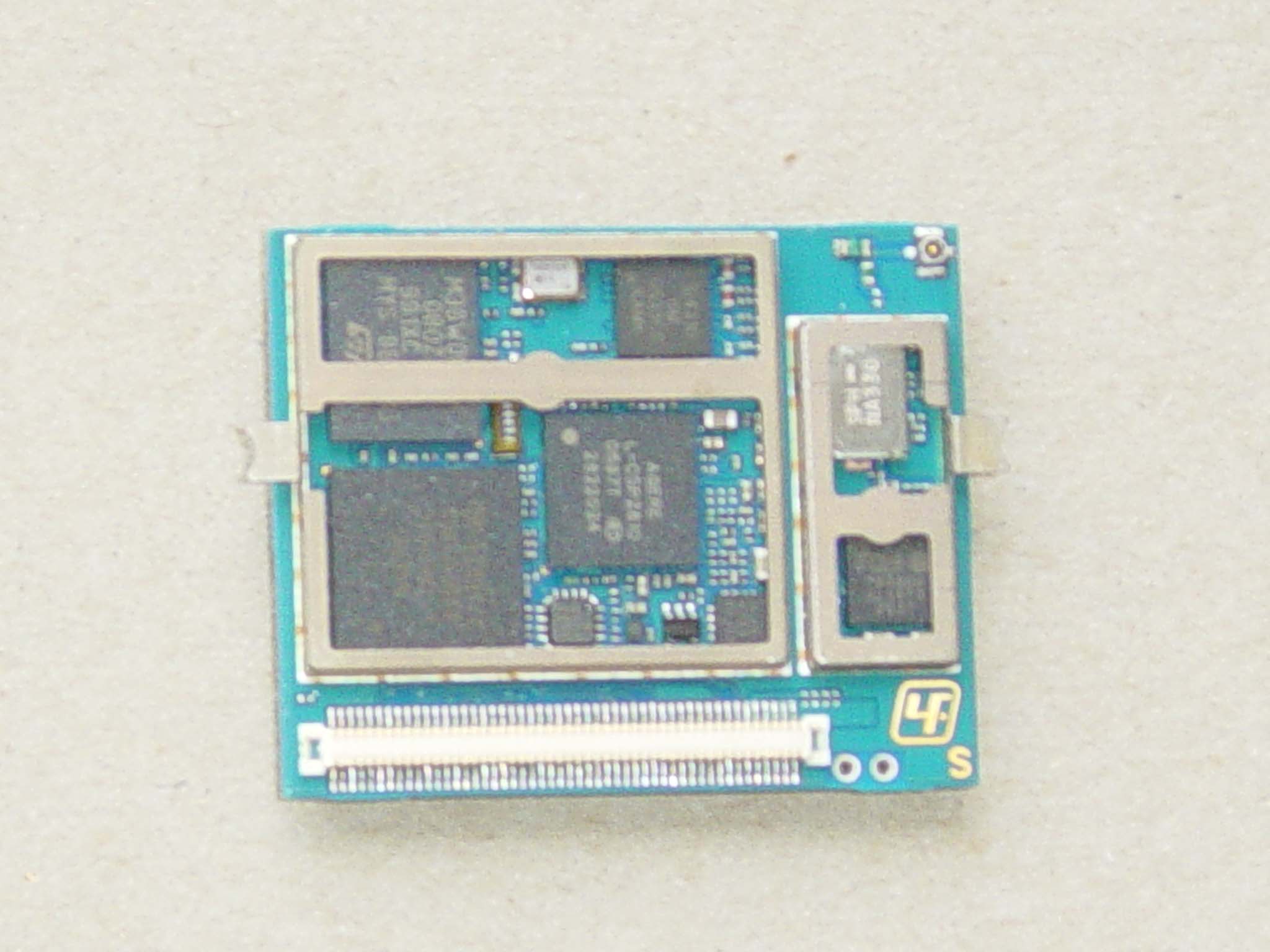

PY7BC051022Quadband GPRS Module

GS64 GSM/GPRS Modem Integrators Manual LZT 123 1836 2 The information contained in this document is the proprietary information of Sony Ericsson Mobile Communications International. The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Sony Ericsson Mobile Communications International, is strictly prohibited. Further, no portion of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, without the prior written consent of Sony Ericsson Mobile Communications International, the copyright holder. First Edition (March 2006) Second Edition (May 2006) Sony Ericsson Mobile Communications International publishes this manual without making any warranty as to the content contained herein. Further Sony Ericsson Mobile Communications International reserves the right to make modifications, additions and deletions to this manual due to typographical errors, inaccurate information, or improvements to programs and/or equipment at any time and without notice. Such changes will, nevertheless be incorporated into new editions of this manual. All rights reserved. © Sony Ericsson Mobile Communications International, 2006 Publication number: LZT 123 1836 Printed in US LZT 123 1836 3 Revision History Edition Change Information First First Edition Second Updated FCC marking requirements Modified description of VREF function Signal connectivity table updated Modified description of UART1 signal behavior LZT 123 1836 4 Contents Overview....................................................................................................... 9 1 Introduction.......................................................................................... 10 1.1 TARGET USERS......................................................................................................... 10 1.2 PREREQUISITES......................................................................................................... 10 1.3 MANUAL STRUCTURE ............................................................................................... 10 1.4 NOTATION............................................................................................................... 11 1.5 ACKNOWLEDGEMENTS ............................................................................................. 12 2 GS64 WIRELESS MODEM ........................................................................ 13 2.1 ABOUT THE GX64 FAMILY ........................................................................................ 13 2.2 WIRELESS MODEMS IN A COMMUNICATION SYSTEM .................................................. 13 2.3 FEATURES ................................................................................................................ 15 2.3.1 TYPES OF MOBILE STATION ............................................................................... 15 2.3.2 SHORT MESSAGE SERVICE.................................................................................. 16 2.3.3 VOICE CALLS..................................................................................................... 16 2.3.4 DATA................................................................................................................ 16 2.3.5 GPRS MULTI-SLOT SUPPORT.............................................................................. 17 2.3.6 SIM CARD ......................................................................................................... 17 2.3.7 POWER CONSUMPTION...................................................................................... 17 2.3.8 OPERATING ENVIRONMENT ............................................................................... 18 2.3.9 OTHER FEATURES.............................................................................................. 18 2.4 SERVICE AND SUPPORT ............................................................................................ 19 2.4.1 WEB PAGES ....................................................................................................... 19 2.4.2 AT COMMANDS MANUAL .................................................................................. 19 2.4.3 M2MPOWER APPLICATION GUIDE....................................................................... 20 2.4.4 DEVELOPER’S KIT .............................................................................................. 20 2.5 PRECAUTIONS .......................................................................................................... 20 2.6 GUIDELINES FOR SAFE AND EFFICIENT USE................................................................ 20 2.6.1 GENERAL USAGE ............................................................................................... 21 LZT 123 1836 5 2.6.2 RADIO FREQUENCY (RF) EXPOSURE AND SAR ..................................................... 21 2.6.3 PERSONAL MEDICAL DEVICES ............................................................................ 22 2.6.4 DISPOSAL OF OLD ELECTRONIC EQUIPMENT ...................................................... 23 2.7 PRODUCT MARKING ................................................................................................. 23 3 ABBREVIATIONS .................................................................................... 24 Integrating the Wireless Modem.................................................................. 26 4 Mechanical Description ......................................................................... 27 4.1 INTERFACE DESCRIPTION ......................................................................................... 27 4.2 PHYSICAL DIMENSIONS ............................................................................................ 29 5 System Connector Interface ................…

Text truncated - open the document above for the full version.

Date May 31, 2006 CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Sony Ericsson Mobile Communications AB requests confidentiality for the following products: FCC ID Title / Model PY7BC051022 GS64 Type BAC-1051022-BV For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams and PCBs submitted as Equipment Authorization Electronic Filing attachment: “schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description”. 4. Part List and Tune Up Info submitted as Equipment Authorization Electronic Filing attachment: “Part List / Tune Up Info”. The above exhibits contain Sony Ericsson Mobile Communications AB trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our cellular modules. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please contact me at the address shown below. Sincerely, Michael Bower Sony Ericsson Mobile Communications AB 1 Lakeside Road, Aerospace Centre Farnborough, Hampshire, GU14 6XP, UK Phone: +441252551631 E-mail: [email protected]

Confidential MARKING DRAWING 1 (5) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pam Wood 151 86 - KRD 104 1030 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/U (Michael Bower) 2006-02-16 A 151 86-KRD 104 1030 Rev A.doc Marking Drawing Type 1051022-BV series Label The label used for marking is defined in the Manufacturing Specification on the SVF 930 2460. Placing The label shall be placed on the back of the module according to the Assembly Drawing (151 88) for the KRD. Print layout Confidential 2 (5) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pam Wood 151 86 - KRD 104 1030 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/U (Michael Bower) 2006-02-16 A 151 86-KRD 104 1030 Rev Definitions Line 1 Sony Ericsson trademark 2 Industry Canada marking 3 FCC approval marking 4 IMEI number as bar code 5 IMEI number as characters 6 Type number 7a KRD number, R-state 7b Product Name “GS64” 8a Marking of origin 8b Production Week as bar code 9 Approval Mark Sony Ericsson trademark Sony Ericsson and the Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Height min. 2 mm. Industry Canada marking Industry Canada approval marking: consists of text: IC: 4170B-BC051022 Approval marks FCC approval marking: consists of the text: FCC ID: PY7BC051022 Within a frame with height > 1.5 mm. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). IMEI number as characters The IMEI number has format: TAC - SNR - CD TAC = First eight digits of the Type Approval code after assignment from the Notified Body. Refer to table 1 below. SNR = A serial number from 000 000 to 999 999 according to factory allocation. Refer to table 1 below. CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Confidential 3 (5) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pam Wood 151 86 - KRD 104 1030 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/U (Michael Bower) 2006-02-16 A 151 86-KRD 104 1030 Rev Type number The type number is BAC-1051022-xx and shall be printed “Type BAC-1051022-xx”. Refer to table 1 below. KRD number The KRD number for the product (including any variant number e.g. “/12”). Refer to table 1 below. R-state The R-state for the KRD according to the 1095 for the KRD. Product Name Text “GS64”. Type Size 1.5mm (min). Manufacturing country Marking of origin shall be printed “Made in Mexico” for modules produced in Celestica. “Made in Taiwan” for modules produced in Tecom. Production week The production week shall be given as yyWww (yy = year, ww = week) Table 1 KRD variant Type Number IMEI TAC code IMEI SNR Allocated factory / 10 BAC-1051022-AA tbd 000000 to 099999 tbd / 20 BAC-1051022-AB tbd 000000 to 099999 tbd / 40 BAC-1051022-CA tbd 000000 to 099999 tbd / 50 BAC-1051022-CB tbd 000000 to 099999 tbd Confidential 4 (5) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pam Wood 151 86 - KRD 104 1030 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/U (Michael Bower) 2006-02-16 A 151 86-KRD 104 1030 Rev Print regulations The printing shall be legible and permanent. Other texts, which are not defined above, have the following characteristics: Typeface: ZPL II standard font D Type size: min 1.1 mm Line spacing: min 1.5 mm Trademark: min 1.5 mm Approval marks: min 5.0 mm Confidential 5 (5) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pam Wood 151 86 - KRD 104 1030 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/U (Michael Bower) 2006-02-16 A 151 86-KRD 104 1030 Rev Print layout for prototypes Line 2 is replaced with text with alternative shown below. Type size min. 5 mm. PROTOTYPE EP1 PROTOTYPE EP2 PROTOTYPE FP1 PROTOTYPE FP2 etc. Note: Refer to build Exemption and/or the Build Entry Request (BER) for the proper naming convention for the prototype Build. Line 3 is replaced with text "NOT FCC or TYPE APPROVED". Text height min 2 mm. Line 4 and 5: IMEI-numbers as barcode and IMEI-numbers as characters shall be filled with the test IMEI number. The test IMEI number is in the following ranges: from 00460101-777000 to 00460101-778999 00460101-960000 to 00460101-961999 (the CD number must be added) Line 9 is left blank

Application: PY7BC051022 Prediction of MPE at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4 π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Based on the above table the limits are for Part 24 device: 1 mW/cm 2 Part 22 device: 0.567 mW/cm 2 Prediction for Part 24: P Max measured radiated power: 366 mW EIRP R Distance: 20 cm Pmax1 Limit where no routine evaluation is required: 3 W EIRP Pmax2 Peak power limit according to §24.232(b): 2 W Smax MPE limit for uncontrolled exposure: 1 mW/cm 2 Calculated power density: 0.073 mW/cm² Result: Configuration complies with rules. Prediction for Part 22: P Max measured radiated power: 1.33 W ERP R Distance: 20 cm Pmax1 Limit where no routine evaluation is required: 1.5 W ERP Pmax2 power limit according to §22.913(a): 7 W Smax MPE limit for uncontrolled exposure: 0.567 mW/cm 2 Calculated power density: 0.434 mW/cm² Result: Configuration complies with rules. Date: 2006-06-19 Name: Michael Grings Company: Cetecom Inc. Address: 411 Dixon Landing Rd, Milpitas, CA 95035, USA Phone: +1 408 586 6200 Email: [email protected]

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM 1) FCC Test Report FCC Part 22,24 / RSS 132,133 FOR: Quad-Band GPRS module MODEL #: GS 64 Sony Ericsson Mobile Communications 7001 Development Drive RTP, Durham NC 27709 USA FCC ID: PY7BC051022 IC ID: 4170B-BC051022 TEST REPORT #: SONY1_001_GS64_FCC22-24 DATE: JUNE 12, 2006 Test Report #: SONY1_001_GS64_FCC22-24 Date of Report: 2006-06-12 Page 2 of 92 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT ....................................................................................................................................4 2 ADMINISTRATIVE DATA............................................................................................................... 5 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT.........................5 2.2 IDENTIFICATION OF THE CLIENT...................................................................................................5 2.3 IDENTIFICATION OF THE MANUFACTURER....................................................................................5 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................6 3.1 IDENTIFICATION OF THE EQUIPMENT UNDER TEST.......................................................................6 3.2 IDENTIFICATION OF ACCESSORY EQUIPMENT...............................................................................6 4 SUBJECT OF INVESTIGATION.....................................................................................................7 5 MEASUREMENTS.............................................................................................................................8 5.1 RF POWER OUTPUT.......................................................................................................................8 5.1.1 FCC 2.1046 Measurements required: RF power output.......................................................8 5.1.2 Limits: ...................................................................................................................................8 5.1.2.1 FCC 22.913 (a) Effective radiated power limits. ..............................................................8 5.1.2.2 FCC 24.232 (b)(c) Power limits. .......................................................................................8 5.1.3 Conducted Output Power Measurement procedure:.............................................................8 5.1.4 Results 850 MHz band(conducted): ......................................................................................9 5.1.5 Results 1900 MHz band(conducted): ....................................................................................9 5.1.6 Radiated Output Power Measurement procedure:..............................................................16 5.1.7 ERP Results 850 MHz band: ...............................................................................................17 5.1.8 EIRP Results 1900 MHz band:............................................................................................17 5.2 OCCUPIED BANDWIDTH/EMISSION BANDWIDTH........................................................................24 5.2.1 FCC 2.1049 Measurements required: Occupied bandwidth...............................................24 5.2.2 Occupied / emission bandwidth measurement procedure:..................................................24 5.2.3 Occupied / Emission bandwidth results 850 MHz band: ....................................................25 5.2.4 Occupied / Emission bandwidth results 1900 MHz band: ..................................................32 5.3 FREQUENCY STABILITY...............................................................................................................39 5.3.1 Limit ....................................................................................................................................39 5.3.2 FREQUENCY STABILITY (GSM-850) ...............................................................................40 5.3.3 FREQUENCY STABILITY (PCS-1900) ..............................................................................41 5.4 SPURIOUS EMISSIONS CONDUCTED.............................................................................................42 5.4.1 FCC 2.1051 Measurements required: Spurious emissions at antenna terminals. ..............42 5.4.2 Limits: .................................................................................................................................42 5.4.2.1 FCC 22.917 Emission limitations for cellular equipment. .............................................42 5.4.2.2 FCC 24.238 Emission limitations for Broadband PCS equipment. ...............................42 5.4.3 Conducted out of band emissions measurement procedure: ...............................................43 5.4.4 Bandedge Results GSM-850 ................................................................................................44 5.4.5 Conducted Spurious Results GSM-850 ...............................................................................46 5.4.6 Bandedge Results PCS-1900 ...............................................................................................50 5.4.7 Conducted Spurious Results PCS-1900 ..............................................................................52 5.5 SPURIOUS EMISSIONS RADIATED.....................................................................…

Text truncated - open the document above for the full version.

PAGE 1 OF 9 TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 (408) 586 6200 Fax: + 1 (408) 586 6299 E-mail: [email protected] http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM Test Setup Photos FOR: Quad-Band GPRS module MODEL #: GS 64 Sony Ericsson Mobile Communications 7001 Development Drive RTP, Durham NC 27709 USA FCC ID: PY7BC051022 IC ID: 4170B-BC051022 REFERENCE TEST REPORT #: SONY1_001_GS64_FCC22-24 DATE: June 12, 2006 PAGE 2 OF 9 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT .................................................................................................................................... 3 2 TEST SETUP PHOTOS ..................................................................................................................... 4 PAGE 3 OF 9 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Parts 2, 22 and 24 of Title 47 of the Code of Federal Regulations and in compliance with the applicable criteria specified in Industry Canada rules RSS132 and RSS133. Company Description Model # Sony Ericsson Mobile Communications Quad-Band GPRS module GS 64 PAGE 4 OF 9 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. 2 TEST SETUP PHOTOS RADIATED EMISSIONS PAGE 6 OF 9 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. AC LINE CONDUCTION (Picture reflects testing of GR64 which is using the same ac/dc power supply as GS64) PAGE 7 OF 9 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. AC LINE CONDUCTION (Picture reflects testing of GR64 which is using the same ac/dc power supply as GS64) PAGE 8 OF 9 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. FREQ/TEMP (Picture reflects testing of GR64 which is the same module with a different connector and a smaller footprint only compared to the GS64) PAGE 9 OF 9 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. ANTENNA PORT MEASURMENTS (Picture reflects testing of GR64 which is the same module with a different connector and a smaller footprint only compared to the GS64)
