PY7DDA-1004Bluetooth Headset

CLA-11 CST-13 345 8971011 1312 141516 www.SonyEricsson.com LZT 108 7284/1 R1A Printed in Hungary Sony Ericsson Mobile Communications AB SE-221 88 Lund, Sweden Akono TM Headset HBH-660 FCC statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Sony Ericsson HBH-660 First edition (July 2004) This manual is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this manual. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2004 Publication number: LZT 108 7284/1 R1A Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency Number 112. Contact your network operator or service provider if you are in doubt whether you can use a particular service or not. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license. (5 s) (5 s) 2 6 Akono™ Headset HBH-660 The Akono TM Headset HBH-660 can be connected to any device with Bluetooth wireless technology that supports the handsfree or headset profile. This user guide focuses on usage with a Sony Ericsson mobile phone. Auricular Akono™ HBH-660 El auricular Akono™ HBH-660 puede conectarse a cualquier dispositivo que disponga de tecnología inalámbrica Bluetooth y que admita perfiles de manos libres o de auricular. Esta guía del usuario se centra en la utilización del dispositivo con un teléfono móvil de Sony Ericsson. Akono™ 耳机 HBH-660 利用蓝牙无线技术，Akono™ 耳机 HBH-660 可以与 支持免提或耳机模式的任何设备连接。本用户指南 着重介绍在索尼爱立信手机上的使用方法。 Akono™ 耳機 HBH-660 Akono™ 耳機 HBH-660 可經 Bluetooth 藍芽無線技 術，連上任何支援免持及耳機模式的裝置。本使 用手冊特別說明如何在 Sony Ericsson 手機上使用 本耳機。 按照手机用户指南中有关如何添加蓝牙设备中的说 明准备好手机。耳机的识别码为 0000。 将耳机添加到手机的设备清单后，耳机会在手机 开机后自动识别该手机。 您只需要为手机添加一次耳机。如果希望在新手 机上使用耳机，则需要将耳机添加到该手机上。 （请参见第 28 页） Prepare su teléfono siguiendo las instrucciones sobre enlace o asociación de dispositivos Bluetooth que aparezcan en la guía del usuario del mismo. La clave maestra del auricular es 0000. Una vez que haya añadido el auricular a la lista de dispositivos del teléfono, el auricular reconocerá el teléfono automáticamente al encenderlo. Sólo tendrá que enlazar el auricular y el teléfono una vez. Si quiere utilizar el auricular con un teléfono nuevo tendrá que enlazarlo con ese otro teléfono. (Consulte la página 28.) 請按手機使用手冊中安裝 Bluetooth 藍芽裝置 的步驟，將手機準備好。耳機的識別碼為 0000。 將耳機加入手機裝置清單後，耳機會於手機開 機時自動辨識手機。 耳機只需要加入手機一次。將耳機用於另一裝 置時，才需要再將耳機加入該手機。請參考 第 28 頁。 Prepare your phone according to the phone’s user guide on adding a Bluetooth device. The headset passkey is 0000. When you add the headset to the list of devices in the phone, the headset will recognize the phone automatically when it is turned on. You only need to add the headset to the phone once. If you want to use the headset with a new phone, you need to add it to that phone. (See page 28.) User Guide Guía del usuario 用户指南 使用手冊 English Español 简体中文 繁體中文 Introduction Introducción 介绍 簡介 Front Parte delantera 正面 正面 Charging connector Conector de carga 充电连接器 充電接口 Back Parte posterior 背面 背面 Speaker Altavoz 扬声器 擴音器 Attaching strap Colocar el cordón 连接挂绳 安裝吊帶 Ear hook Enganche para la oreja 耳挂 配戴耳鉤 Microphone Micrófono 话筒 麥克風 Increase volume Subir volumen 增加音量 放大音量 Decrease volume Bajar volumen 降低音量 降低音量 LCD display Pantalla LCD 液晶显示屏 液晶顯示幕 Call handling button Botón de gestión de llamadas 呼叫操作按钮 通話處理鈕 Adding the headset to the phone Añadir el auricular al teléfono 将耳机添加到手机上 將耳機連上手機 Getting started Introducción 准备开始 準備開始 Charging Carga 正在充电 充電中 Chargers Cargadores 充电器 充電器 Calling Llamadas 通话 通話 Turning the headset on (and off) Encender el auricular (y apagar) 打开和关闭耳机 開關耳機 Left-ear use Utilización en la oreja izquierda 使用左耳 戴在左耳時 Putting the headset on Forma de colocarse el auricular 戴上耳机 戴上耳機 Press and hold Mantener pulsado 按下并保持 按住 Press and release Pulsar y soltar 按下后松开 壓放 Range Alcance 范围 範圍 User Guide symbols Símbolos de la guía del usuario 《用户指南》符号 使用手冊符號 Silent En silencio 静音 靜音 Ongoing call Llamada en curso 正在通话 進行中的通話 Voice activated dialing Marcación por voz activada 语音启动拨号 語音撥叫 Limited performance Rendimiento limitado 有限性能 可接受的作業範圍 Optimal performance Rendimiento óptimo 最佳性能 最佳的作業範圍 Headset display when successfully added Pantalla del auricular cuando se ha enlazado con éxito al teléfono 成功添加后显示耳机图标 成功加入後的耳機顯示幕 Icons/Symbols Iconos y símbolos 图标／符号 圖示／符號 Headset display icons Iconos de la pantalla del auricular 耳机显示图标 耳機顯示幕圖示 Battery status Estado de la batería 电池状态 電池狀態 Adding Añadir auricular 正在添加 加入 Adding ready Dispositivo añadido 添加完成 加入就緒 Headset on Auricular activado 耳机打开 耳機開啟 Connecting (please wait) Conectando (espere, por favor) 正在连接（请稍候） 連結中（請稍候） Joh n! 1819202122 23 2526242728 29 303132 (2 s) (5 s) We, Sony Ericsson Mobile Communications AB of Nya Vattentornet 221 88 Lund, Sweden declare under our sole responsibility that our product Sony Ericsson type DDA-0001004 to which this declaration relates is in conformity with the appropriate standards EN 300 328, EN 301 489-17, En 301 489-7 and EN 60950 following the provisions of Radio Equipment and Telecommunication Equipment directive 1995/5/EC with requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC. Lund, July 2004 Ulf Persson, Head of Product Business Unit Accessories 0682 Declaration of conformity (5 s) (5 s) (5 s) (5 s) www.sonyericsson.com/support/ 17 Voice commands, such as dial, redial, answer and reject, can be very useful when you are using the headset. For more inform…

Text truncated - open the document above for the full version.

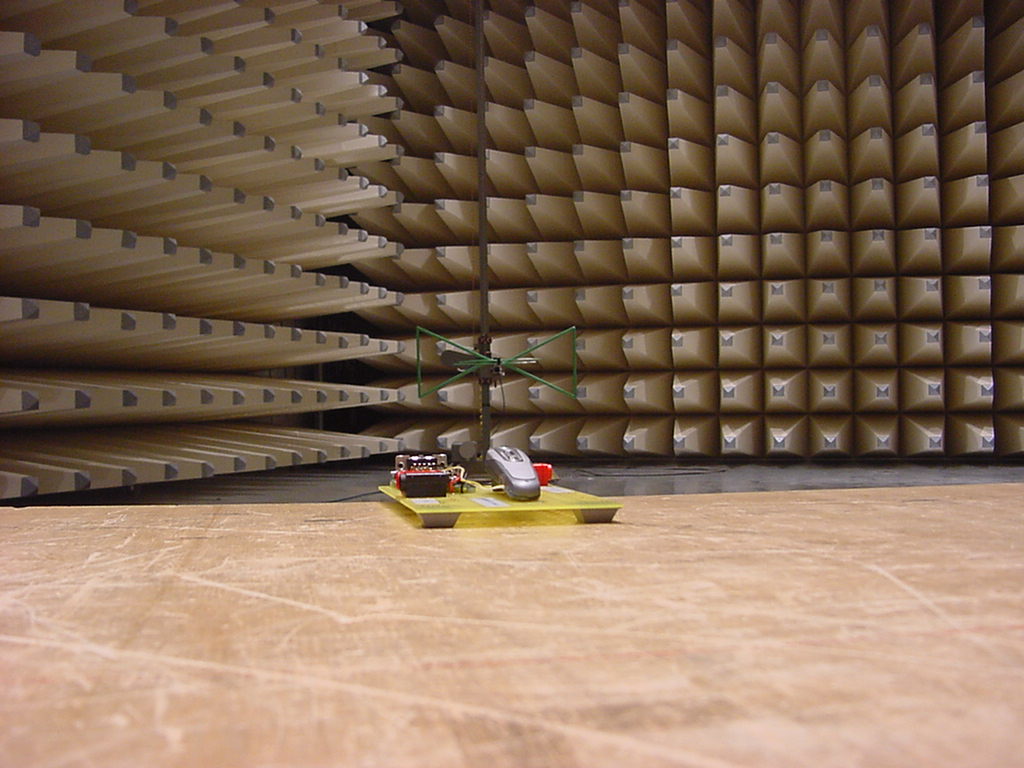

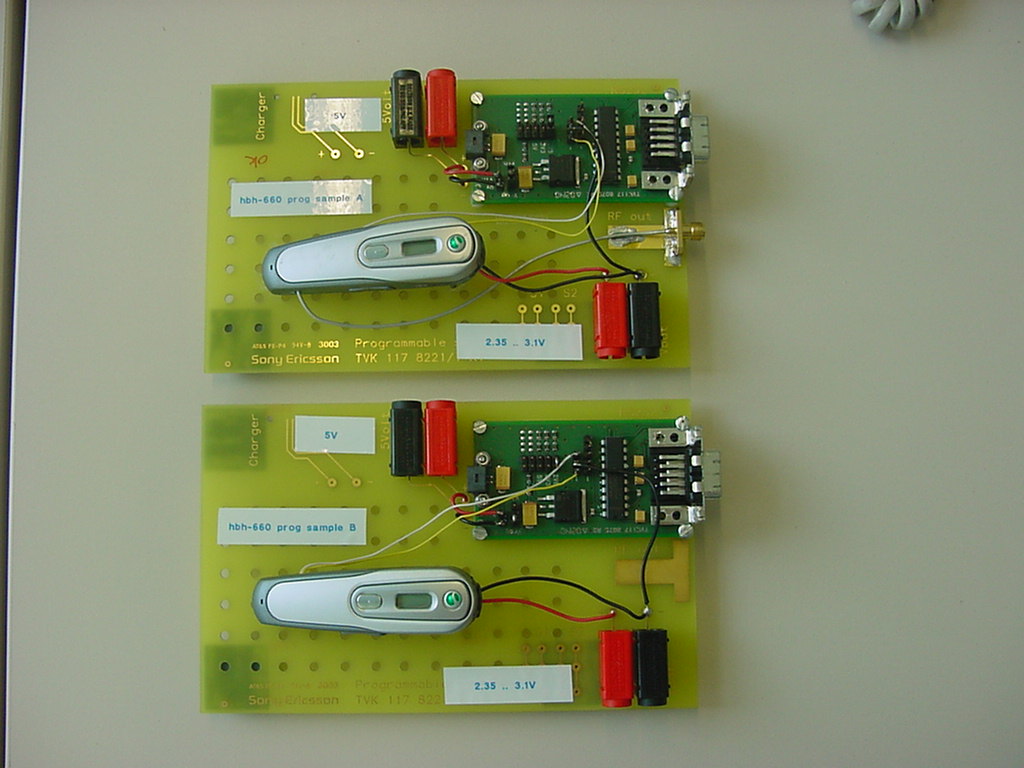

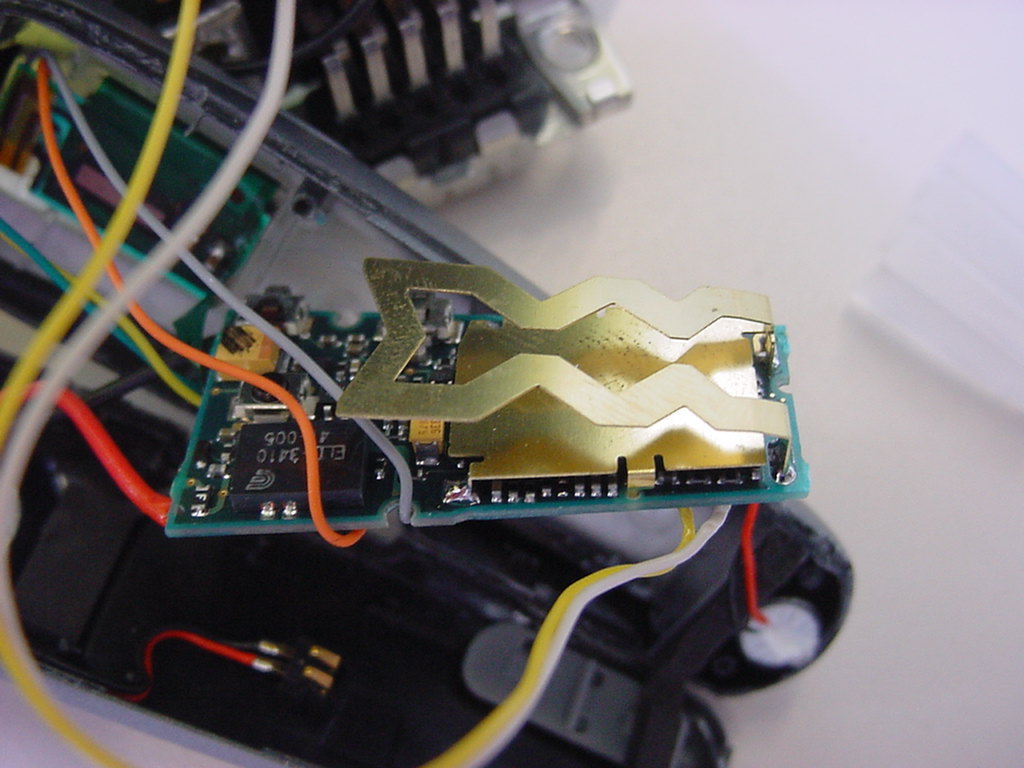

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3683-1-3_04 Date: 2004-7-23 Page 41 of 42 4 Photographs SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3683-1-3_04 Date: 2004-7-23 Page 42 of 42

Company Internal MARKING DRAWING 1 (1) Prepared (also subject responsible if other) No. SEM/BNDM Bennie Rolink 151 86 - KRY 901 067/01 Uen Approved Checked Date Rev Reference SEM/BNDM (Örjan Feldt) 2004-07-20 E KRY 901 067/01 HBH-660 Type: DDA-0001004 R1A FCC ID: PY7DDA-1004 Z354 IC: 4170B-DDA1004 BDA: 012345678902 Made in Malaysia 04Www N12878 0682 BLUETOOTH HEADSET HBH-660 The marking is by means of laser writing. Change: “-“ sign added in FCC ID. Content: Line A0: Styled name; ‘Sony Ericsson’ Line A1: a; Actual product number; ‘KRY 901 067/01’ b; Commercial product ID; ‘HBH-660’ Line A2: a; Type number; ‘Type: DDA-0001004’ b; R-state of product; ‘Rrr’ Line A3: a; FCC approval number; ‘FCC ID: PY7DDA-1004’ b; New Zealand approval number; ‘Z354’ Line A4: a; Canada approval number; ‘IC: 4170B-DDA1004’ b; CE0682-logo Line A5: a; Bluetooth Device Address; ‘BDA: nnnnnnnnnnn’ b; Production date; ‘yyWww’ Line A6: a; Country of production; ‘Made in Malaysia’ b; C-tic logo with number ‘N12878’ Format Textfield size is 13.5 x 7.5 mm Text font size 1.0 mm Line A0: Graphic; 1.2 mm (capital S) Line A4: Graphics; 1.1 mm; according to SVF 930 182 Ux Line A6: Graphic; 1.1 mm; according to SVF 930 2333 Ux Marking illustration Conceptual picture of the marking. Scale 4:1. Information shown might be incorrect.

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3683-1-3_04 Date: 2004-7-23 Page 41 of 42 4 Photographs SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3683-1-3_04 Date: 2004-7-23 Page 42 of 42

\\ut51\rsc-gruppe\2_RSC\PROJEKTE\04\3683_1 SEM\2-3683-01-03_04 FCC Part 15.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-DO Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2-3683-1-3_04 FCC Part 15.247 / CANADA RSS-210 FCC ID: PY7DDA-1004 / IC: 4170B-DDA1004 DDA-0001004 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 D-66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to Cetecom SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3683-1-3_04 Date: 2004-7-23 Page 2 of 42 Table of contents 1. ADMINISTRATIVE DATA ...................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.1.2 Organizational items..................................................................................................................................... 3 1.1.3 Applicant ́s details ........................................................................................................................................ 4 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 4 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 5 1.3.1 EUT: Type, S/N etc. ...................................................................................................................................... 5 1.3.2 If RF component testing only, describtion of additional used HW/SW ......................................................... 5 1.3.3 Additional EUT information For IC Canada (appendix 2)...........................................................................6 1.3.4 EUT operating modes ................................................................................................................................... 7 1.3.5 Extreme conditions testing values................................................................................................................. 7 2. TESTSTANDARD & SUMMARY LIST OF ALL PERFORMED TEST CASES .............................................. 8 3. RF MEASUREMENT TESTING ............................................................................................................................. 9 3.1 DESCRIPTION OF TEST SET-UP................................................................................................................................9 3.1.1 Radiated measurements ................................................................................................................................ 9 3.1.2 Conducted measurements ............................................................................................................................. 9 3.2 REFERENCED DOCUMENTS................................................................................................................................... 10 3.3 ADDITIONAL COMMENTS..................................................................................................................................... 10 3.4 ANTENNA GAIN................................................................................................................................................... 10 3.5 CARRIER FREQUENCY SEPARATION §15.247(A1)................................................................................................. 11 3.6 NUMBER OF HOPPING CHANNELS §15.247(A1) .................................................................................................... 12 3.7 TIME OF OCCUPANCY (DWELL TIME) §15.247(A1 III) .......................................................................................... 13 3.8 POWER SPECTRAL DENSITY (HYBRID SYSTEM IN INQUIRY MODE/PAGE SCAN) §15.247(D) ................................. 14 3.9 SPECTRUM BANDWIDTH OF A FHSS SYSTEM / 20DB BANDWITH §15.247(A1) ................................................... 15 3.10 MAXIMUM OUTPUT POWER (CONDUCTED) § 15.247 (B) (1) ................................................................................. 17 3.11 MAX. PEAK OUTPUT POWER (RADIATED) § 15.247 (B) (1).................................................................................... 19 3.12 BAND-EDGE COMPLIANCE OF CONDUCTED EMISSIONS §15.247 (C) ..................................................................... 20 3.13 BAND-EDGE COMPLIANCE OF RADIATED EMISSIONS §15.205 .............................................................................. 23 3.14 SPURIOUS EMISSIONS - CONDUCTED (TRANSMITTER) § 15.247 (C) (1) ................................................................ 26 3.15 SPURIOUS EMISSIONS - RADIATED (TRANSMITTER) § 15.247 (C) (1).................................................................... 28 3.16 SPURIOUS EMISSIONS - RADIATED (RECEIVER) § 15.109 ..................................................................................... 35 3.17 SPURIOUS EMISSIONS - RADIATED <30 MHZ § 15.109 ........................................................................................ 37 3.18 CONDUCTED EMISSIONS <30 MHZ § 15.107/207 ................................................................................................ 38 4 PHOTOGRAPHS ..................................................................................................................…

Text truncated - open the document above for the full version.

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3683-1-3_04 Date: 2004-7-23 Page 41 of 42 4 Photographs SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3683-1-3_04 Date: 2004-7-23 Page 42 of 42
