Bluetooth™ Headset HBH-PV700 English Español 简体中文 繁體中文 HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 1 Friday, August 26, 20 PPreflighted byreflighted byPreflighted by ( )( )( ) Bluetooth™ Headset HBH-PV700 User Guide Guía del usuario 用户指南 使用手冊 FCC statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Sony Ericsson HBH-PV700 This manual is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this manual. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2005 Publication number: LZT 108 7416/1 R1A Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency Number 112. Contact your network operator or service provider if you are in doubt whether you can use a particular service or not. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license. This product is leadfree and halogenfree. HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 2 Friday, August 26, 20 PPreflighted byreflighted byPreflighted by ( )( )( ) Introduction Introducción 简介 簡介 Bluetooth™ Headset HBH-PV700 The Bluetooth™ Headset HBH-PV700 can be connected to any device with Bluetooth wireless technology that supports the handsfree or headset profile. This user guide focuses on usage with a Sony Ericsson mobile phone. Auricular Bluetooth™ HBH-PV700 El auricular Bluetooth™ HBH-PV700 puede conectarse a cualquier dispositivo que disponga de tecnología inalámbrica Bluetooth y que admita perfiles de manos libres o de auricular. Esta guía del usuario se centra en la utilización del dispositivo con un teléfono móvil de Sony Ericsson. Bluetooth™ (蓝牙) 耳机 HBH-PV700 利用蓝牙无线技术，Bluetooth™ (蓝牙) 耳机 HBH-PV700 可以与支持免提或耳机模式的任何设备 连接。本用户指南着重介绍在索尼爱立信手机上的 使用方法。 Bluetooth™ (藍芽) 耳機HBH-PV700 Bluetooth™ (藍芽) 耳機HBH-PV700可經 Bluetooth (藍芽) 無線技術，連上任何支援免持及耳機模式的 裝置。本使用手冊特別說明如何在 Sony Ericsson 手機 上使用本耳機。 HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 3 Friday, August 26, 20 PPreflighted byreflighted byPreflighted by ( )( )( ) Front Parte delantera 正面 正面 Call handling button Botón de gestión de llamadas 呼叫操作按钮 通話處理鈕 Indicator light Indicador luminoso 指示灯 顯示燈號 Microphone Micrófono 话筒 麥克風 HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 4 Friday, August 26, 2 0 PPreflighted byreflighted byPreflighted by ( )( )( ) Back Parte posterior 背面 背面 Decrease volume Bajar volumen 降低音量 降低音量 Speaker Altavoz 扬声器 擴音器 Ear hook Enganche para la oreja 耳挂 配戴耳鉤 Charging connector Conector de carga 充电连接器 充電接口 Increase volume Subir volumen 增加音量 放大音量 HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 5 Friday, August 26, 20 PPreflighted byreflighted byPreflighted by ( )( )( ) User Guide symbols Símbolos de la guía del usuario 《用户指南》符号 使用手冊符號 Press and release Pulsar y soltar 按下后松开 壓放 Indicator light Indicador luminoso 指示灯 顯示燈號 Press and hold Mantener pulsado 按下并保持 按住 Steady red light Luz roja fija 持续红灯亮 持續的紅燈 Press simultaneously Pulsar simultáneamente 同时按住 同時按 Steady green light Luz verde fija 持续绿灯亮 持續的綠燈 HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 6 Friday, August 26, 20 PPreflighted byreflighted byPreflighted by ( )( )( ) User Guide symbols (continued) Símbolos de la guía del usuario (continuación) 《用户指南》符号（续） 使用手冊符號（續前） Green flash Flash verde 绿灯闪烁 閃綠燈 Ring signal Señal de timbre 响铃信号 鈴聲 Red flash Flash rojo 红灯闪烁 閃紅燈 Beep tone Tono de pitido 蜂鸣声 嗶聲 HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 7 Friday, August 26, 20 PPreflighted byreflighted byPreflighted by ( )( )( ) Getting started Introducción ྜྷඡ 準備開始 Chargers Cargadores 充电器 充電器 First time use: Charge approximately 8 hours before using the headset. (For battery capacity see p. 30.) Utilización por primera vez: Cárguelo aproximadamente durante 8 horas antes de utilizar el auricular. (Consulte en la p. 31 la capacidad de la batería.) 首次使用：首次使用手机前，请将电池充电约 8 小时。（有关电池容量的信息，请参见第 31 页。） 首次使用時：使用耳機前，請先充電 8 小時左右。 （電池容量的說明，見第 32 頁。） CLA-60 CST-60 CST-61 HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 8 Friday, August 26, 20 PPreflighted byreflighted byPreflighted by ( )( )( ) Charging Carga 充电 充電中 Battery needs charging Debe cargar la batería 电池需要充电 電池需要充電 Charging Carga 充电 充電中 Fully charged Completamente cargado 已充满 電已充足 HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 9 Friday, August 26, 2 0 PPreflighted byreflighted byPreflighted by ( )( )( ) Adding the headset to the phone Añadir el auricular al teléfono 将耳机添加到手机上 將耳機連上手機 Before you can use your Bluetooth headset with your phone it has to be added once to the phone: 1.Prepare your headset according to A or B (see p. 12). 2.Follow the instructions from the phone user guide on how to turn on and then add a Bluetooth device to your phone. The passkey of the headset is 0000. After you have added the headset to the list of Bluetooth devices in the phone, it will automatically connect to the phone as soon as it is turned on and within range. HBH-PV700-UG-R1A-EN-ES-ZS-ZT.fm Page 10 Friday, August 26, 2 PPreflighted byreflighted byPreflighted by ( )( )( ) Para poder utilizar el auricular Bluetooth con el teléfono, debe añadirlo al teléfono: 1.Prepare el auricular según A o B (consulte la p. 12). 2.Siga las instrucciones de la guía de usuario del teléfono sobre la forma de encender y posteriormente añadir un dispositivo Bluetooth a su teléfono. La clave maestra del auricular es 0000. Después de añadir el auricular a la lista de dispositivos Bluetooth del teléfono, se conectará automáticamente al teléfono tan pronto como se encienda y dentro del alcance. 在将蓝牙耳机用于手机之前，必须将它添加到手机 上一次： 1.依照 A…

Text truncated - open the document above for the full version.

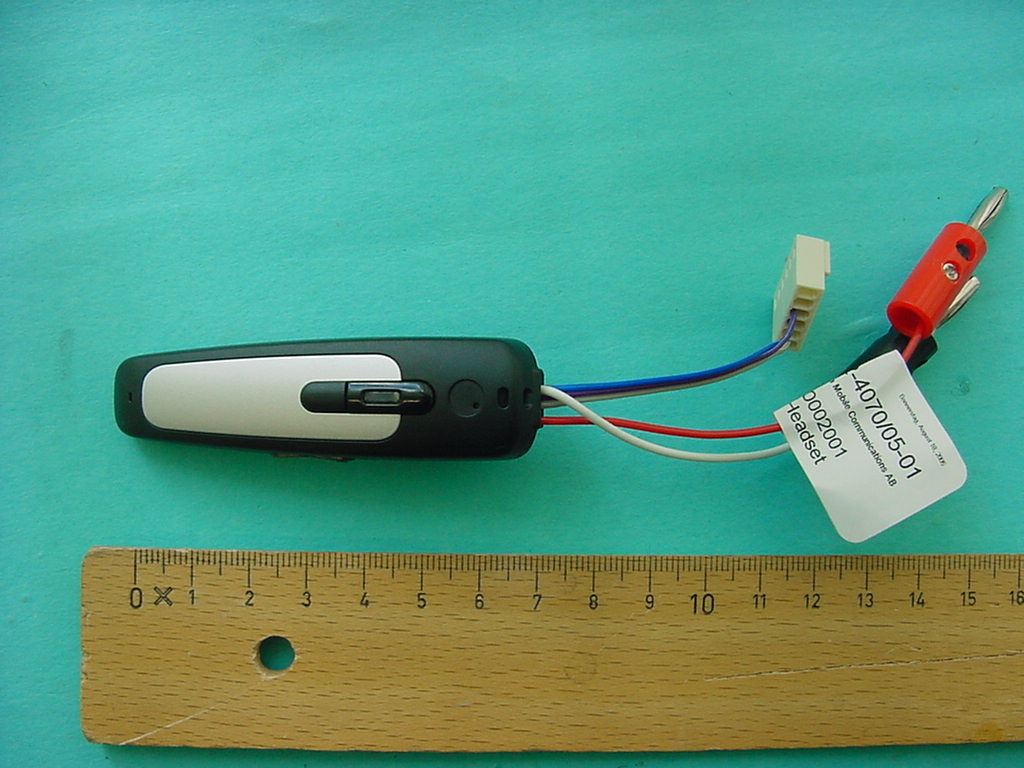

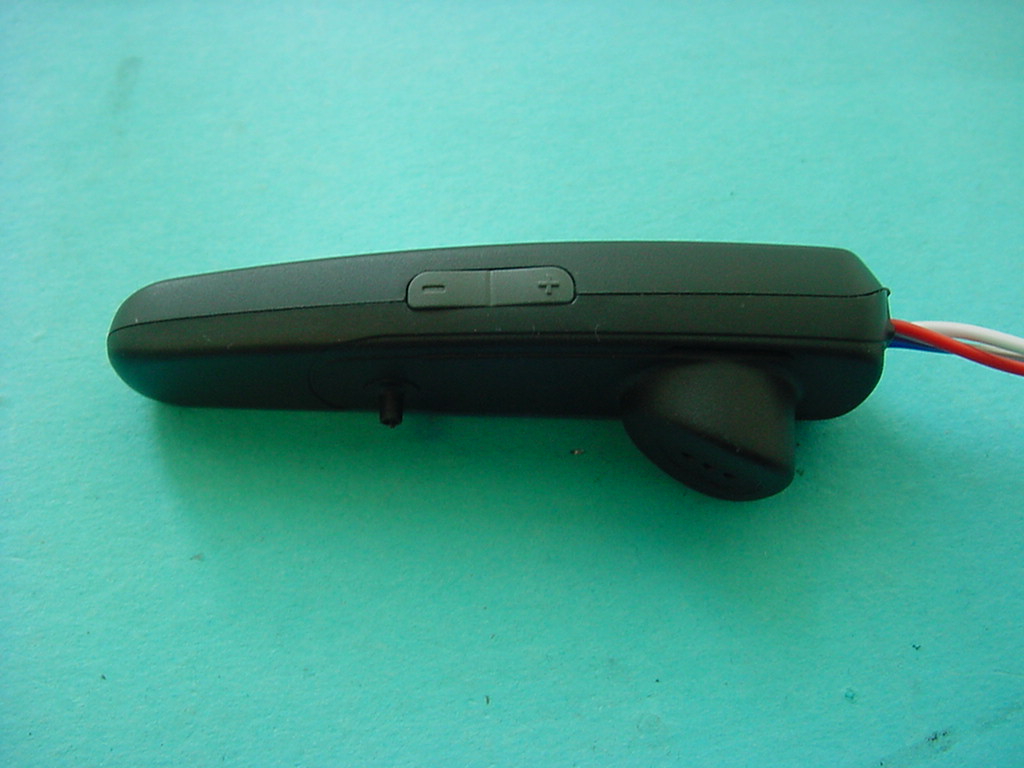

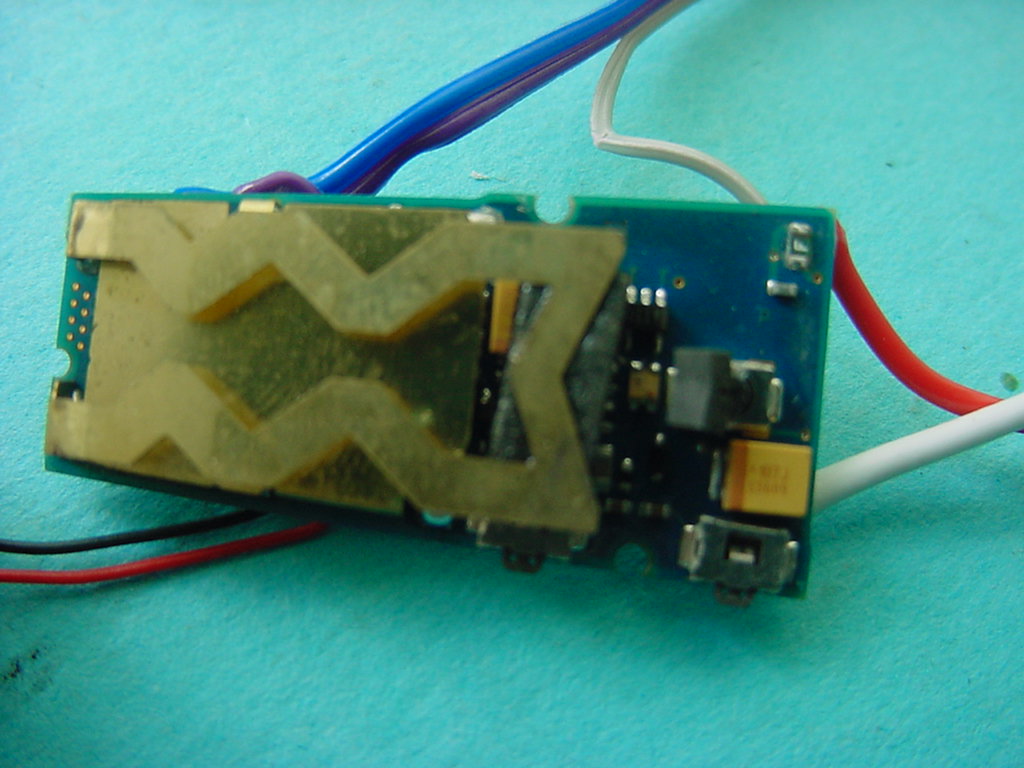

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 47 of 55 4 Photographs of Test Set-up Photo 1: (Radiated Emissions) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 48 of 55 Photo 2: (Radiated Emissions) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 49 of 55 Photo 3: (Conducted Emissions) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 50 of 55 5 Photographs of EUT Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 51 of 55 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 52 of 55 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 53 of 55 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 54 of 55 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 55 of 55 Photo 6:

Company Internal MARKING DRAWING 1 (1) Prepared (also subject responsible if other) No. 151 86 - KRY 901 095/1 Uen Approved Checked Date Rev Reference SEM/BNDM Jan Fictorie 2005-06-15 A ype: DDA-0002001 R1A CC ID: PY7DDA-2001 Z354 70B-DDA2001 DA: 012345678902 ade in Malaysia BLUETOOTH HEADSET HBH-PV700 The marking is by means of laser writing. Content: Line A0: Styled name; ‘Sony Ericsson’ Line A1: a; Actual product number; ‘KRY 901 095/1’ b; Commercial product ID; ‘HBH-PV700’ Line A2: a; Type number; ‘Type: DDA-0002001’ b; R-state of product; ‘Rrr’ Line A3: a; FCC approval number; ‘FCC ID: PY7DDA-2001’ b; NZ registration code; ‘Z354’ Line A4: a; Canada approval number; ‘IC: 4170B-DDA2001’ b; CE0682-logo Line A5: a; Bluetooth Device Address; ‘BDA: nnnnnnnnnnn’ b; Production date; ‘yyWww’ Line A6: a; Country of production; ‘Made in Malaysia’ b; C-tic logo with number ‘N12878’ Format Textfield size is 13.5 x 7.5 mm Text font size 1.0 mm Line A0: Graphic; 1.2 mm (capital S) Line A4: Graphics; 1.1 mm; according to SVF 930 182 Ux Line A6: Graphic; 1.1 mm; according to SVF 930 2333 Ux Marking illustration K T RY 901 095/1 HBH-PV700 F IC: 41 B M 05Www N12878 0682 Conceptual picture of the marking. Scale 4:1. Information shown might be incorrect.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 47 of 55 4 Photographs of Test Set-up Photo 1: (Radiated Emissions) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 48 of 55 Photo 2: (Radiated Emissions) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 49 of 55 Photo 3: (Conducted Emissions) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 50 of 55 5 Photographs of EUT Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 51 of 55 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 52 of 55 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 53 of 55 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 54 of 55 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 55 of 55 Photo 6:

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 1 of 55 \\Ut55\2_PROJEKTE\05\4070_1\Task2(BLU)\2-4070-01-02_05 FCC.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: BE 0012 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 2-4070-01-02/05 Applicant : Sony Ericsson Mobile Communications AB Type : DDA-0002001 Test Standard : FCC Part 15.247 RSS210 FCC ID : PY7DDA-2001 Certification No. IC : 4170B-DDA2001 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4070-01-02/05 Date: 2005-08-26 Page 2 of 55 Table of contents 1. ADMINISTRATIVE DATA ...................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.1.2 Organizational items..................................................................................................................................... 3 1.1.3 Applicant ́s details ........................................................................................................................................ 4 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 4 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 5 1.3.1 EUT: Type, S/N etc. ...................................................................................................................................... 5 1.3.2 If RF component testing only, describtion of additional used HW/SW ......................................................... 5 1.3.3 Additional EUT information For IC Canada (appendix 2)...........................................................................6 1.3.4 EUT operating modes ................................................................................................................................... 7 1.3.5 Extreme conditions testing values................................................................................................................. 7 2. TESTSTANDARD & SUMMARY LIST OF ALL PERFORMED TEST CASES .............................................. 8 3. RF MEASUREMENT TESTING ............................................................................................................................. 9 3.1 DESCRIPTION OF TEST SET-UP................................................................................................................................9 3.1.1 Radiated measurements ................................................................................................................................ 9 3.1.2 Conducted measurements ............................................................................................................................. 9 3.2 REFERENCED DOCUMENTS................................................................................................................................... 10 3.3 ADDITIONAL COMMENTS..................................................................................................................................... 10 3.4 ANTENNA GAIN................................................................................................................................................... 10 3.5 CARRIER FREQUENCY SEPARATION §15.247(A1)................................................................................................. 11 3.6 NUMBER OF HOPPING CHANNELS §15.247(A1) .................................................................................................... 12 3.7 TIME OF OCCUPANCY (DWELL TIME) §15.247(A1 III) .......................................................................................... 14 3.8 POWER SPECTRAL DENSITY (HYBRID SYSTEM IN INQUIRY MODE/PAGE SCAN) §15.247(D) ................................. 15 3.9 SPECTRUM BANDWIDTH OF A FHSS SYSTEM / 20DB BANDWITH §15.247(A1) ................................................... 16 3.10 MAXIMUM OUTPUT POWER (CONDUCTED) § 15.247 (B) (1) ................................................................................. 18 3.11 MAX. PEAK OUTPUT POWER (RADIATED) § 15.247 (B) (1).................................................................................... 20 3.12 BAND-EDGE COMPLIANCE OF CONDUCTED EMISSIONS §15.247 (C) ..................................................................... 21 3.13 BAND-EDGE COMPLIANCE OF RADIATED EMISSIONS §15.205 .............................................................................. 24 3.14 SPURIOUS EMISSIONS - CONDUCTED (TRANSMITTER) § 15.247 (C) (1) ................................................................ 28 3.15 SPURIOUS EMISSIONS - RADIATED (TRANSMITTER) § 15.247 (C) (1).................................................................... 30 3.16 SPURIOUS EMISSIONS - RADIATED (RECEIVER) § 15.109 ..................................................................................... 38 3.17 SPURIOUS EMISSIONS - RADIATED <30 MHZ § 15.109 ........................................................................................ 42 3.18 CONDUCTED EMISSIONS <30 MHZ § 15.107/207 ........................................................…
