PY7DGA-1002Bluetooth Media Viewer

Bluetooth TM Media Viewer MMV-100 English Deutsch Español Français Italiano Nederlands MMV-100-UG-R1A-EN-DE-ES-FR-IT-NL.book Page 1 Friday, April 16, 2004 12:30 PM MMV-100-UG-R1A-EN-DE-ES-FR-IT-NL.book Page 2 Friday, April 16, 2004 12:30 PM 1 Contents Contents English . . . . . . . . . . . . . . . . . . . . . . . . . 2 Deutsch . . . . . . . . . . . . . . . . . . . . . . . 14 Español . . . . . . . . . . . . . . . . . . . . . . . 27 Français . . . . . . . . . . . . . . . . . . . . . . . 40 Italiano . . . . . . . . . . . . . . . . . . . . . . . 53 Nederlands . . . . . . . . . . . . . . . . . . . . 66 MMV-100-UG-R1A-EN-DE-ES-FR-IT-NL.book Page 1 Friday, April 16, 2004 12:30 PM 2 English Getting started 4 Identification code 5 Compatibility 5 Sharing images and sounds 6 Running a slide show 7 Troubleshooting 8 Additional information 9 Declaration of conformity 79 Sony Ericsson MMV-100 First edition (March 2004) This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2004 Publication number: LZT 108 6921/1 R1A Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Contact your network operator or service provider if you are in doubt whether you can use a particular service or not. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license. MMV-100-UG-R1A-EN-DE-ES-FR-IT-NL.book Page 2 Friday, April 16, 2004 12:30 PM 3 Introduction Introduction The Bluetooth™ Media Viewer MMV-100 is a combined imaging and Bluetooth™ product. You can share images and sounds on a TV screen or via a digital projector, or run a slide show. Please read the Safe and efficient use and Limited warranty sections of this user guide before using your Bluetooth™ Media Viewer MMV-100. The Bluetooth™ Media Viewer MMV-100 will be referred to as the MMV-100 in this user guide. Overview 1 Bluetooth™ Media Viewer MMV-100 2 SCART plug (with sound and image support) 3 RCA audio/video cable for stereo sound (red and white plug) 4 RCA audio/video cable for images (yellow plug) 5 Standard Charger CST-13 (to be used as power supply) 3 2 4 5 1 MMV-100-UG-R1A-EN-DE-ES-FR-IT-NL.book Page 3 Friday, April 16, 2004 12:30 PM 4 Introduction What phones and devices can I use with my media viewer? The MMV-100 is compatible with Bluetooth-enabled phones and other devices from Sony Ericsson, as well as from other manufacturers. Your product works with Bluetooth devices based on Object Push Profile, Basic Imaging Profile and File Transfer Profile. Getting started To get started, plug the MMV-100 into a TV, using the SCART plug. For digital projectors and TV sets that do not have a SCART socket, use the RCA audio/video cable that is included in the kit. To connect the MMV-100 to a TV 1Connect the CST-13 to MMV-100 and to a power supply. The CST-13 must be connected at all times. 2Plug the MMV-100 into the TV SCART socket, or connect the MMV-100 to the TV using the RCA cable. 3A start-up picture is displayed. If no start-up picture is displayed, you might have to switch to the TV ́s AV-channel. MMV-100-UG-R1A-EN-DE-ES-FR-IT-NL.book Page 4 Friday, April 16, 2004 12:30 PM 5 Introduction To connect the MMV-100 to a digital projector 1Connect the CST-13 to the MMV-100 and to a power supply. The CST-13 must be connected at all times. 2Connect the MMV-100 to the digital projector using the RCA cable (only the yellow plug for image). 3A start-up picture is displayed. Identification code An identification code, consisting of MMV 100 and a unique four-digit/letter code, is shown at the bottom of the screen (for example MMV 100 A4BZ). The identification code is used when the phone searches for Bluetooth devices and a list of available devices is displayed. To be able to view your identification code, you must unplug and then plug in the CST-13 again. Compatibility There are a few general requirements to ensure the optimal performance of your MMV-100. Depending on the type of TV set or digital projector, RCA connections vary. When only mono sound is supported, use the yellow plug and either the red or the white plug. When no sound is supported, use the yellow plug only. MMV-100-UG-R1A-EN-DE-ES-FR-IT-NL.book Page 5 Friday, April 16, 2004 12:30 PM 6 Introduction Video standard The MMV-100 supports the PAL and NTSC video standards. The two standards are not supported in the same unit, however, and therefore different sales variants of the MMV-100 are available. You can, however, use an adapter, for example, an NTSC to PAL converter, with your MMV-100. To use the MMV-100 with the SECAM TV standard, you need a PAL/SECAM or NTSC/ SECAM adapter. Bluetooth™ support Bluetooth wireless technology makes it possible for you to connect your device wirelessly to other Bluetooth devices. If problems occur when connecting, please check the Bluetooth settings of the sending device. Your product works with Bluetooth devices based on Object Push Profile, Basic Imaging Profile and File Transfer Profile. Image formats The MMV-100 supports JPEG pictures with a pixel size of up to 600 x 800 or 800 x 600. When other formats are sent, an error message is displayed: Non-supported file format. VGA sized pictures (640 x 480 pixels) are optimal for TV displays. When pictures with lower resolution are sent to the MMV-100, they are scaled to suit the TV screen settings. Sound formats The MMV-100 supports MP3 and AMR (sounds recorded by phone) formats. Supported MP3 file formats are files with up to 128 Kbps bit r…

Text truncated - open the document above for the full version.

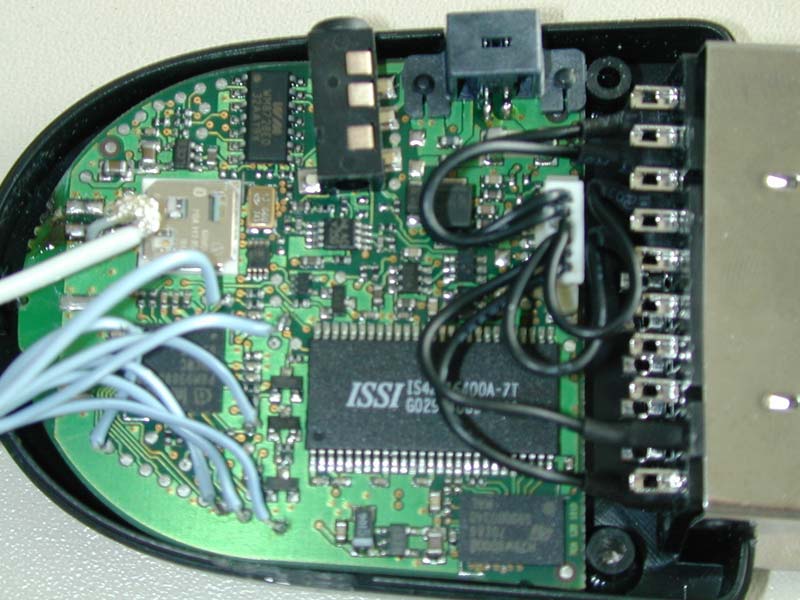

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 41 of 46 4 Photographs SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 42 of 46 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 43 of 46 (conducted sample) (rad. Sample) SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 44 of 46 (used power supply) SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 45 of 46 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 46 of 46

Company Internal MARKINGDRAWING 1 (3) Document number Revision 15186 -KRY105194UenB Prepared by Date SEM/BNDVJOHANLARSSON2004-03 -25 Contents responsible if other than preparer Remarks Approved by SEM/BNDV(JOHANLARSSON) This document is managed in metaDoc. Note: Any hard copy of this document is for reference only. Due to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Marking drawing MMV-100 Contents 1General Information...........................................................................1 1.1SCOPE..............................................................................................1 1.2DOCUMENTATION...........................................................................1 1.3LABEL INFORMATION......................................................................1 1.4PRINTING INFORMATION................................................................1 2CONTENTS AND POSITIONING OF LABEL PRINTING...................2 2.1CONTENTS.......................................................................................2 2.2POSITIONING OF LABEL PRINTING...............................................2 2.3PROTOTYPE LABEL.........................................................................3 1General Information 1.1SCOPE This document specifies the label printing for MV-100, KRY 105194/1 & /2 1.2DOCUMENTATION All documents are listed in the Document overview 1095- KRY 105194/1 & /2 1.3LABEL INFORMATION • Material :3M 7871 & 7872 • Measurements:38x25 mm, Corner radius 1 mm • Color:Black • Adhesive3M 7871 & 7872 1.4PRINTING INFORMATION • Colour text:Pantone 877C metallic • Printing:All printing shall be sharp, well readable and permanent • Text height:2 mm • Text font:Helvetica or equivalent Company Internal MARKINGDRAWING 2 (3) Document numberRevision 15186 -KRY105194UenB 2CONTENTS AND POSITIONING OF LABEL PRINTING 2.1CONTENTS The label shall have the following contents: LINE Col. 1 TEXTNOTECol. 3 TEXTNOTE Line 1:Sony Ericsson trademarknote 1 Line 2: Type no. DGA-0001002 Line 3: KRY 105194/xx YYYnote 2 Line 4: FCC ID: PY7DGA-1002note 4CE-marknote 3 Line 5: IC:4170B-DGA1002 Line 6: S/Nyy ww xxnote 7C-tick marknote 6 Line 7: Made in Norwaynote 8 Note 1:Sony Ericsson trademark according to Sony Ericsson standards. Height: 4 mm Note 2:xx YYY to be printed in white field. xx=Variant, /1=PAL, /2=NTSC YYY = Valid revision for the product according to 1095 - KRY 105194/x. NOTE. On Prototypes YYY is equal to prototype batch eg. FP1, FP2 etc. Note 3:CE-mark (according to 1424-SVF 930 52) and code 0682. Note 4:FCC ID according to FCC regulations Note 6:C-tick symbol followed by company code (N12878) Note 7: yy =Manufacturing year ww =manufacturing fiscal week. xx=Weekly running number Note 8: Country of origin. 2.2POSITIONING OF LABEL PRINTING The logotype, text and safety approval symbols mentioned shall be placed according to the following schematic sketch (only layout, no measurements). Company Internal MARKINGDRAWING 3 (3) Document numberRevision 15186 -KRY105194UenB 2.3PROTOTYPE LABEL The logotype, text and symbols mentioned s hall be placed according to the following schematic sketch (only layout, no measurements).

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 41 of 46 4 Photographs SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 42 of 46 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 43 of 46 (conducted sample) (rad. Sample) SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 44 of 46 (used power supply) SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 45 of 46 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 46 of 46

O:\2_RSC\PROJEKTE\04\3560_1 SEM DGA-0001002\2-3560-01-03_04 FCC Part 15 final.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-DO Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2-3560-01-03_04 FCC Part 15.247 / CANADA RSS-210 FCC ID: PY7DGA-1002 / IC:4170B-DGA1002 DGA0001002 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 D-66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to Cetecom SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3560-01-03_04 Date: 2004-04-19 Page 2 of 46 Table of contents 1. ADMINISTRATIVE DATA ...................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.1.2 Organizational items..................................................................................................................................... 3 1.1.3 Applicant ́s details ........................................................................................................................................ 4 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 4 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 5 1.3.1 EUT: Type, S/N etc. ...................................................................................................................................... 5 1.3.2 If RF component testing only, describtion of additional used HW/SW ......................................................... 5 1.3.3 Additional EUT information For IC Canada (appendix 2)...........................................................................6 1.3.4 EUT operating modes ................................................................................................................................... 7 1.3.5 Extreme conditions testing values................................................................................................................. 7 2. TESTSTANDARD & SUMMARY LIST OF ALL PERFORMED TEST CASES .............................................. 8 3. RF MEASUREMENT TESTING ............................................................................................................................. 9 3.1 DESCRIPTION OF TEST SET-UP................................................................................................................................9 3.1.1 Radiated measurements ................................................................................................................................ 9 3.1.2 Conducted measurements ............................................................................................................................. 9 3.2 REFERENCED DOCUMENTS................................................................................................................................... 10 3.3 ADDITIONAL COMMENTS..................................................................................................................................... 10 3.4 ANTENNA GAIN................................................................................................................................................... 10 3.5 CARRIER FREQUENCY SEPARATION §15.247(A1)................................................................................................. 11 3.6 NUMBER OF HOPPING CHANNELS §15.247(A1) .................................................................................................... 12 3.7 TIME OF OCCUPANCY (DWELL TIME) §15.247(A1 III) .......................................................................................... 13 3.8 POWER SPECTRAL DENSITY (HYBRID SYSTEM IN INQUIRY MODE/PAGE SCAN) §15.247(D) ................................. 14 3.9 SPECTRUM BANDWIDTH OF A FHSS SYSTEM / 20DB BANDWITH §15.247(A1) ................................................... 15 3.10 MAXIMUM OUTPUT POWER (CONDUCTED) § 15.247 (B) (1) ................................................................................. 17 3.11 MAX. PEAK OUTPUT POWER (RADIATED) § 15.247 (B) (1).................................................................................... 19 3.12 BAND-EDGE COMPLIANCE OF CONDUCTED EMISSIONS §15.247 (C) ..................................................................... 20 3.13 BAND-EDGE COMPLIANCE OF RADIATED EMISSIONS §15.205 .............................................................................. 23 3.14 SPURIOUS EMISSIONS - CONDUCTED (TRANSMITTER) § 15.247 (C) (1) ................................................................ 26 3.15 SPURIOUS EMISSIONS - RADIATED (TRANSMITTER) § 15.247 (C) (1).................................................................... 28 3.16 SPURIOUS EMISSIONS - RADIATED (RECEIVER) § 15.109 ..................................................................................... 35 3.17 SPURIOUS EMISSIONS - RADIATED <30 MHZ § 15.109 ........................................................................................ 37 3.18 CONDUCTED EMISSIONS <30 MHZ § 15.107/207 ................................................................................................ 38 4 PHOTOGRAPHS ............................................................................................................…
