PY7F1041011GSM 850/1900 PCMCIA card

GC82 Sony Ericsson EDGE PC Card Modem GC82 User’s Guide 2Contents Content Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Services Available Over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 GC82 Hardware Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Start Using GC82 Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 GC82 Manager Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 GC82 Manager Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Class 0 SMS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Windows Log on Using GPRS/EDGE Dial-up Connection . . . . . . . . . . . . . 19 Create a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 GPRS Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 CSD Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 TCP/IP Optimisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Modify a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Delete a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Using your Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Browse the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Send and Receive emails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 GC82 Manager Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 GC82 Manager Telephony Settings Screen . . . . . . . . . . . . . . . . . 27 Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Divert Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Restrict Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 GC82 Manager SMS Messages Screen . . . . . . . . . . . . . . . . . . . . 34 SMS Manager Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 GC82 Manager Phone Book Screen. . . . . . . . . . . . . . . . . . . . . . . 38 The Phone Book Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Phone Book Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Contents3 GC82 Manager Online Services Screen . . . . . . . . . . . . . . . . . . . . 42 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 GC82 Manager Icon Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Software Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 SIM Card Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Sony Ericsson Support Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Term . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Limitation of liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Disputes and Governing Law . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 FCC Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Appendix A - Connection Parameters . . . . . . . . . . . . . . . . . . . . . 61 General Connection Parameters for CSD and GPRS . . . . . . . . . . . . . . . . 61 CSD Specific Par…

Text truncated - open the document above for the full version.

Limited Internal SUBMISSION 1 (1) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 1/0062-111/FCP 103 4293 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P (Danny Bravo) 2003-09-09 A Submission for FCC and Industry Canada Certification Sony Ericsson Mobile Communications AB hereby wishes to submit a dual band GSM850 and GSM1900 PC card supporting EDGE type FAA-1041011- BV for FCC and Industry Canada Certification. Sony Ericsson Mobile Communications also authorises: Lothar Schmidt Technical Manager EMC/Radio BQB CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 Tel.: +1 408 586 6214 Fax: +1 408 586 6299 And Karin Silberhorn TCB for USA CETECOM GmbH Im Teelbruch 122 - 45219 Essen – Germany Tel.: +49 (0) 2054 9519-942 Fax: +49 (0) 2054 9519-902 to handle all certification matters for this PC card against FCC and Industry Canada and to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CETECOM Inc., on our behalf shall have the same effect as acts of our own. The authorisation from Sony Ericsson Mobile Communications AB is valid until further notice. Sony Ericsson Mobile Communications M2M Com Jose A. Rodrigo Verification & TA Manager M2M Com

Date 20/10/2003 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 October 20, 2003 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Sony Ericsson Mobile Communications AB requests confidentiality for the following products: FCC ID Number Product Title/Model PY7F1041011 GC82/Type FAA-1041011-BV For the product stated above, we request that the following information be held confidential: • Electrical diagrams. • Component listing, Tune-up procedure. • Technical description. • Operational description • Block diagrams. No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Sony Ericsson Mobile Communications AB trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile PC Card. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Jose A. Rodrigo M2M Com Sony Ericsson Mobile Communications 1 Lakeside Road, Aerospace Centre Farnborough, Hampshire, GU14 6XP, UK Phone: +441252551694 E-mail: [email protected]

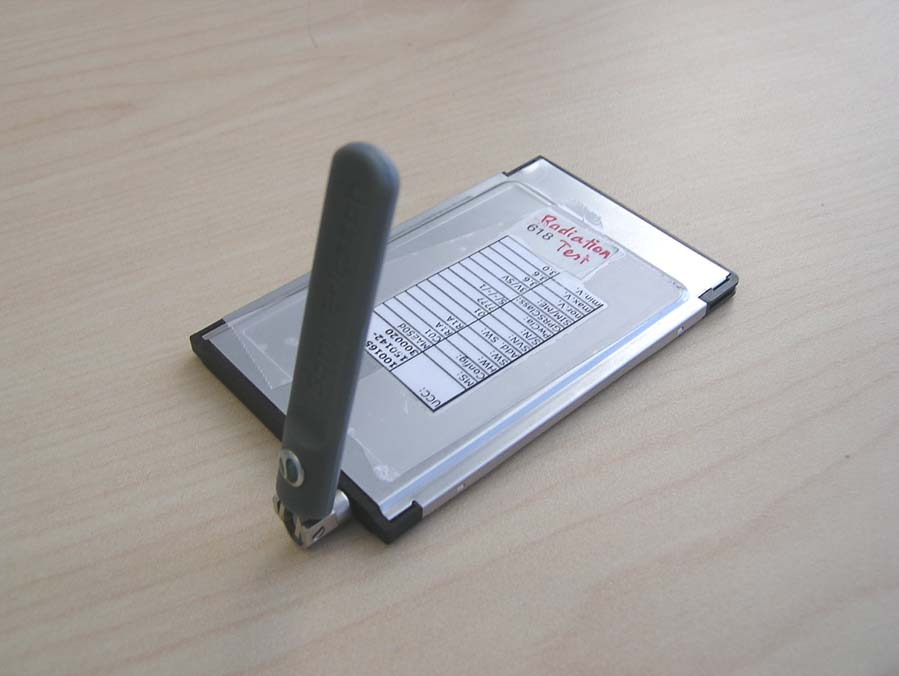

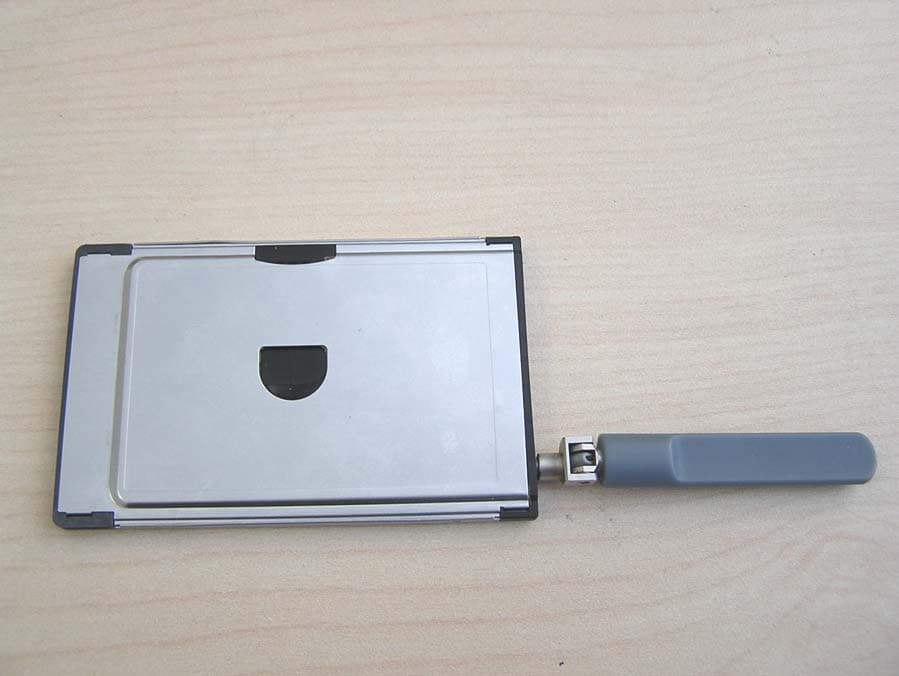

EUT – Top view EUT – Bottom view

Limited Internal MARKING DRAWING 1 (4) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 326/01 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P (Danny Bravo) 2003-10-22 B Marking Drawing Type FAA-1041011-BV Label The label used for marking is defined in the Manufacturing Specification on the media used. Placing The label shall be placed on the back of the PC card according to the Assembly Drawing (151 88) for the KRD. Print layout Printing area 38 x 26 mm. 1 2 3 4 XXXXXX-XX-XXXXXX-X 5 6 XXXXXXXXXX 7 FCC ID: PY7F1041011 8 IC: 4170B-F1041011 9 TYPE FAA-1041011-BV Line 10 Line 11 Lines: Limited Internal MARKING DRAWING 2 (4) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 326/01 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P (Danny Bravo) 2003-10-22 A Definitions Line 1 Sony Ericsson trademark 2 Approval marks (1, 2) and Local approval marks 3 IMEI number as bar-code 4 IMEI number as characters 5 Serial number as bar-code 6 Serial number as characters 7 Country approval mark 1 and 3 8 Country approval mark 2 and 3 9 Type number 10 Production week, Product number, R-state 11 Marking of origin Sony Ericsson trademark Sony Ericsson and the Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Height min. 3 mm. Approval marks 1. This field shall be blank. 2. This field shall be blank. Local approval marks This field shall be used for local approval marks in countries where special marking is required. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). Height 3.5 mm. IMEI number as characters The IMEI number has format: TAC1-TAC2-SNR-CD TAC1 = First six digits of the Type Approval code after assignment from the PTCRB: 010256. TAC2 = Last two digits of the Type Approval code after assignment from the PTCRB: 00 SNR = A serial number from 000000 to 999999. CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Limited Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 326/01 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P (Danny Bravo) 2003-10-22 A Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Height 3.5 mm. Serial number as characters According to Ericsson group standard 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes. Country approval mark 1 FCC approval marking: consists of the text: FCC ID: PY7F1041011 Within a frame with height > 1.5 mm. Country approval mark 2 Canada approval marking: consists of text: IC: 4170B- F1041011 Country approval mark 3 This field shall be used for country approval marks. Type number The type number is FAA-1041011-BV and shall be printed “TYPE FAA-1041011-BV”. Production week The production week shall be given as yyWww (yy = year, ww = week) KRD number The KRD number for the product. R-state The R-state for the KRD according to the 1095 for the KRD. Marking of origin Marking of origin and shall be printed “Made in Mexico”. Printing regulations Fontface: OCR-B Type size: min. 1.3 mm Line spacing: min. 0.3 mm Trade mark height: min. 3 mm Approval marks height: min. 5 mm Colour: Black Limited Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 326/01 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P (Danny Bravo) 2003-10-22 A Print layout for prototypes Line 7, 8 and 9 are replaced with text "NOT TYPE APPROVED". Text height min. 2 mm. Line 2 is replaced with text with alternative shown below. Type size min. 5 mm. DEMO PROTOTYPE 2A PROTOTYPE 2B PROTOTYPE 2C etc. Line 4, the field shall be filled with the test IMEI number. The test IMEI number is: 001003-00- and the SNR are between 087000 and 088999 (the CD number must be added) LINES 1 2 XXXXXXXXXX 3 4 XXXXXX-XX-XXXXXX-X 5 6 XXXXXXXXXX 7, 8, 9 NOT TYPE APPROVED 10 yyWww KRD 102 326 RXX 11 Marking of origin

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 \\stupendousman\rootappsdata\emc\projects_emc\broadcom(mobilink)\553-2003_gc- 82\sar\report\sar_533_2003_fcc_850_1900.doc © Copyright by CETECOM SAR Test Report No. SAR_533_2003_FCC_850_1900 for the Sony Ericsson Mobile Communications AB PC – Card Radio module for GSM 850MHz / 1900MHz Model Number: FAA-1041011-BV FCC ID: PY7F1041011 Date of Report: 10/13/2003 Date of issue: 10/13/2003 Report Copy No.: 01 SAR Test Report No. SAR_533_2003_FCC_850_1900 Date of Report: 10/13/2003 Page 2 of 31 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 3.2 Front View of the Equipment under Investigation ......................................................7 4 SUBJECT OF INVESTIGATION ........................................................................................8 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4 SAR Limit ...................................................................................................................9 5 THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1 General Requirements.............................................................................................10 5.2 Device Operating Next to a Person’s Ear ................................................................10 5.3 Test Positions ..........................................................................................................11 5.4 Test positions of device relative to head..................................................................11 5.5 Test to be Performed ...............................................................................................14 5.6 Body-worn and Other Configurations.......................................................................14 5.7 Procedure for assessing the peak spatial-average SAR .........................................15 5.8 Determination of the largest peak spatial-average SAR ..........................................17 6 THE MEASUREMENT SYSTEM ......................................................................................18 6.1 Robot system specification ......................................................................................18 6.2 Probe and amplifier specification .............................................................................19 6.3 Phantoms.................................................................................................................19 6.4 SAR measurement procedure .................................................................................20 SAR Test Report No. SAR_533_2003_FCC_850_1900 Date of Report: 10/13/2003 Page 3 of 31 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.5 SARA2 Interpolation and Extrapolation schemes ....................................................20 6.6 Interpolation of 2D area scan...................................................................................21 6.7 Extrapolation of 3D scan..........................................................................................21 6.8 Interpolation of 3D scan and volume averaging.......................................................21 7 UNCERTAINTY ASSESSMENT.......................................................................................23 7.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................24 7.2 Table of Measurement Uncertainty Values for SAR System Verification ................25 8 TEST RESULTS SUMMARY............................................................................................26 8.1 Conducted Output Power.........................................................................................26 8.2 Test Positions and Configurations ...........................................................................26 8.3 GPRS Operating Mode ............................................................................................26 8.4 850 MHz band GPRS 2 timeslots Results for FAA-1041011-BV in PC #1 ..............27 8.5 1900 MHz band GPRS 2 timeslots Results for FAA-1041011-BV in PC #1 ............27 8.6 850 MHz band GPRS 2 timeslots Results for FAA-1041011-BV in PC #2 ..............28 8.7 1900 MHz ban…

Text truncated - open the document above for the full version.

SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix A Plots Page 1 of 36 Date / Time: 10/8/2003 3:38:14 PM Position: lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: parallel to phantom Test Frequency: 835 Shape File: broadcom381lap_newant.c sv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averagi ng: 6 Batteries Liquid: 850 Type: body Conductivity: 0.983 Relative Permittivity: 55.62 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.439 0.437 Change during Scan (%) -0.24 Max E-field (V/m): 37.93 1g 10g Max SAR (W/kg) 1.191 0.769 X Y Z Location of Max (mm): 75.1 3.0 -187.7 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix A Plots Page 2 of 36 Date / Time: 10/8/2003 4:17:41 PM Position: lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: perpendicular to phantom Test Frequency: 835 Shape File: broadcom381lap_newant.c sv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 10/03/2003 Liquid: 850 Type: body Conductivity: 0.983 Relative Permittivity: 55.62 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.138 0.138 Change during Scan (%) 0.25 Max E-field (V/m): 19.75 1g 10g Max SAR (W/kg) 0.333 0.221 X Y Z Location of Max (mm): 75.1 -3.0 -164.7 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix A Plots Page 3 of 36 Date / Time: 10/8/2003 5:10:20 PM Position: bystander 1cm Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: vertical Test Frequency: 835 Shape File: broadcom381side_newant. csv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 10/03/2003 Liquid: 850 Type: body Conductivity: 0.983 Relative Permittivity: 55.62 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.337 0.338 Change during Scan (%) 0.33 Max E-field (V/m): 30.56 1g 10g Max SAR (W/kg) 0.796 0.516 X Y Z Location of Max (mm): 75.1 -40.0 -137.7 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix A Plots Page 4 of 36 Date / Time: 10/8/2003 4:44:57 PM Position: bystander 1cm Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: horizontal Test Frequency: 835 Shape File: broadcom381side_newant. csv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 10/03/2003 Liquid: 850 Type: body Conductivity: 0.983 Relative Permittivity: 55.62 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.224 0.230 Change during Scan (%) 2.61 Max E-field (V/m): 26.54 1g 10g Max SAR (W/kg) 0.579 0.364 X Y Z Location of Max (mm): 75.0 -26.0 -160.4 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix A Plots Page 5 of 36 Date / Time: 10/9/2003 9:46:13 AM Position: lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: parallel to phantom Test Frequency: 824.2 Shape File: broadcom381lap_newant.c sv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 10/03/2003 Liquid: 850 Type: body Conductivity: 0.977 Relative Permittivity: 56.2 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.352 0.354 Change during Scan (%) 0.50 Max E-field (V/m): 33.06 1g 10g Max SAR (W/kg) 0.905 0.599 X Y Z Location of Max (mm): 75.1 -8.0 -186.8 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix A Plots Page 6 of 36 Date / Time: 10/9/2003 10:15:43 AM Position: lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: parallel to phantom Test Frequency: 848.8 Shape File: broadcom381lap_newant.c sv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 10/03/2003 Liquid: 850 Type: body Conductivity: 0.992 Relative Permittivity: 55.33 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.512 0.518 Change during Scan (%) 1.10 Max E-field (V/m): 40.27 1g 10g Max SAR (W/kg) 1.339 0.879 X Y Z Location of Max (mm): 75.0 -6.0 -184.9 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix A P…

Text truncated - open the document above for the full version.

SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 1 of 18 Photo 1. EUT Top SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 2 of 18 Photo 2. EUT bottom SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 3 of 18 Photo 3. PC #1 lap antenna parallel SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 4 of 18 Photo 4. PC #1 lap antenna perpendicular SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 5 of 18 Photo 5. PC #1 bystander antenna vertical SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 6 of 18 Photo 6. PC #1 bystander antenna horizontal SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 7 of 18 Photo 7. PC #1 bystander distance SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 8 of 18 Photo 8. PC #2 lap antenna parallel SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 9 of 18 Photo 9. PC #2 lap antenna perpendicular SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 10 of 18 Photo 10. PC #2 bystander antenna vertical SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 11 of 18 Photo 11. PC #2 bystander antenna horizontal SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 12 of 18 Photo 12. PC #2 bystander distance SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 13 of 18 Photo 13. PC #3 lap antenna parallel SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 14 of 18 Photo 14. PC #3 lap antenna perpendicular SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 15 of 18 Photo 15. PC #3 bystander antenna vertical SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 16 of 18 Photo 16. PC #3 bystander antenna horizontal SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 17 of 18 Photo 17. PC #3 bystander distance SAR Test Report No : SAR_533_2002_FCC850_1900 Date of Report: 10/13/2003 Appendix B Photos Page 18 of 18 Photo 18. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No: SAR_533_2003_FCC_850_1900 Date of Report:10/13/2003 Appendix C Page 1 of 38 Tissue Parameters 850MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide Di-electric constants measured below. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 10/07/03 90041.22 0.979 10/09/03 90041.36 0.982 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide Di-electric constants measured below. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 825.25 56.06 0.974 836.5 55.62 0.983 10/07/03 847.75 55.44 0.979 825.25 56.2 0.977 836.5 55.4 0.986 10/09/03 847.75 55.33 0.992 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide SAR Test Report No: SAR_533_2003_FCC_850_1900 Date of Report:10/13/2003 Appendix C Page 2 of 38 Di-electric constants measured below. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 10/08/03 1900 39.77 1.42 10/10/03 1900 40.02 1.42 10/13/03 1900 40.06 1.44 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured below. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 1850.2 53.42 1.539 1880 53.26 1.545 10/08/03 1909.8 53.02 1.551 1850.2 52.98 1.571 1880 52.46 1.582 10/10/03 1909.8 52.12 1.593 1850.2 53.07 1.569 1880 52.90 1.582 10/13/03 1909.8 52.78 1.588 Environment 10/07/03 – 10/13/03: Temperature: 20.1 °C – 23.9°C Humidity: 45% _ 55 % SAR Test Report No: SAR_533_2003_FCC_850_1900 Date of Report:10/13/2003 Appendix C Page 3 of 38 Test Equipment Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_Spou t N/A N/A…

Text truncated - open the document above for the full version.
