PY7FB022011GSM 900/1800/1900 phone with GPRS and Bluetooth
Sony Corporation
Click to zoom
Application Details
- Equipment Class
- PCE - PCS Licensed Transmitter held to ear
- Date of Grant
- Jul 20, 2006
- Application Purpose
- Original Equipment
- Date of Application
- Jul 20, 2006
- Equipment Note
- GSM 900/1800/1900 phone with GPRS and Bluetooth
- Frequency Range
- 1850.20000000 - 1909.80000000
- Company
- Sony Corporation
- Country
- Japan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Cover Letter(s)
Company Internal 1(1) Document number Revision BGGIN06:191 A Prepared by Date BGGINK Lennart Skoglund 2006-05-23 Contents responsible if other than preparer Remarks Approved by BGGINK Kenth Skoglund Reference FCC Request For Confidentiality FAB-1022011-BV Subject: Request for Confidentiality FCC ID: PY7FB022011 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB hereby requests Confidentiality for the following items • Block Diagrams (Exhibit 4) • Electrical Diagrams (Exhibit 5) • Component Listings (Exhibit 10) • Technical Descriptions (Exhibit12). This items contains detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Regards, Lennart Skoglund

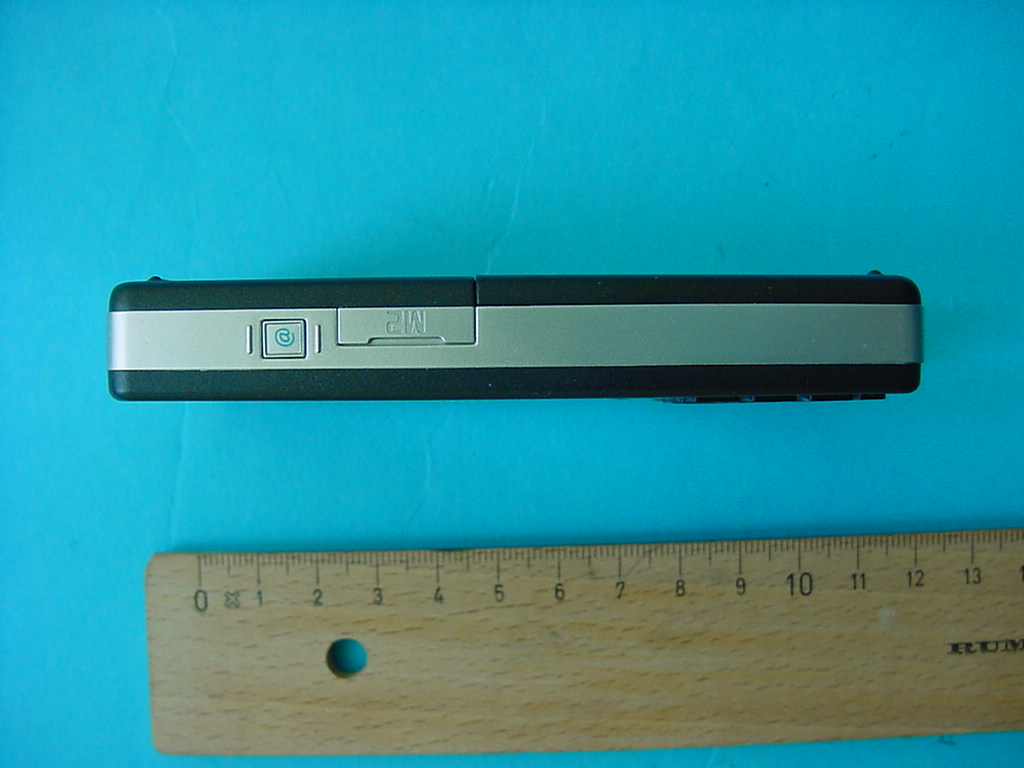

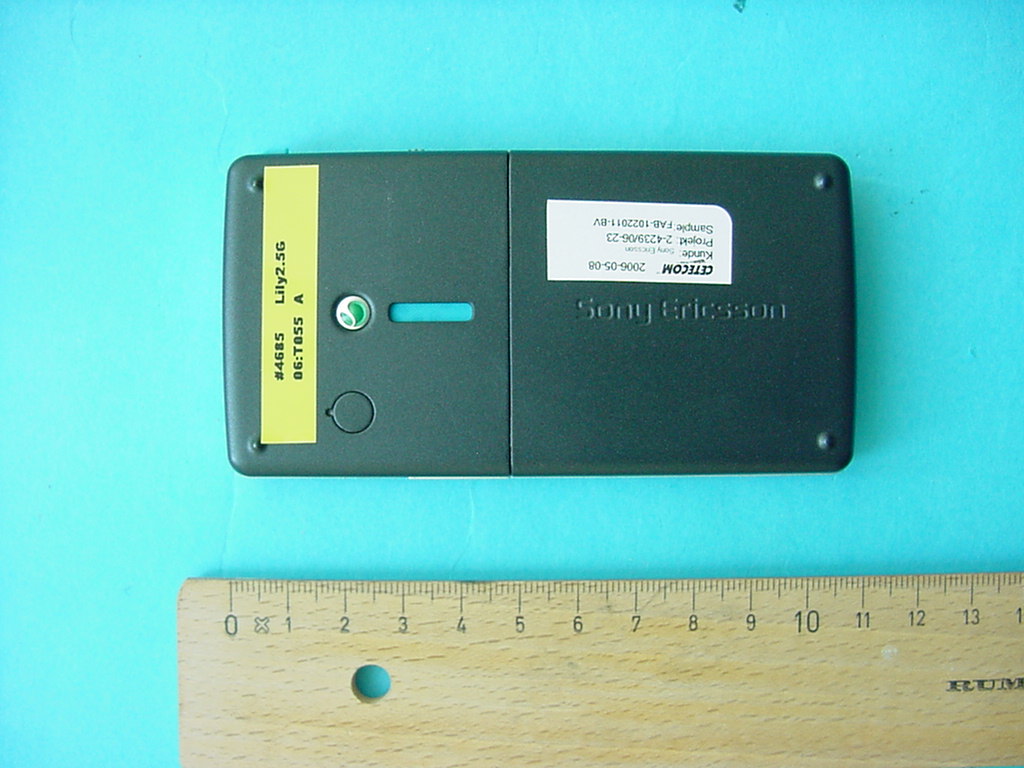

External Photos
CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 18 of 28 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 19 of 28 Photo 3 (Radiated Emissions): Photo 4 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 20 of 28 7 Annex C: External Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 21 of 28 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 22 of 28 Photo 5: Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 23 of 28 Photo 7: Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 24 of 28 8 Annex D: Internal Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 25 of 28 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 26 of 28 Photo 5: Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 27 of 28 Photo 7: Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 28 of 28 Photo 9:
ID Label/Location Info
Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/BGULD, Johan Svärd 151 86–SVV 107 404/13 Uen Approved Checked Date Rev Reference SEM/BGULDC (Hans-Olov Hallin) 2006-03-09 A 6 M608c, KRH-label, TYPE: FAB-1022011-BV, Made in... 1 General information The format of the label is based on a label SVF 930 863 (33,0 x 20,0 mm). If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1 (14,0/2,0) Simcard symbol Graphics, height 11 mm. According to 1424-SVF 930 1468/1. Line 2a (18,0/2,0) Sony Ericsson stylized name. Graphics, height 2,0 mm. According to 190 89–EN/LZT 108 5347 Line 2b (18,0/15,0) Model name, “M608c” Text, height 1,2 mm. Line 2c (18,0/20,5) Country approval mark 2 “IC: 4170B-FB022011” Text, height 1,2 mm. Line 3a (20,0/2,0) Type number of the phone (KRH), “Type: FAB-1022011-BV”. Text, height 1,2 mm. Line 3b (20,0/17,0) ROA and R-state identification field, “G 1 G 2 G 3 HY 1 Y 2 Y 3” Text, height 1,2 mm. “G”,“H”and “Y”-field According to the Type approval report 174 52-SVV 107 404/13. This document will be found in the 1095- for this SVV. Line 3c (20,0/25,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 3d (20,0/30,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. Company Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/BGULD, Johan Svärd 151 86–SVV 107 404/13 Uen Approved Checked Date Rev Reference SEM/BGULDC (Hans-Olov Hallin) 2006-03-09 A 6 Line 4 (23,0/2,0) Line 4a in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 5a (24,5,0/2,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” For serial number). Text, height 1,2 mm. Defined by supplier. Line 5b (24,5/15,0) Country approval mark 1 “FCC ID: PY7FB022011” Text, height 1,2 mm. Line 6 (27,5/2,0) Line 6a in bar code (only actual number, without data identifier). Bar code, height 4,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 7a (29,5/2,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 1301- FAD 109 0112/1 document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 7b (29,5/21,0) Product number of the DPY kit in which the phone is packed. Printed without “DPY 101” and R-state, “0000/000” Text, height 1,2 mm. Line 7c (29,5/28,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 8 (33,0/12,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. Line 9a (35,5/2,0) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 9b (35,5/8,0) The Notified body number. “0682” Text, height 2,5 mm. Line 9c (35,0/12,5) “CMII ID: 2006CJXXXX” Text, height 1,5 mm. Paragraph of two rows aligned from bottom row. Line 9d (35,5/12,0) Frame around the text in Line 9c Line Line 10a (43,0/2,0) CCC-sticker with S&E. Graphics, height 6,3 mm, width 8,0 mm. According to 1424-SVF 930 2413. Line 10b (43,0/12,0) “” Text, height 2 mm. Company Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/BGULD, Johan Svärd 151 86–SVV 107 404/13 Uen Approved Checked Date Rev Reference SEM/BGULDC (Hans-Olov Hallin) 2006-03-09 A 6 3 Marking of Origin 3.1 Content “Made in Xxx” in Chinese Simplified; “Xxx” = actual country of production of the included telephone “Made in China” in Chinese Simplified: 1424-SVF 930 1350/1 “Made in Japan” in Chinese Simplified: 1424-SVF 930 1350/19 “Made in Malaysia” in Chinese Simplified: 1424-SVF 930 1350/27 “Made in France” in Chinese Simplified: 1424-SVF 930 1350/28 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision.

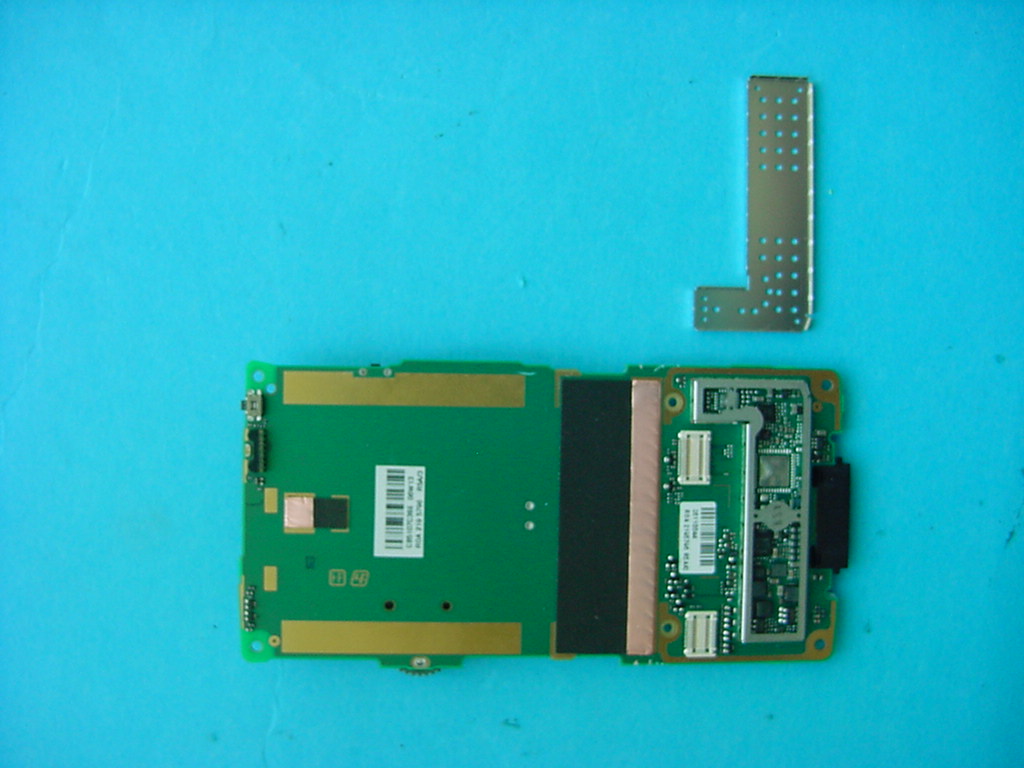

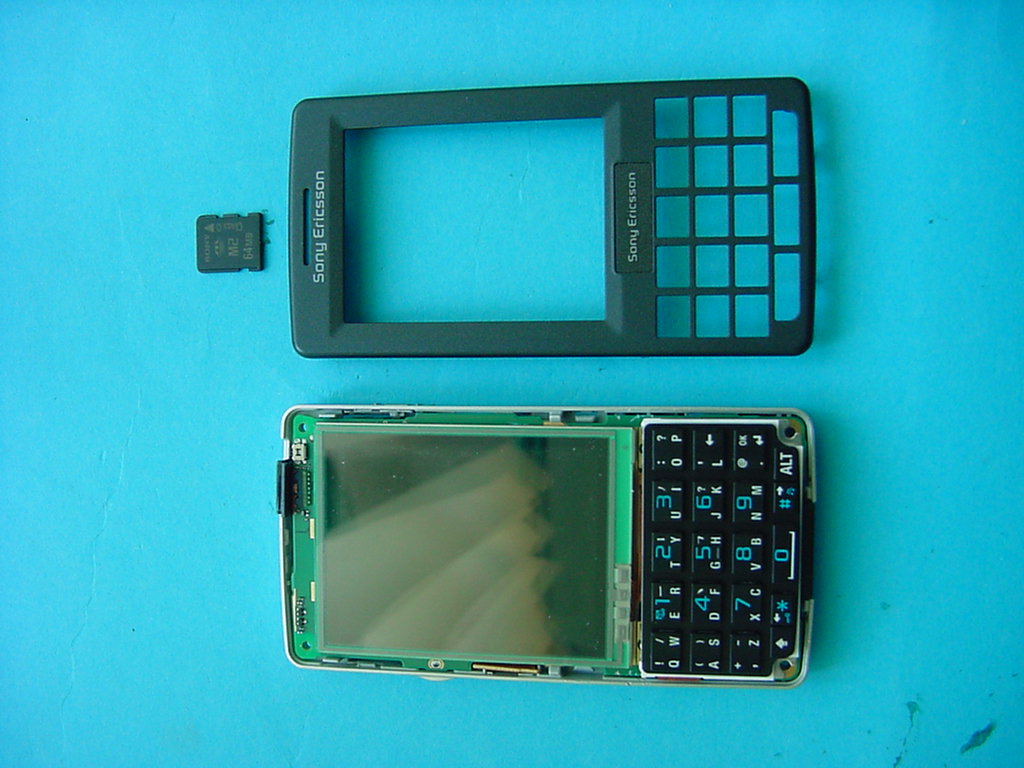

Internal Photos
CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 18 of 28 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 19 of 28 Photo 3 (Radiated Emissions): Photo 4 (Conducted Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 20 of 28 7 Annex C: External Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 21 of 28 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 22 of 28 Photo 5: Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 23 of 28 Photo 7: Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 24 of 28 8 Annex D: Internal Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 25 of 28 Photo 3: Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 26 of 28 Photo 5: Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 27 of 28 Photo 7: Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 28 of 28 Photo 9:
RF Exposure Info
1 (24) EAB-06:023185 Uen, Rev C, 2006-07-21 Report issued by an Accredited Laboratory Rapport utfärdad av ett ackrediterat laboratorium This laboratory is accredited to SS-EN ISO/IEC 17025 (SWEDAC accreditation no. 1761). SAR Test Report: PY7FB022011 Document number: EAB-06:023185 Uen Rev C Date of report: 2006-07-21 Testing laboratory: Ericsson EMF Research Laboratory Ericsson AB Torshamnsgatan 23 SE-164 80 Stockholm Sweden Company/Client: Lars Melin Sony Ericsson Mobile Communications AB Torshamnsgatan 27 Box 64 SE-164 94 Kista Sweden Tests performed by: Peter Håkansson Date of tests: May 2 – 19, 2006 Manufacturer and market name(s) of device: Sony Ericsson M608c Testing has been performed in accordance with: IEEE Standard 1528, IEC 62209-1, FCC OET Bulletin 65 Supplement C Test results: The tested device complies with the requirements in respect of all parameters subject to the test. Additional information: This report presents the results for the GSM/GPRS1900 and Bluetooth modes. The test report EAB-06:023165 contains the results for all the frequency bands and modes used by the tested device. Signature: Test engineer ____________________________ Peter Håkansson Research Engineer [email protected] Tel: +46 8 58534823 Quality manager ______________________ Christer Törnevik Director, EMF Health and Safety [email protected] Tel: +46 8 7641235 2 (24) EAB-06:023185 Uen, Rev C, 2006-07-21 1 Table of Contents 1 Table of Contents ........................................................................................................................ 2 Test report summary..................................................................................................................................... 3 2 General information..................................................................................................................... 4 3 Device under test ......................................................................................................................... 4 4 Test equipment ............................................................................................................................ 5 4.1 Dosimetric system.................................................................................................................. 5 4.2 Additional equipment............................................................................................................. 5 5 Electrical parameters of the tissue simulating liquids.................................................................. 6 6 SAR system performance check .................................................................................................. 7 7 Uncertainty evaluation of SAR measurement system DASY4 according to IEEE 1528 ............ 8 8 Test results................................................................................................................................... 9 8.1 Results for the GSM1900 mode (head)................................................................................ 10 8.2 Results for the GSM1900 mode (body) ............................................................................... 11 8.3 Results for the GPRS(2TX)1900 mode (body) .................................................................... 11 9 Conclusion................................................................................................................................. 11 10 References ................................................................................................................................. 12 APPENDIX 1: Photographs of the DUT .................................................................................................... 13 APPENDIX 2: Photographs of the DUT when positioned for SAR measurements ................................... 14 APPENDIX 3: SAR distribution plots for the system performance checks ............................................... 16 APPENDIX 4: SAR distribution plots ....................................................................................................... 18 (a) Distribution of SAR in the GSM1900 mode, right hand side in cheek position ................... 18 (b) Distribution of SAR in the GSM1900 mode, right hand side in tilt position ........................ 19 (c) Distribution of SAR in the GSM1900 mode, left hand side in cheek position...................... 20 (d) Distribution of SAR in the GSM1900 mode, left hand side in tilt position .......................... 21 (e) Distribution of maximum SAR in GSM1900 mode.............................................................. 22 (f) Distribution of maximum SAR in GPRS(2TX)1900 mode ................................................... 23 APPENDIX 5: Probe calibration parameters for ET3DV6, SN: 1582 ....................................................... 24 3 (24) EAB-06:023185 Uen, Rev C, 2006-07-21 Test report summary The tables below summarize the SAR measurement results obtained for the Sony Ericsson PY7FB022011 mobile phone model. The results show that the maximum SAR values are below the applicable SAR limits 1.6 W/kg (1g) and thus the Sony Ericsson PY7FB022011mobile phone is in compliance with the appropriate RF exposure standards and recommendations. Results applicable to the 1g SAR limit of 1.6 W/kg: Mode Maximum SAR 1g (W/kg) GSM1900 (Head) 1.08 GSM1900 (Body) 1.12 GPRS(2TX)1900 (Body) 0.96 4 (24) EAB-06:023185 Uen, Rev C, 2006-07-21 2 General information The tests reported in this document have been performed in accordance with the SAR measurement standards IEC 62209-1 [1], IEEE Standard 1528 [2] and the FCC Supplement C [3]. The purpose of the tests was to verify that the Sony Ericsson FAB-1022011-BV mobile phone model is in compliance with the appropriate RF exposure standards, recommendations and limits [3, 4]. 3 Device under test The table below summarizes the technical data for the tested device. Photographs of the device are presented…
Text truncated - open the document above for the full version.
Test Report
CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4239-23-02/06 Date: 2006-05-19 Page 1 of 45 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4239-23-02/06 Applicant : Sony Ericsson Mobile Communication Type : FAB-1022011-BV Test Standard : FCC Part 24 RSS-133 FCC ID : PY7FB022011 Certification No. IC : 4170B-FB022011 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4239-23-02/06 Date: 2006-05-19 Page 2 of 45 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 25 3.1.5 Conducted Spurious Emissions ................................................................................................................... 29 3.1.6 Block Edge Compliance .............................................................................................................................. 33 3.1.7 Occupied Bandwidth................................................................................................................................... 35 4 USED TESTEQUIPMENT ...................................................................................................................................... 42 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4239-23-02/06 Date: 2006-05-19 Page 3 of 45 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. DAT-P-176/94-D1 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Dirk Hausknecht Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. ...........................................................................…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Kazuyuki Hori(Senior EMC/RF Compliance Manager)
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 24E | 1.85 GHz - 1.91 GHz | 1.175 W | 300KGXW | 0.0484000000 ppm |
