PY7FB031012Licensed transmitter

Sony Corporation

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jul 20, 2004
Application Purpose: Original Equipment
Date of Application: Jul 20, 2004
Equipment Note: Licensed transmitter
Frequency Range: 824.20000000 - 848.80000000
Company: Sony Corporation
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Preliminary Layla850 P1B P910a User Guide Preliminary Layla850 P1B LettersLowercase letters are written below the arrow and uppercase letters in line with the arrow. Note Start each stroke at the dotted end. Accented lettersWrite the character as describe d above, then write the accent above the arrow. Other such char acters, for example, ö and ü, follow the same principle. Note Start each stroke at the dotted end. NumbersNumbers are written above the arrow.Note Start each stroke at the dotted end. a b c d e f g h k l m n o p q r s t u v y z w x 1 2 i j 1 1 1 1 1 1 2 1 2 2 2 2 2 2 ,. ? ! & @ " ' 01234567 89 , . * or + * / \ ( ) = 3 Preliminary Layla850 P1B ContentsO VERVIEW Introduction ................................................................. 9Getting to know your P910a ..................................... 10 P910a package .............. ........... ........... ........... ........... ........ 10 P910a overview ............ ........... ........... ........... ........... ........ 11 SIM card ........................................................................... 12Battery .............................................................................. 12Care instructions ............................................................... 13First time start-up.............................................................. 14Turning your P910a on and off....... ........... ......... ......... ..... 14 Importing phone book entries........... ......... ......... ......... ..... 14 Flip closed mode............................................................... 15Flip open mode ................................................................. 16Flip removed..................................................................... 17Screen areas ...................................................................... 18Jog Dial ............................................................................ 19Keypad functions ............................................................. 20Indicators and status bar icons.......................................... 20Memory Stick ................................................................... 21Connecting the accessories ............................................... 24Services............................................................................. 24Applications - overview.................................................... 25Updating the software....................................................... 27General functions.............................................................. 27 Entering text with the flip closed ..................................... 31Entering text with the flip open ....................................... 33P910a locks ................. ........... ........... ......... ......... ............. 36 Phone.......................................................................... 40 Call handling with the flip closed .................................... 40Call handling with the flip open ...................................... 43Handling two or more calls.............................................. 45Call list and call log ......................................................... 47Hints and smart functions ................................................ 47Preferences ....................................................................... 52 M EDIA CommuniCorder....................................................... 58 Recording video clips ...................................................... 58Taking pictures ................................................................ 60Camera settings ................................................................ 61 Pictures and Image editor ........................................ 63 Pictures ............................................................................ 63Image editor ..................................................................... 65 Video .......................................................................... 67 Video clips ....................................................................... 67Streaming ......................................................................... 69Preferences ....................................................................... 70 4 Preliminary Layla850 P1B Music player............................................................... 71 Playing sound files.. ............ ........... ........... ........... ............. 71 Managing sound files....... ........... ............ ........... ........... .... 72 Internet ....................................................................... 75 Using the browser view .................................................... 76Using the bookmark view ..... ........... ........... ......... ............. 79 Preferences........................................................................ 80 Games ......................................................................... 83 Chess................................................................................. 83Solitaire............................................................................. 83 B USINESS Messages ..................................................................... 85 Folders in Messages.......................................................... 86The accounts in Messages ................................................ 87Handling text messages .................................................... 87Handling multimedia messages ........................................ 88Handling email.................................................................. 92More about messaging ..... ........... ............ ........... ........... .... 96 Contacts...................................................................... 99 Using Contacts with the flip closed .................................. 99Using Contacts with the flip open .................................. 101Creating and editing contacts.........................…

Text truncated - open the document above for the full version.

External Photos

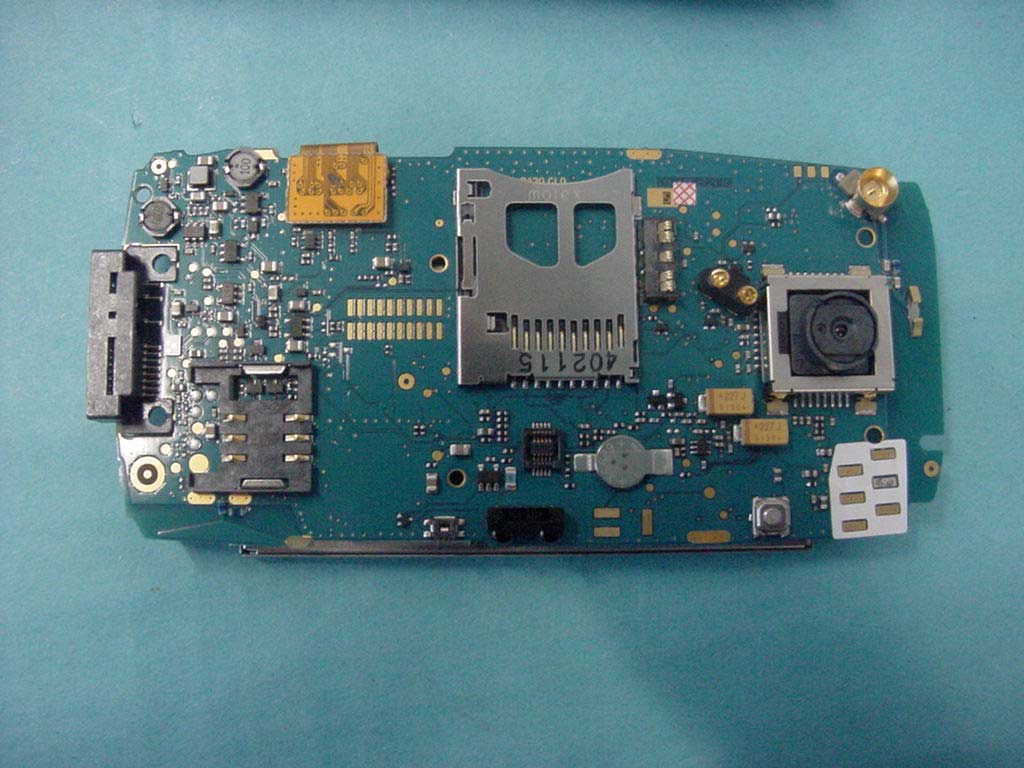

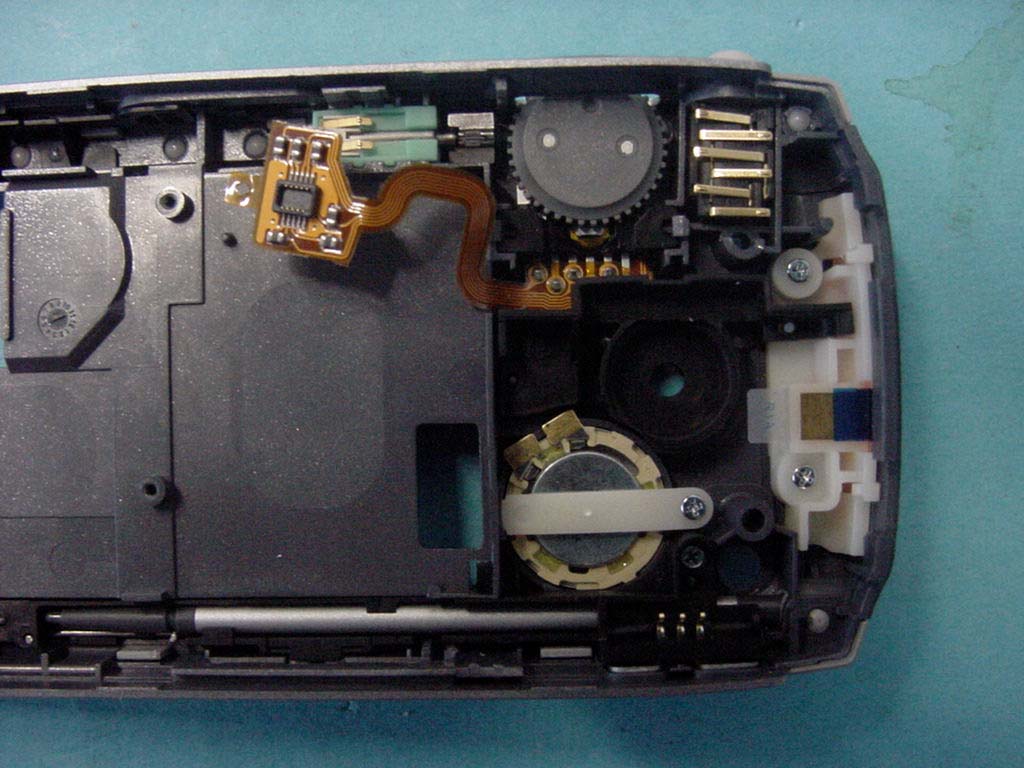

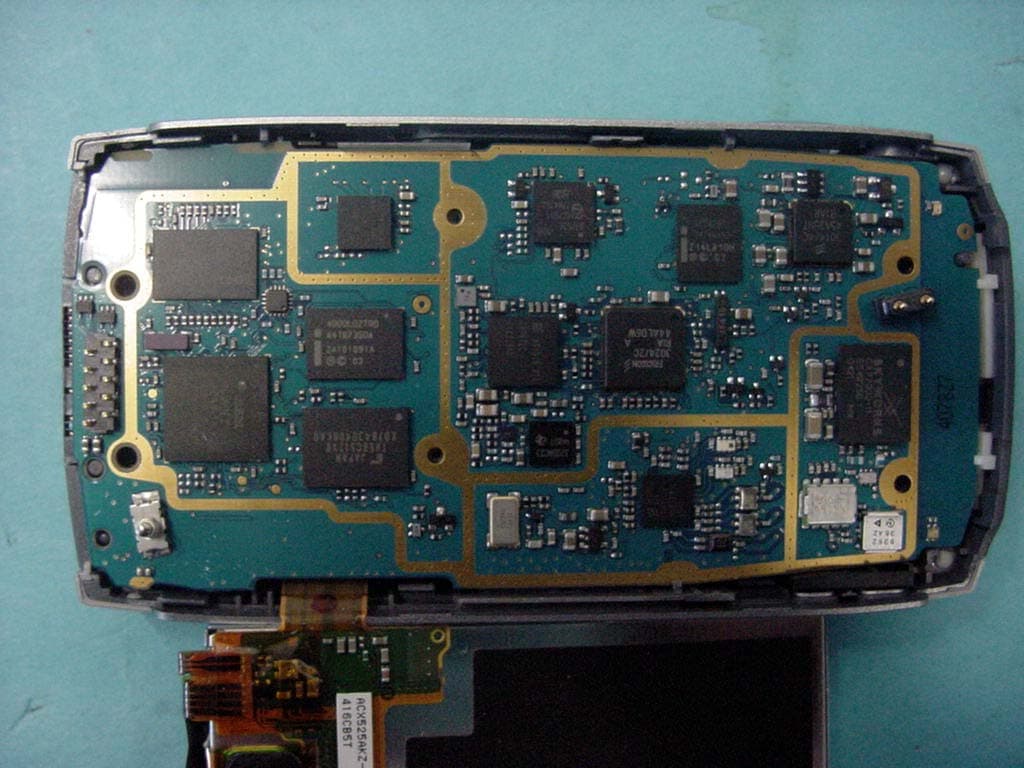

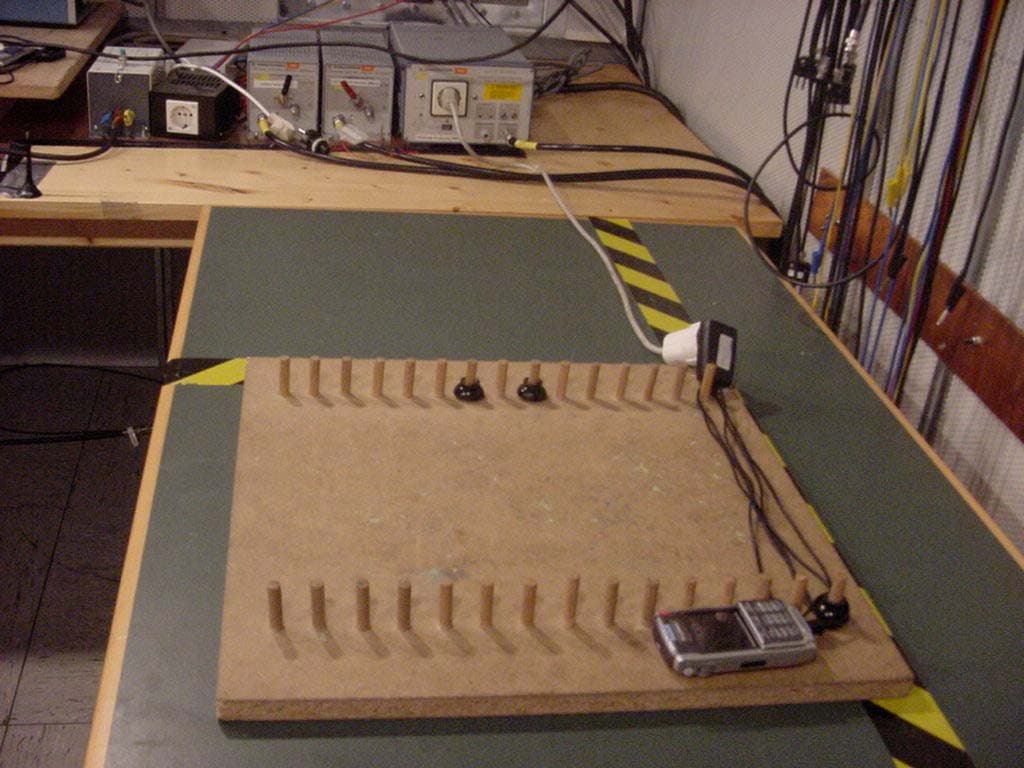

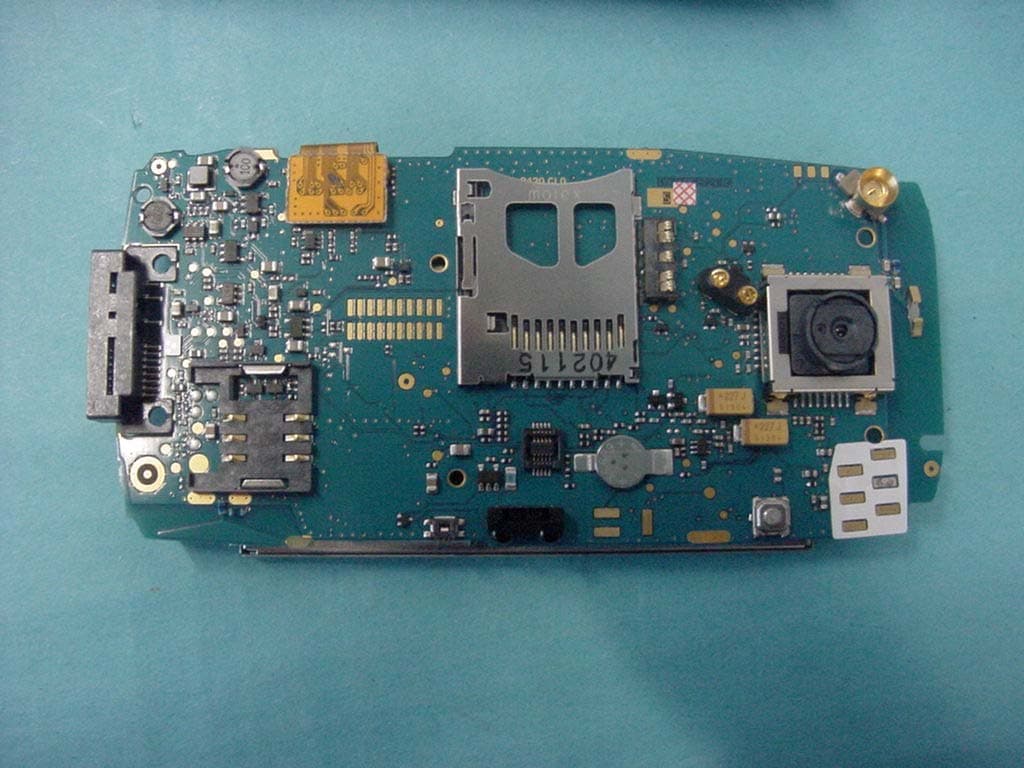

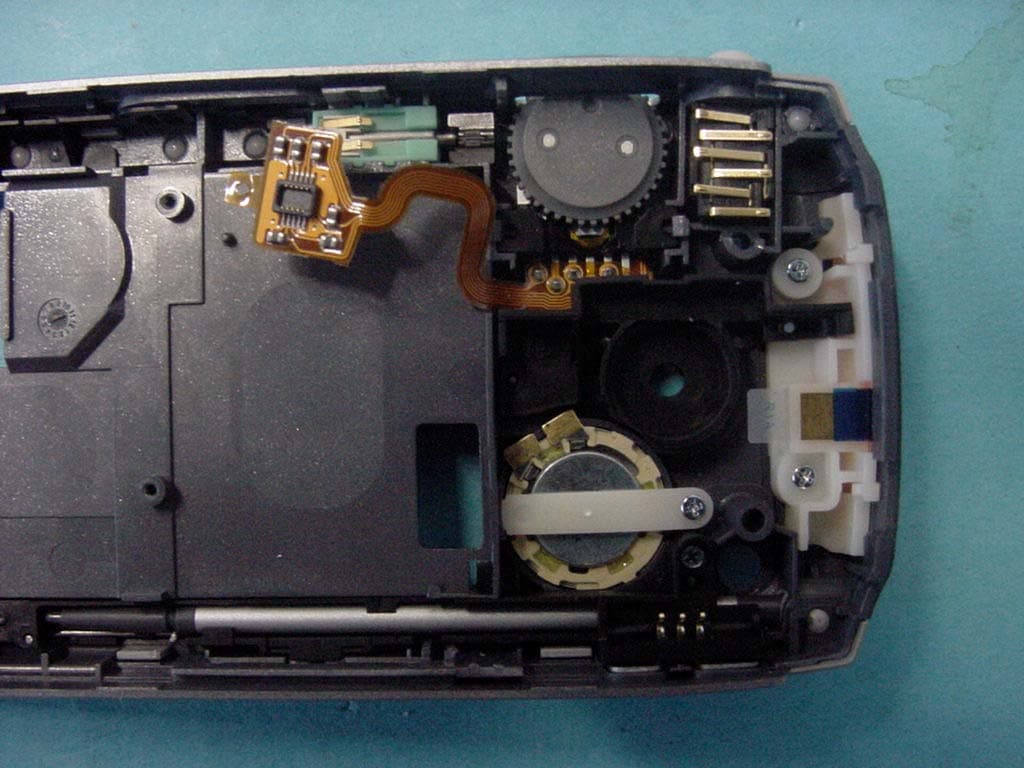

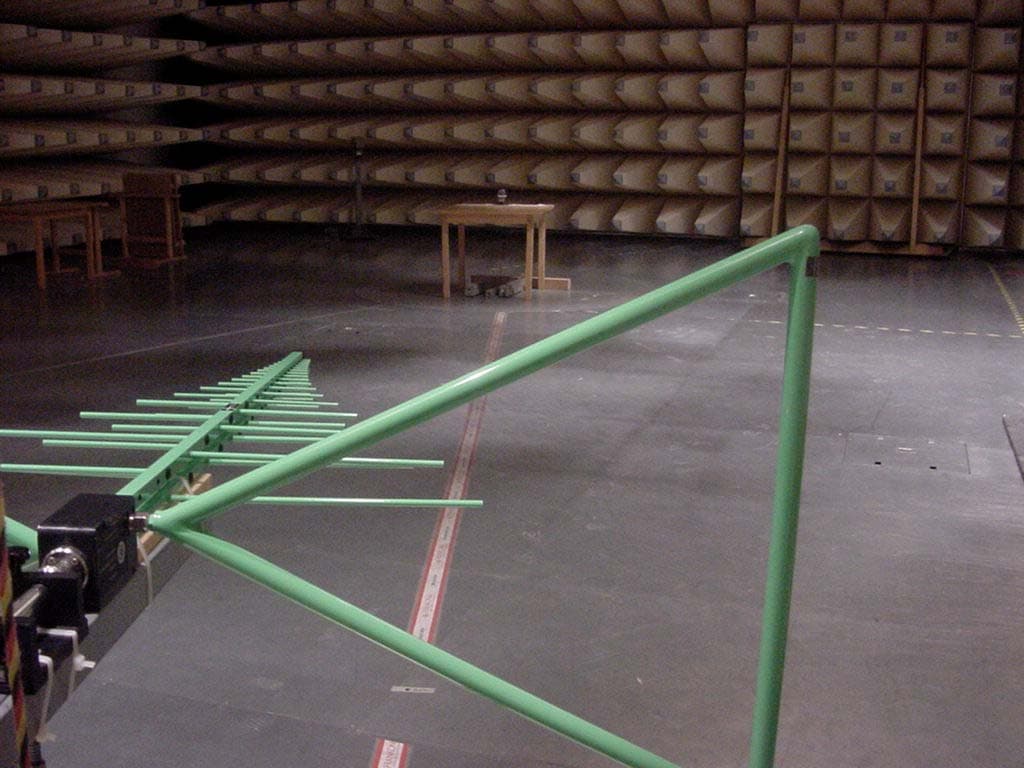

CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 82 (97) ANNEX B: Test Setup Photos CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 83 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 84 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 85 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 86 (97) ANNEX C: External Photos CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 87 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 88 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 89 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 90 (97) ANNEX D: Internal Photos CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 91 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 92 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 93 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 94 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 95 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 96 (97) CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 97 (97)

ID Label/Location Info

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/BGURKLD Arne Rahm 151 86-SVV 104 335/16 Uen Approved Checked Date Rev Reference SEM/BGURKLD Arne Rahm 2004-06-30 B Type FAB-103 1012-BV Smartphone P910a 1. Label The label used for marking is defined in the Manufacturing Specification on the SVF 930 863. 2. Placing The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 3. Print layout Printing area 31.6 x 18.5 mm. Line nbr 1. yyyy/x Rxx Rywwxx P910a xxxxxxxxxx 2. Type FAB-103 1012-BV G1G2G3HY1Y2Y3 xxxxxxxxxx 3. 4. 35454500-XXXXXX-X 5. 6. XXXXXXXXXX yyWww CDAxxxxxxx Rxx 7. IC: 4170B-FB031012 8. FCC ID: PY7FB031012 9. 10. 11 Line Text Text height 1. Reduced DPY-number, R-state, Repair week, Model name, Additional field (if necessary) min 1.2 mm 2. Type number, G1,G2, G3, H, Y1, Y2, Y3 field, Additional field min 1.2 mm 3. IMEI number as bar code min 3.5 mm 4. IMEI number as characters min 1.2 mm 5. Serial number as bar code min 3.5 mm 6. Serial number as characters, production week, CDA number , R-state. min 1.2 mm 7. Country approval mark 1. min 1.2 mm 8. Country approval mark 2. min 1.5 mm 9. Approval mark, angled 90° clw Min 5.0 mm 10. Sony Ericsson trademark, angled 90° clw min 2.0 mm 11. Marking of origin, angled 90° clw min 1.2 mm 2 (3) Prepared (also subject responsible if other) No. SEM/BGURKLD Arne Rahm 151 86-SVV 104 335/16 Uen Approved Checked Date Rev Reference SEM/BGURKLD Arne Rahm 2004-06-30 B 4. Definitions: 1. Reduced DPY- number The DPY number, according to 1095- for the produced product, without “DPY 101” e.g. if DPY 101 1447/1 is produced the printing should be “1447/1”. (6 pos) R-state The R-state for the DPY according to the 1095- for the DPY. (3 pos) Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as Rywwxx. (R = repair, y = year, ww = week, xx = R-state e.g. 1A). (6 pos) Model name The model name P910a Additional field (if necessary) The field shall be left blank unless otherwise stated in a separate 2/151 86-SVV according to 1095- of the actual SVV. Some fields might need two lines. 2. Ericsson Type number The type number shall be printed “Type FAB-1031012-BV” (19 pos) G1-field R-state of the CXC-phone sw according to the Type approval report 17452-SVV104 335/16. G2-field R-state of the CXC-organizer sw according to the Type approval report 17452-SVV104 335/16 G3-field R-state of the CXC-BT sw according to the Type approval report 17452-SVV104 335/16 H-field R-state of the type approved hardware according to the Type approval report 17452-SVV104 335/16. Y1-field R-state of the KRH according to the Marking drawing 1/151 86-SVV104 335/16. Y2-field ROA identification according to the Marking drawing 1/151 86-SVV104 335/16. Y3-field R-state of the ROA according to the Marking drawing 1/151 86-SVV104 335/16. Additional field The field shall be left blank unless otherwise stated in a separate 2/151 86-SVV according to 1095- of the actual SVV. 3. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no dash). Acc. to Ericsson corporate standard 102 01-109. Code 128. 4. IMEI number as characters The IMEI number has format: TAC-SNR-CD (17 pos) TAC = 35454500 (8 pos) SNR = Serial number See 1301-FAD 109 0094/1 (6 pos) CD = A check digit, from 0-9, calculated (1 pos) according to the Luhn formula (ISO/IEC 7812), GSM 02.16. 3 (3) Prepared (also subject responsible if other) No. SEM/BGURKLD Arne Rahm 151 86-SVV 104 335/16 Uen Approved Checked Date Rev Reference SEM/BGURKLD Arne Rahm 2004-06-30 B 5. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Code 128. 6. Serial number as characters According to Ericsson group standard (10 pos) 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Flextronics Linköping A61 Ericsson Beijing CB5 Sony Alsace AL Production week The production week shall be given as yyWww (yy = year, ww = week) according to the ISO 8601 standard. (5 pos) CDA number, R-state The CDA number and the R-state according to 13132- for the produced DPY. (16 pos) 7. Country approval mark 1 Consist of text: “IC 4170B-FB031012” 8. Country approval mark 2 Consist of text: “FCC ID: PY7FB031012” in a frame with height > 1,5 mm 9. Approval marks According to 1424 - SVF 930 52 The notified body number 0682 according to the RTTE directive. The print height for the notified body number and approval mark CE is a regulatory requirement. 10. Sony Ericsson Trademark According to corporate standard 190 89-EN/LZT 108 5347. 11. Marking of origin The field shall be left blank unless otherwise stated in a separate 3/151 86-SVV document according to 1095- of the actual SVV.

Internal Photos

RF Exposure Info

Open REPORT 1 (29) Prepared (also subject responsible if other) No. KI/EAB/TFF Martin Siegbahn EAB/TF-04:000065 UEN Approved Checked Date Rev Reference EAB/TF [Christer Tornevik] 2004-07-02 A SAR Test Report: Type Number FAB-1031012; FCC ID PY7FB031012; IC 4170B- FB031012 Date of test June 10-30, 2004 Laboratory Ericsson EMF Research Laboratory Ericsson AB Torshamnsgatan 23 SE-164 80 Stockholm Sweden Job No 2004 – 2 Customer Kristina Gold Sony Ericsson Mobile Communications AB Torshamnsgatan 27 Box 64 SE-164 94 Kista Sweden Test responsible ...................................................... Martin Siegbahn Senior Research Engineer [email protected] Tel: +46 8 7570811 Test approval ...................................................... Christer Törnevik Director, EMF Health and Safety [email protected] Tel: +46 8 7641235 This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1761). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Ericsson encourages all feedback, both positive and negative, on this report. © Telefonaktiebolaget LM Ericsson, 2004 Open REPORT 2 (29) Date Rev Document no 2004-07-02 A EAB/TF-04:000065 UEN 1 Table of Contents Test report summary..................................................................................................................................... 3 2 General information..................................................................................................................... 3 3 Device under test ......................................................................................................................... 3 4 Test equipment ............................................................................................................................ 4 4.1 Dosimetric system ....................................................................................................................... 4 4.2 Additional equipment .................................................................................................................. 4 5 Electrical parameters of the tissue simulating liquids.................................................................. 5 6 SAR system performance check .................................................................................................. 6 7 Test results................................................................................................................................... 7 7.1 Results for the GSM850 mode (head) ......................................................................................... 7 7.2 Results for the GSM850 mode (body)......................................................................................... 8 7.3 Results for the GSM1800 mode .................................................................................................. 9 7.4 Results for the GSM1900 mode (head) ..................................................................................... 10 7.5 Results for the GSM1900 mode (body)..................................................................................... 11 8 Conclusion................................................................................................................................. 11 9 References ................................................................................................................................. 12 APPENDIX 1: Photographs of the DUT .................................................................................................... 13 APPENDIX 2: Photographs of the DUT when positioned for SAR measurements ................................... 15 APPENDIX 3: SAR distribution plots ....................................................................................................... 17 APPENDIX 4: Probe calibration parameters for ET3DV6, SN: 1394 ....................................................... 28 APPENDIX 5: Probe calibration parameters for ET3DV6, SN: 1572 ....................................................... 29 Open REPORT 3 (29) Date Rev Document no 2004-07-02 A EAB/TF-04:000065 UEN Test report summary The table below summarizes the SAR measurement results obtained for the Sony Ericsson FAB-1031012 mobile phone model. The results show that the maximum SAR values are below the 1.6 W/kg (1g) and 2 W/kg (10g) limits and thus the Sony Ericsson FAB-1031012 mobile phone is in compliance with the appropriate RF exposure standards and recommendations. Mode Maximum SAR 1g (W/kg) Maximum SAR 10g (W/kg) GSM 850 (Head) 1.46 1.04 GSM 850 (Body) 0.97 0.72 GSM 1800 1.35 0.83 GSM1900 (Head) 1.50 0.88 GSM 1900 (Body) 0.42 0.27 2 General information The tests reported in this document have been performed in accordance with the SAR measurement standards CENELEC EN 50361 [1], IEEE Standard 1528 [2] and the FCC Supplement C [5]. The purpose of the tests was to verify that the Sony Ericsson FAB-1031012 mobile phone model is in compliance with the appropriate RF exposure standards, recommendations and limits [3-8]. 3 Device under test The table below summarizes the technical data for the tested device. Photographs of the device are presented in Appendix 1. Device model Type Number FAB-1031012; FCC ID PY7FB031012; IC 4170B-FB031012 Serial number of tested unit ALW4PWTERQ Mode GSM850, GSM1800, GSM1900 Antenna Internal Maximum output power level 1 (dBm) GSM850: 33.0 GSM1800: 30.0 GSM1900: 30.5 Duty cycle 1:8 (GSM), 1:8 (GPRS) Transmitter frequency range (MHz) GSM850: 824.2-848.8 …

Text truncated - open the document above for the full version.

RF Exposure Info

Text truncated - open the document above for the full version.

Test Report

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-0 Telefax: - 9075 Test report No.: 2-3623-01-02/04 This test report consists of 97 pages Page 1 (97) Recognized by the Federal Communications Commission Anechoic Chamber Registration No.: 90462 (FCC) Anechoic Chamber Registration No.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Test Report No.: 2-3623-01-02/04 Applicant:Sony Ericsson Mobile Type:FAB-1031012-xx Test Standards: FCC Part 22, 24 RSS132, 133 FCC ID:PY7FB031012 IC:4170B-FB031012 CETECOM ICT Services GmbH Test report No.: 2-3623-01-02/04Date: 2004-07-01Page 2 (97) Table of Contents 1 GENERAL INFORMATION.....................................................................................................3 1.1 NOTES.........................................................................................................................................3 1.2 T ESTING LABORATORY...............................................................................................................3 1.3 D ETAILS OF APPLICANT..............................................................................................................4 1.4 A PPLICATION DETAILS................................................................................................................4 1.6 TEST STANDARDS.......................................................................................................................6 2STATEMENT OF COMPLIANCE.............................................................................................7 2.1 SUMMARY OF MEASUREMENT RESULTS.....................................................................................7 2.1.1 PCS1900...........................................................................................................................7 2.1.2 GSM 850...........................................................................................................................7 3MEASUREMENTS AND RESULTS........................................................................................8 3.1 PART PCS 1900 ........................................................................................................................8 3.1.1 RF Power Output.............................................................................................................8 3.1.2 Frequency Stability........................................................................................................12 3.1.3 Radiated Emissions......................................................................................................15 3.1.4 Receiver Radiated Emissions.....................................................................................22 3.1.5 Conducted Spurious Emissions..................................................................................26 3.1.6 Block Edge Compliance...............................................................................................30 3.1.7 Occupied Bandwidth.....................................................................................................32 3.2 PART GSM 850.......................................................................................................................39 3.2.1 RF Power Output...........................................................................................................39 3.2.2 Frequency Stability........................................................................................................42 3.2.3 Radiated Emissions......................................................................................................45 3.2.4 Receiver Radiated Emissions.....................................................................................52 3.2.5 Conducted Spurious Emissions..................................................................................56 3.2.6 Block Edge Compliance...............................................................................................60 3.2.7 Oc…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Mika Kaneko(Chief Regulatory Compliance Manager)

[email protected]+81367103225Fax: +815038096297

Technical Contact

Sony Ericsson Mobile Communications ABPeter Lindeborg

[email protected]+46 8 40 45 441

Torshamsgatan 27 · Kista · Sweden

Test Firm

Cetecom ICT Services GmbHRalf Hoehn

[email protected]49-681-598-8455Fax: 49-681-598-8475

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	22H	824.2 MHz - 848.8 MHz	708.00 mW	200KQ7W	0.02 ppm

Confidentiality

Long Term

Grant Notes

Output power is ERP for Part 22 and EIRP for Part 24. This device contains 1800 MHz GSM functions that are not operational in U.S.Territories. This filing is only applicable for 850 MHz and 1900 MHz PCS operations. SAR compliance for body-worn operating configurations is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm separation between the device, including its antenna, and the users body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values with GSM and Bluetooth activated simultaneously are: GSM 1900:Head: 1.50W/kg; Body-worn: 0.42W/kg GSM 850: Head: 1.46W/kg; Body-worn: 0.97W/kg
