PY7FD022015Licensed transmitter

1 Draft for Sony Ericsson Internal Use Only Congratulations on your purchase of the Sony Ericsson M610i. Enjoy the fast touchscreen, efficient email tools, and high-speed Internet on the go. In addition to your pre-installed multimedia content, a lot more is waiting for you at www.sonyericsson.com/fun. Also check out the Sony Ericsson Application Shop at www.sonyericsson.com/applicationshop and learn how to get the most out of your M610i. And if you register at www.sonyericsson.com/register, you get an exclusive offer. Go now and don’t miss out. 2 Draft for Sony Ericsson Internal Use Only Added dimensions – Accessories from Sony Ericsson Bluetooth™ Car Speakerphone HCB-120 A handsfree solution with caller display. For use in the car, office or home. Bluetooth™ Headset HBH-PV705 A powerful Bluetooth™ headset with a compact design. Desk Stand CDS-65 Your phone’s best assistant: connect a USB cable, charger and portable handsfree. The full range of accessories may not be available in every market. For more information visit www.sonyericsson.com/accessories. 3 Draft for Sony Ericsson Internal Use Only Contents Getting started ................... 5 Getting to know the phone ................................ 10 Calling ............................... 20 Messaging ........................ 26 Imaging ............................. 32 Entertainment ................... 34 Connectivity ...................... 40 More features ................... 45 Important information ...... 48 Index ................................. 58 Sony Ericsson UMTS 2100 GSM 900/1800/1900 This user guide is published by Sony Ericsson Mobile Communications AB or its local affiliated company, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB or its local affiliated company at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2007 Publication number: EN/LZT 162 xxx PA1 Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, for example, ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. The marble logo, BestPic, PlayNow, TrackID, MusicDJ, PhotoDJ and VideoDJ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. 4 Draft for Sony Ericsson Internal Use Only Sony, Cyber-shot, Memory Stick Micro and M2 are trademarks or registered trademarks of Sony Corporation. Ericsson is a trademark or registered trademark of Telefonaktiebolaget LM Ericsson. Bluetooth™ is a trademark or registered trademark of Bluetooth SIG Inc. Real is a trademark or a registered trademark of RealNetworks, Inc. RealPlayer® for Mobile is included under license from RealNetworks, Inc. Copyright 1995-2004, RealNetworks, Inc. All rights reserved. Adobe® Photoshop® Album Starter Edition is a registered trademark of Adobe Systems Incorporated. Microsoft, Windows and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and other countries. Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Smart-Fit Rendering is a trademark or registered trademark of ACCESS CO. LTD. in Japan and other countries. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™. 1 Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2 Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customers agree to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re- export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Ira…

Text truncated - open the document above for the full version.

SAR Information PPreflighted byreflighted byPreflighted by ( )( )( ) Important Information United States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the safe and efficient use chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is W/kg*, and when worn on the body is W/kg* for speech and W/kg* for data calls. Body worn measurements are made while the phone is in use and worn on the body with a Sony Ericsson accessory supplied with or designated for use with this phone. It is therefore recommended that only Ericsson and Sony Ericsson original accessories be used in conjunction with Sony Ericsson phones. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID Additional information on SAR can be found on the Cellular Telecommunications & Internet Association (CTIA) website at http://www.phonefacts.net. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. P1i 0.98 1.10 1.11 PY7FD022015. PPreflighted byreflighted byPreflighted by ( )( )( ) Renseignements importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition aux signaux radiofréquences (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie radiofréquence auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de toutes les personnes, quels que soient leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée "Débit d'absorption spécifique" (SAR). Les tests de SAR sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le débit d'absorption spécifique puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le débit d'absorption spécifique, reportez-vous au chapitre sur l'utilisation efficace et sans danger de ce présent guide. Le débit d'absorption spécifique le plus élevé relevé par les autorités pour ce modèle de téléphone est de W/kg* lorsqu'il est testé en utilisation près de l'oreille, et de W/kg* (pour les appels vocaux) et de W/kg* (pour les appels de données) lorsqu'il est porté sur le corps. Lors des mesures de port sur le corps, le téléphone était maintenu par un accessoire Sony Ericsson fourni avec ce téléphone ou conçu pour être utilisé avec l'appareil. Il est par conséquent recommandé de n'utiliser que les accessoires authentiques Ericsson et Sony Ericsson avec les téléphones Sony Ericsson. **Avant qu'un modèle de téléphone ne soit offert au public aux États-Unis, la FCC (Federal Communications Commission) doit le tester et certifier qu'il respecte les limites fixées dans les exigences gouvernementales d'exposition sans danger*. Pour chaque modèle, les tests sont effectués en position et aux endroits d'usage …

Text truncated - open the document above for the full version.

Confidentiality Request 2007-03-09 BGLI07:101 SEM/BGLIK Lennart Skoglund +46 8 7572533 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7FD022015 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below listed items for our Mobile Phone type FAD-3022015-BV, FCC ID: PY7FD022015: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, ______________________ Lennart Skoglund Type Approval and verification Sony Ericsson Mobile Communications AB

Short Term Confidentiality Request 2007-03-09 BGLI07:103 SEM/BGLIK Lennart Skoglund +46 8 7572533 Receiver Federal Communications Commission Subject: Request for Temporary Confidentiality FCC ID: PY7FD022015 To Whom It May Concern: In accordance with §0.459 of CFR 47 and Public Notice DA 04-1705, Sony Ericsson Mobile Communications AB requests in addition to the confidentiality request BGLI07:043, temporary confidentiality to May 21, 2007 for the below listed items for our Mobile Phone type FAD-3022015-BV, FCC ID: PY7FD022015. 1. User Manual 2. Test set-up 3. External and Internal photos Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, ______________________ Lennart Skoglund Type Approval and verification Sony Ericsson Mobile Communications AB

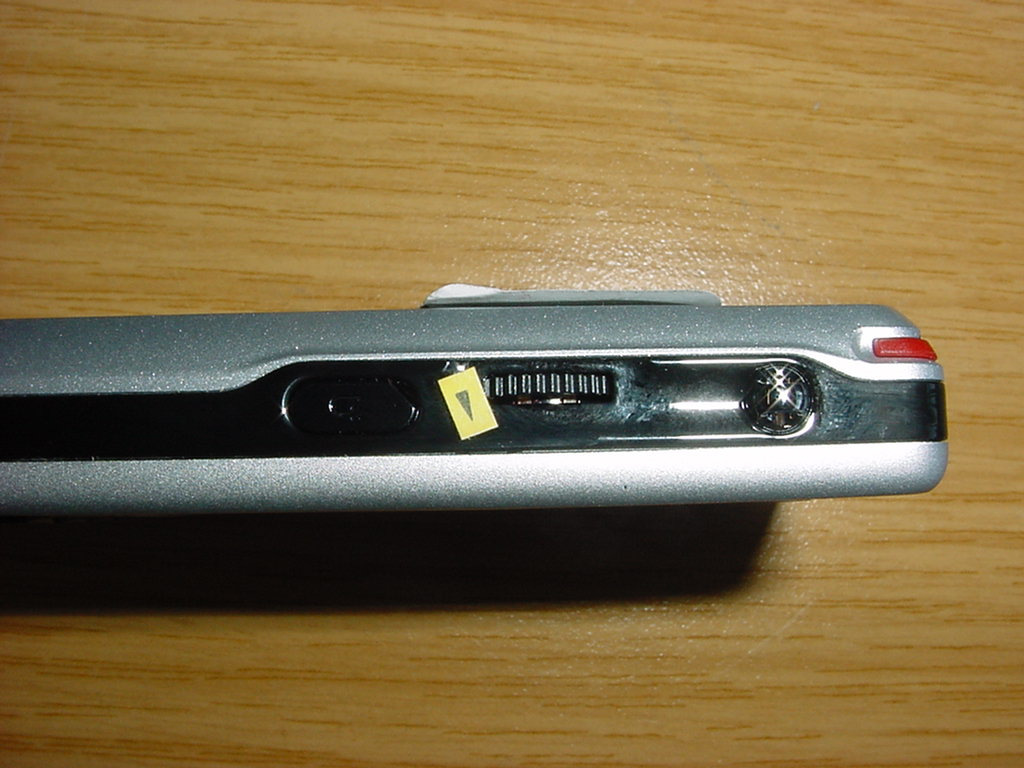

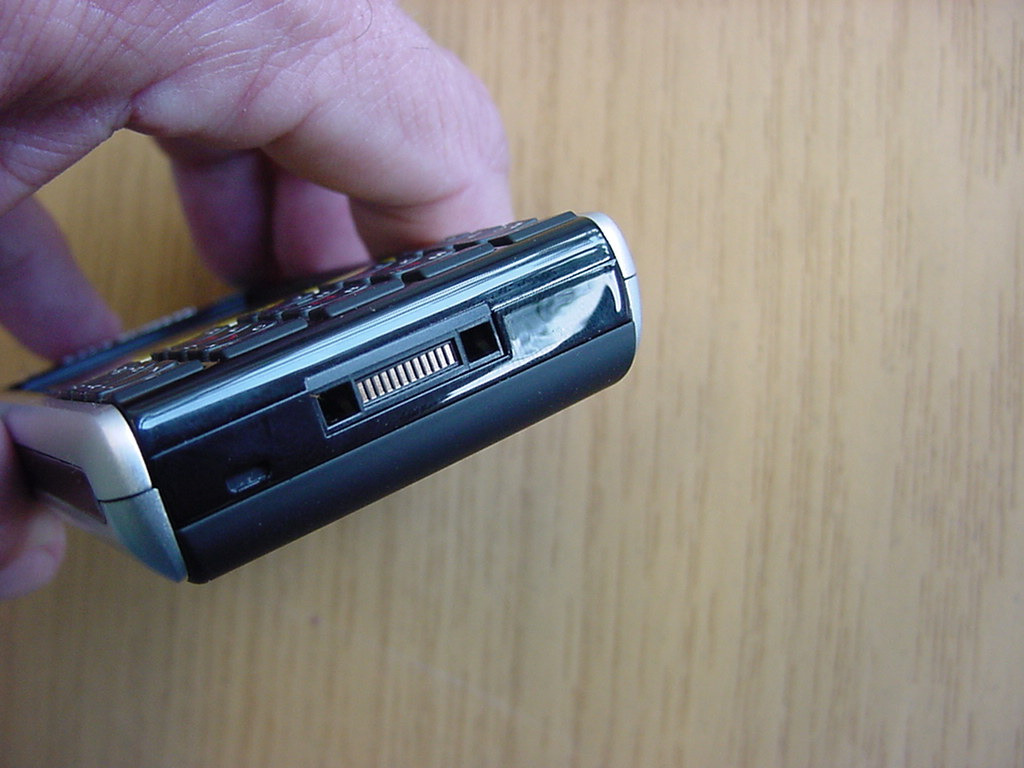

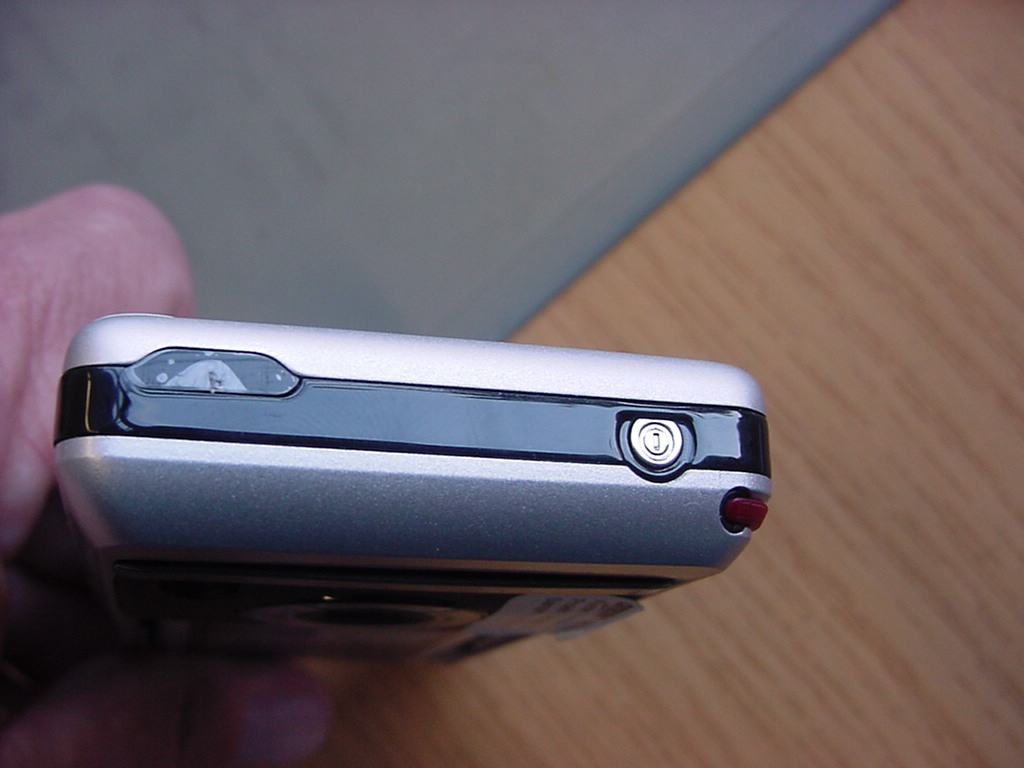

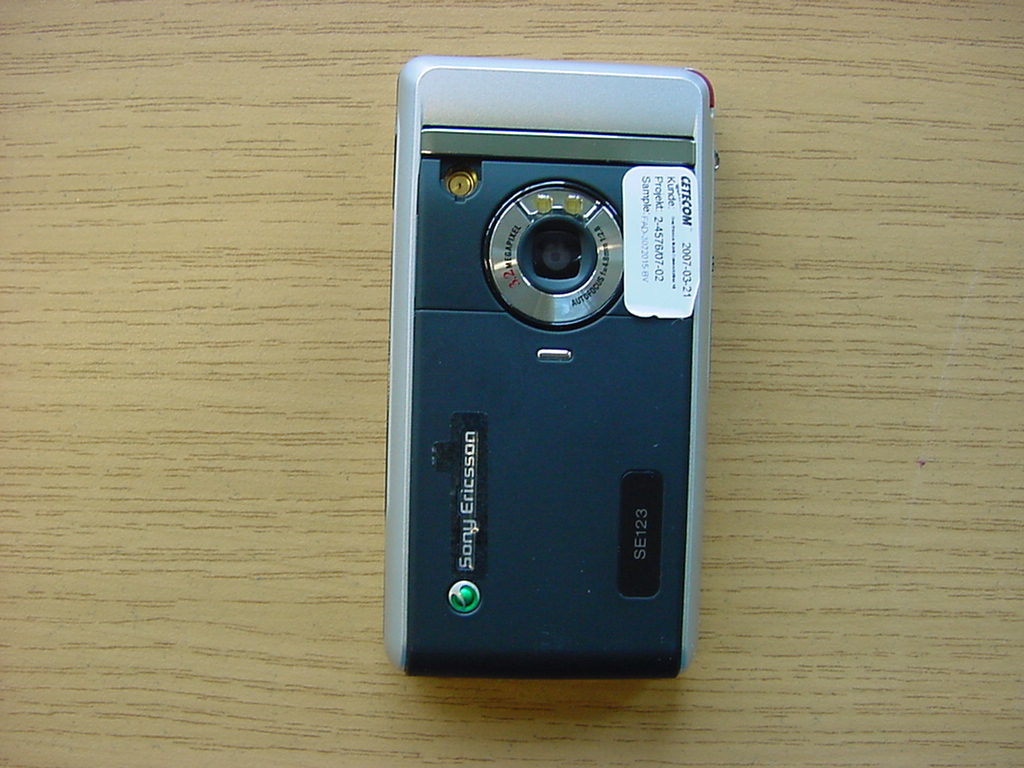

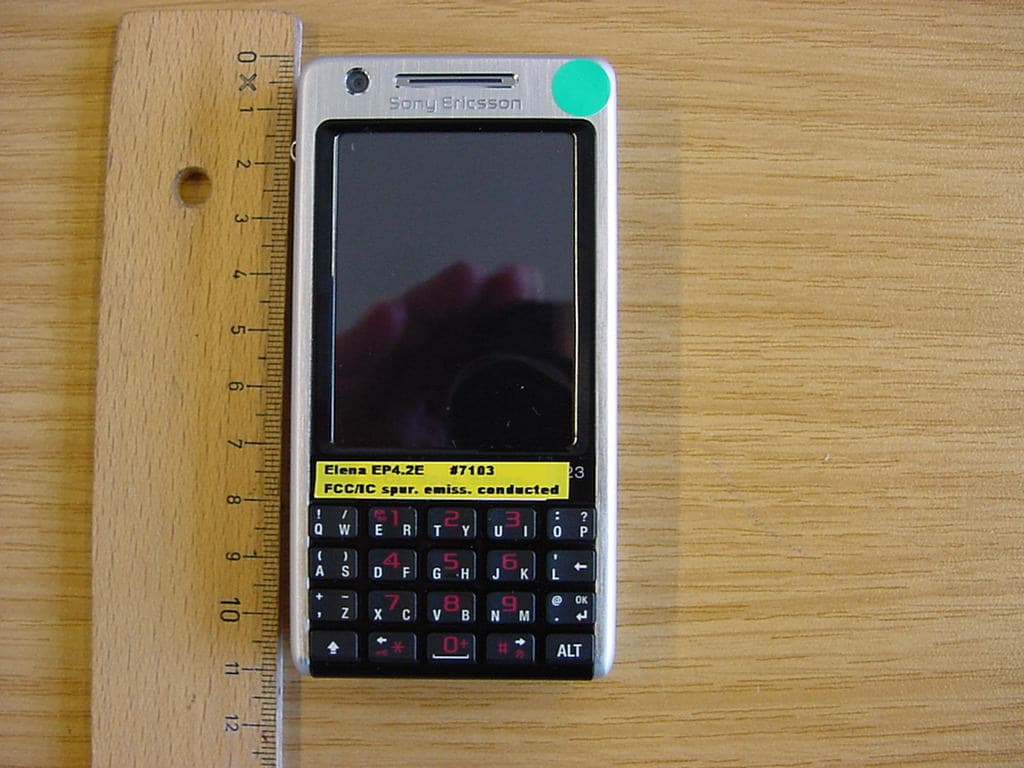

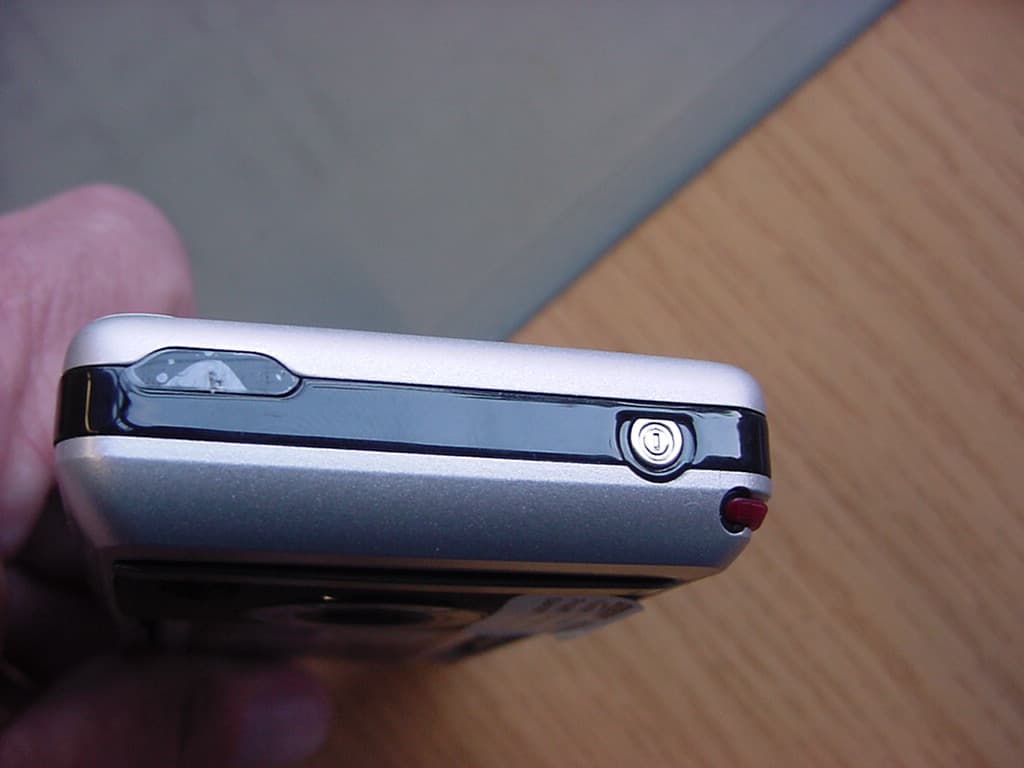

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 20 of 30 7 Annex C: External Photographs of the Equipment Photo 1 : Photo 2 : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 21 of 30 Photo 3 : Photo 4 : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 22 of 30 Photo 5 : Photo 6 : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 23 of 30 Photo 7 :

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/BGODLD Mats Hörlin 151 86-SVV 107 636/1 Uen Approved Checked Date Rev Reference SEM/BGODLDC (Hans-Olov Hallin) 2007-03-15 B 5 Elena, KRH-label, TYPE: FAD-3022015-BV, Made in... 1 General information The format of the label is based on a label SVF 930 1450 (35,0 x 45,0 mm). If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1 (8,0/2,0) Simcard symbol Graphics, height 14 mm. According to 1424-SVF 930 2622/1. Line 2 (12,5/2,0) Sony Ericsson stylized name. Graphics, height 2,0 mm. According to 190 89–EN/LZT 108 5347 Line 3a (14,5/2,0) Model name, “XXXXi” Text, height 1,2 mm. Line 3b (14,5/8,0) Product number of the DPY kit in which the phone is packed. Printed without “R-state”, “DPY 101 0000/000” Text, height 1,2 mm. Line 4a (16,5/2,0) Country approval mark 1 “FCC ID: PY7FD022015” Text, height 1,2 mm. Line 4b (16,5/18,0) Country approval mark 2 “IC:4170B-FD022015” Text, height 1,2 mm. Line 5a (18,5/2,0) Type number of the phone (KRH), “Type: FAD-3022015-BV”. Text, height 1,2 mm. Line 5b (18,5/18,0) ROA and R-state identification field, “G 1 G 2 G 3 HY 1 Y 2 Y 3” Text, height 1,2 mm. “G”,“H”and “Y”-field According to the Type approval report 174 52-SVV 107 636/1. This document will be found in the 1095- for this SVV. Company Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/BGODLD Mats Hörlin 151 86-SVV 107 636/1 Uen Approved Checked Date Rev Reference SEM/BGODLDC (Hans-Olov Hallin) 2007-03-15 B 5 Content Format Line 6 (21,5/2,0) Line 7 in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 7 (23,0/2,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” For serial number). Text, height 1,2 mm. Defined by supplier. Line 8 (26,0/2,0) Line 9a in bar code (only actual number, without data identifier). Bar code, height 4,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 9a (27,5/2,0) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 1301- FAD 109 0117/1 document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 9b (27,5/27,0) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. Line 10a (30,0/2,0) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 10b (30,0/8,0) Location code of where the phone is flashed, if applicable, “FFF” Text, height 1,2 mm. Line 11 (32,5/2,0) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. Line 12a (44,0/2,0) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 12b (44,0/8,0) The Notified body number. “0682” Text, height 2,5 mm. Line 12c (44,0/14,5) Alert sign Graphics, height 5 mm. According to 1424-SVF 930 2517. Company Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/BGODLD Mats Hörlin 151 86-SVV 107 636/1 Uen Approved Checked Date Rev Reference SEM/BGODLDC (Hans-Olov Hallin) 2007-03-15 B 5 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision. Position of label 151 86 - SVV 107 636/P1 A The view below is taken from the back side of the mobile telephone. The label is located below the battery lid.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 24 of 30 8 Annex D: Internal Photographs of the Equipment Photo 1 : Photo 2 : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 25 of 30 Photo 3 : Photo 4 : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 26 of 30 Photo 5 : Photo 6 : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 27 of 30 Photo 7 : Photo 8 : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 28 of 30 Photo 9 : Photo 10 : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 29 of 30 Photo 11 : Photo 12 : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4557-02-02/07 Date: 2007-03-28 Page 30 of 30 Photo 13 :

1 (35) EAB-07:017866 Uen, Rev A, 2007-04-03 Report issued by an Accredited Laboratory Rapport utfärdad av ett ackrediterat laboratorium This laboratory is accredited to SS-EN ISO/IEC 17025 (SWEDAC accreditation no. 1761). SAR Test Report, FCC ID: PY7FD022015 Document number: EAB-07:017866 Uen Rev A Date of report: 2007-04-03 Testing laboratory: Ericsson EMF Research Laboratory Ericsson AB SE-164 80 Stockholm Sweden Company/Client: Lars Melin Sony Ericsson Mobile Communications AB Box 64 SE-164 94 Stockholm Sweden Tests performed by: Johan Danestig Date of tests: Mars 19-26 2007 Manufacturer and market name(s) of device: Sony Ericsson Mobile Communications AB, P1i Testing has been performed in accordance with: IEEE Std 1528, IEC 62209-1, FCC OET Bulletin 65 Supplement C Test results: The tested device complies with the requirements in respect of all parameters subject to the test. Additional information: Signature: Test engineer _______________________ Johan Danestig Research Engineer [email protected] Tel: +46 8 508 765 41 Quality manager _______________________ Christer Törnevik Director, EMF Health and Safety [email protected] Tel: +46 8 7641235 2 (35) EAB-07:017866 Uen, Rev A, 2007-04-03 Table of Contents Table of Contents .................................................................................................................................. 2 1 Summary of SAR Test Report ....................................................................................................... 3 1.1 Equipment under test (EUT)................................................................................................... 3 1.2 Results ................................................................................................................................... 3 2 General information ....................................................................................................................... 4 3 Equipment under test .................................................................................................................... 4 4 Test equipment............................................................................................................................... 6 4.1 Dosimetric system.................................................................................................................. 6 4.2 Additional equipment.............................................................................................................. 6 5 Electrical parameters of the tissue simulating liquids ................................................................ 7 6 SAR system performance check...................................................................................................8 7 Uncertainty evaluation of SAR measurement system DASY4 according to IEEE 1528............ 9 8 Test results ................................................................................................................................... 10 8.1 Results for the GSM1900 mode (head) ................................................................................ 11 8.2 Results for the GSM1900 mode (body) ................................................................................ 11 8.3 Results for the GPRS(2Tx)1900 mode (body)...................................................................... 12 8.4 Results for the GPRS(1Tx)1900 mode (body)...................................................................... 12 8.5 Results for the WLAN 802.11b mode (head)........................................................................ 13 8.6 Results for the WLAN 802.11b mode (body) ........................................................................ 13 8.7 Multi-mode maximum SAR................................................................................................... 14 9 Conclusion ................................................................................................................................... 15 10 References.................................................................................................................................... 15 11 Revision History........................................................................................................................... 15 APPENDIX A: Photographs of the EUT ..............................................................................................16 APPENDIX B: Photographs of the EUT when positioned for SAR measurements......................... 17 APPENDIX C: SAR distribution plots for the system performance checks .................................... 19 APPENDIX D: SAR distribution plots ................................................................................................. 24 APPENDIX E: Probe calibration parameters for ES3DV3, S/N: 3113 ............................................... 35 3 (35) EAB-07:017866 Uen, Rev A, 2007-04-03 1 Summary of SAR Test Report 1 1.1 Equipment under test (EUT) Serial Number CB5A09U0AL (Cellular), CB5A09U02P (WLAN) Type Number FAD-3022015-BV Device ID FCC ID:PY7FD022015 IC: 4170B-FD022015 Accessories used in testing Headset HPM-62, Bluetooth headset HBH-DS970 Battery BST-40 Hardware status Pre-production EP4.2 Notes - Frequency Band [MHz] 850 900 1800 1900 2100 2450 Modes GSM GPRS WCDMA GSM GPRS GSM GPRS GSM GPRS WCDMA WCDMA WLAN Supported … … ; ; ; … ; ; Covered by report … … … … ; … … ; Data and connectivity GPRS class 10, GPRS capability class B, Bluetooth class 2, WLAN 802.11b Exposure environment General public 1.2 Results The maximum SAR values are given in the table below. The device conforms to the requirements of the relevant standards when the maximum SAR value is less than or equal to the limit. Results applicable to the 1g SAR limit of 1.6 W/kg: Mode Channel/ Frequency (MHz) Position Max SAR1g for single mode operation Max SAR1g for multi- mode operation 2 SAR1g limit 3 Result HEAD GSM 1900 810 / 1909.8 Left, Chee…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4576-02-02/07 Date: 2007-03-29 Page 1 of 35 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: IC 3463A-1 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4576-02-02/07 Applicant : Sony Ericsson Mobile Communications AB Type : FAD-3022015-BV Test Standard : FCC Part 24 RSS-133 FCC ID : PY7FD022015 Certification No. IC : 4170B-FD022015 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4576-02-02/07 Date: 2007-03-29 Page 2 of 35 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 ADDITIONAL EUT INFORMATION FOR IC CANADA (APPENDIX 2).......................................................................... 5 1.6 TEST SETUP............................…

Text truncated - open the document above for the full version.
