PY7FF031011GSM 850/1800/1900 PCMCIA Card

EDGE PC Card Sony Ericsson EDGE PC Cards GC82, GC83 and GC85 User Guide 2Contents Content Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Services Available Over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 EDGE PC Card Hardware Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Start Using Wireless Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Wireless Manager Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Wireless Manager Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Windows Log on Using GPRS/EDGE Dial-up Connection . . . . . . . . . . . . . 19 Create a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 GPRS Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 CSD Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Modify a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Delete a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Using your Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Browse the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Send and Receive emails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Wireless Manager Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . 25 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Wireless Manager Telephony Settings Screen . . . . . . . . . . . . . . 27 Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Forward Calls (Divert). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Restrict Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Wireless Manager SMS Messages Screen . . . . . . . . . . . . . . . . . . 33 SMS Manager Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Wireless Manager Phone Book Screen . . . . . . . . . . . . . . . . . . . . 37 The Phone Book Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Phone Book Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Wireless Manager Online Services Screen . . . . . . . . . . . . . . . . . 41 Contents3 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Wireless Manager Icon Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Software Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 SIM Card Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Sony Ericsson Support Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Guidelines for Safe and Efficient Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Term . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Limitation of liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Disputes and Governing Law . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Appendix A - Connection Parameters . . . . . . . . . . . . . . . . . . . . . 62 General Connection Parameters for CSD and GPRS . . . . . . . . . . . . . . . . 62 CSD Specific Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 TCP/IP Optimisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Glossary . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Date April 6, 2004 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Sony Ericsson Mobile Communications AB requests confidentiality for the following products: FCC ID Number Product Title/Model PY7FF031011 GC83/Type FAF-1031011-BV For the product stated above, we request that the following information be held confidential: • Electrical diagrams. • Component listing. • Technical description. • Operational description. • Block diagrams. No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Sony Ericsson Mobile Communications AB trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile PC Card. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Michael Bower M2M Com Sony Ericsson Mobile Communications AB 1 Lakeside Road, Aerospace Centre Farnborough, Hampshire, GU14 6XP, UK Phone: +441252551631 E-mail: [email protected]

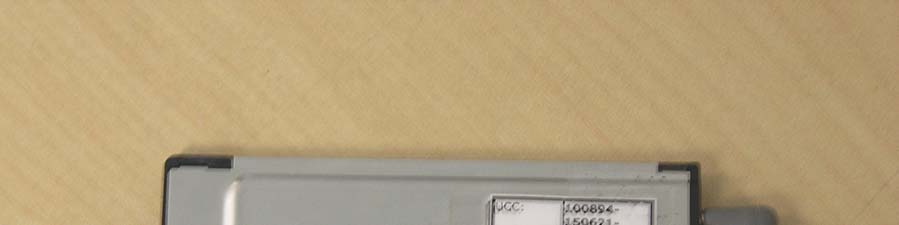

External photos GC-83 EUT – Top view External photos GC-83 EUT – Bottom view

Public SPECIFICATION 1 (5) Prepared (also subject responsible if other) No. SEM/BML/D Lee Griffin (919) 472-1166 151 86-KRD 102 331 Uen Approved Checked Date Rev Reference SEM/BML/D (Lee Griffin) 2004-04-19 A Marking Drawing GC83 Type FAF-1031011-BV Label The label used for marking is defined in the Manufacturing Specification on the media used. Placing The label shall be placed on the back of the PC card according to the Assembly Drawing (151 88) for the KRD. Print layout Printing area 38 x 26 mm. 1 2 3 4 5 IMEI: XXXXXX-XX-XXXXXX-X 6 7 SN: XXXXXXXXXX 8 9 UPC: XXXXXXXXXXXX Lines: Line 10 Line 11 Line 12 1.0mm 0.5mm 1.0mm 0.5mm Public SPECIFICATION 2 (5) Prepared (also subject responsible if other) No. SEM/BML/D Lee Griffin (919) 472-1166 2/151 86-KRD 102 326 Uen Approved Checked Date Rev Reference SEM/BML/D (Lee Griffin) 2004-04-19 A Definitions Line 1a Sony Ericsson trademark 1b Production Week as bar code 2a Approval marks ( 1,2 ) 2b Production Week as characters 3 Industry Canada marking and FCC approval marking 4 IMEI number as bar code 5 IMEI number as characters 6 Serial number as bar-code 7 Serial number as characters 8 UPC number as bar code 9 UPC number as characters 10 Product number, Product Variant, R-state (PRIM) Product Variant, Var: Generic=<blank>, AWS= /54, Cingular= /30 11 Type number 12a Marking of Country of Origin 12b Product Name “GC83” Sony Ericsson trademark Sony Ericsson and the Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Height min. 3 mm. Approval marks 1. CE Marking. According to 1424 - SVF 930 52. 2. The Notified Body number. It shall be CE0682. The print size (height) for the notified body number and the corresponding approval marks shall be minimum 5 mm. This is a regulatory requirement. Local approval marks This field shall be used for local approval marks in countries where special marking is required. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). Height 3.5 mm. IMEI number as characters 010371-00-yyyyyy-d The IMEI number has format: TAC1-TAC2-SNR-CD TAC1 = First six digits of the Type Public SPECIFICATION 3 (5) Prepared (also subject responsible if other) No. SEM/BML/D Lee Griffin (919) 472-1166 2/151 86-KRD 102 326 Uen Approved Checked Date Rev Reference SEM/BML/D (Lee Griffin) 2004-04-19 A Approval code after assignment from the Notified Body. TAC2 = Last two digits of the Type Approval code after assignment from the Notified Body. SNR = A serial number “yyyyyy” from 000 000 to 999 999. CD = A Check Digit “d”, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Height 3.5 mm. Serial number as characters According to Ericsson group standard 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Tecom (Taiwan)= S48 Elcoteq (Monterrey, Mexico)= TE6 UPC number as bar code The Sony Ericsson UPC Number, unless customer part number is required: XXXXXXXXXXXX According to AT&T PM-100-1-03. Height 3.5 mm. UPC number as characters According to AT&T PM-100-1-03. Type number The type number is FAF-1031011-BV and shall be printed “TYPE FAF-1031011-BV”. FCC approval marking FCC approval marking: consists of the text: FCC ID: PY7FF031011 Within a frame with height > 1.5 mm. Industry Canada marking Industry Canada approval marking: consists of text: IC: 4170B-FF031011 Public SPECIFICATION 4 (5) Prepared (also subject responsible if other) No. SEM/BML/D Lee Griffin (919) 472-1166 2/151 86-KRD 102 326 Uen Approved Checked Date Rev Reference SEM/BML/D (Lee Griffin) 2004-04-19 A Production Week as bar code According to Ericsson corporate standard 102 01 - 109. Height 3.5 mm Production week The production week shall be given as yyWww (yy = year, ww = week) KRD number The KRD number for the product. R-state The R-state for the KRD according to the 1095 for the KRD. Marking of origin Marking of origin and shall be printed “Made in Country of Origin”. Printing regulations Fontface: OCR-B Type size: min. 1.3 mm Line spacing: min. 0.3 mm Trade mark height: min. 3 mm Approval marks height: min. 5 mm Colour: Black Margins: 1.0mm clear margin on Left & Right edges 0.5mm clear margin on Top & Bottom edges Layout: Lines 10, 11 & 12 should be Justified to the Bottom & Right label margins. Public SPECIFICATION 5 (5) Prepared (also subject responsible if other) No. SEM/BML/D Lee Griffin (919) 472-1166 2/151 86-KRD 102 326 Uen Approved Checked Date Rev Reference SEM/BML/D (Lee Griffin) 2004-04-19 A Print layout for prototypes Line 2 is replaced with text with alternative shown below. Type size min. 5 mm. DEMO GC83 PROTOTYPE EP1 GC83 PROTOTYPE EP2 GC83 PROTOTYPE FP1 etc. Line 3 and 4, the field shall be filled with the test IMEI numbers: 001003-00-yyyyyy-d The test IMEI number is: 001003-00-and the SNR are between 114yyy ---> 115yyy (the IMEI Check Digit “d” number must be added) Line 5 and 6 are serial numbers. Line 7 and 8 are replaced with text "NOT TYPE APPROVED". Text height min. 2 mm. Under this text the following fields should be put: • Production week, Product number, R-state. Text height min. 1.3 mm. • Text “Made in Country of Origin”. Text height min. 1.3 mm. LINES 1 2 XXXXXXXXXX 3 4 XXXXXX-XX-XXXXXX-X 5 6 XXXXXXXXXX 7 NOT TYPE APPROVED 8 yyWww KRD 102 331 PXX Made in XXXXXXXXX Label Location

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 \\stupendousman\rootappsdata\emc\projects_emc\broadcom(mobilink)\635- 2004_gc83\sar\sar_635_2004_fcc_850_1800_1900.doc © Copyright by CETECOM SAR Test Report No. SAR_635_2004_FCC_850_1800_1900 for the Sony Ericsson Mobile Communications AB PC – Card Radio module for GSM 850MHz, 1800 MHz & 1900MHz Model Number: FAF-1031011-BV FCC ID: PY7FF031011 Date of Report: 04/26/2004 Date of issue: 04/26/2004 Report Copy No.: 01 SAR Test Report No. SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Page 2 of 31 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 3.2 Front View of the Equipment under Investigation ......................................................7 4 SUBJECT OF INVESTIGATION ........................................................................................8 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4 SAR Limit ...................................................................................................................9 5 THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1 General Requirements.............................................................................................10 5.2 Device Operating Next to a Person’s Ear ................................................................10 5.3 Test Positions ..........................................................................................................11 5.4 Test positions of device relative to head..................................................................11 5.5 Test to be Performed ...............................................................................................14 5.6 Body-worn and Other Configurations.......................................................................14 5.7 Procedure for assessing the peak spatial-average SAR .........................................15 5.8 Determination of the largest peak spatial-average SAR ..........................................17 6 THE MEASUREMENT SYSTEM ......................................................................................18 6.1 Robot system specification ......................................................................................18 6.2 Probe and amplifier specification .............................................................................19 6.3 Phantoms.................................................................................................................19 SAR Test Report No. SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Page 3 of 31 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.4 SAR measurement procedure .................................................................................20 6.5 SARA2 Interpolation and Extrapolation schemes ....................................................20 6.6 Interpolation of 2D area scan...................................................................................21 6.7 Extrapolation of 3D scan..........................................................................................21 6.8 Interpolation of 3D scan and volume averaging.......................................................21 7 UNCERTAINTY ASSESSMENT.......................................................................................23 7.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................24 7.2 Table of Measurement Uncertainty Values for SAR System Verification ................25 8 TEST RESULTS SUMMARY............................................................................................26 8.1 Conducted Output Power.........................................................................................26 8.2 Test Positions and Configurations ...........................................................................26 8.3 GPRS Operating Mode ............................................................................................26 8.4 850 MHz band GPRS 2 timeslots results in PC #1..................................................27 8.5 1900 MHz band GPRS 2 timeslots results in PC #1................................................27 8.6 850 MHz band GPRS 2 timeslots results in PC #…

Text truncated - open the document above for the full version.

SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix A Plots Page 1 of 39 Date / Time: 10/8/2003 3:38:14 PM Position: lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: parallel to phantom Test Frequency: 835 Shape File: broadcom381lap_newant.c sv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averagi ng: 6 Batteries Liquid: 850 Type: body Conductivity: 0.983 Relative Permittivity: 55.62 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.439 0.437 Change during Scan (%) -0.24 Max E-field (V/m): 37.93 1g 10g Max SAR (W/kg) 1.191 0.769 X Y Z Location of Max (mm): 75.1 3.0 -187.7 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix A Plots Page 2 of 39 Date / Time: 10/8/2003 4:17:41 PM Position: lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: perpendicular to phantom Test Frequency: 835 Shape File: broadcom381lap_newant.c sv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 10/03/2003 Liquid: 850 Type: body Conductivity: 0.983 Relative Permittivity: 55.62 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.138 0.138 Change during Scan (%) 0.25 Max E-field (V/m): 19.75 1g 10g Max SAR (W/kg) 0.333 0.221 X Y Z Location of Max (mm): 75.1 -3.0 -164.7 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix A Plots Page 3 of 39 Date / Time: 10/8/2003 5:10:20 PM Position: bystander 1cm Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: vertical Test Frequency: 835 Shape File: broadcom381side_newant. csv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 10/03/2003 Liquid: 850 Type: body Conductivity: 0.983 Relative Permittivity: 55.62 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.337 0.338 Change during Scan (%) 0.33 Max E-field (V/m): 30.56 1g 10g Max SAR (W/kg) 0.796 0.516 X Y Z Location of Max (mm): 75.1 -40.0 -137.7 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix A Plots Page 4 of 39 Date / Time: 10/8/2003 4:44:57 PM Position: bystander 1cm Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: horizontal Test Frequency: 835 Shape File: broadcom381side_newant. csv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 10/03/2003 Liquid: 850 Type: body Conductivity: 0.983 Relative Permittivity: 55.62 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.224 0.230 Change during Scan (%) 2.61 Max E-field (V/m): 26.54 1g 10g Max SAR (W/kg) 0.579 0.364 X Y Z Location of Max (mm): 75.0 -26.0 -160.4 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix A Plots Page 5 of 39 Date / Time: 10/9/2003 9:46:13 AM Position: lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC82 card Head Rotation: 0 Antenna: parallel to phantom Test Frequency: 824.2 Shape File: broadcom381lap_newant.c sv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 10/03/2003 Liquid: 850 Type: body Conductivity: 0.977 Relative Permittivity: 56.2 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.352 0.354 Change during Scan (%) 0.50 Max E-field (V/m): 33.06 1g 10g Max SAR (W/kg) 0.905 0.599 X Y Z Location of Max (mm): 75.1 -8.0 -186.8 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -200.0 -110.0 10.0 SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix A Plots Page 6 of 39 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.493 0.485 Change during Scan (%) -1.54 Max E-field (V/m): 38.82 1g 10g Max SAR (W/kg) 1.264 0.833 X Y Z Location of Max (mm): 75.1 -4.0 -170.1 AREA SCAN: Min Max Steps Y -40.0 40.0 10.0 Scan Extent: Z -200.0 -120.0 10.0 Date / Time: 4/6/2004 1:25:08 PM Position: Lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: GC83 Head Rotation: 0 Antenna: parallel Test Frequency: 848.8 Shape File: broadcom381lap_newant.c sv Power Level: max 2 timeslots TX Probe: 0106 Cal File: 106_835_BODY_28 X Y Z Air 415 805 371 DCP 12.81 5.68 11.4 Cal Factors: Lin 0.357 0.357 0.357 Amp Gain: 2 Averaging: 6 Batteries Replaced: 03/23/04 Liquid: 850 Type: Body Conductivity: 0.987 Relative Permittivity: 55.36 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date …

Text truncated - open the document above for the full version.

SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 1 of 18 Photo 1. EUT Top SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 2 of 18 Photo 2. EUT bottom SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 3 of 18 Photo 3. PC #1 lap antenna parallel SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 4 of 18 Photo 4. PC #1 lap antenna perpendicular SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 5 of 18 Photo 5. PC #1 bystander antenna vertical SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 6 of 18 Photo 6. PC #1 bystander antenna horizontal SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 7 of 18 Photo 7. PC #1 bystander distance SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 8 of 18 Photo 8. PC #2 lap antenna parallel SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 9 of 18 Photo 9. PC #2 lap antenna perpendicular SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 10 of 18 Photo 10. PC #2 bystander antenna vertical SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 11 of 18 Photo 11. PC #2 bystander antenna horizontal SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 12 of 18 Photo 12. PC #2 bystander distance SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 13 of 18 Photo 13. PC #3 lap antenna parallel SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 14 of 18 Photo 14. PC #3 lap antenna perpendicular SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 15 of 18 Photo 15. PC #3 bystander antenna vertical SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 16 of 18 Photo 16. PC #3 bystander antenna horizontal SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 17 of 18 Photo 17. PC #3 bystander distance SAR Test Report No : SAR_635_2004_FCC_850_1800_1900 Date of Report: 04/26/2004 Appendix B Photos Page 18 of 18 Photo 18. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No: SAR_635_2004_FCC_850_1800_1900 Date of Report:04/26/2004 Appendix C Page 1 of 38 Tissue Parameters 850MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide Di-electric constants measured below. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 10/07/03 900 41.22 0.979 10/09/03 900 41.36 0.982 04/06/04 900 41.29 0.980 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide Di-electric constants measured below. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 825.25 56.06 0.974 836.5 55.62 0.983 10/07/03 847.75 55.44 0.979 825.25 56.2 0.977 836.5 55.4 0.986 10/09/03 847.75 55.33 0.992 04/06/04 848.8 55.36 0.987 SAR Test Report No: SAR_635_2004_FCC_850_1800_1900 Date of Report:04/26/2004 Appendix C Page 2 of 38 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured below. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 10/08/03 1900 39.77 1.420 10/10/03 1900 40.02 1.420 10/13/03 1900 40.06 1.440 04/06/04 1900 39.97 1.429 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured below. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 1850.2 53.42 1.539 1880 53.26 1.545 10/08/03 1909.8 53.02 1.551 1850.2 52.98 1.571 1880 52.46 1.582 10/10/03 1909.8 52.12 1.593 1850.2 53.07 1.569 1880 52.90 1.582 10/13/03 1909.8 52.78 1.588 04/06/04 1880 52.65 1.549 Environment 10/07/03 – 10/13/03 & 04/06/04: Temperature: 20.1 °C – 23.9°C Humidity: 45% _ 55 % SAR Test Report No: SAR_635_2004_FCC_850_1800_1900 Date of Report:04/26/2004 Appendix C Page 3 of 38 Test Equipment:Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date…

Text truncated - open the document above for the full version.
