PY7FF051011GSM 850/900/1800/1900 and WLAN IEEE802.11g PC card

GC89 Sony Ericsson GC89 User Guide 2Contents Content Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Services Available Over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 GC89 Hardware Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Create a EDGE/GPRS or CSD Connection . . . . . . . . . . . . . . . . . . 14 GPRS/EDGE Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 CSD Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Modify a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Delete a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Using your Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Browse the Internet via a GSM/GPRS/EDGE Connection . . . . . . . . . . . . . 17 Send and Receive emails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Create a Wireless LAN Connection . . . . . . . . . . . . . . . . . . . . . . . 18 Making a Basic Network Connection Windows 2000/XP . . . . . . . . . . . . . . 18 Making a Basic Network Connection in Windows Millennium . . . . . . . . . . 28 Making a Basic Network Connection in Windows 98SE. . . . . . . . . . . . . . . 33 Using the Sony Ericsson Wireless Utility . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Advanced Wireless LAN Features . . . . . . . . . . . . . . . . . . . . . . . . 44 Setting up an Ad Hoc Group Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Configuring Your Ad Hoc Network with No Security . . . . . . . . . . . . . . . . . . 45 Configuring Your Ad Hoc Network with WEP Security . . . . . . . . . . . . . . . . 46 Sharing an Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Static IP Number Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Wireless LAN Adapter Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 GC89 WLAN Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Concurrent WLAN and GPRS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Wireless Manager Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . 51 GSM Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Wireless LAN Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Usage Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Contents3 Start Using Wireless Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Wireless Manager Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Icon Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Making Windows ® Network Connections Visible . . . . . . . . . . . . . . . . . . . . 57 Wireless Manager GSM/GPRS/EDGE Preferences . . . . . . . . . . . . . . . . . . 58 Windows ® Log on Using GPRS/EDGE Dial-up Connection . . . . . . . . . . . . 62 Wireless Manager Telephony Settings Screen . . . . . . . . . . . . . . 63 Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Frequency Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Forward Calls (Divert). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Restrict Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Wireless Manager SMS Messages Screen . . . . . . . . . . . . . . . . . . 70 SMS Manager Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Wireless Manager Phone Book Screen . . . . . . . . . . . . . . . . . . . . 74 The Phone Book Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Phone Book Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Wireless Manager Online Services Screen . . . . . . . . . . . . . . . . . 78 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Status Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Status Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Date April 29, 2005 ATESTATION LETTER Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern: FCC ID Model Name / Type Number PY7FF051011 GC89 / Type FAF-1051011-BV We, Sony Ericsson Mobile Communications AB, hereby declare that the above mentioned equipment was tested under the worst case operating modes for this submission. Although the equipment supports the EDGE mode of operation, the output power in this mode is significantly lower than in the operating modes used for testing. Hence, no testing was required to be performed in the EDGE mode of operation. Yours sincerely, Michael Bower Type Approval Engineer Sony Ericsson Mobile Communications AB 1 Lakeside Road, Aerospace Centre Farnborough, Hampshire, GU14 6XP, UK Phone: +441252551631 E-mail: [email protected]

Date April 27, 2005 CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Sony Ericsson Mobile Communications AB requests confidentiality for the following products: FCC ID Number Product Title/Model PY7FF051011 GC89/Type FAF-1051011-BV For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams and PCBs submitted as Equipment Authorization Electronic Filing attachment: “schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description”. 4. Part List and Tune Up Info submitted as Equipment Authorization Electronic Filing attachment: “Part List / Tune Up Info”. The above exhibits contain Sony Ericsson Mobile Communications AB trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our cellular modules. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please contact me at the address shown below. Sincerely, Michael Bower Sony Ericsson Mobile Communications AB 1 Lakeside Road, Aerospace Centre Farnborough, Hampshire, GU14 6XP, UK Phone: +441252551631 E-mail: [email protected]

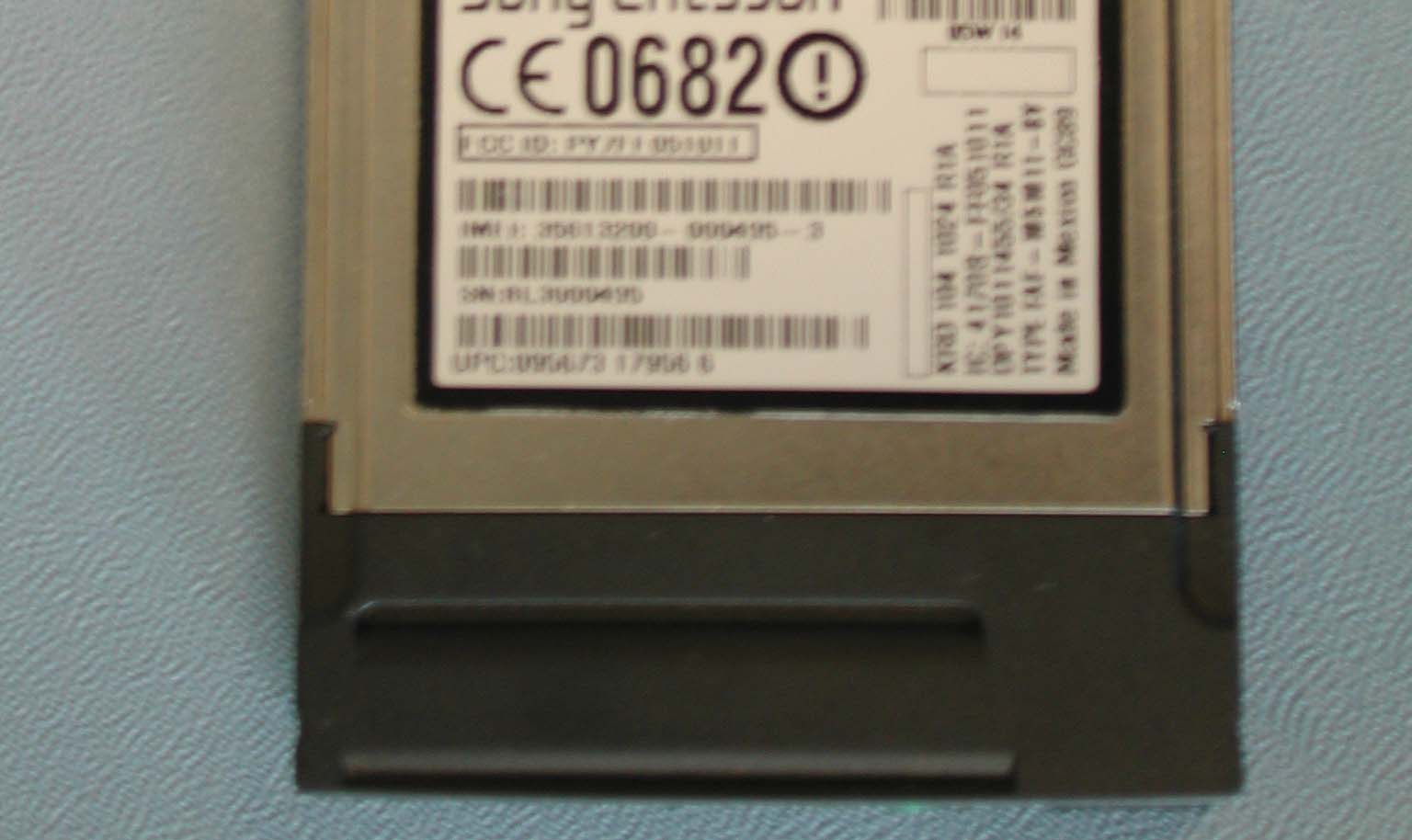

Company Internal SPECIFICATION 1 (9) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pete Saunders 151 86-KRD 104 1024 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/TP (Pam Wood) 2005-02-21 C Approved according to 1776-KRD 104 1024-1 Marking Drawing GC89 Type FAF-1051011-BV Label The label used for marking is defined in the Manufacturing Specification on the media used. Placing The label shall be placed on the back of the PC card according to the Assembly Drawing (151 88) for the KRD. Print layout Printing area 38 x 26 mm. 1a 2a 3a 4 5 IMEI: XXXXXXXX-XXXXXX-X 6 7 SN: XXXXXXXXXX 8 9 UPC: XXXXXXXXXXXX Lines: Line 10 Line 11 Line 12 Line 13 Line 14 Line 15 1.0mm 0.5mm 0.5mm 1.0mm (Line 3b) (Line 1b) (Line 2b) Company Internal SPECIFICATION 2 (9) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pete Saunders 151 86-KRD 104 1024 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/TP (Pam Wood) 2005-02-21 C Definitions Line 1a Sony Ericsson trademark 1b Production Week as bar code 2a Approval marks (1,2 and 3) 2b Production Week as characters 3a FCC approval marking and Repair year/week/revision re-work code 3b Left blank – space for country approval mark 4 IMEI number as bar code 5 IMEI number as characters 6 Serial number as bar-code 7 Serial number as characters 8 UPC number as bar code 9 UPC number as characters 10 Left blank – space for country approval mark 11 KRD number, R-state 12 Industry Canada marking 13 Product (DPY) number, R-state 14 Type number 15a Marking of origin 15b Product Name “GC89” Company Internal SPECIFICATION 3 (9) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pete Saunders 151 86-KRD 104 1024 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/TP (Pam Wood) 2005-02-21 C Sony Ericsson trademark Sony Ericsson and the Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Height min. 3 mm. Production Week as bar code According to Ericsson corporate standard 102 01 - 109. Height 3.5 mm Production week The production week shall be given as yyWww (yy = year, ww = week) 1. CE Marking. According to 1424 - SVF 930 52. 2. The Notified Body number. It shall be 0682. The print size (height) for the notified body number and the corresponding approval marks shall be minimum 5 mm. This is a regulatory requirement. 3. Alert sign (at same height as CE mark) Approval marks FCC approval marking: consists of the text: FCC ID: PY7FF051011 Within a frame with height > 1.5 mm. FCC approval marking Repair year/week/revision re-work code For service use only. The field format shall be Rywwzz, repair year/week/revision. When the unit leaves manufacturing this field shall be left blank with space for the 6- digit repair code to be added during re-work at service center. Company Internal SPECIFICATION 4 (9) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pete Saunders 151 86-KRD 104 1024 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/TP (Pam Wood) 2005-02-21 C Left blank – space for country approval mark (The Australian A-tick symbol and text will be placed here once approvals are gained) Country approval mark 1 IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). Height 3.5 mm. The IMEI number has format: TAC SNR - CD TAC = First eight digits of the Type Approval code after assignment from the Notified Body: SNR = A serial number from 000 000 to 999 999. CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. IMEI number as characters Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Height 3.5 mm. According to Ericsson group standard 0012- 101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Celestica (Monterrey, Mexico) = BL3 Serial number as characters UPC number as bar code According to Ericsson group standard 0012- 101. Code 128 Type B. Height 3.5mm. UPC number as characters According to AT&T PM-100-1-03. Country approval mark 2 Left blank – space for country approval mark (Brazilian Anatel approval mark and text will be placed here once approvals are gained) Company Internal SPECIFICATION 5 (9) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pete Saunders 151 86-KRD 104 1024 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/TP (Pam Wood) 2005-02-21 C KRD number The KRD number for the product. R-state The R-state for the KRD according to the 1095 for the KRD. Industry Canada approval marking: consists of text: IC: 4170B-FF051011 Industry Canada marking Product (DPY) number The DPY number for the product. R-state The R-state for the KRD according to the 1095 for the KRD. Type number The type number is FAF-1051011-BV and shall be printed “TYPE FAF-1051011-BV”. Marking of origin Marking of origin and shall be printed “Made in Mexico”. Company Internal SPECIFICATION 6 (9) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pete Saunders 151 86-KRD 104 1024 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/TP (Pam Wood) 2005-02-21 C Printing regulations Fontface: OCR-B Type size: min. 1.3 mm Line spacing: min. 0.3 mm Trade mark height: min. 3 mm Approval marks height: min. 5 mm Colour: Black Margins: 1.0mm clear margin on Left & Right edges 0.5mm clear margin on Top & Bottom edges Layout: Lines 10 to 15 should be Justified to the Bottom & Right label margins. Company Internal SPECIFICATION 7 (9) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pete Saunders 151 86-KRD 104 1024 Uen Approved Checked Date Rev Reference GBFA/SEM/BMD/TP (Pam Wood) 2005-02-21 C Completed label; NOTE – label shown as per factory configuration = repair re-work code not shown. Company Internal SPECIFICATION 8 (9) Prepared (also subject responsible if other) No. GBFA/SEM/BMD/TP Pete Saunders 151 86-KRD 104 1024 Uen Approved Checked Date Rev Re…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) Measurements were performed on the DASY4 System Test Report Serial No: RFI/SARE1/RP70868JD08A This Test Report Is Issued Under The Authority Of Andrew Brown, Operations Manager: Tested By: Scott D'Adamo Checked By: Joe Lomako Report Copy No: PDF01 Issue Date: 03 May 2005 Test Dates: 02 March 2005 to 30 March 2005 It should be noted that the standard, OET Bulletin 65 Supplement C: (2001-01) is not listed on RFI’s current UKAS schedule and is therefore “not UKAS accredited”. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 2 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 3 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Client Information .............................................................................................................4 2. Equipment Under Test (EUT) ...........................................................................................5 3. Test Specification, Methods and Procedures ................................................................8 4. Deviations from the Test Specification...........................................................................9 5. Operation of the EUT During Testing............................................................................10 6. Summary of Test Results ...............................................................................................11 7. Measurements, Examinations and Derived Results ....................................................12 8. SAR Measurement System.............................................................................................19 9. SAR Safety Limits ...........................................................................................................20 10. Details of SAR Evaluation ............................................................................................21 11. Evaluation Procedures .................................................................................................22 12. System Validation .........................................................................................................23 13. Simulated Tissues ........................................................................................................24 14. Tissue Parameters ........................................................................................................25 15. DASY4 Systems Specifications ...................................................................................26 16. Validation Results – 900 MHz Band (Body) ................................................................27 17. Validation Results – 1800 MHz Band (Body) ..............................................................28 18. Validation Results – 900 MHz Band (Body) ................................................................29 19. Validation Results – 1800 MHz Band (Body) ..............................................................30 20. Measurement Uncertainty ............................................................................................31 Appendix 1. Test Equipment Used ....................................................................................34 Appendix 2. SAR Distribution Scans ................................................................................36 Appendix 3. Test Configuration Photograph....................................................................38 Appendix 4. Calibration Data .............................................................................................40 Appendix 5. Photographs of EUT ......................................................................................42 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 4 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) 1. Client Information Company Name: Sony Ericsson Mobile Communications AB. Address: 1 Lakeside Road Aerospace Centre Farnborough Hampshire GU14 6XP Contact Name: Mr M Bower Test Laboratory Company Name: RFI Global Services Ltd. Address: Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ. Contact Name: Mr A Brown RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 5 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the date of receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Brand Name: Sony Ericsson Model Name or Number: GC89 Unique Type Identification: Prototype 3A FCC Identification: PY7 FF051011 Serial Number: 004601016299589 Battery Serial Number: Not Applicable Country of Manufacture: None Stated Date of Receipt: 02 March 2005 2.2. Accessories Description: External Antenna Brand Name: None Stated Model Name or Number: None Stated Unique Type Identification: None Stated Serial Number: None Stated Battery Serial Number: Not Applicable Country of Manufacture: None Stated Date of Receipt: 02 March 20…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 31 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) 20. Measurement Uncertainty No measurement or test can ever be perfect and the imperfections give rise to error of measurement in the results. Consequently, the result of a measurement is only an approximation to the value of the measurand (the specific quantity subject to measurement) and is only complete when accompanied by a statement of the uncertainty of the approximation. The expression of uncertainty of a measurement result allows realistic comparison of results with reference values and limits given in specifications and standards. The uncertainty of the result may need to be taken into account when interpreting the measurement results. The reported expanded uncertainties below are based on a standard uncertainty multiplied by an appropriate coverage factor, such that a confidence level of approximately 95% is maintained. For the purposes of this document “approximately” is interpreted as meaning “effectively” or “for most practical purposes”. Measurement Type Range Confidence Level Calculated Uncertainty Specific Absorption Rate GSM 850 95% ± 17.12 Specific Absorption Rate GSM 1900 95% ± 17.12 The methods used to calculate the above uncertainties are in line with those recommended within the various measurement specifications. Where measurement specifications do not include guidelines for the evaluation of measurement uncertainty, the published guidance of the appropriate accreditation body is followed. Measurement uncertainties in SAR measurements are difficult to quantify due to several variables including biological, physiological, and environment. However, the estimated measurement uncertainties in SAR are less than 30%. According to ANSI/IEEE C95.3, the overall uncertainties are difficult to assess and will vary with the type of meter and usage situation. However, accuracy’s of ±1 to 3 dB can be expected in practice, with greater uncertainties in near-field situations and at higher frequencies (shorter wavelengths), or areas where large reflecting objects are present. Under optimum measurement conditions, SAR measurement uncertainties of at least ±2 dB can be expected. According to CENELEC, typical worst-case uncertainty of field measurements is ±5 dB. For well- defined modulation characteristics the uncertainty can be reduced to ±3 dB. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 32 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) Measurement Uncertainty (Continued) Specific Absorption Rate Uncertainty at 850 MHz, GSM Modulation Scheme calculated in accordance with IEEE 1528-200X Standard Uncertainty Type Source of uncertainty + Value - Value Probability Distribution Divisor c i + u (dBμV) - u (dBμV) υ i or υ eff Note B Probe calibration 8.900 8.900 normal (k=2) 2.0000 1.0000 4.450 4.450 ∞ B Axial Isotropy 0.100 0.100 normal (k=2) 2.0000 1.0000 0.050 0.050 ∞ B Hemispherical Isotropy 0.100 0.100 normal (k=2) 2.0000 1.0000 0.050 0.050 ∞ B Spatial Resolution 0.500 0.500 Rectangular 1.7321 1.0000 0.289 0.289 ∞ B Boundary Effect 0.769 0.769 Rectangular 1.7321 1.0000 0.444 0.444 ∞ B Linearity 2.330 2.330 Rectangular 1.7321 1.0000 1.345 1.345 ∞ B Detection Limits 0.200 0.200 Rectangular 1.7321 1.0000 0.115 0.115 ∞ B Readout Electronics 0.650 0.650 normal (k=2) 2.0000 1.0000 0.325 0.325 ∞ B Response Time 0.000 0.000 Rectangular 1.7321 1.0000 0.000 0.000 ∞ B Integration Time 0.005 0.005 Rectangular 1.7321 1.0000 0.003 0.003 ∞ B RF Ambinet conditions 3.000 3.000 Rectangular 1.7321 1.0000 1.732 1.732 ∞ B Probe Positioner Mechanical Restrictions 4.000 4.000 Rectangular 1.7321 1.0000 2.309 2.309 ∞ B Probe Positioning with regard to Phantom Shell 2.850 2.850 Rectangular 1.7321 1.0000 1.645 1.645 ∞ B Extrapolation and integration/ Maximum SAR evaluation 5.080 5.080 Rectangular 1.7321 1.0000 2.933 2.933 ∞ A Test Sample Positioning 0.584 0.584 normal (k=1) 1.0000 1.0000 0.584 0.584 10 A Device Holder uncertainty 0.154 0.154 normal (k=1) 1.0000 1.0000 0.154 0.154 10 B Phantom Uncertainty 4.000 4.000 Rectangular 1.7321 1.0000 2.309 2.309 ∞ B Drit of output power 5.000 5.000 Rectangular 1.7321 1.0000 2.887 2.887 ∞ B Liquid Conductivity (target value) 5.000 5.000 Rectangular 1.7321 1.0000 2.887 2.887 ∞ B Liquid Conductivity (measured value) 2.440 2.440 Rectangular 1.7321 1.0000 1.409 1.409 ∞ B Liquid Permittivity (target value) 5.000 5.000 Rectangular 1.7321 1.0000 2.887 2.887 ∞ B Liquid Permittivity (measured value) 2.440 2.440 Rectangular 1.7321 1.0000 1.409 1.409 ∞ Combined standard uncertainty t-distribution 8.74 8.74 >500 >500 Expanded uncertainty k = 1.96 17.12 17.12 >500 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 33 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) Measurement Uncertainty (Continued) Specific Absorption Rate Uncertainty at 1900 MHz, GSM Modulation Scheme calculated in accordance with IEEE 1528-200X Standard Uncertainty Type Source of uncertainty + Value - Value Probability Distribution Divisor c i + u (dBμV) - u (dBμV) υ i or υ eff Note B Probe calibration 8.900 8.900 normal (k=2) 2.0000 1.0000 4.450 4.450 ∞ B Axail Isotropy 0.100 0.100 normal (k=2) 2.0000 1.0000 0.050 0.050 ∞ B Hemispherical Isotropy 0.100 0.100 normal (k=2) 2.0000 1.0000 0.050 0.050 ∞ B Spatial Resolution 0.500 0.500 Rectangular 1.7321 1.0000 0.289 0.289 ∞ B Boundary Effect 0.769 0.769 Rectangular 1.7321 1.0000 0.444 0.444 ∞ B Linearity 2.330 2.330 Rectangular 1.7321 1.0000 1.345 1.345 ∞ B Detection Limits 0.200 0.200 Rectangular 1.7321 1.0000 0.115 0.115 ∞ B Readout Electronics 0.650 0.650 normal (k=2) 2.0000 1.0000 0.325 0.325 ∞ B Response Time 0.000…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 38 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) Appendix 3. Test Configuration Photograph This appendix contains the following photograph(s): Photograph Reference Number Title PHT/SAR_Configuration Test configuration for the measurement of Specific Absorption Rate (SAR) RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 39 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) PHT/SAR_Configuration RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 40 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) Appendix 4. Calibration Data This appendix contains the calibration data and certificates. Asset Number Date Title A1185 15 July 2005 ET3DV6 – SN: 1528 A1235 13 May 2003 D900V2 – SN: 124 A1190 15 April 2004 D1800V2 – SN: 264 A1186 10 June 2004 ET3DV6 – SN: 1529 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 41 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank.

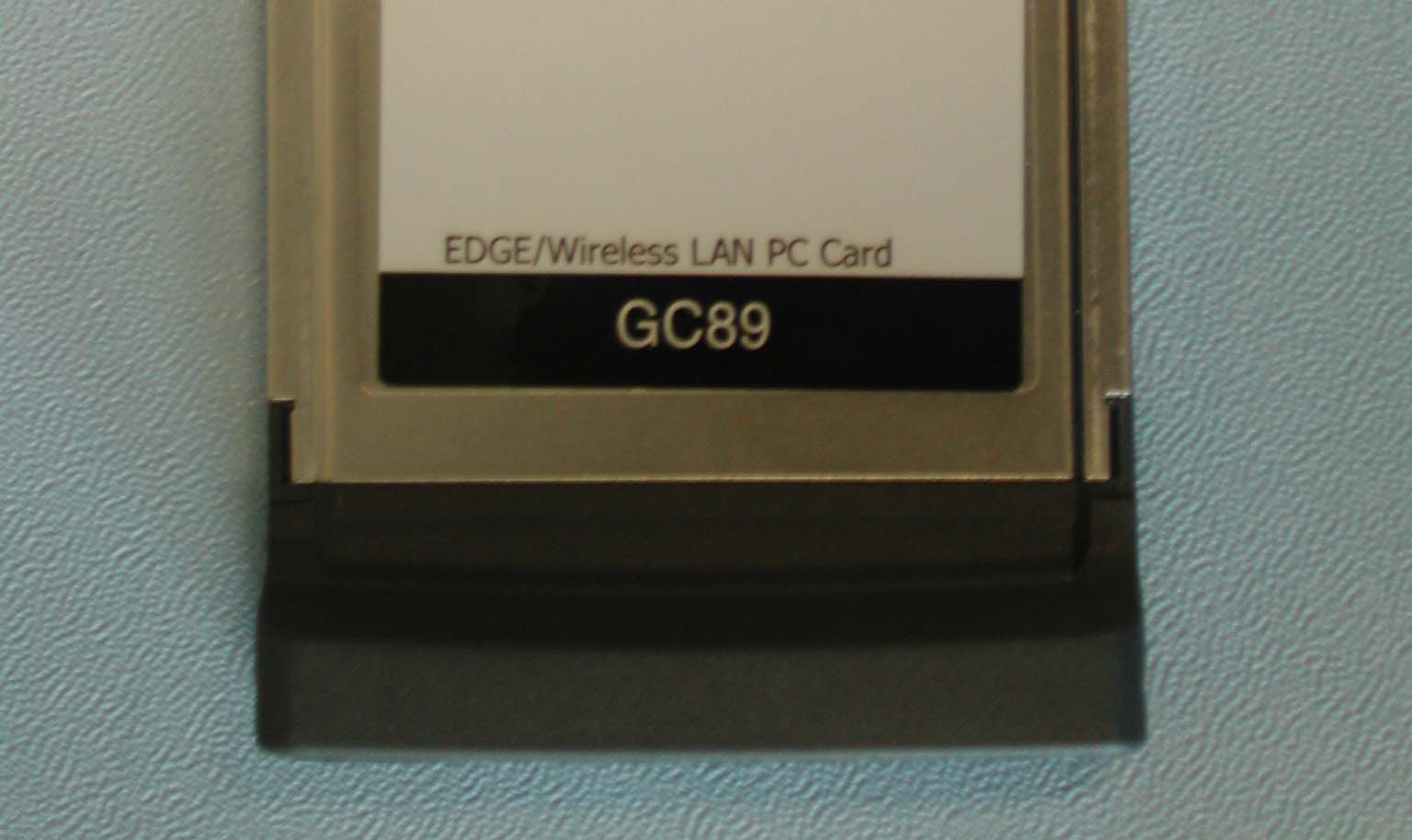

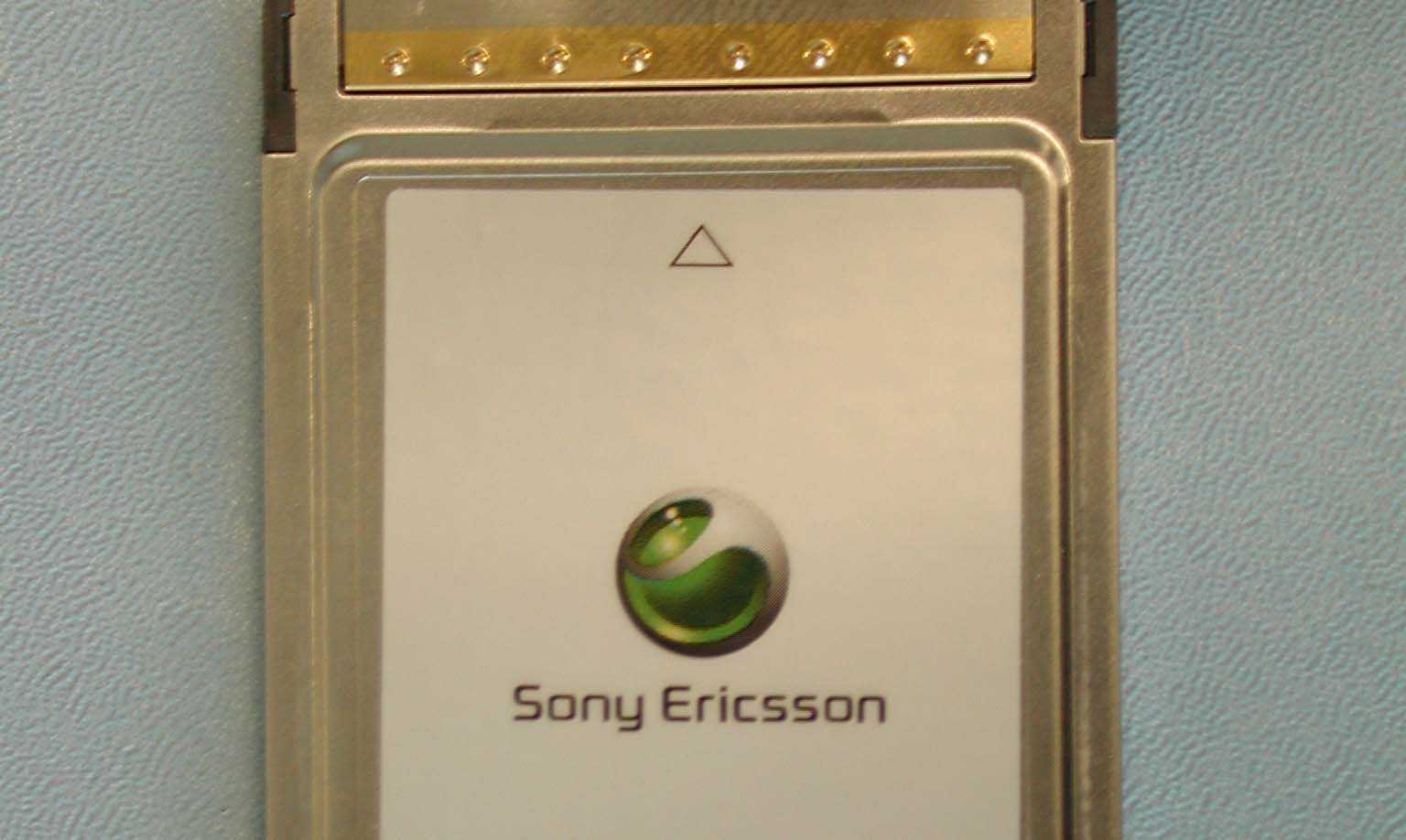

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 42 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5. Photographs of EUT This appendix contains the following photographs: Photo Reference Number Title PHT/70868/001 COMPAQ Laptop 0 Degrees to Phantom with Integral Antenna PHT/70868/002 COMPAQ Laptop 0 Degrees to Phantom with External Antenna 0 Degrees PHT/70868/003 COMPAQ Laptop 0 Degrees to Phantom with External Antenna 90 Degrees PHT/70868/004 COMPAQ Laptop 90 Degrees to Phantom with Integral Antenna PHT/70868/005 COMPAQ Laptop 90 Degrees to Phantom with External Antenna 0 Degrees PHT/70868/006 COMPAQ Laptop 90 Degrees to Phantom with External Antenna 90 Degrees PHT/70868/007 DELL Laptop 0 Degrees to Phantom with Integral Antenna PHT/70868/008 DELL Laptop 0 Degrees to Phantom with External Antenna 0 Degrees PHT/70868/009 DELL Laptop 0 Degrees to Phantom with External Antenna 90 Degrees PHT/70868/010 DELL Laptop 90 Degrees to Phantom with Integral Antenna PHT/70868/011 DELL Laptop 90 Degrees to Phantom with External Antenna 0 Degrees PHT/70868/012 DELL Laptop 90 Degrees to Phantom with External Antenna 90 Degrees PHT/70868/013 Front View of EUT with External Antenna PHT/70868/014 Front View of EUT without External Antenna PHT/70868/015 Rear View of EUT with External Antenna PHT/70868/016 Rear View of EUT without External Antenna PHT/70868/017 900 MHz MSL Fluid Level PHT/70868/018 1900 MHz MSL Fluid Level RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 43 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Supplement C: (2001-01) PHT/70868/001: COMPAQ Laptop 0 Degrees to Phantom with Integral Antenna RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE1/RP70868JD08A Page 44 of 60 Issue Date: 03 May 2005 Test Of: Sony Ericsson Mobile Communications AB. GC89 Mobile Station. To: OET Bulletin 65 Suppl…

Text truncated - open the document above for the full version.
